Kruse Asset Management

(1 of 15 Rigs Available)
"CONTRACTOR-BUILT" RIG!
ANY AND ALL OFFERS WILL GO TO SELLER!
(2) NATIONAL 12P-160 MUD PUMPS p/b (2) GE 752's

Call NOW! (800) 952-1973


Listing Details

PART OF A 15 RIG PACKAGE

Rig 23  - 25,000 Capacity with 5" Drill Pipe

DRAW-WORKS National 1320 UE  powered by (2) GE 750 traction motors, type B1 catheads, Elmagco brake SN #9352

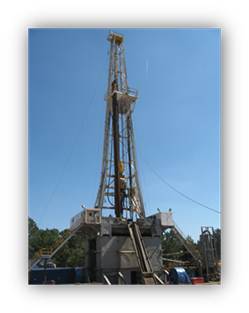

Substructure & Mast Inland Steel USA 28B455, enclosed box substructure 31.75' setback, Lee C Moore cantelever 1,000,000# hook load 157’

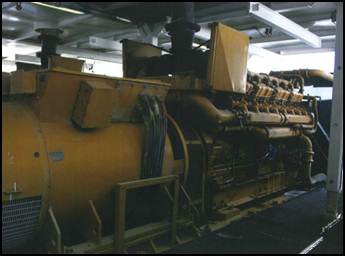

Motor Package 1 - 3406 Caterpillar (Cold Start), (4) 399 Caterpillar engines,( 4) Synchronos AC generators (600 Volt), (2) - Quincey QSI-245 air compressors  60 HP electric motors

SCR Baylor Thyrig system, top drive SCR

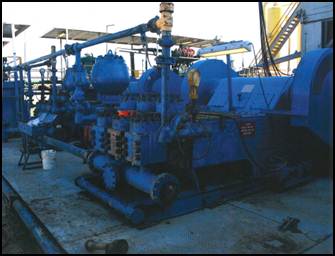

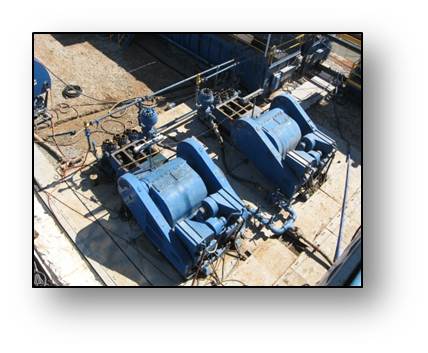

Mud Pumps 2 - National 12P-160 Mud Pumps – (2)  each GE 752 HP electric motors

Rotating & Traveling Equipment National C-375 rotary table, block National 500 ton, swivel Cont. Emsco L8-400, kelly 5 1/4" hex kelly 45'

Blowout Prevention Annular Hydril  13 5/8” 5,000 psi, D Rams QOP 13 5/8” 10,000 psi, S Ram QOP 13 5/8” 10,000 psi, Koomey Type 80 - 20 bottle precharge system (3,000 psi), house is on off drillers side of floor. Remotes - driller console, ground unit remote, 3"x4" choke manifold system with gauges and manual chokes - 9 valves total

Handling Tools / Auxiliary Equipment Varco HP-41 hyd. unit (runs)(1)TW-60 iron roughneck, (1) 400H pipes spinners, Wildcat ADS-1 automatic driller Martin Decker type E weight indicator, (1) Martin Decker E-Totco reader survey tool

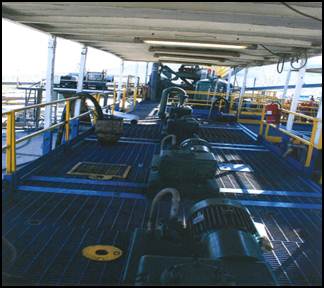

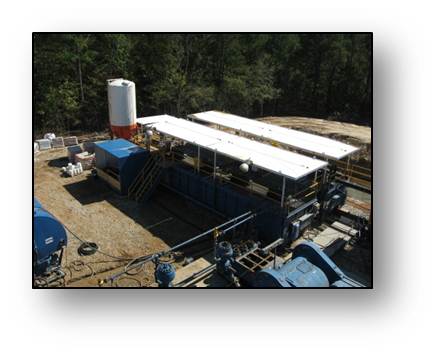

Doghouse, Water, Fuel, & Mud Tanks 3 mud tank system (1115 bbl), 3 derrick flo-line mud cleaners with (1) 2 cone desander and (1) 16 cone desilter, (1) vacu-flo 1200 degasser, (2) 8”X6”X11” 100 HP cent. pumps for desander and desilter, (2) 8”X6”X14” 100 HP cent. pumps for degasser, (2) 6”X5”X14”  50 HP charger pumps, (2) 2”X3”X13” 15 HP cent. pumps for trip tank, (2) Halco low pressure mixing hoppers, (9) agitators on mud tanks,  (2) water tanks 500 bbls each, (1) fuel tank-20,000 gal(1) heated top and bottom doghouse,  two story parts house, fire box storage for flammables

Drill Pipe & Drill Collars 603 joints drill pipe 19.50# S-135 4 1/2IF, 38 joints HWDP spiral 40.30# 4 ½” IF, 12 joints  4 1/2" spiral DC, 10 joints 8" spiral DC 6 5/8”  regular connections

Top Drive  Rebuilt 500 ton National Top Drive PS-149-H
