PART OF A 15 RIG PACKAGE

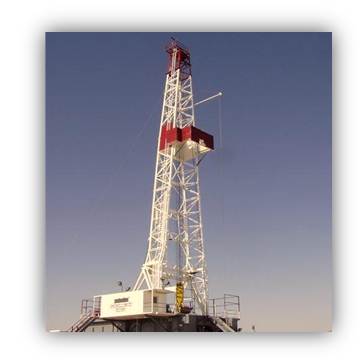

Rig 10 - 15,000' Capacity with 4 1/2" Drill pipe

Draw-works  Gardner-Denver 800 with a 342 Parmac hydromatic, 1 1/4" drilling line, powered by (2) C-15 CAT diesel engines with (2) National 195-80 torque converter.

Substructure & Mast  DSI 142' mast, 796,000# hook load on 12 lines, Pyramid 25' substructure, setback capacity 750,000# with a 6’ pony sub

Generators (2) 455kw AC generators powered by (2) CAT 3456 diesel engines,  (1) MCC Capable of 480v, 220v or 120v electricity

Mud Pumps (2) FB-1300 HP triplex driven by (2) 399 CAT diesel engines

Rotating & Traveling Equipment  National rotary table - 27 1/2“, Ideco Big Shorty - 400 Ton, Ideco 815 swivel - 500 Ton, 5 1/4" hex x 44' long kelly, BJ type DB tongs

Blowout Prevention  13 5/8" annular BOP - 5000 psi, 13 5/8" double gate ram BOP - 5,000 psi, Model 120-gallon automatic accumulator, 5-station air actuated remote control panel,  4" x 3"x 5,000 psi, choke manifold with gauges and (1) manual choke

Doghouse, Water, Fuel & Mud Tanks  Heated doghouse, (1) fuel tank - 18,000 gal, (1) water tank - 400 bbl, (2) tank mud system 850 bbl with (4) 5”x6”x11” centrifugal pumps on low pressure system, mud agitators, mud guns, (2) Fluid System shakers (1) Fluid System desander (1) Fluid System desilter

Handling Tools/Auxiliary Equipment  (2) air winches, (1) Pilot II automatic driller, (1) Sure Shot 7 degree A-1 survey instrument, Martin Decker type D weight indicator, (1) heated safety shack

Drill Pipe & Drill Collars  15,000' - 4 1/2" 16.60# Grade G Drill Pipe, (14) 6.25" x 2.25" x 30' slick drill collars
