Rigs sit in Odessa, Texas - Ready for Inspection and offers!

Call NOW! (800) 952-1973


Listing Details

Buy separately, or as a Package!

RIG NO. 17

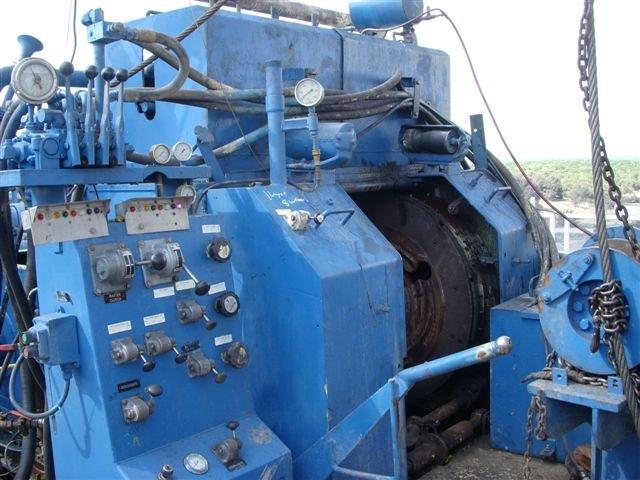

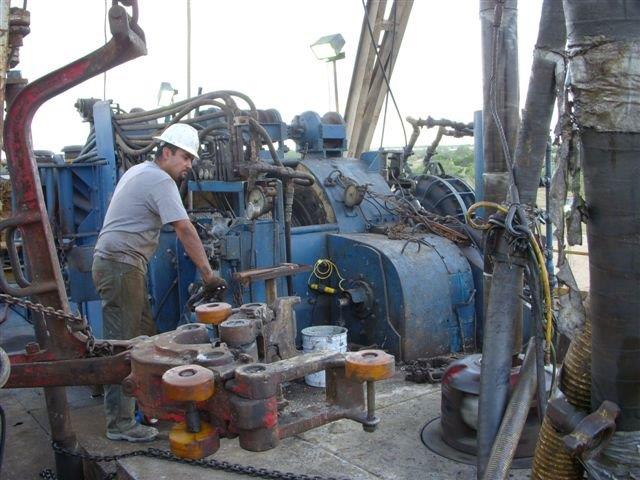

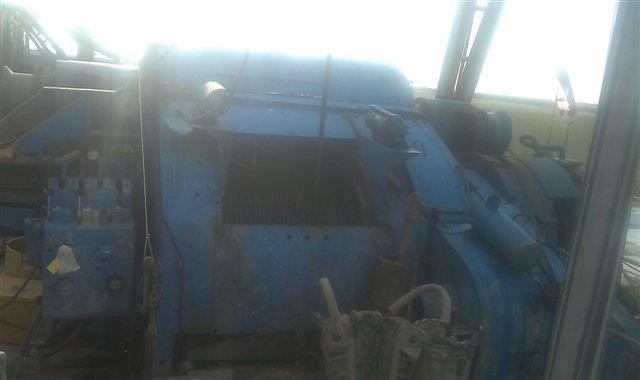

DRAWWORKS

GARDNER-DENVER 500 Single Drum Mechanical Drawworks, 1-1/8” LEBUS Grooving, FOSTER Makeup & Breakout Catheads, Crown-O-Matic, PARMAC 202 Hydromatic

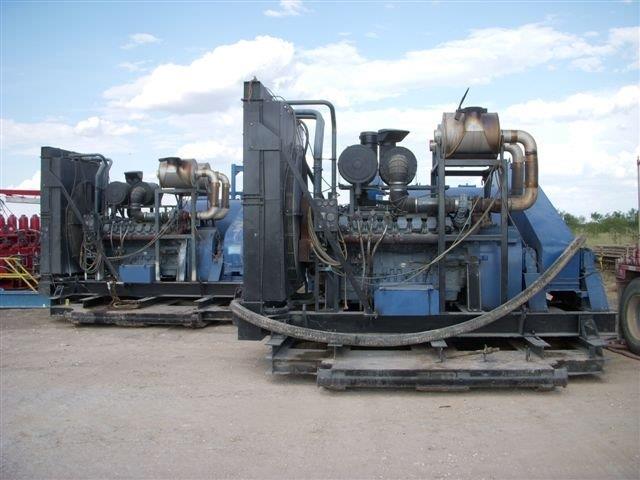

In-Line 2-Engine Compound, p/b (2) DETROIT Series 60 Diesel Engines, Rated @ 630 HP/Each, ALLISON 955 Torque Converters, 390Q Air Compressor

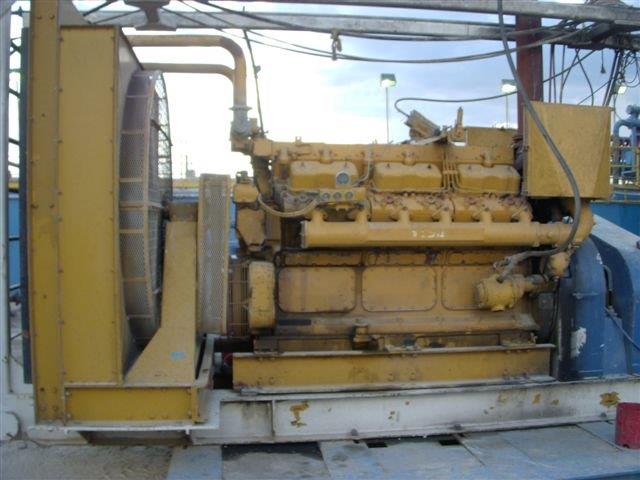

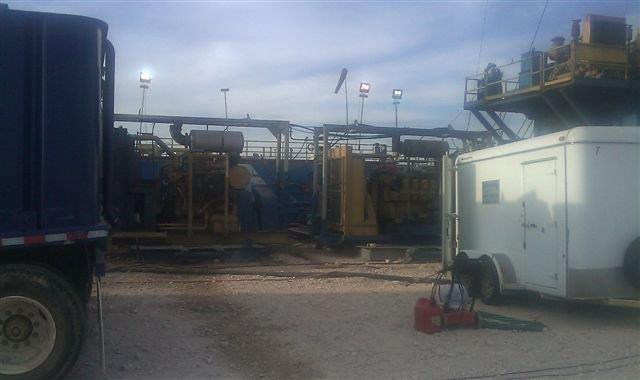

POWER SYSTEM

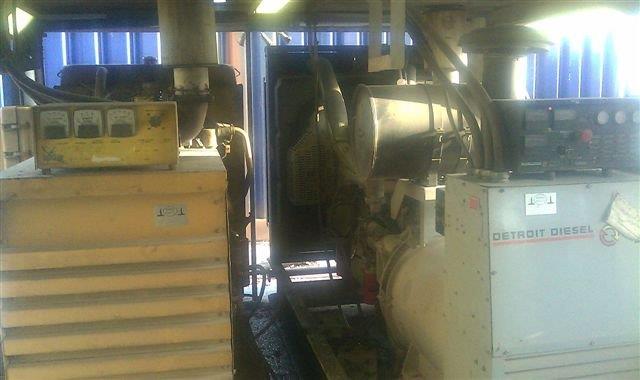

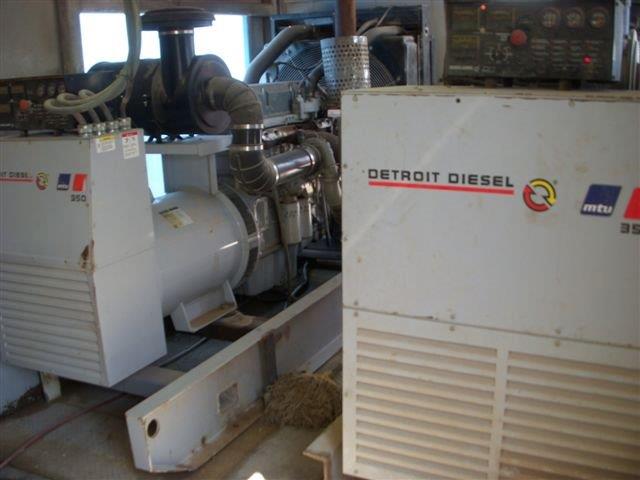

(2) DETROIT/MARATHON Series 60 350 KW Diesel Generators, CAT 3306 250 KW Diesel Engine, Motor Control Center, CURTIS 30 HP Electric Screw Compressor

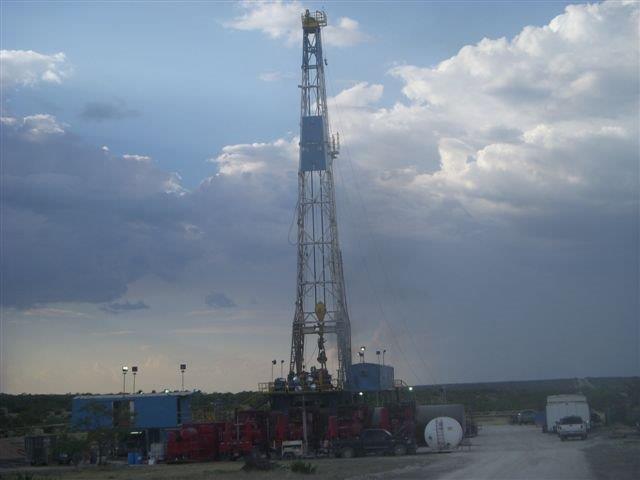

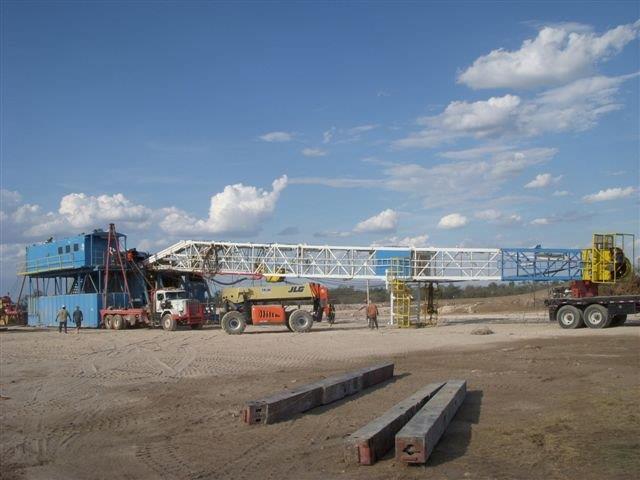

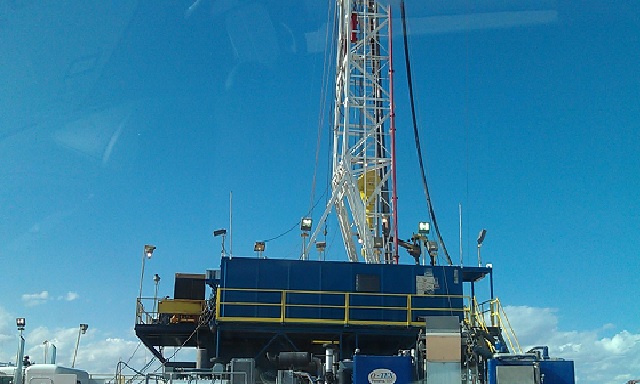

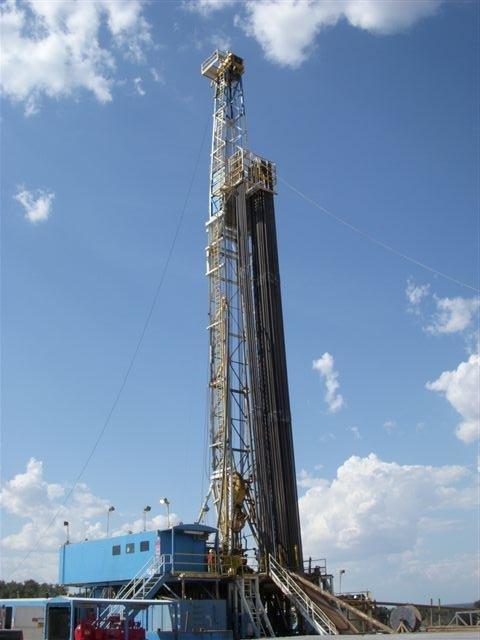

MAST

LEE C. MOORE 127’H Mast, 288,000 Lb. Static Hook Load, w/(4) 36” x 1-1/8” Cluster Sheaves f/8-Line String to the Block

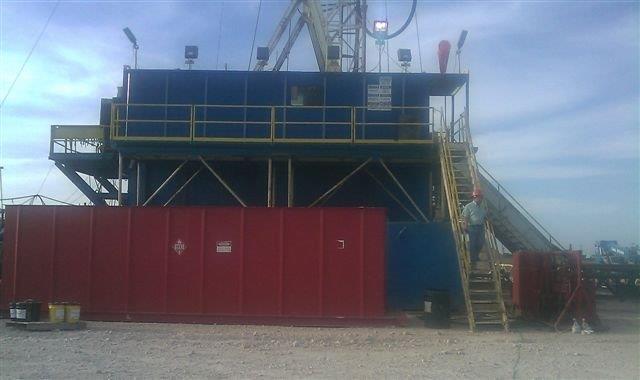

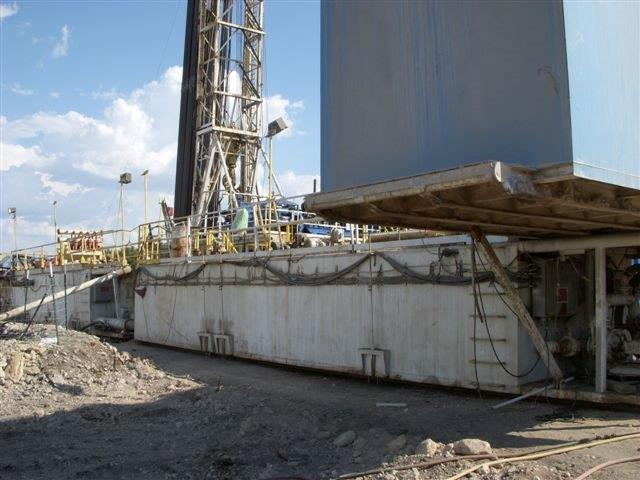

SUBSTRUCTURE

LEE C. MOORE Box Substructure, 300,000 Lb. Rotary Load w/200,000 Lb. Setback Capacity, 15’ Floor Height w/12’ Clear Height Under Rotary Beams, (6) 16’ x 8’ x 9” Matting Boards

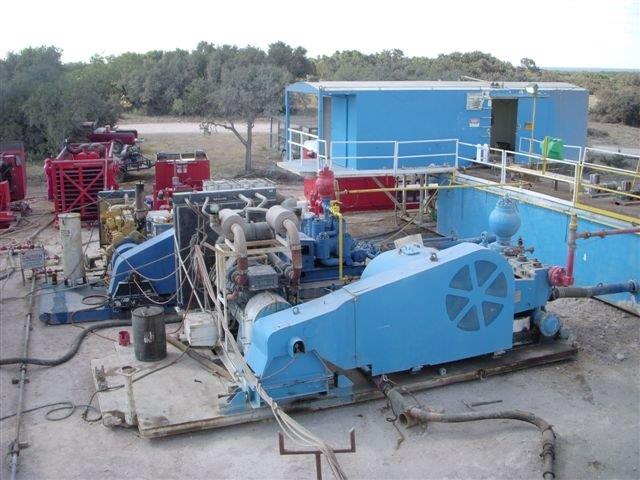

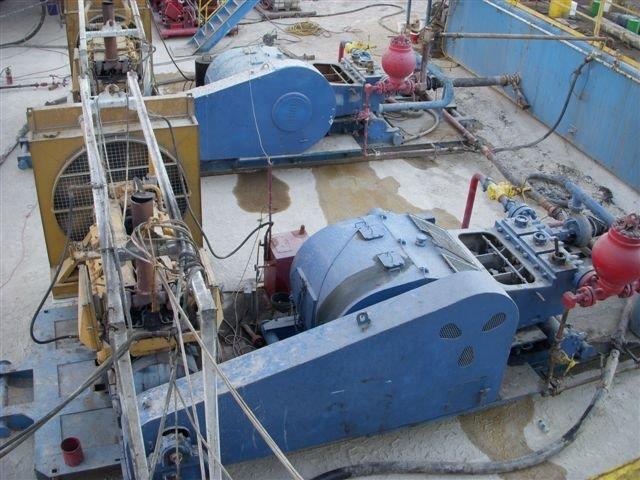

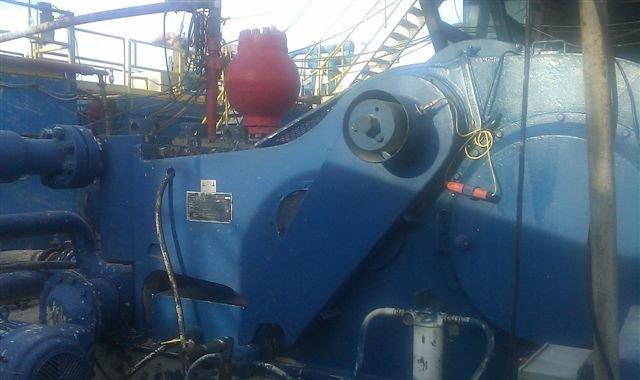

MUD PUMPS

(2) HT | F-1300 Triplex Mud Pumps, Each p/b DETROIT 16V Engine

ROTARY TABLE

OILWELL 27-1/2” Rotary Table, Pin Drive w/Split Master Bushing

SWIVEL

MUD KING 25MB 250-Ton Swivel

TRAVELING EQUIPMENT

IDEAL 175-Ton Block w/(4) 36” x 1-1/8” Sheaves

NATIONAL 150-Ton Hook

(2) 2-3/4” x 96” 150-Ton Elevators

(2) 4-1/2” 150-Ton Drill Pipe Elevators

KELLY

4-1/4” x 38’ Hex Kelly w/4-1/2”XH Connection

VARCO HD Pin Drive Hex Bushing

ANNULAR PREVENTER

SHAFFER 11” 5000 PSI Annular Blowout Preventer

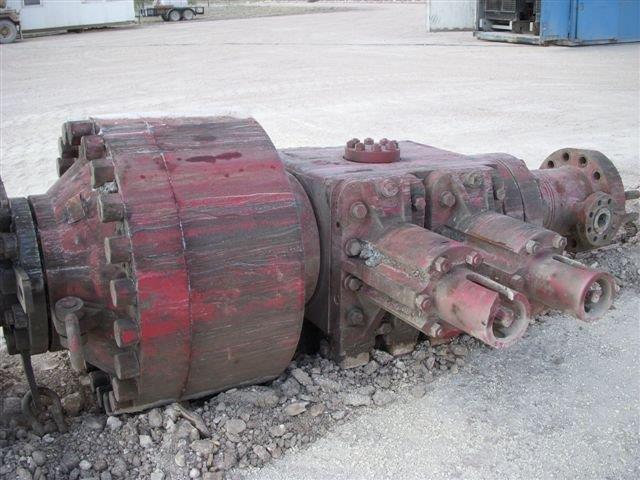

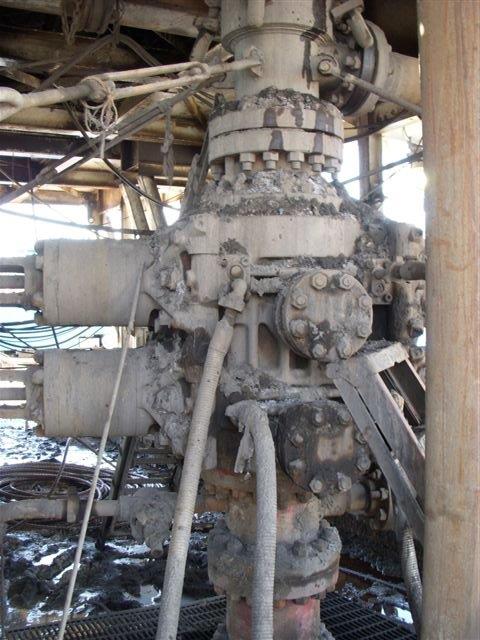

RAM PREVENTER

SHAFFER LWS 11” 5000 PSI Double Gate Preventer w/4-1/2” Pipe Rams & CSO Blind Rams

CHOKE MANIFOLD

3” x 2” x 5000 PSI Choke Manifold w/(2) 2” 5000 PSI Manual Chokes

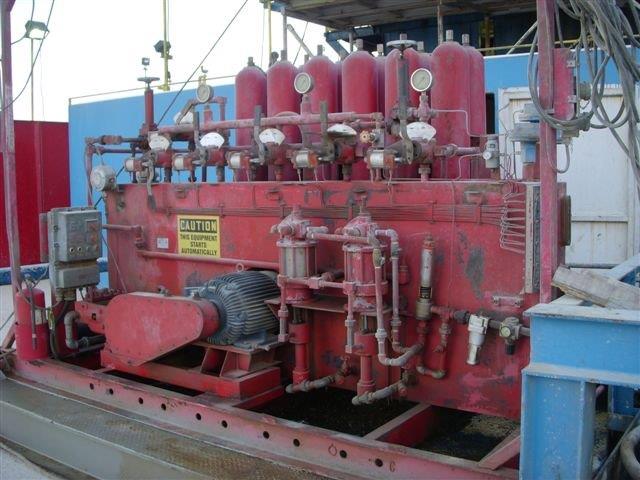

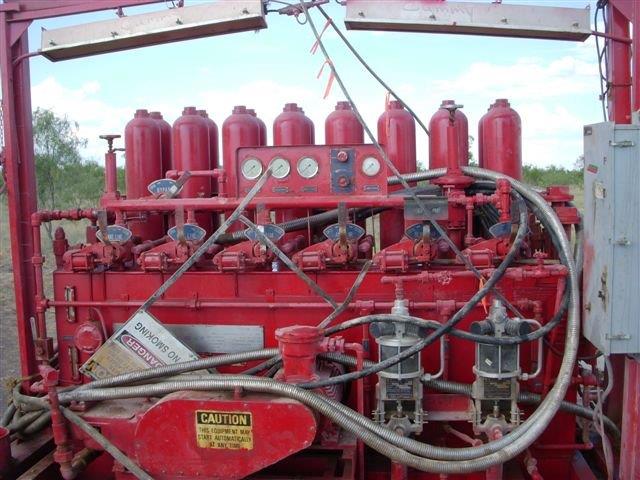

ACCUMULATOR SYSTEM

KOOMEY 160-Gallon 5-Station Closing Unit

Electric Pump

MUD MIXING & PROCESSING PUMPS

(2) 5” x 6” x 11” Centrifugal Pumps, Each p/b 50 HP Electric Motor, f/Mud Hopper & Low Pressure System Guns

(2) 5” x 6” x 11” Centrifugal Pumps, Each p/b 50 HP Electric Motor, f/Desilter & Desander Supply

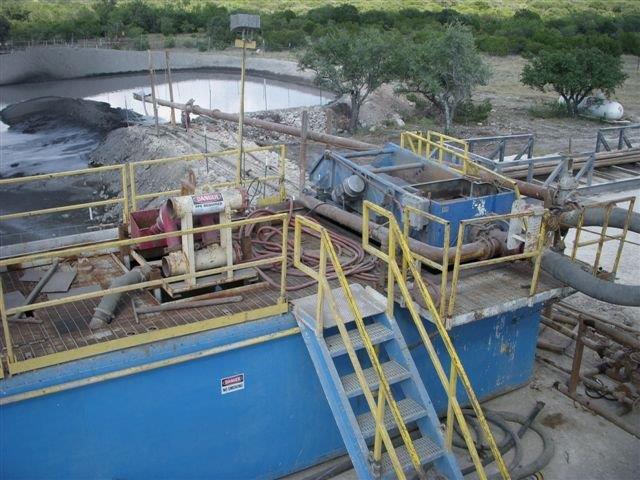

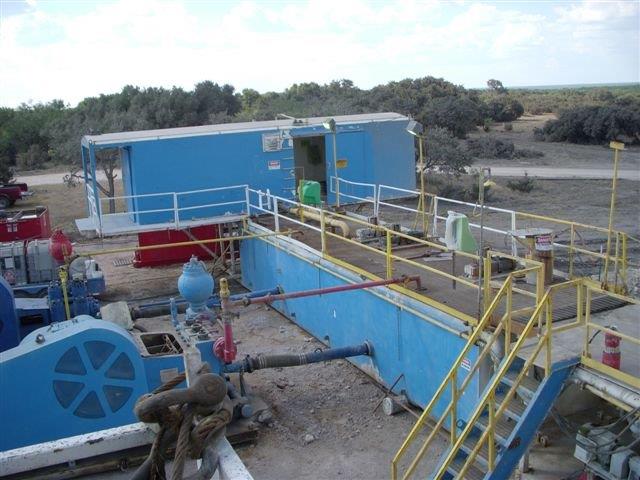

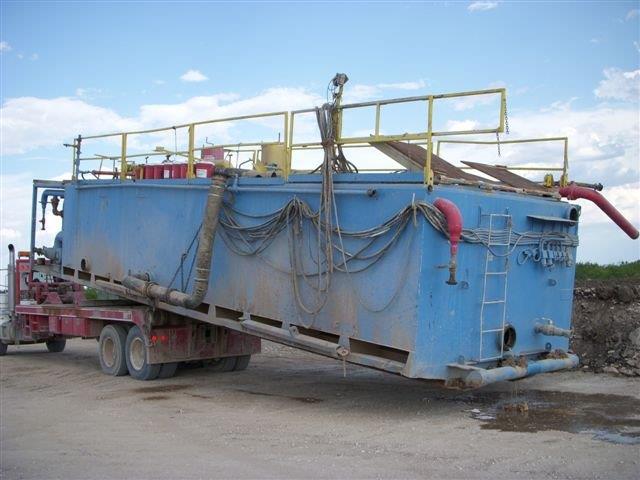

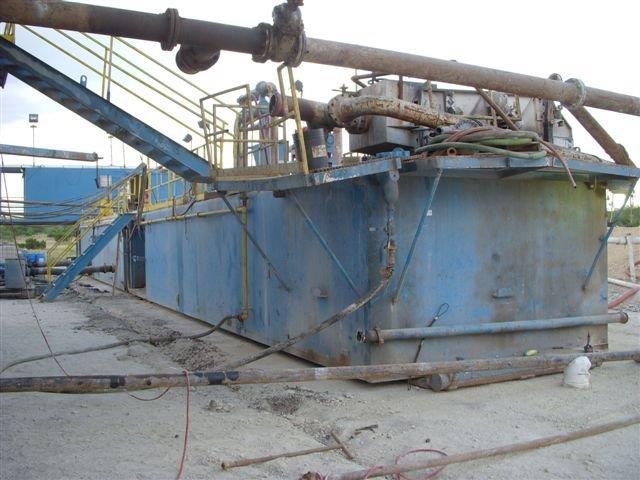

MUD TANK SYSTEM

2-Tank 800-Barrel Mud System w/Sloped Bottoms & Dump Gates

100-Barrel Sand Trap & 100-Barrel Premix Tank

(5) 10 HP Electric Stirrers

2 x 10” Desander

4 x 10” Desilter Mud House w/Pump Parts Room Mud Hopper, Sink, Electric Heater Lights

AUXILIARY EQUIPMENT

Electronic 7-Pen Recorder

0 to 7 Degree Drift Indicator

Electric/Hydraulic Wireline Machine

PILOT II Automatic Driller

MARTIN-DECKER 500,000 Lb. Weight Indicator

(2) INGERSOLL-RAND 4000 Lb. Air Hoist

3500 Lb. Hydraulic Winch

75 KVA Hotel Load Transformer w/(5) 60 Amp Outlets f/Rig Site Trailers

500-Barrel Water Tank w/(2) 3 x 2 x 25 HP Electric Water Pumps

(12) 42” x 27’ Pipe Racks

5000 PSI Upper Kelly Valve

(2) 5000 PSI Lower Kelly Valves

(2) Lower Kelly Saver Subs

14’ x 50’ Toolpusher Office Quarters

14’ x 50’ 12-Man Sleeper

(2) 4-1/2” SDL Drill Pipe Slips

(2) Type A Drill Collar Slips

Drill Collar Safety Clamp

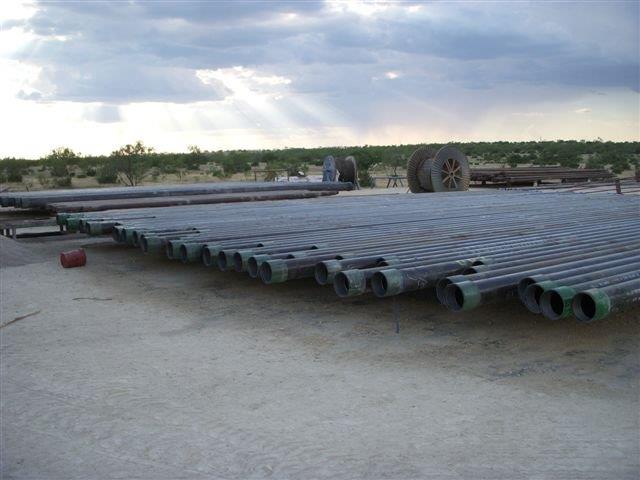

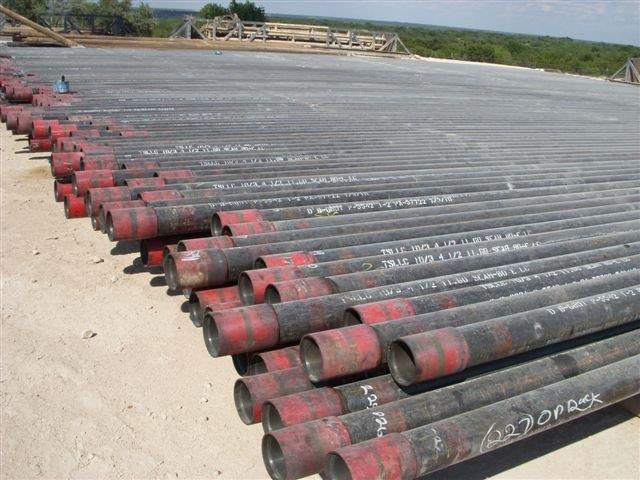

DRILL PIPE

(286 Joints) 4-1/2”, G-105, 16.60 Lb. Drill Pipe w/4-1/2”XH Connections

DRILL COLLARS

(26) 6-1/4” x 2-13/16” Drill Collars w/4-1/2”XH Connections

(2) 8” Drill Collars

RIG NO. 18

DRAWWORKS

MID-CONTINENT U-20 Single Drum Mechanical Drawworks, 1-1/4” LEBUS Grooving, KENECOR Hydraulic Makeup & Breakout Catheads, Crown-O-Matic, PARKERSBURG 40” Hydromatic 2-Engine In-Line Compound, p/b (2) CAT C-18 Diesel Engines, Rated @ 630 HP/Each, OILWORKS C-195 Torque Converters

POWER SYSTEM

(2) DETROIT Series 60 475 KW 400 HP Diesel Generators, Motor Control Center, CURTIN 30 HP Electric Compressor, (2) Twin Screw Compressors, (2) SULLIVAN 30DG 300 PSI

MAST

WCI 131’H Cantilever Mast, 490,000 Lb. Static Hook Load w/(5) 42” x 1-1/8” Cluster Sheaves f/10-Line String to the Block

SUBSTRUCTURE

LEE C. MOORE Box Substructure, 350,000 Lb. Rotary Load w/200,000 Lb. Setback Capacity, 16’ Floor Height w/14’ Clear Height Under Rotary Beams, (6) 16’ x 8’ x 9” Matting Boards

MUD PUMPS

(2) BOMCO F-1000 Triplex Mud Pumps, Each Independently Driven by CAT D-398 Diesel Engine, Rated @ 925 HP, Electric 75 HP 6” x 8” x 11” Charge Pump

ROTARY TABLE

PETRO 20-1/2” Square Drive Rotary Table w/Split Master Bushing

SWIVEL

GRAY B44 200-Ton Swivel

TRAVELING EQUIPMENT

EMSCO 200-Ton Block/Hook Combination w/(5) 42” x 1-1/4” Sheaves

(2) 2-1/4” x 108” 250-Ton Elevator Links

(2) 4-1/2” 250-Ton Drill Pipe Elevators

KELLY

4-1/4” x 38’ Square Hex Kelly w/4-1/2”XH Connections

VARCO HD Square Drive Hex Bushing

ANNULAR PREVENTER

REGAN 11” 5000 PSI Annular Blowout Preventer

RAM PREVENTER

CHINESE Type U 11” 5000 PSI Double Gate Preventer w/4-1/2” Pipe Rams & CSO Blind Rams

CHOKE MANIFOLD

Shopbuilt 4” x 2” x 5000 PSI Choke Manifold w/(2) 2” 5000 PSI Manual Chokes

ACCUMULATOR SYSTEM

CHINESE 160-Gallon 5-Station Closing Unit

Electric Pump

MUD MIXING & PROCESSING PUMPS

(2) 6” x 8” x 11” Centrifugal Pumps, Each w/75 HP Electric Motor f/Mud Hopper & Low Pressure System Guns

(2) 5” x 6” x 11” Centrifugal Pumps, Each w/50 HP Electric Motor f/Desilter & Desander Supply

MUD TANK SYSTEM

2-Tank 800-Barrel Mud System w/Sloped Bottoms & Dump Gates

100-Barrel Sand Trap & 100-Barrel Premix Tank

(5) 10 HP Electric Stirrers

2 x 10” Desander

4 x 10” Desilter

(2) Fluid System Linear Motion Shakers, Mud House w/Pump Parts Room, Mud Hopper, Sink, Electric Heater Lights

AUXILIARY EQUIPMENT

Electronic 7-Pen Recorder

0 to 7 Degree Drift Indicator

Electric/Hydraulic Wireline Machine

PILOT II Automatic Driller

MARTIN-DECKER 500,000 Lb. Weight Indicator

YANTI 5000 Lb. Air Hoist

75 KVA Hotel Load Transformer w/(5) 60 Amp Outlets f/Rig Site Trailers

(12) 42” x 27’ Pipe Racks

5000 PSI Upper Kelly Valve

(2) 5000 PSI Lower Kelly Valves

(2) Lower Kelly Saver Subs

(2) SDML 4-1/2” Drill Pipe Slips

Drill Collar Safety Clamp

14’ x 50’ Toolpusher Office Quarters

14’ x 50’ 12-Man Sleeper

10,500-Barrel Fuel Tank w/Transfer Pumps

500-Barrel Water Tank w/(2) 3 x 2 x 25 HP Electric Water Pumps

DRILL PIPE

(387 Joints) 4-1/2”, G-105, 16.60 Lb. Drill Pipe w/4-1/2”XH Connections

DRILL COLLARS

(26) 6” x 2-13/16” Drill Collars w/4-1/2”XH Connections

RIG NO. 19

DRAWWORKS

NATIONAL 50A Single Drum Mechanical Drawworks, 1-1/8” LEBUS Grooving, FOSTER Makeup & Breakout Catheads, Crown-O-Matic, PARKERSBURG 36” Hydromatic 2-Engine In-Line Compound, p/b (2) CAT C-18 Diesel Engines, Rated @ 630 HP/Each, OILWORKS C-195 Torque Converters

POWER SYSTEM

DETROIT Series 60 350 KW Diesel Generator, CAT SR4 350KW Generator p/b CAT 3408, Motor Control Center, CURTIS 30 HP Electric Screw Compressor

MAST

LEE C. MOORE 127’H Cantilever Mast, 288,000 Lb. Static Hook Load, (4) 36” x 1-1/8” Cluster Sheaves f/8-Line String to the Block

SUBSTRUCTURE

LEE C. MOORE Box Substructure, 300,000 Lb. Rotary Load w/200,000 Lb. Setback Capacity, 14’ Floor Height w/11’ Clear Height Under Rotary Beams, (6) 16’ x 8’ x 9” Matting Boards

MUD PUMPS

(2) RS F-1000 HP Triplex Mud Pump, Independently Driven by CAT 3508 Diesel Engine, Rated @ 925 HP 5” x 6” x 11” Charge Pump

ROTARY TABLE

IDECO 23-1/2” Square Drive Rotary Table w/Split Master Bushing

SWIVEL

NATIONAL 150-Ton Swivel

TRAVELING EQUIPMENT

EMSCO 200-Ton Block/Hook Combination w/(4) 36” x 1-1/8” Sheaves

(2) 2-1/4” x 108” 250-Ton Elevator Links

(2) 4-1/2” 250-Ton Drill Pipe Elevators

KELLY

4-1/4” x 38’ Square Kelly w/4-1/2”XH Connection

VARCO HD Square Drive Bushing

RAM PREVENTER

SHAFFER 5000 PSI Double Gate Preventer

CHOKE MANIFOLD

3” x 2” x 3000 PSI Choke Manifold w/(2) 3000 PSI Manual Chokes

ACCUMULATOR SYSTEM

160-Gallon 5-Station Closing Unit

Electric Pump

MUD MIXING & PROCESSING PUMPS

(2) 5” x 6” x 11” Centrifugal Pumps, Each w/50 HP Electric Motor, f/Mud Hopper & Low Pressure System Guns

(2) 5” x 6” x 11” Centrifugal Pumps, Each w/50 HP Electric Motor, f/Desilter & Desander Supply

MUD TANK SYSTEM

2-Tank 800-Barrel Mud System w/Sloped Bottoms & Dump Gates

100-Barrel Sand Trap & 100-Barrel Premix Tank

(5) 10 HP Electric Stirrers

2 x 10” Desander

4 x 10” Desilter, Mud House w/Pump Parts Room Mud Hopper, Sink, Electric Heater Lights

DERRICK Linear Motion Shaker

AUXILIARY EQUIPMENT

Electronic 7-Pen Recorder

0 to 7 Degree Drift Indicator

Electric/Hydraulic Wireline Machine

PILOT II Automatic Driller

MARTIN-DECKER 500,000 Lb. Weight Indicator

(2) INGERSOLL-RAND 4000 Lb. Air Hoists

75 KVA Hotel Load Transformer w/(5) 60 Amp Outlets f/Rig Site Trailers

(12) 42” x 27’ Pipe Racks

5000 PSI Upper Kelly Valve

(2) 5000 PSI Lower Kelly Valves

(2) Lower Kelly Saver Subs

(2) SDML 4-1/2” Drill Pipe Slips

(2) Type A Drill Collar Slips

14’ x 50’ Toolpusher Office Quarters

14’ x 50’ 12-Man Sleeper

10,500-Barrel Fuel Tank w/Transfer Pumps

500-Barrel Water Tank w/(2) 3 x 2 x 25 HP Electric Water Pumps

DRILL PIPE

(325 Joints) 4-1/2”, G-105, 16.60 Lb. Drill Pipe w/4-1/2”XH Connections

DRILL COLLARS

(19) 6” x 2-13/16” Drill Collars w/4-1/2”XH Connections

RIG NO. 20

DRAWWORKS

NORTH TEXAS U-15 Single Drum Mechanical Drawworks, 1-1/8” LEBUS Grooving, Hydraulic Makeup & Breakout Catheads, Crown-O-Matic, DHC 15” Quad Hydromatic In-Line Compound, p/b (2) DETROIT Series 60 Diesel Engines, Rated @ 630 HP/Each w/ALLISON 6-Speed Transmissions, TWIN DISC 955 Torque Converters, 390 Q Air Compressor

POWER SYSTEM

(2) DETROIT/MARATHON Series 60 360 KW Diesel Generators, Motor Control Center, CURTIS 30 HP Electric Compressor

MAST

UPRIGHT INTERNATIONAL 131’H Telescoping Cantilever Mast, 315,000 Lb. Static Hook Load w/(6) 36” x 1-1/8” Cluster Sheaves f/10-Line String to the Block

SUBSTRUCTURE

DRECO Box Substructure, 300,000 Lb. Rotary Load w/200,000 Lb. Setback Capacity, (2) Pony Subs f/15’ Floor Height w/13’ Clear Height Under Rotary Beams, (6) 16’ x 8’ x 9” Matting Boards

MUD PUMPS

F-1000 Triplex Mud Pump, Rated @ 1000 HP, Independently Driven by DETROIT 16-V-2000 Diesel Engine, Rated @ 1050 HP, 5” x 6” x 11” Charge Pump

EMSCO D300 Mud Pump, p/b CAT 378 Diesel Engine

ROTARY TABLE

OILWELL 17-1/2” Rotary Table, Square Drive w/Split Master Bushing

SWIVEL

MUD KING 250-Ton Swivel w/Quick-Change Packing Assembly

TRAVELING EQUIPMENT

MUD KING 250-Ton Block/Hook Combination w/(5) 36” x 1-1/8” Sheaves

(2) 2-3/4” x 108” 350-Ton Elevator Links

(2) 4-1/2” 250-Ton Drill Pipe Elevators

KELLY

4-1/4” x 38’ Hex Kelly w/4-1/2”XH Connection

VARCO HD Hex Kelly Drive Bushing

ANNULAR PREVENTER

11” 3000 PSI Annular Blowout Preventer, Rotating Head

RAM PREVENTER

CAMERON 13-5/8” 3000 PSI Double Gate Preventer w/4-1/2”

CHOKE MANIFOLD

3” x 2” x 3000 PSI w/(2) 2” 3000 PSI Manual Chokes

ACCUMULATOR SYSTEM

KOOMEY 120-Gallon 3-Station Closing Unit w/Electric Pump

MUD MIXING & PROCESSING PUMPS

(2) 5” x 6” x 11” Centrifugal Pumps, Each w/50 HP Electric Motor, f/Mud Hopper & Low Pressure System Guns

(2) 5” x 6” x 11” Centrifugal Pumps, Each w/50 HP Electric Motor f/Desilter & Desander Supply

MUD TANK SYSTEM

2-Tank 800-Barrel Mud System w/Sloped Bottoms & Dump Gates

100-Barrel Sand Trap & 100-Barrel Premix Tank

(5) 10 HP Electric Stirrers

2 x 10” Desander

4 x 10” Desilter, Mud House w/Pump Parts Room, Mud Hopper, Sink, Electric Heater, Lights

AUXILIARY EQUIPMENT

Electronic 7-Pen Recorder

0 to 7 Degree Drift Indicator

Electric/Hydraulic Wireline Machine

PILOT II Automatic Driller

MARTIN-DECKER 500,000 Lb. Weight Indicator

(2) INGERSOLL-RAND 5000 Lb. Air Hoists

3500 Lb. Hydraulic Winch

75 KVA Hotel Load Transformer w/(5) 60 Amp Outlets f/Rig Site Trailers

50 HP Hydraulic Pump f/Catheads

Rathole & Mousehole

(12) 18” x 27’ Pipe Racks

5000 PSI Upper Kelly Valve

(2) 5000 PSI Lower Kelly Valves

(2) Lower Kelly Saver Subs

14’ x 50’ Toolpusher Office Quarters

(2) SDL 4-1/2” Drill Pipe Slips

(2) Type A Drill Collar Slips

Drill Collar Safety Clamp

DRILL PIPE

(325 Joints) 4-1/2”, G-105, 16.60 Lb. Drill Pipe w/4-1/2”XH Connections

DRILL COLLARS

(21) 6” x 2-13/16” Drill Collars w/4-1/2”XH Connections
