Drilling depth of 13,500' - Drill Pipe not Included
COMPLETE DRILLING PACKAGE!!!
Rig sits in Houston, Texas - Ready to Go!
Buy this "new rebuild" rig for 1/2 the cost of a new one!!!

Call NOW! (800) 952-1973


Listing Details

RIG NO. 17

2013 "NEW/REBUILD" SKYTOP BREWSTER N-46, 1000HP MECHANICAL DRILLING RIG

CLASSIFICATION:
1000 HP MECHANICAL

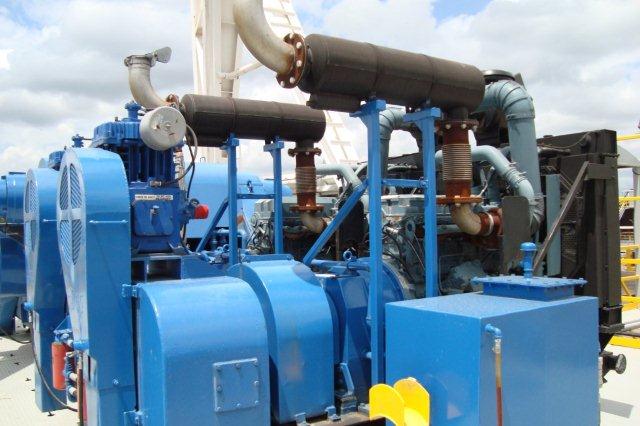

DRAW WORKS:

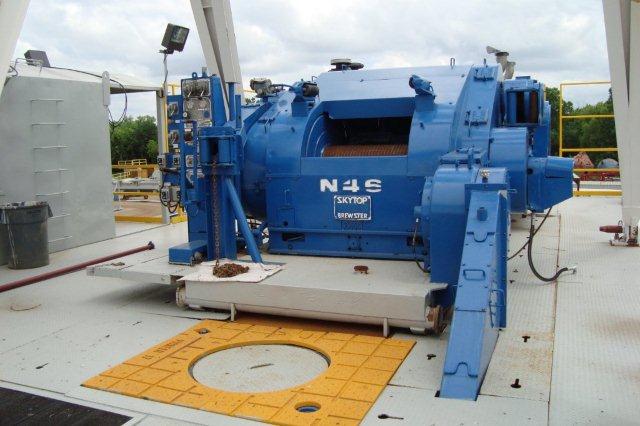

Skytop Brewster N-46 with Parmac V-80 Brake
Two (2) Engine Compound

POWER SYSTEM:
Two (2) Detroit 60 Series 14.0L with Allison 955 Torque Converters

DRILLING DEPTH CAPACITY:
13,500’ W 4-1/2”dp

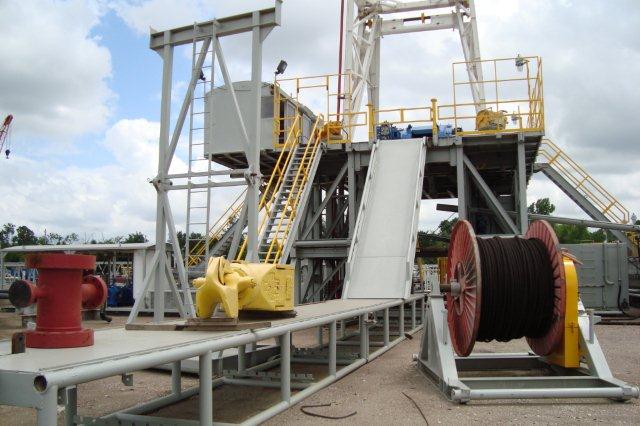

MAST:
DSI 136’ 500,000 SHL

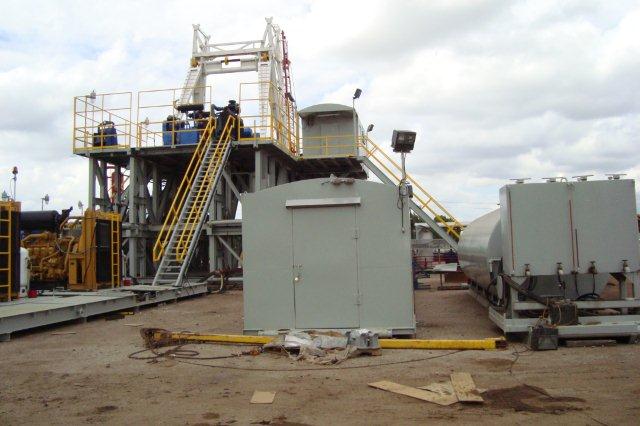

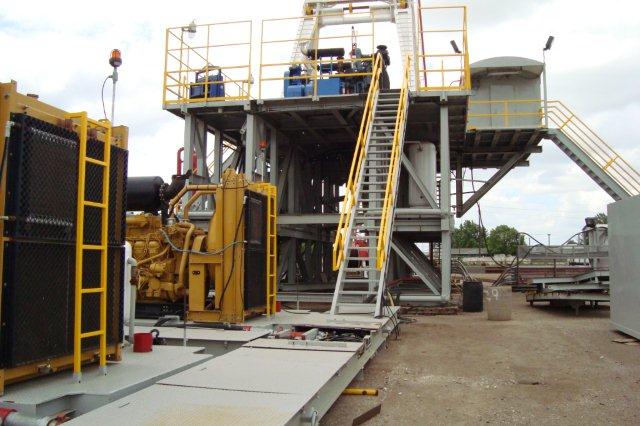

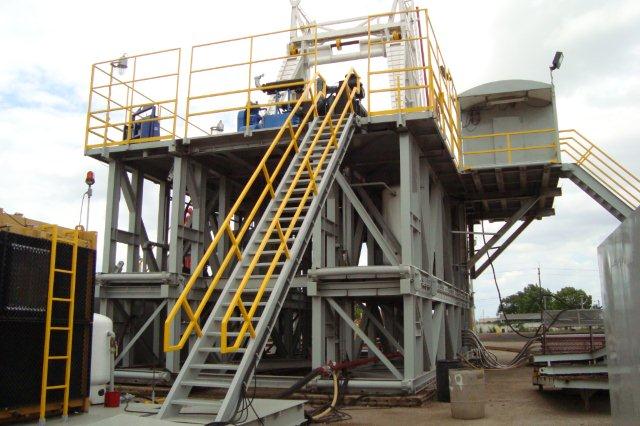

SUBSTRUCTURE:
20’ Box on Box
16’ Clear height below rotary beams

DRILL LINE:
1-1/4”

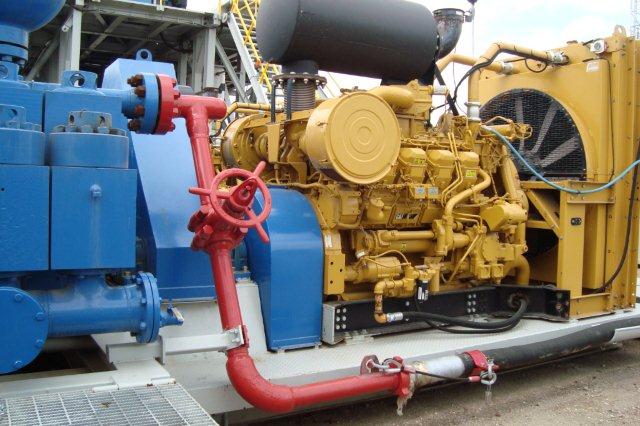

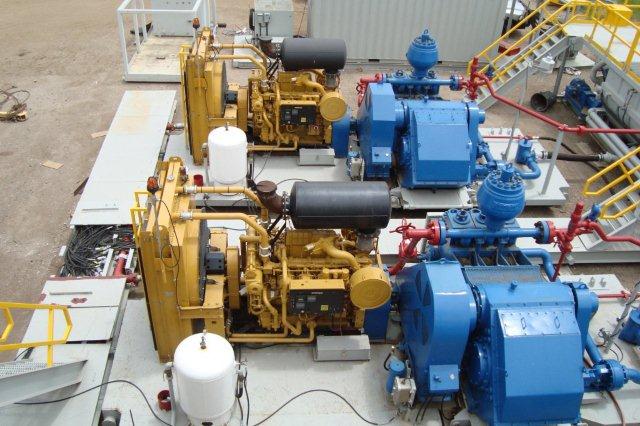

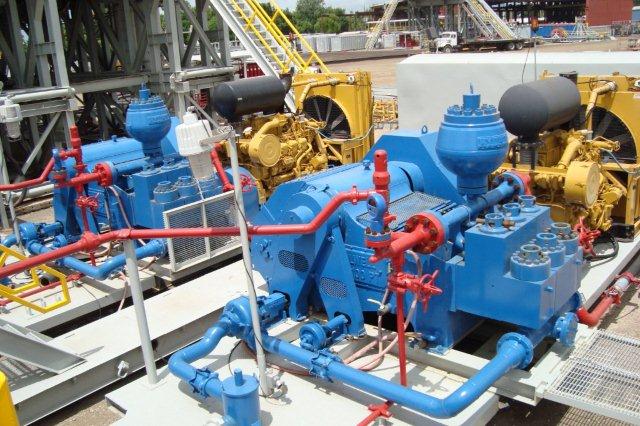

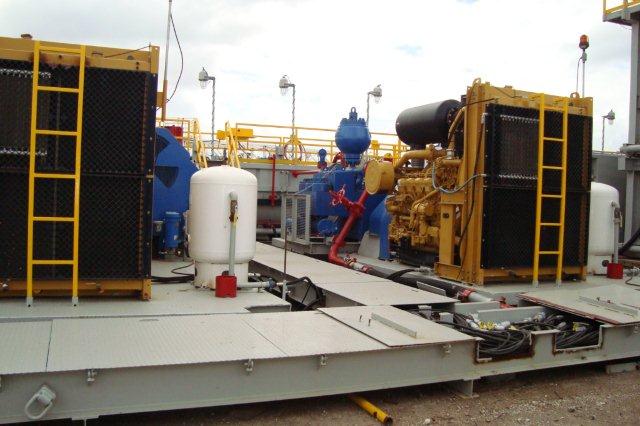

MUD PUMPS:

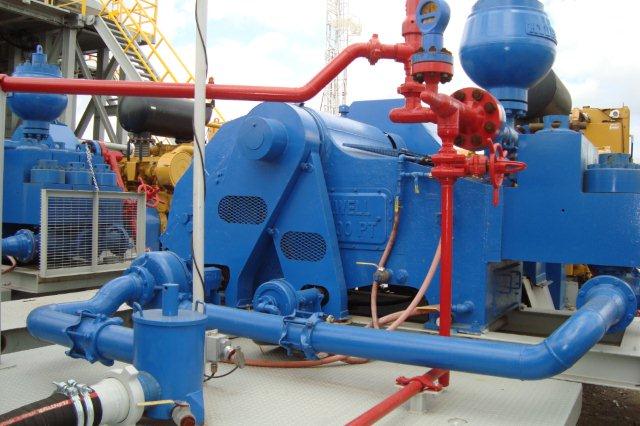

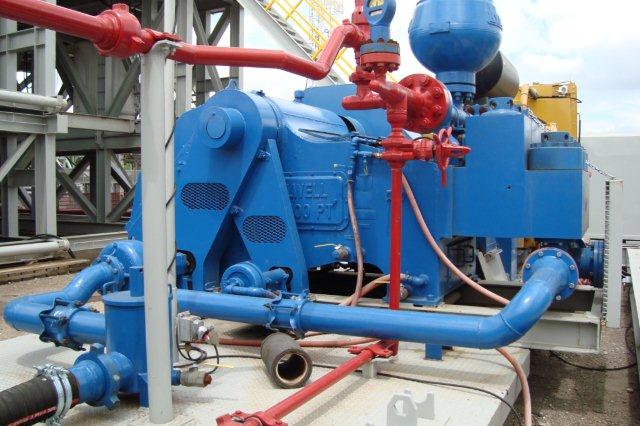

Two (2) Oilwell 1100 PT pumps each powered by a caterpillar 3508C

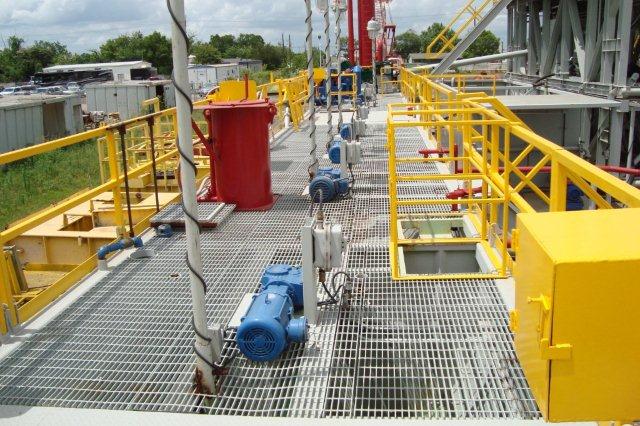

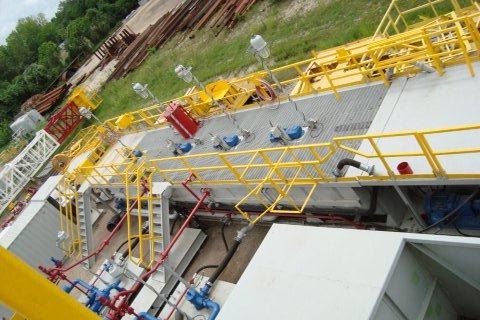

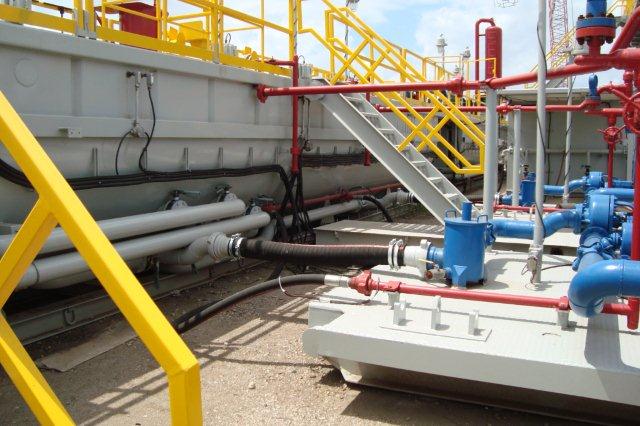

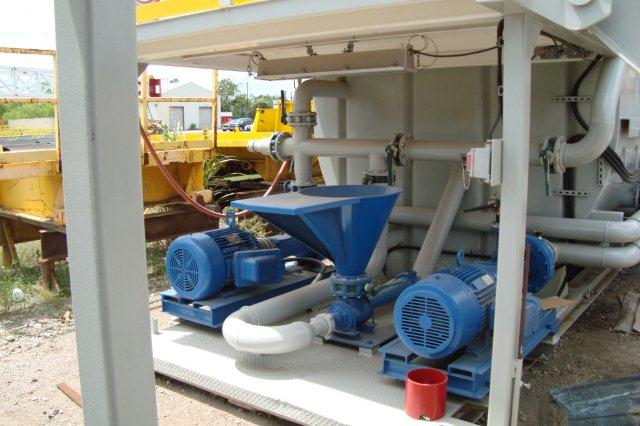

MUD SYSTEM:
Two (2) Tank system 750 BBL

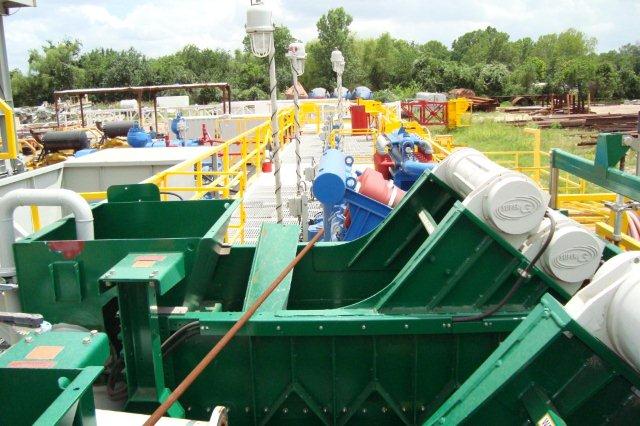

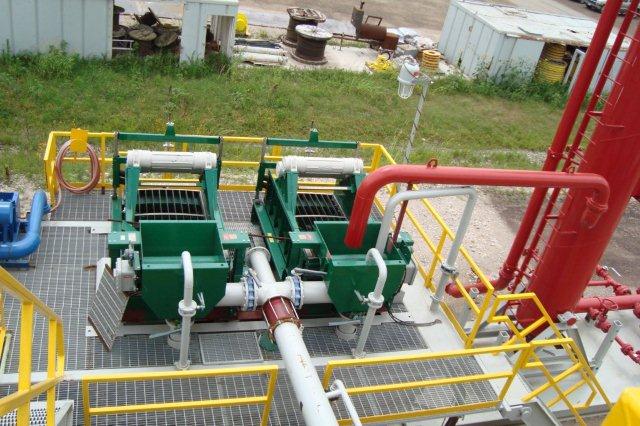

Total two (2) Derrick 503 Flowline Cleaners

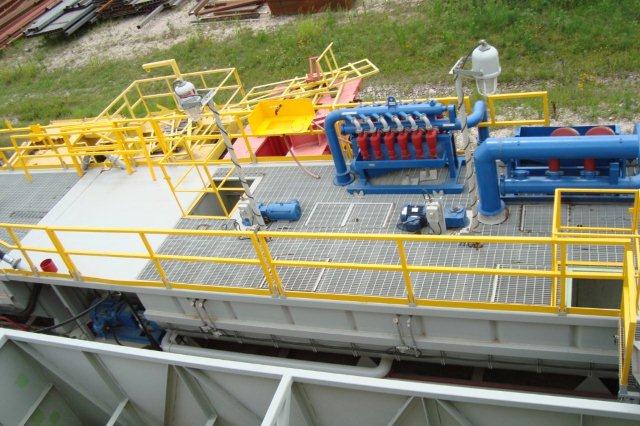

Derrick 2 cone desander
Derrick 12 cone desilters

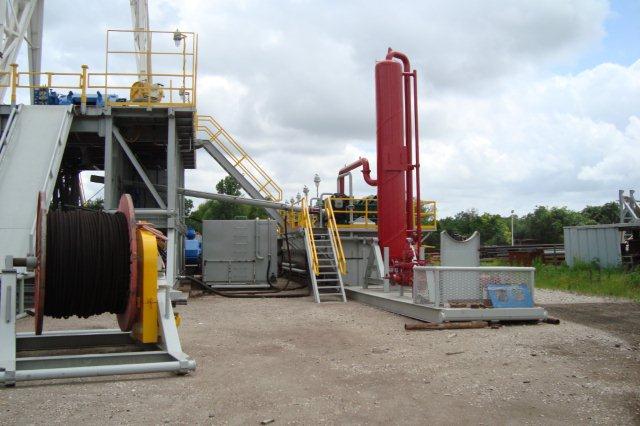

See-Flow Drilco type degasser

ROTARY:
Ideco 23 E w/ 53 ¼” center

BLOCK AND HOOK:
250 Ton Skytop Brewster block and hook

SWIVEL:
Ideco TL-300

ANNULAR PREVENTER:
11” 5000 WP Shaffer Type Spherical

RAM PREVENTERS:
11” 5000 psi Cameron Type U Double

CHOKE MANIFOLD:
4-1/16” X 2-1/6” 5000 psi WP

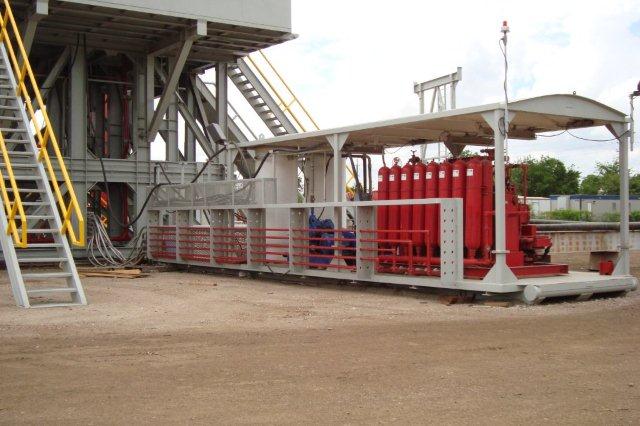

ACCUMULATOR SYSTEM:
Chiles with five (5) station 180 gal. with remote control

AUXILLARY EQUIPMENT:
Toolpusher and crew quarters

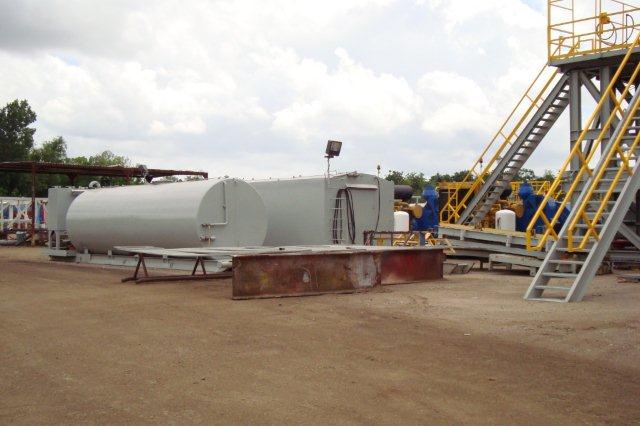

One 450 BBL water tank
Automatic Driller
Pipe Spinner

Sits in Houston, Texas
