10,700’ DRILLING DEPTH
(2) Mud Pumps; (1) Triplex, (1) Duplex
Rig is located in Texas!

MAKE AN OFFER!!
Call to Inspect and Buy Today!!!

Call NOW! (800) 952-1973


Listing Details

CLASSIFICATION:

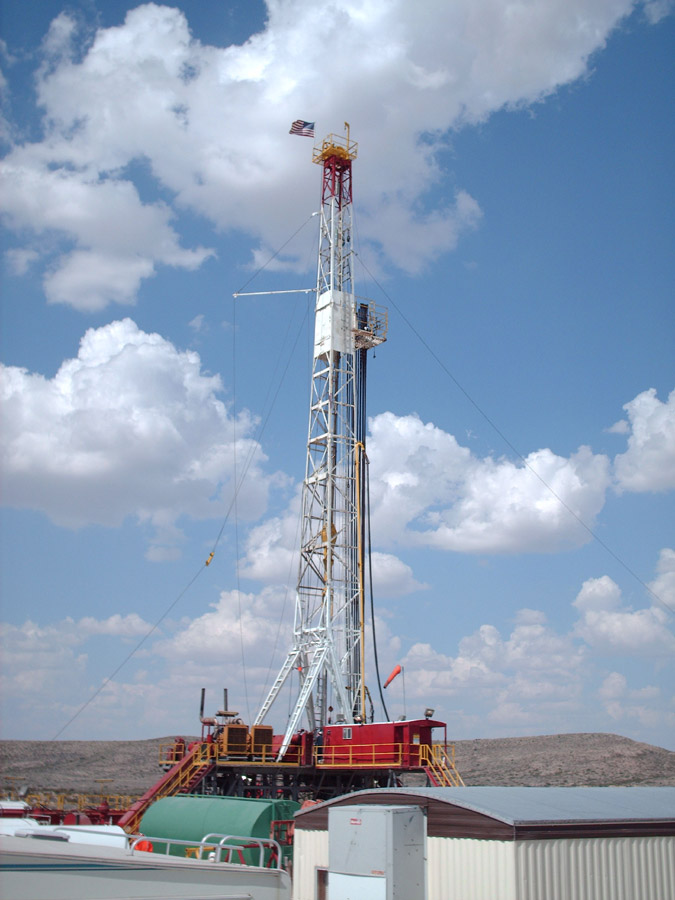

National T-45 Mechanical 800 HP

DRILLING DEPTH:
10,700'

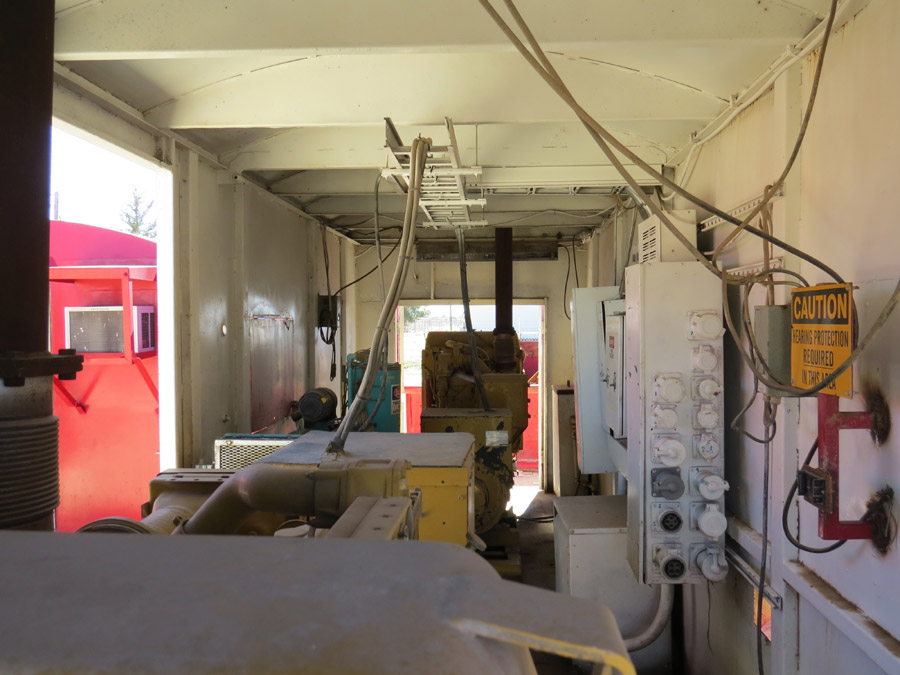

POWER SYSTEM:

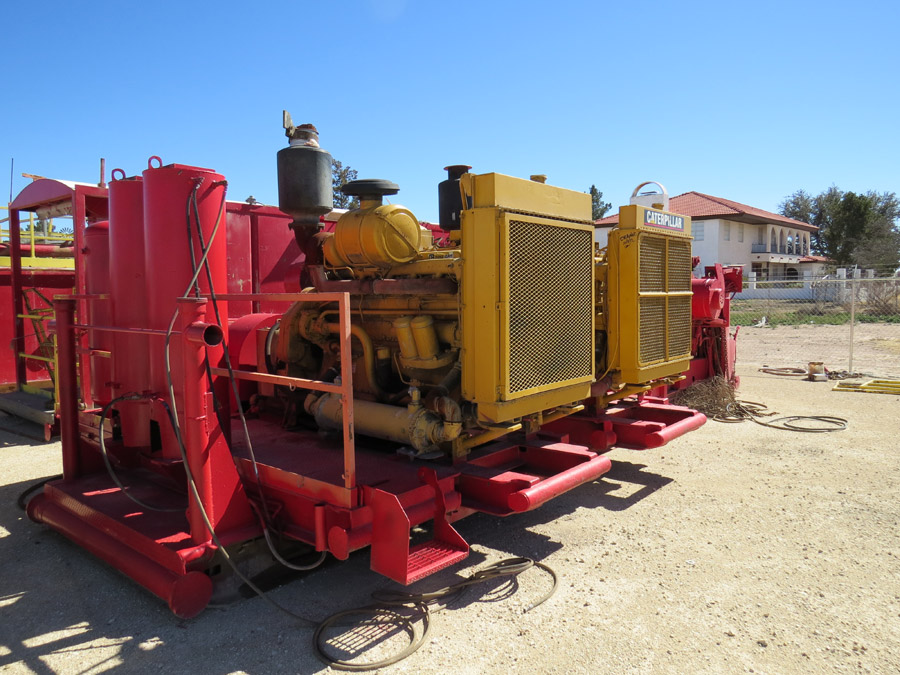

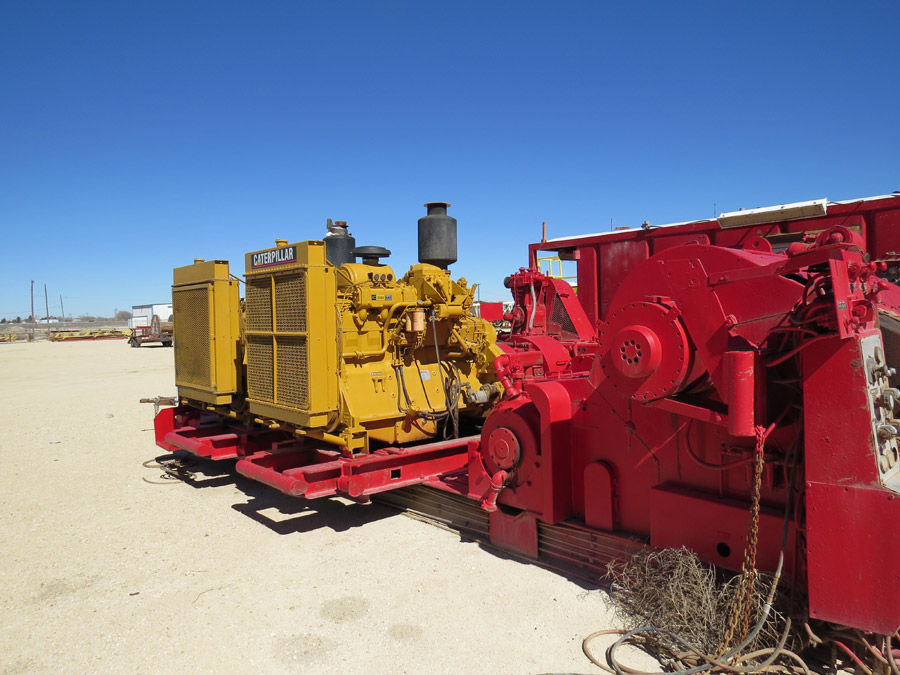

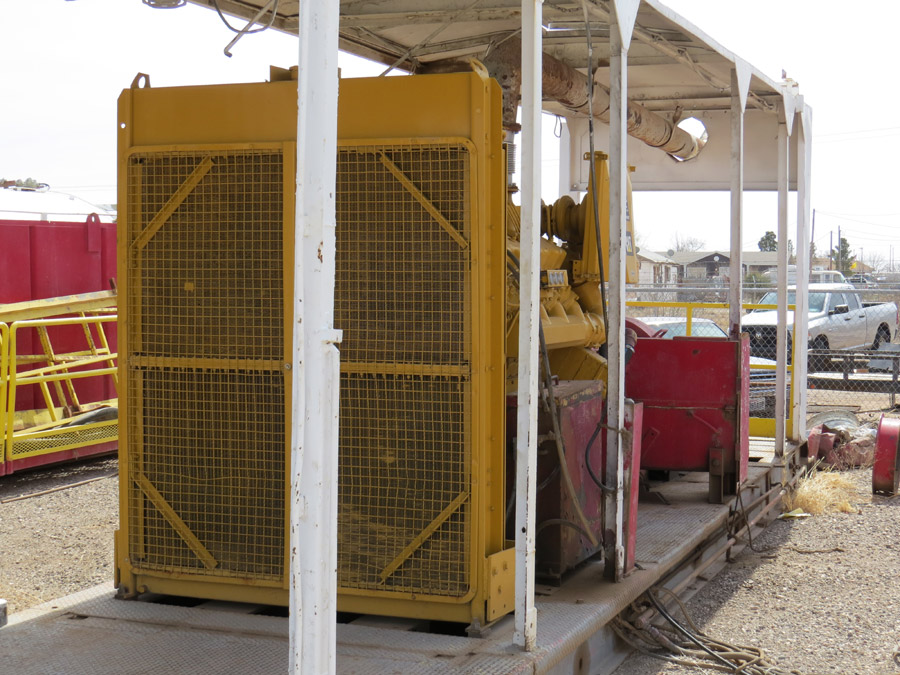

Two (2) Caterpillar D353 engines each with
National Torque converters driving an
engine inline compound and Two (2) Caterpillar
D3406 engines with 185 KW AC generators

DRAWWORKS:

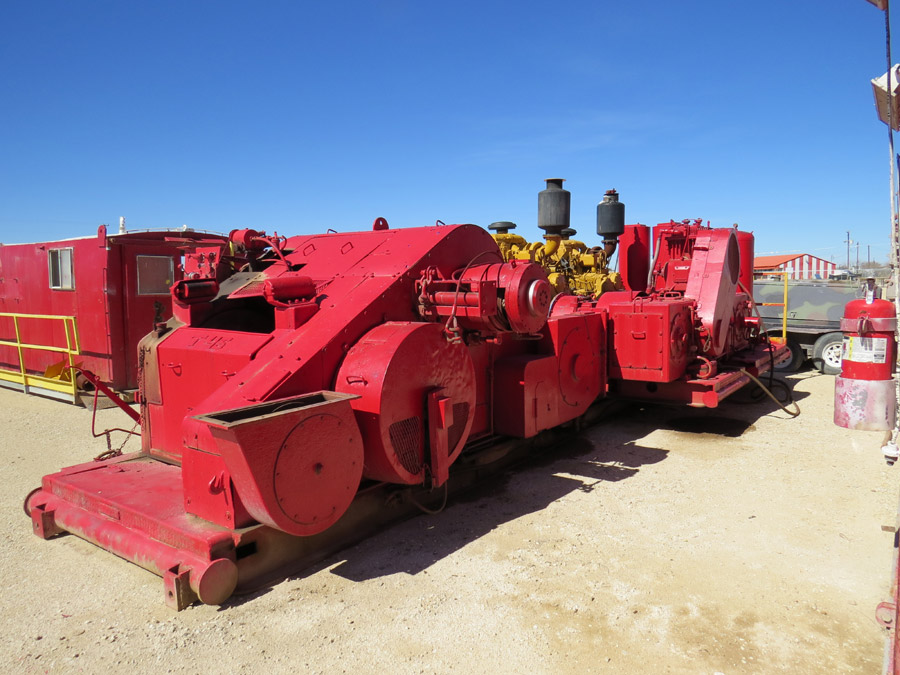

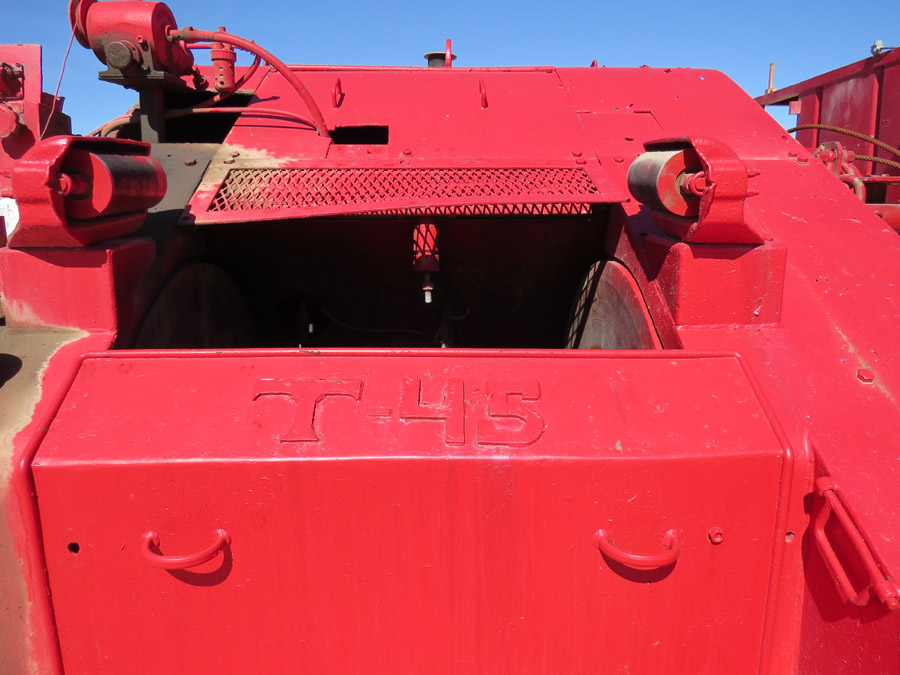

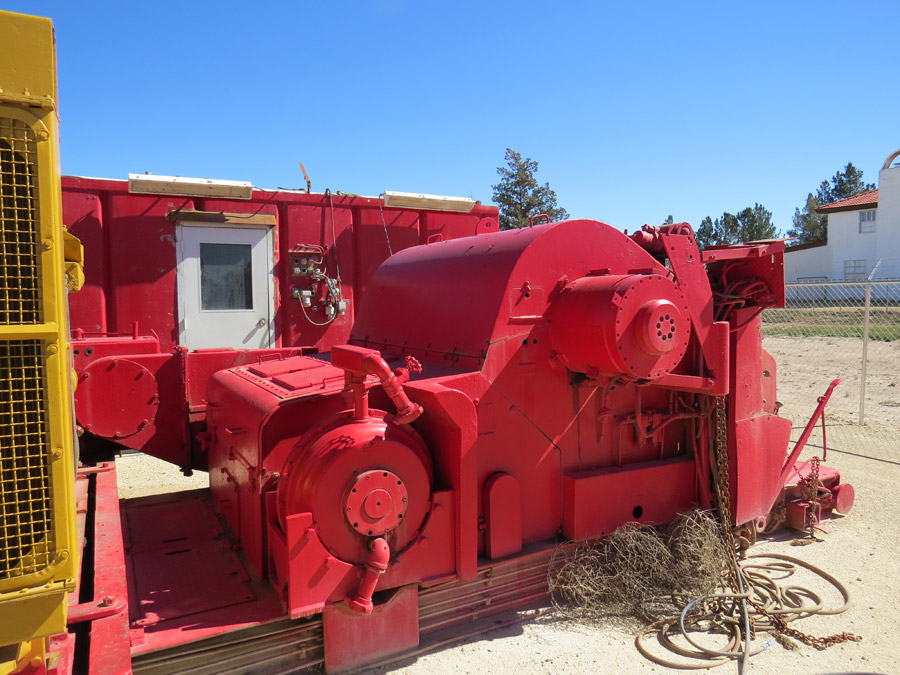

National T-45
Two (2) Engine Inline Compound with Splitter
and Pump Drive

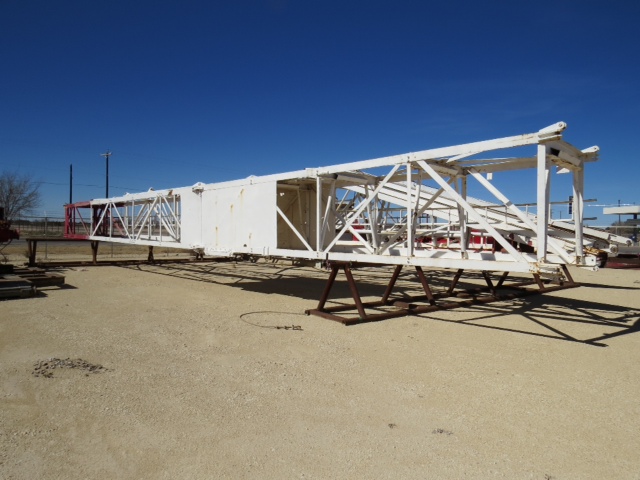

MAST:

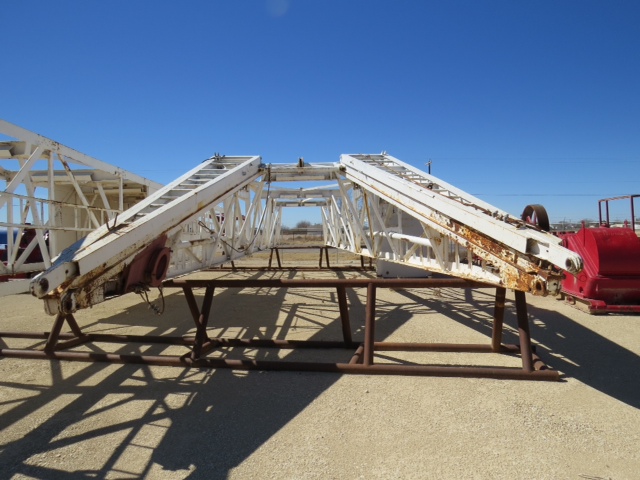

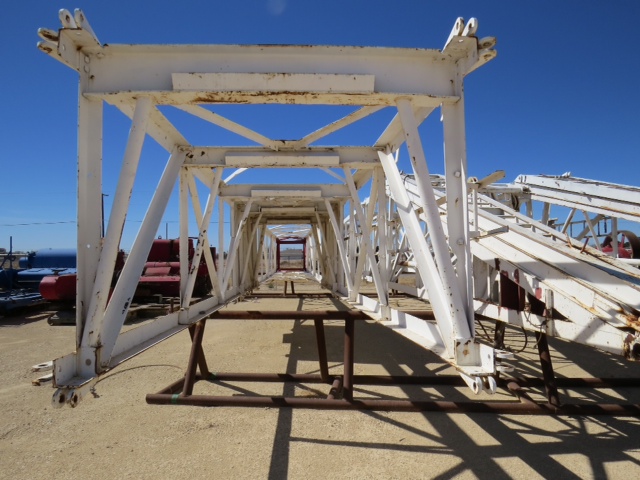

Lee C. Moore 127' x 14' base, 370,000#
Static Hook Load

DRILL LINE:
1-1/8 KWR

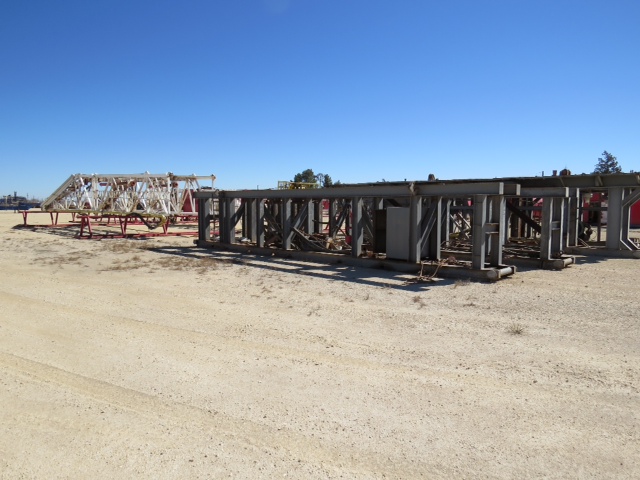

SUBSTRUCTURE:

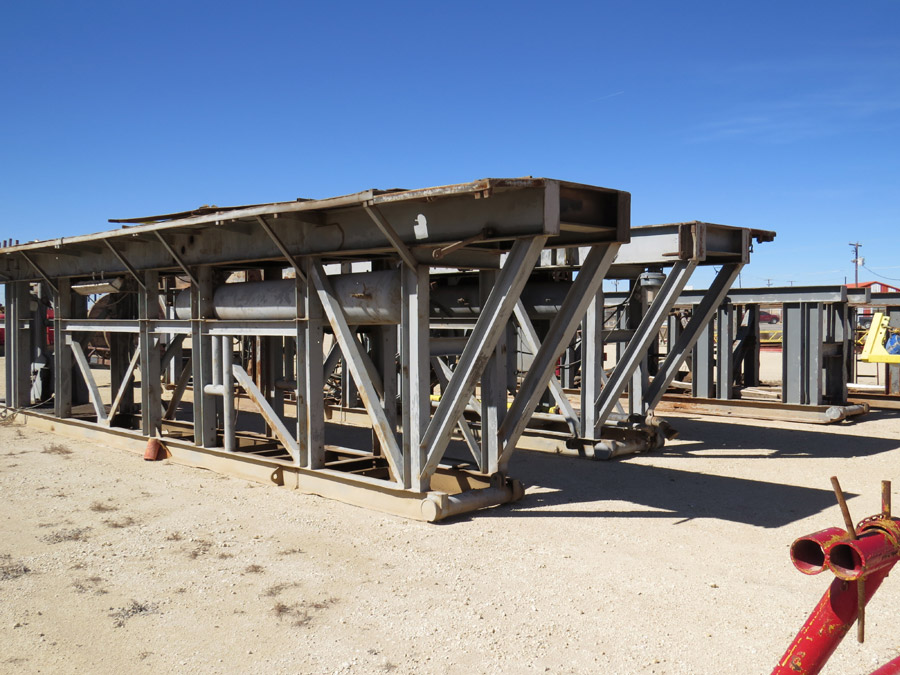

Lee C. Moore 16.3' high, 350,000 rotary
capacity with 300,000# setback capacity, 14.3'
clear height from rotary beam to ground level

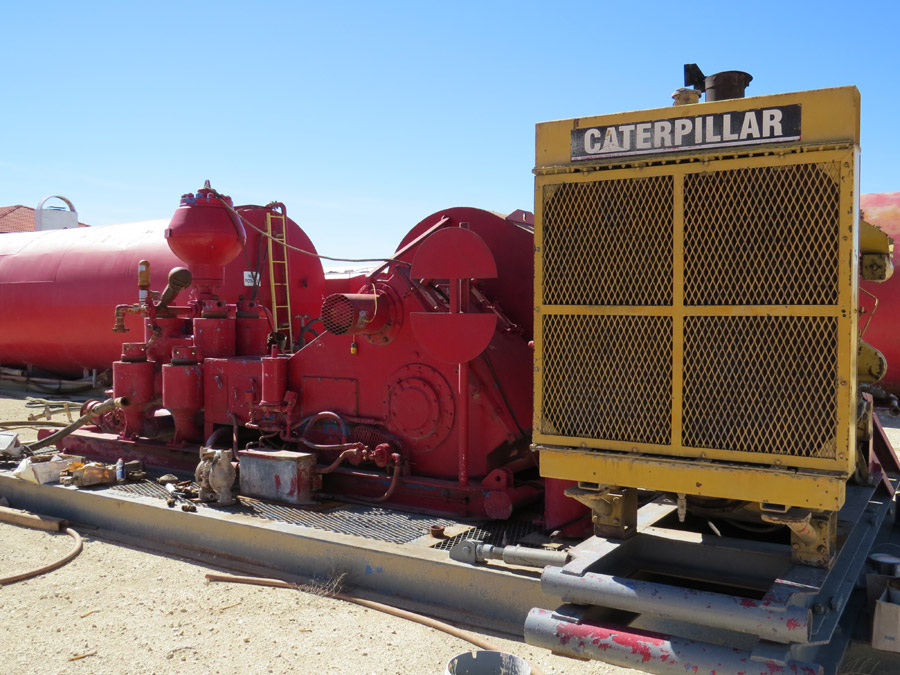

MUD PUMPS:
(1) H & H Triplex 1000 HP with
398 Cat 750 HP Engine
(1) Wilson 600 Duplex p/b Cat 353

ROTARY:
Ideco 17.5" RSH

TRAVELING BLOCK:
Brewster TL200 Ton Block
BJ 4200 Hook

SWIVEL:
Brewster 7SX Swivel, 250 Ton

KELLY:
5 1/4" Hex X 40'

ANNULAR PREVENTER:
Cameron "U" 13-3/8" 5,000# Annular

RAM PREVENTERS:
Cameron "U" 13-3/8" 5,000# Double

ACCUMULATOR SYSTEM:
Valvcon five (5) station, 80 gallon capacity
with dual air pumps and one (1) electric pump
Cameron Station

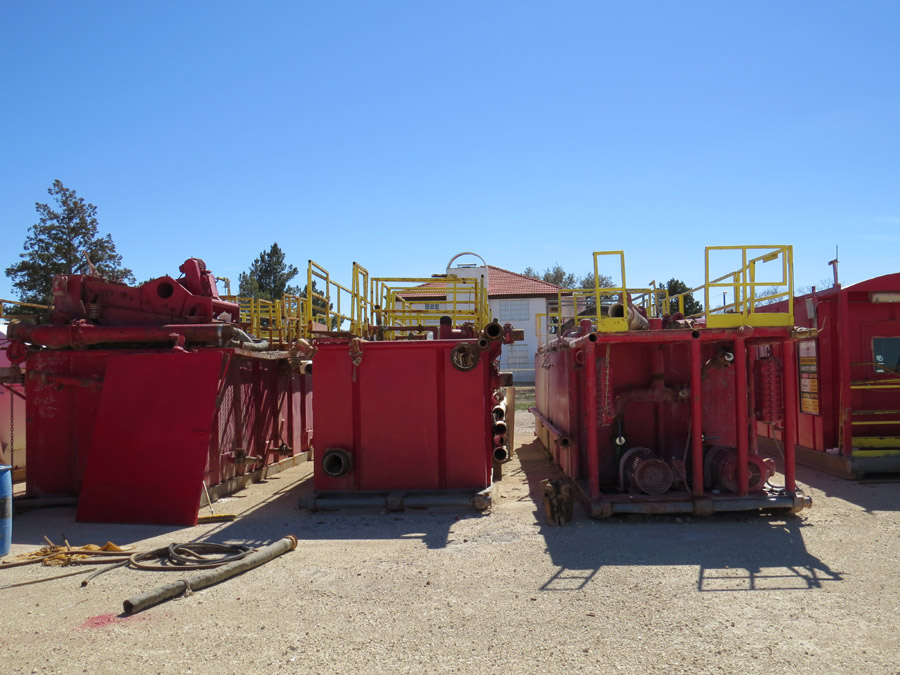

MUD TANK SYSTEM:
Three (3) tank 610 BBL total - 80 BBL slugging
pit, Totco ALS Shaker

MUD MIXING PUMPS:
Two (2) 6 x 8 centrifugal pumps, each driven
by 60 HP electric motors

AUXILLIARY EQUIPMENT:

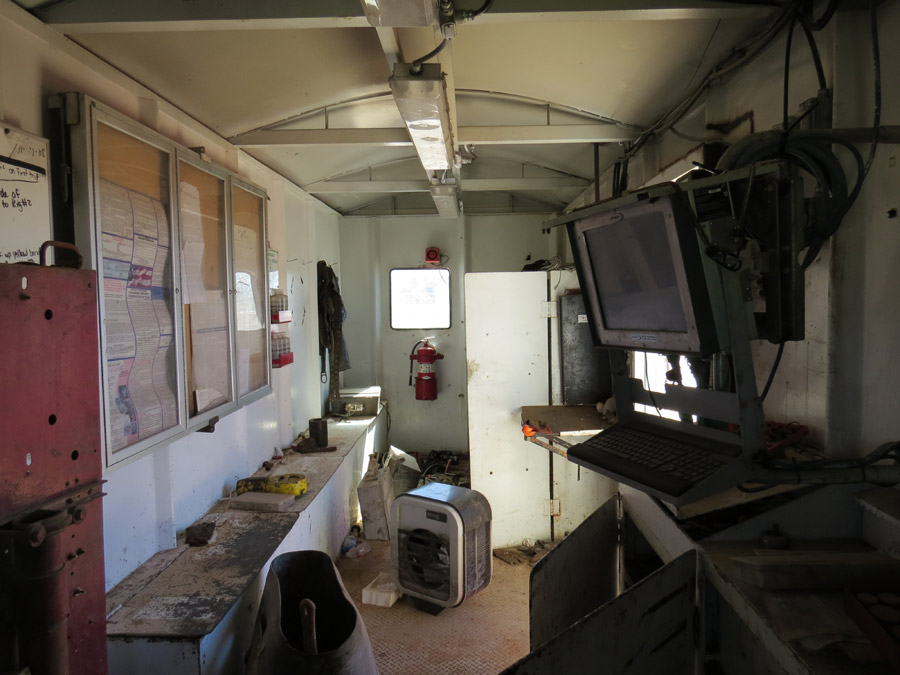

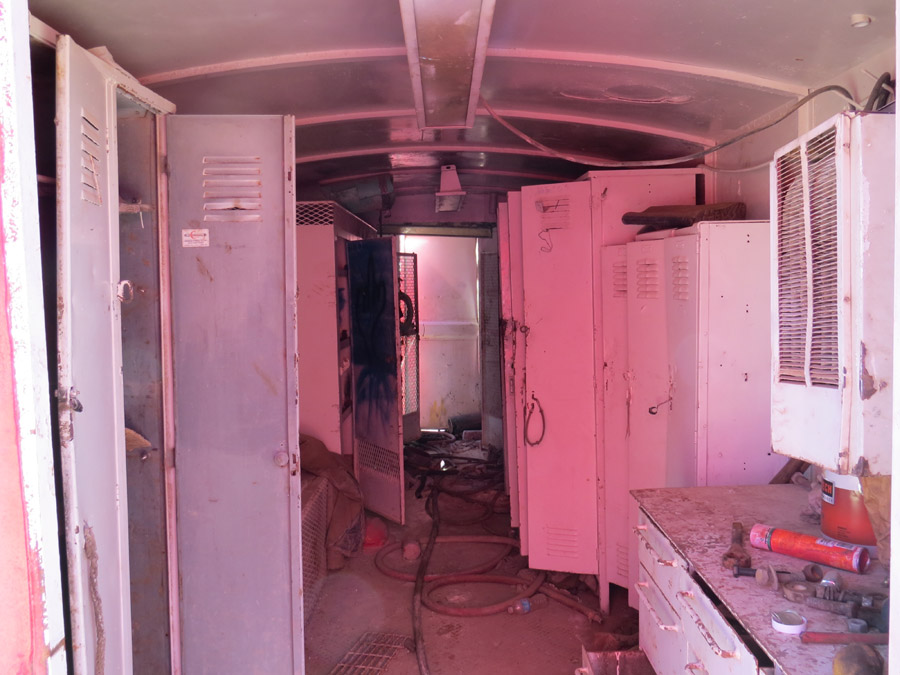

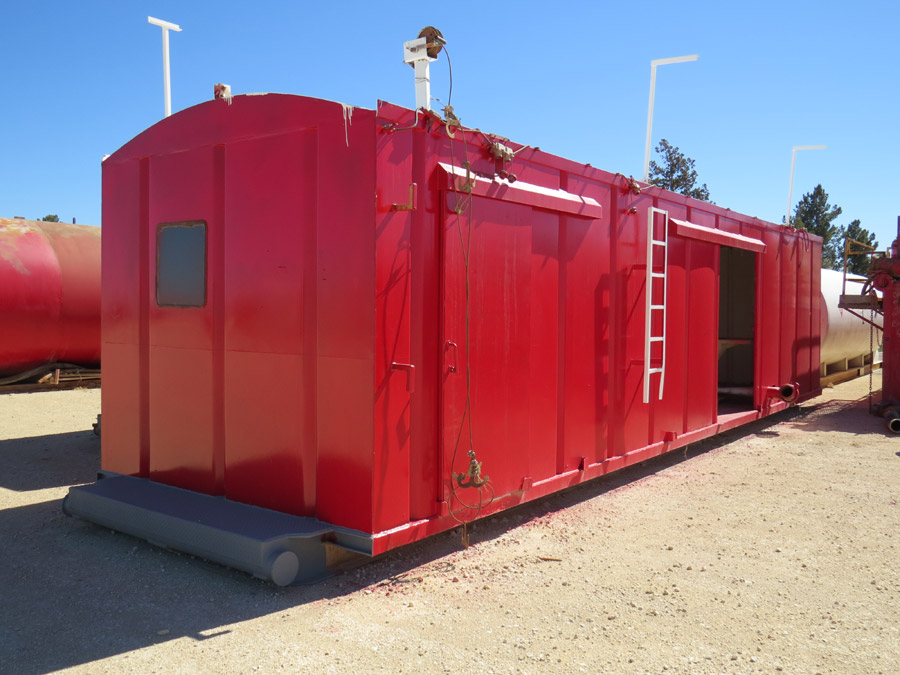

One (1) Tool Pusher and Crew Quarters

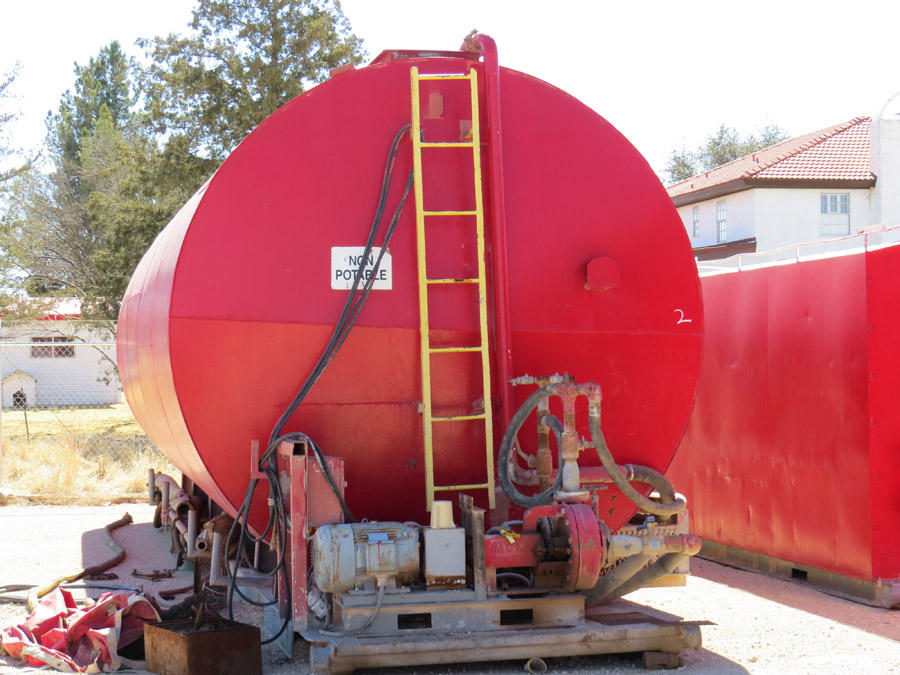

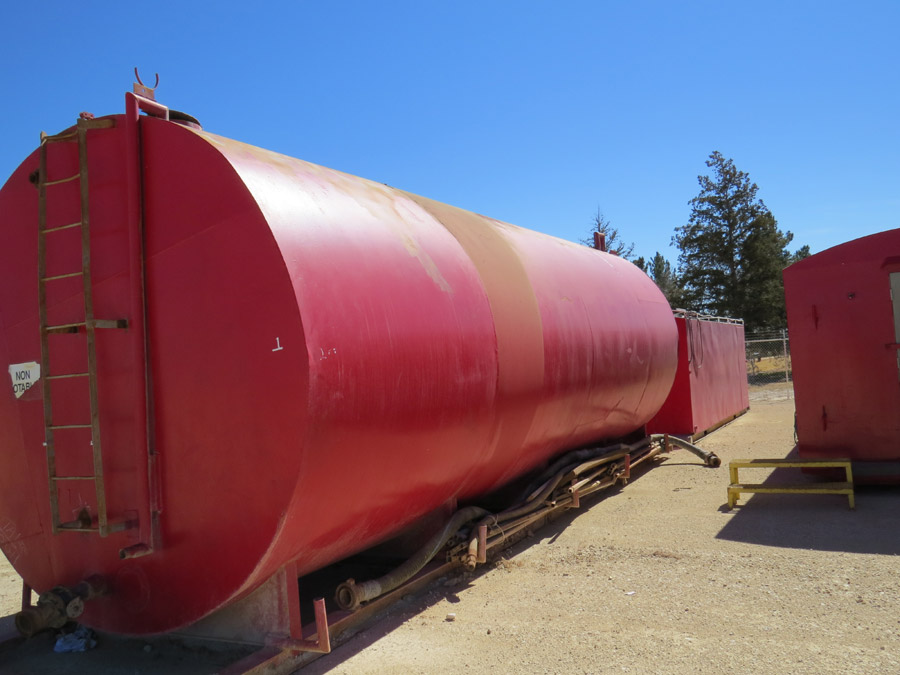

Two (2) 500 BBL Water Tank
One (1) 8,000 gal Fuel Tank

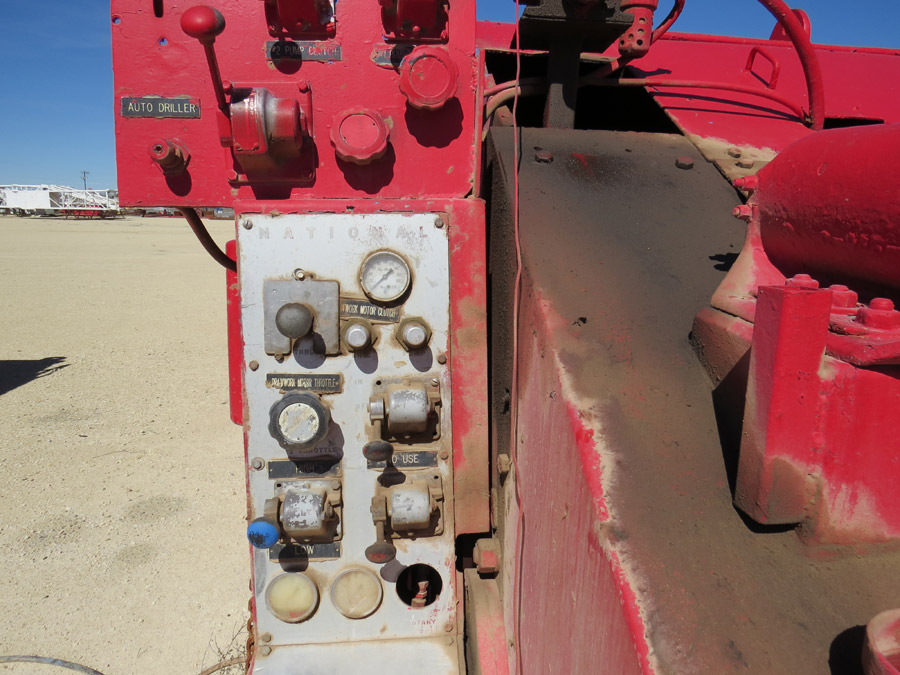

One (1) Automatic Driller
Two (2) Air Hoists
One (1) Drilling Recorder
0 -7 Drift Indicator

NO TUBULARS
