2009 750 LDW-K 2000HP AC Drilling Rig for Sale

No Longer Available

Winterized, Skidding System
7,500 PSI Circulation System
Includes: 373 Joints 5" G-105 Drill Pipe
Located: North Dakota

NOW ACCEPTING OFFERS
Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973


Listing Details

Classification
2000 hp AC Electric

Racking Capacity
25,000’

Power System
Three (3) Caterpillar 3512/1225 kw generator sets One (1) VFD drive system

Draw Works
750 LDW-K powered by Two (2) 1150 hp NOV AC motors

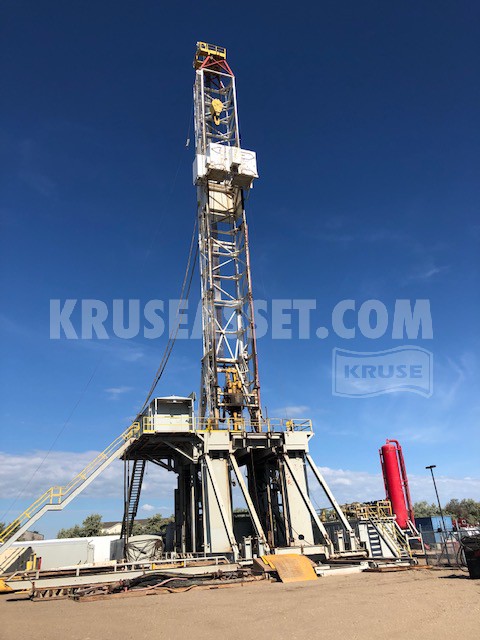

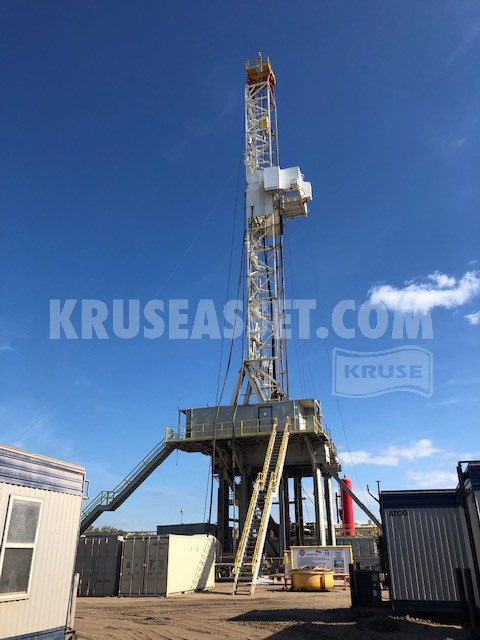

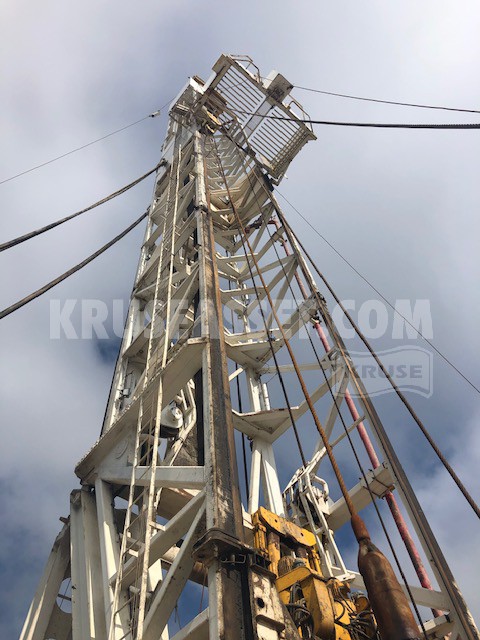

Mast
147' mast rated at 1,000,000 lb SHL 12 part line Integrated top drive

Drill Line
1-3/8” EIPS

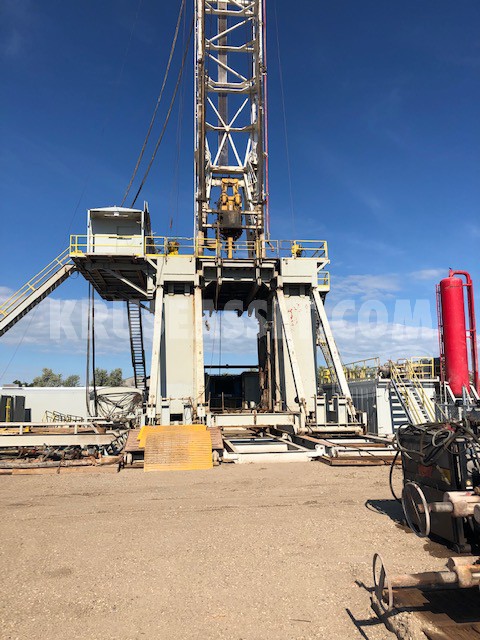

Substructure
30' high self-elevating low floor with 27’ clear height under beams with a simultaneous rotary capacity of 1,000,000 lb and 600,000 lb setback

Mud Pumps
Two (2) Lewco WH 1612 1600 hp triplex each driven by one (1) 1600 hp AC high torque traction motor

Rotary
27-1/2” powered by (1) 800HP AC traction motor

Top Drive
NOV-TDS11 SA 500 ton AC

Block and Hook
500 ton block

Drill Pipe
5" od 19.50 ppf G-105 NC 50

Annular Preventer
11” 5,000 psi wp

Ram Preventers
11” 5,000 psi wp double ram 11” 5,000 psi wp single ram

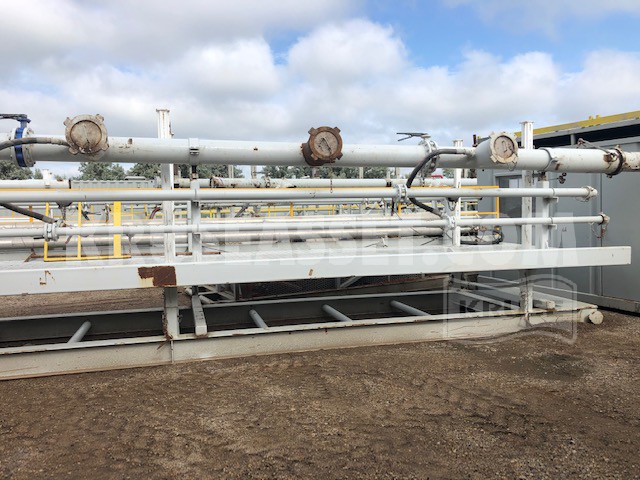

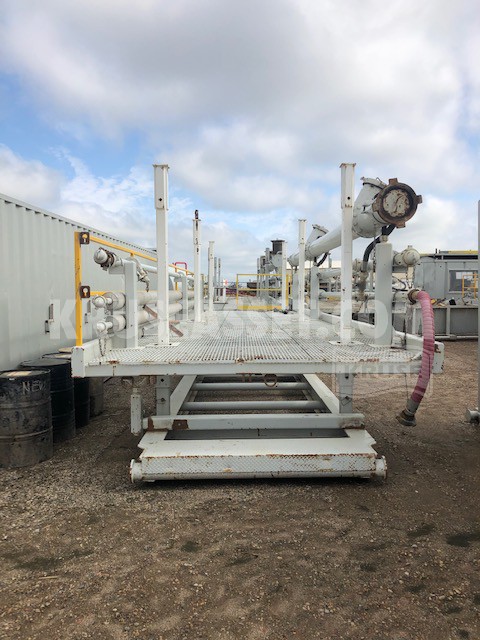

Choke Manifold
4-1/16"x 3-1/16" 5,000 psi wp

Accumulator System
220 gal six (6) station with remote control

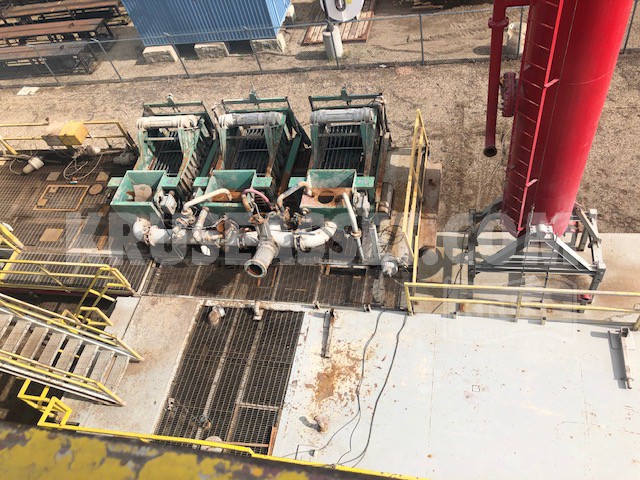

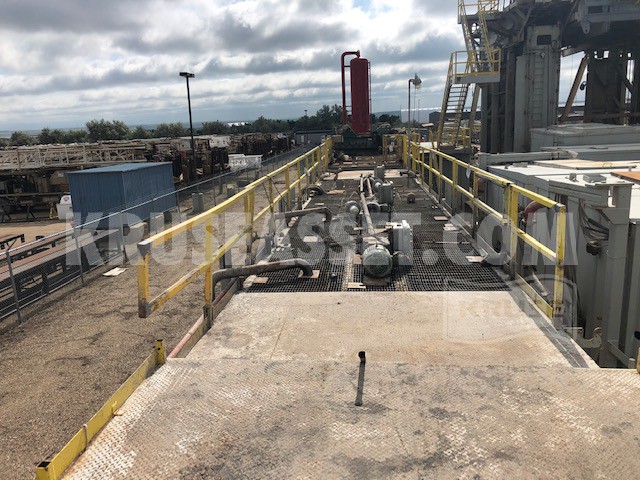

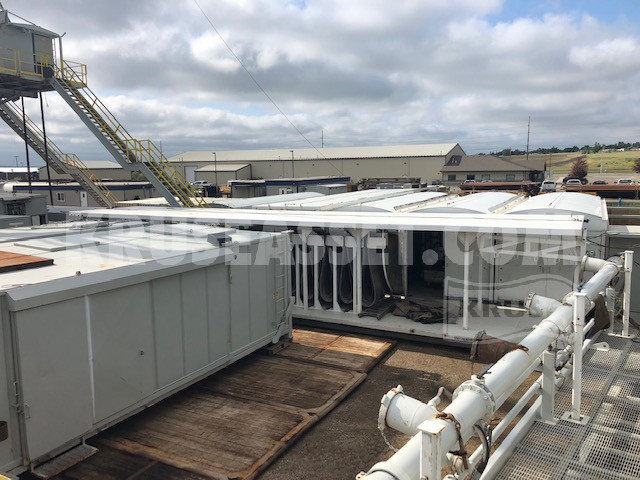

Mud System
Two (2) Tank 1,000 bbl system Three (3) Derrick 513 High G shakers

Auxiliary Equipment

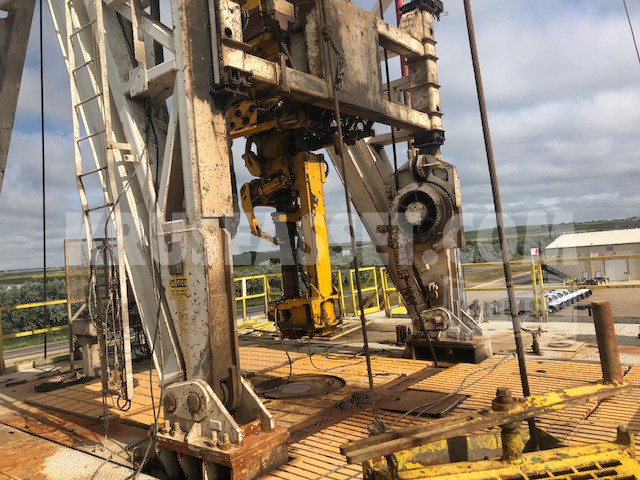

Toolpusher quarters One (1) 500 bbl water tank Two (2) 12,000 gal fuel tanks One (1) 150 hp boiler NOV-Iron Roughneck Type ST-80 C Hydraulic Catwalk 20 ton BOP handling system Hook and claw skid system (180 feet)







Listing No. 331
