Rig Tech RT-400B 1000HP Drawworks
(2) New Bridges RSF 1600 Pumps
w/CAT 3512 Engines
Located:  Odessa, TX

NOW ACCEPTING OFFERS
Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973

Listing Details

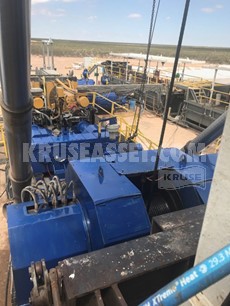

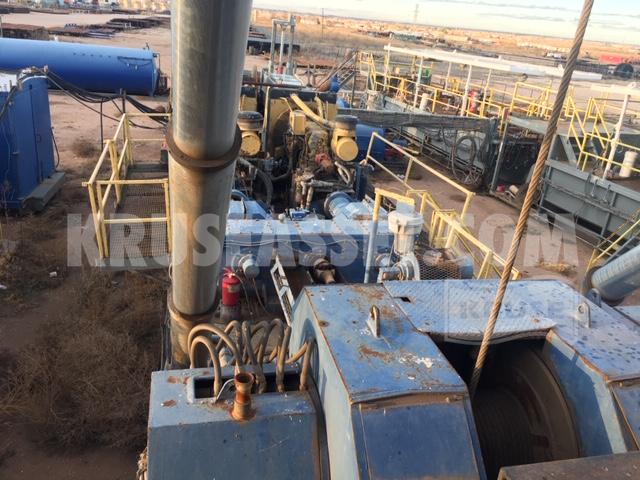

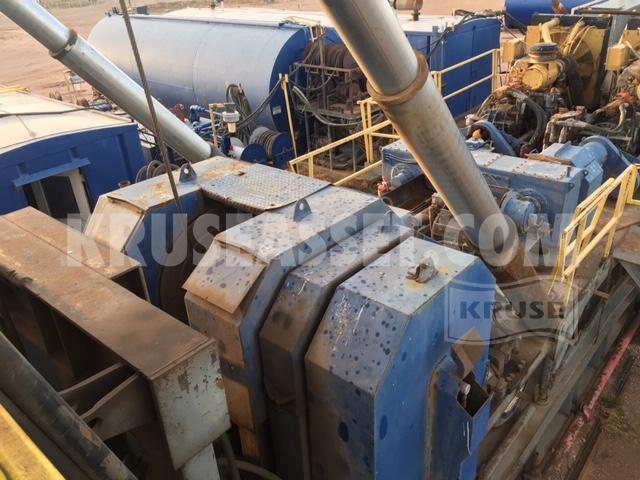

Draw Works:
Rig Tech RT-400B 1000 HP

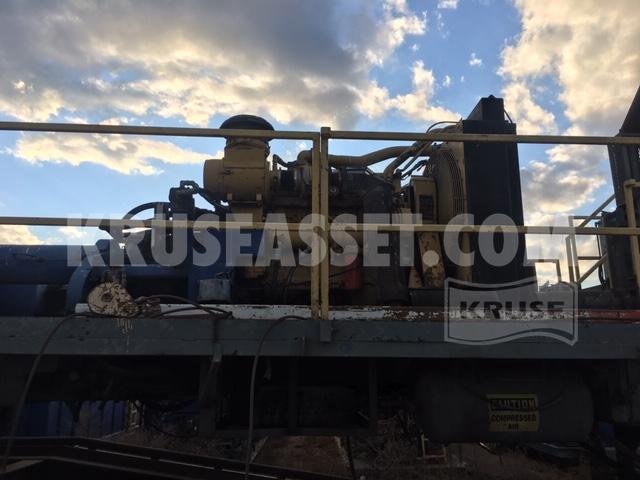

Power:
2 – Caterpillar C-15 Engines (540 HP)
2 - Allison 5 Speed Transmissions

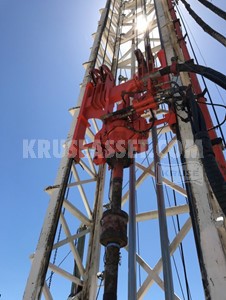

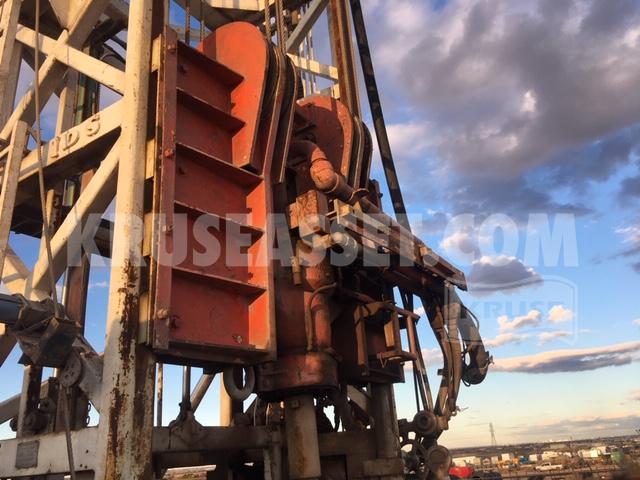

Hydraulic Top Drive:
Venturetech XK-250, 250 Ton

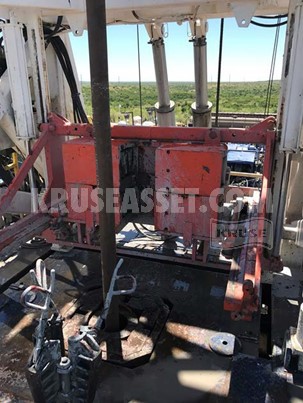

Breakout Tool:
OMT HT-75

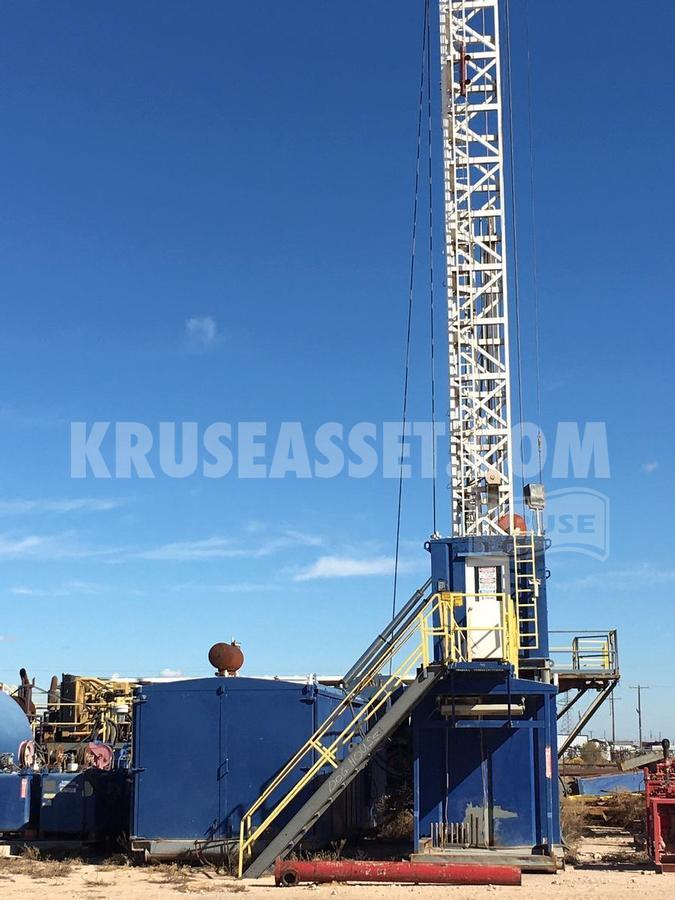

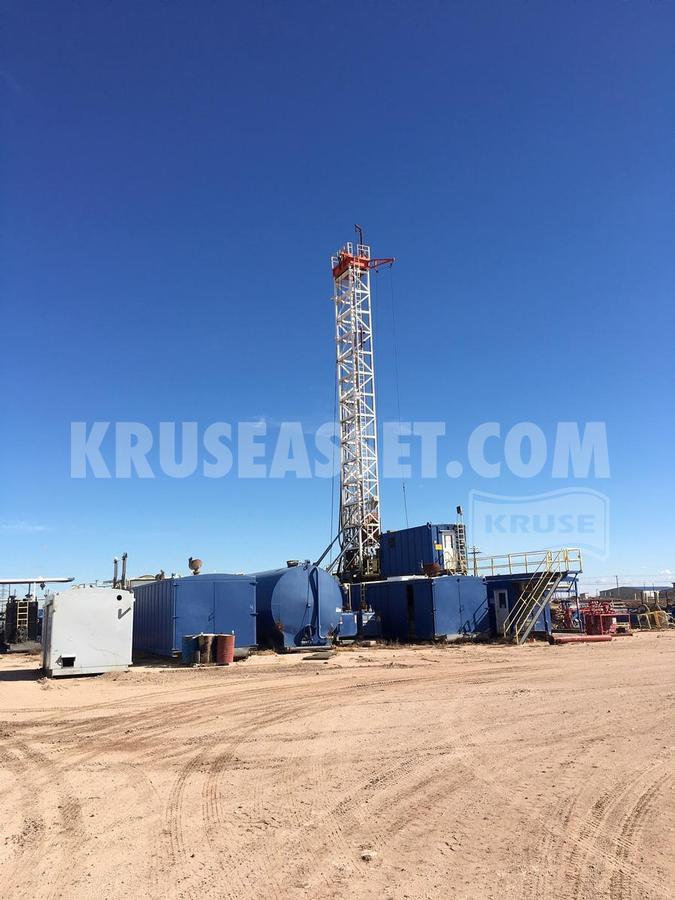

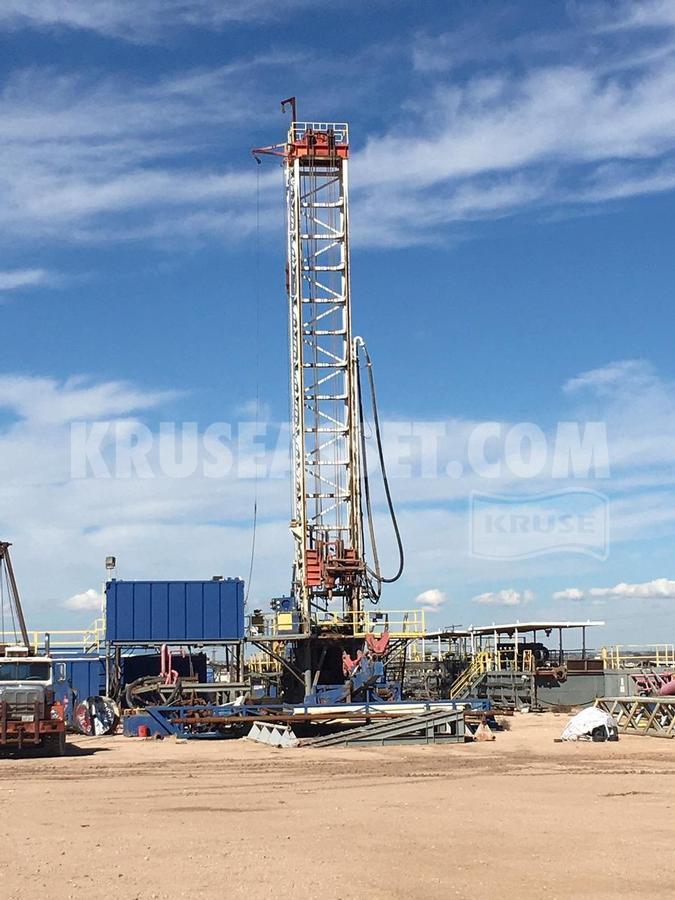

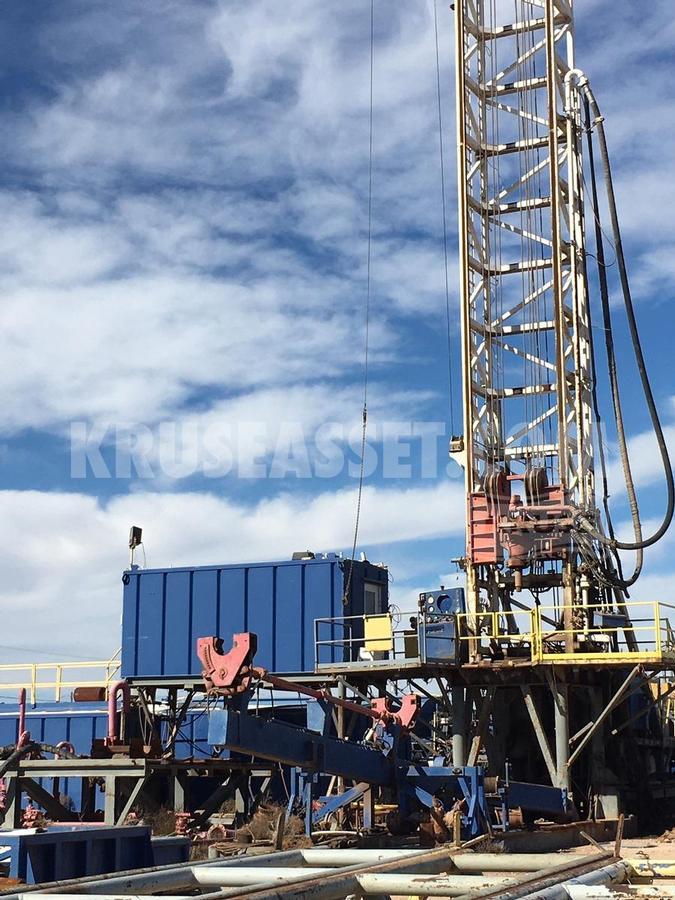

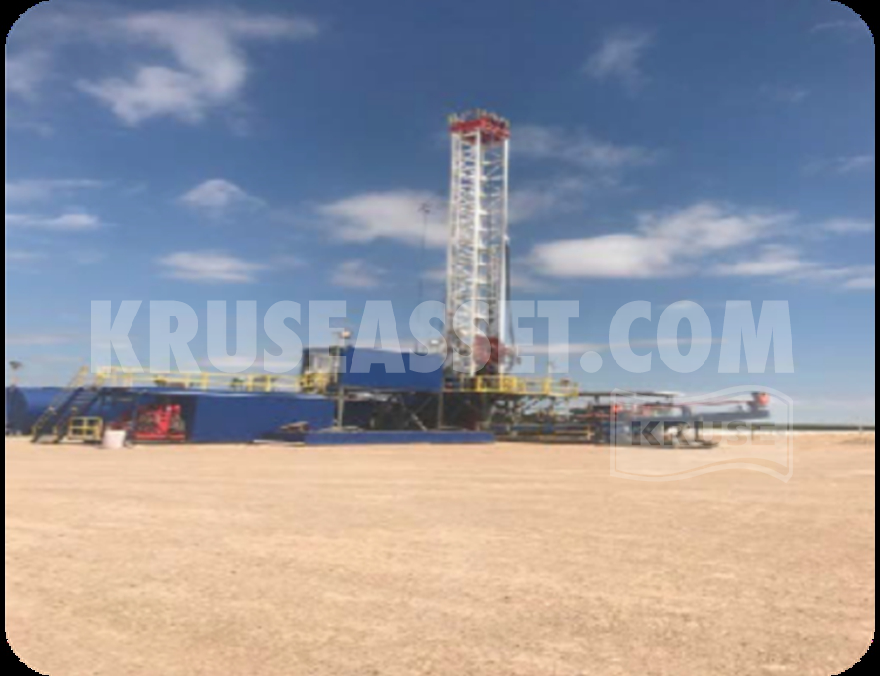

Mast:
IDS 71’6” 500,000 #

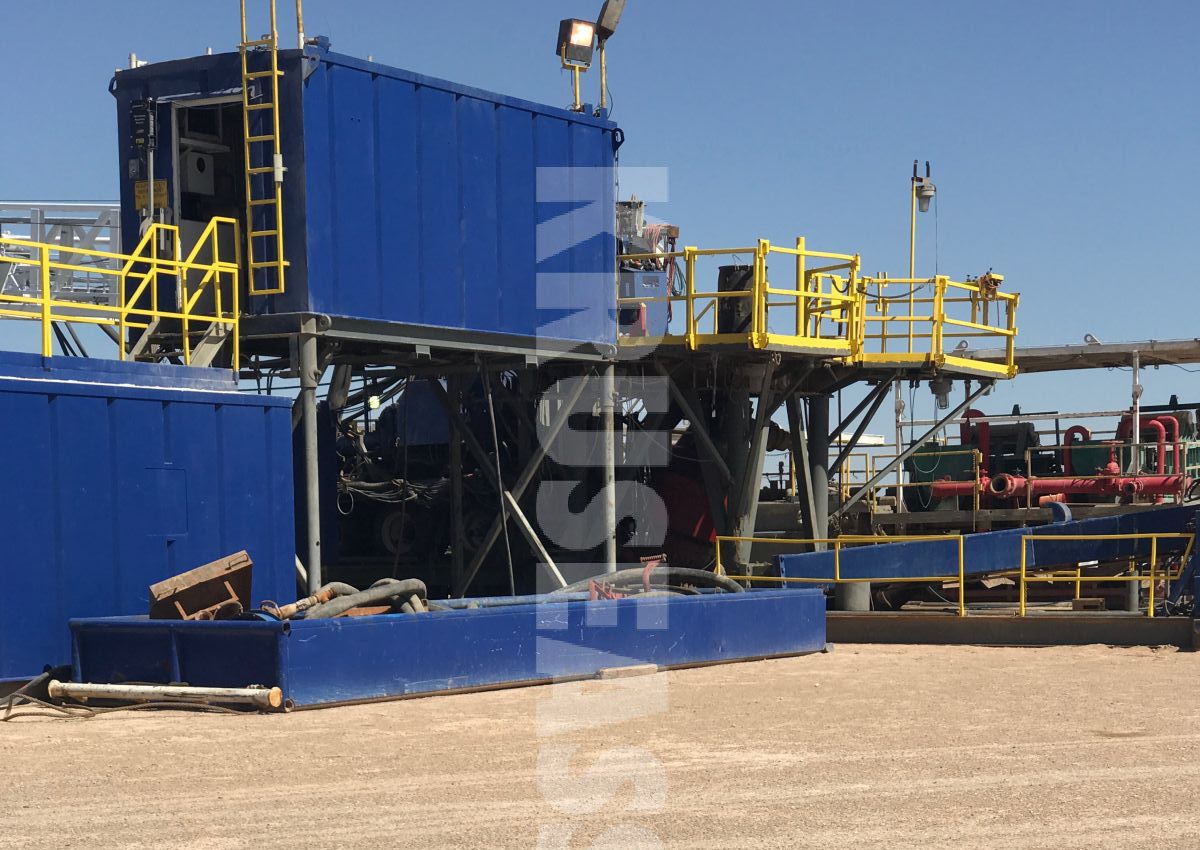

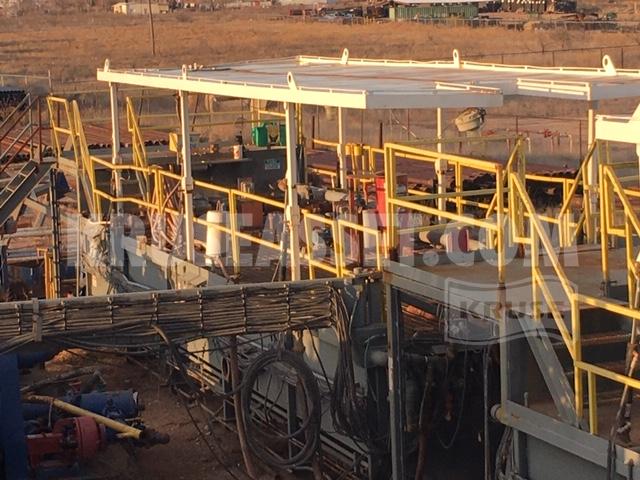

Substructure:
IDS 15’ Telescoping Sub
(12’6” w/o skid package)
800,000 # Rotary Capacity

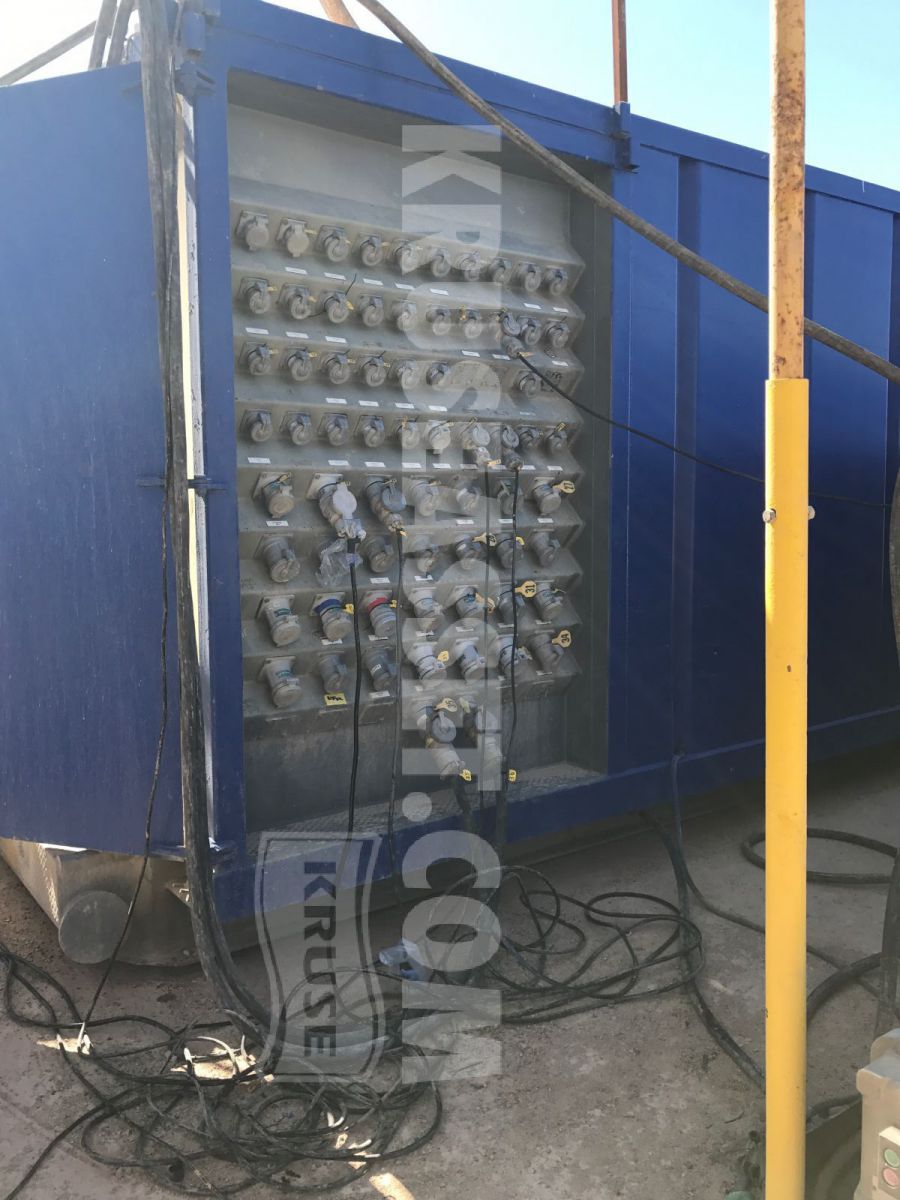

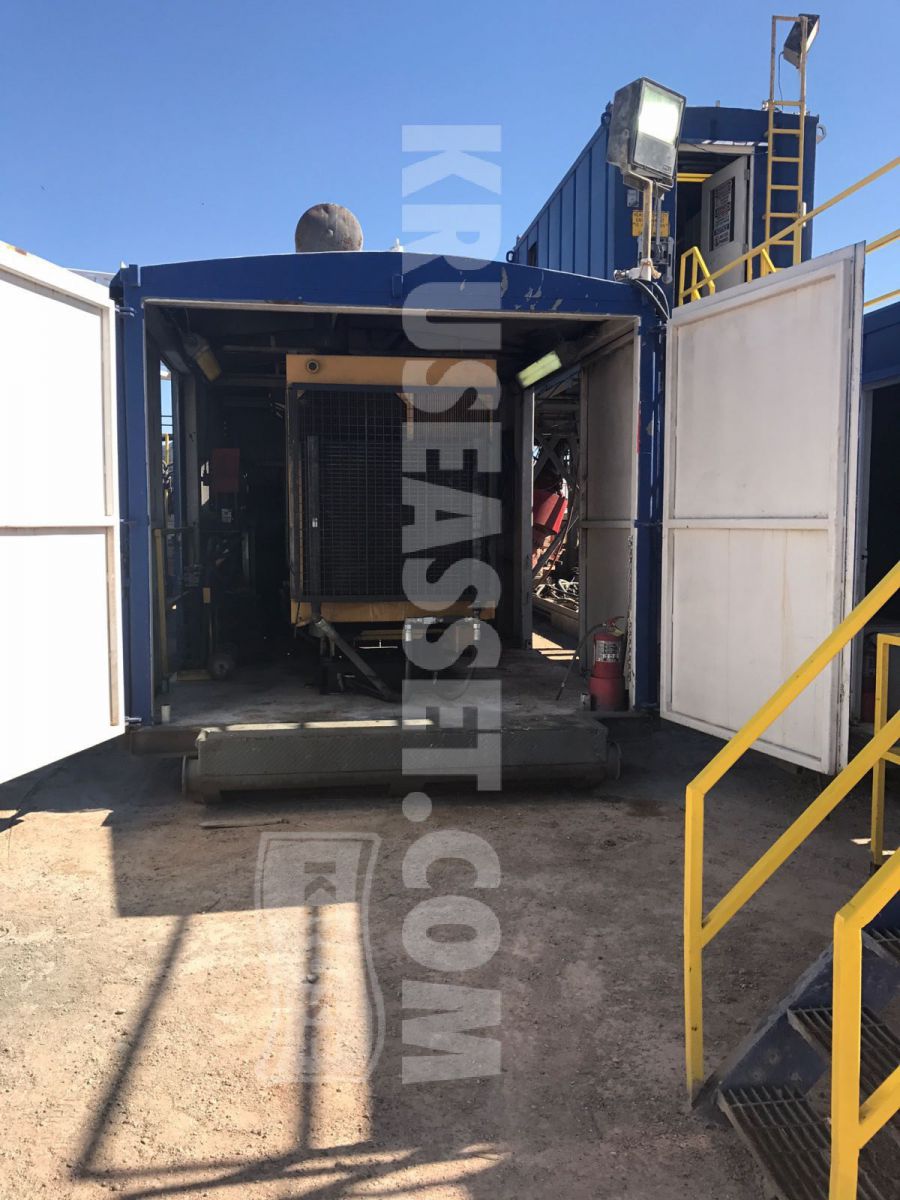

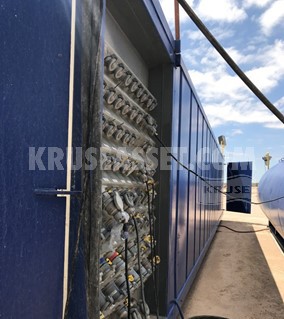

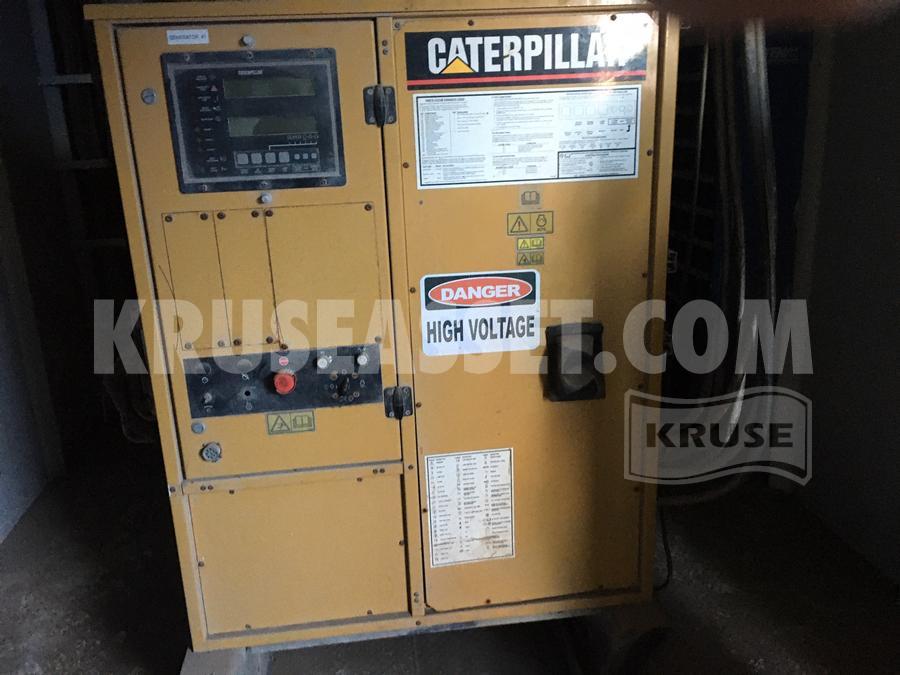

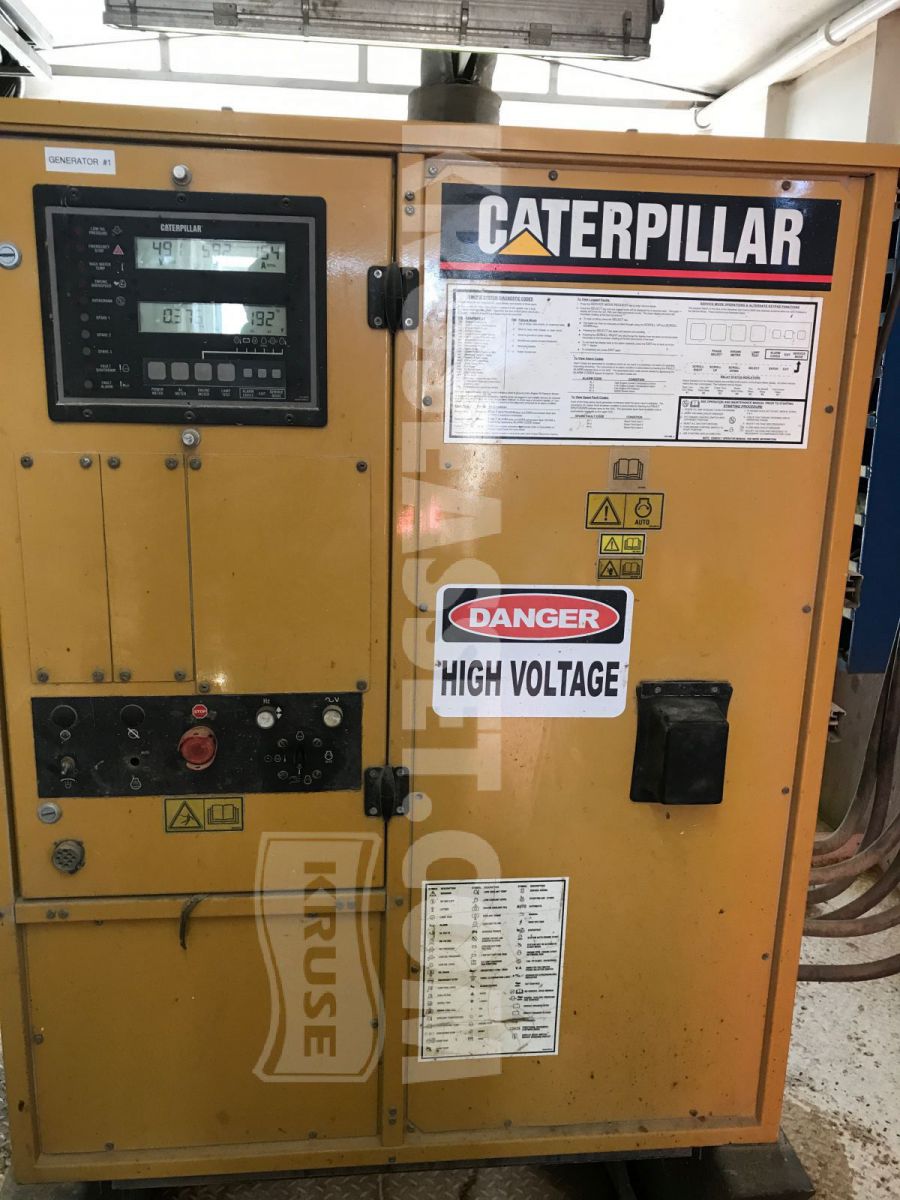

Electrical Power System:

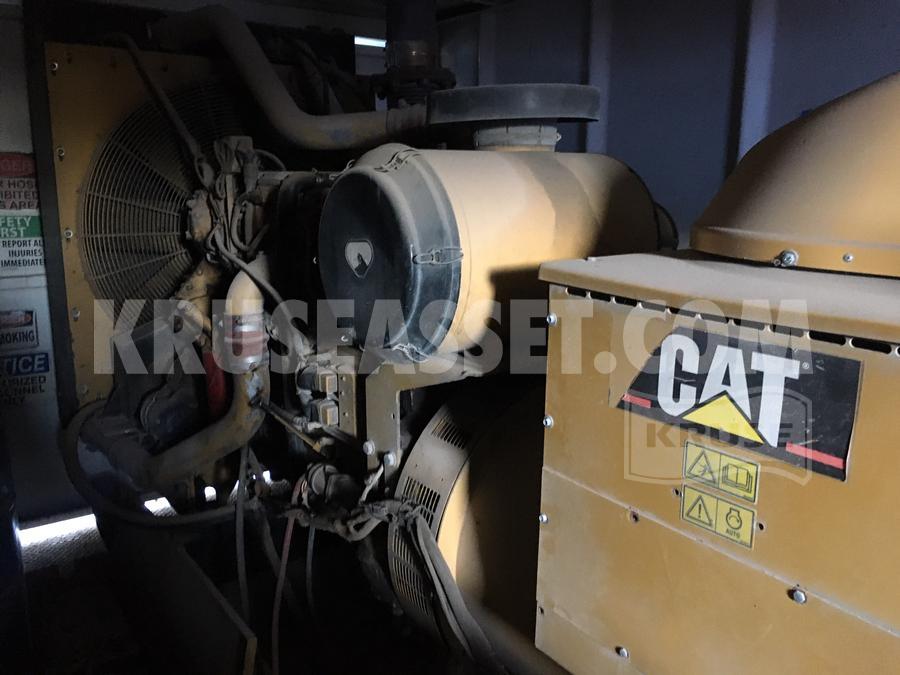

2 – Caterpillar C-15 Engines

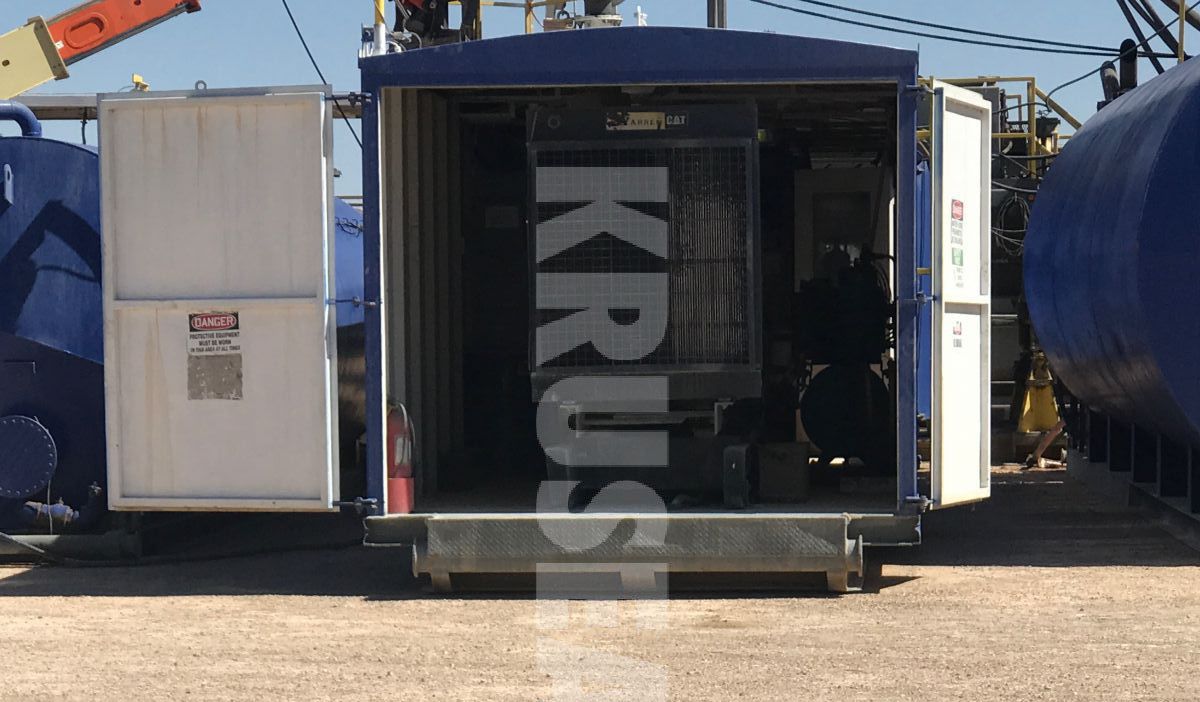

Light Plant/Bottom Dog House Combo

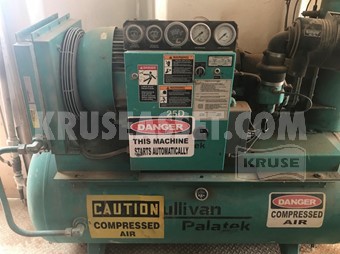

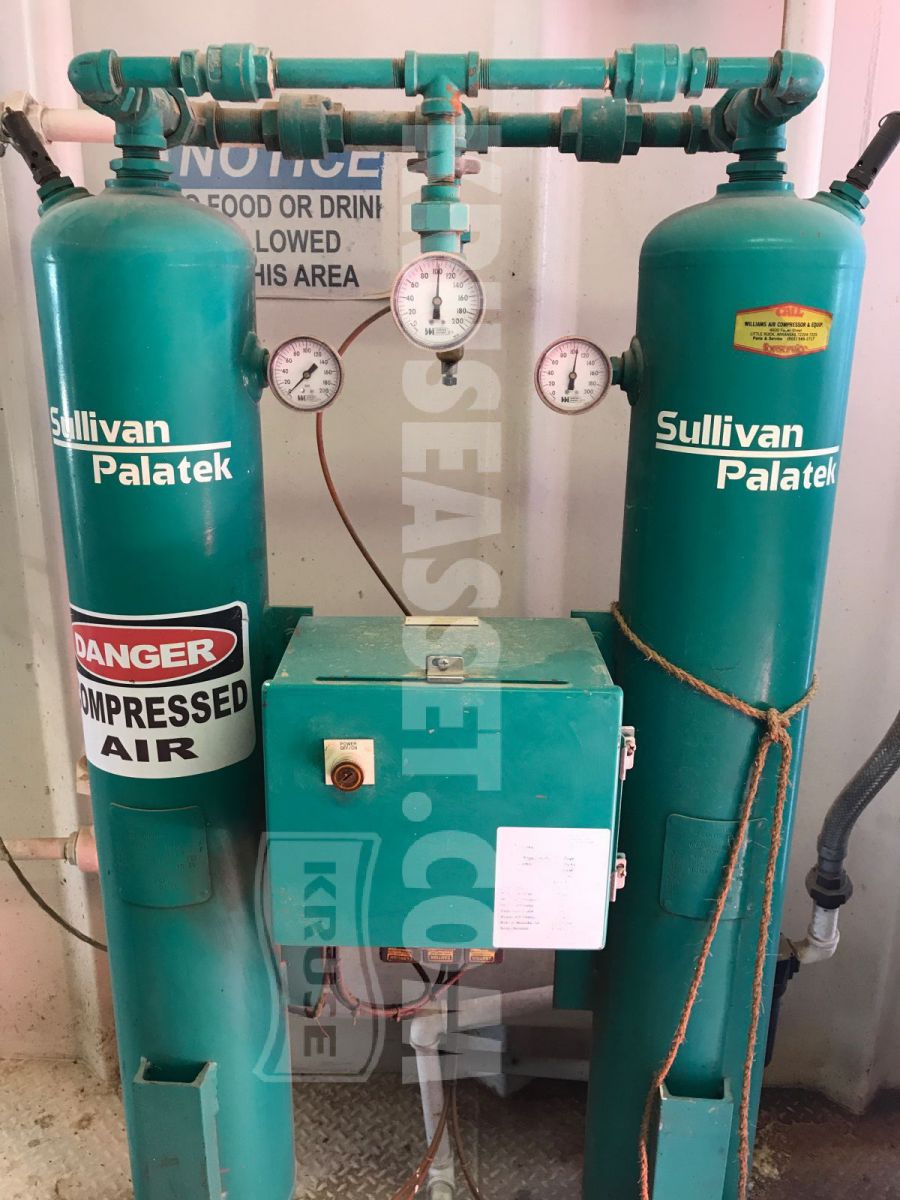

Sullivan Palatek 25D Air Compressor

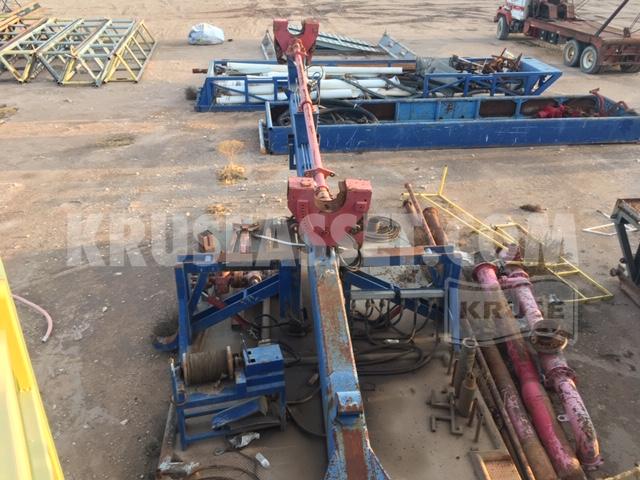

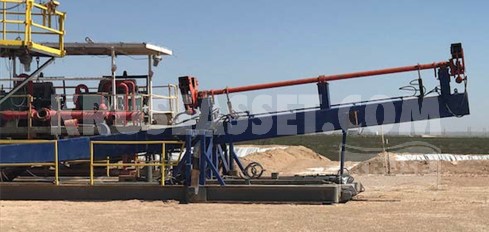

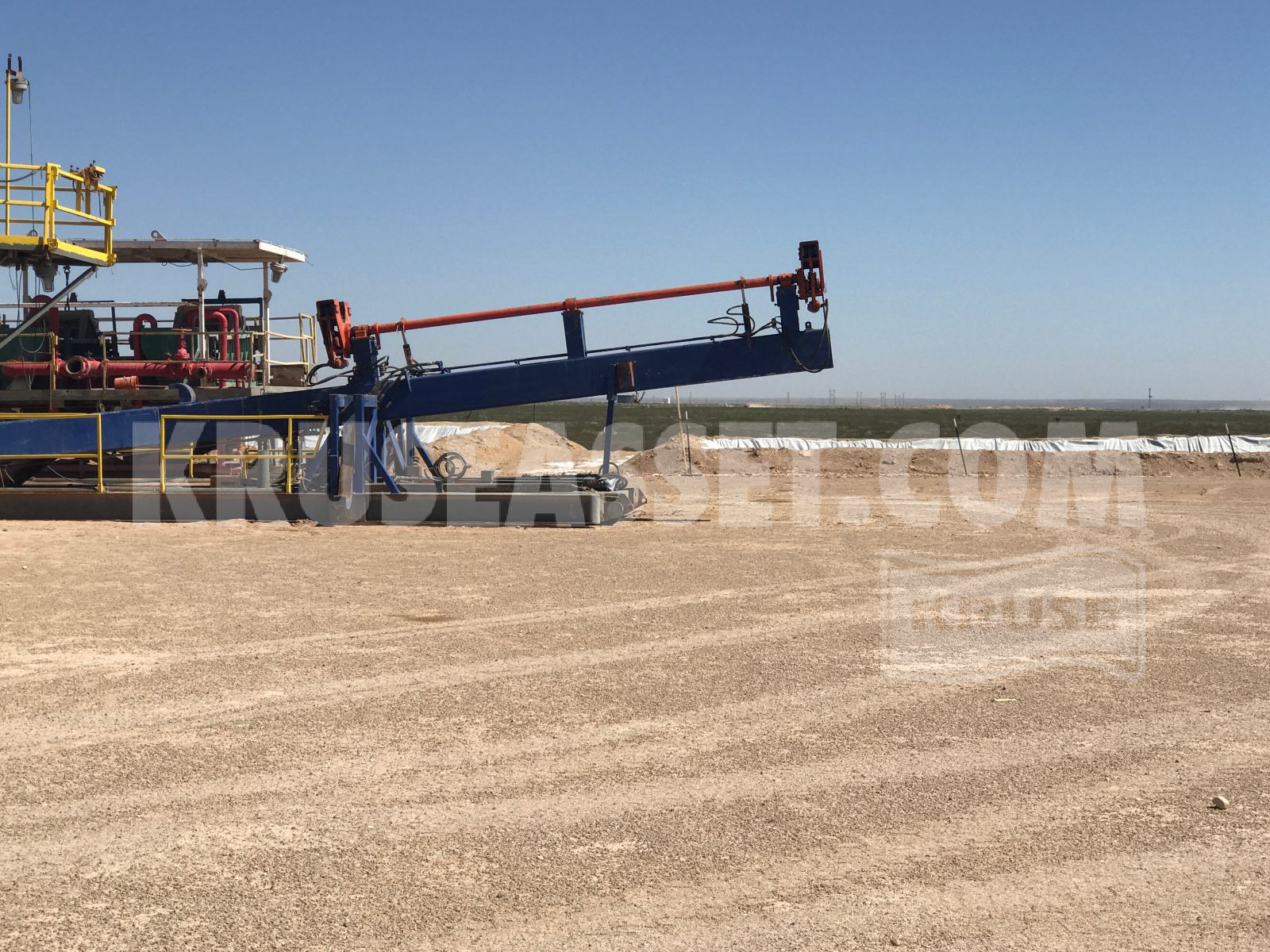

Pipe Handling System:
IDS Pipe Handler

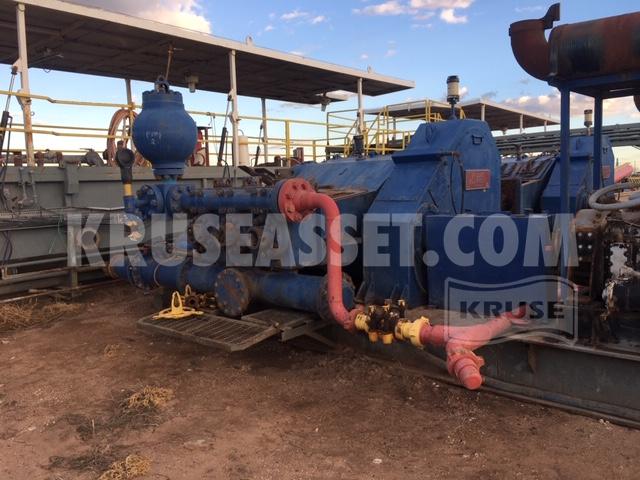

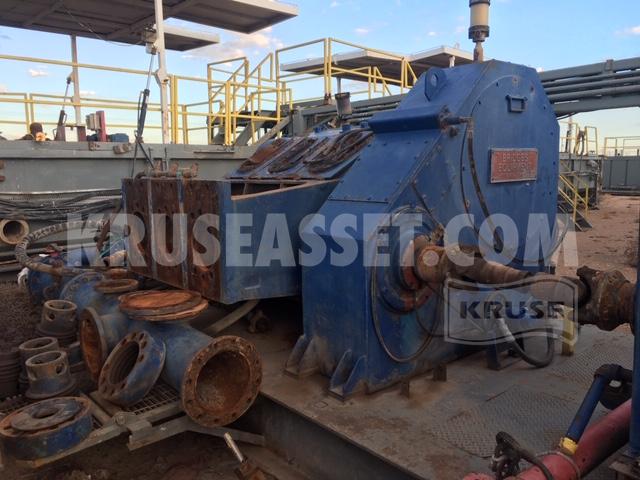

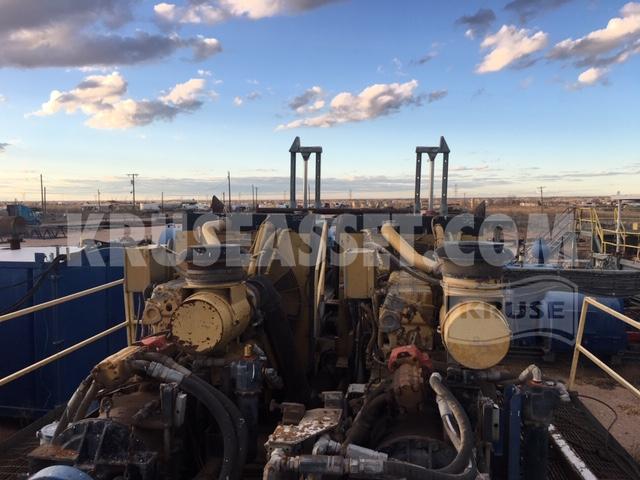

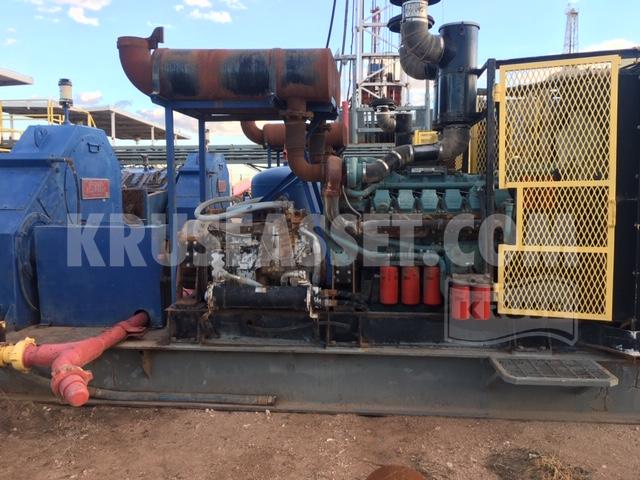

Mud Pumps:
#1 – RS F1000
#2 – RS F1000

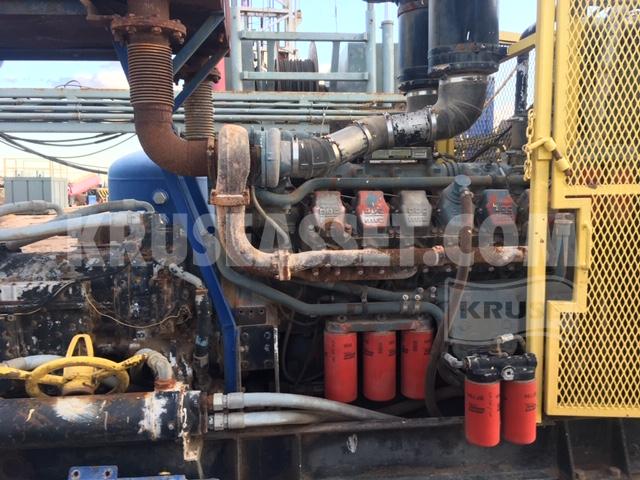

Power:
2 – 1000 HP 12 V 2000 Detroit MTU’s
Allison 6 Speed Transmissions

Drill Pipe:
10,000' of 4-1/2"

Drill Collars:
TBD

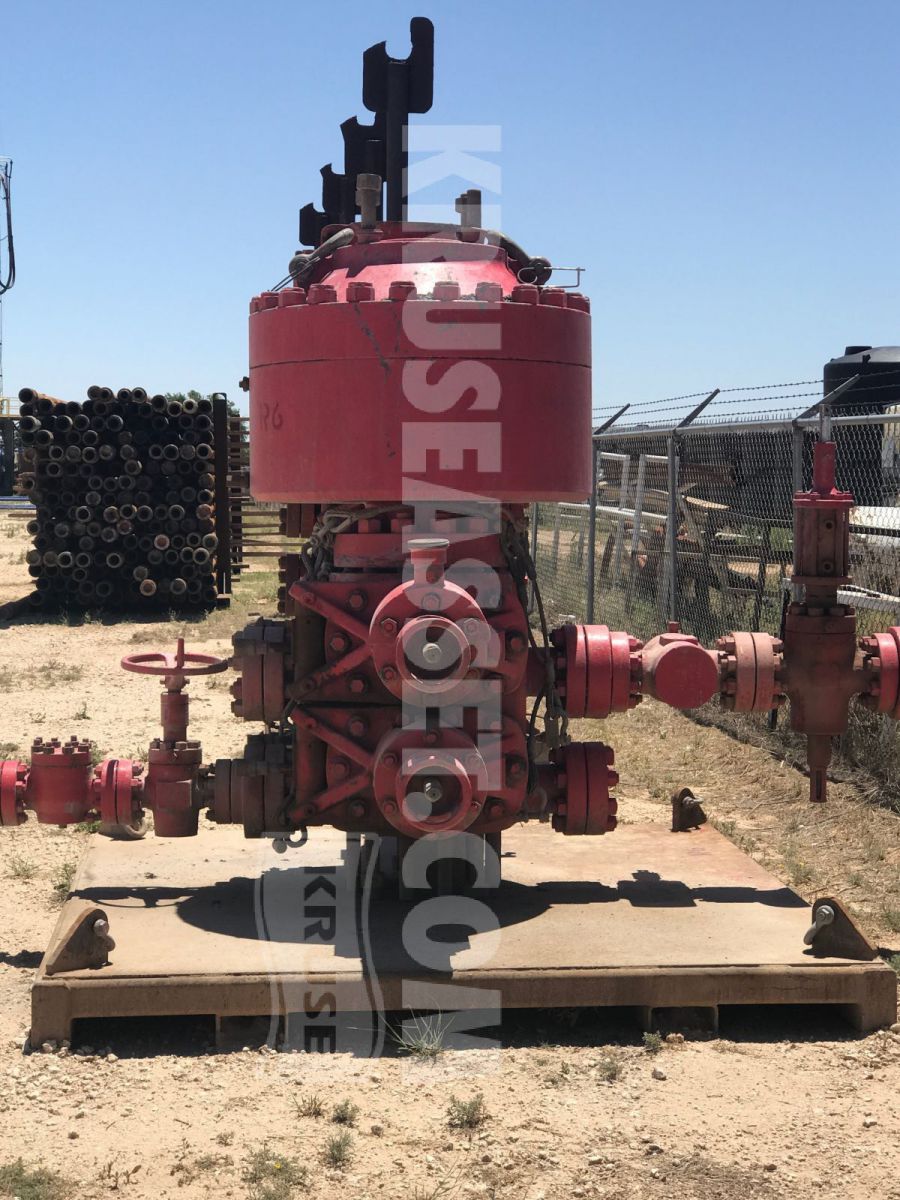

Annular Preventer:
Townsend Type 90, 11” X 5,000 psi

Ram Preventer:
Townsend Type 82 Double Ram
11” X 5,000 psi

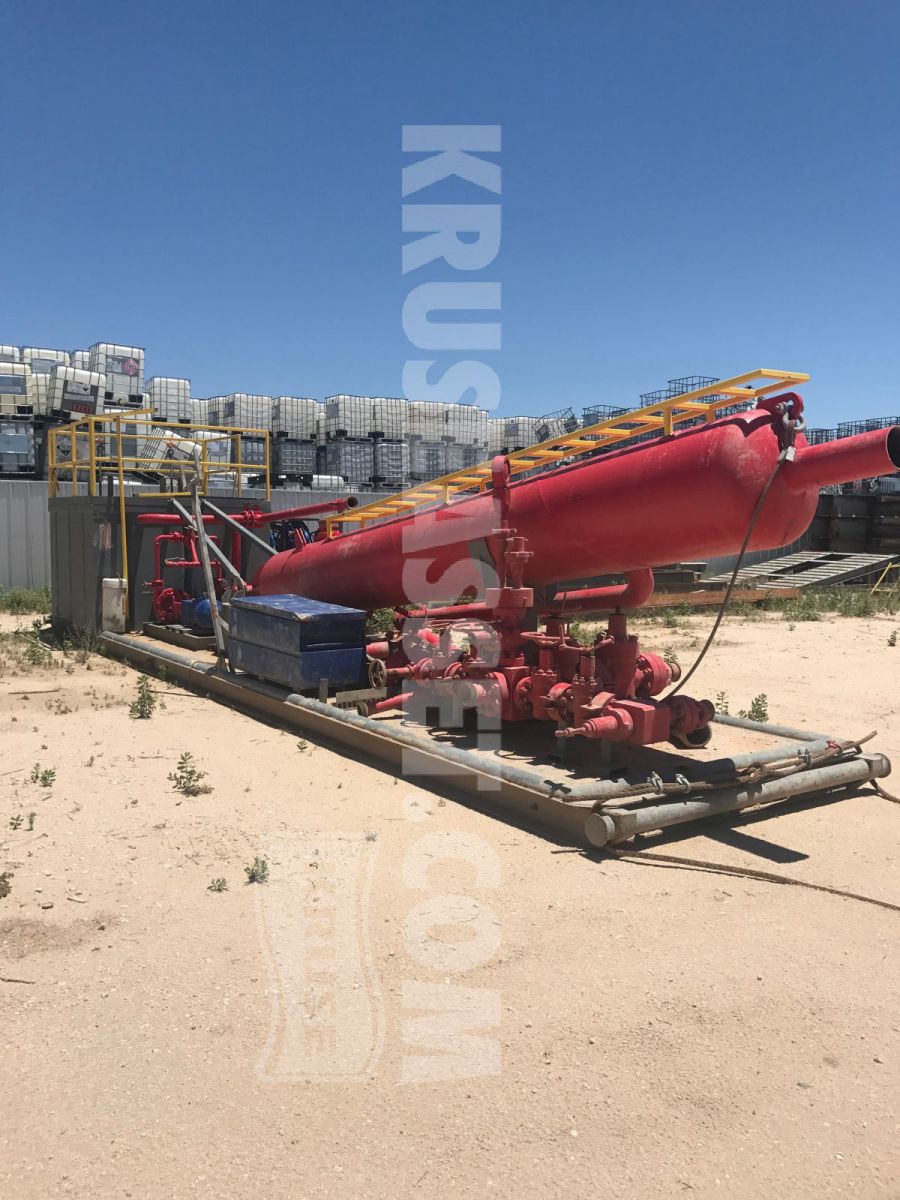

Choke Manifold:
4 1/16” X 5,000 psi w/Buffer Tank

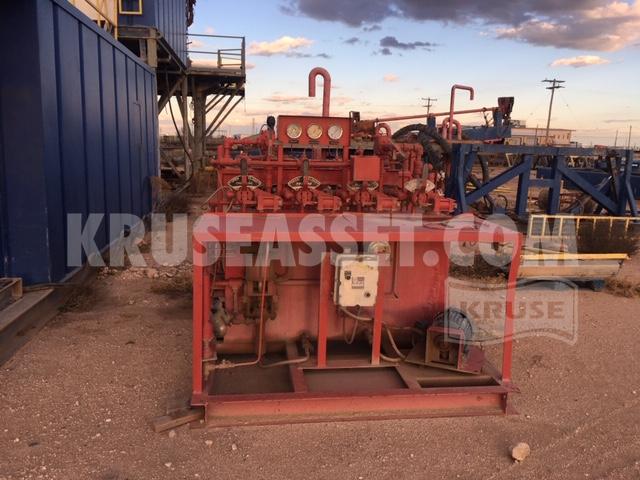

Accumulator System:
US Oil Tools 5 Station
Remote Panel on Rig Floor

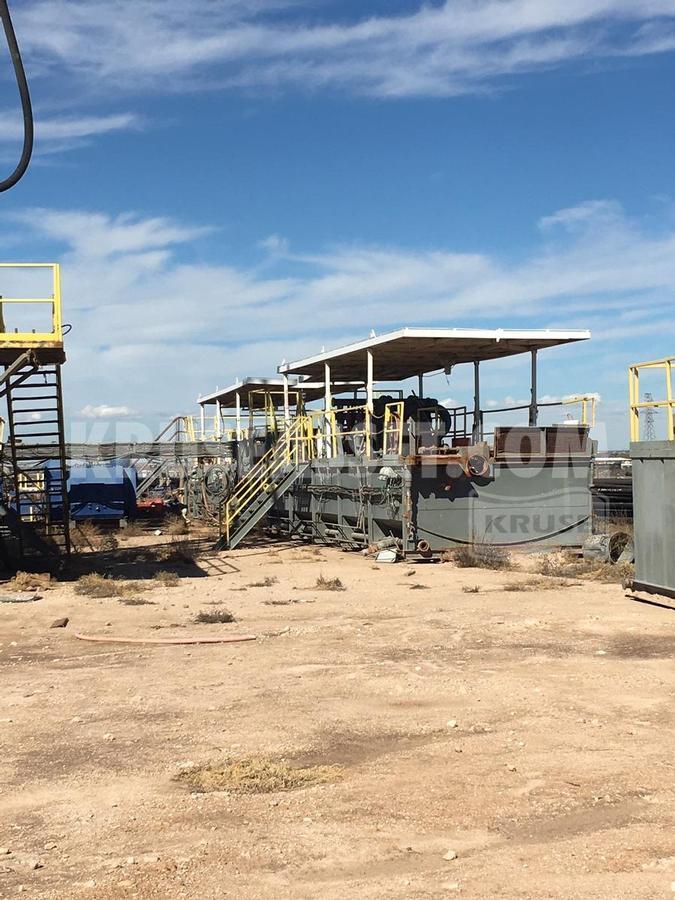

Mud System:
640 BBL Pit System

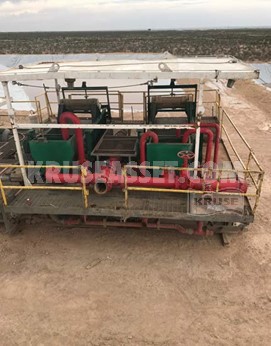

2 – Derrick Super G Shakers
Derrick 2 Cone Desander
Derrick 16 Cone Desilter

Water Tank:
500 BBL

Diesel Tank:
11,130 Gallons Fuel Tank

Auxiliary Equipment:
Skid Package
Automatic Driller
OWI Survey Machine
Trolley System for BOP

Drawworks and Mast are Trailer Mounted

NOTE:  Rig comes with (2) New Bridges RSF 1600 Pumps, w/CAT 3512 HO engines, Built by Bridges In Odessa
