GARDNER DENVER 250 S/D Drilling Rig For Sale

No Longer Available

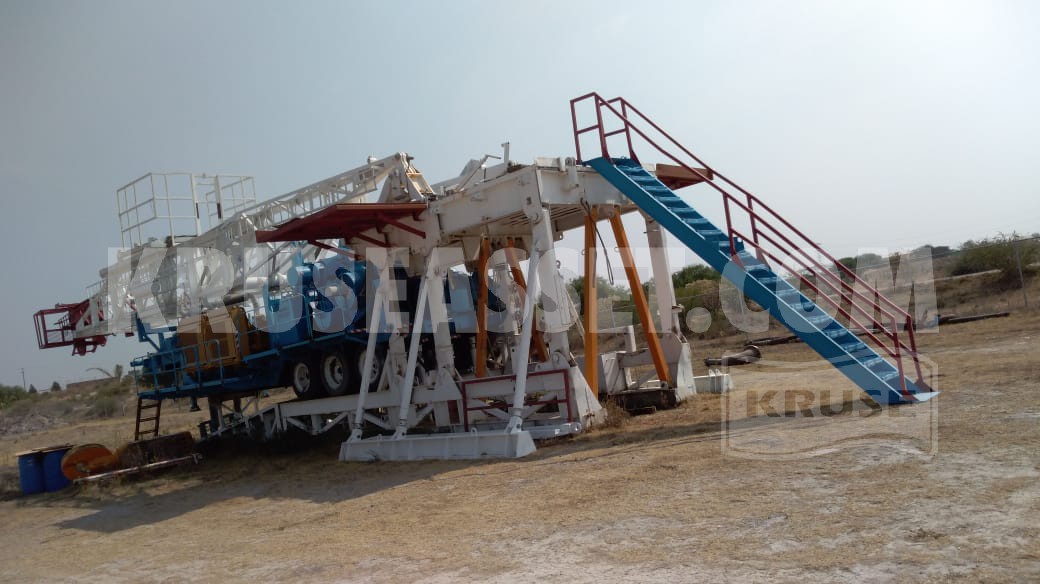

GD 250 HKL S/D Drilling Unit
(2) CAT 3406 Diesel Engines
Located: Aguascalientes - Mexico


NOW ACCEPTING OFFERS
Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973

Listing Details

Gardner Denver 250

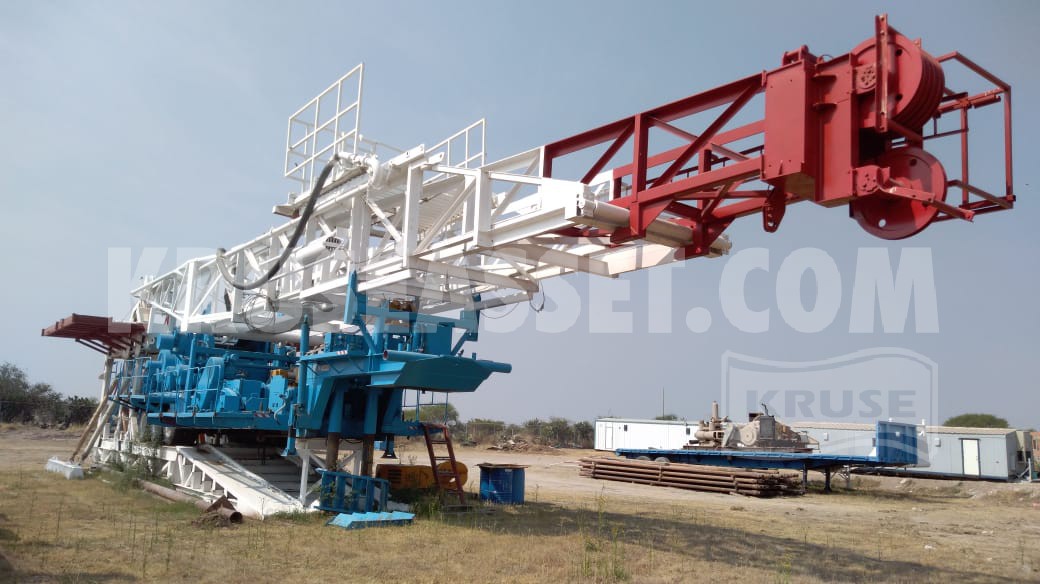

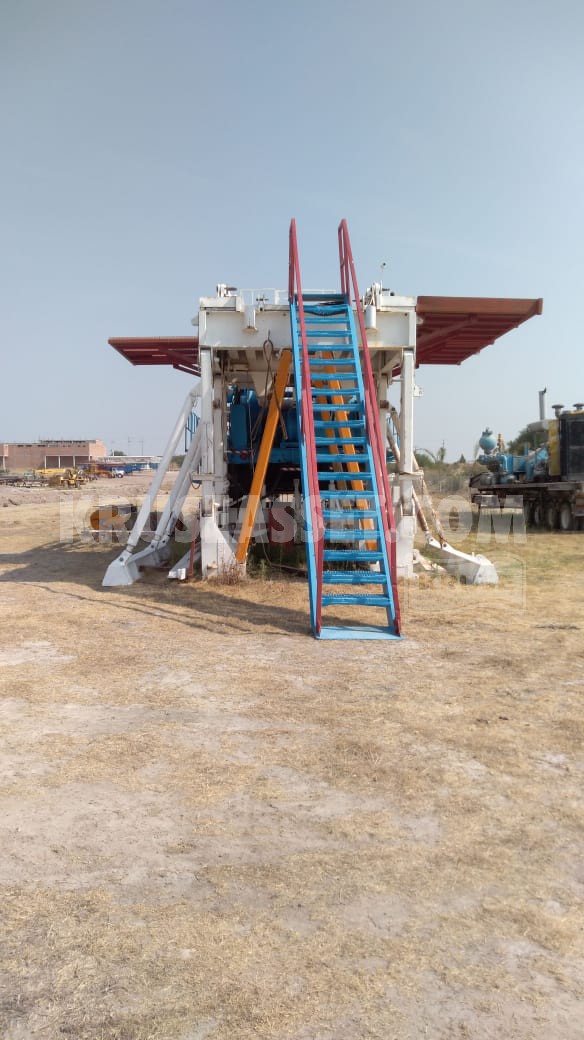

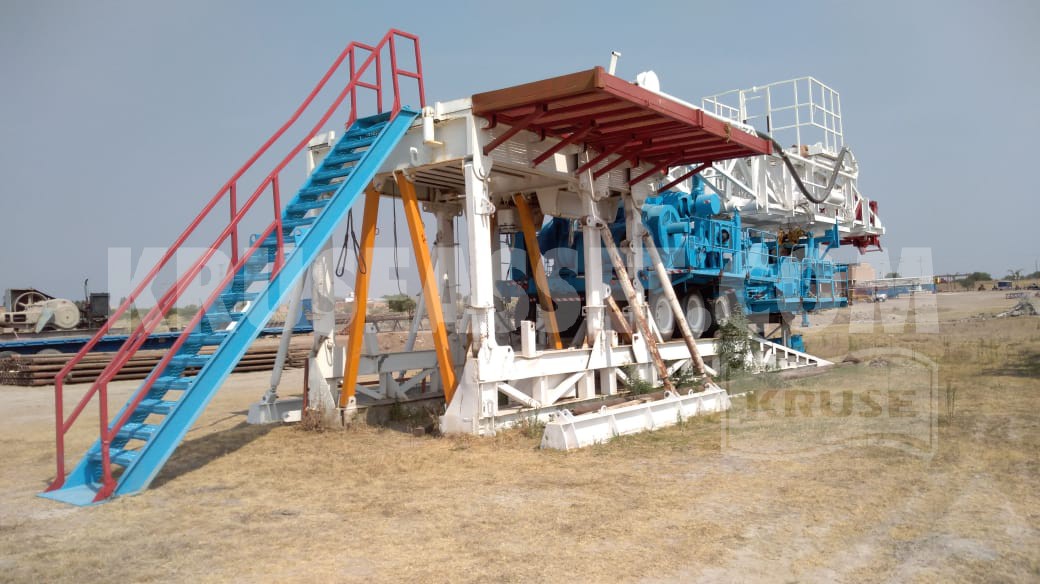

Gardner Denver 250 HKL S/D Drilling unit w/Lebus f/1 116” Line. Parmac V-80 Brake, Foster Catheads, 2-Eng Compound p/b (2) Cat 3406 Diesel Engs., S/N 3ER08225 & 3ER08230, Ea w/TWI Disc F-11524- TCl Torque Converter, Elec. Starter, Radiator, Gauges, mtd. On 12'W x 32'L 3-Axle Lowboy Trailer, Vin: 20081824016C, 11’L Hyd. Utility Winch, Quincy 350 Air Compressor, (2) Hyd. Leveling Jacks, (2) Hyd. Cyls.,11R20 Tires, Budd Wheels, Folding Walkways. Pyramid 105'H 380,000# SHL Telescoping Mast, Crown Block w/(5) 36" Sheaves & 36" Fast line Sheave, 4" Standpipe, Racking Board, 14’H x  11’ W  Scissor Lift Sub w/36" H x 34" L 2-Piece Back on Ramp,6'W Folding Walkways, 2-Piece 2-Base Beams, V-Door, Stairs and Safety Rails

  •          ZP-205 20- ½” Rotary Table w/Split Master Bushing
  •          Spool of Approx 4000' Of 1 1/18" Drill Line
  •          3 1/2" ID Rotary Hose, (3) Vibrator Hoses, (1) 3 W' ID x 18'L & (2) 15'L
  •          42"H x 6'W x 58" L 2-Section Catwalk
  •          Oilwell PC-150 150 Ton swivel
  •          OWI 1500 Kelly Spinner
  •          Gardner Denver 200-Ton 4 Sheave Block/Hook Combo f/1 1/8” Line, Web Wilson 150-Ton Hook
  •          (2) 2 ¾” x 108" Elevator Links
  •          3000# BOP Choke Manifold w/4-Way Cross, (2) 3 1/8" 3M & (4) 2 1/16" 3M Gate Valves, (2) Adjustable Chokes, Lifting Skid

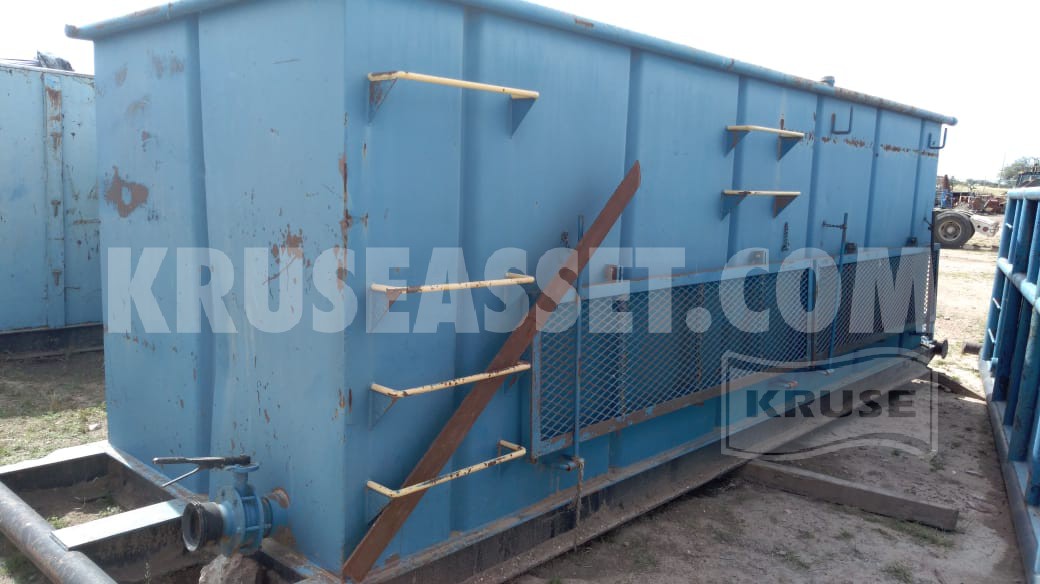

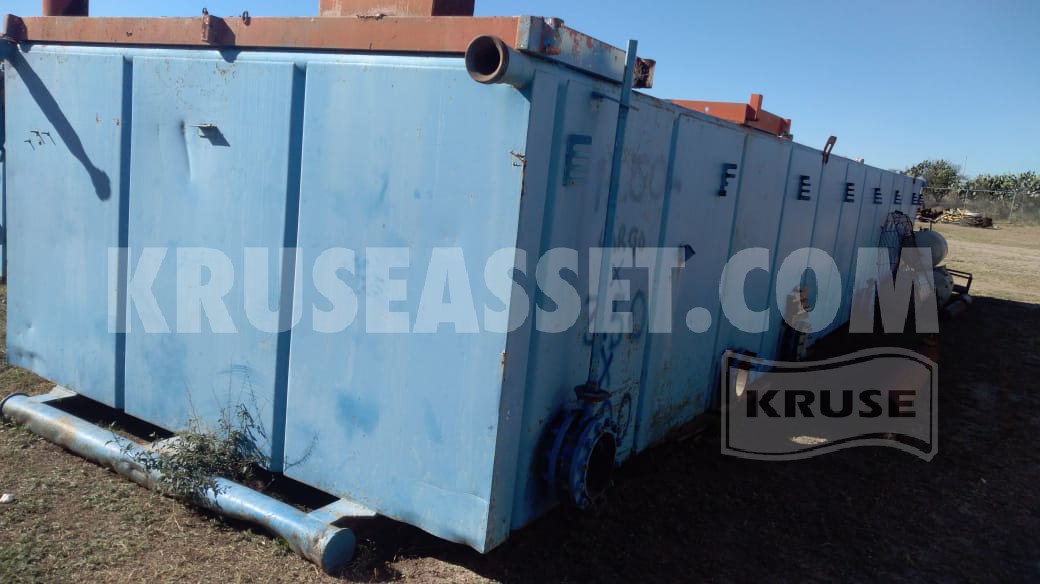

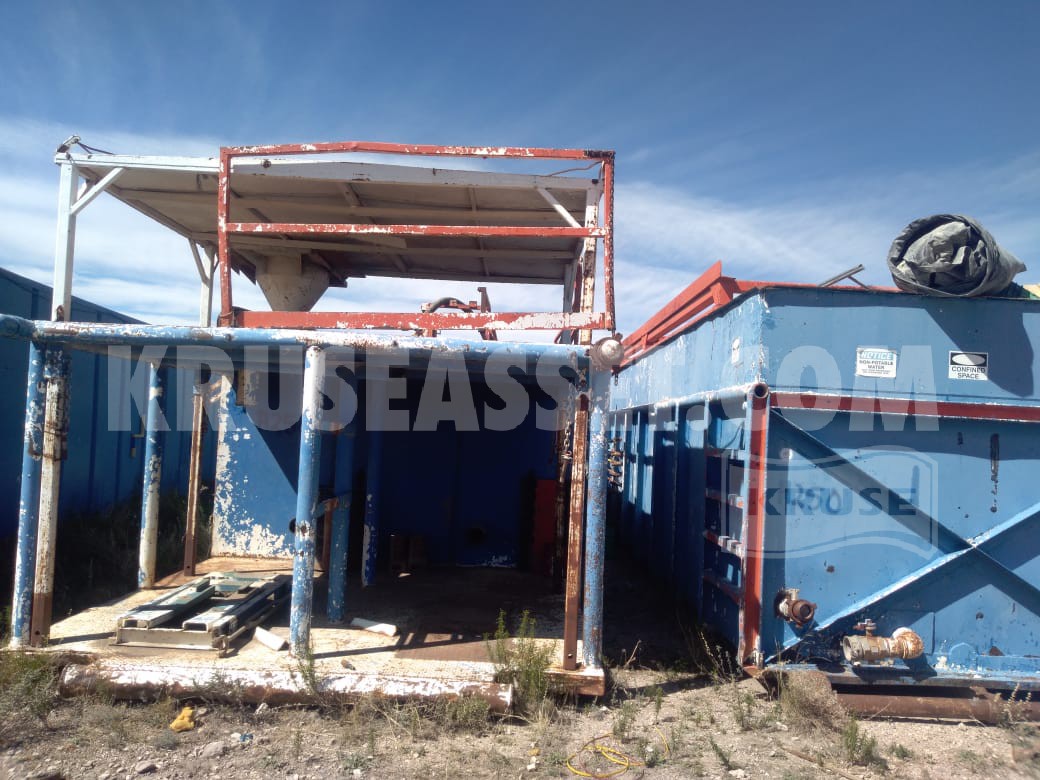

  •          6'H x 12'W x 34'L 436-Bbl Crimped Steel Mud Suction Tank w 11'L Covered porch Extension, (3) Compartments, Slant Bottom, Internal Plumbing, (2) Double Life 5" x 6” Cent pumps p/b 40HP elec. Motors, (3) 10HP Mud Agitators, (2) Mud Guns, Mud Hopper, Top-Mtd. walkways, Safety Rails, Skidded.
  •          6'H x 12'W x 45'L 577 Bbl Crimped Steel Mud Shaker Tank w/4 compartments, Slant Bottom, Internal Plumbing, (1) 10HP Mud Agitator, Top mtd. Walkways, Safety Rails, Skidded
  •          Ingersoll Rand HU-40 Air Hoist
  •          (2) Martin Decker Clipper 360,000# Wt Indicator, W/O Sensors
  •          Standpipe manifold w/Oteco 4" & (2) Demeo 2" gate Valves, 4 1/2" x H Inside BOP


    520-0325

Listing No. 319
