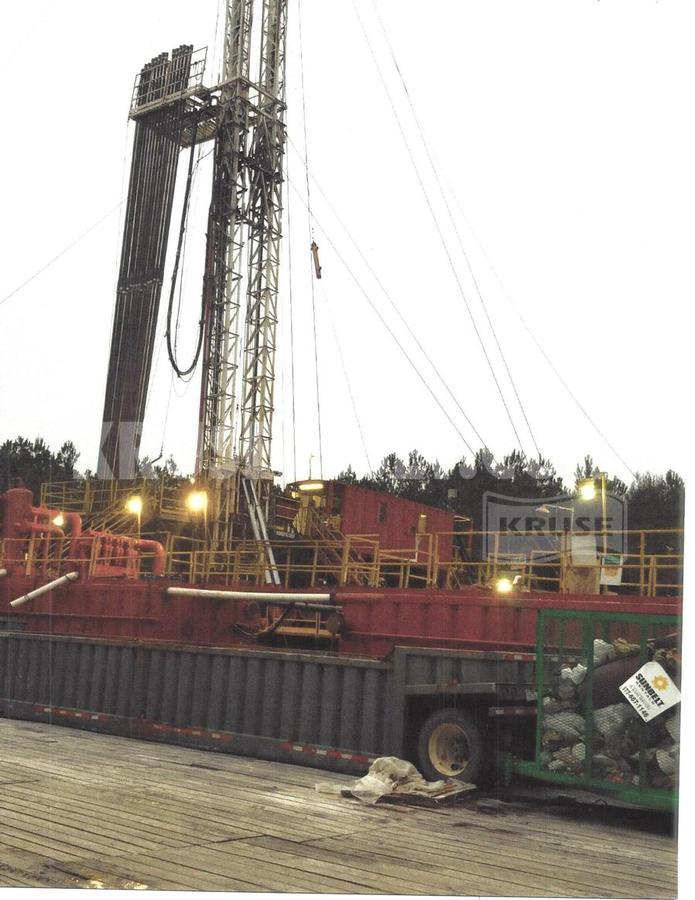

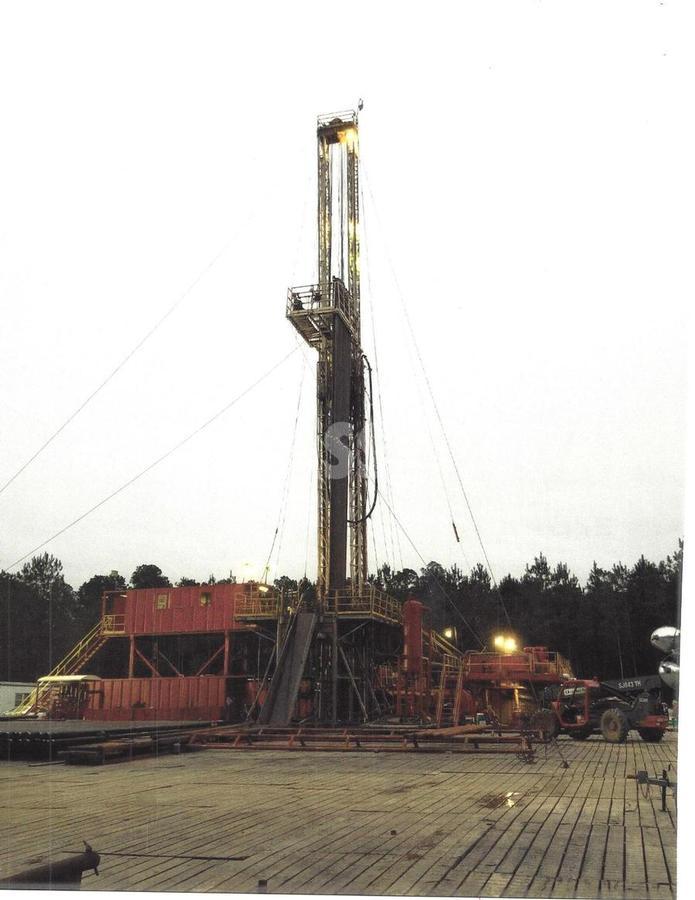

Kruse Asset Management

Good Operational Condition
Refurbished 2Yrs Ago, Off Lease Serviced
Complete w/Tubulars
Located in Mississippi

NOW ACCEPTING OFFERS
Call to Inspect and Buy Today!!!

Listing Details

INVENTORY

DRAWWORKS
HRI-800 Single Drum Drawworks – Serial No. 18956, Grooved f/1-1/8” Drilling Line
P-202 Hydromatic Brake
Compound Gear Box – R. Cushman 2790 – Serial No. 161
Compound Right Angle Box – R. Cushman – Serial No. 153

POWER
(2) CAT C-15 Engines (500HP) – Serial No. JRE01859
(2) ALLISON S6610H (6) Speed Transmissions Serial No. 3110108610 and 3110108611

Hyd. Unit #1
Pump – Serial No. FG130110158
Motor – Parker Serial No. 6090

Hyd. Unit #2
Pump – Serial No. FG140310067
Motor – Parker Serial No. 6096

MAST AND SUBSTRUCTURE
HRI 122’ with 400,000# SHL – w/10 Lines – Serial No. 060122
S-HRI-700 18’ Telescoping with 400,000 rotary capacity
300,000# Setback Capacity Serial No. 0060123

GENERATOR HOUSE
Generator #1
Engine – DETROIT 60 Series – 1800 Rpm – 685HP Diesel Engines – Serial No. 06R1018252
Generator – Magnamax 500 KW 1800 Rpm Serial No. WA-567101-1008
Control Box – S&S Serial No. 281602-3

Generator #2
Engine – DETROIT 60 Series – 1800 Rpm – 685HP Diesel Engines – Serial No. 06R1017362
Generator – Magnamax 500 KW 1800 Rpm Serial No. WA-567266-1008
Control Box – S&S Serial No. 281602-16

Air Compressors #1
QUINCY QSB-30 30HP Rotary Screw Serial No. UN126000
Motor – Worldwide 30HP – Serial No. HD012056

Air Compressors #2
QUINCY QSB-30 30HP Rotary Screw Serial No. UN076608
Motor – WEG 30HP – Serial No. BU243050

Air Tank – Serial No. 146226
Air Dryer – Serial No. 990009

ROTATING/TRAVELING EQUIPMENT
27 ½” x 53 ¼” ZYZJ Rotary Table
250 Ton YG225 Sentry Block/Hook Combinations w/(5) 36” Sheaves grooved f/1-1/8” Line
250 Ton SL225 Sentry Rotary Swivel
VARCO – 27 HDP Kelly Drive Bushing
5 ¼” x 2 13/16” – 38’ Long Kelly

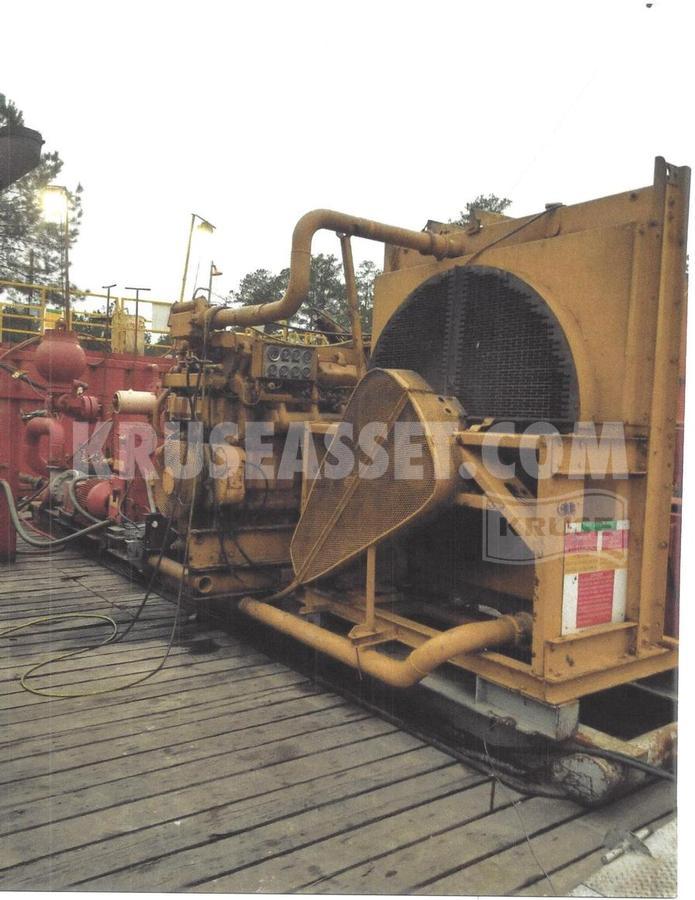

PUMP #1A
HHF-1000 (1000HP) Serial No. 06-118
Power CAT 398 (1000HP) Serial No. 3N6985
Radiator Serial No. 48-11
Fan Motor – North American (25HP) Serial No. S5L0Q1213
Charger Pump – Cobra (5x6x11) Serial No 2698
Charger Pump Motor – North American (50HP) Serial No. 61005508

PUMP #2A
MAXUM – 1000 (1000HP) Serial No. 10-6-67-M220
Power – CAT 398 (1000HP) Serial No. 5L9549
Radiator Serial No. 3-00234
Fan Motor – North American (25HP) Serial No. 610Q1602
Charger Pump – MCM (5x6x11) Serial No. 32455
Charger Pump Motor – Worldwide (50HP) Serial No. 703029

WATER TANK – 442 BBL.
#1 Water Pump – Cobra – 2x3x13 – Serial No. 2163
Motor – Baldor (20HP) Serial No. Z0601230301
#2 Water Pump – Mud Hogg – 2x3x13 – Serial No. 20829
Motor – Baldor (20HP) Serial No. Z0601230306
Hydromatic Pump – Mud Hogg – 1.5x2x2 Serial No. 48-8
Motor – North American (3HP) Serial No. 09101009

FRAC TANK – SERIAL NO. 358

PARTS AND CHANGE HOUSE

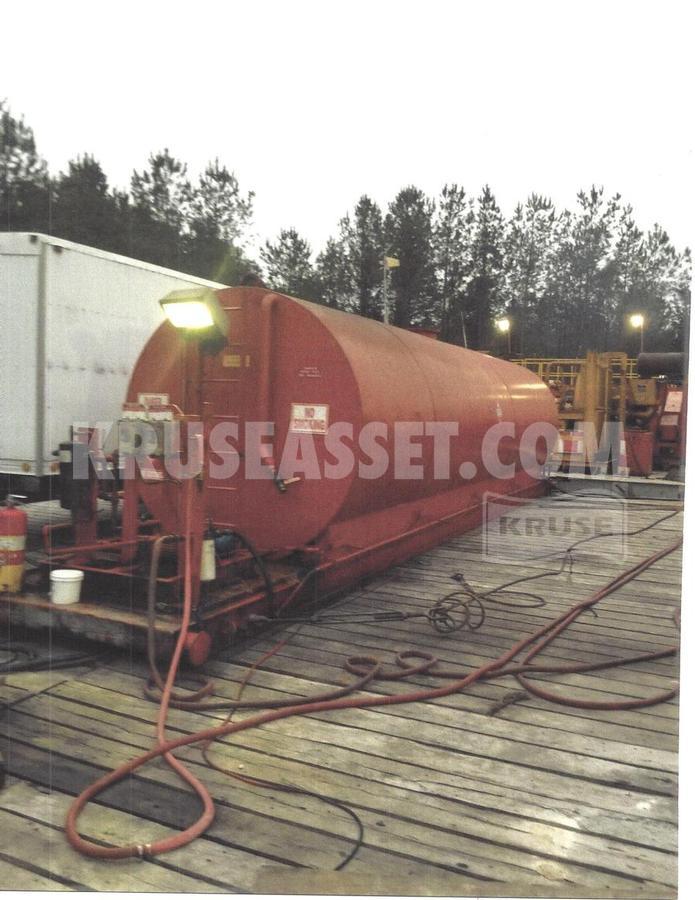

FUEL TANK – 10,000-GALLON W/2 FUEL PUMPS
#1 Fuel Pump – Serial No. G512923
Motor – Texp-He (2HP) Serial No. BW17415
#2 Fuel Pump – Serial No. G505628
Motor – Texp-He (2HP) Serial No. BW174230

HANDLING EQUIPMENT
4 ½” Drill Pipe Elevators – Serial No. 340905
4 ½” Drill Pipe Slips – Serial No. P1-792
6” Drill Collar Clamp
8” Drill Collar Clamp
6” Drill Collar Slips
8” Drill Collar Slips

DUCK POND (LINER WASHER)
Pump (1x1.5x6)
Motor – (2HP) Serial No. XXC145T17XB27B

DRILL LINE SPOOL – Serial No. 48-10
Gear Box – Serial No. 48-9
Motor – Serial No. 17311AC2398

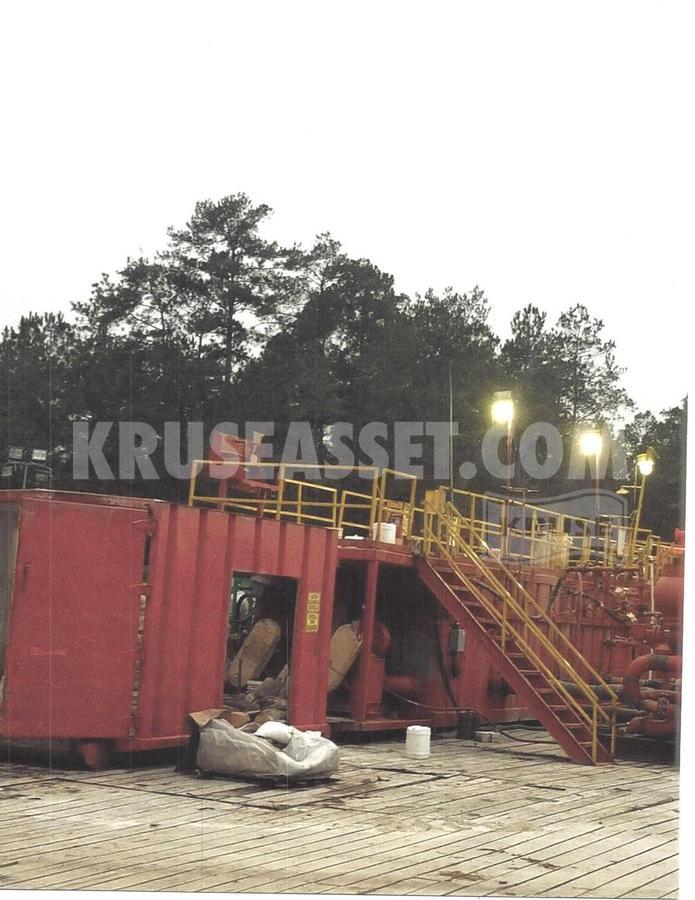

MUD SYSTEM
Suction Tank – 486 Bbls. – Serial No. SU50070
Mud Mixing Pumps
#1 Pump – 6x8x14 – Serial No. 48-1
Motor (75HP) – Serial No. 8G002802
#2 Pump – 6x8x14 – Serial No. 1112
Motor (75HP) – Serial No. 05C7520001

AGITATORS
#1 GearBox – Mobile Gear 2000 – Serial No. 48-2
Motor - Lesson (10HP) Serial No. C0201300-04/16-01
#2 GearBox – Max 2000 – Serial No. 5225931
Motor - Teco (10HP) Serial No. BR0062351005
#3 GearBox – Max 2000 – Serial No. 48-5
Motor - Worldwide (10HP) Serial No. 13L0013XW3061
#4 GearBox – Max 2000 – Serial No. 48-4
Motor – Worldwide (10HP) Serial No. C02384220872-01
#5 GearBox – Max 2000 – Serial No. 48-4
Motor - Teco (10HP) Serial No. C016896308-27-22-01

SHAKER TANK – 486 Bbls. – Serial No. SH50070
Desander Pump – Serial No. 48-6
Motor – Baldo (74HP) Serial No. C0605250194
Desilter Pump – Serial No. 48-7
Motor – Baldo (74HP) Serial No. C0608080094

Shaker #1 – SWACO (Mongoose) Serial No. MPR-414
#1 Shaker Motor – SWACO (2HP) – Serial No. CDX8-2100
#2 Shaker Motor – SWACO (2HP) – Serial No. CB542549
#3 Shaker Motor – SWACO (2HP) – Serial No. 48-3

Shaker #2 – SWACO (Mongoose)
#1 Shaker Motor – SWACO (2HP) – Serial No. RX583011
#2 Shaker Motor – SWACO (2HP) – Serial No. EX946011
#3 Shaker Motor – SWACO (2HP) – Serial No. CB542899

WELL CONTROL EQUIPMENT
HYDRIL 11” 5000# PSI Annular Preventer – Serial No. 11322
TOWNSEND Type 82 11” 5000 Double Hydraulic Blowout Preventer – Serial No. 11325
HCR Valve – (4 1/6) 5000 PSI – Serial No. 513178
Manual Choke Valve – (4 1/6) 5000 PSI – Serial No. 10065843
Kill Valve – (2 1/6) 5000 PSI – Serial No. 90669185A
Kill Valve – (2 1/6) 5000 PSI – Serial No. 90669180A
Accumulator – 5-Station, 200 Gallon – Remote Control Acc Pump – Serial No. 00665
Motor – Baldor (15HP) Serial No. Z0609230316

Choke Manifold (4 1/6 x 2 1/6) 5000 PSI
#1 Valve – (2 1/6) 5000 PSI
#2 Valve – (4 1/6) 5000 PSI – Serial No.69083A
#3 Valve – (4 1/6) 5000 PSI
#1L Valve – (2 1/6) 5000 PSI – Serial No. 69115A
#2L Valve – (2 1/6) 5000 PSI – Serial No. 59153A
#3L Valve – (2 1/6) 5000 PSI – Serial No. 69148A
Manual Choke – 5000 PSI
#1R Valve – (2 1/6) 5000 PSI – Serial No. 69151A
#1R Valve – (2 1/6) 5000 PSI – Serial No. 69161A
#1R Valve – (2 1/6) 5000 PSI – Serial No. 64357A
Manual Choke – 5000 PSI

TIW Valves (2) 4 ½” XH
Inside Gray (1) 4 ½” XH

RIG MANAGER HOUSE
SPARTAN – Skidded – Serial No. 102155

CREW HOUSE
AMERI-TECH – Skidded – Serial No. 30-2767

DRILL COLLARS
(3) – 8”
(13) – 6 ½”

DRILL PIPE
G105 – (278) 4 ½” XH 375 Jts.


719-1128
