RG MODEL JC28B DRAWWORKS!
Mast Model JJ22538 - Just Sandblasted!!
API 4F Double 125' Mast - 505,000#
Drilling depth of 13,500' - (Drill Pipe not Included)

NOW ACCEPTING OFFERS
Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973

Listing Details

Buy this "rebuilt" rig for 1/2 the cost of a new one!!!...Buy Today!!!


JUST ADD PUMPS, TANKS AND PIPE - FIELD READY!!!

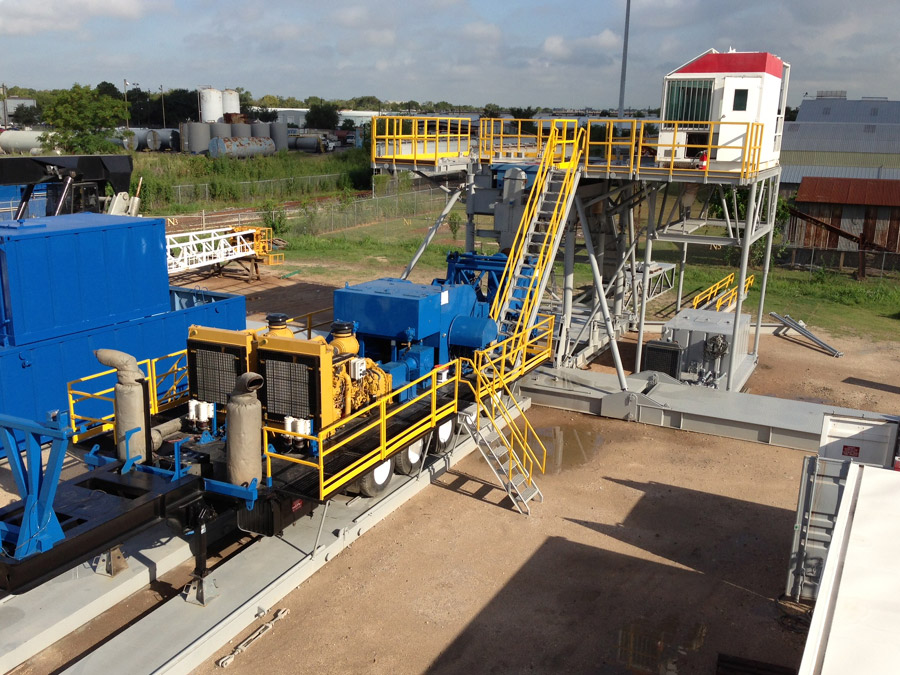

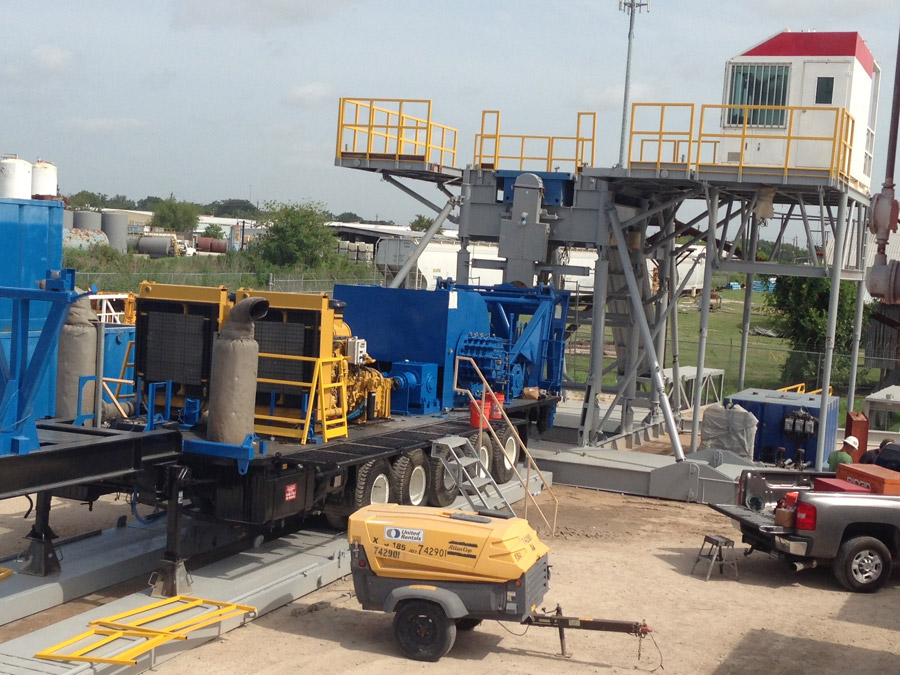

Rig sits in Houston, Texas - Ready to Go!

RIG NO. 70

CLASSIFICATION: 1300 H.P. Land Rig rated to 13,500’
Manufacturer: RG – Petro

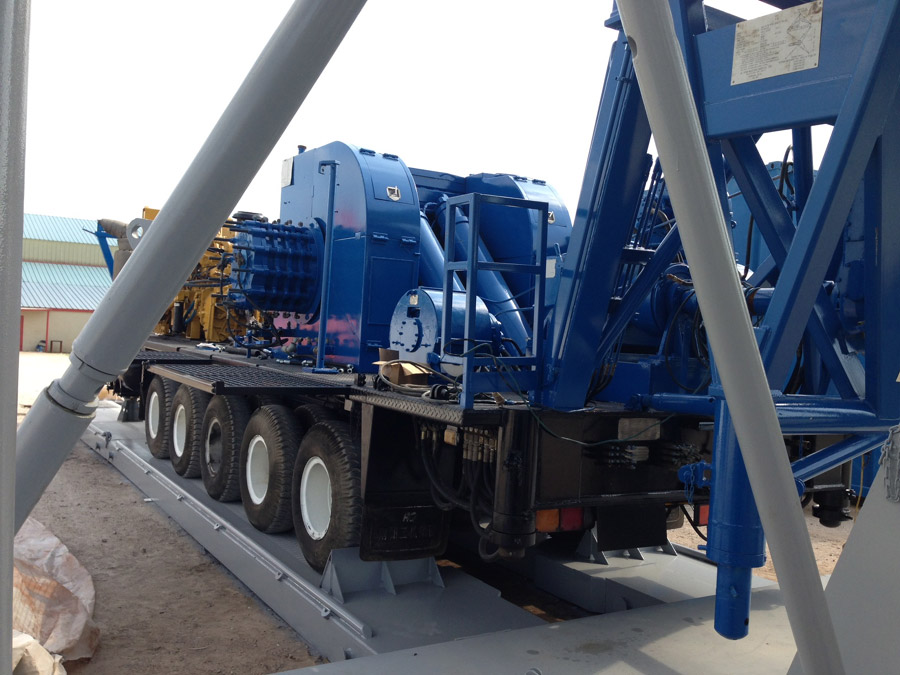

I-DRAWWORKS
RG Model JC28B, max speed 450 rpm – API spec 7K
Rated @ 1300 HP
Fast line pull 62,107 lbs
Diameter: 40 inch x 25 inches
ATD 330H axial thrust disc clutch (New from WPT 2 Qtr. 2013).
Drawworks fitted with disc brakes – 14,330 lbs positive pressure per rim (Function tested by TCM-Offshore 2nd Qtr. 2013).
Disc brakes have separate hydraulic system
Eaton model 324 auxiliary brake – water cool – separate tankage (Function tested by TCM-Offshore 2nd Qtr. 2013).
7,500 ft 1-1/4” drill line 6x19 EIPS IWRC RRL
Crown-O-Matic toggle valve crown saver

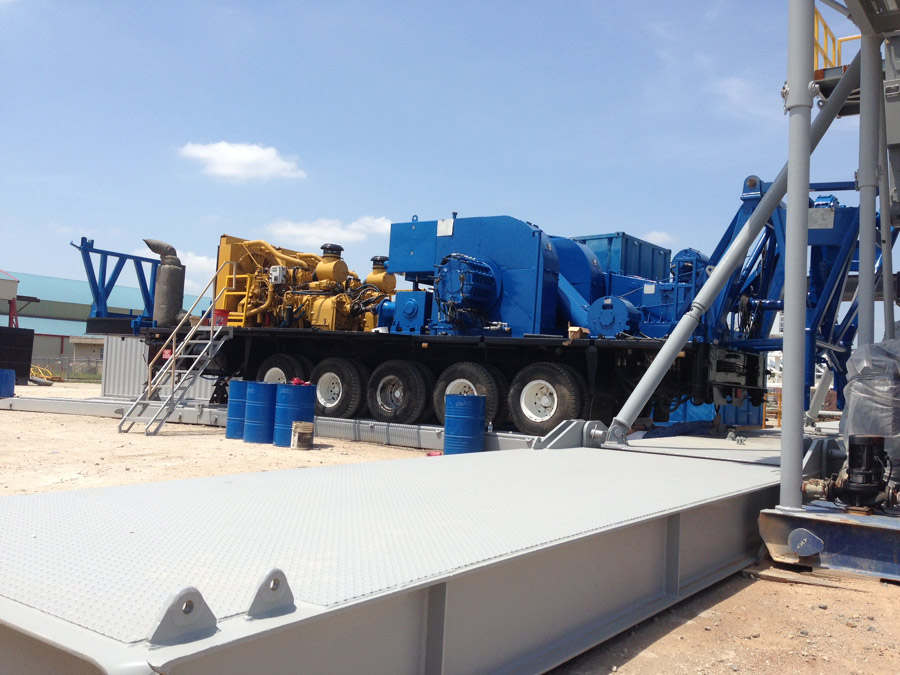

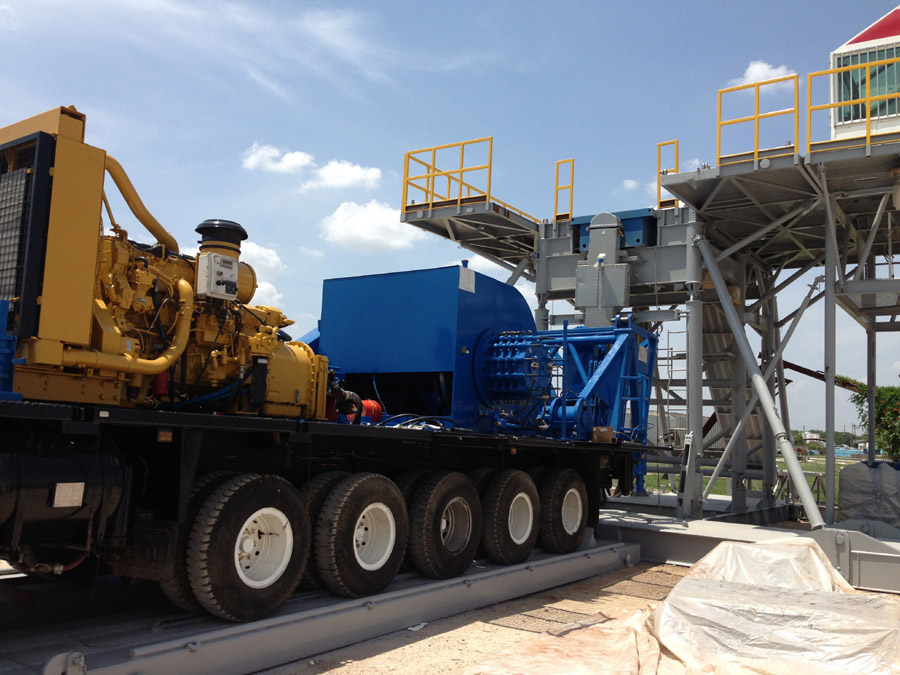

II-TRAILER

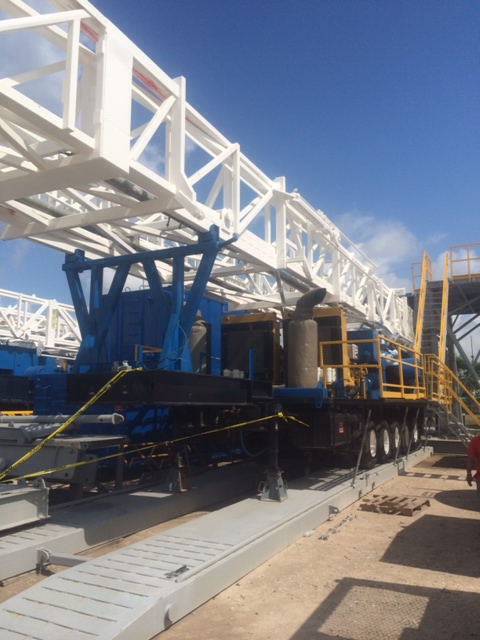

Model ES 9660 with Mast Crown and Standpipe
(5) axle, triple steel board, balanced suspension. (2) Air lift (3) Spring, 12 x 20 double tires
OAL 50’ L x 10’10” W x 14’ H with Mast on
Back overhang 5’4”
Axle spacing 4’6”
(5) x 26,000 lbs. axles

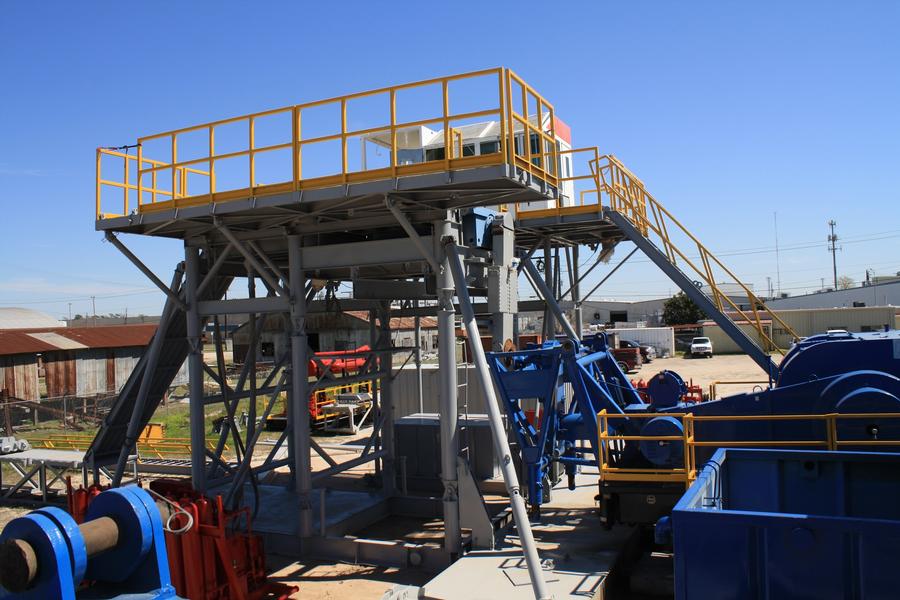

III-SUBSTRUCTURE

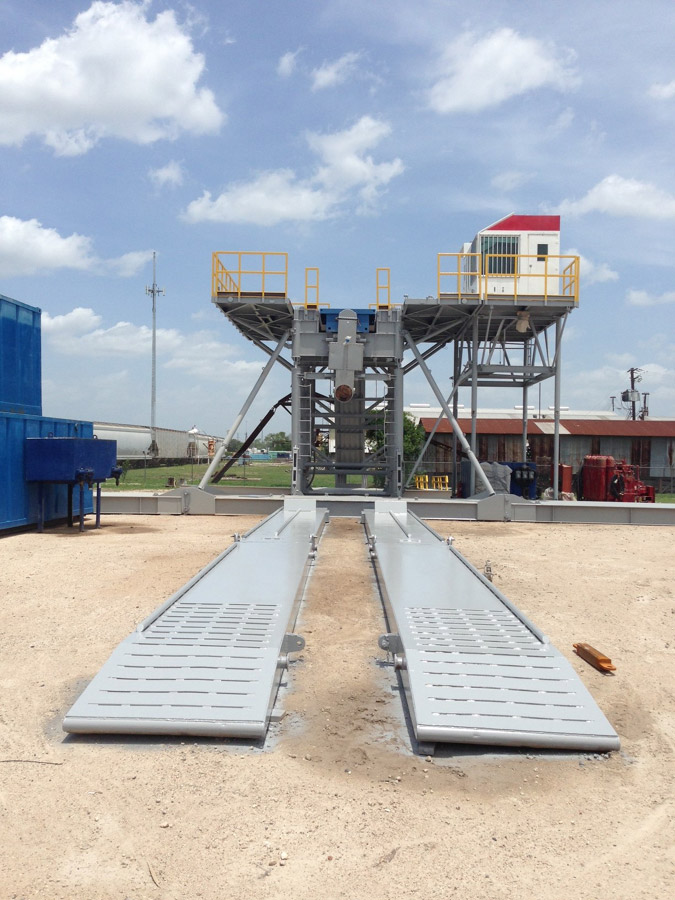

Model ZZ225 rated at 500,000 lbs – pull test 580K
Floor Height – 19’ 8-1/2” (scoped up)
11’6” W x 30’ L x 10’3” H (scoped down)
Under Rotary 17’ 6”
Clear area under beams – 15.7 feet
Mechanical raise with adjustments for uneven locations

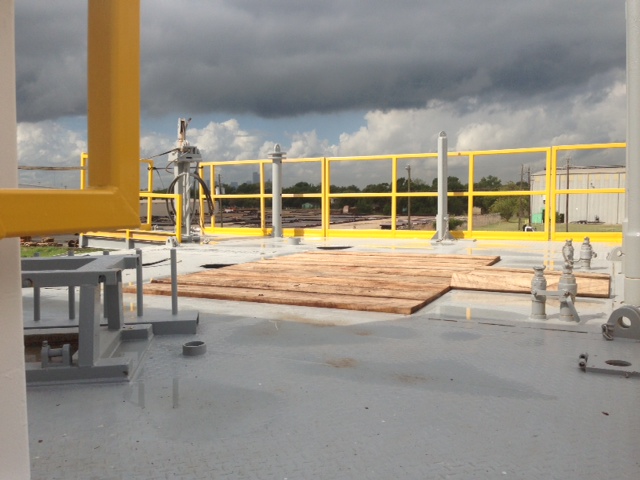

Floor – 24 feet x 20 feet Complete with 2 walkways, and trailer walkway ladder. All built new 2 Qtr 2013.

IV-DERRICK AND TRAVELING EQUIPMENT

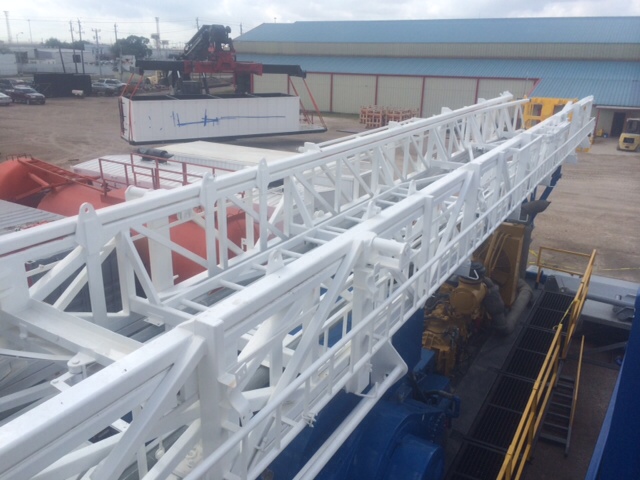

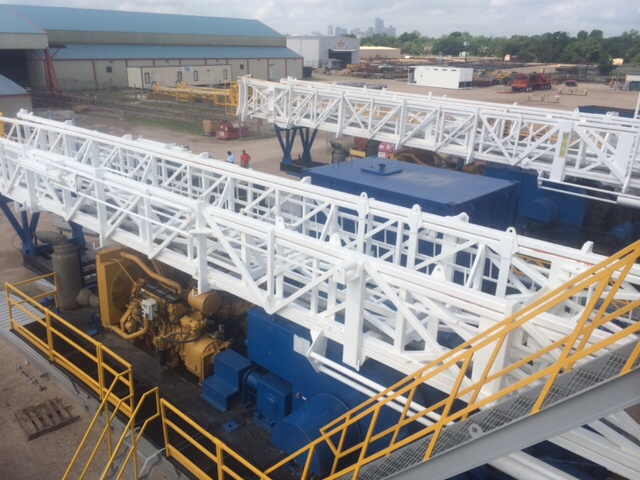

Mast Model JJ22538 – API 4F Double (125’ x 505,000 lbs.) (Clear Height 105’)
53’10” (scoped in)
Board heights – 72.2 feet/ 75 feet/ 78.7 feet
Raising speed – 12 minutes from horizontal
Hydraulically scoped (both cylinders repaired by Texas Hydraulic 2nd Qtr. 2013
13,500 feet 4 ½” pipe racking capacity
Wind resistance – 110 km/hr
Complete with explosion-proof lighting and parameter lighting repaired 2nd Qtr. 2013).
Complete with Geronimo line, sala block, tong cylinders
4 inch x 7000 psi standpipe and 3” ID x 60’ kelly hose
Crown Model TC225, 250-Ton capacity, 10 lines (Sheaves removed, blasted, MPI’d and new bearings installed 2nd Qtr. 2013).

V-ROTARY DRIVE SYSTEM

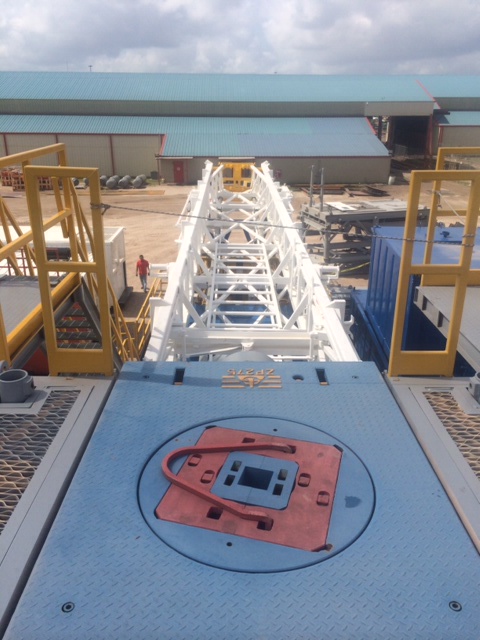

Model ZP 275 – 27 ½ inch opening rated @ 500-Ton– API 7K (Removed and Repaired by TCM-Offshore 2nd Qtr. 2013).
Max speed – 300 rpm
Static loading – 1,000,000 lbs
Torque – 20,265 foot lbs
Complete with 1, 2, and 3 bowls
Pin or square bushing drive available
Right Angle Gear Box Driven (Shopped & Tested by TCM-Offshore, and spare in Doghouse).
Permanent and ratcheting type locking systems
Rotary torque sensor
Master bushing rated for 500 Tons with API #3 interior – Pin drive

VI-CAPACITIES
Fuel Oil: 10,000 gallons 34’ L x 8’ W x 10’ H skidded c/w loading hitches
Liquid mud: 930 barrels
Process tank: 70 barrels
Drill Water: 18,000 gallons 30’ L x 10’ W x 10’ H skidded c/w loading hitches

VII-RIG POWER

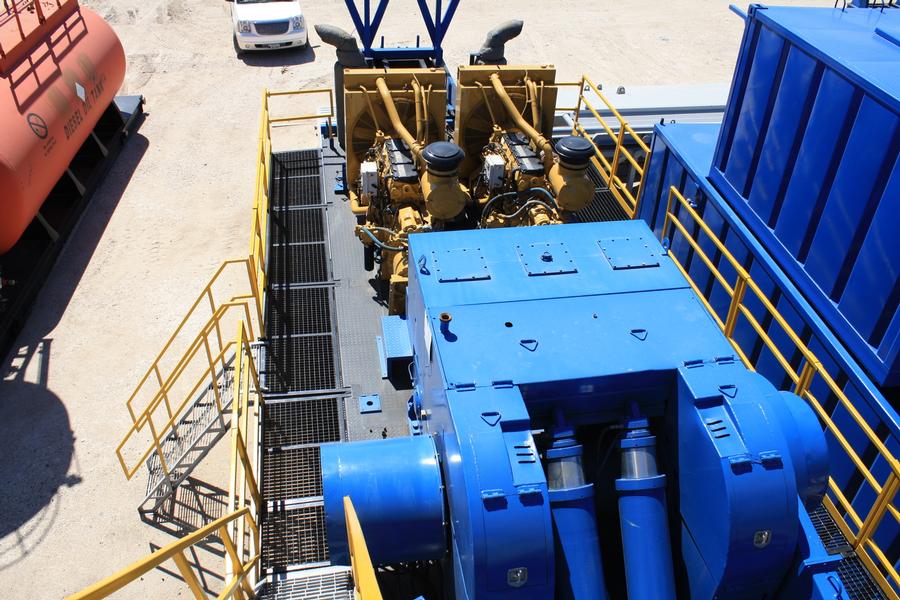

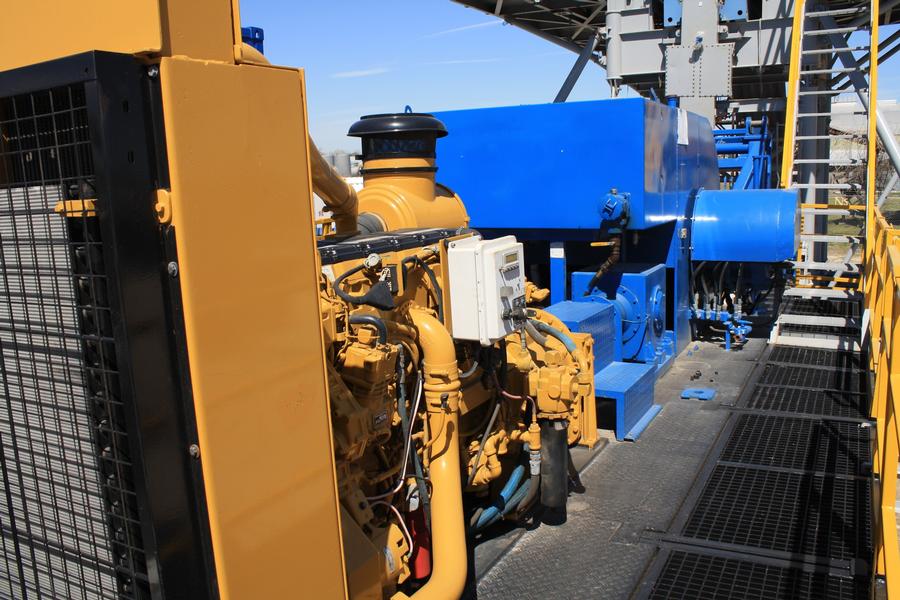

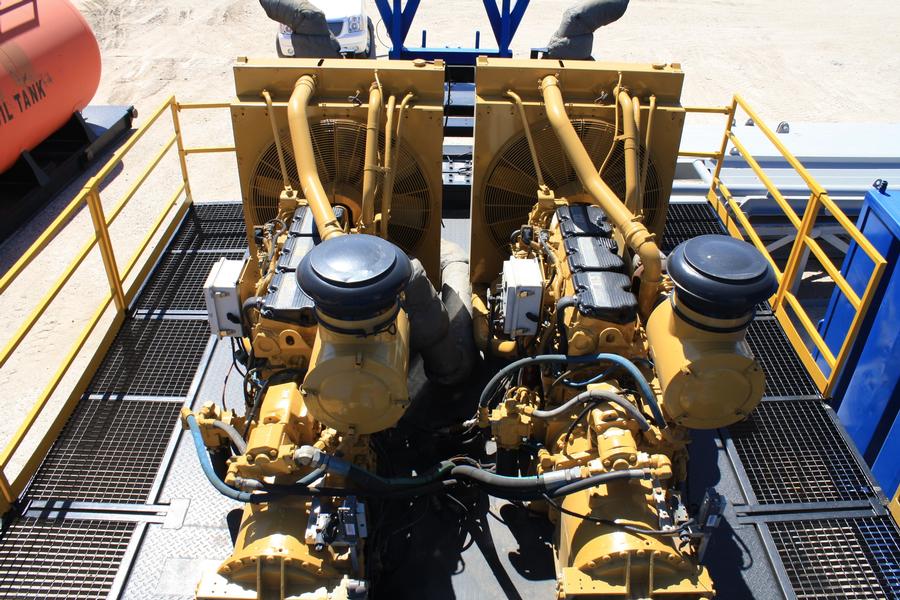

Two each Caterpillar C-18 (AR# 237-1955), (SN# WJH01434), (AR# 237-1955), (SN# WJH01431) electronic engines complete with Alison 6061 transmissions

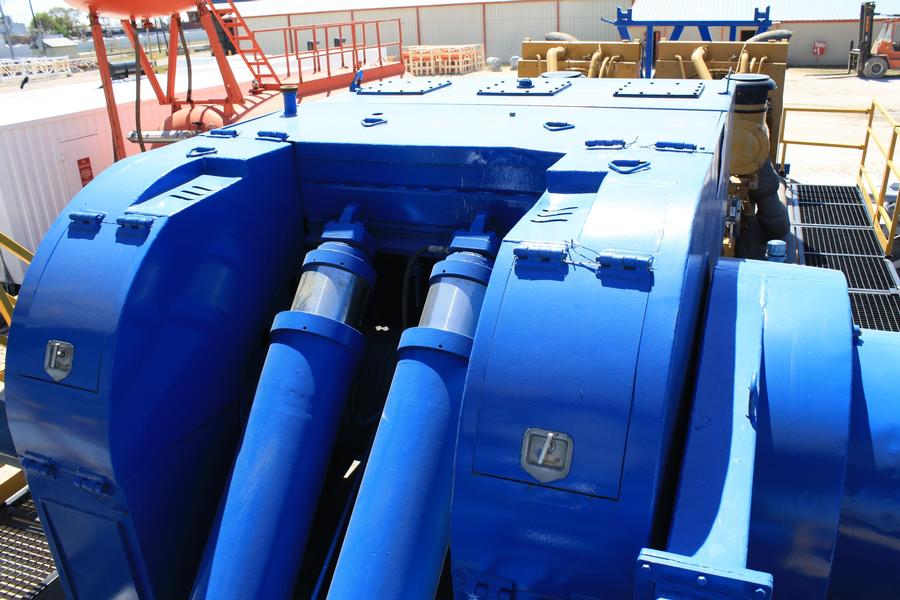

Two redundant hydraulic pumps mounted on transmissions for raising/lowering Mast
Compound box Model BXJ, input speed max 2500 rpm, output torque 19,176 foot lbs
Rotary transmission – Model ZX140, 2100rpm max, input torque 10,360 foot lbs

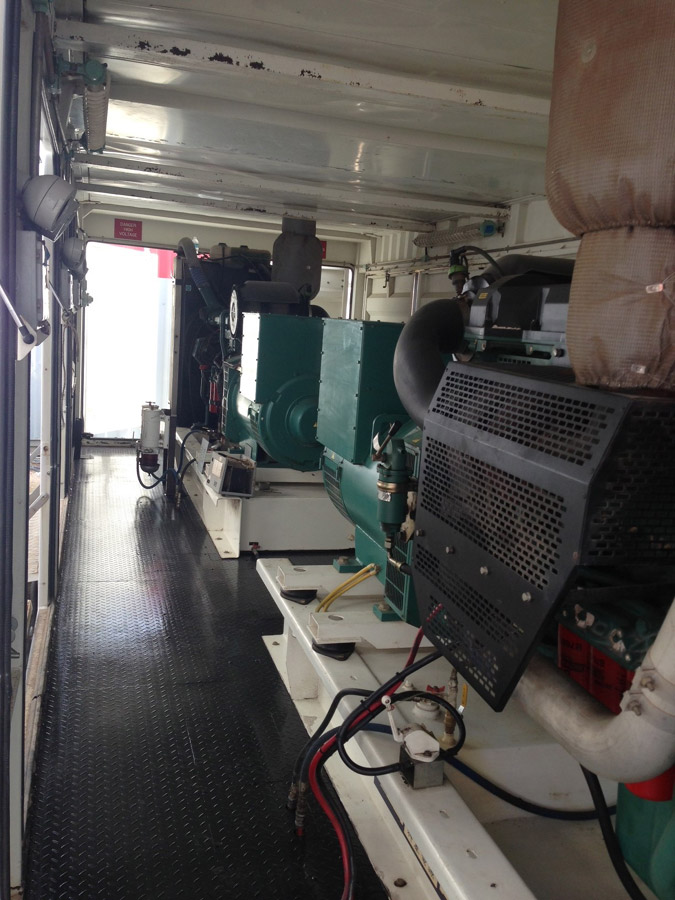

VIII-GENERATOR HOUSE

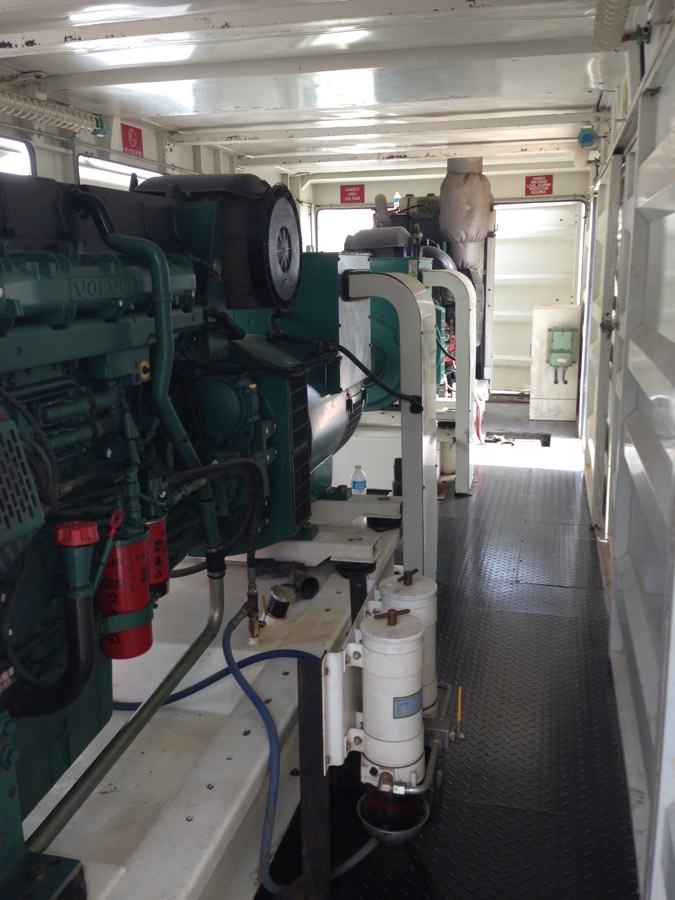

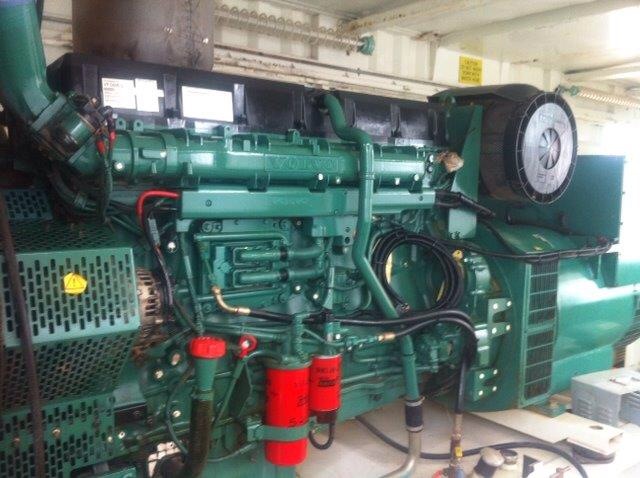

Two Volvo diesel engines (Model TAD1641GE) 1800 RPM, 565Kw (Serviced by TCM-Offshore).
Two Samford generators 400 Kw, 60 Hz, 3Ph, 1800 RPM (Serviced by TCM-Offshore).
Electronic engine control panels (2)
Fully enclosed house31’ L x 9’7” W x 10’6” H c/w loading hitches
Engines covered, Generators covered and house was sandblasted, primed and painted 2 qtr. 2013.

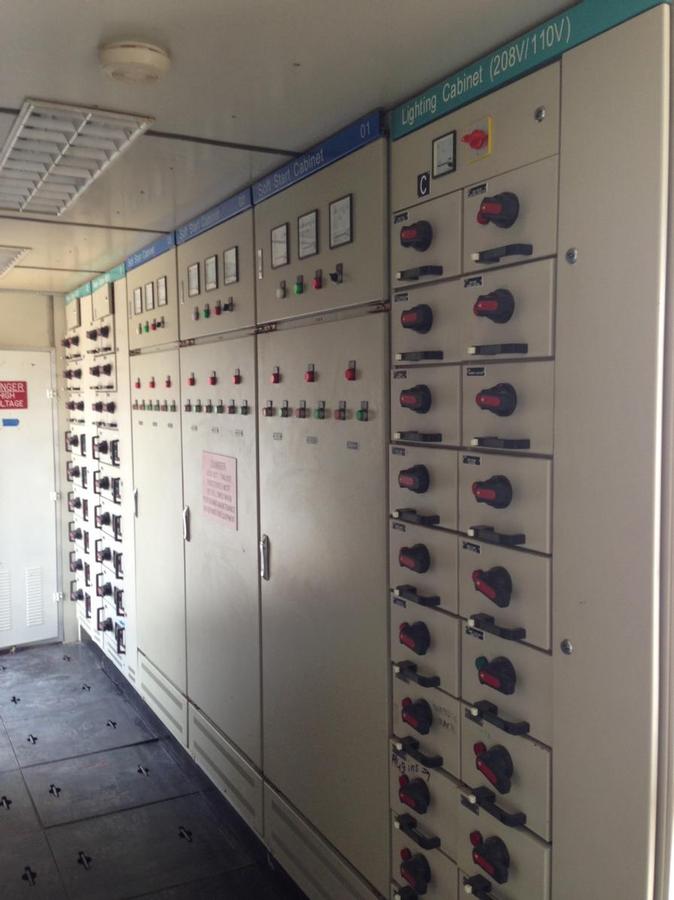

IX-MCC HOUSE

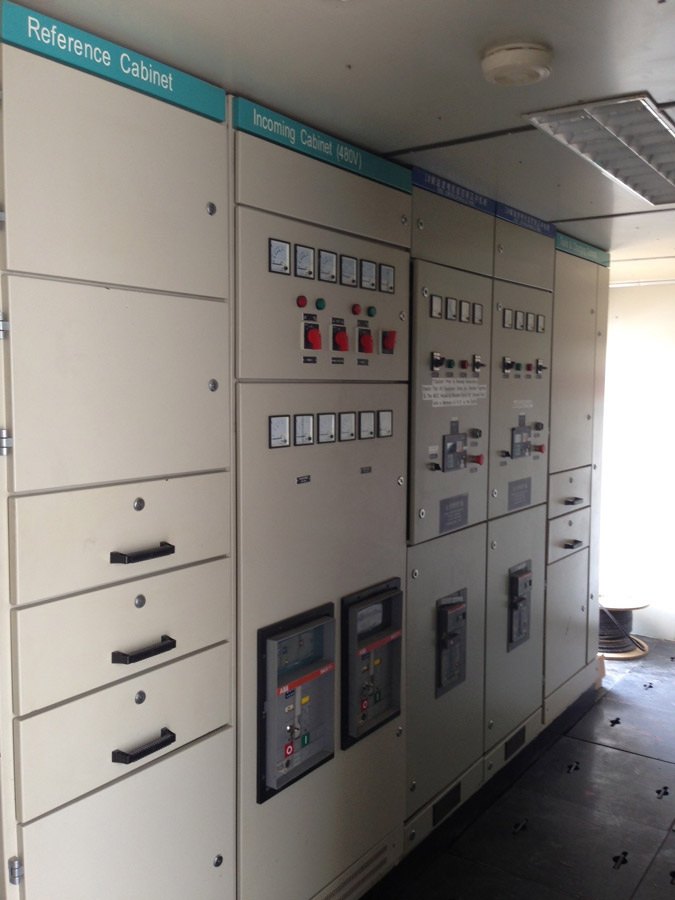

RG System – 3 gen cubicles – 4 MCC cubicles
500 kva 480 to 240/110 VAC transforms
480 vac MCC panel
Air conditioned house c/w work desk, interior lighting, outside plug in receptacle panel
MCC House 31’3” L x 9’ W x 10’6” H c/w loading hitches

Soft Start Cabinet #1
Merlin Gerin – NSC 160S 125A breaker (x4)
Telemecanique – LCID115 Magnetic Contactor (x7)
Telemecanique – ND / NC push buttons ZB2BW06.C
Telemecanique – Schneider button indicator XB2-BVB4LC (x6)
Telemecanique – Switch ZB2-BE101C
Telemecanique – Contact block LADN11 (x6)
Allen Bradley – Motor Controller SMC 135 amp 480 Vac 150-A135NBD

Soft Start Cabinet #2
Merlin Gerin – NSC 160S 125A breaker (x4)
Telemecanique – LCID115 Magnetic Contactor (x7)
Telemecanique – ND / NC push buttons ZB2BW06.C
Telemecanique – Schneider button indicator XB2-BVB4LC (x6)
Telemecanique – Switch ZB2-BE101C
Telemecanique – Contact block LADN11 (x6)
Allen Bradley – Motor Controller SMC 135 amp 480 Vac 150-A135NBD
Merlin Gerin – NSC 160S 125A breaker (x4)
Telemecanique – LCID115 Magnetic Contactor (x7)
Telemecanique – ND / NC push buttons ZB2BW06.C
Telemecanique – Schneider button indicator XB2-BVB4LC (x6)
Telemecanique – Switch ZB2-BE101C
Telemecanique – Contact block LADN11 (x6)
Allen Bradley – Motor Controller SMC 135 amp 480 Vac 150-A135NBD

Feeder Cabinet 02-A
A1 thru A8: ABB S1 breakers
A9-A10: ABB Breaker MS 325 690V
A11-A12: ABB S2 Breaker I4= 160A UE=690V
A13: ABB S3 Breaker I4= 250A UE=690V

Incoming Cabine 480V
ABB S1-I4=125A 4E=500V (x2) Breaker
ABB SACE F1-IN=1250A UE=415V (x2)
CHNT Transformer – 480V/240V NDK (BK) – 300 50/60 HZ (x2)
RT14-20-IEC=269 GB=13529 20A 380V

Lighting Cabinet – C
C1,C2,C3,C6,C11,C12,C13,C14: ABB S1 Breaker, IU= 125A 4E=500v
C4,C5,C7,C8,C9,C10,C15,C16,C17,C18,C19,C20: S252S Breaker C25, IEC-30898, GB-10963

Feeder Cabinet 01-B
B1 thru B8: ABB S1 Breaker, IU= 125A UE=500V
B9-B10: ABB Breaker MS 325, 690V
B11-B12: ABB S2 Breaker, I4= 160A UE=690V
B13: ABB S3 Breaker, IU=250A UE=690V

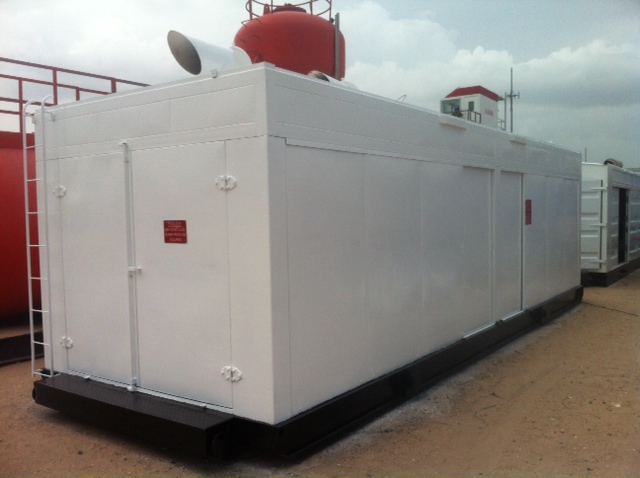

X- AIR COMPRESSOR HOUSE
All compressors, switchgear and volume tanks were serviced by McKenzie Compressors 2nd. Qtr. 2013.
Sullair (2) 220 CFM screw compressors Model LS12-50HHAC SULL, SN# 88290006-329

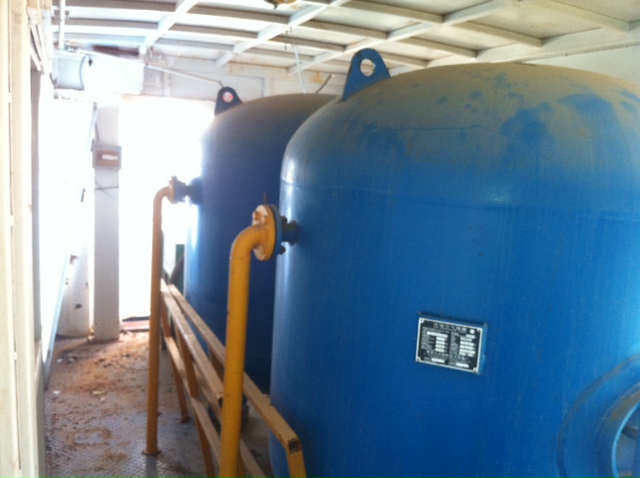

(2) 400-gallon air receivers ASME approved
125 gallon air receiver drawworks motors
SRC 200 Dryer refrigerant
SRC 220 dryer
Two each 50HP Model LS12-50H helical air compressors, 50 HP, 37 Kw, 187 cfm
Separator and volume tanks
Fully enclosed house 32’ L x 9’9” W x 10’ H c/w loading hitches

XI-BLOW OUT PREVENTION SYSTEM

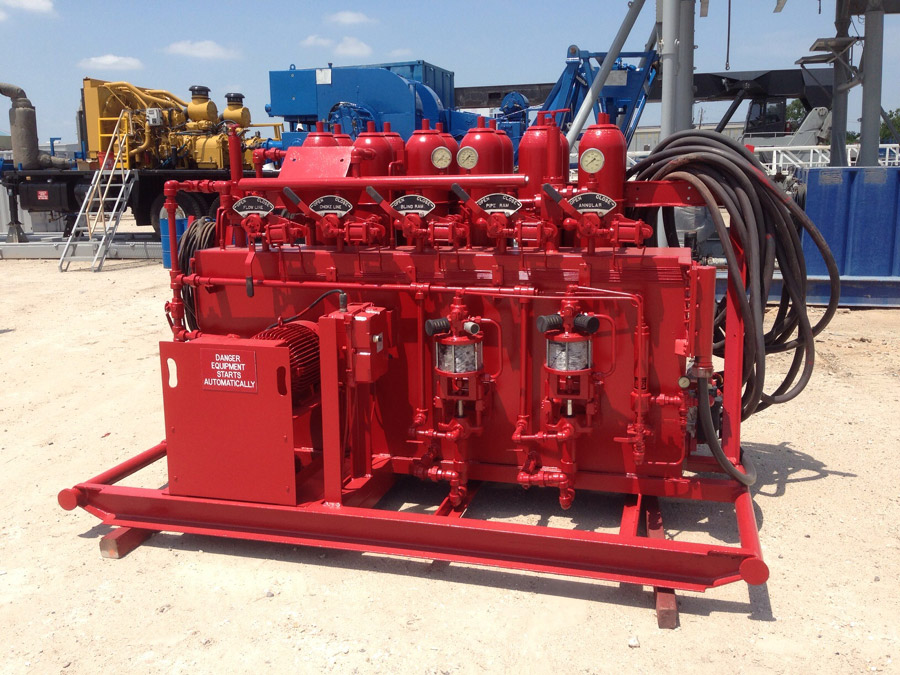

One (1) Accumulator System Burnsco 5 Station 3000psi working pressure, with 2 each 60:1 air pumps and 1 each 15hp electric motor driven triplex pump with 7/8” plungers – 11 gallon bladder type 12 (bottles) – ASME vessels, Drillers Control Panel – API compliant unit, master skidded c/w loading hitches.

XII-AUXILLIARY EQUIPMENT
Brake cooling tank with pumps (below Drillers House – one skid)
(1) 20’ container with associated spare parts/components for deck engines, drawworks and drive lines.
Two drawworks winches – 3 short tons and 5 short tons with new US wire installed
One swivel Model SL225 – 500,000 lbs x 5000 psi x 6 5/8 Regular LH connection
One Hook/Block combo – Model YG225 – 500,000 lbs
Global Safety valves (2) NC46 Grey inside BOPS with releasing tools, (2) NC46 one piece Hydril Style lower Kelly Valves, (1) 6-5/8” LH API Reg Upper Kelly Cock. All items within this bullet point will be divided equally between Rig 70 & Rig 71.
Misc. Subs: Ace Machine (3) NC46 wear subs 10” OAL, NC46 x 6-5/8” reg bit subs, (2) NC46 x 4-1/2” reg bit subs, (2) NC46 Rubber Kelly Saver Subs. All items within this bullet point will be divided equally between Rig 70 & Rig 71.
Deadline Anchor with E-80 sensator – Type D Style
Fire fighting/Safety extinguishes 10 to 30 lbs. All items within this bullet point will be divided equally between Rig 70 & Rig 71.
Sala blocks. All items within this bullet point will be divided equally between Rig 70 & Rig 71.
Lad Safety system (Mast winch) for Mast Handling Tools.

XIII-DRILLERS CONTROL STATION AND CONTROL HOUSE
Fully enclosed with explosion proof A/C
Full instrumentation package – hook, pump pressure, rotary torque indicator, tong torque indicator.
D Type Weight indicator system
All proper Vapor Recovery and 4’ Rig-A-Lite lighting as described (Substructure, Mast Gen House, Fuel, Water Tanks) have been replaced with US 4’ Rig-a-Lites from Consolidated Electrical in Houston.
