Listing Details

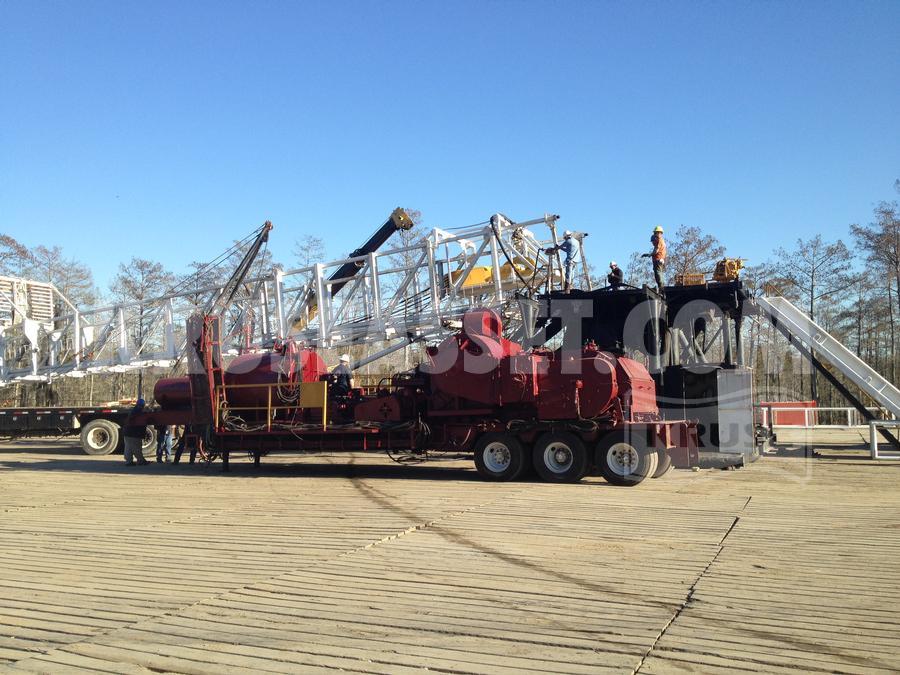

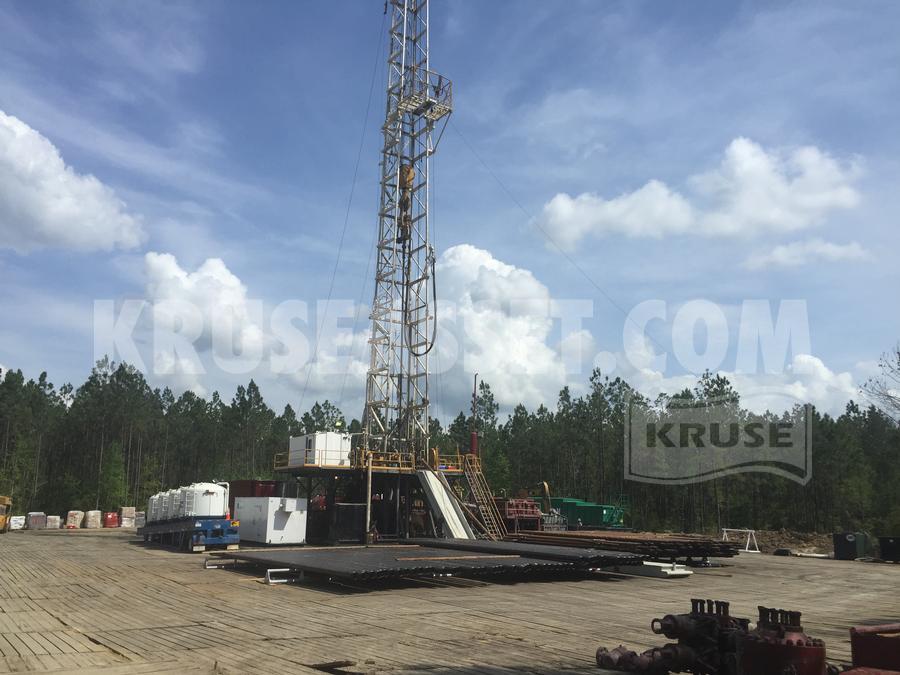

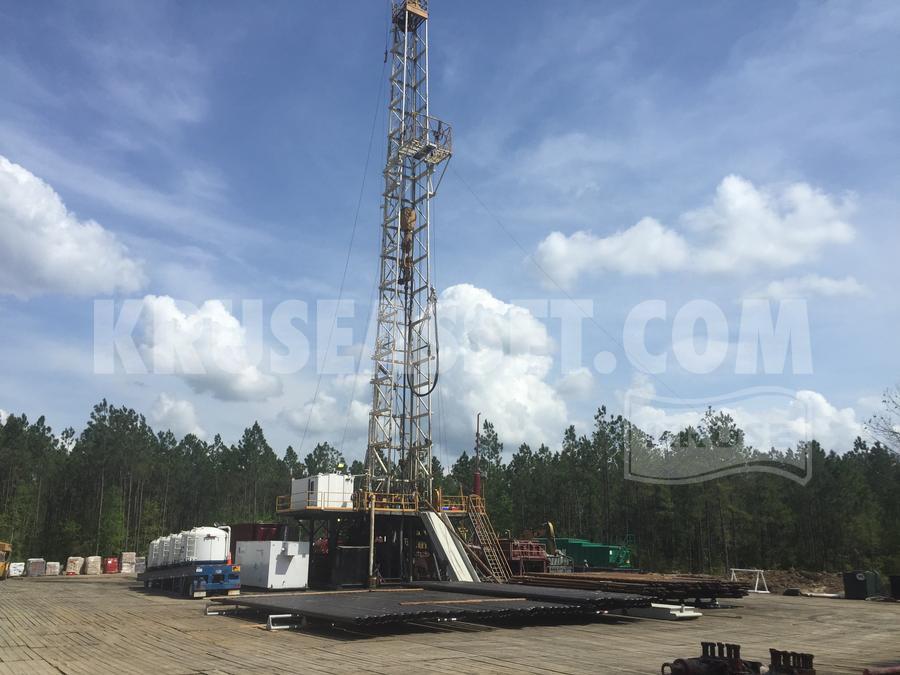

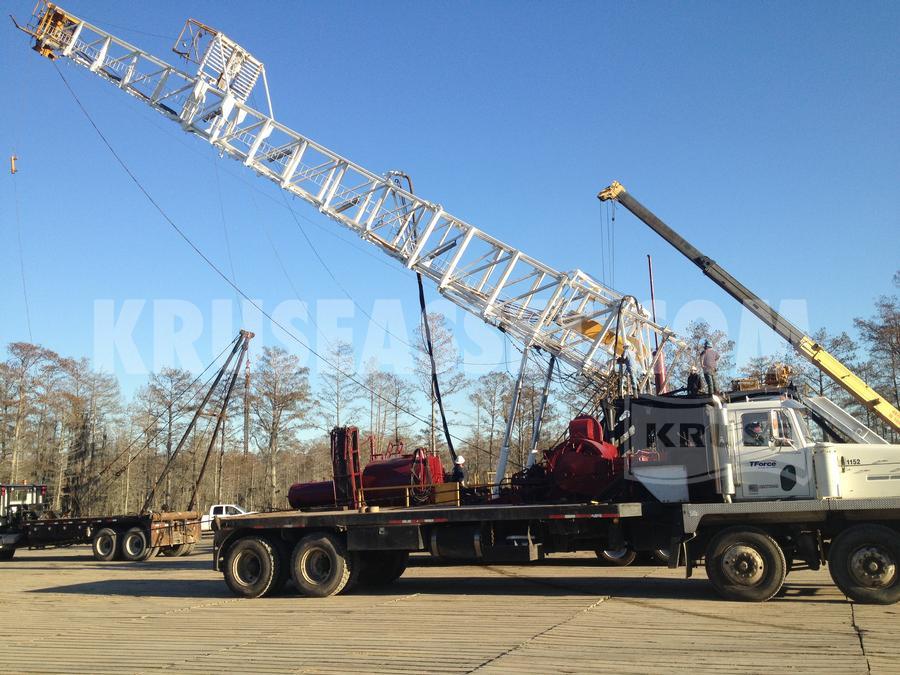

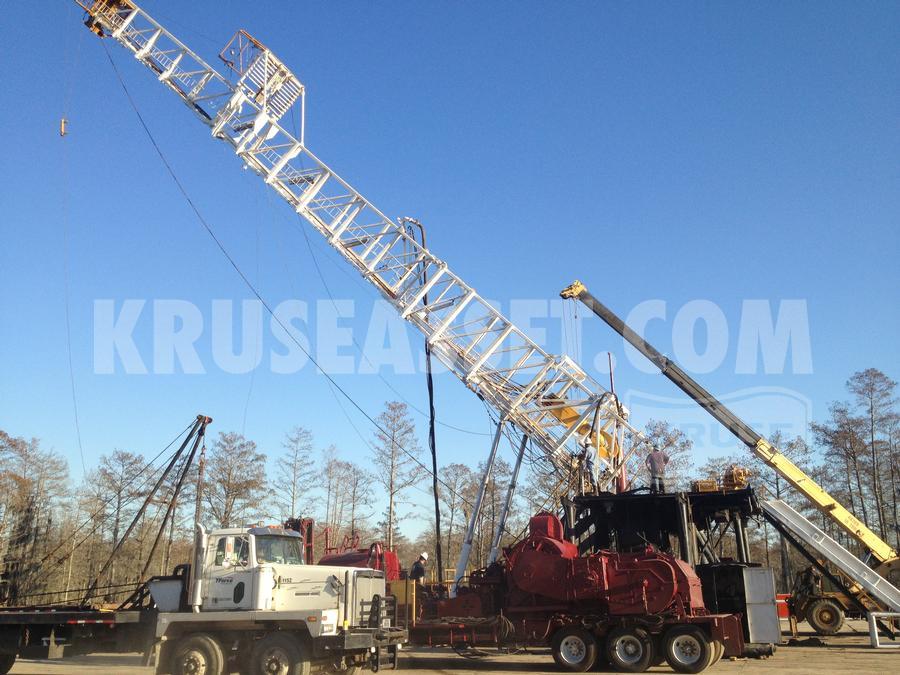

• 1996 CITATION Model 1000HP SCR Drilling Rig, 12,500’ Drilling Depth
• Completely mobile drilling rig, designed with a capacity to drill approximately 12,500’ with 4” drill pipe

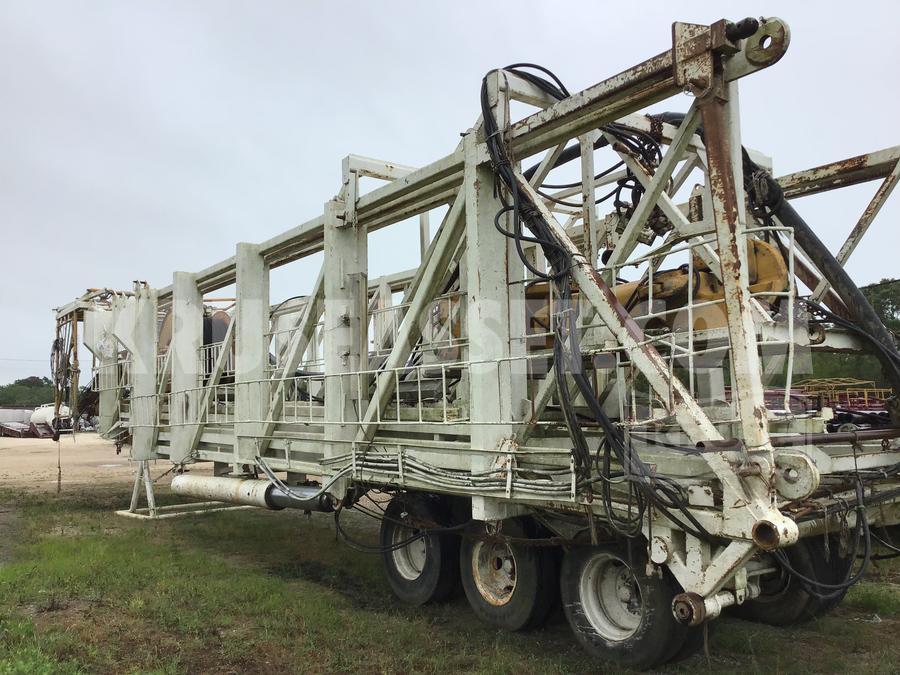

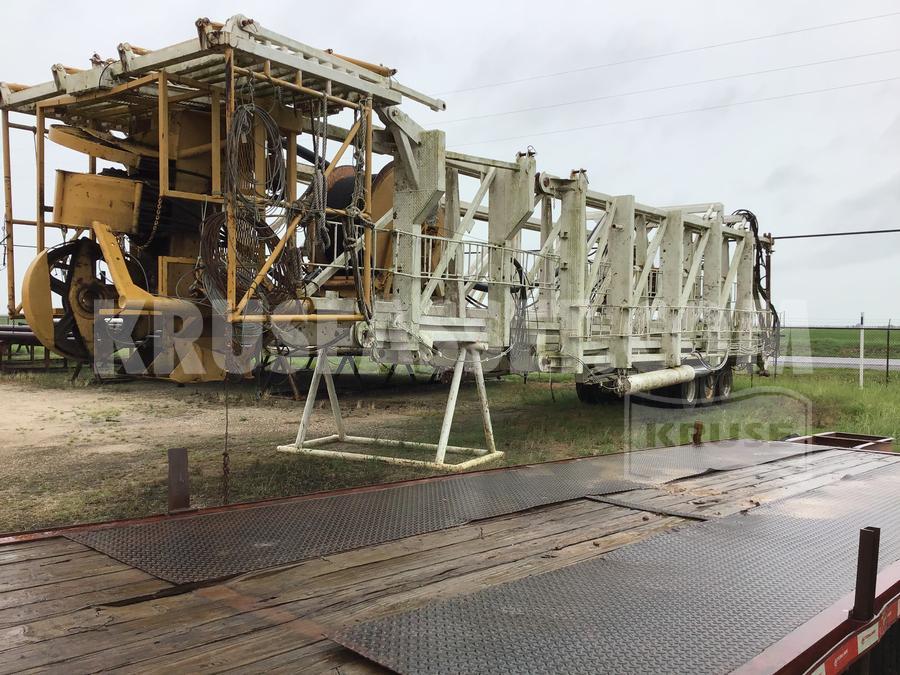

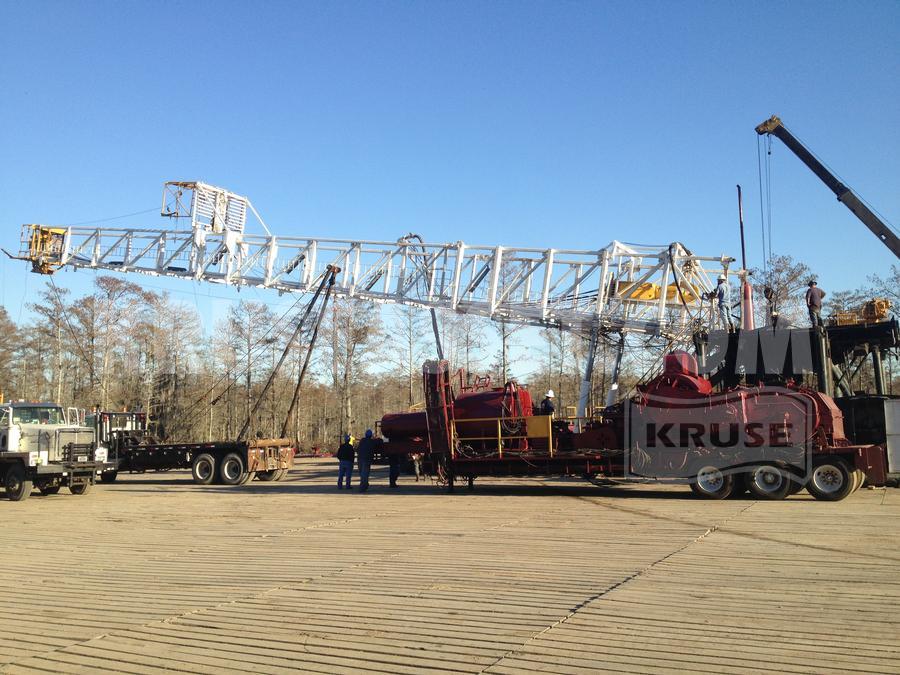

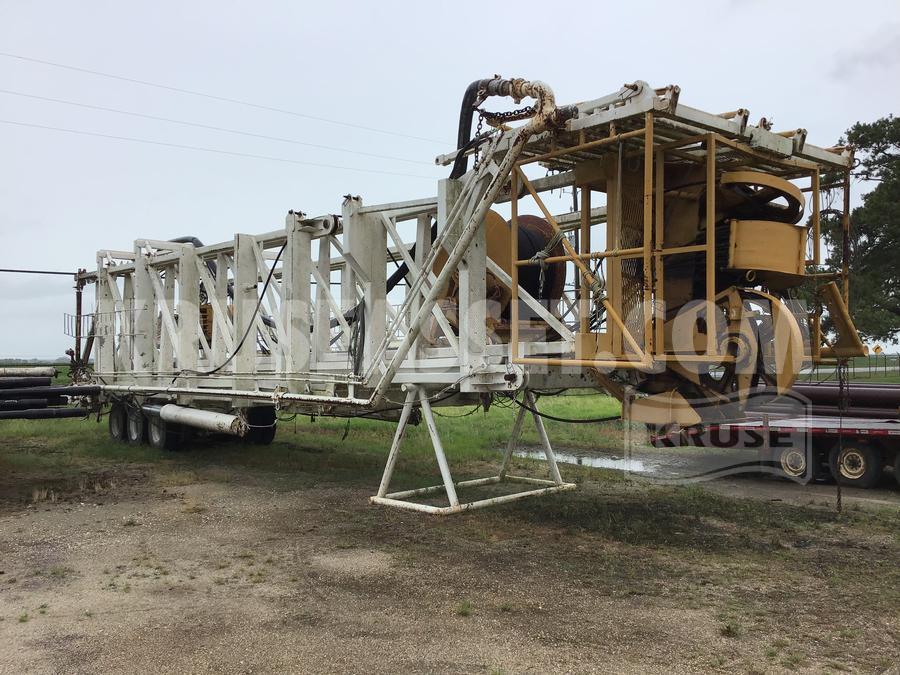

• Cabot 1000 Derrick, 550,000# Hook Load, 300,000# Set Back, 127’ High

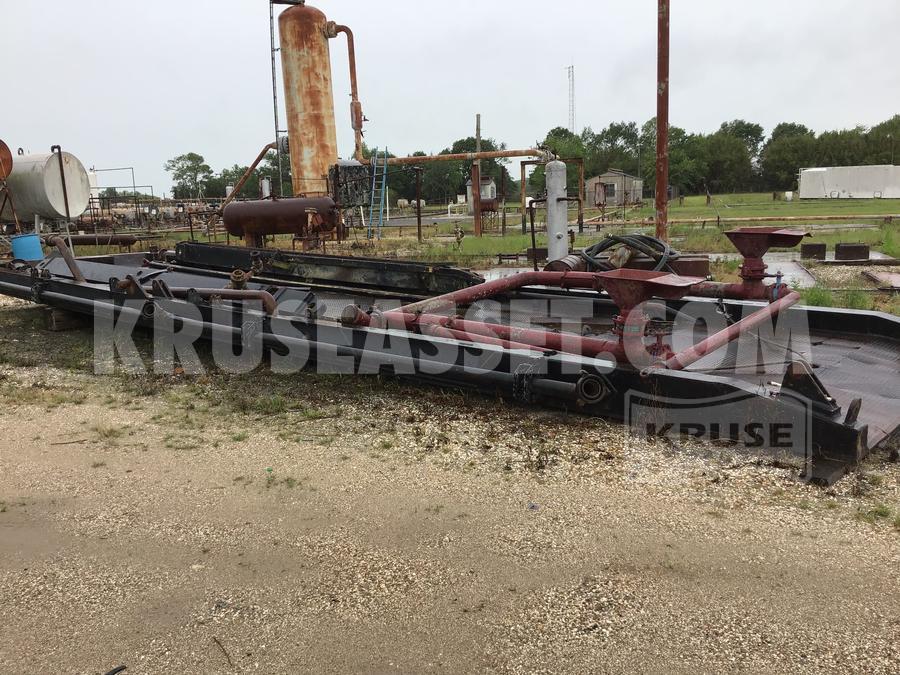

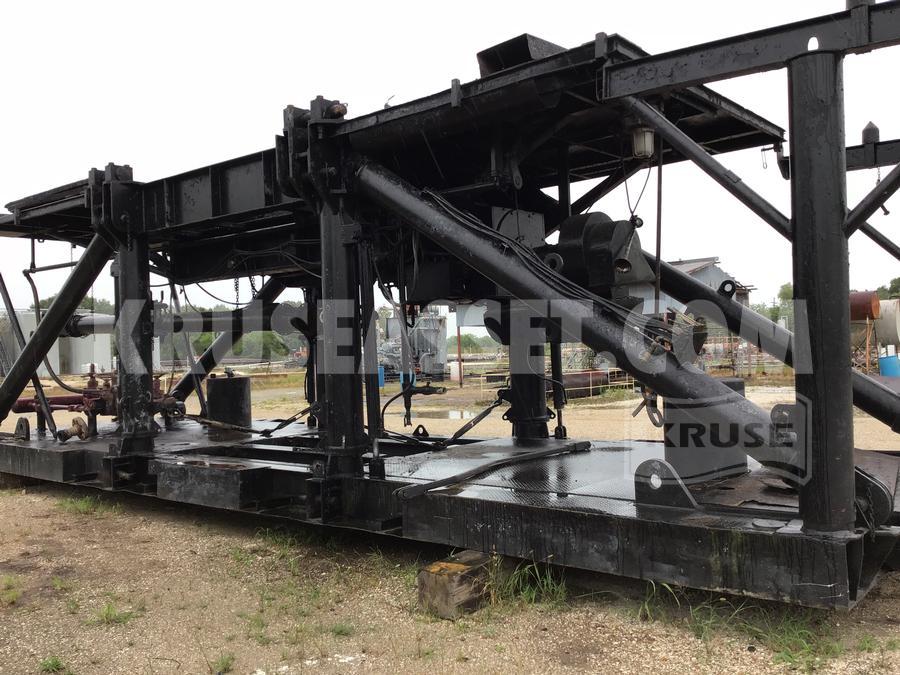

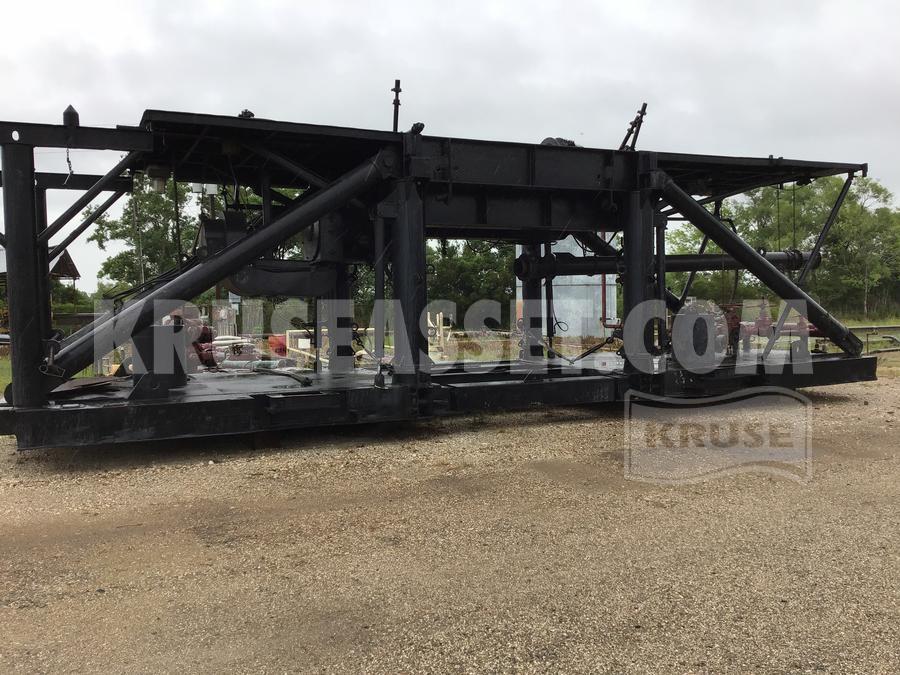

• Telescoping Substructure 40’ Long, 18’ Wide, 15’ High in two (2) sections

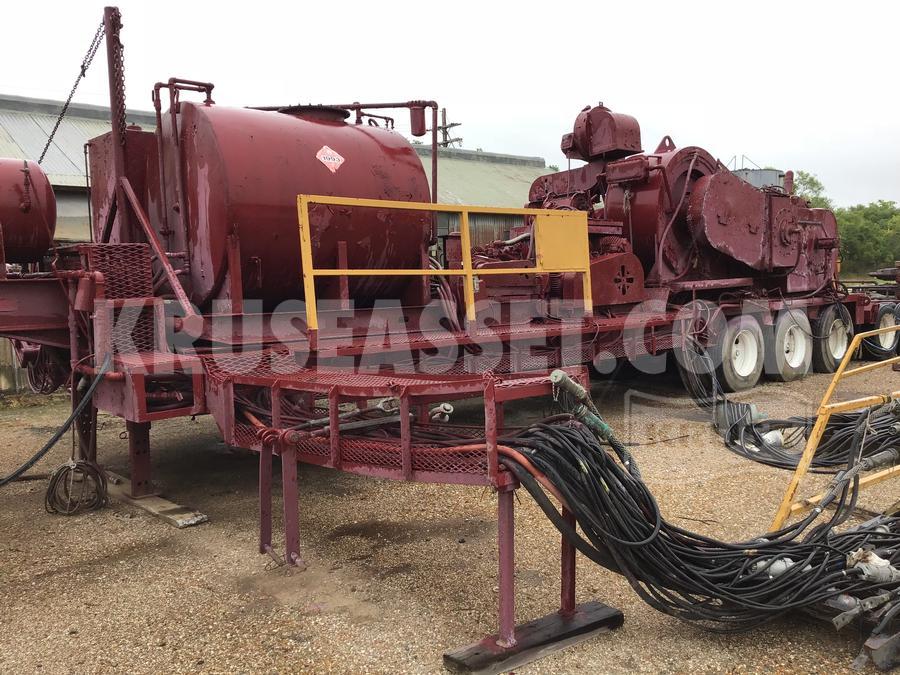

• Drawworks, 1000 HP Citation w/ 1-1/4” drill line, p/b 1000 HP Toshiba Traction Motor
• Shaffer 11” Annular, 1500 Series, 5K and Shaffer LWS 11” 5K Double BOP
• Complete Choke Manifold, 1500 Series, 5K

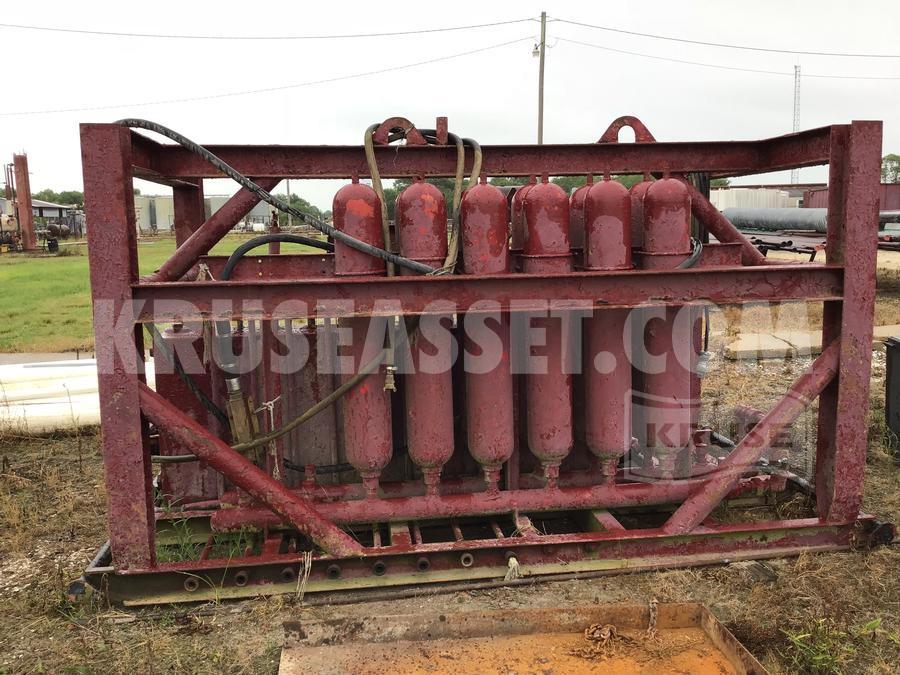

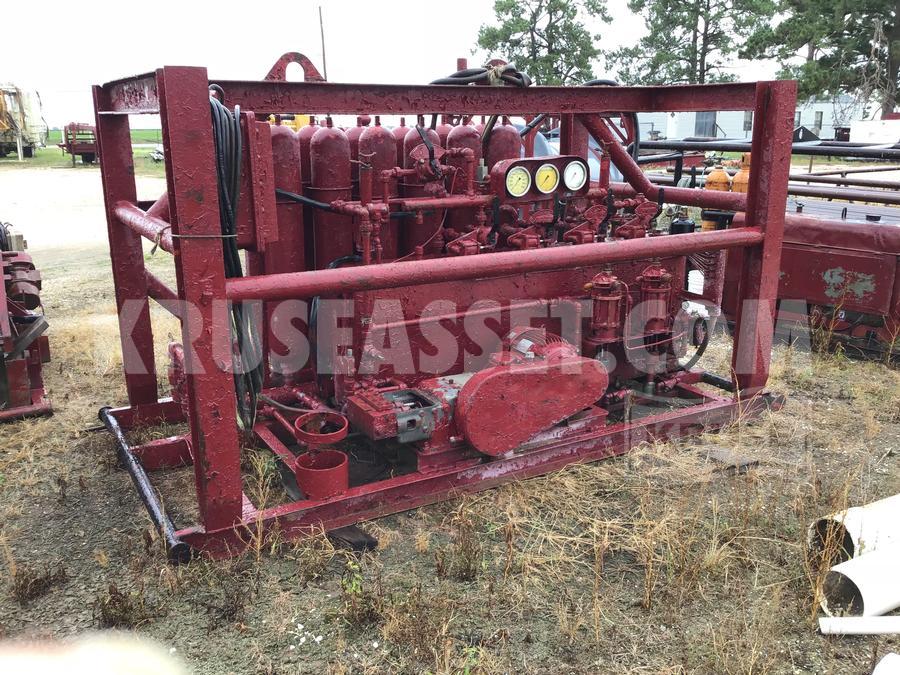

• Five Station 120 Gallon Accumulator

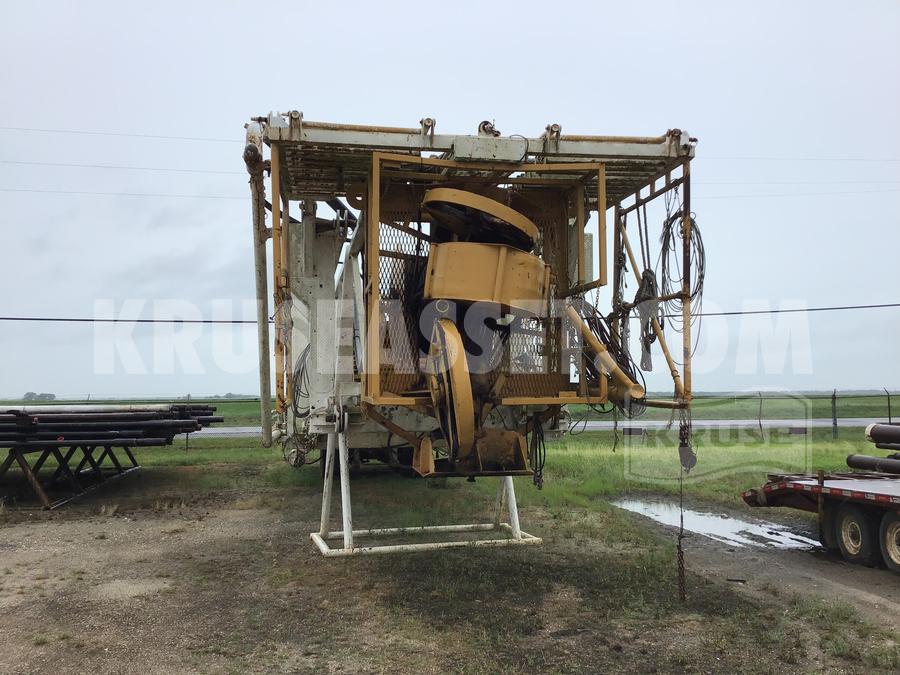

• 360 Ton IDECO Block/Hook Combination
• 300 Ton Swivel, Emsco 300

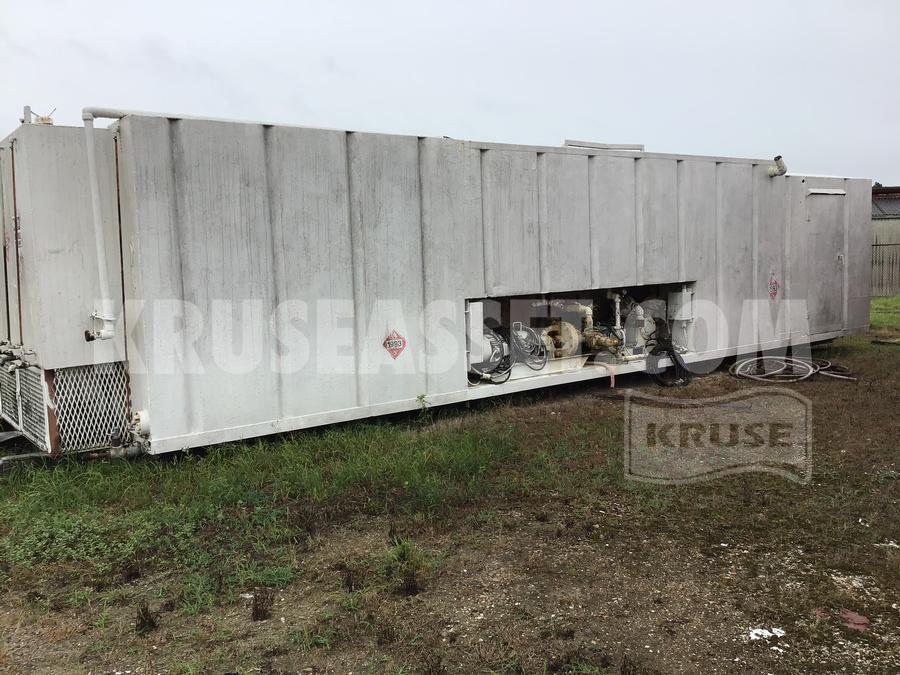

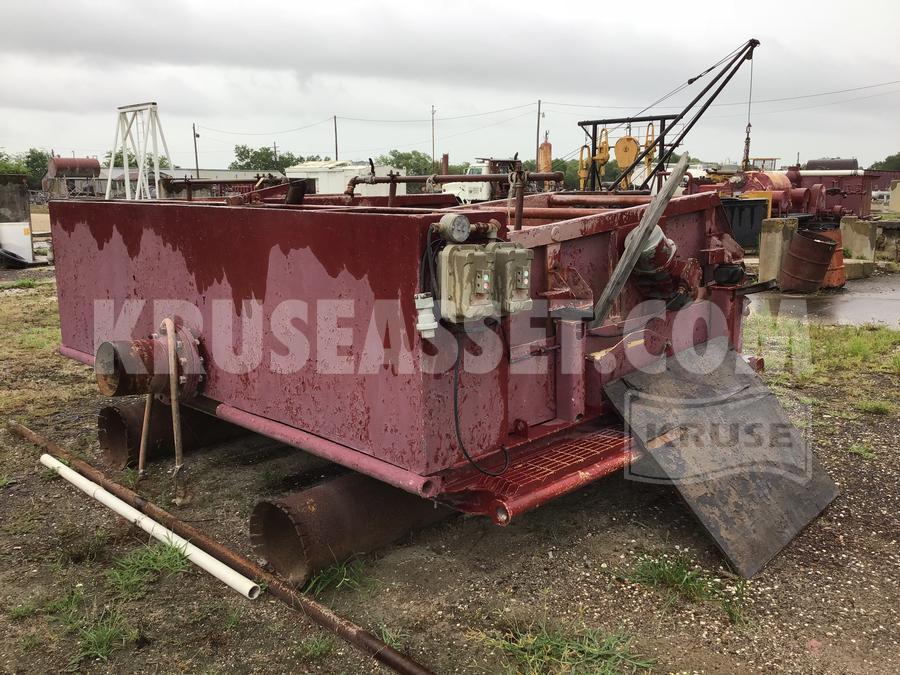

• 10’W x 5’H x 25’L Suction Tank with Mud Mixer, 225 bbl. capacity.

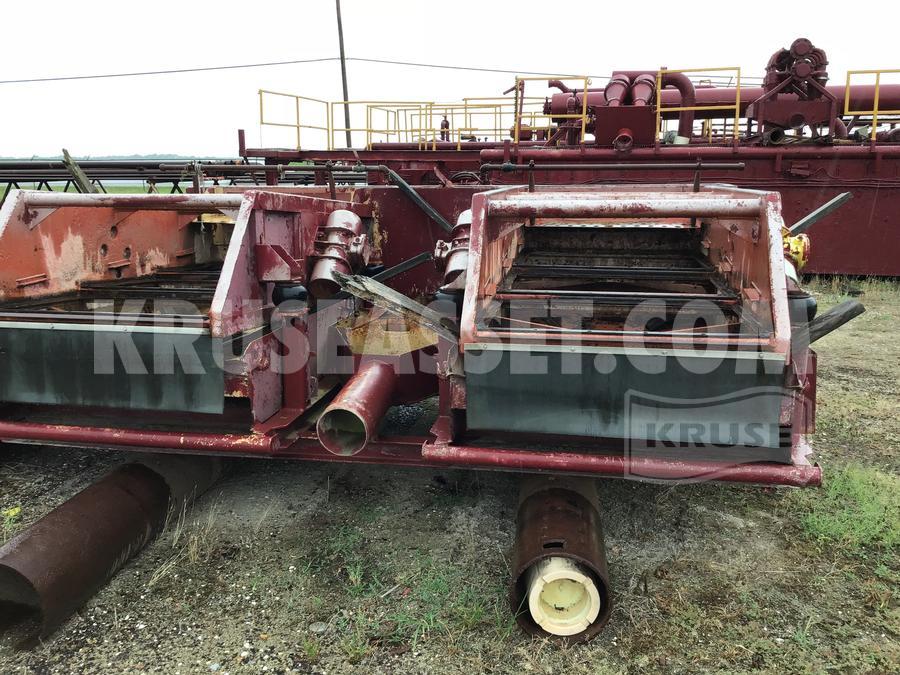

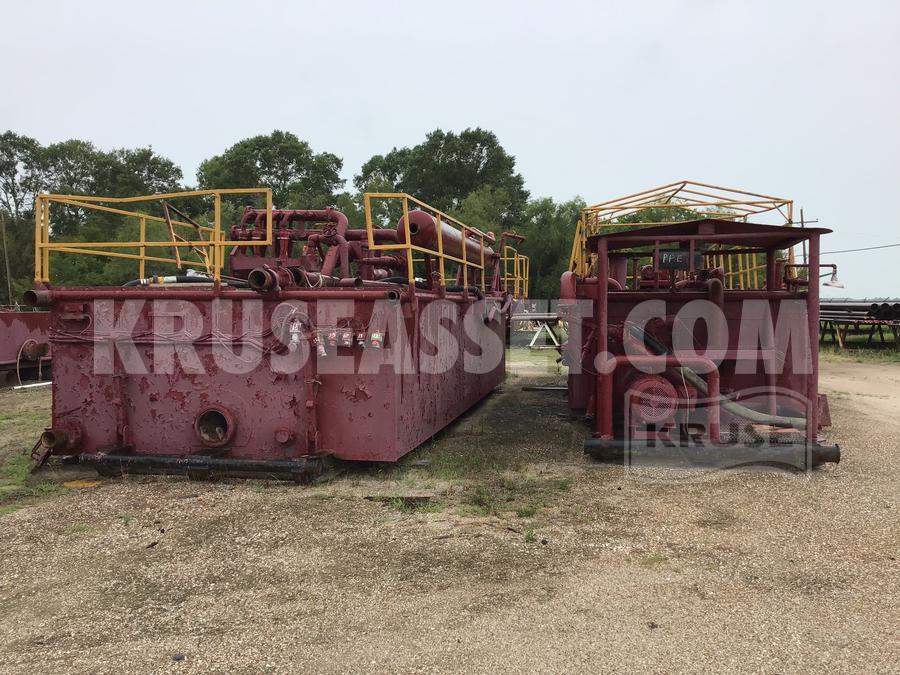

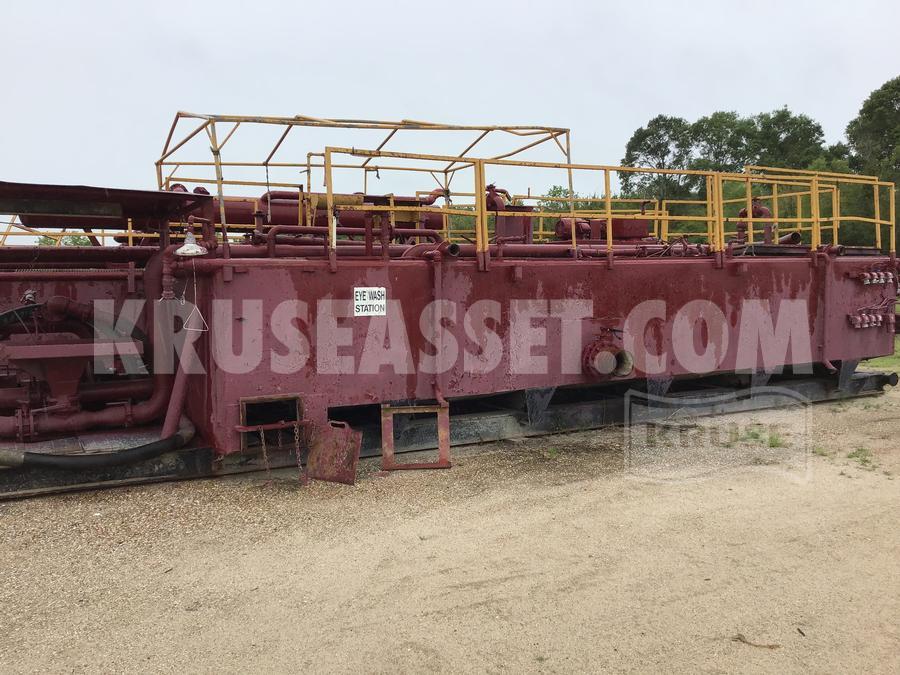

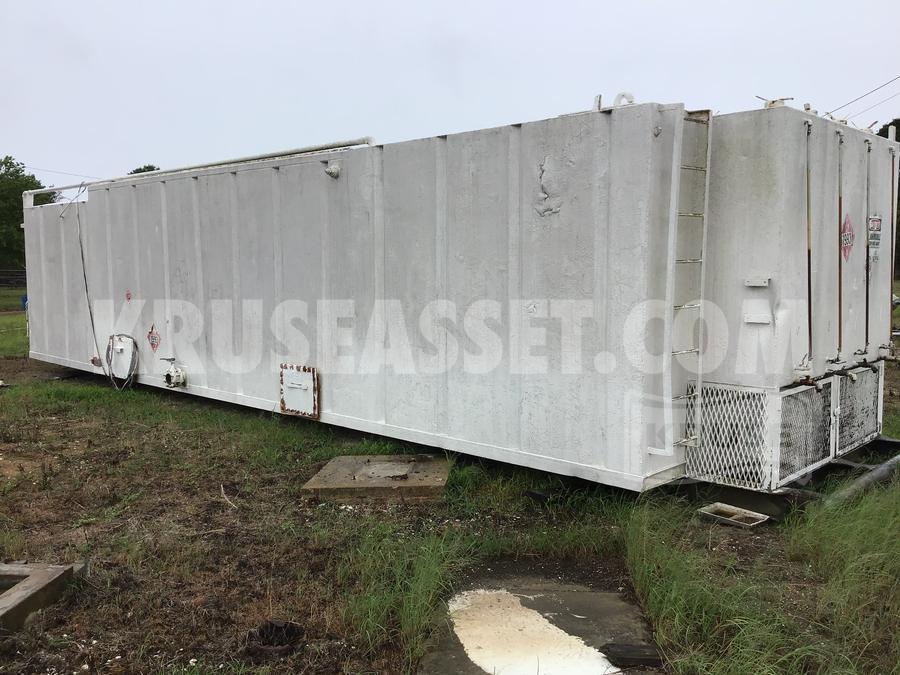

• 12’W x 5’H x30’L Mud Shaker Tank, Complete w/desilter, desander and 2 linear motion shale shaker, 320 bbl. capacity.

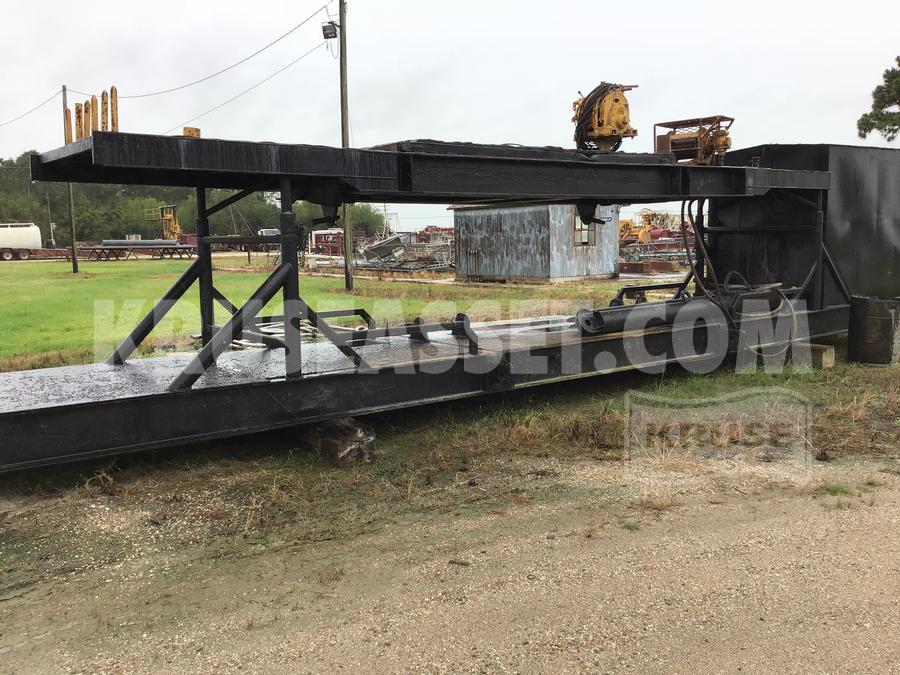

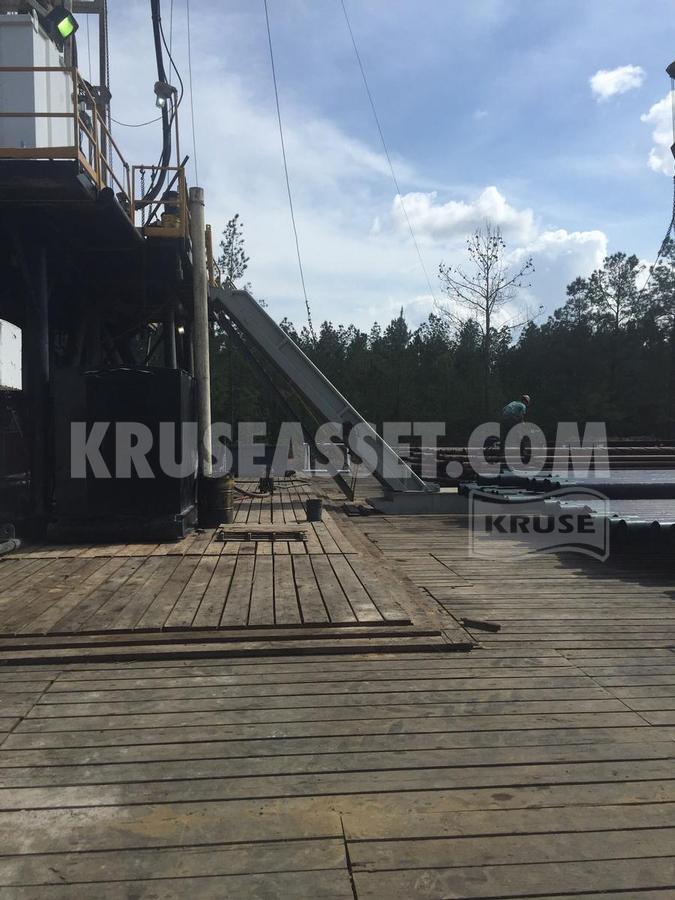

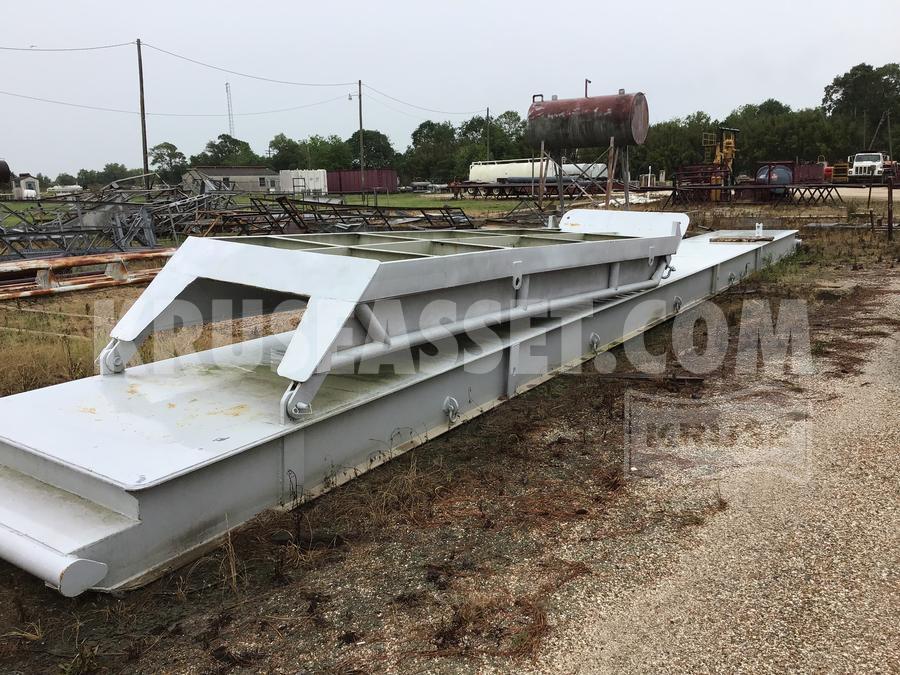

• (1) 18”H x 53”W x 58’6”L Catwalk.
• 11,900’ of 4” Full Hole Drill Pipe, Used, hard banded, Complete w/ Handling Tools
• (6) 18”H x 30’L Triangular Pipe Racks

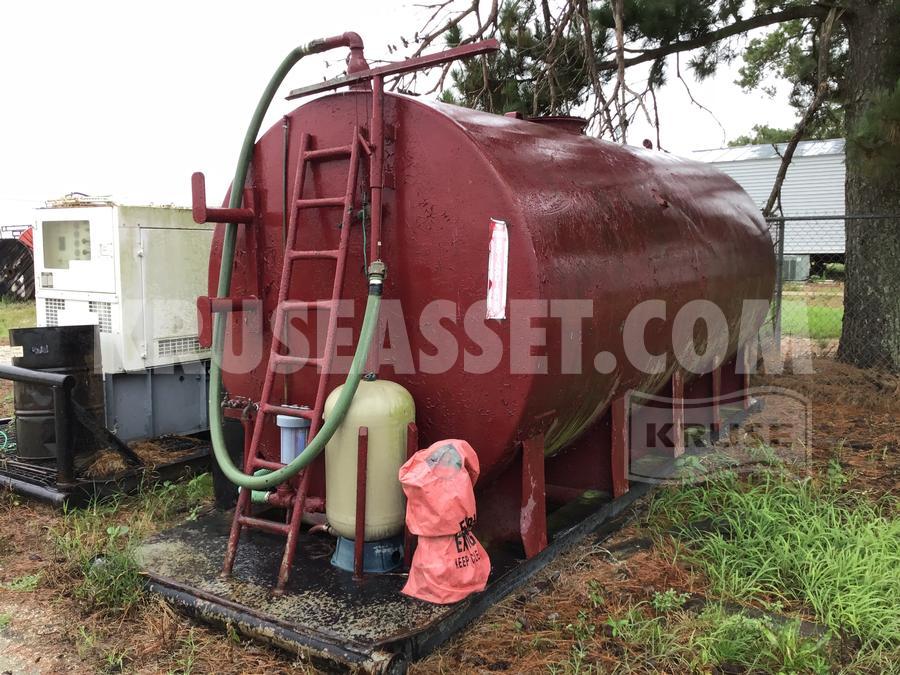

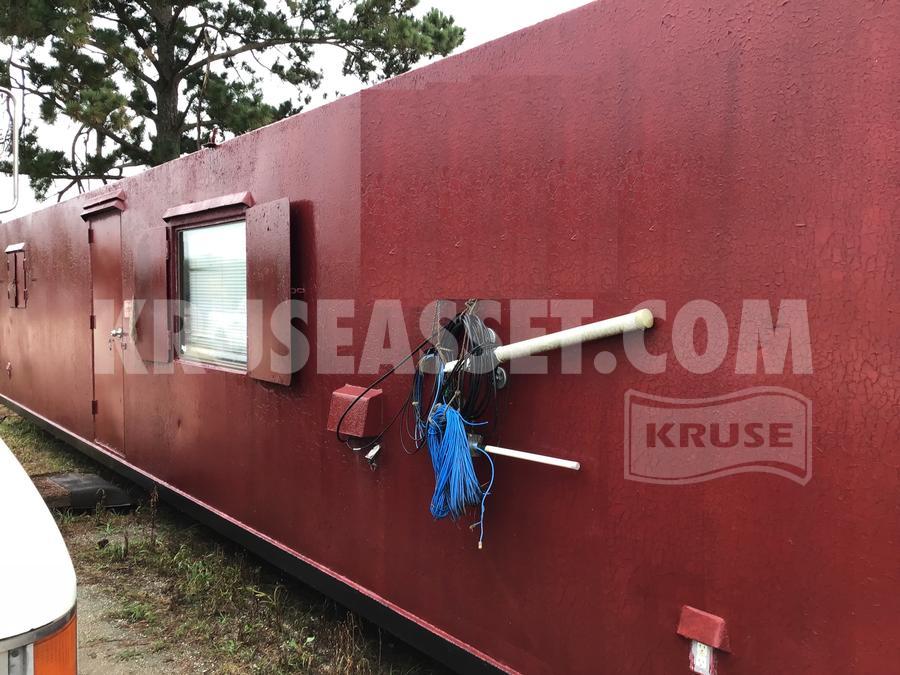

• Change House, Fuel Tank and Water Tank Combination

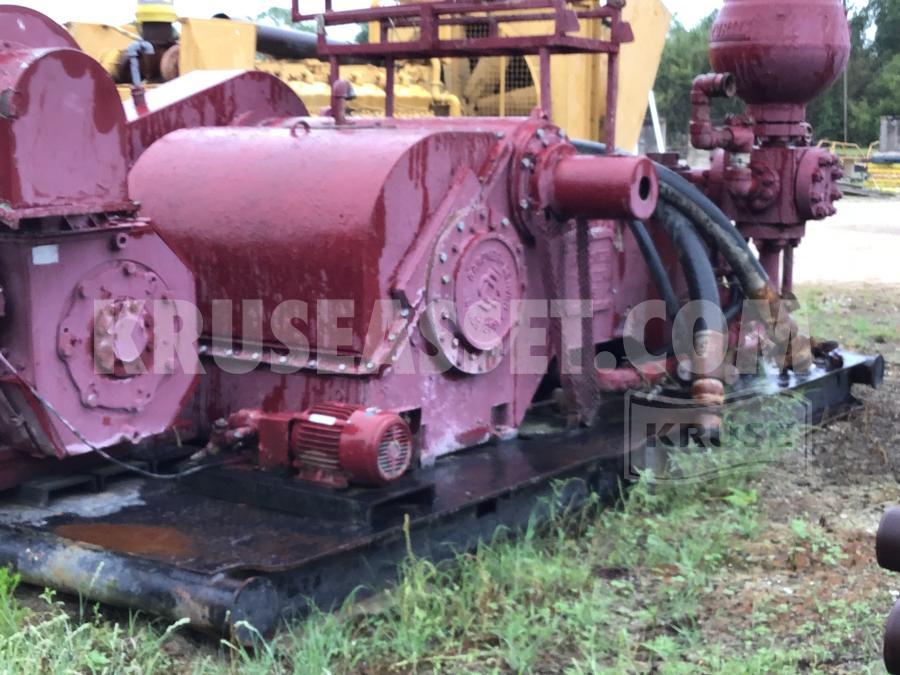

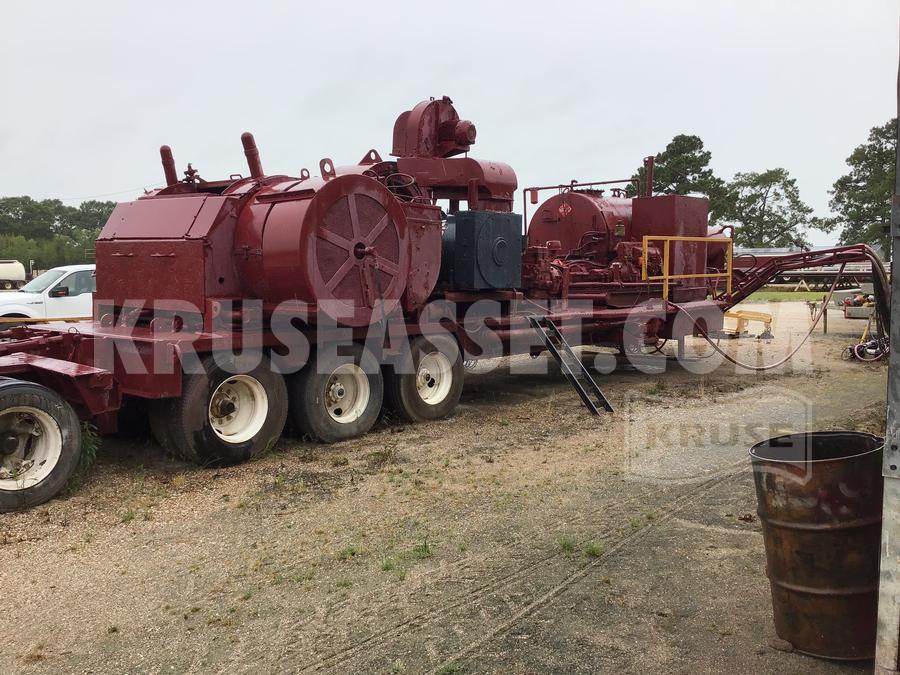

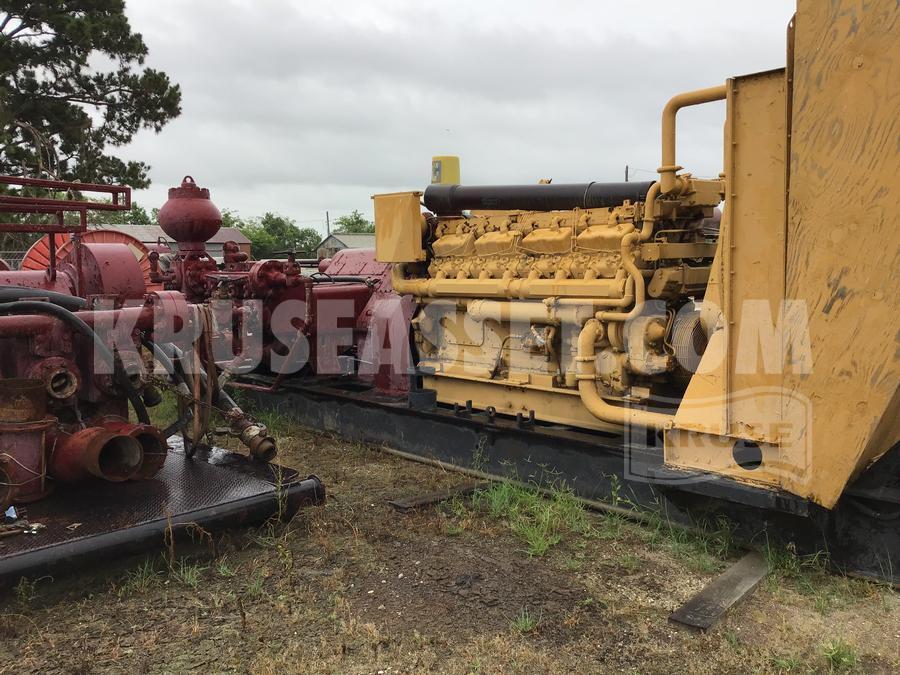

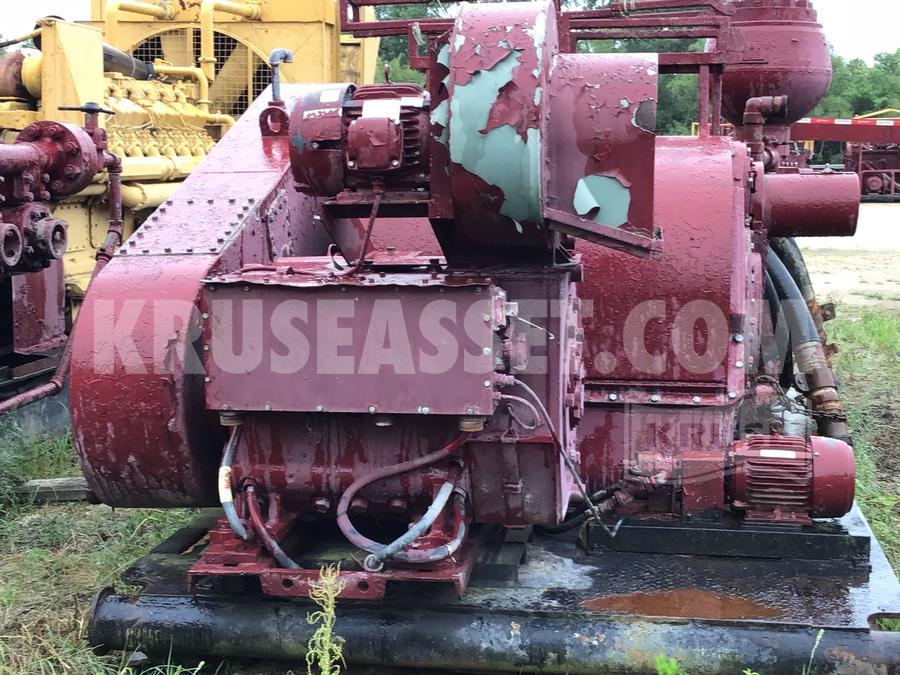

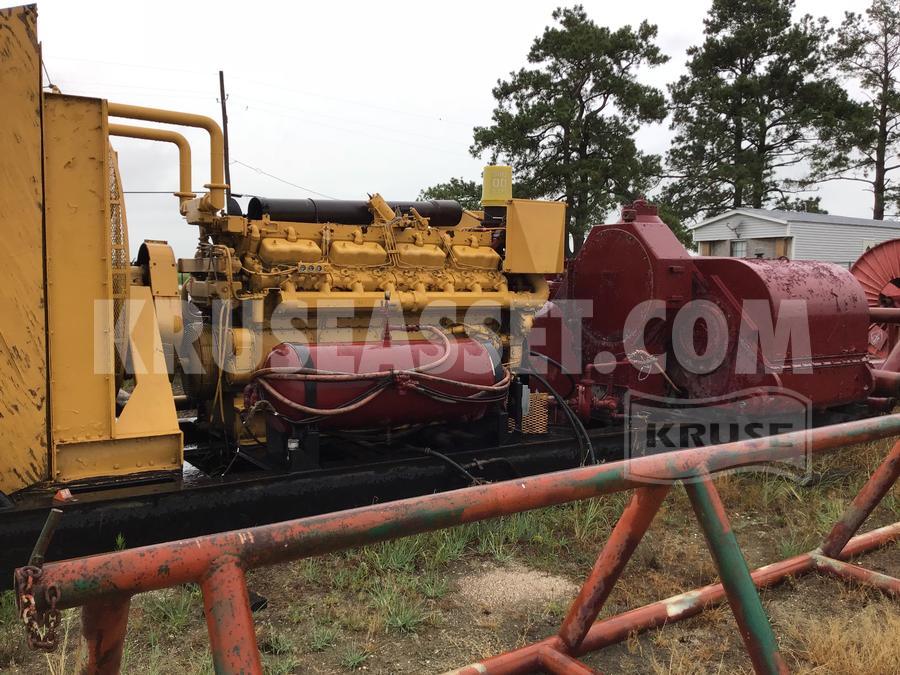

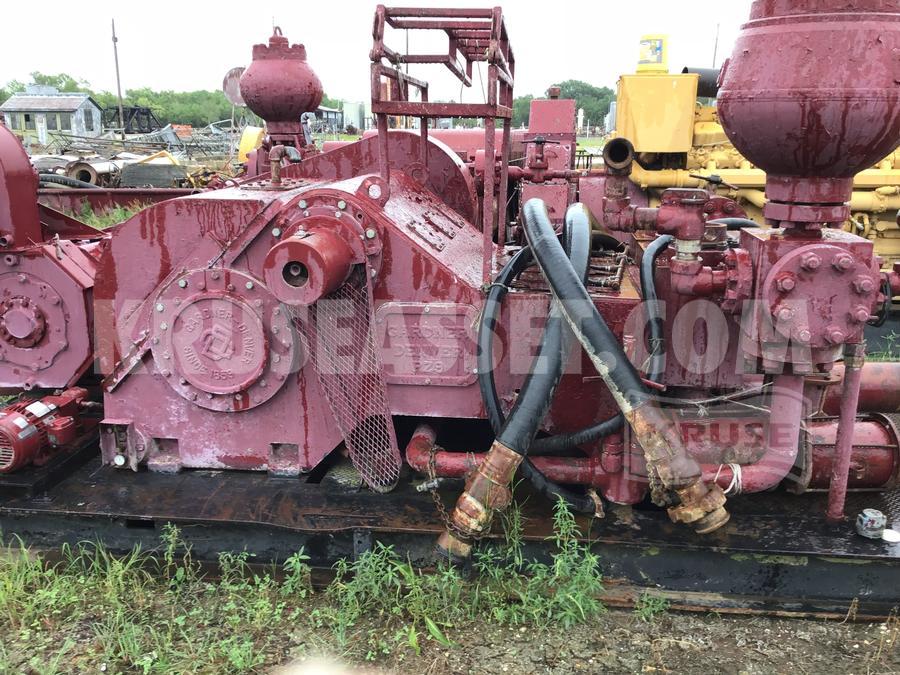

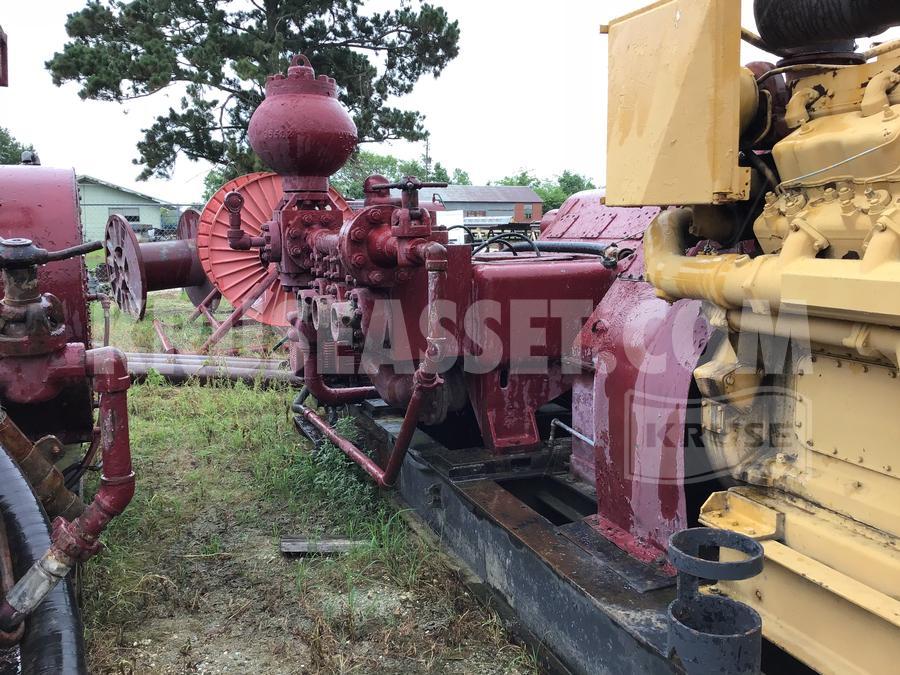

• Gardner Denver PZ9, 1000 HP, p/b Model D-399 Turbo-charged CAT Diesel Engine w/Air Actuator, Air Starter and Tulsa Air Exchanger
• Gardner Denver PZ9, 1000 HP, p/b 752 GE Tractor Motor

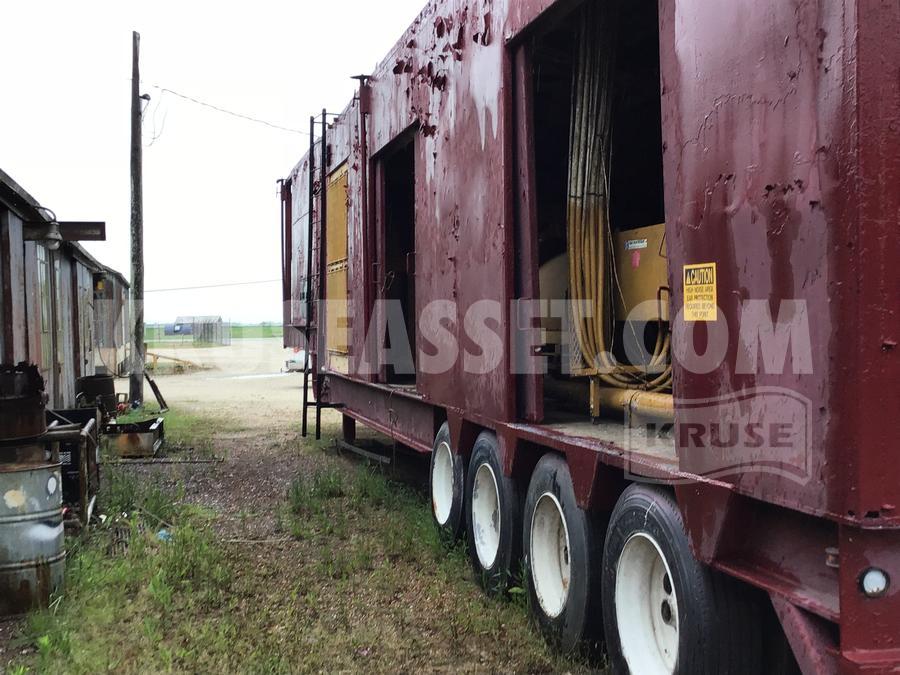

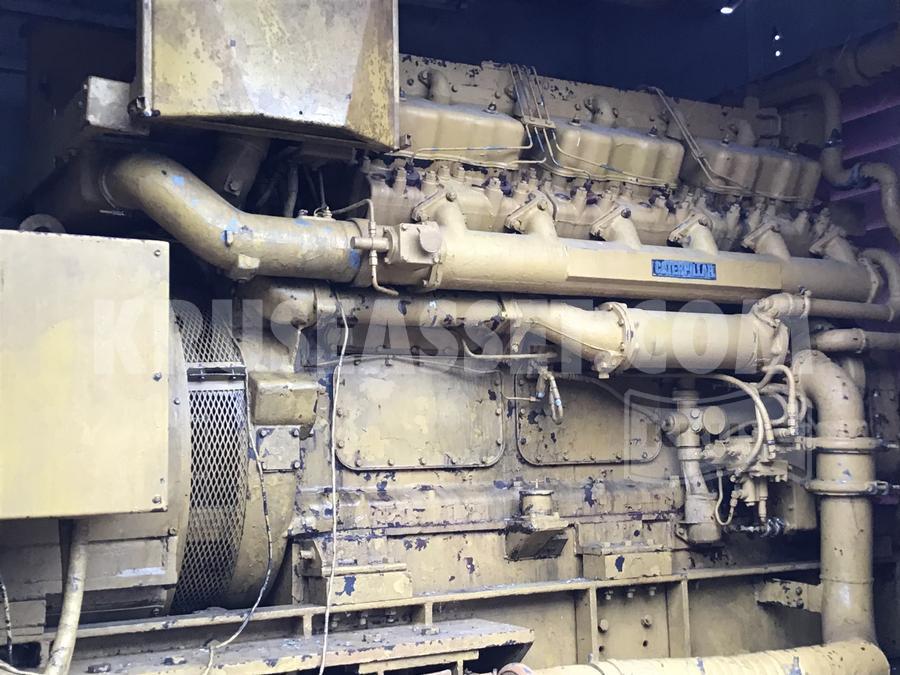

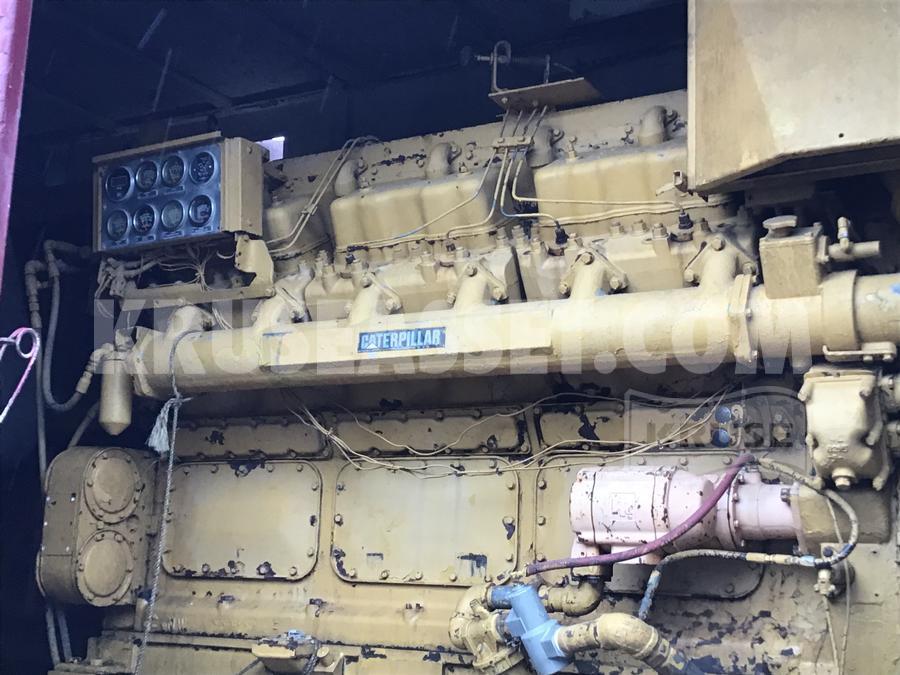

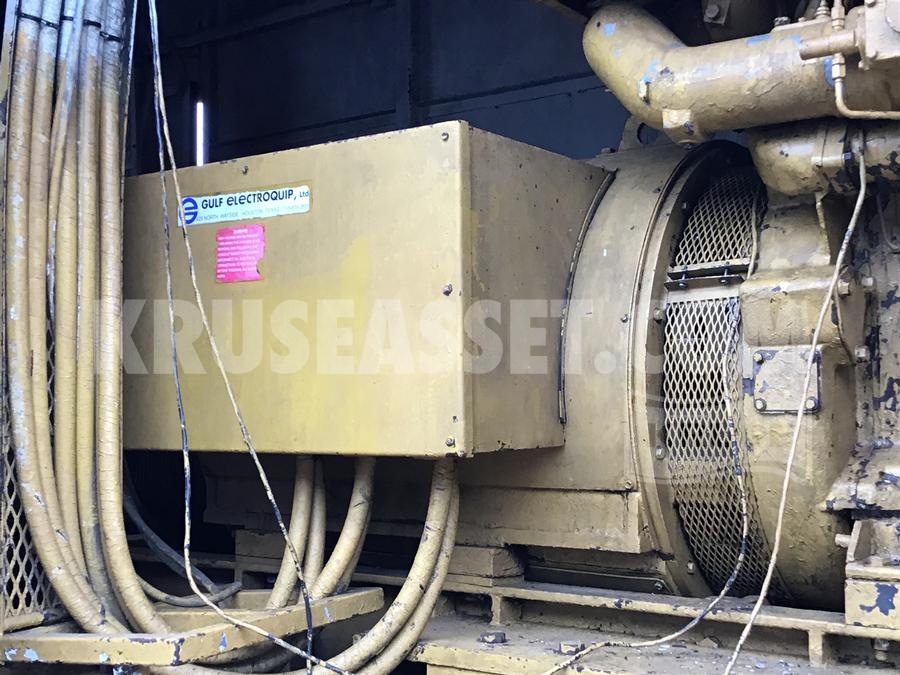

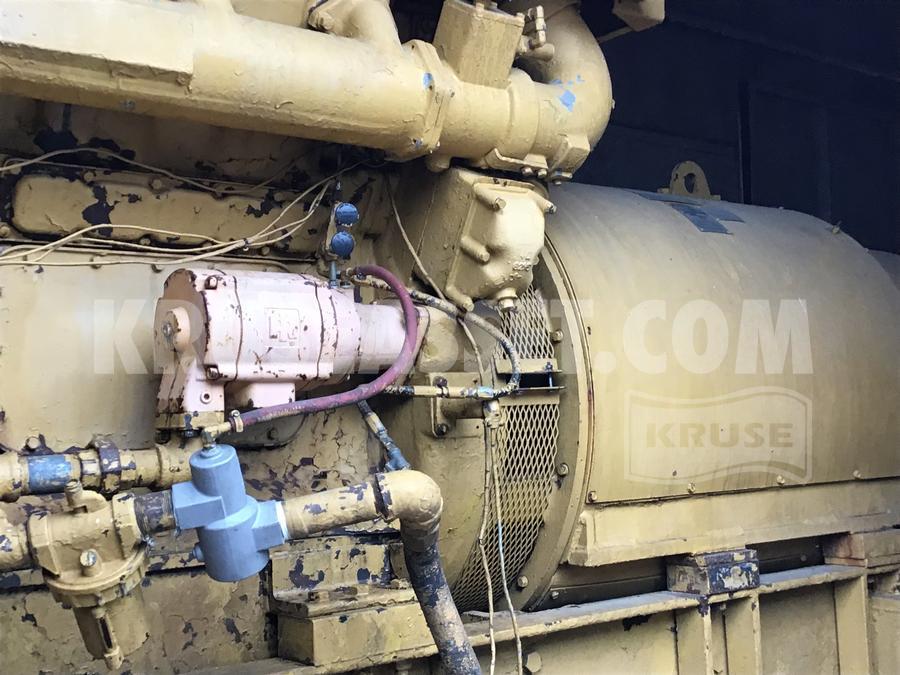

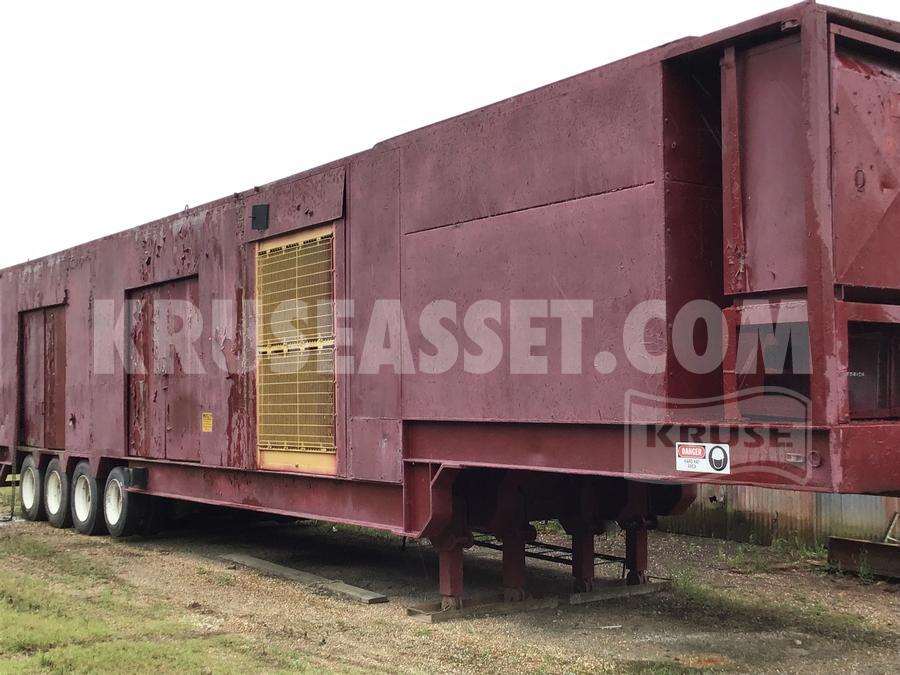

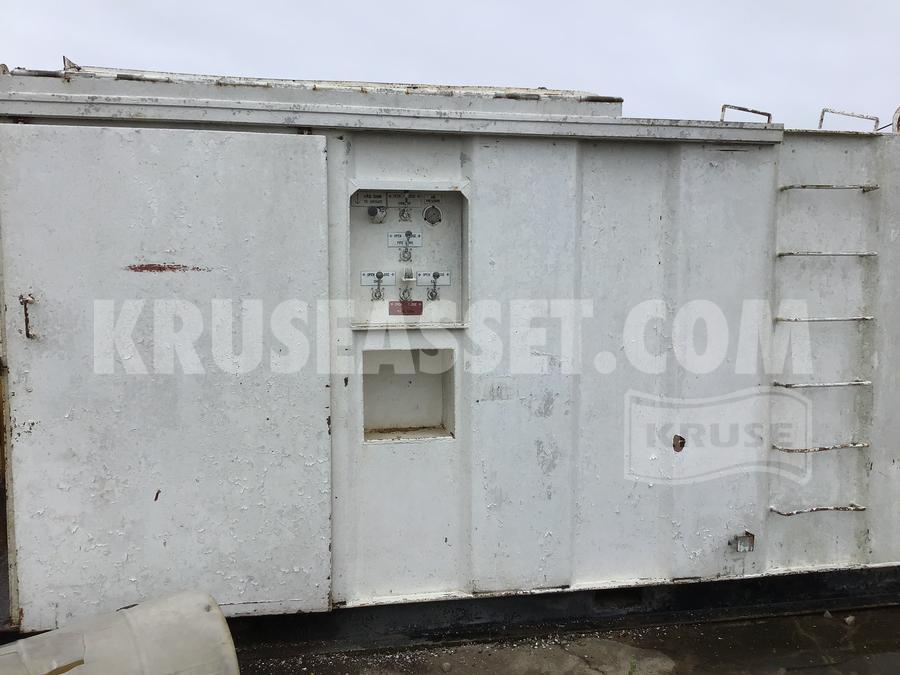

• (2) 800 KW Kato Generator Sets, p/b D-398 CAT Engines w/ (3) Bay IPS SCR Systems
  (Hours:  Gen#1 CAT D-398 Hours=18454, Gen#2 CAT D-398 Hours=39505, Gen#3 CAT D-399 #2 Pump Hours=4097)

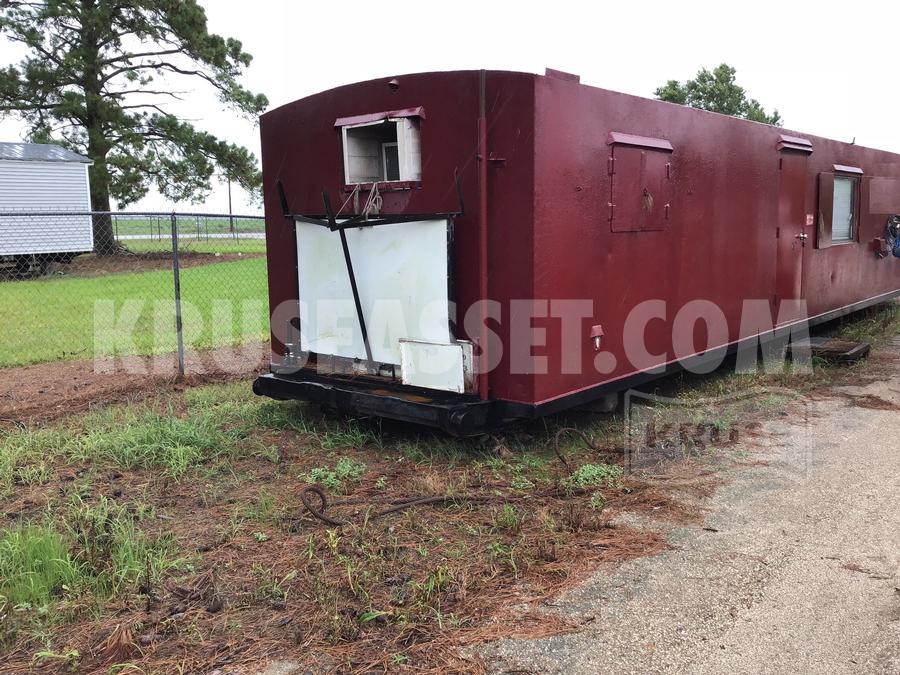

• Toolpusher House
• 5-1/4” Hex Kelly and Busing
• .072” Slickline Unit w/14,000’ of line
• 20-1/2” Oilwell Rotary Table, p/b 900 HP Toshiba Traction Motor
• (15) 6-1/2” OD x 2-7/8” ID Drill Collars, 30’ L w/ 4-1/2” X-hole Connection, 92# per foot
• (3) 8” OD x 2-7.8” ID Drill Collars, w/ 6-5/8” H – 90 Connection, 147# per foot
• 500bbl Water Tank
• Junk Box with Elevators, Tongs, Slips and Misc. Rig Parts
