Listing Details

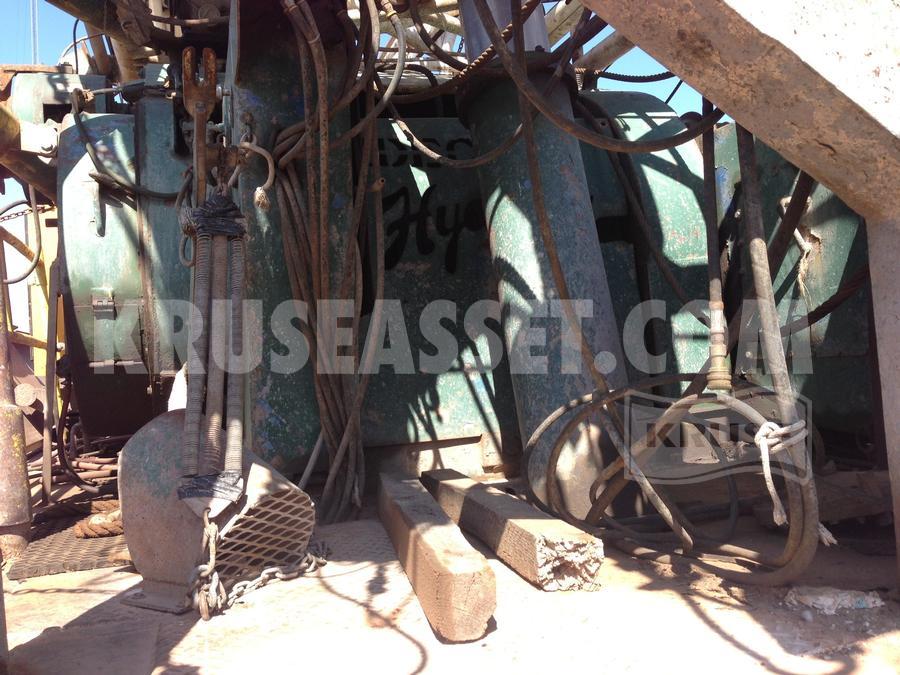

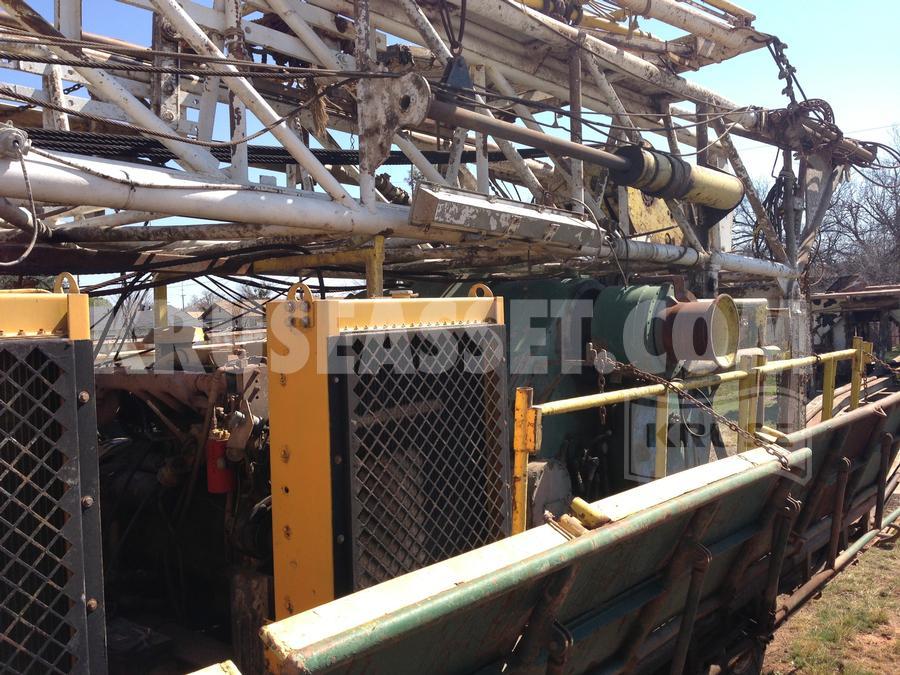

DRAWWORKS
IDECO HYDRAIR H-35 SINGLE DRUM DRAWWORKS
LEBUS GROOVED FOR 1" DRILL LINE
PARMAC TRIPLE 15" HYDROMATIC BRAKE
TORQUE-TITE MAKE-UP AND BREAK-OUT CATHEADS
ROTARY DRIVE ATTACHMENT
ROTARY DRIVE CLUTCH

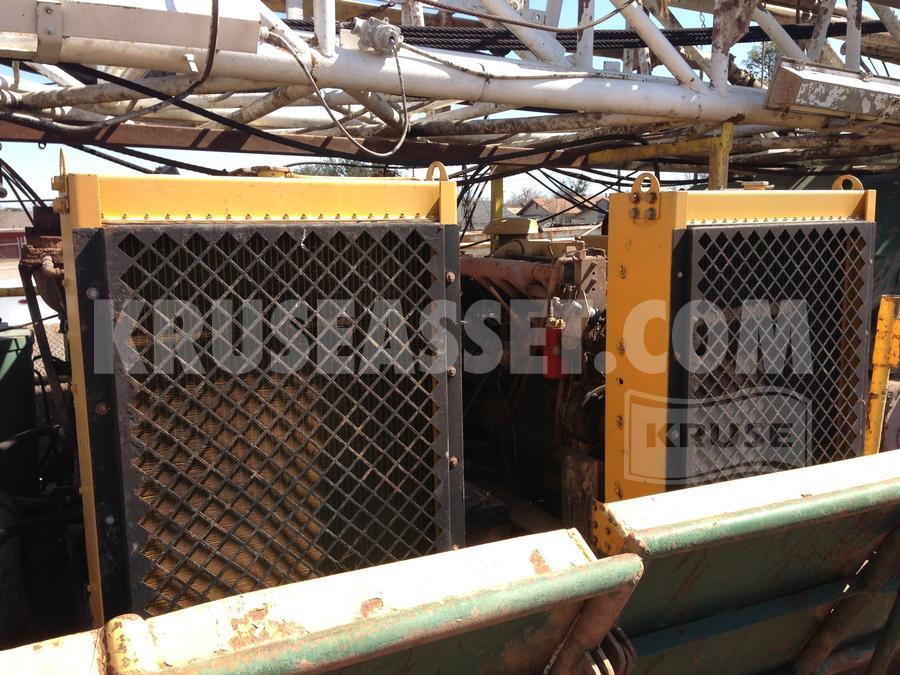

DRAWWORKS POWER
(2) CAT D3306T DIESEL ENGINES, ELECTRIC START
(2) TWIN DISC F10017TCI TORQUE CONVERTERS
(1) TWO ENGINE COMPOUND
(2) QUINCY 240L AIR COMPRESSORS
(1) AIR RESERVOIR TANK

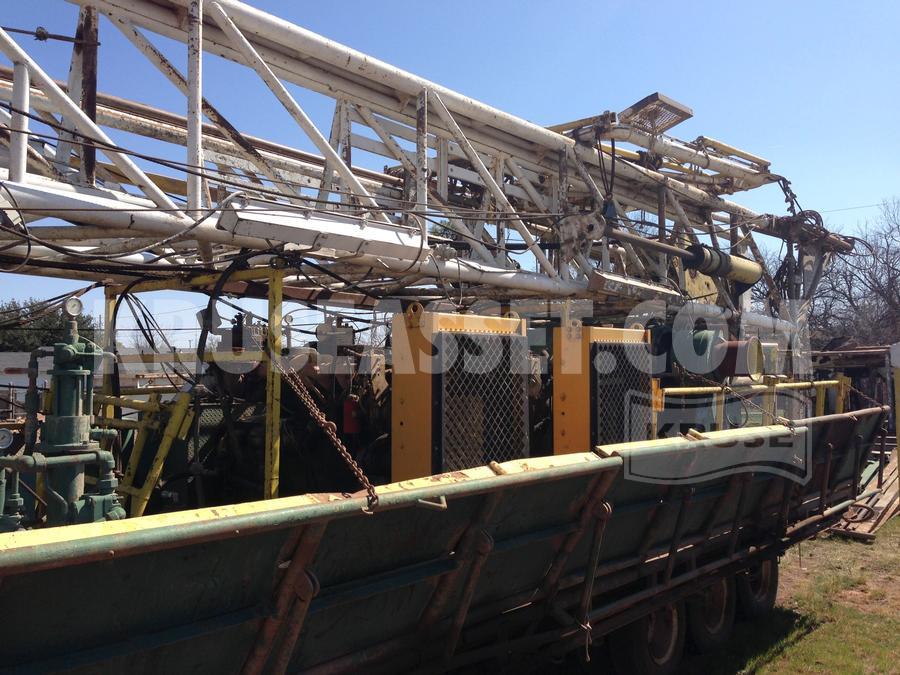

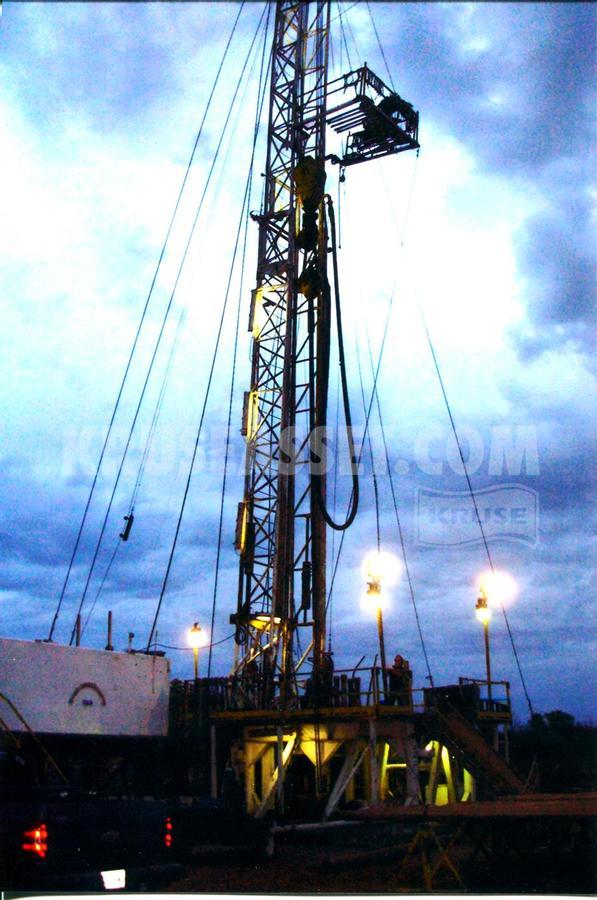

DERRICK
SPENCER HARRIS DERRICK
97' H, 250,000 LB. CAPACITY
HYDRAULICALLY RAISED
WIRE LINE TELESCOPED
CROWN BLOCK ASSEMBLY
RACKING BOARD
STANDPIPE
VAPOR PROOF LIGHTING

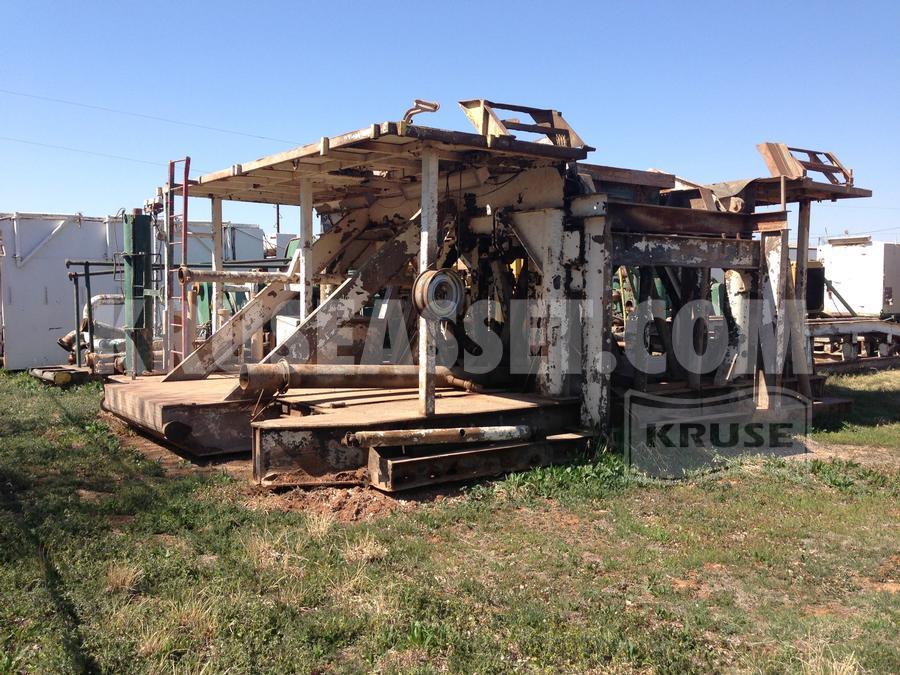

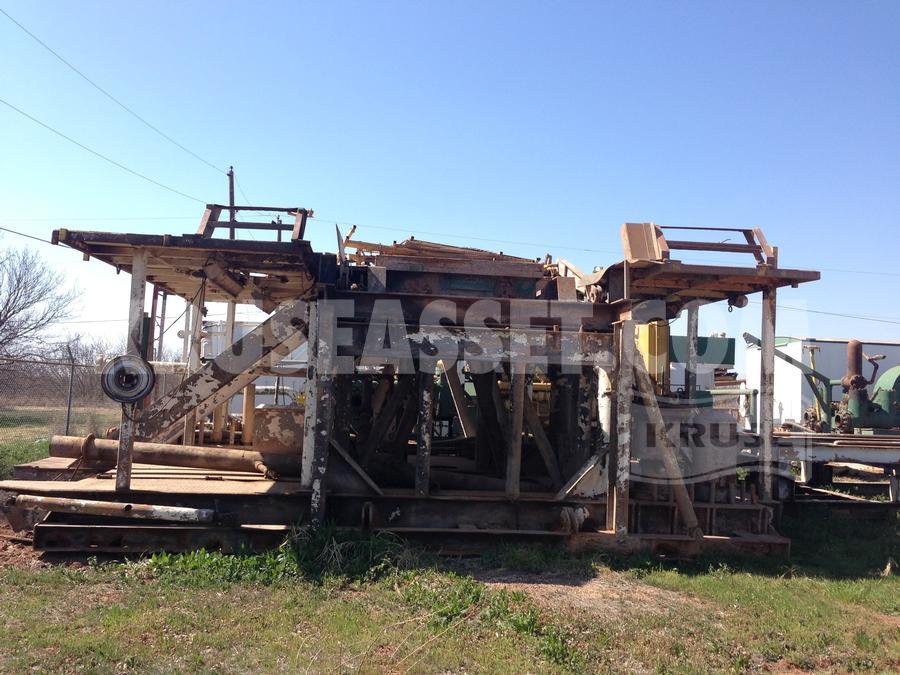

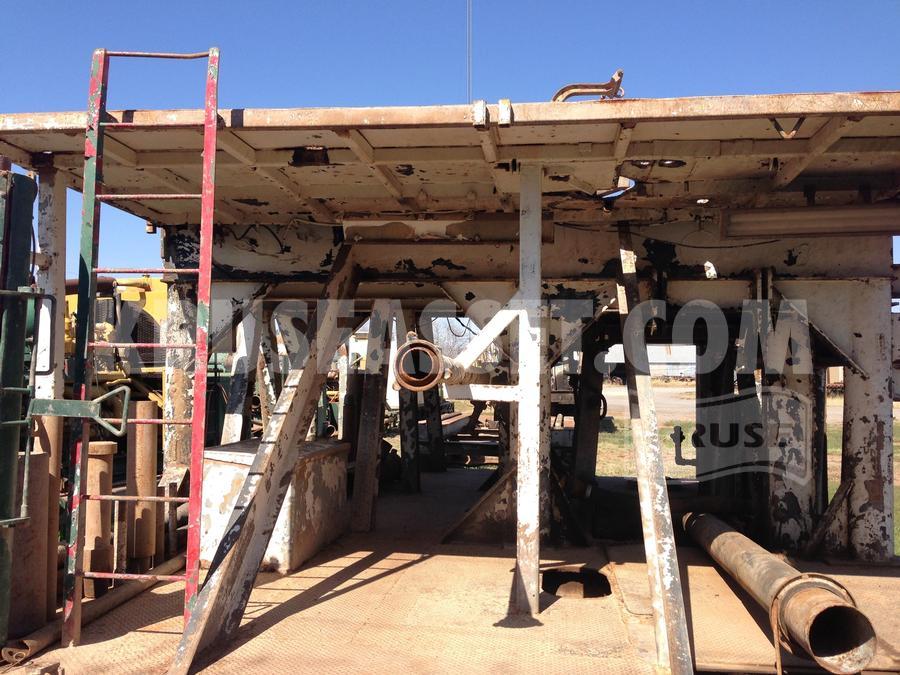

SUBSTRUCTURE
SPENCER HARRIS SINGLE PIECE SUBSTRUCTURE
9' HEIGHT
STAIRS
HANDRAILS
VAPOR PROOF LIGHTING
ROTARY BEAM CLEARANCE: 6' 4"
17' OAW
28' OAL
MOUNTED AND UNITIZED ON A MASTER OILFIELD SKID

BACK-ON RAMP
SPENCER HARRIS BACK-ON RAMP
35"      H
7' 7"   W
31' 5"  L

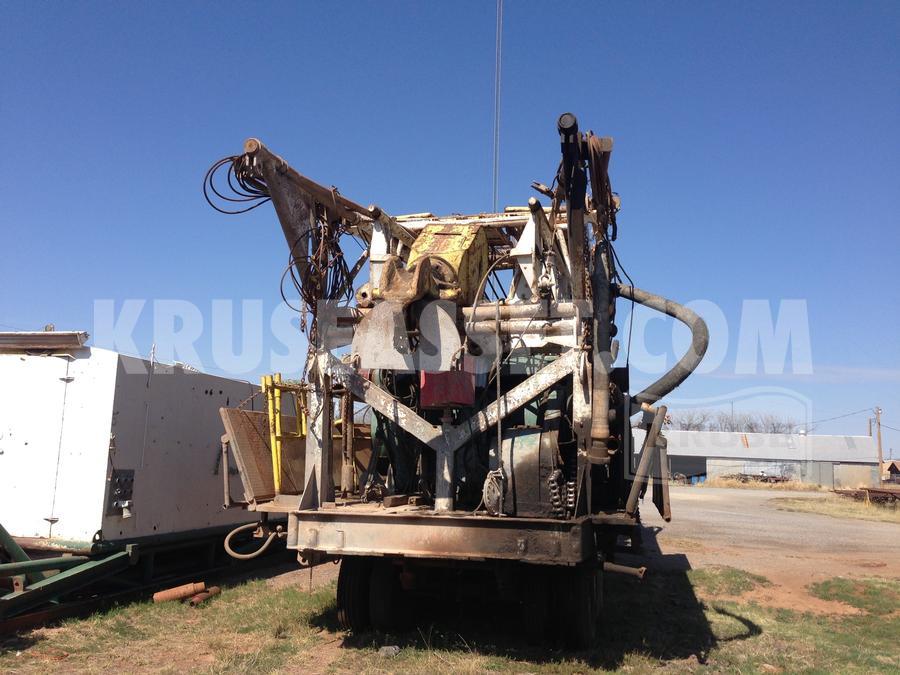

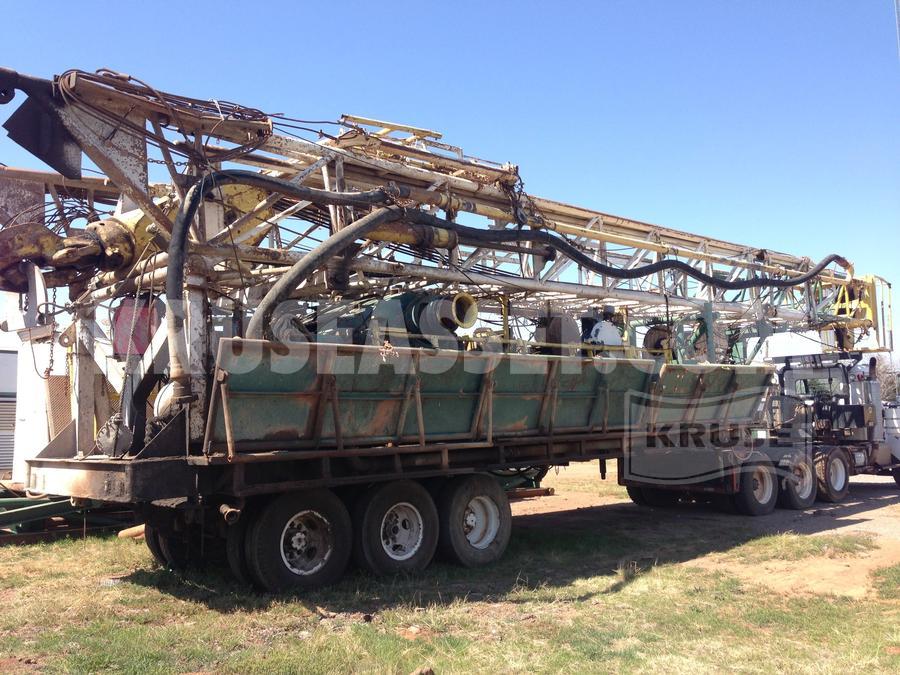

RIG TRAILER
SPENCER HARRIS TRIPLE AXLE TRAILER, NO. 28
(2) FRONT HYDRAULIC MOUNTED LEVELING JACKS
10.00 x R20 TIRES
BUDD WHEELS
INVERTED 5TH WHEEL

ROTARY TABLE
MUD KING RT-175 ROTARY TABLE
17 1/2" x 44" CENTERS
SPLIT SQUARE DRIVE MASTER BUSHING

KELLY DRIVE BUSHING
KELLY ROLLER DRIVE BUSHING
SQUARE DRIVE FOR 4 1/4" SQUARE KELLY

BLOCK / HOOK
TRAVELING BLOCK WITH UNITIZED HOOK
McKISSICK 4-30" SHEAVE BLOCK
BJ 6150 UNIMATIC HOOK
150 TON CAPACITY
GROOVED FOR 1" WIRE LINE

ROTARY SWIVEL
OILWELL 100-C ROTARY SWIVEL
100 TON CAPACITY
6 5/8" REG. L.H. CONNECTION

ELEVATOR LINKS
2 1/4" x 96" ELEVATOR LINKS
250 TON CAPACITY

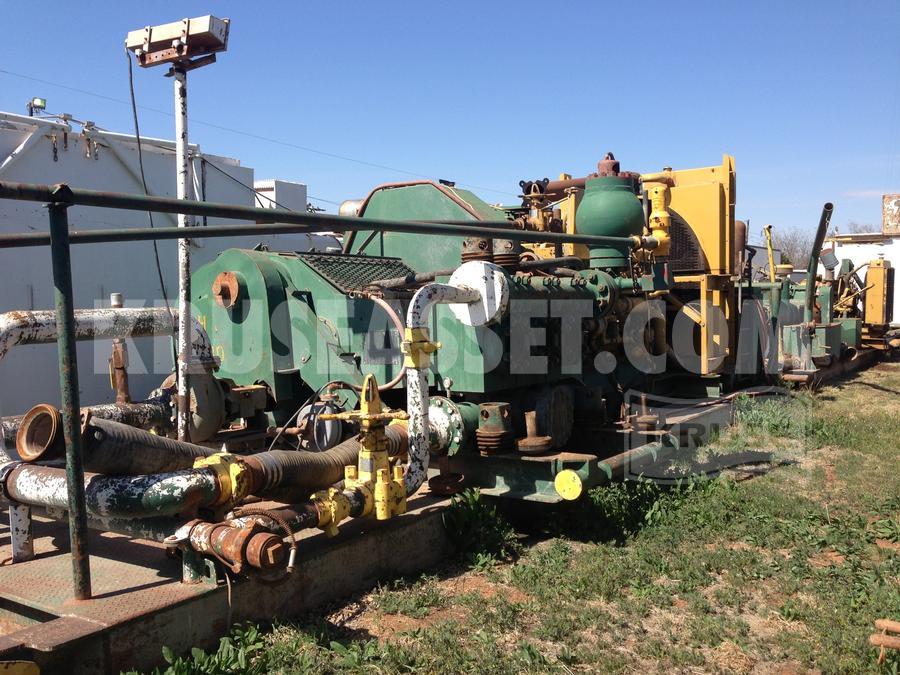

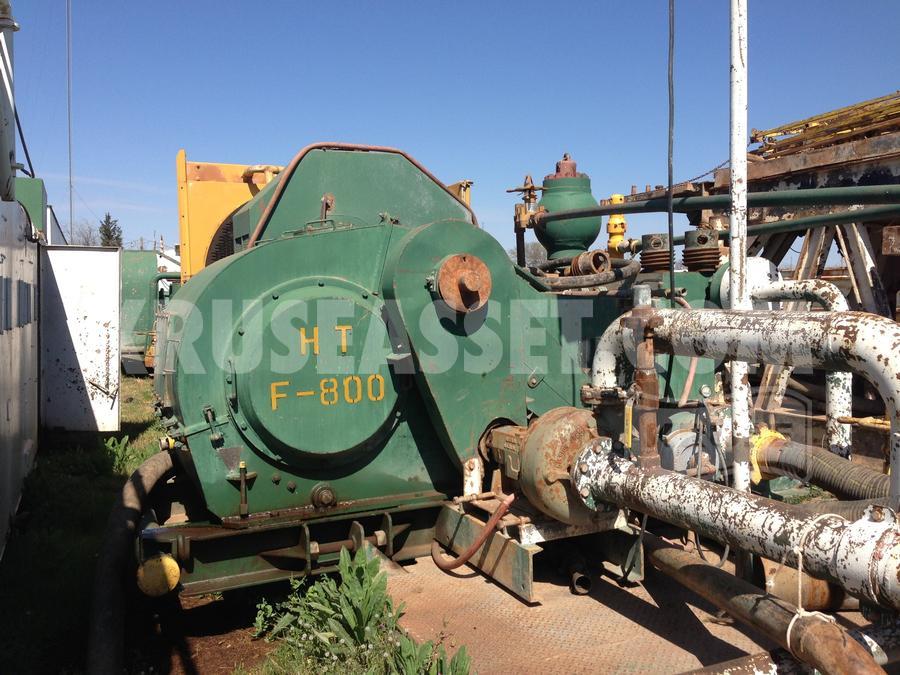

MUD PUMP # 1
HH HT-800 (F-800 STYLE) TRIPLEX PUMP S/N HT20060067 (DOM: 2006)
6 3/4" MAXIMUM LINER SIZE
9" MAXIMUM STROKE
FORGED STEEL FLUIDS
QUICK CHANGE CAPS
LANZHOU KB-45 10 GALLON 5,000 PSI PULSATION DAMPENER
O'DRILL/MCM 3" 5,000 PSI PRESSURE RELIEF VALVE
O'DRILL/MCM 4" 5,000 PSI GATE VALVE
MISSION 5" X 6" x 11" CENTRIFUGAL PUMP (PINION DRIVEN)
ODRILL/MCM 1" X 1 1/2" LINER WASH PUMP (PINION DRIVEN)
PUMP DRIVE SHEAVE (BULLWHEEL)
PUMP PEDESTAL DRIVE
BELT GUARD
SUCTION AND DISCHARGE HOSES

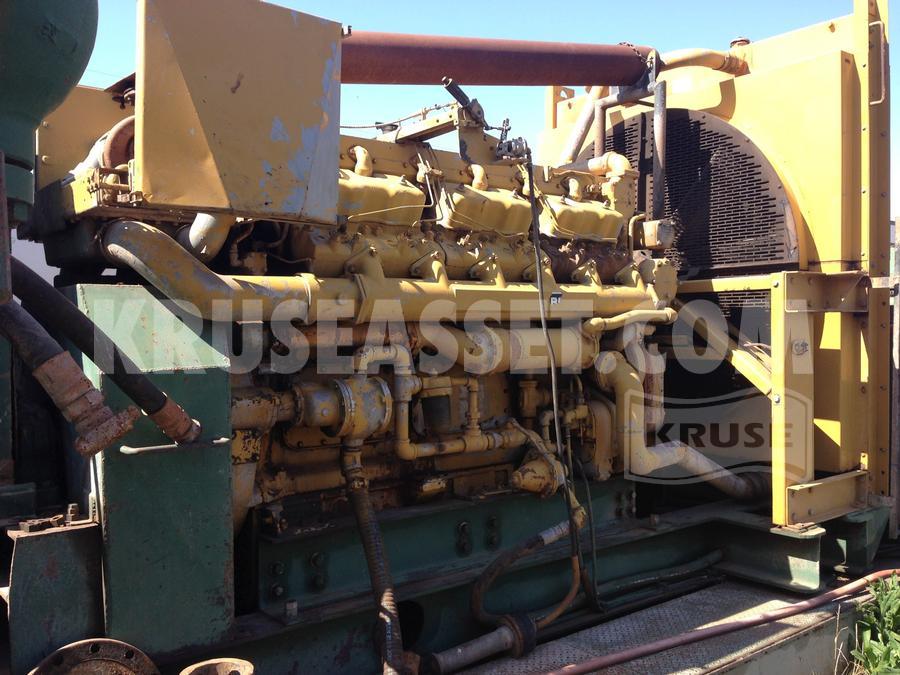

POWER: CATERPILLAR D398B SERIES DIESEL ENGINE S/N 66B2463
AIR START
RADIATOR
AIR CLUTCH
CLUTCH GUARD
ENGINE DRIVE SHEAVE
INSTRUMENT PANEL
DIESEL DAY TANK (FILLED FROM MAIN TANK)
AIR RECEIVER TANK
VAPOR PROOF LIGHTING
MOUNTED AND UNITIZED ON A OILFIELD MASTER SKID
13' 1" OAW x 36' 4" OAL

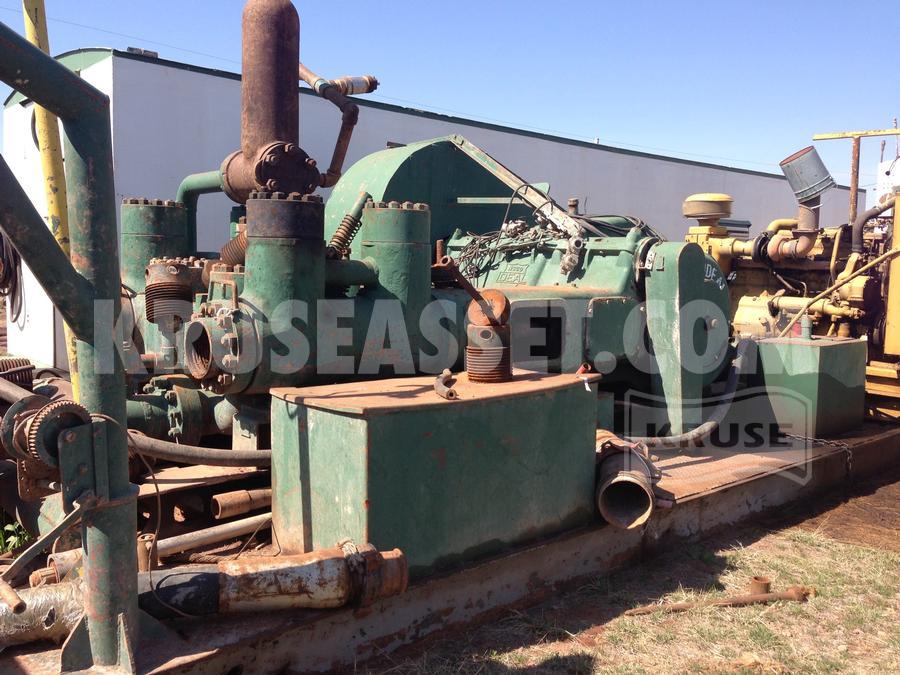

MUD PUMP # 2
NATIONAL C-250 DUPLEX PUMP
7 1/4" MAXIMUM LINER SIZE
15" MAXIMUM STROKE
MATTCO STEEL FLUID END QUICK CHANGE CAPS
AIR CHAMBER
O'DRILL/MCM 2" 3,000 PSI PRESSURE RELIEF VALVE
O'DRILL/MCM 4" 5,000 PSI GATE VALVE
LINER WASH PUMP (PINION DRIVEN)
PUMP DRIVE SHEAVE (BULLWHEEL)
PUMP PEDESTAL DRIVE
BELT GUARD
PEDESTAL MOUNTED CRANE JIB
SUCTION AND DISCHARGE HOSES
BEAVER STRAINER

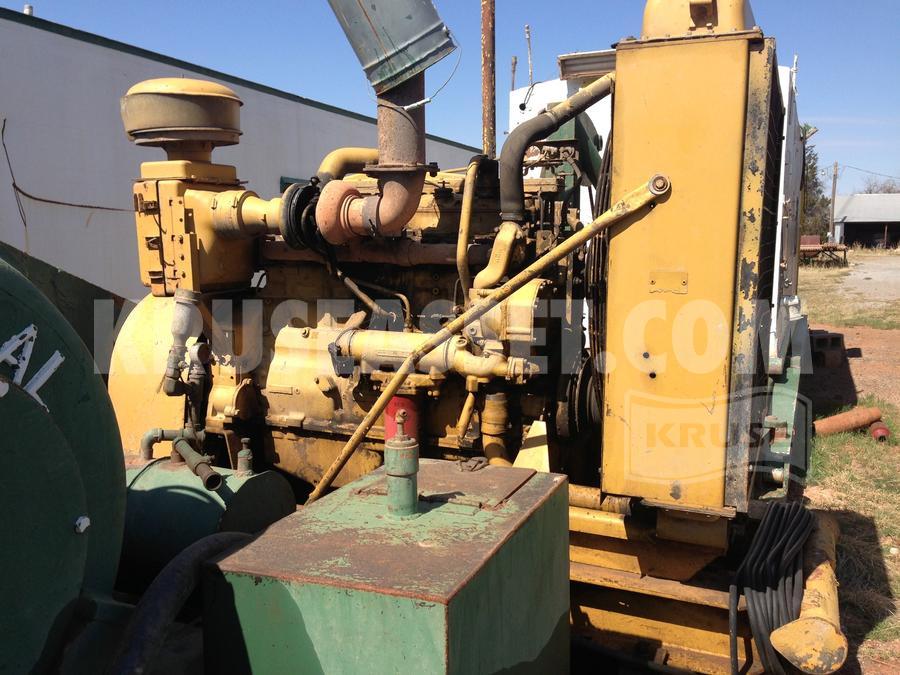

POWER: CATERPILLAR D3406B SERIES DIESEL ENGINE
AIR CLUTCH
CLUTCH GUARD
AIR START
INSTRUMENT PANEL
MOUNTED AND UNITIZED ON A OILFIELD MASTER SKID

DOGHOUSE
7' H x 8' W x 30' L TOP DOGHOUSE WITH LOWER JUNK BIN
CANTILEVER TYPE
KNOWLEDGE BOX
CREW LOCKERS
PROPANE HEATERS
ELECTRICAL RECEPTACLES MOUNTED ON OUTSIDE HOUSE WALL
MOUNTED ON A OILFIELD MASTER SKID

MUD SYSTEM
SINGLE TANK MUD SYSTEM
APPROX. 650 BBL CAPACITY
4-COMPARTMENT
DIMENSIONS: 6' H x 10' W x 63' OAL
CRIMPED WALLS
(2) O'DRILL/MCM LINEAR SHALE SHAKERS
(1) O'DRILL/MCM SINGLE CONE DESANDER
(1) O'DRILL/MCM 8-CONE DESILTER
(1) O'DRILL/MCM 5" x 6" x 11" CENTRIFUGAL CHARGE PUMP
POWERED BY 50 H.P. X.P. ELECTRIC MOTOR
MUD TROUGH
BOTTOM MUD GUNS
STAIRS
LADDERS
HANDRAILS
VAPOR PROOF LIGHTING
CLEAN-OUT GATES
ALL ABOVE MOUNTED AND UNITIZED ON A
10" H x 10' W x 63' OAL MASTER SKID

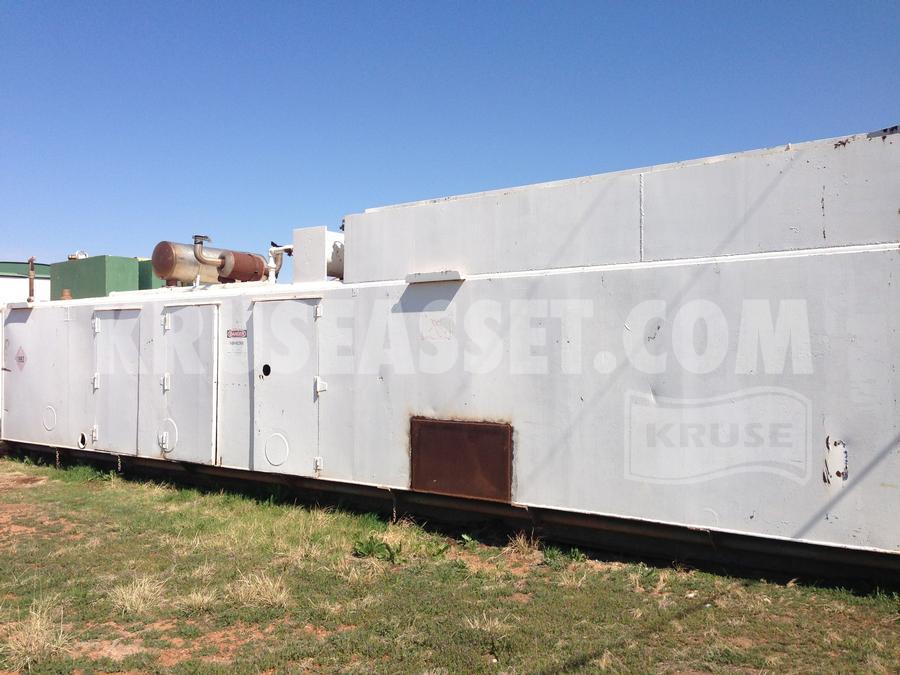

GENERATOR HOUSE
10' W x 39' L GENERATOR HOUSE
COMPLETE WITH THE FOLLOWING:
(1) CATERPILLAR D3306T DIESEL ENGINE
RADIATOR
ELECTRIC START WITH KATO MODEL 150SX9E GENERATOR
150 KW 187 KVA 208/240/416/480 VOLT 3-PHASE 60 Hz
CATERPILLAR EA150 STARTER PANEL
*ABOVE MOUNTED AND UNITIZED ON CAT RAILS
(1) DEUTZ 6-CYLINDER TURBOCHARGED DIESEL ENGINE
RADIATOR
ELECTRIC START WITH MECC ALTO SP MODEL ECO 34-2SN/4 GENERATOR END
100 KW 125 KVA 277/480 VOLT 3-PHASE 60 HZ
*ABOVE MOUNTED AND UNITIZED ON A MASTER SKID
MASTER CONTROL PANEL
DISTRIBUTION SWITCH PANELS
BREAKER BOXES
TRANSFORMER
METAL PARTS BIN STORAGE ON END OF HOUSE W/ DOORS
(1) MCM 3" x 4" CENTRIFUGAL PUMP POWERED BY A ELECTRIC MOTOR
(1) VERTICAL AIR COMPRESSOR POWERED BY 7 1/2 H.P. ELECTRIC MOTOR WITH 80 GALLON TANK
(1) 8' W x 10' W x 16' L OPEN TOP WATER TANK
225 BBL CAPACITY WATER TANK W/ CLEAN-OUT PARTS STORAGE AREA
ALL ABOVE MOUNTED AND UNITIZED ON A 41' OAL
OILFIELD MASTER SKID

CATWALK
42" H x 55" W x 42' L STEEL CATWALK

BLOWOUT PREVENTER
ANNULAR BLOWOUT PREVENTER
REAGAN 10" 3,000 PSI W.P.
FLANGED TOP AND FLANGED BOTTOM

CLOSING UNIT
CLOSING UNIT
2-STATION
(MOUNTED ON SPENCER HARRIS TRAILER)

DRILL PIPE
APPROX. 6,000' OF 4" F.H. 14.00 LBS./FT RANGE II
GRADES E AND G-105

DRILL COLLARS
(21) 6" - 6 1/8" O.D. x 30' L +- DRILL COLLARS
4" F.H. CONNECTIONS
