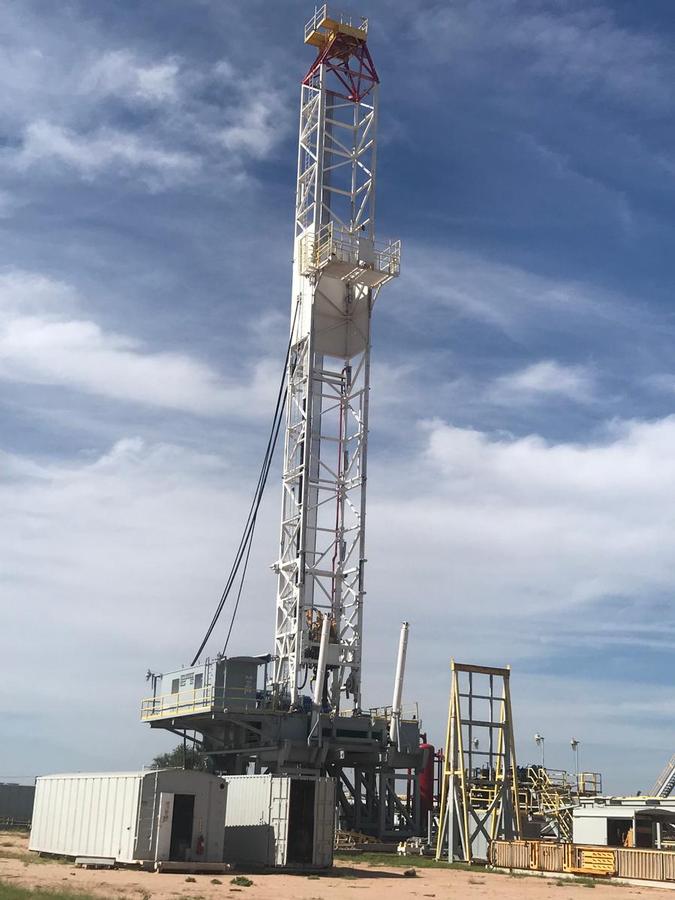

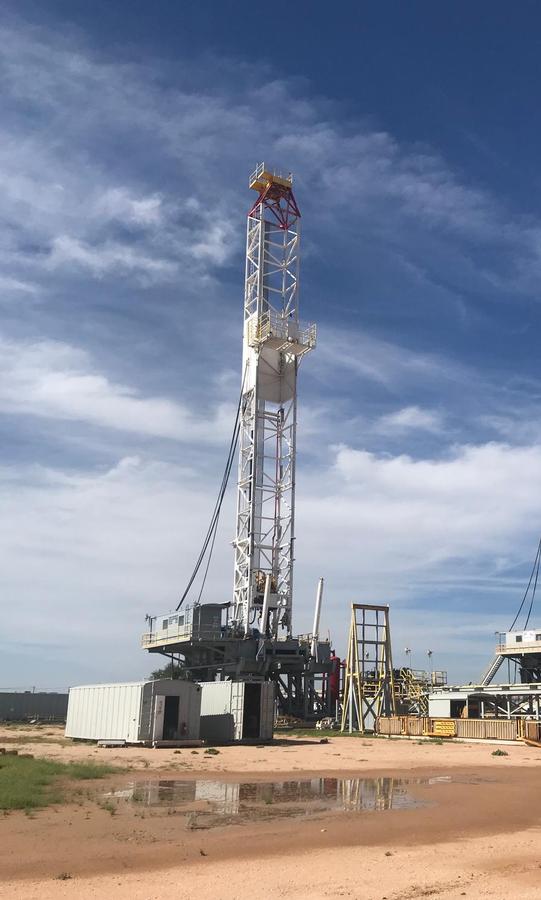

Gardner Denver 800 Drilling Rig

No Longer Available

NOV-TDS11 SA 500 ton Top Drive
Excellent Price for Quality Rig
Stacked Feb 2015, Located in Odessa, TX

Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973

Listing Details

1000 hp Electric

Racking Capacity

Draw Works
Gardner Denver 800 E with 6032 Baylor brake powered by two (2) GE 752 traction motors

147' mast rated at 750,000 lb SHL with integrated top drive

Drill Line
1-3/8” EIPS

22' high self-elevating with 19’ clear height under beams with a simultaneous rotary capacity of 750,000 lb and 400,000 lb setback

Mud Pumps
Two (2) 1600 hp Lewco WH1612 triplex pumps
each driven by two (2) 1000 hp DC traction motors

27-1/2” powered by one (1) GE 761 traction motor

Top Drive
NOV-TDS11 SA 500 ton AC

Block and Hook
American 350 ton block


Choke Manifold
4-1/16"x 2" 5,000 psi wp

Accumulator System
Not Available

Mud System
Two (2) Tank 800 bbl system
Two (2) cone desander
Twelve (12) cone desilter

Auxillary Equipment
One (1) 300 bbl water tank                                           10,000 gal fuel tank
NOV-Iron Roughneck Type ST-80 C
Toolpusher house
30 ton BOP handling system























Listing No. 242
