Continental Emsco C-1 Type II 1500HP Rig For Sale
No Longer Available
Email for more infoTDS 500 Top Drive
Stacked, PRICED RIGHT!

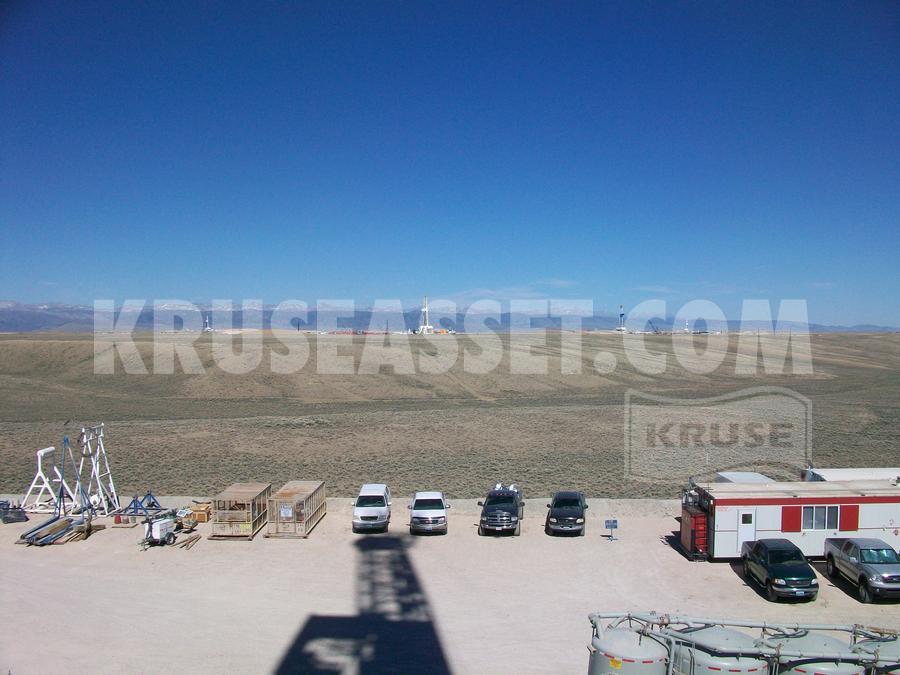

Located Near Casper, WY
MAKE AN OFFER
Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973
Listing Details
| Hoisting and Rotating | |
| Drawworks | Continental Emsco C-1 Type II (1,500 hp) |
| Auxiliary Brake | Elmagco 6032 W |
| Rotary Table | Continental Emsco T-2750 with a 27-1/2" opening |

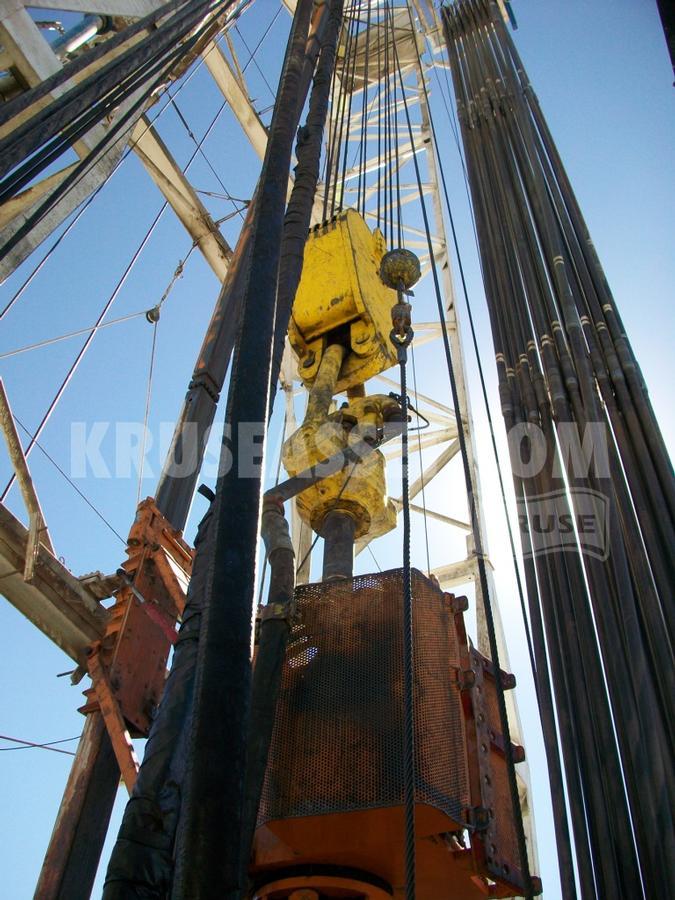

| Traveling Block | Continental Emsco RA 52-6 (500 ton) |
| Swivel | Continental Emsco LB-500 (500 ton) |

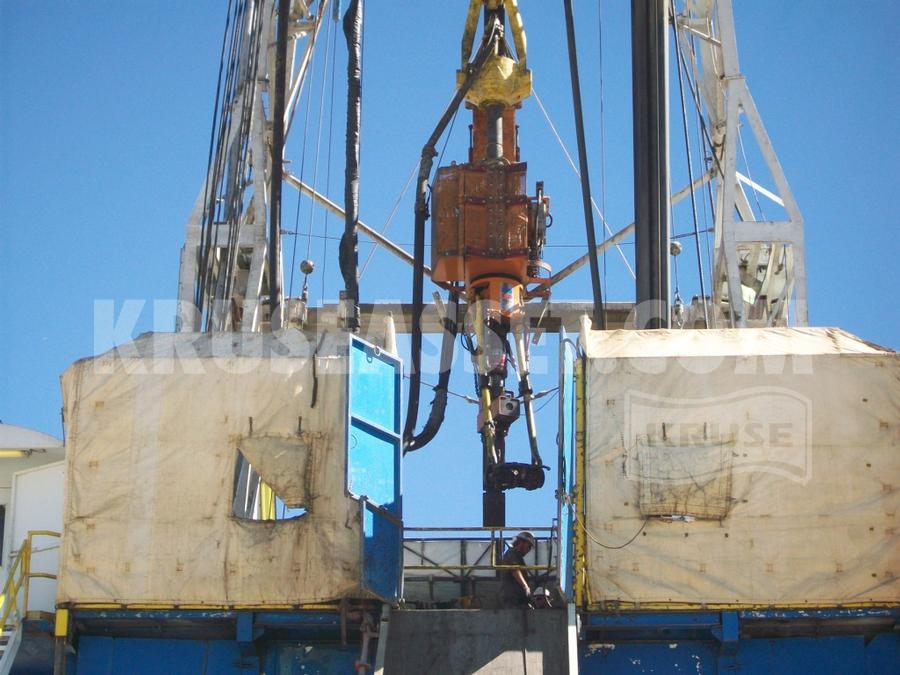

| Top Drive | Tesco ECI 900 / 500 Ton |
| Power Package | |

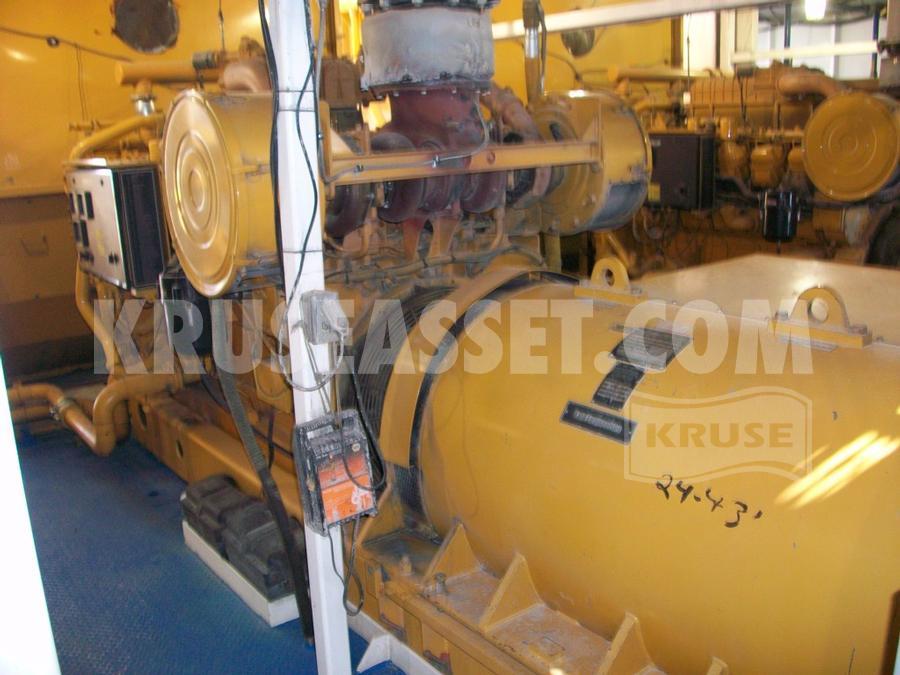

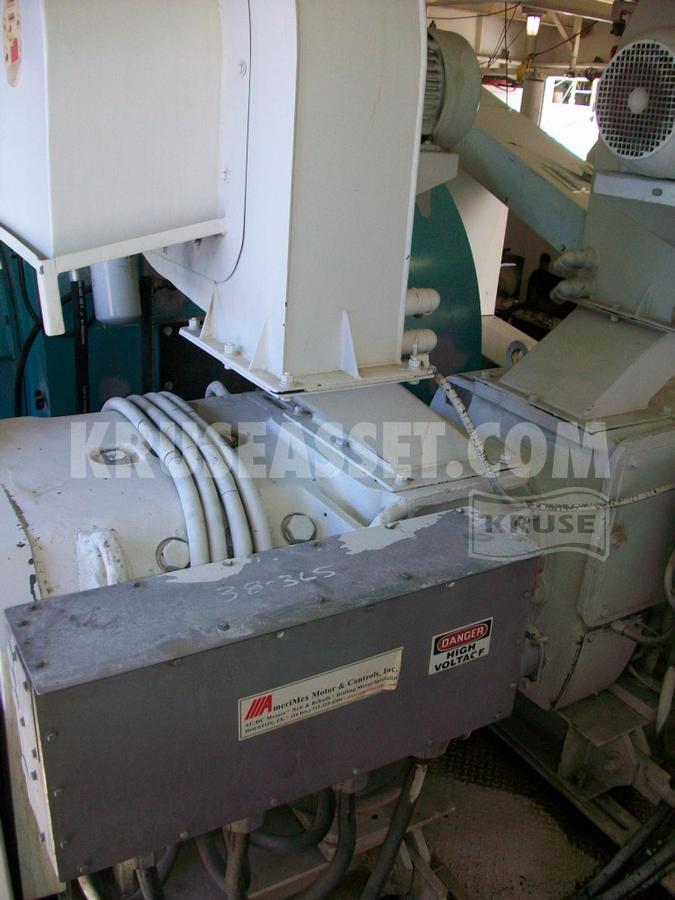

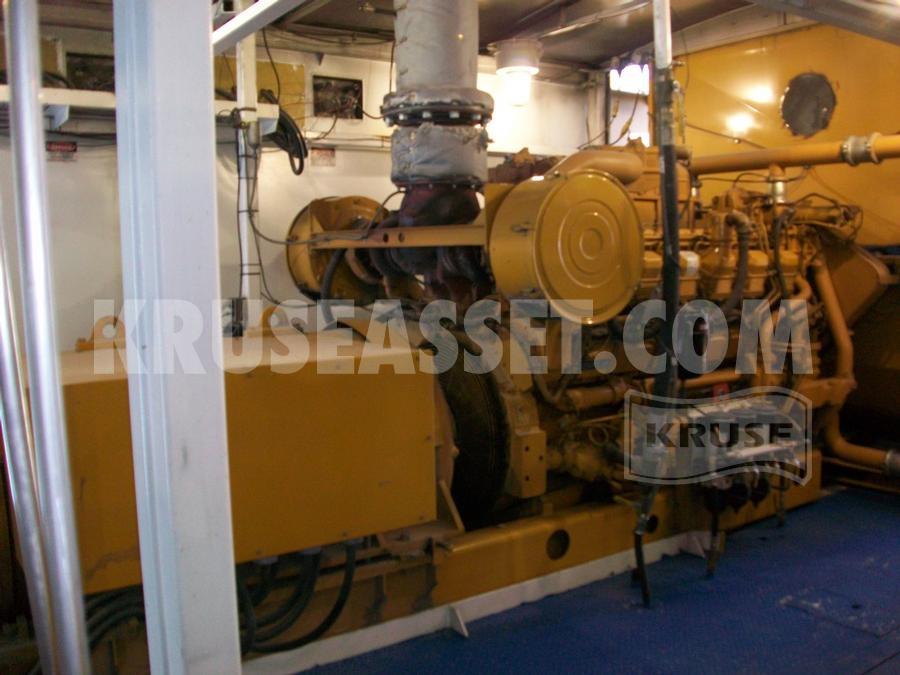

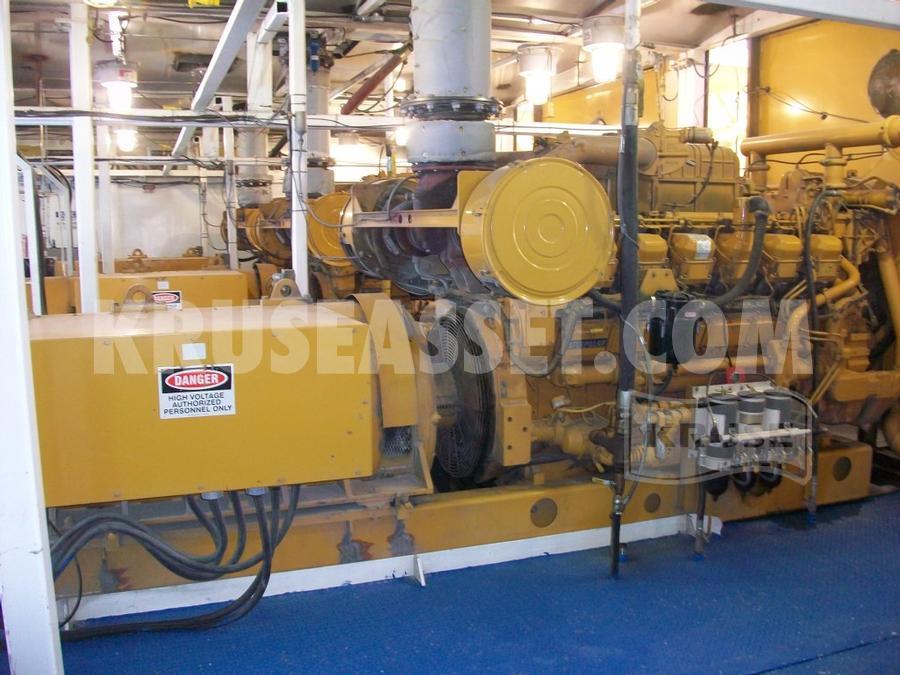

| SCR Generators | 3-Kato 1,204 kW powered by CAT-3512C |

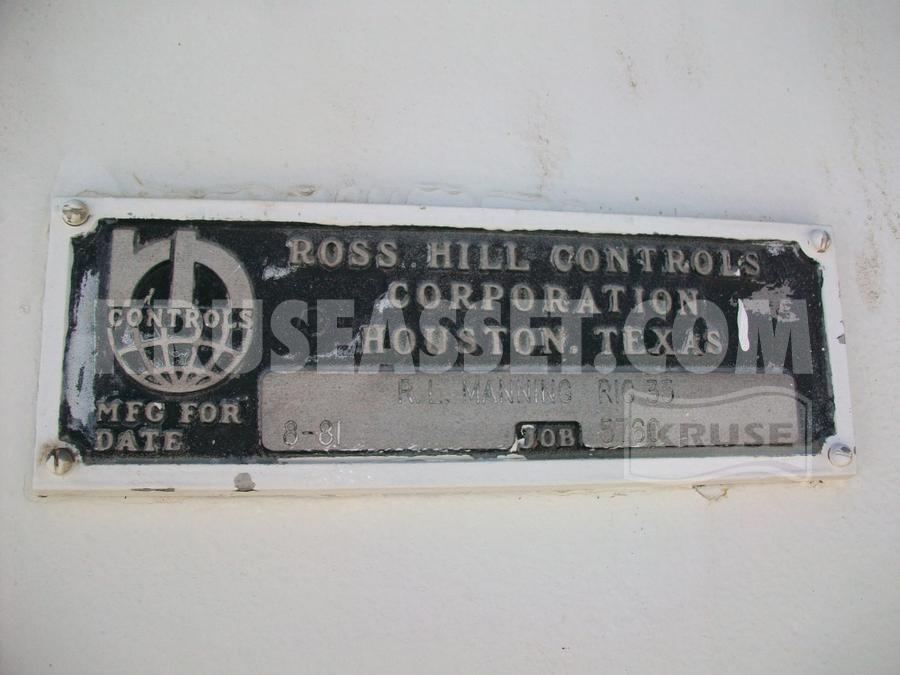

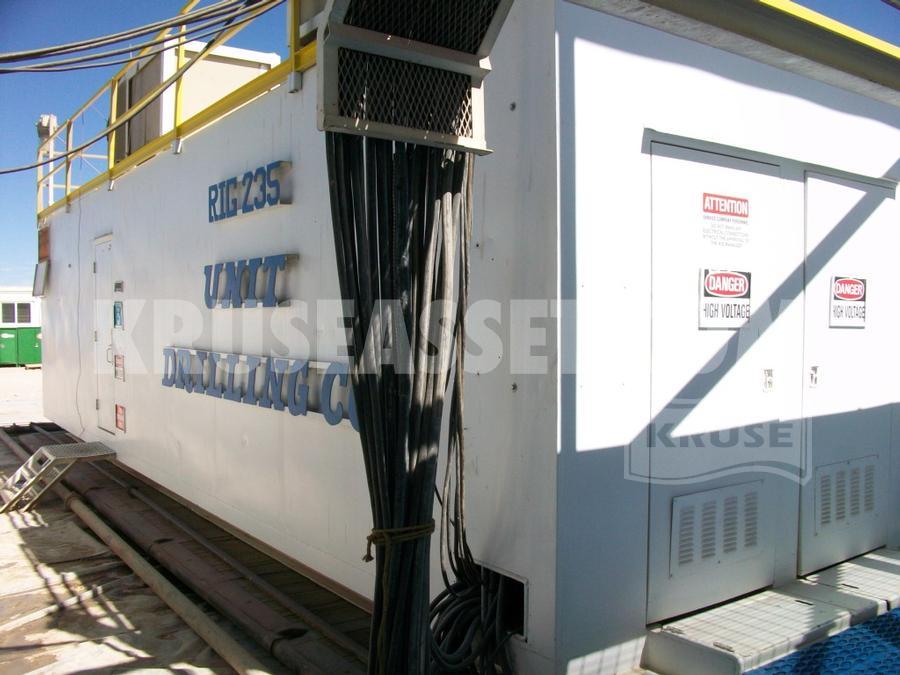

| SCR House | Ross Hill 1650 3-SCR x 3-Gen |
| Well Control | |

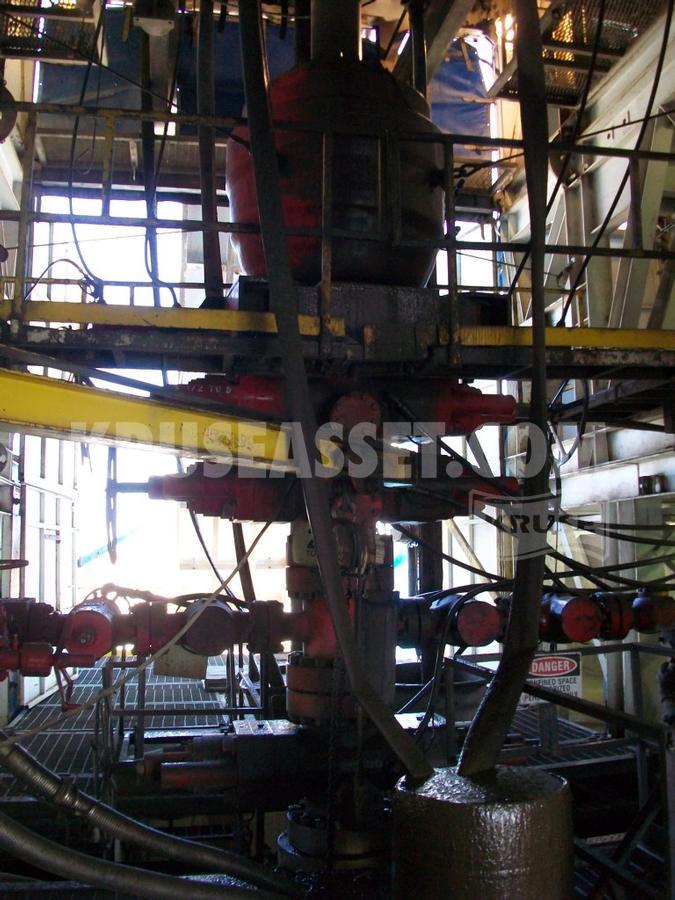

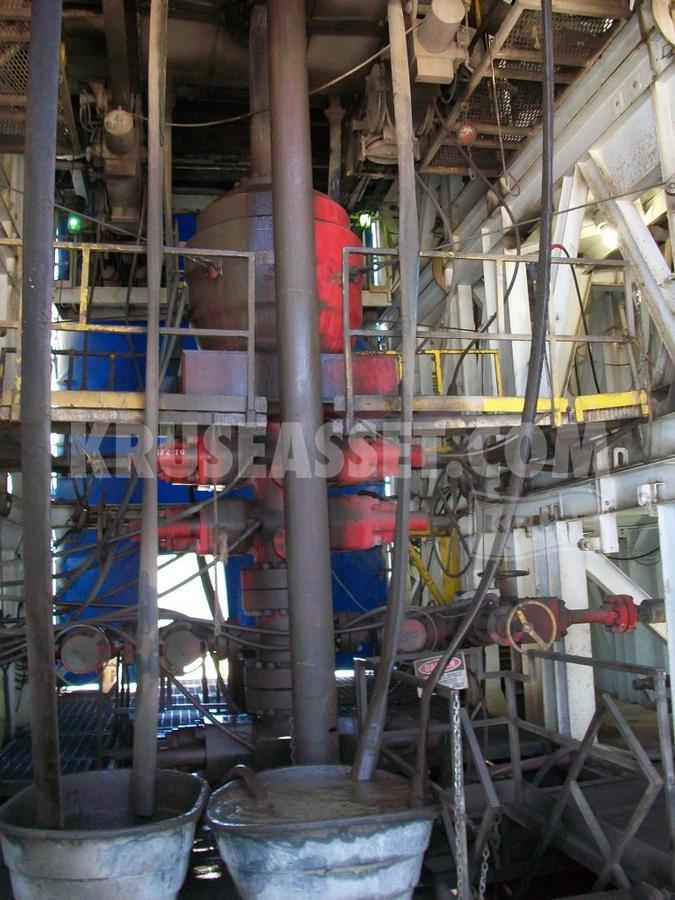

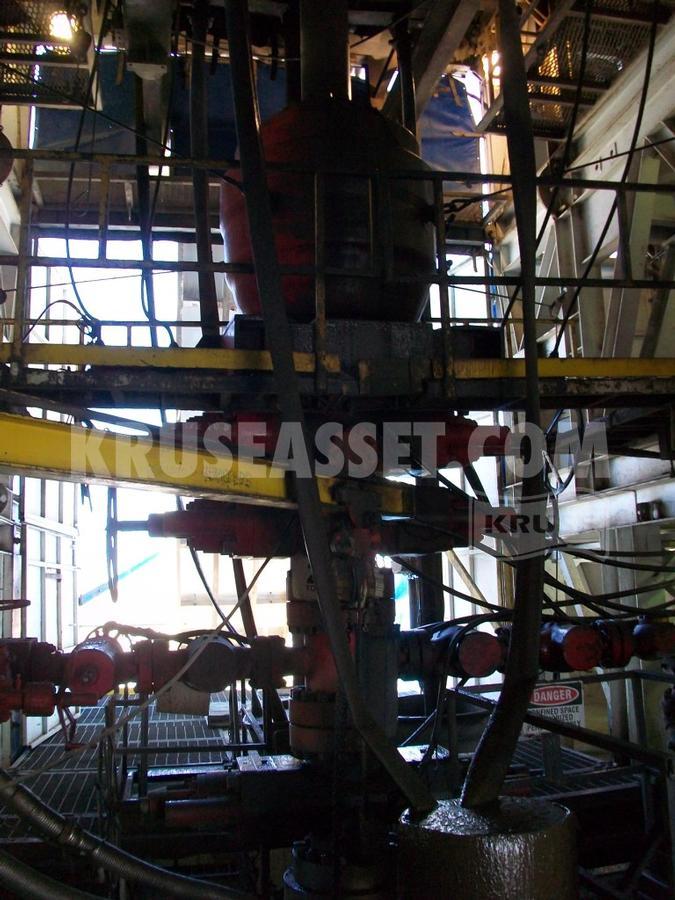

| Annular | 11" x 5M / 10M Bottom Flange |
| Single Ram | 11" x 10M Double Ram |
| Accumulator | Koomey 6 Station 180 gallon capacity |
| Choke Manifold | 4" x 2" 10,000 psi |
| Mud System | |

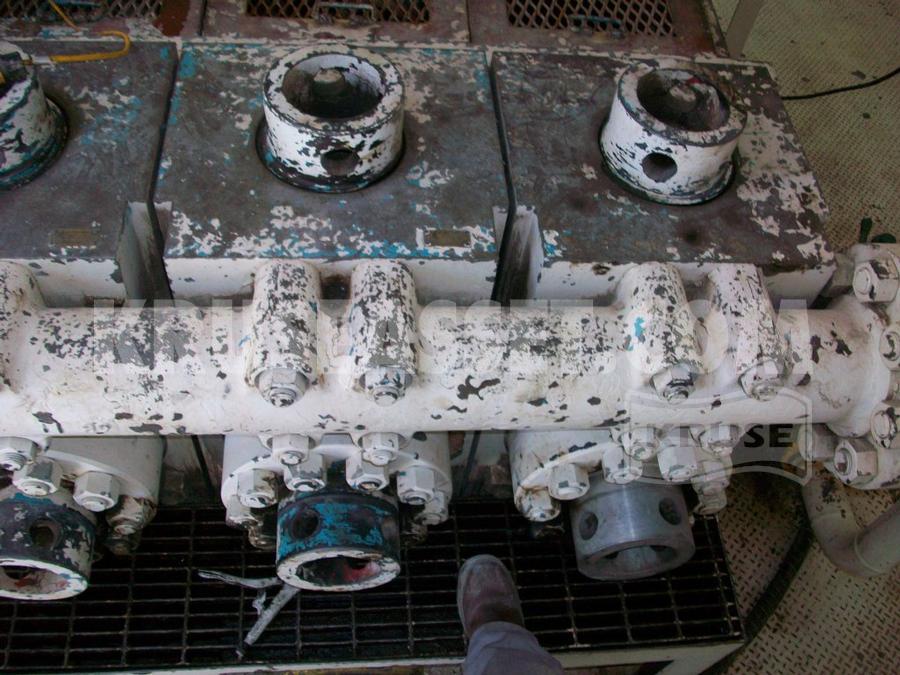

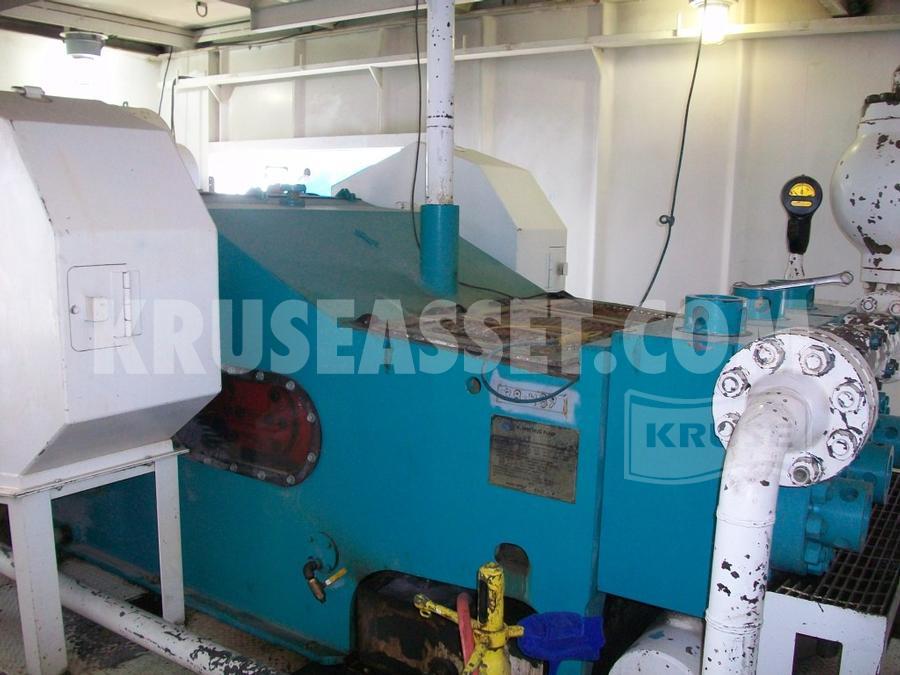

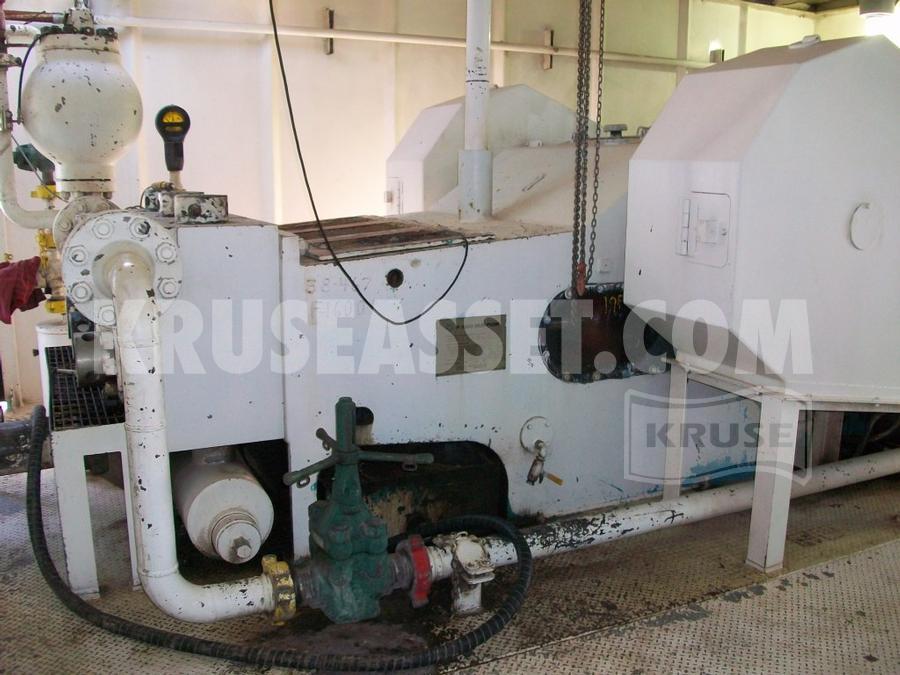

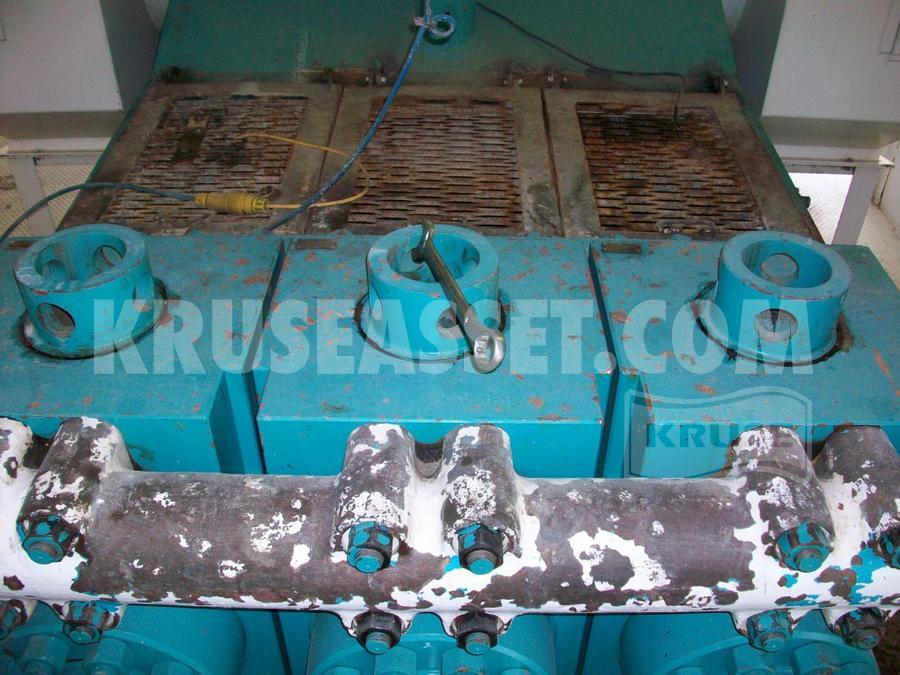

| Mud Pump 1 | F-1600 |
| Mud Pump 2 | F-1600 |
| Mud Pits | 3-pit system (1,144 bbl) with 6 agitators 100 bbl premix pit built into suction |

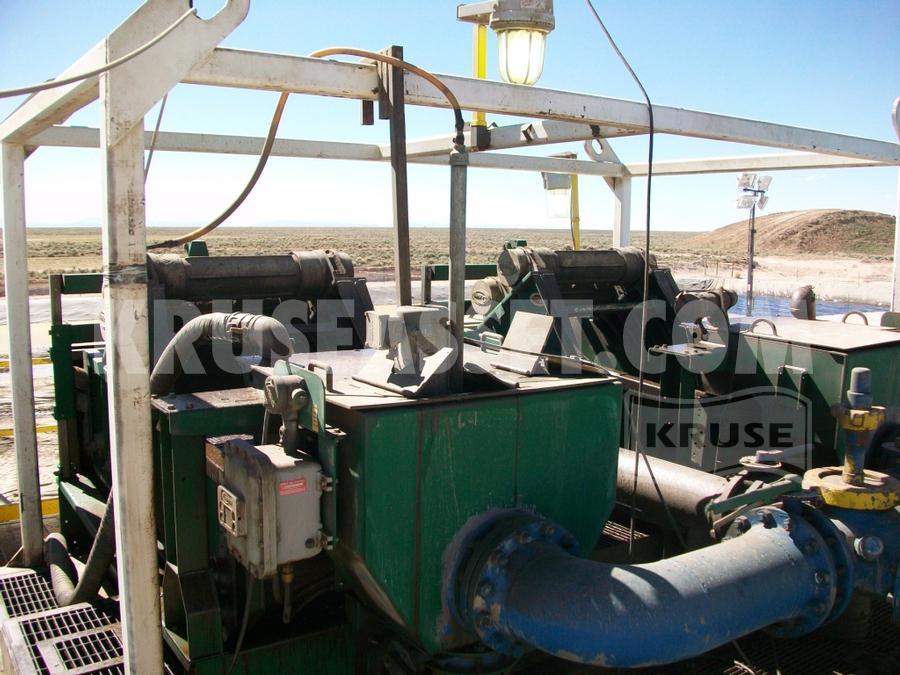

| Shale Shakers | 2-Derrick FLC-503 |
| Separator | 4' x 22' |
| Trip Tank | 86 barrels |
| Structural | |

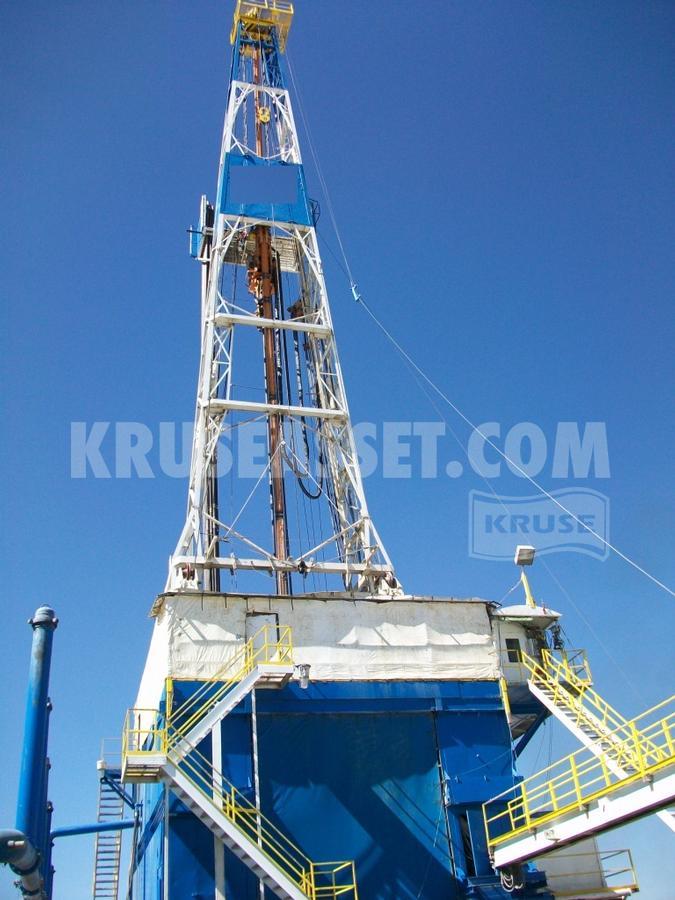

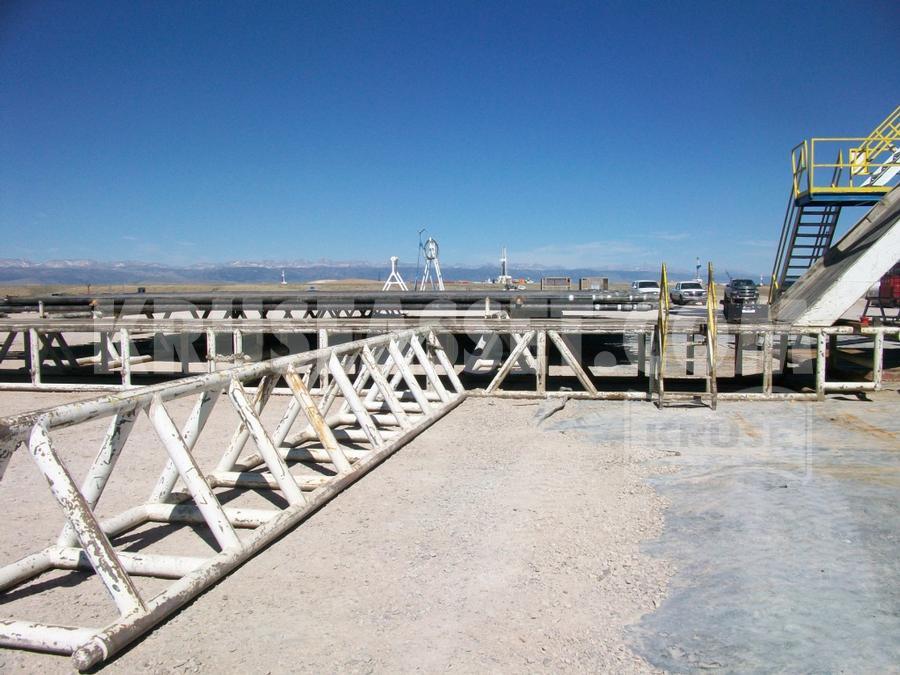

| Mast | Continental Emsco 142' 800,000 pounds staitic hookload on 12 lines |

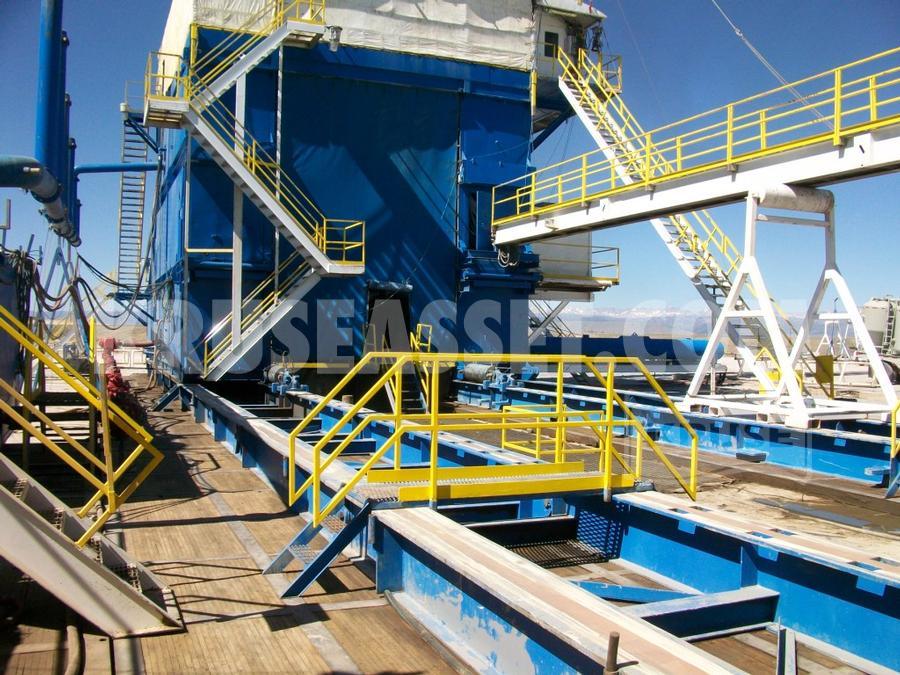

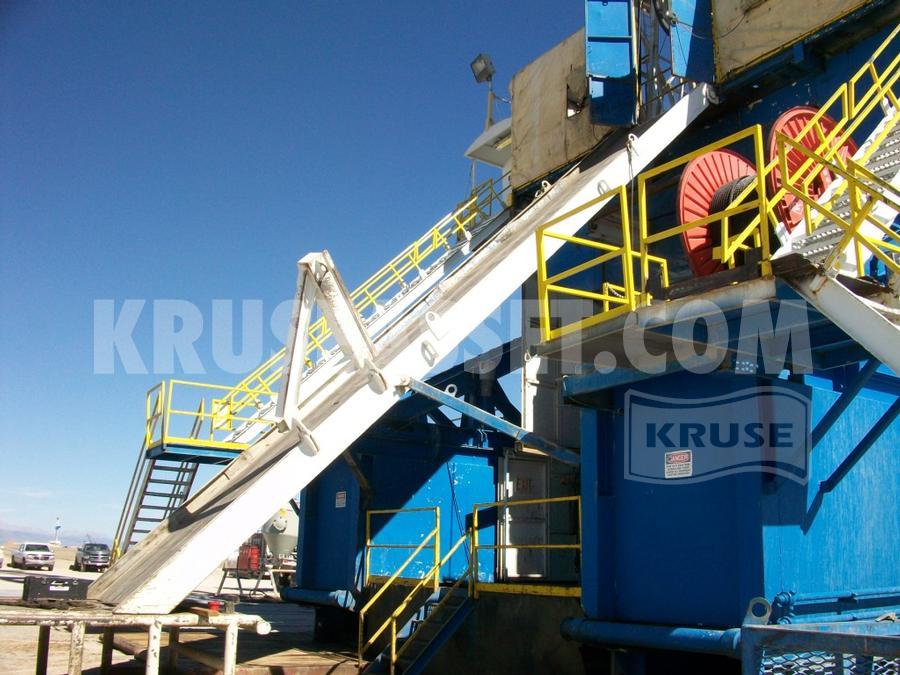

| Substructure | Continental Emsco box on box 32' floor height |
| Fluid Storage | |
| Diesel Tank | 1-tank 18,800 gallon total capactiy |
| Water Tank | 1-tank 500 bbl total capacity |
| Tubulars | |
| Drill Pipe | 5" G-105 and |
| Miscellaneous | |
| Rig Moving System | Woolslayer Skidding System (400 ton) |
| BOP Handling System | DZ-500 (50 ton) |
| Pipe Spinner | Gray Mark 10 |

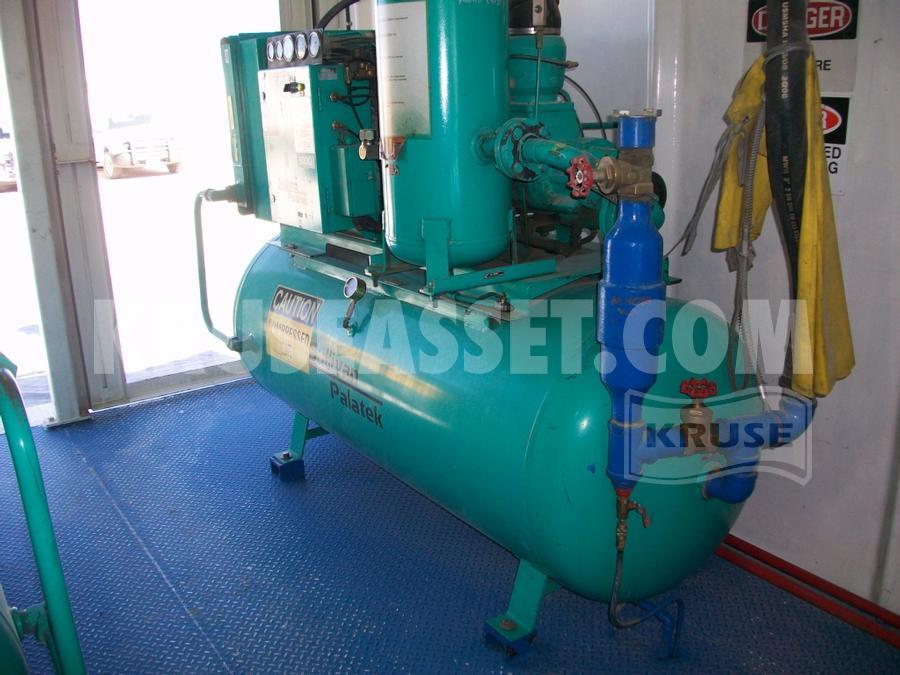

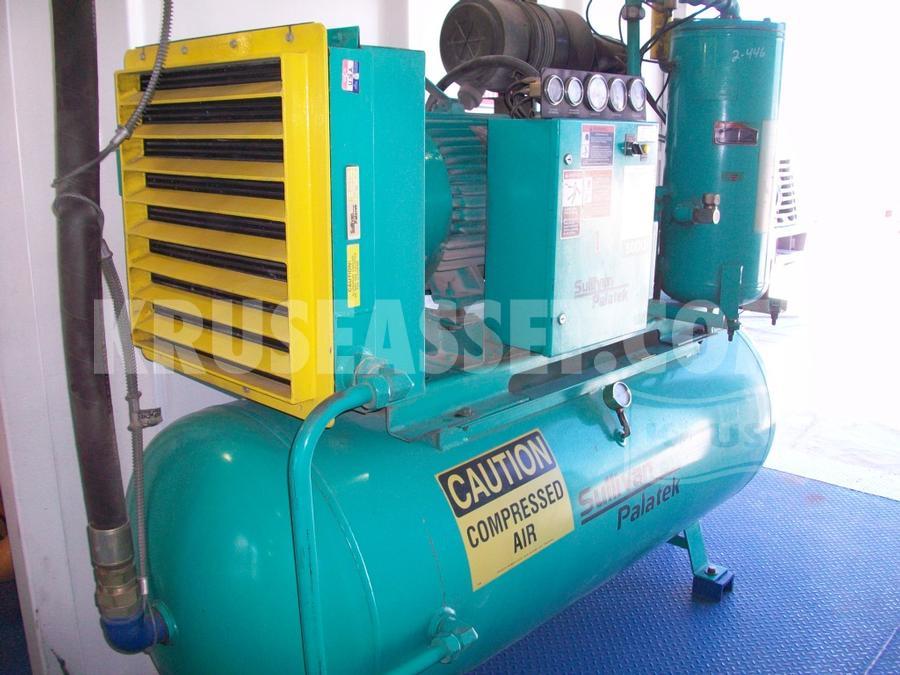

| Air Compressor | 2-Sullivan 50 DG 50hp |
| Survey Instrument | Sedco wireline unit |
| (Rig 235) |
