CONTINENTAL D2 Single Drum Drilling Rig For Sale
No Longer Available - Call for Current Inventory
Email for more infoCONFIDENTIAL OFFERING
Qty: 12 Portable Drilling Rigs
This is Rig No.17
Top Drives, Good Condition,
Latest & Greatest Components
NOW ACCEPTING OFFERS
Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973
Listing Details
|
DRAWWORKS |
Continental D-2 Single drum, 1,000 HP, Lebus grooved for 1-1/8" Drill Line |
|
|
|
Auxiliary Brake: |
Parmac 342 Hydromatic Brake |
|
POWER |
(2) Caterpillar 379 Engines |
|
|
|
|
|
|
#1 PUMP |
Cont. Emsco F-800 |
|
|
|
Powered by: |
CAT 3508 W/ National 300 Torque Converter |
|
|
|
|
|
#2 PUMP |
Cont. Emsco F-800 |
|
|
|
Powered by: |
CAT 3508 W/ National 300 Torque Converter |
|
|
|
|
|
MAST |

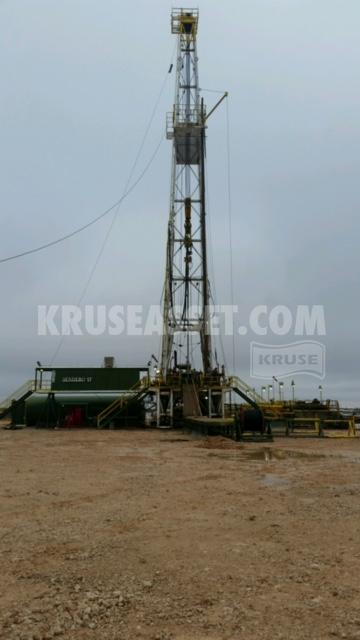

131' Drilling Structure |
|
|
|
|
|
|
SUBSTRUCTURE |
Drilling structure Inc. 47' x 21' x 13' Tall |
|
|
|
#400,000 Working Load Cantilever Mast W/ 10 lines |
|
|
|
|
|
|
TRAVELING |
Block: |
Skytop Brewster 250 |
|
EQUIPMENT |
Hook: |
Skytop Brewster 250 |
|
|
Swivel: |
National N-69 250T |
|
|
|
|
|
ROTARY TABLE |
Gardner Denver 27.5" |
|
|
|
|
|
|
GENERATORS |
Caterpillar SR-4 320KW Marelli 400KW |
|
|
|
Powered by: |
(2) Caterpillar 3406 |
|
|
|
|
|
BOP EQUIPMENT |
Ram Preventer: |
As Required |
|
|
Annular Preventer: |
As Required |
|
|
Closing Unit: |
Koomey Type 5 Station |
|
|
Choke Manifold: |
5M Manifold, 2 Manual Chokes, Mud/Gas Separator |
|
|
|
|
|
DRILL PIPE |
350 jts. of 4 1/2" 16.6# G-105 drill pipe |
|
|
|
|
|
|
DRILL COLLARS |
(21) 6-1/2"O.D. x 2-1/4"I.D. x 30' Long 6 ea. 8" collars |
|
|
|
|
|
|
MUD SYSTEM |
Working Pits: |
Suction Pit 53' x 12' x 5' 515 BBLS |
|
|
|
Shale Pit: 48' x 12 x 5' 485 BBLS |
|
|
Mud mixing pump: |
(2) 5X6 Centrifugal pump with (2) 50 HP electric motors |
|
|
|
|
|
SOLIDS |
Shale Shaker: |
Derrick 90F-3TA |
|
CONTROL |
Mud Movers: |
(2) 6''x 8" 75 HP Centrifugal |
|
EQUIPMENT |
Separator: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AUXILIARY |
Water tank: |
47'5" x 10' x 40' x 7' |
|
EQUIPMENT |
Fuel tank: |
10,258-gallon capacity |
|
|
Air Compressors: |
(2) Quincy 5120 30 hp |
|
|
Drilling Instrumentation: |
|
|
|
Wireline Unit: |
Oilworks 1600 wireline unit |
|
|
Choke Manifold: |
Shop built 5000# mounted on 9'6"W x 12'L skid |
|
|
Crew Quarters: |
|
|
|
Rig Managers Quarters: |
|
|
|
|
|
|
MISCELLAENOUS |
Centrifugal Pumps |
|
|
EQUIPMENT |
Air Hoist |
|
|
|
Tongs, slips, elevators |
|
|
|
Pipe Racks |
|
|
|
cat walk |
|
|
|
Handling subs |
|
|
|
Spare parts & Hoses |
|
|
|
Electrical Suitcases |
|
|
|
Pipe Spinner / Kelly Spinner |
|
|
|
Dog House, Change House, Parts House |
|
