BDW 800 1000HP Drilling Rig For Sale
No Longer Available - Call for Current Inventory
Email for more infoCONFIDENTIAL OFFERING
Qty: 12 Portable Drilling Rigs
This is Rig No.5
Top Drives, Good Condition,
Latest & Greatest Components
Call NOW! (800) 952-1973
Listing Details
DRAWWORKS |
BDW 800 MI 1000 HP |
|
|
Auxiliary brake: |
Hydromatic Parmac 342 |
|
|
|
POWER |
2-Caterpillar D3508TA 1,450 HP |
|
|
|
|
#1 PUMP |
National 10-P-130 1,300 HP triplex |
|
|
Powered by: |
Caterpillar 3508TA |
|
|
|
#2 PUMP |
Oilwell A 850 PT 800 HP triplex |
|
|
Powered by: |
Caterpillar D3508TA |
|
|
|

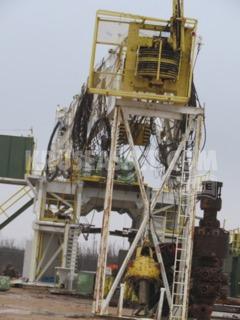

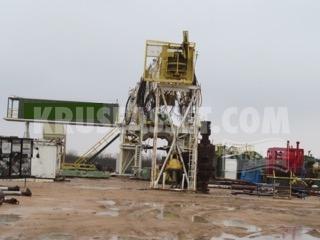

MAST |
142' D.S.I. 550,000# hook load on twelve lines |
|
|
|
|
SUBSTRUCTURE |
51' x 25' x 16' 18' GL to KB |
|
|
|
|
TRAVELING |
Block: |
Emsco RA445 350 ton, 1 1/4" drilling line, 5 shive |
EQUIPMENT |
Hook: |
Combination Web Wilson 350 Ton |
|
Swivel: |
Oilwell-PC-300 |
|
|
|
ROTARY TABLE |
RC 275 27 1/2" opening |
|
|
|
|
GENERATORS |
(2) Detroit Series 60 360 KW generator wired for 440 volts powered by |
|
|
|
|

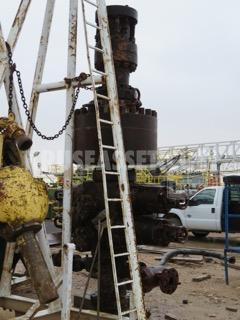

BOP EQUIPMENT |
Ram Preventer: |
As Required |
|
Annular Preventer: |
As Required |
|
Closing Unit: |
Koomey Type 5 Station |
|
|
|
DRILL PIPE |
370 jts4 1/2” 16.60# G-105 |
|
|
|
|
DRILL COLLARS |
6 - 8" and 24 - 6 1/2” Collars |
|
|
|
|

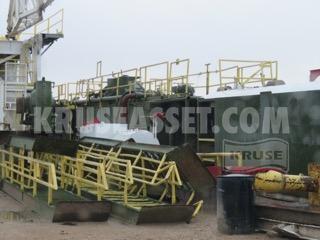

MUD SYSTEM |
Working Pits: |
Shale: 38' x 8' x 8’; Suction: 38' x 8' x 8' |
|
|
700 bbl. with four 7 1/2 HP electric pit stirrers |
|
Premix Pit: |
Built into suction pit: 90 bbl. |
|
Mud mixing pump: |
2-Mission Magnum 6" x 8" 75 HP centrifugal |
|
|
|
SOLIDS |
Shale Shaker: |
Derrick 90F-3TA |
CONTROL |
Desilter: |
Double Life 10-4" cones |
EQUIPMENT |
Desander: |
Double Life 2-10" cones |
|
Prime movers: |
2-Mission Magnum 6" x 8" 75 HP centrifugal |
|
|
|
AUXILIARY |
Water tank: |
500 bbl. |
EQUIPMENT |
Fuel tank: |
12,000 gals. |
|
Water Pump: |
4" x 6" duplex |
|
Kelly Spinner |
|
|
Pipe Spinner |
|
|
Choke Manifold |
|
|
Rig Managers House |
|
|
Gas Buster Separator |
|
|
Crew House |
|
|
|
|
MISCELLAENOUS |
Centrifugal Pumps |
|
EQUIPMENT |
Air Hoist |
|
|
Tongs, Slips, Elevators |
|
|

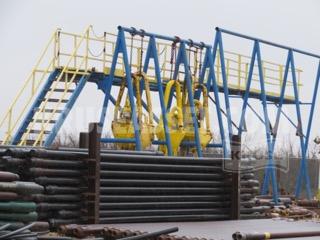

Pipe Racks |
|
|
Cat walk |
|
|
Handling Subs |
|
|
Spare Parts and Hoses |
|
|
Drilling Line Spool |
|
