GARDNER DENVER 700 Drilling Rig For Sale
No Longer Available - Call for Current Inventory
Email for more infoCONFIDENTIAL OFFERING
Qty: 12 Portable Drilling Rigs
This is Rig No.4
Top Drives, Good Condition,
Latest & Greatest Components
Call NOW! (800) 952-1973
Listing Details
|

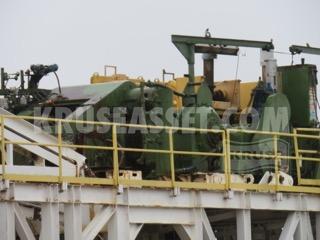

DRAWWORKS |
Gardner Denver 700 |
|
|
|
Auxiliary brake: |
Hydromatic Parmac 342 |
|
|
Powered by: |
2 - Caterpillar D379A 1100 HP |
|
|
|
|
|
#1 PUMP |
F-800 |
1,000 hp tri-plex |
|
|
Powered by: |
Caterpillar D3508TA |
|
|
|
|
|
#2 PUMP |
F-1000 |
1,000 hp tri-plex |
|
|
Powered by: |
Caterpillar D3508TA |
|
|
|
|
|

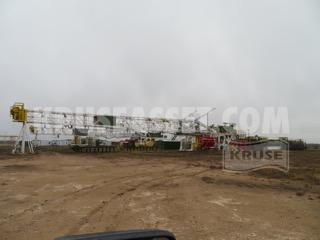

MAST |
136' Dreco; 572,000# hook load on ten lines |
|
|
|
|
|
|
SUBSTRUCTURE |
48' x 27 1/2' x 14' 16' GL to KB |
|
|
|
|
|
|
TRAVELING |
Block: |
Gardner Denver 400 ton - 1 1/4" D.L. |
|
EQUIPMENT |
Hook: |
BJ Dynaplex 5350 350 ton |
|
|
Swivel: |
Oilwell PC 300 |
|
|
|
|
|
ROTARY TABLE |
Ideco LR-23E 23" Opening |
|
|
|
|
|
|
GENERATORS |
2 - Detroit Series 60 365 kW generators wired for 480 volts |
|
|
|
|
|
|

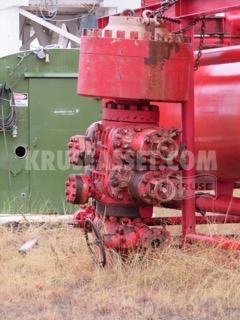

BOP EQUIPMENT |
Ram Preventer: |
As Required |
|
|
Annular Preventer: |
As Required |
|
|
Closing Unit: |
Koomey Type 5 Station |
|
|
|
|
|
DRILL PIPE |
370 jts. 4 1/2” 16.6# G-105 |
|
|
|
|
|
|
DRILL COLLARS |
6 ea.- 8" and 24 ea.-- 6 1/2” Collars |
|
|
|
|
|
|

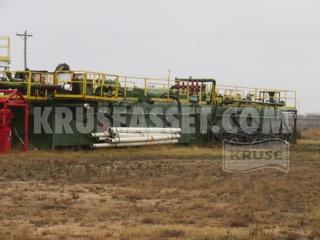

MUD SYSTEM |
Working Pits: |
Shale: 50' L x 10' W x 7' T; Suction: 50' L x 10' W x 7' T |
|
|
|
800 bbl. with (8) 7.5 HP electric pit stirrers |
|
|
Premix Pit: |
Built into suction pit: 89 bbl. |
|
|
Mud mixing pump: |
Mission Magnum 5" x 6" 50 HP centrifugal |
|
|
|
|
|
SOLIDS CONTROL |
Shale Shaker: |
Derrick Single Flo-line cleaner |
|
EQUIPMENT |
Desander: |
1-12" cones |
|
|
Desilter: |
8-4" cones |
|
|
Prime Movers |
2 - Mission Magnum 5" x 6" 75 HP centrifugal |
|
|
|
|
|
AUXILIARY |

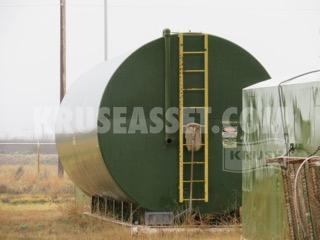

Water tank: 2ea. |
500 bbl. |
|
EQUIPMENT |
Fuel tank: |
8,000 gals. |
|
|
Mud house: |
30' x 10' x 8' |
|
|
Kelly Spinner |
|
|
|
Pipe spinner |
|
|
|
Choke Manifold |
|
|
|
Rig Managers House & Crew House |
|
|
|
|
|
|
MISCELLAENOUS |
Centrifugal Pumps |
|
|
EQUIPMENT |
Air Hoist |
|
|
|
Tongs, Slips Elevators |
|
|
|
Pipe Racks |
|
|
|
Cat walk |
|
|
|
Handling subs |
|
|
|
Spare parts and hoses |
|
