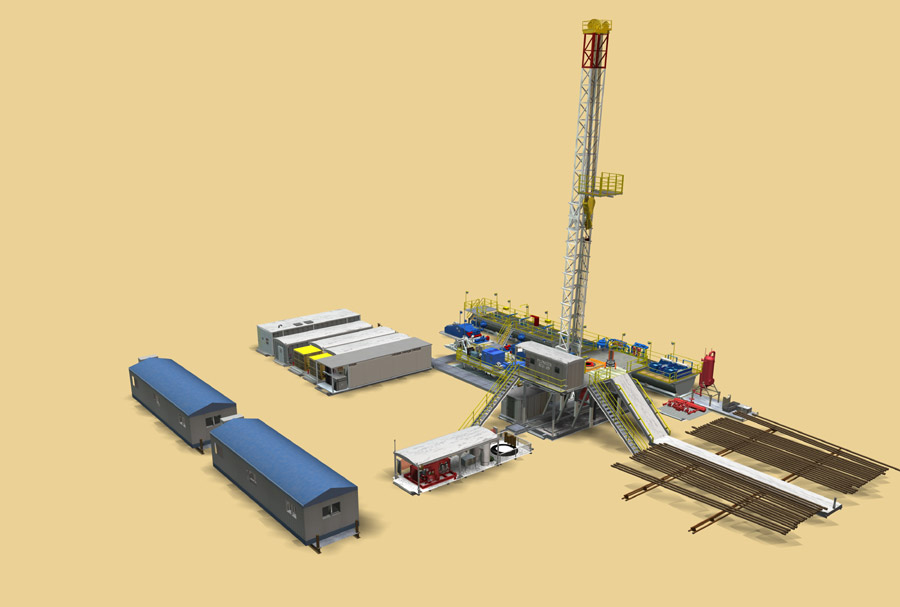

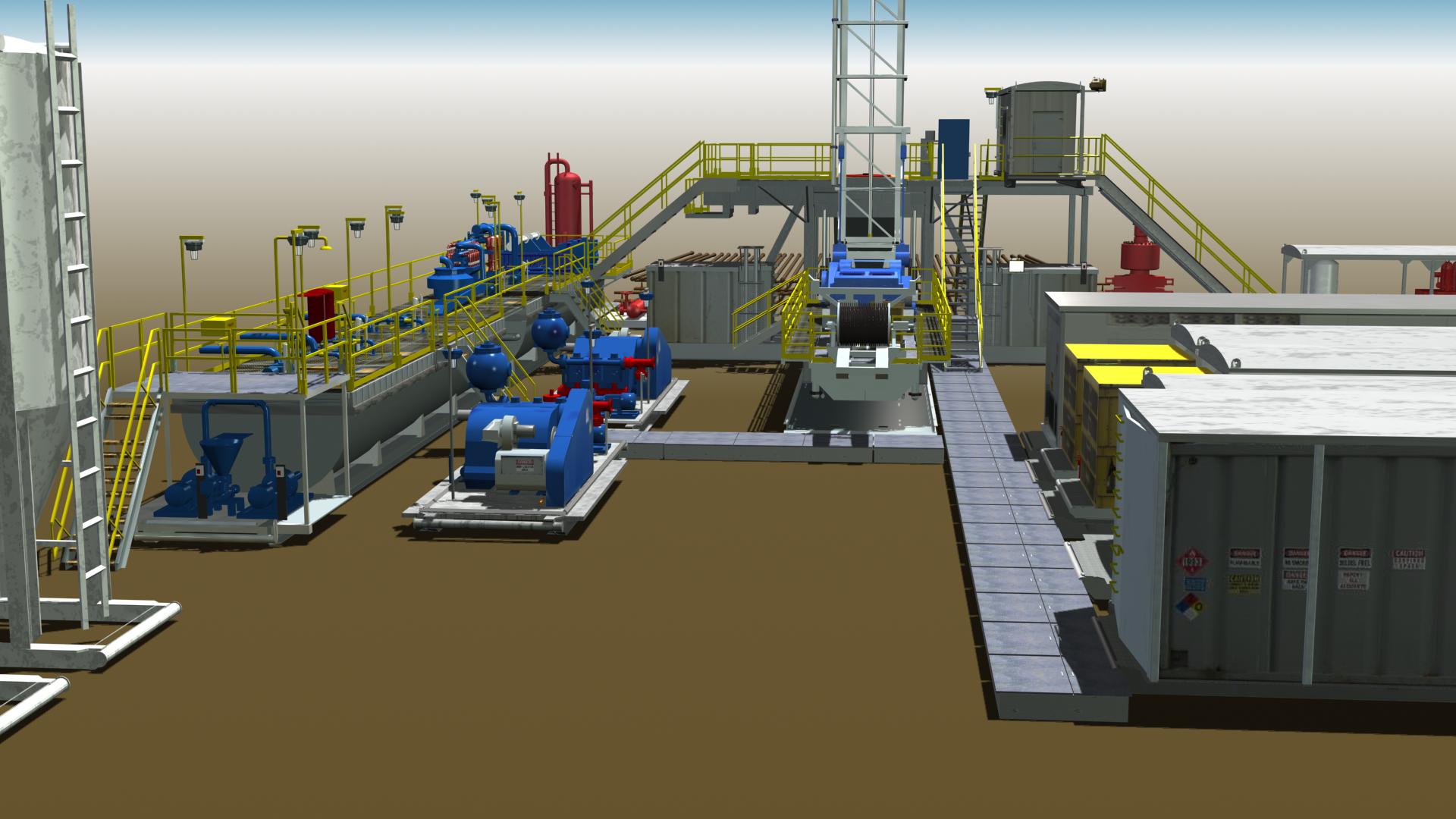

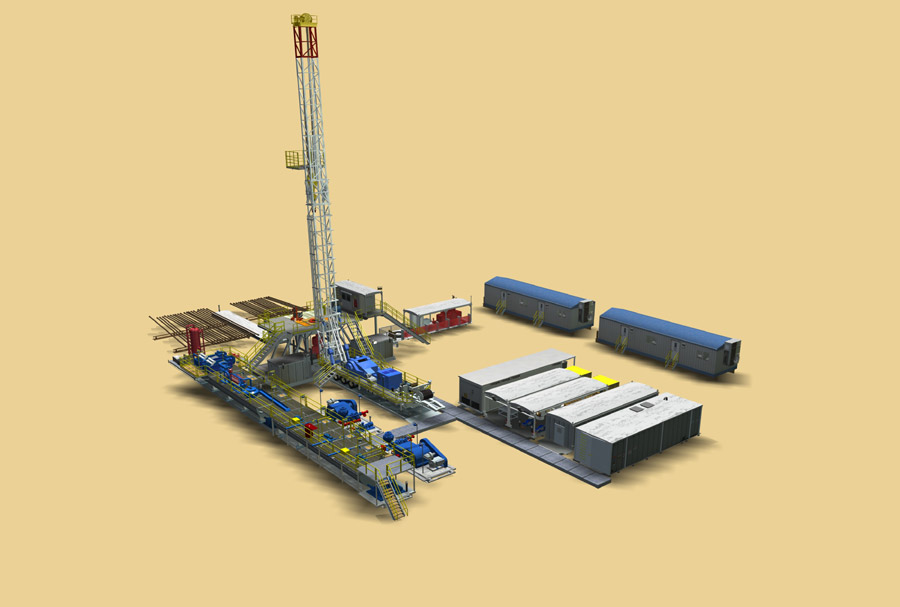

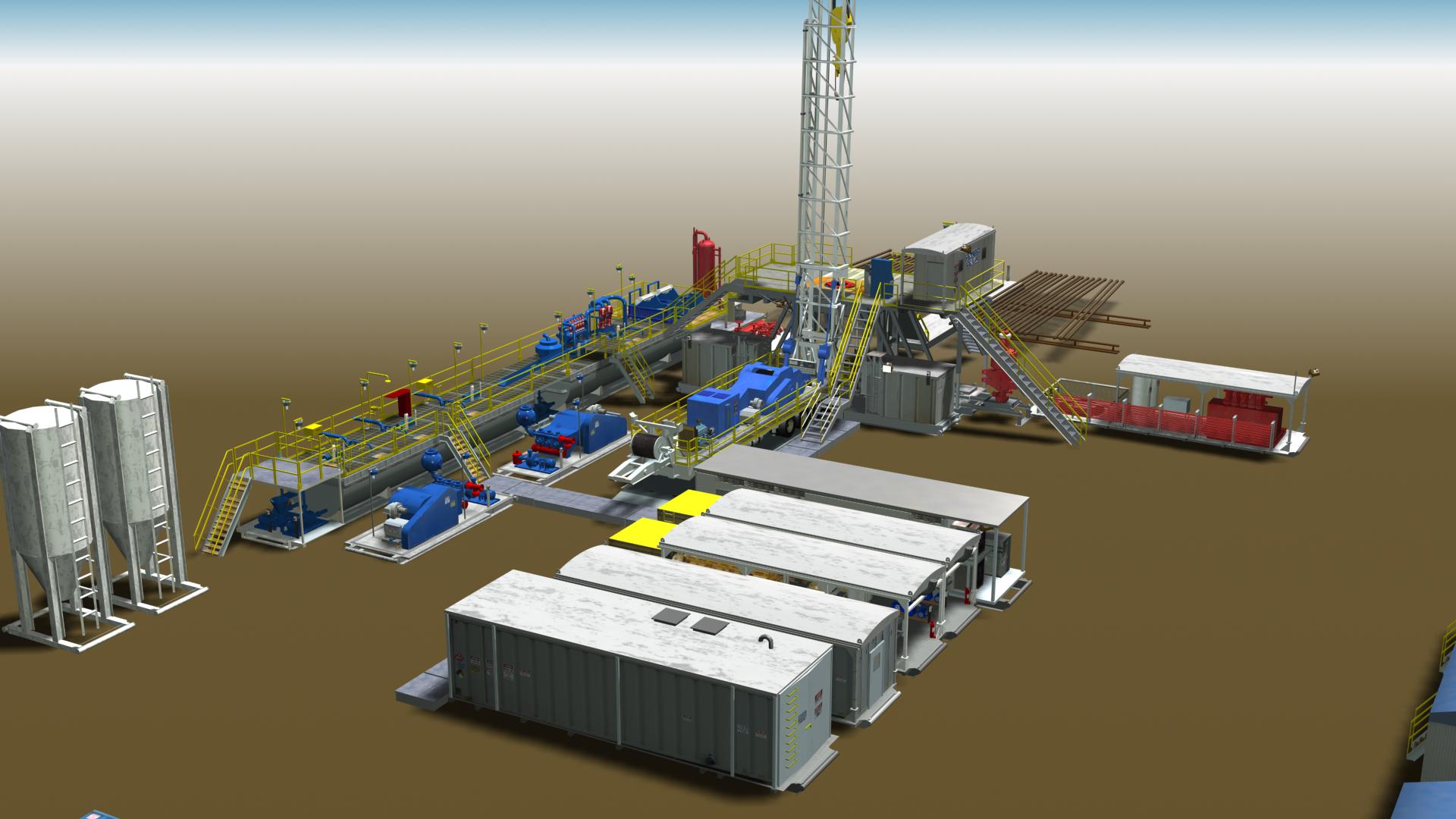

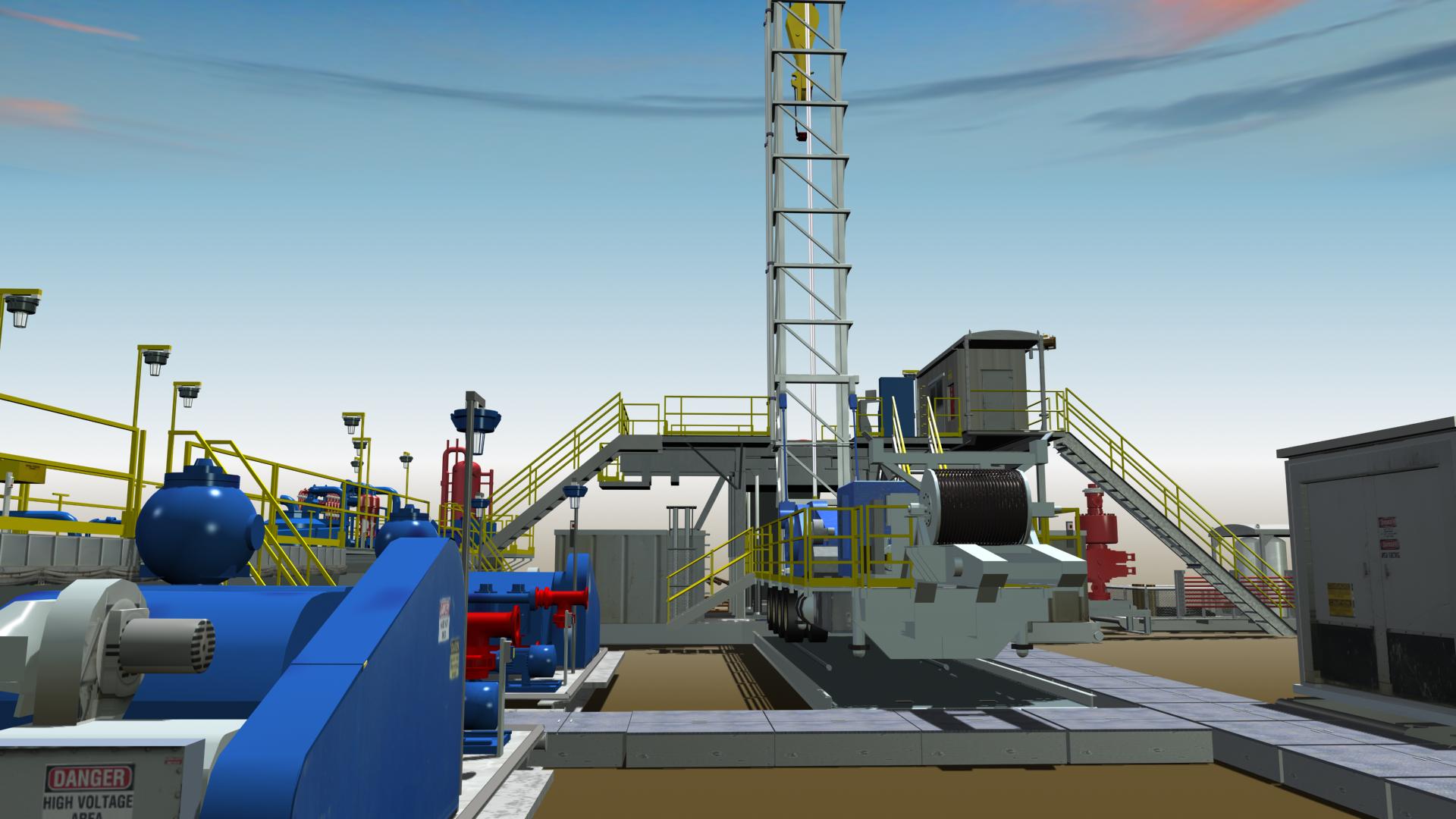

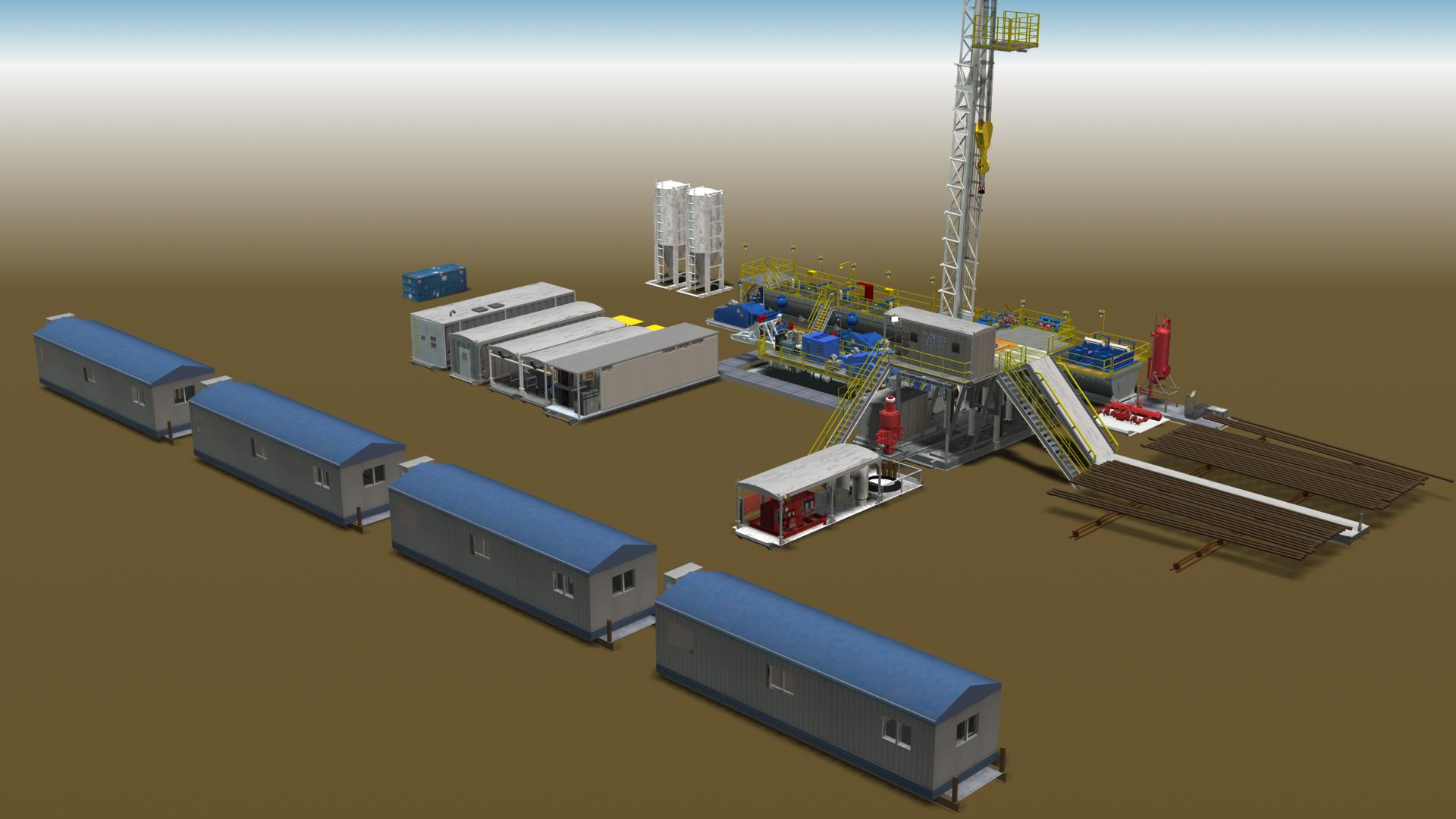

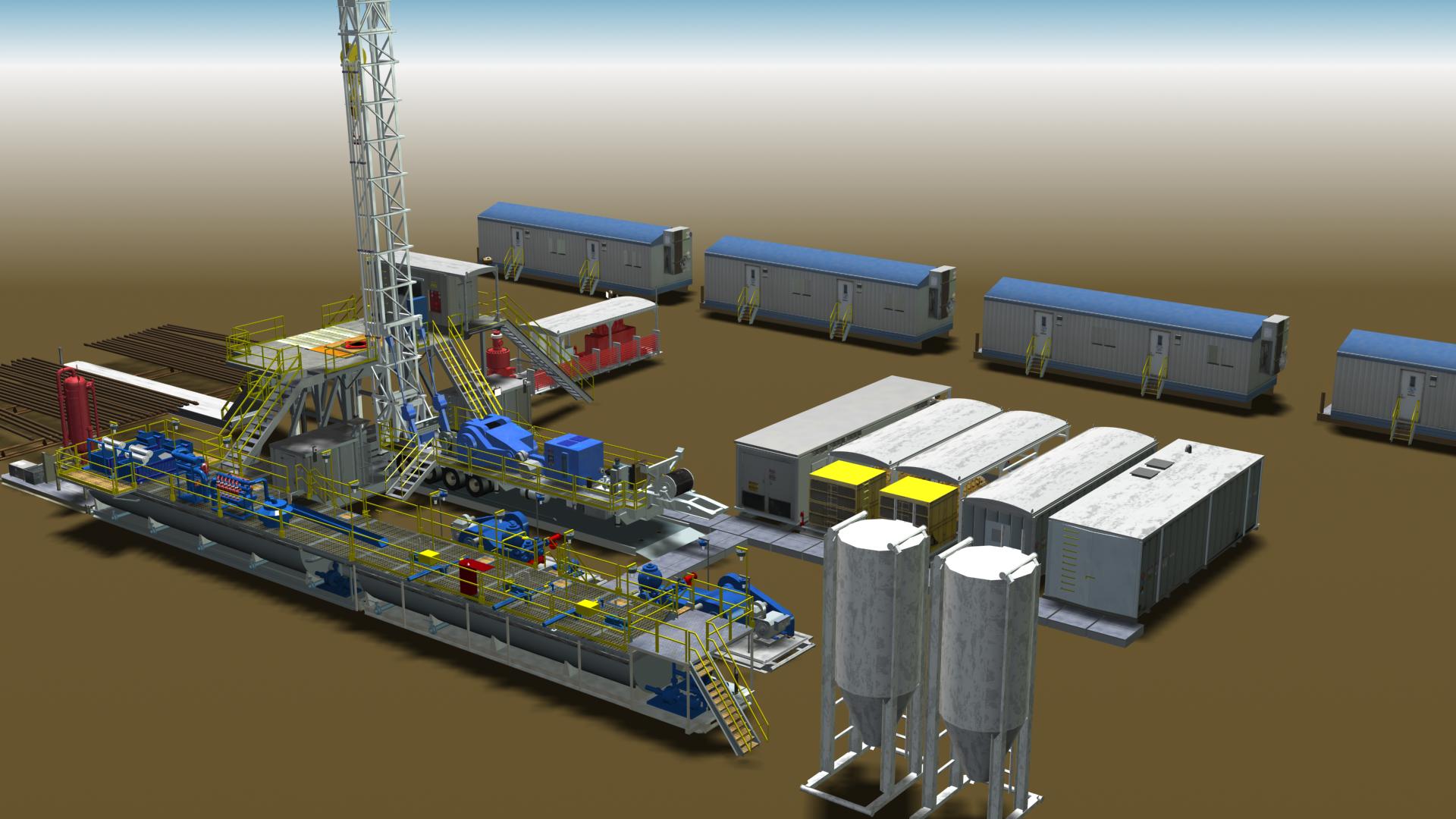

(2) 2008 HRI-1000, 1,000HP TRAILER-MOUNTED MECHANICAL DRILLING RIGS
SOLD - Asking Price $3,900,000 Each WOW!
Email for more info"Sister Rigs" - Each rig is complete w/Top Drive, Skid System, & Iron Roughneck
VERY GOOD CONDITION! (No Tubulars)
13,000’ DRILLING DEPTH – COST $15M NEW!!!
Rigs are working in PA, East Texas, and/or WY!
Call NOW! (800) 952-1973
best swiss legendary diamond watches
Listing Details
Buy these "new rebuilt" rigs for 1/2 the cost of new ones!!!...Buy Today!!!
CLASSIFICATION: 1000 HP Trailer Mechanical
DRILLING DEPTH CAPACITY: 13,000’ w/ 4-1/2” DP (not supplied)
DRAW WORKS: HRI 1000 Single Drum with Wichita 3-25 KKB disk brake
MAST: DSI 118' with 425,000# SHL
SUBSTRUCTURE: DSI 17' telescoping with 425,000 rotary capacity with a setback capacity of 300,000#, 15' clear height from bottom of rotary to ground
POWER SYSTEM: Two (2) Cat. 3512B Diesel Engines with 2 Cat. 1225 KW AC Generators and IEC SCR I Drive, 4 Bays to power Drawworks, Pumps, Lighting and Hotel Load
MUD PUMPS: Two (2) NOV 10P130 – 1,300HP Pumps powered by two (2) CAT 3512C HD’s

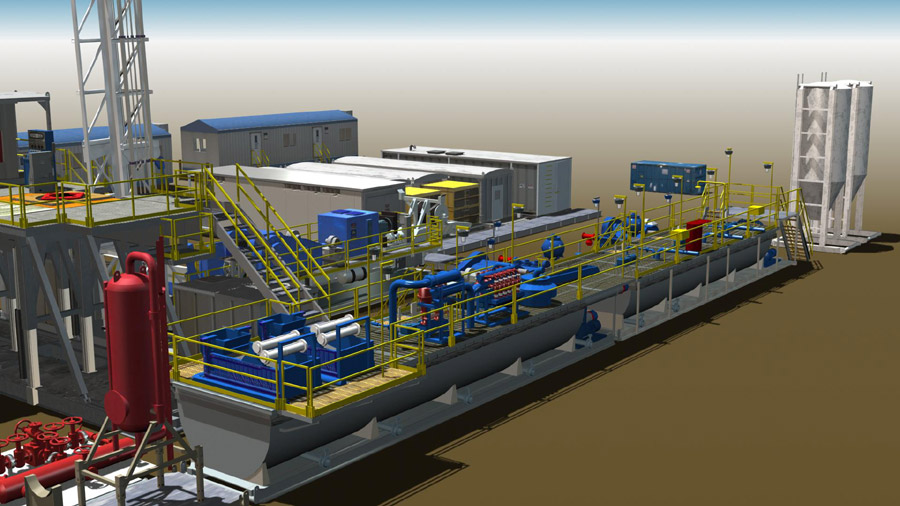

MUD SYSTEM: Two (2) Tank 750 BBL System, Two (2) Derrick High "G" Shakers Derrick, 2 cone desanders, Derrick 16 cone desilter, Drilco style degasser
TOP DRIVE: NOV TDS – 10SA 250 Ton powered by Detroit 60 Series w/500KW 600V Generator
ROTARY: AB 27-1/2"
BLOCK AND HOOK: 250 Ton American Block
SWIVEL: American Block 200 Ton
ANNULAR PREVENTER: Townsend Type 84, 11" 5000 psi WP
RAM PREVENTERS: Townsend Type 82, 11" 5,000 psi WP double ram
CHOKE MANIFOLD: 4" x 2" 5,000 psi WP
ACCUMULATOR SYSTEM: Chiles (5) station 180 gal. with remote control
DRILL PIPE: N/A
DRILL COLLARS: N/A
DRILL LINE: 1-1/8” EIPS
AUXILLARY EQUIPMENT: NOV Iron Roughneck Type ST80-C, Toolpusher and crew quarters, One 300 BBL water tank, Automatic driller, Pipe spinner, Kelly spinner, 0-7 degree drift indicator, 200 BBL Fuel Tank, Wrangler 3550 Hydraulic Cat Walk
Email for more info
