GARDNER DENVER 700 Drilling Rig For Sale
No Longer Available - Call for Current Inventory
Email for more infoCONFIDENTIAL OFFERING
Qty: 12 Portable Drilling Rigs
This is Rig No.1
Top Drives, Good Condition,
Latest & Greatest Components
Call NOW! (800) 952-1973
Listing Details
|

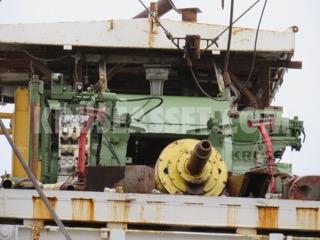

DRAWWORKS |
Gardner Denver 700 |
|
|
|
Auxiliary brake: |
Hydromatic Parmac 342 |
|
|
|
|
|
POWER |
2-Caterpillar D379TA |
1100 HP |
|
|
|
|
|
#1 PUMP |
National 9P100 |
1000 HP Triplex |
|
|
Powered by: |
Caterpillar D398TA |
|
|
|
|
|
#2 PUMP |
National 9P100 |
1,000 HP triplex |
|
|
Powered by: |
Caterpillar D398TA |
|
|
|
|
|

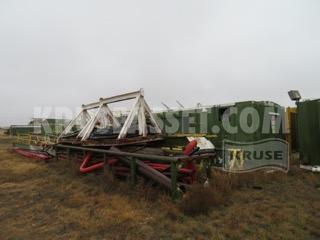

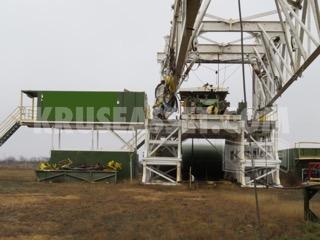

MAST |
136' Pyramid; 600,000# hook load on twelve lines |
|
|
|
|
|
|
SUBSTRUCTURE |
48' x 27 1/2' x 14' 16' GL to KB |
|
|
|
|
|
|
TRAVELING |
Block: |
400 ton; 1 1/4" drilling line |
|
EQUIPMENT |
Hook: |
BJ Dynaplex 5350 350 ton |
|
|
Swivel: |
Gardner Denver 300 Ton |
|
|
|
|
|
ROTARY TABLE |
Oilwell 27 1/2" Opening |
|
|
|
|
|
|
GENERATORS |
2-Caterpillar SR4 600 KW generators wired for 480 volts powered by |
|
|
|
2-Caterpillar 3412 Engines |
|
|
|
|
|
|
BOP EQUIPMENT |
Ram Preventer: |
As Required |
|
|
Annular Preventer: |
As Required |
|
|
Closing Unit: |
Koomey Type 5 Station |
|
|
|
|
|
DRILL PIPE |
370 Joints 4 1/2” 16.6# X-95 Drill pipe |
|
|
|
|
|
|
DRILL COLLARS |
6 ea. 8" Collars and 22 ea. 6 1/2” (nominal sizes) |
|
|
|
|
|
|
MUD SYSTEM |
Working Pits: |
Shale: 50' x 10' x 5’; Suction: 51' x 10' x 5', |
|
|
|
900 bbl. with four 10 HP electric pit stirrers |
|
|
Premix Pit: |
Built into suction pit: 125 bbl. |
|
|
Mud mixing pump: |
Mission Magnum 5" x 6" 50 HP centrifugal |
|
|
|
|
|
SOLIDS CONTROL |
Shale Shaker: |
Derrick |
|
EQUIPMENT |
Desander: |
|
|
|
Desilter: |
10-4" cones |
|
|
Prime Movers |
Mission Magnum 5" x 6" 50 HP centrifugal |
|
|
|
|
|
AUXILIARY |
Water tank: 2 ea. |
500 bbl. |
|
EQUIPMENT |
Fuel tank: |
8,000 gal. |
|
|
Mud house: |
40' x 8' x 8' |
|
|
Gas Buster |
|
|
|
Kelly spinner |
|
|
|
Pipe spinner |
|
|
|
Choke Manifold |
|
|
|
Managers House |
|
|
|
Crew House |
|
|
|
|
|
|
MISCELLAENOUS |
Centrifugal Pumps |
|
|
EQUIPMENT |
Air Hoist |
|
|
|
Tongs, slips, elevators |
|
|
|
Pipe Racks |
|
|
|
Handling Subs |
|
|
|
Spare parts and hoses |
|
|
|
Cat walk |
|
|
|
Hydraulic Drilling Line Spool |
|
