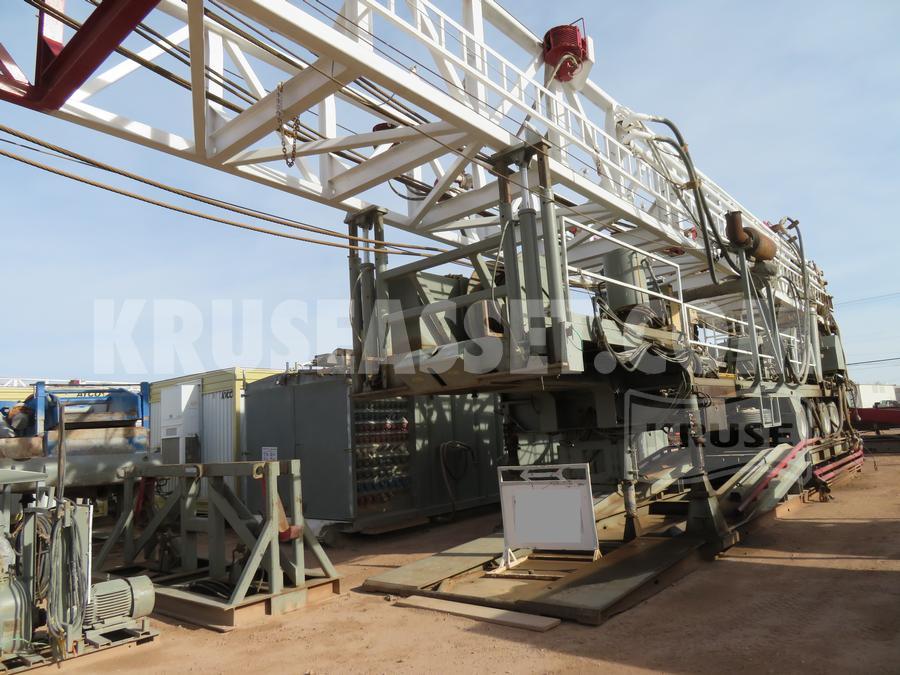

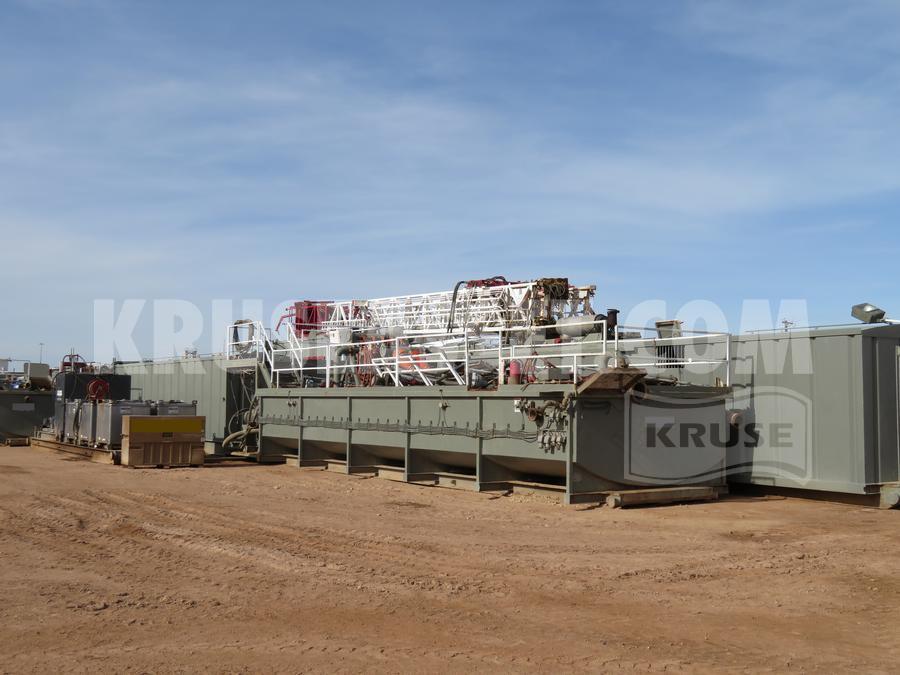

DERRICK AND SUBSTRUCTURE

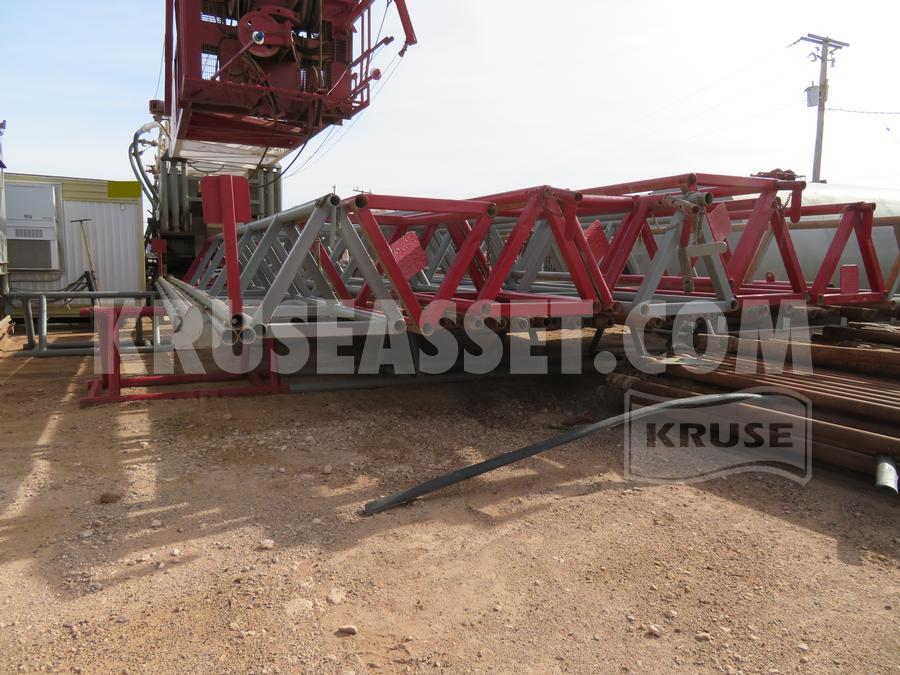

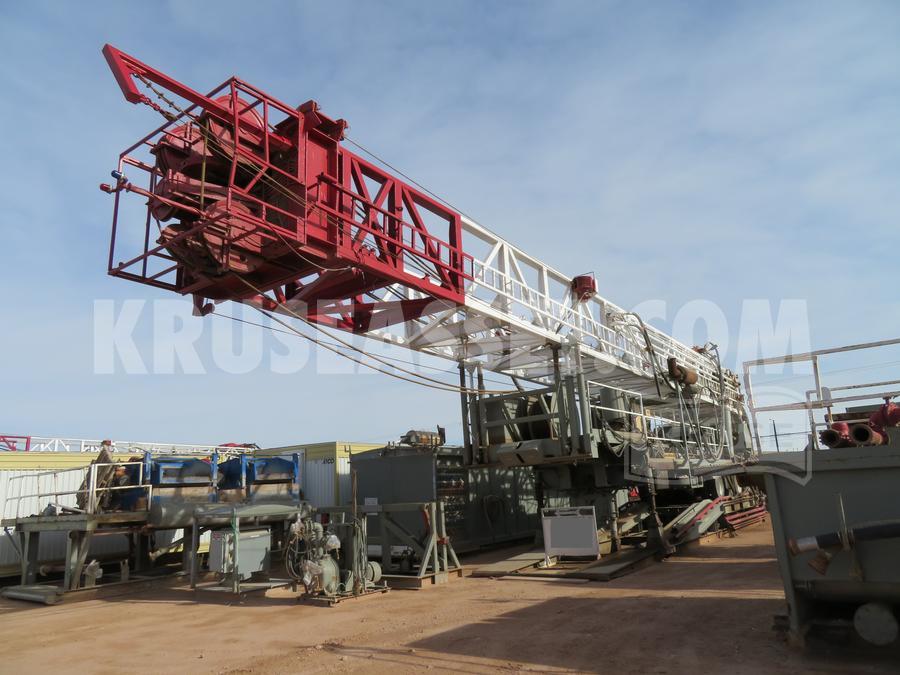

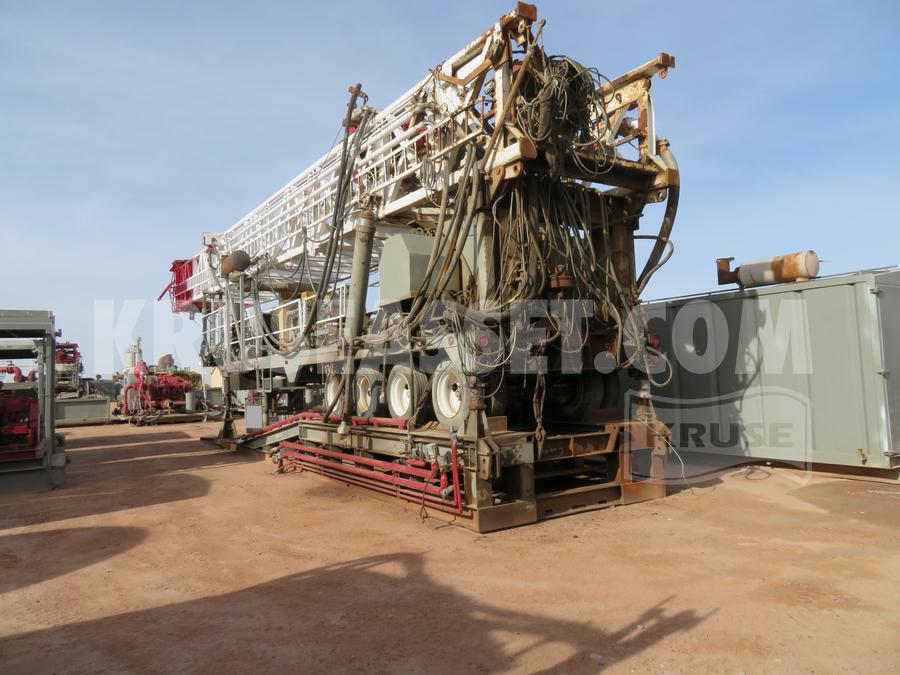

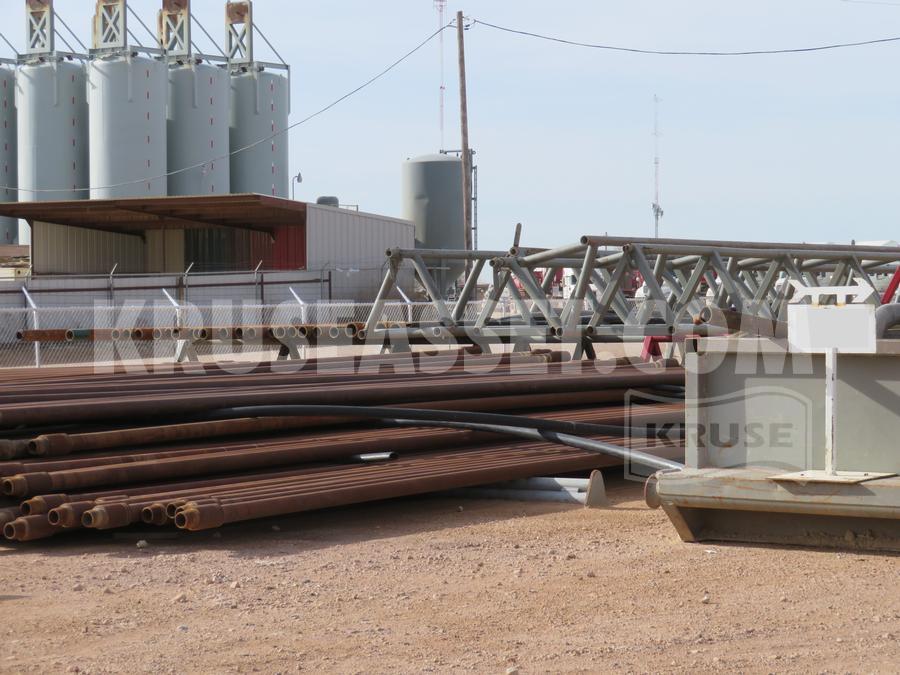

DERRICK/MAST

YES – API 4G Monogrammed

Make/type:

INTERNATIONAL DERRICK SERVICE (IDS)

With no set back:

Height:

72'

Dimensions of base:

8'1" WIDE X 6' DEEP

Dimensions of crown:

8'1" X 6' DEEP

Gross nominal capacity:

825,000 GNC

Static hook load:

500,000 SHL

Minimum number of lines:

8

Ladders with safety cages and rests:

YES

Platform for crown sheave access:

YES

Light system explosion proof:

YES

MAKE-UP/BREAK-OUT TOOL

1-BLOHM & VOSS Make-up/Break-out wrench WITH UP TO 65,000 FT-LBS. M/U torque; 85,000 FT-LBS B/O torque

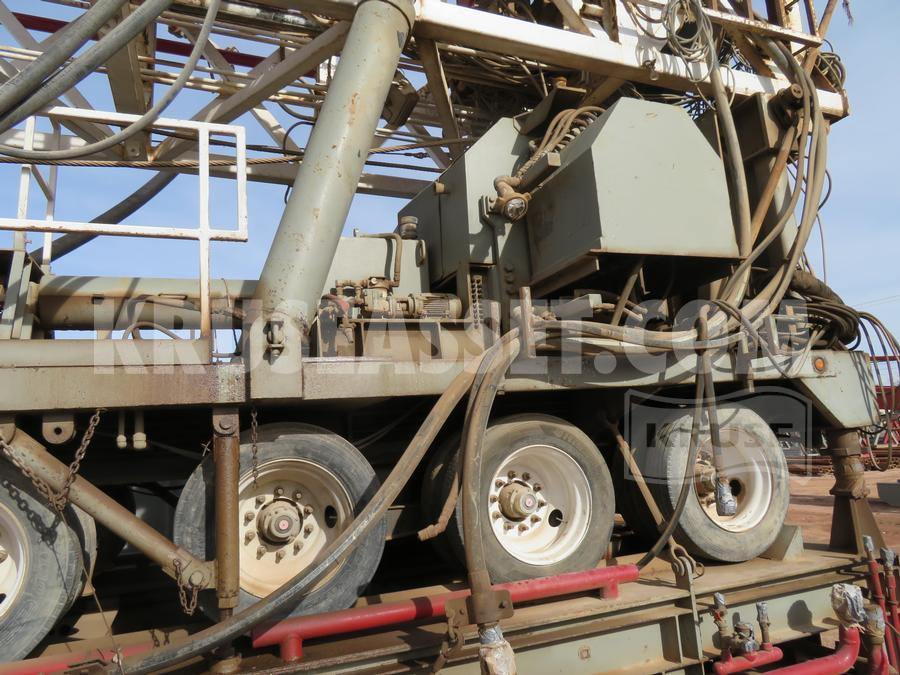

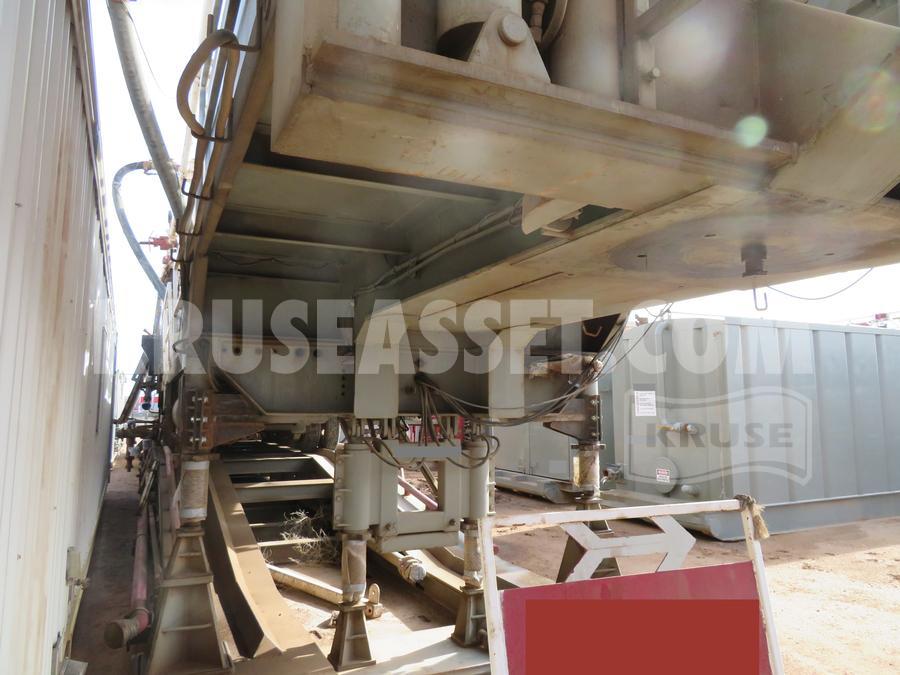

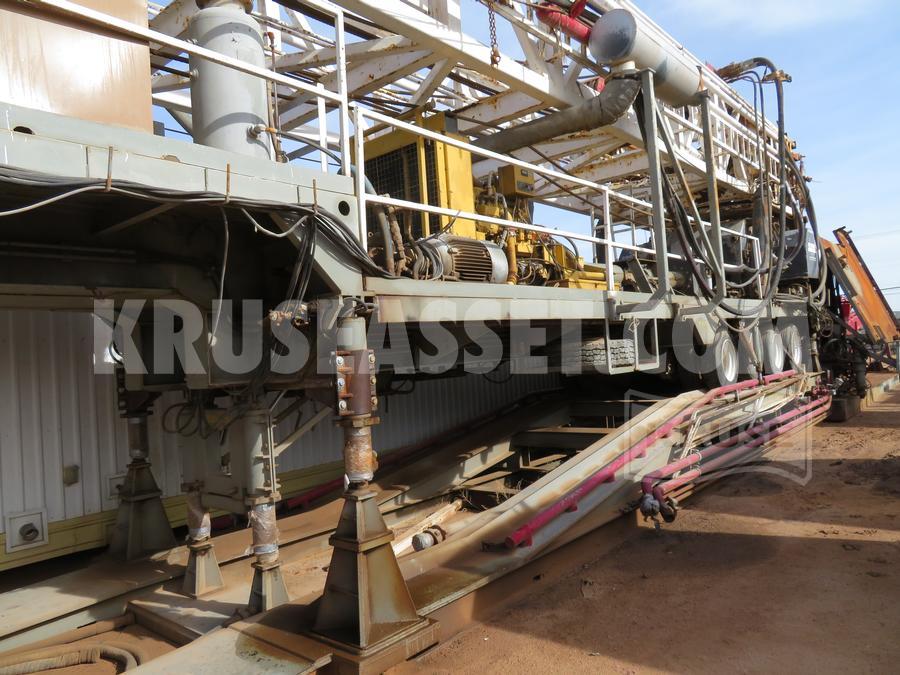

SUBSTRUCTURE

YES

Make/type:

IDS

Slip Bowl height (above Ground level):

14' 8"

Length:

48'

Width:

12'

Slip Bowl beam capacity (total):

250 TON

Clear height below Slip Bowl beams (to Ground level):

10'6"

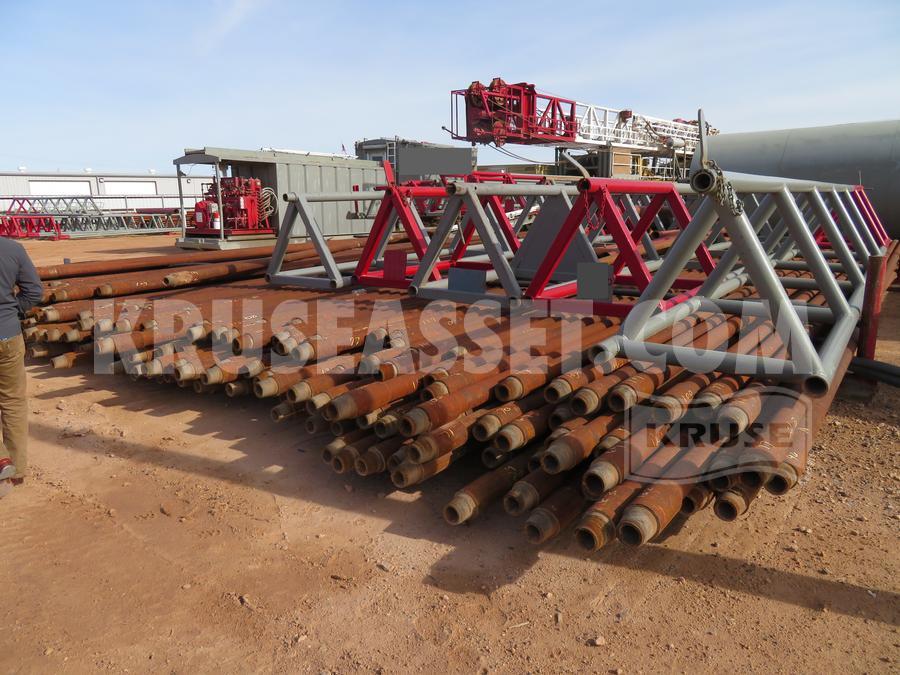

Hydraulic Pipe Arm

1- IDS HYDRAULIC PIPE ARM FOR HANDLING 3-1/2" TO 5" RANGE II or III DRILL PIPE, 6-1/4" TO 8-1/4" DRILL COLLARS & RANGE III CASING W/HYDRAULIC ARM FOR HANDLING PIPE FROM PIPE RACK TO GRABBERS

DRAWWORKS AND ASSOCIATED EQUIPMENT

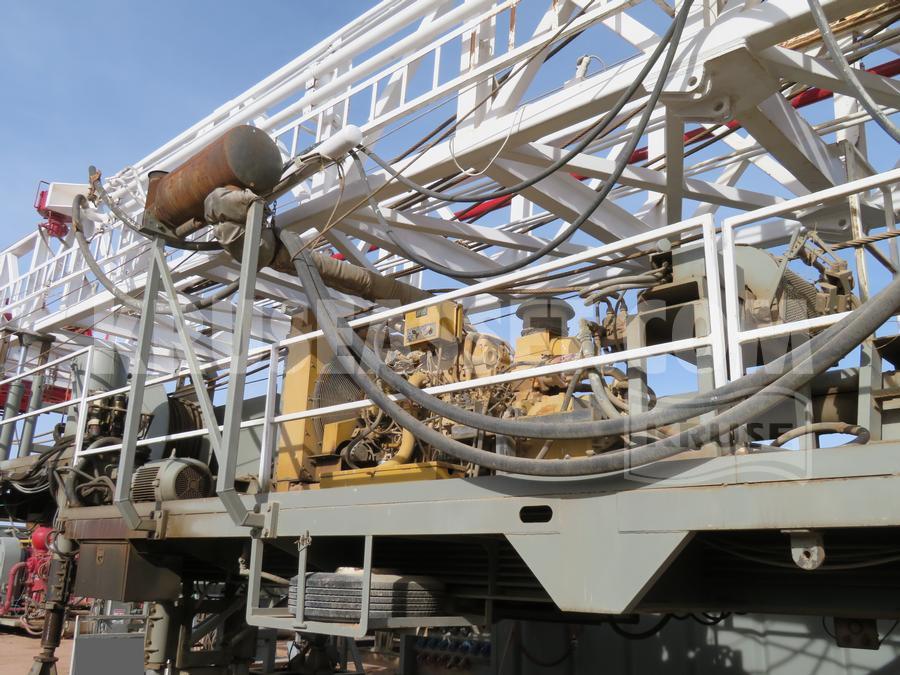

Drawworks

Make/type:

RIG TECH RT-400B

Engine make/type:

CAT C-15 W/ALISON 6-SPD. TRAN.

Rated input power:

540 HP

Drum size (diameter x length):

21" X 25-1/8"

Drum type (grooved/smooth):

GROOVED (Lebus)

For drill line size:

1 1/4"

Brake type (disk/drum):

DRUM

Brake size:

42” x 10”

Maximum Hook load -   8 lines:

435,000 LBS

Crown block safety devices:

YES

Make/type: Forum device

RT-400 CROWN PROTECTOR

Auxiliary brake:

EATON WCB 424

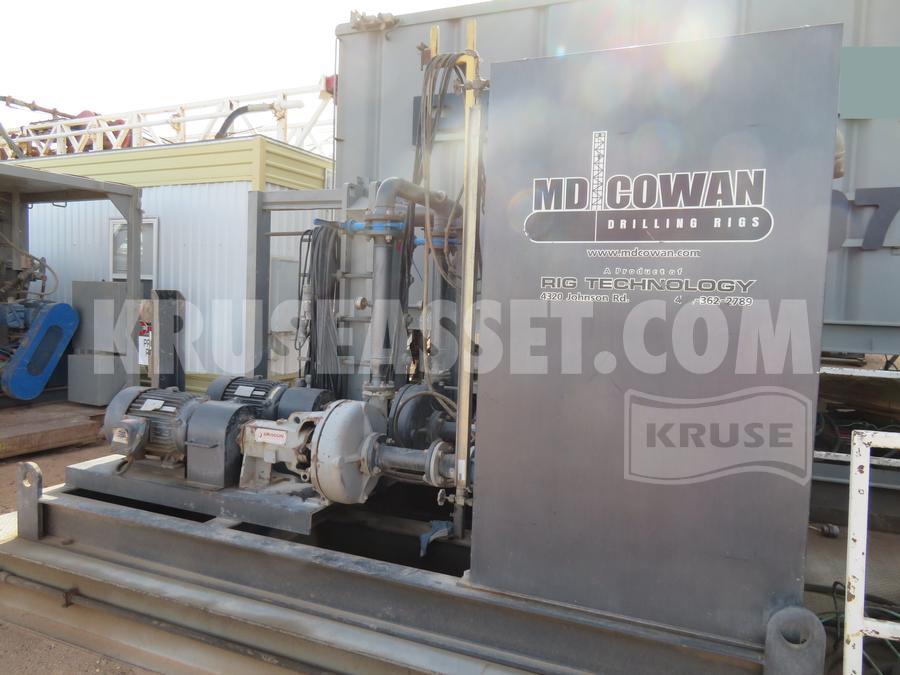

Independent fresh water cooling system for draw works and air brake:

EATON-AIRFLEX MODEL # RT-BWCS-101   400,000# BRAKING

Wire line Unit

YES

Make/model:

OIL WORKS  OWI-1000

Wire length (nominal):

12,000'

Wire size:

.092 IN

Max working load:

835 LBS

Safe working load:

800 LBS

Depth counter:

YES

Pull Indicator

NO

DERRICK HOISTING EQUIPMENT

Crown Block

Make/type:

IDS

Rated Capacity:

500,000 SHL

 No. of sheaves:

8--7 vertical/1horizontal

Sheave diameter:

6-36” 1-30" 1-24”

Sheave grooved for line size:

1 1/4"

Traveling Block

Make/type:

COWAN INTEGRATED 4-SHEAVE SPLIT BLOCK

Rated Capacity:

250 TON

No. of sheaves:

4

sheave diameter:

36"

Sheave grooved for line size:

1 1/4"

Drilling Line

YES

Diameter:

1-1/4"

Construction:

BETHLEHEM STEEL AMERICAN RRL/IWRC/EIPS DOMESTIC or equivalent

Length (original):

2,500'

Drilling line reel:

 YES

Drum cover:

NO

Drilling line drum power driven:

 Optional

Roller guides:

NO

Dead Line Anchor

Make/type:

HERCULES HA-119T

Weight sensor:

60,000#

SLIP BOWL SYSTEM - NON-ROTATING

Make/type:

1. CAVINS    TF-100-S

Gate/Bowl Opening:

8-3/4"/10-1/8" API STANDARD

Hook Load:

400,000#

Operating Air Pressure:

60-80 PSI

Operating Hydraulic Pressure:

275-300 PSI

Tubular Goods Range

2-3/8"-8-5/8" O.D.

Top Drive/Power Swivel

Make:

VENTURETECH

Model:

XK-250

Type (electric/hydraulic):

HYDRAULIC - SUNSTRAND HYDRAULIC PUMP POWERED BY CATERPILLAR C-18 DIESEL ENGINE & HYDRAULIC SYSTEM

Rated capacity:

250T

Working pressure:

5,000 PSI

Maximum continuous torque @ 120 rpm:

22,000 FT-LBS

(Power curve available upon request)

Maximum continuous rotary speed:

160 RPM

Cooling system type:

N/A

Upper inside BOP:

2 3/4" INSIDE

Floating Cushion sub (Upper Torque Sub):

4 1/2" I.F.

100 RPM Dynamic load rating:

140 Tons

Working pressure:

5,000 PSI

Output power:

24,000 ft-lbs

POWER SUPPLY SYSTEMS

RIG POWER PLANT

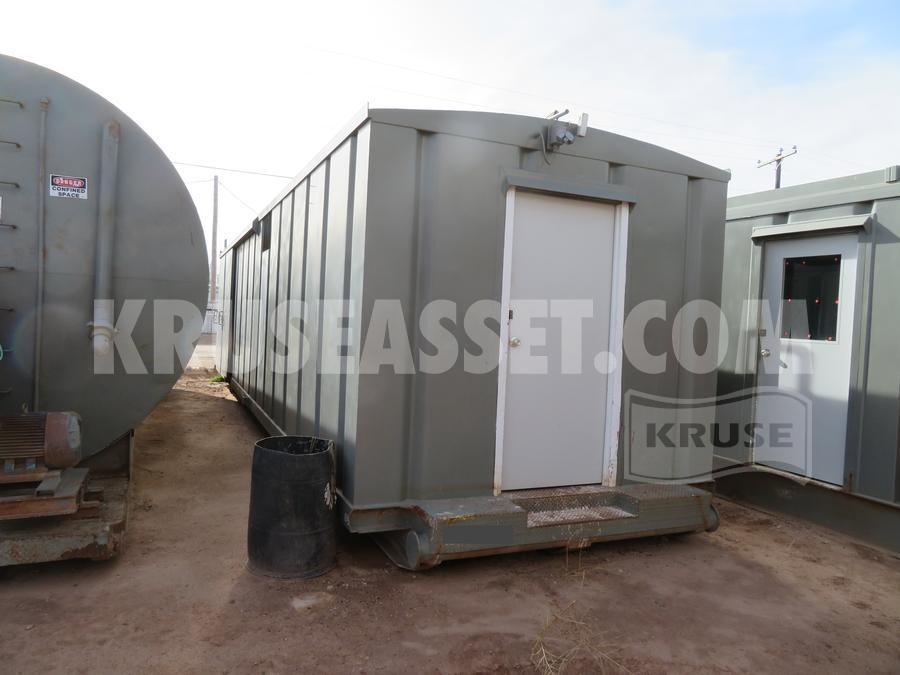

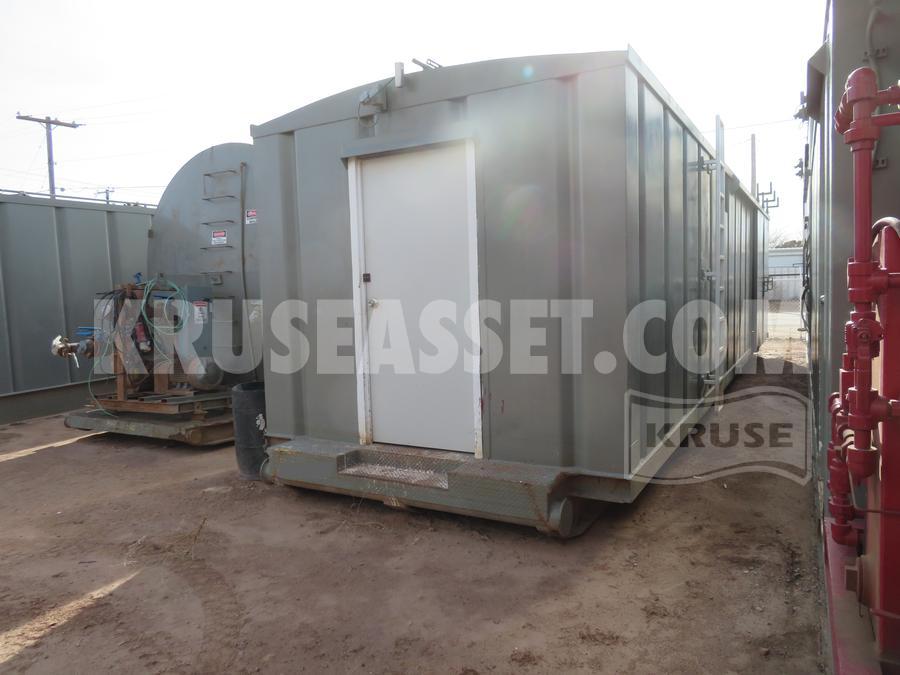

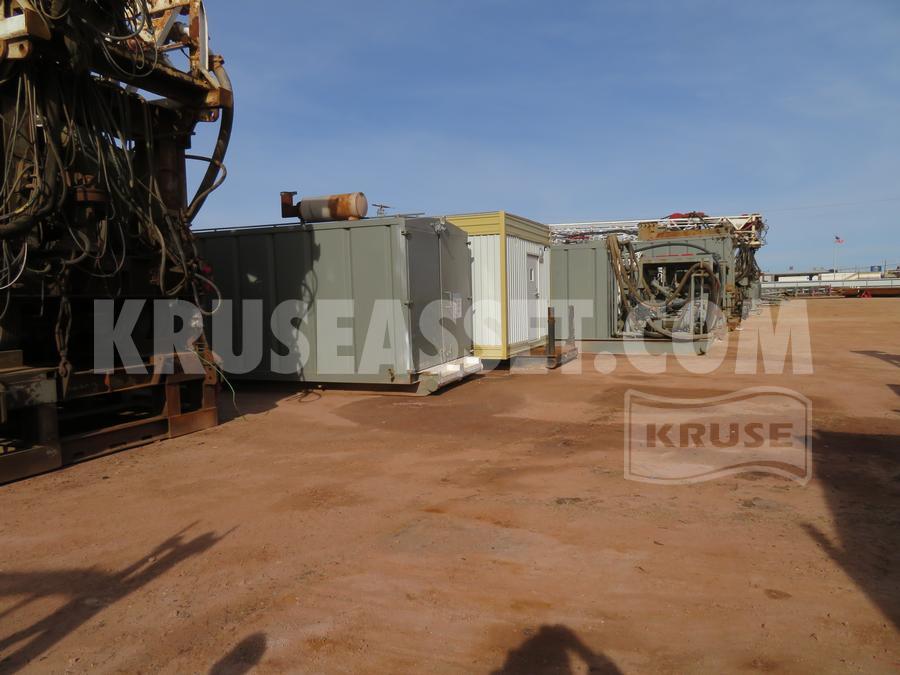

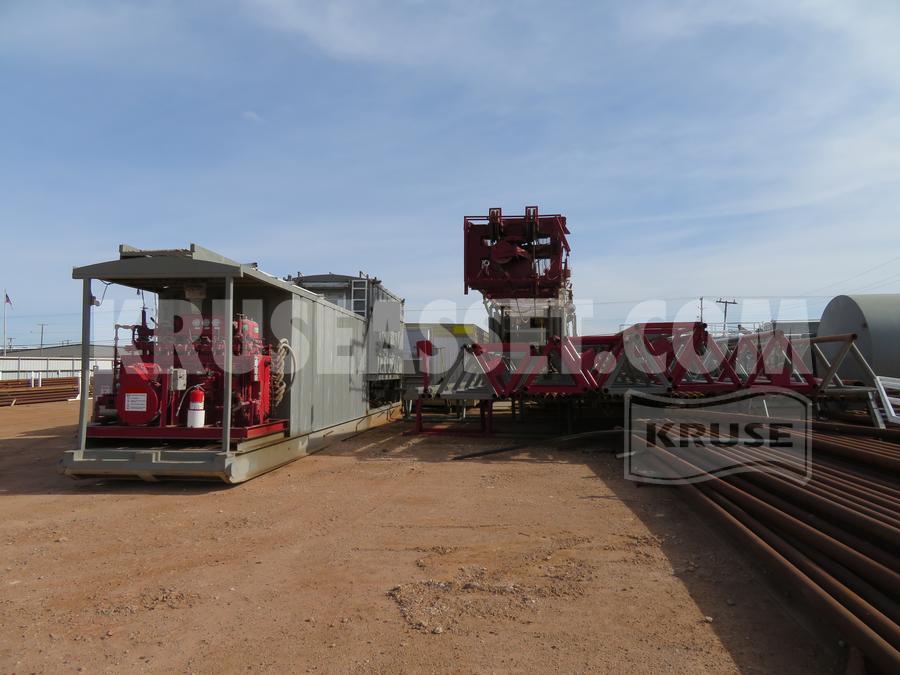

GENERATOR HOUSE: 10' WIDE BY 51' LONG W/ NEW SQUARE D MCC

Diesel Engine/Generator Sets

Quantity:

 2

Make/type:

CATERPILLAR / C-15

Maximum continuous power:

540 HP

At rotation speed of:

CONSTANT 1200RPM

Equipped with spark arrestors:

YES

Mufflers installed:

YES

AC - Generator

Quantity:

2

Make/type:

CATERPILLAR/455 KW

At rotation speed of:

CONSTANT 1200RPM

Output volts:

60 Hz 480 VOLTS

Air Compressors - Medium Pressure (rig air):

Quantity:

CURTIS – 2 each

Make:

Model:

RS30F

Rated Capacity:

102 CFM

Working pressure:

175 PSI

Prime mover (electric/diesel):

ELECTRIC

Continuous power:

30 HP

AIR RECEIVERS

OILWORKS – 2 each

Volume (total):

600 ft2

Maximum Pressure

175 PSI

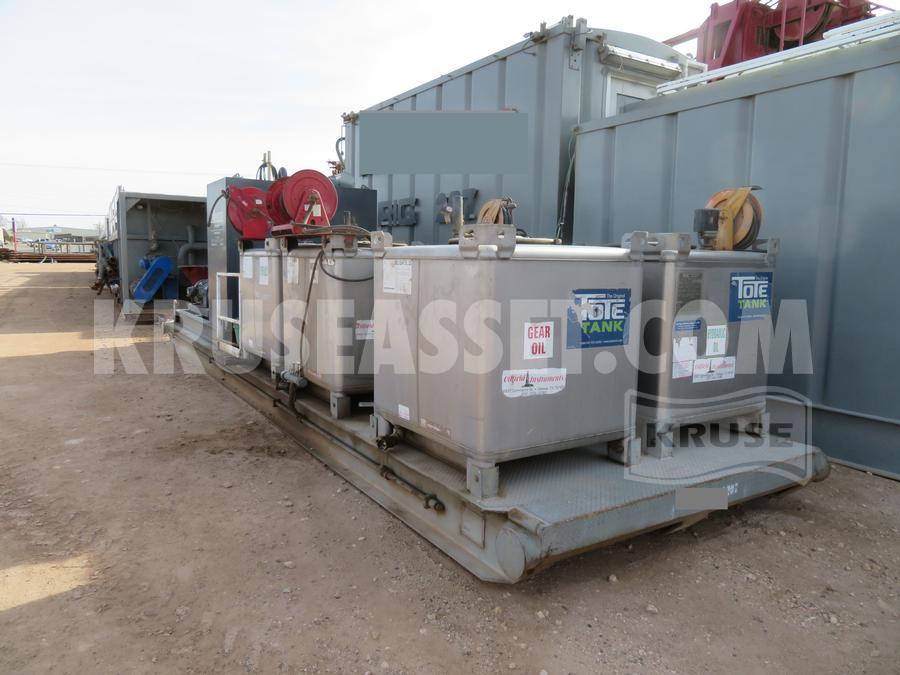

Location:

Lube Skid

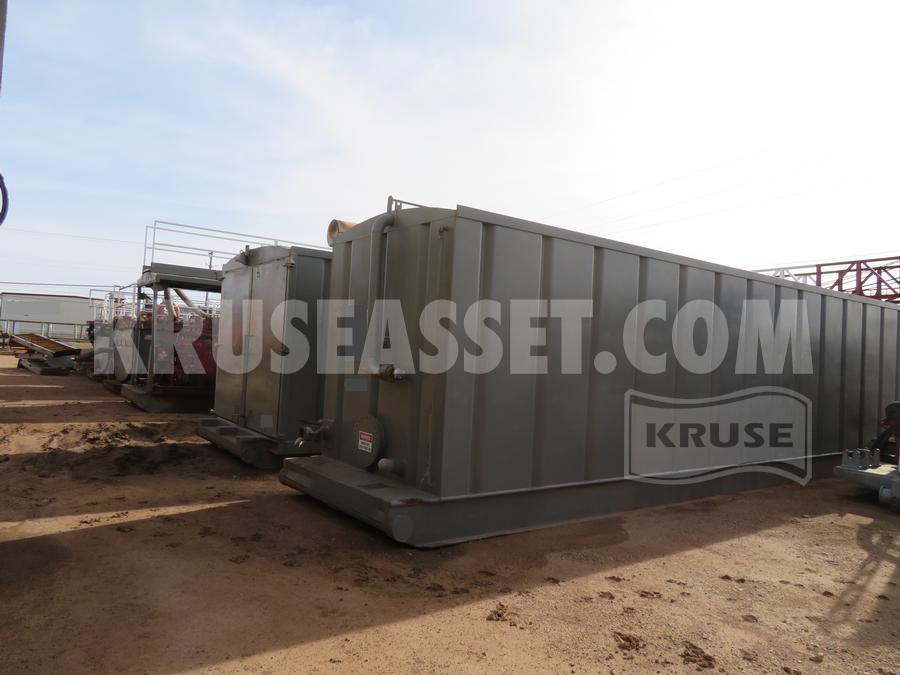

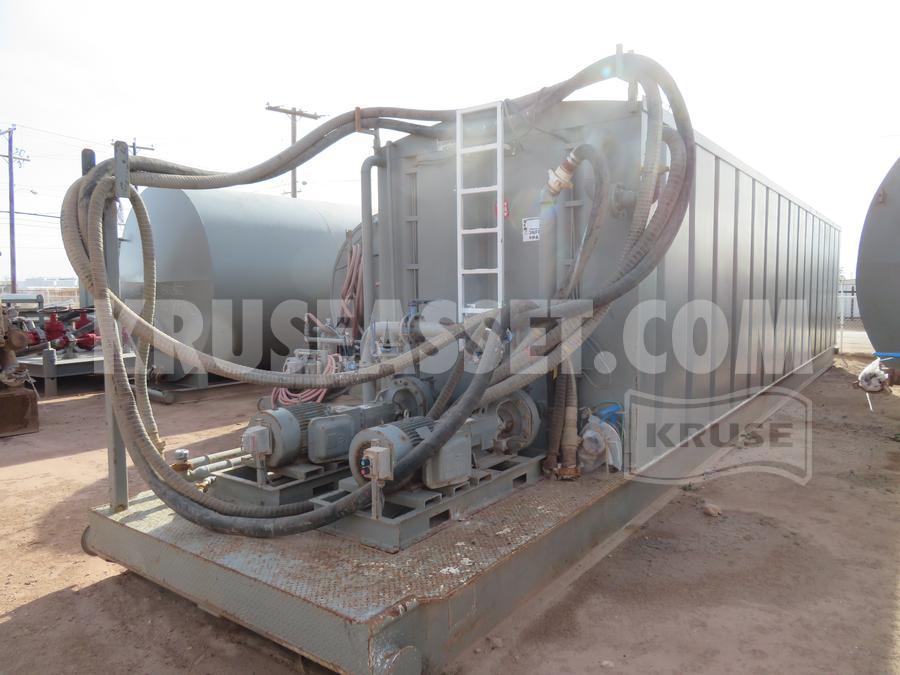

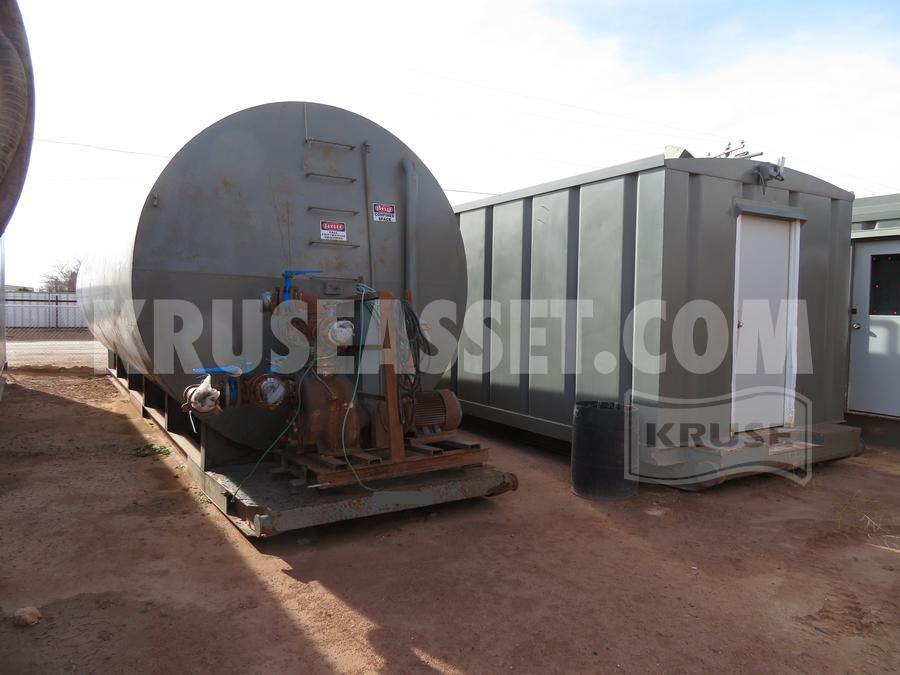

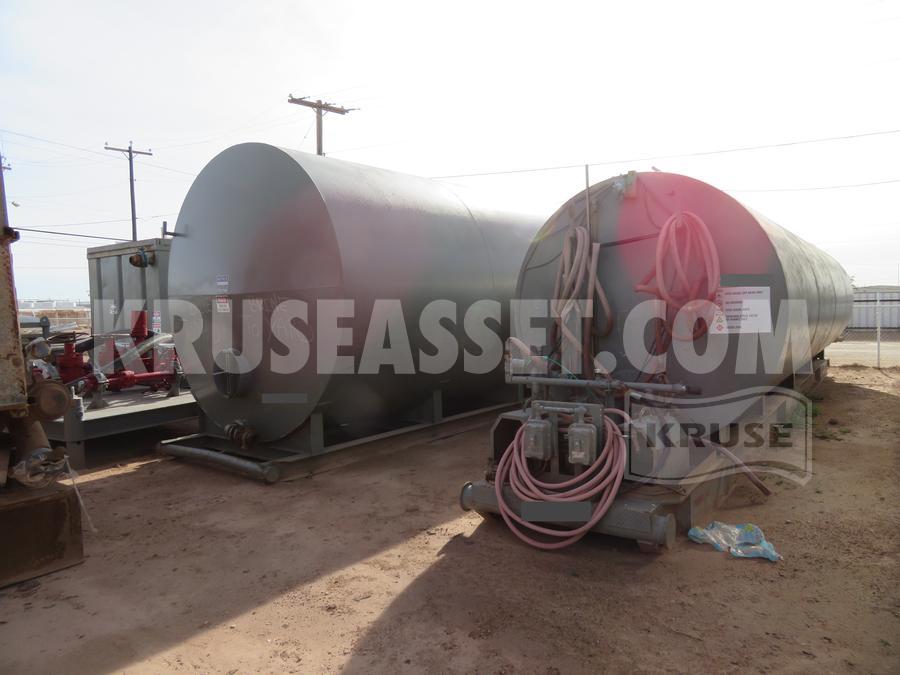

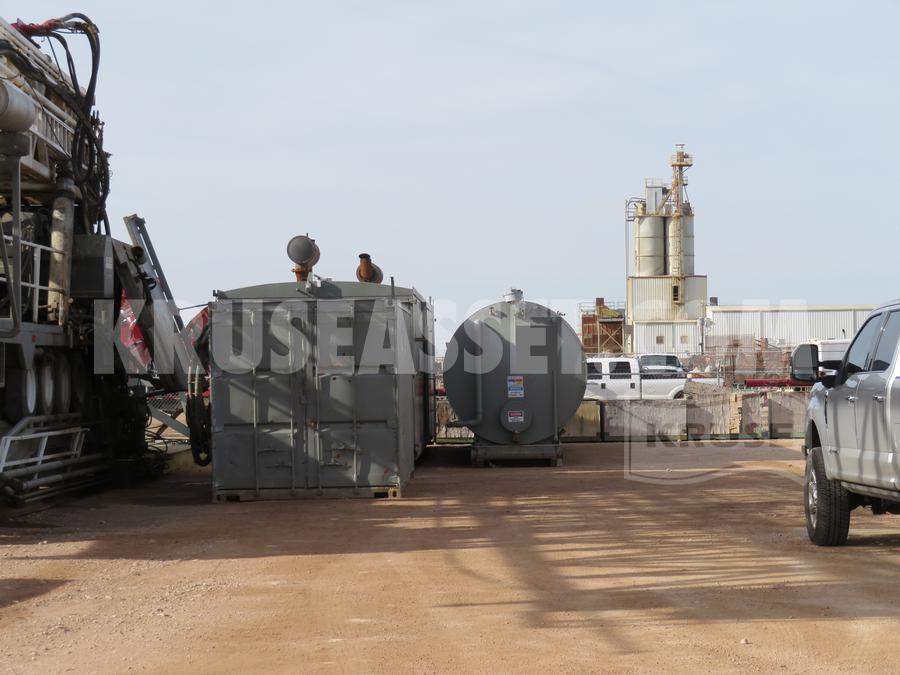

FUEL TANK

Standard Cylindrical Tank/ Optional Rectangular

MDC FABRICATED

Cylindrical 8' diameter

265 BBL.

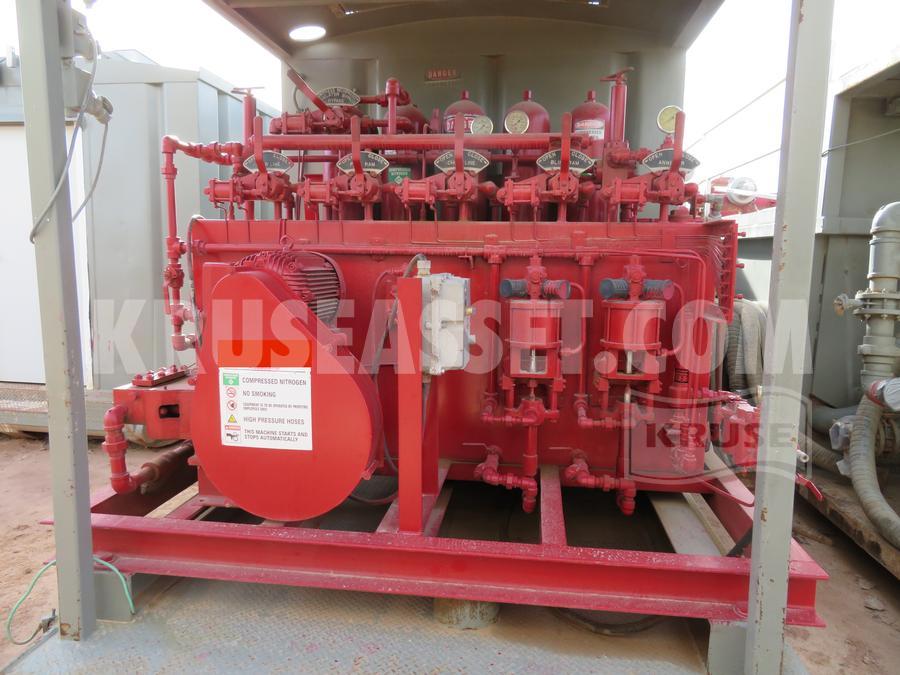

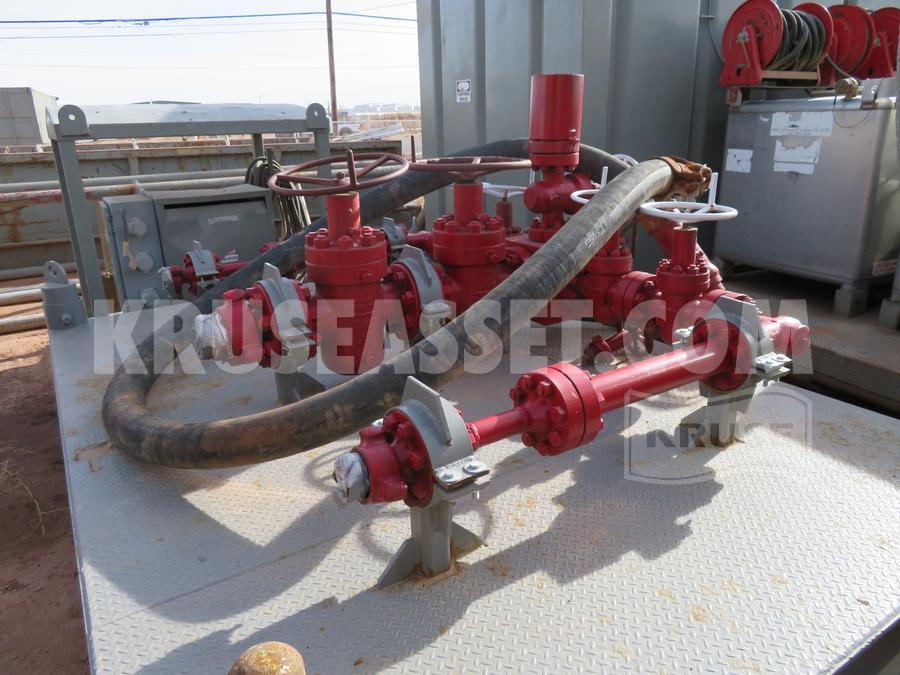

WELL CONTROL

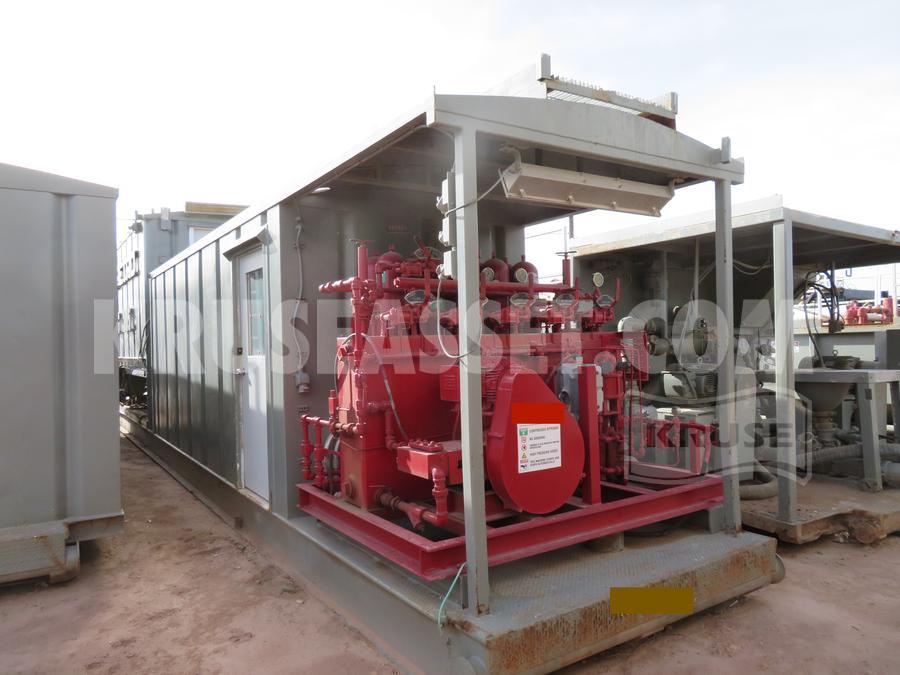

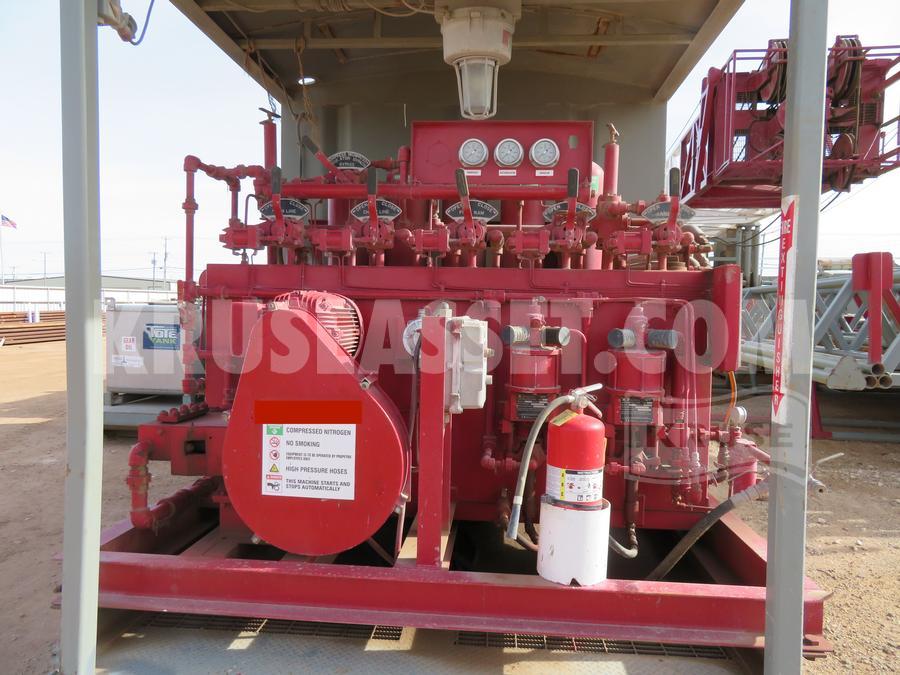

LOW PRESSURE BLOWOUT PREVENTERS

All appropriate components H₂S rated

No

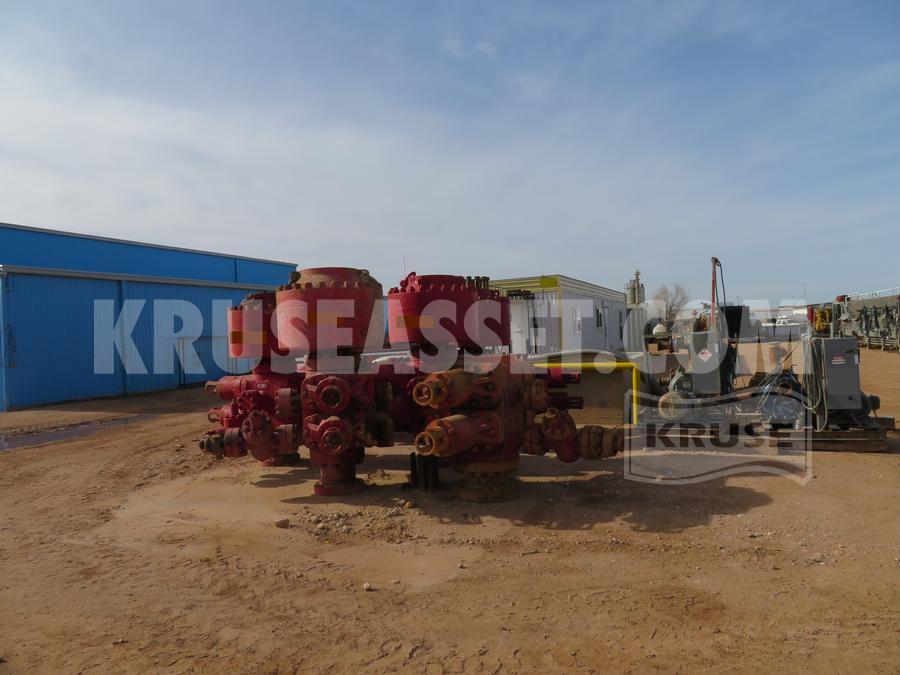

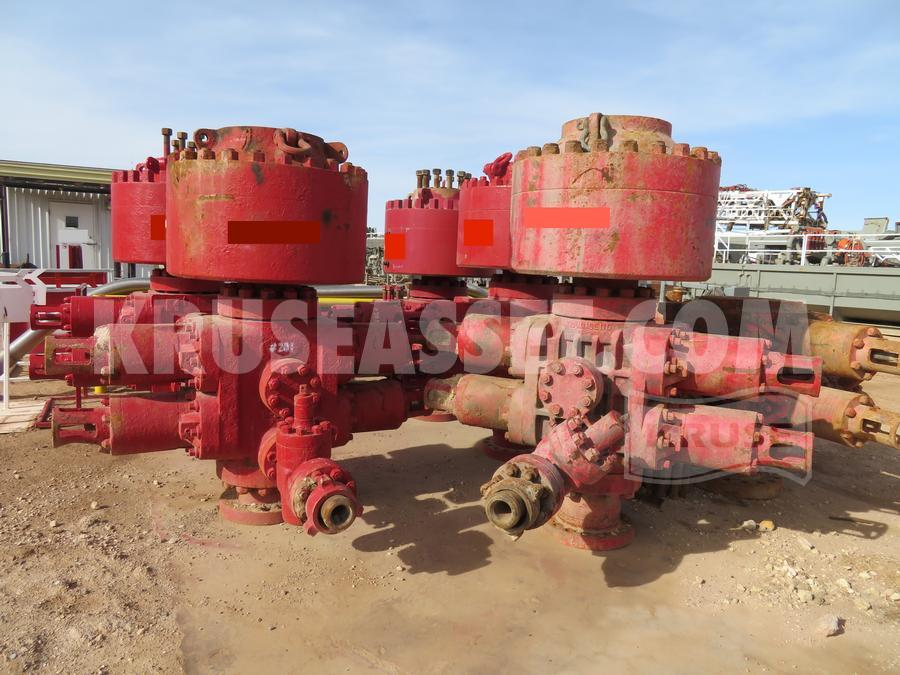

RAM TYPE PREVENTERS

YES

Quantity:

1

Make/model:

Horn Equipment LWS

Type (single / double / triple):

DOUBLE

Size:

11 IN

Working pressure:

5,000 PSI

Ram locks:
