HRI 1000-E Electric SCR Single Drum Drilling Rig

No Longer Available

Portable Rig, Top Drive, 1600hp Pumps, Tubulars
12,500' Depth, Cost new was $15M
Best Buy for Late Model Rig
Stacked, Rig in OK, SCR/Gen in AR

Call to Inspect and Buy Today!!!
Call NOW before it SELLS! (800) 952-1973

Listing Details

HRI 1000-E

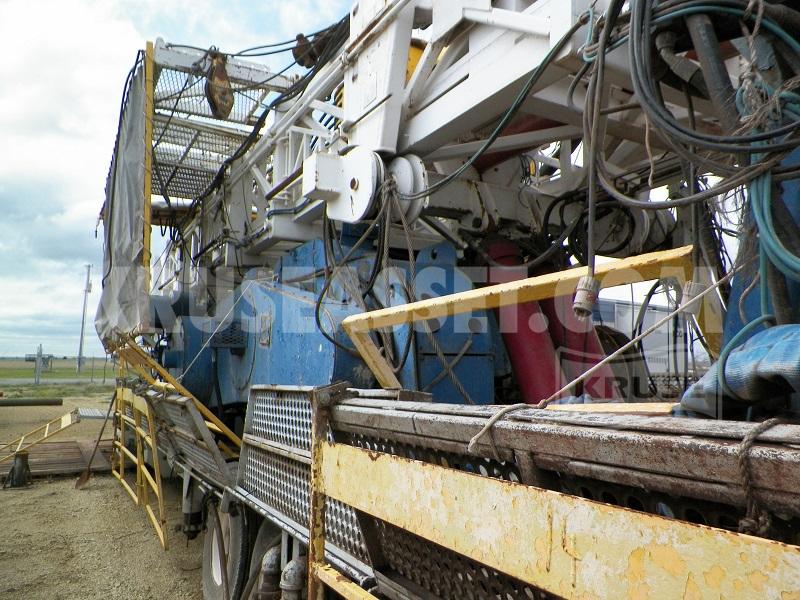

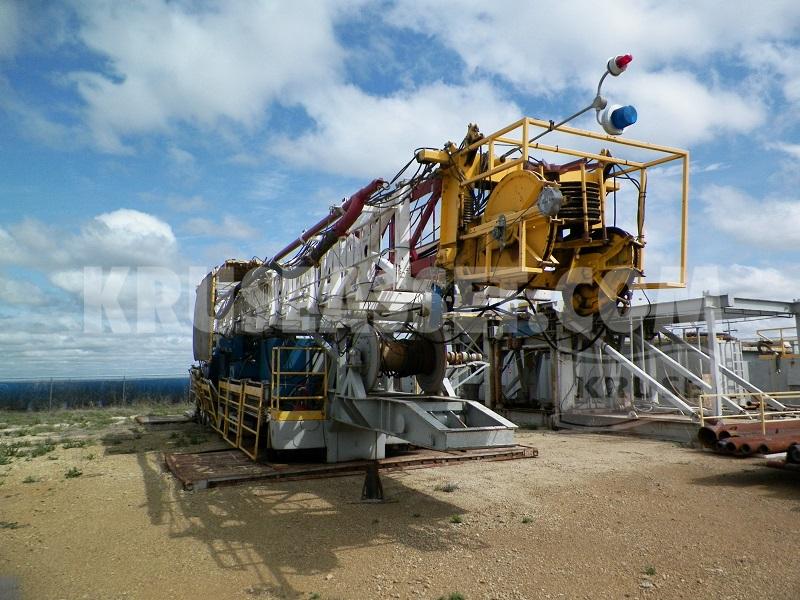

CLASS – 1000 HP TRAILER ELECTRIC TRAILER MOUNTED RIG

CAPACITY – 13000’ w/ 4-1/2” DP

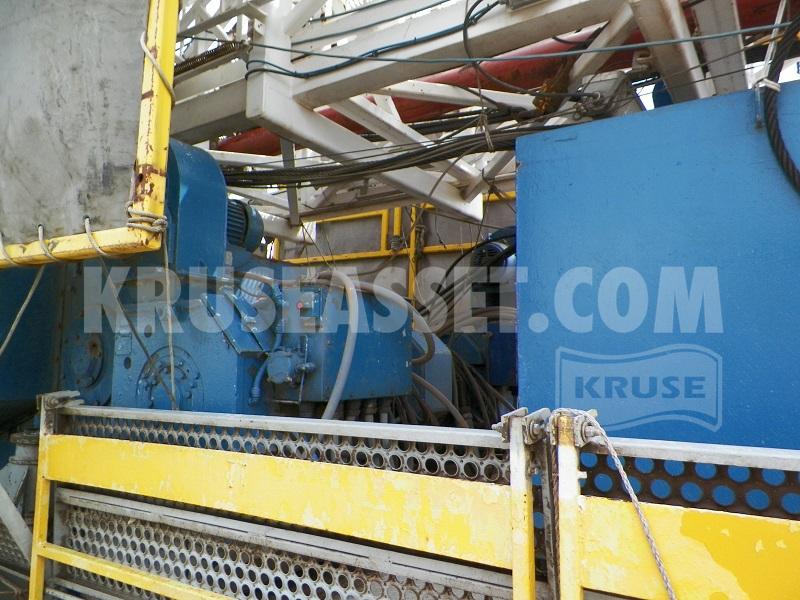

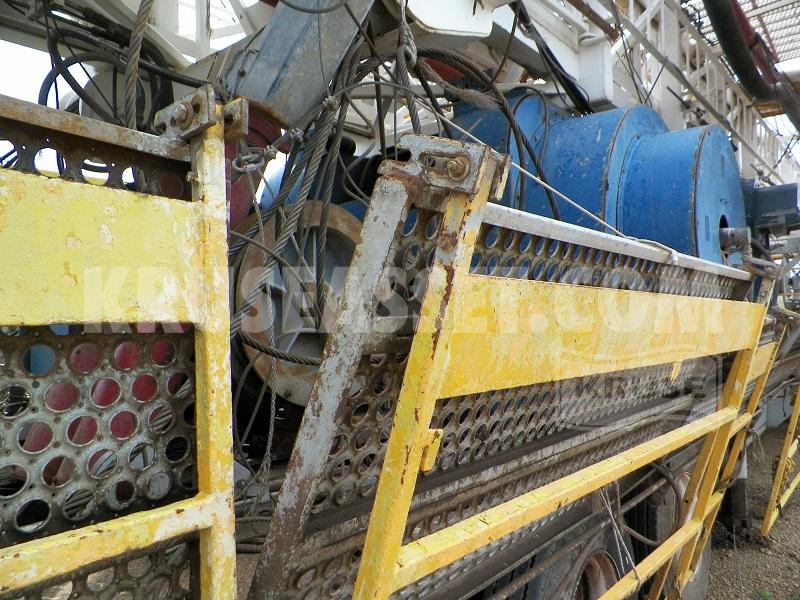

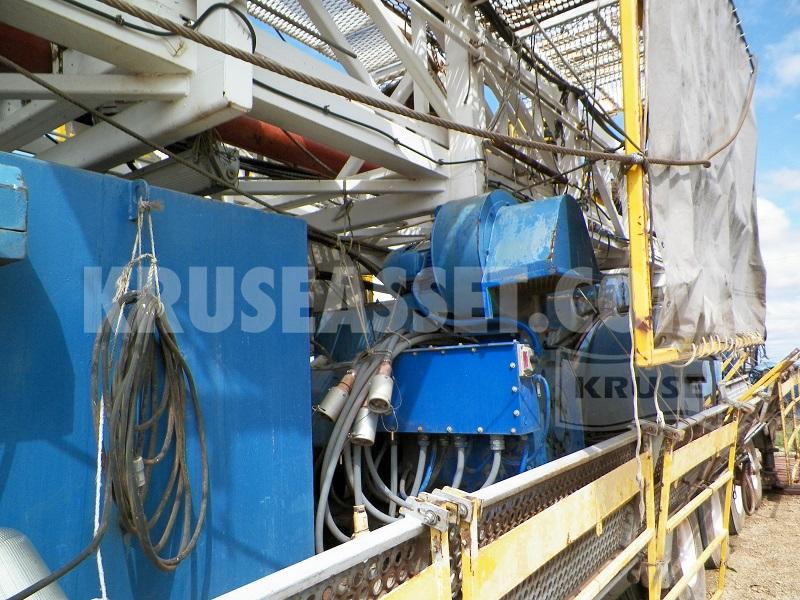

DRAWWORKS –HRI 1000-E SINGLE DRUM WITH WICHITA 3-25 KKB DISK BRAKE, POWERED BY TWO (2) GE 761 TRACTION MOTORS

ROTARY TABLE – AB 27-1/2” WITH 53-1/4” CENTER POWERED BY GE 752

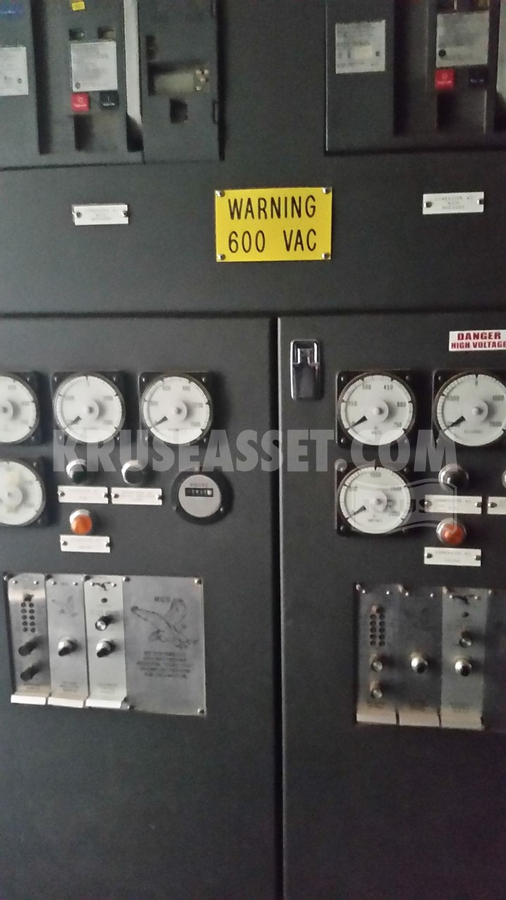

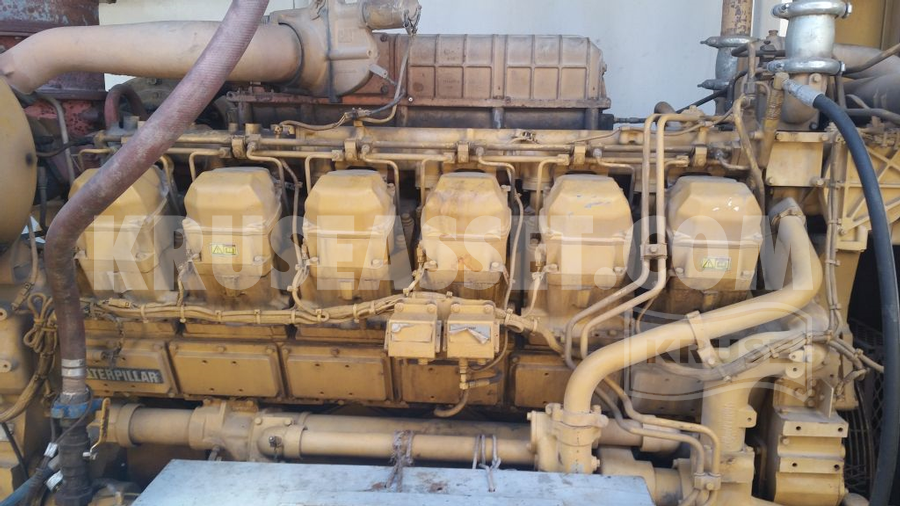

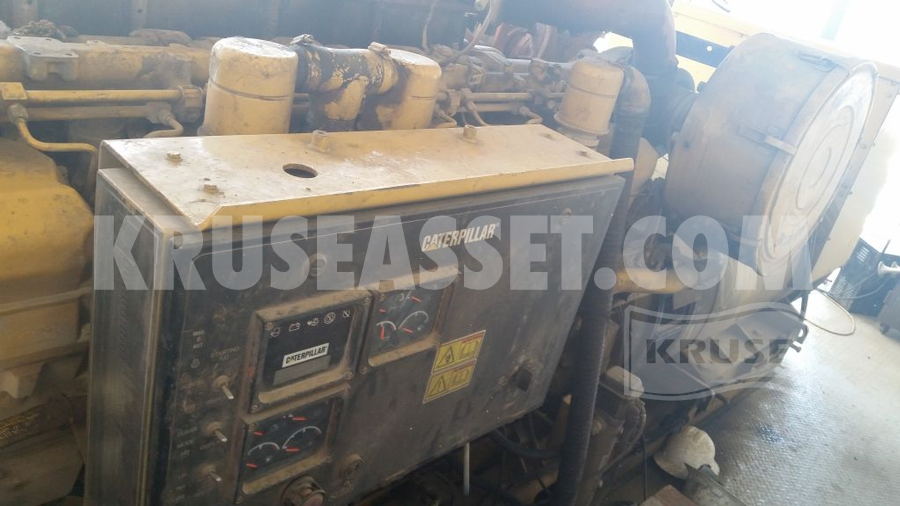

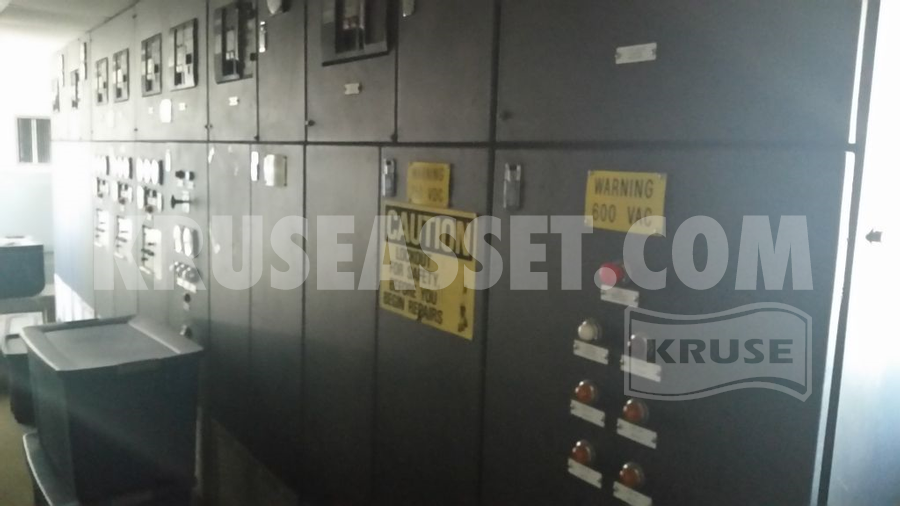

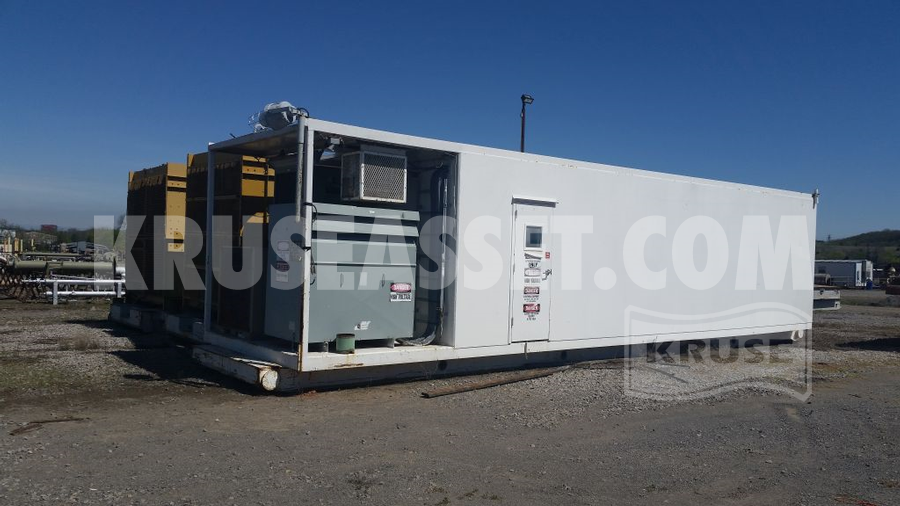

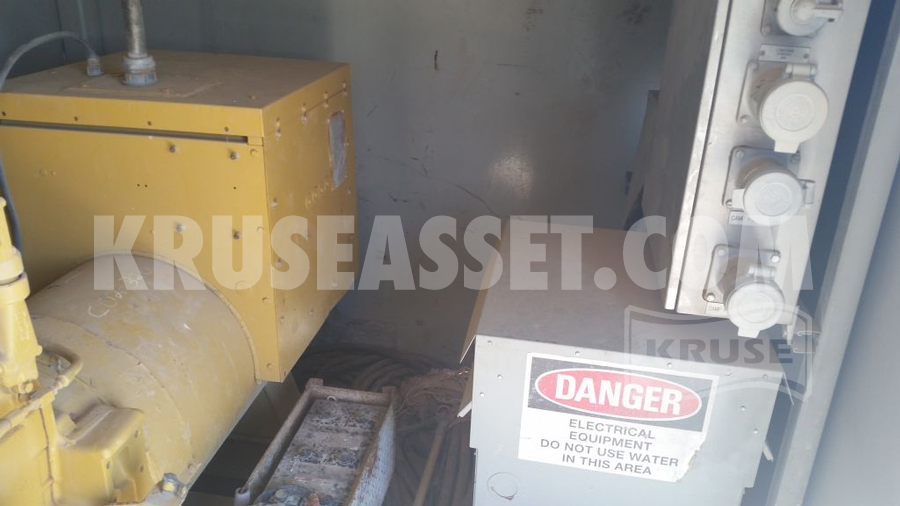

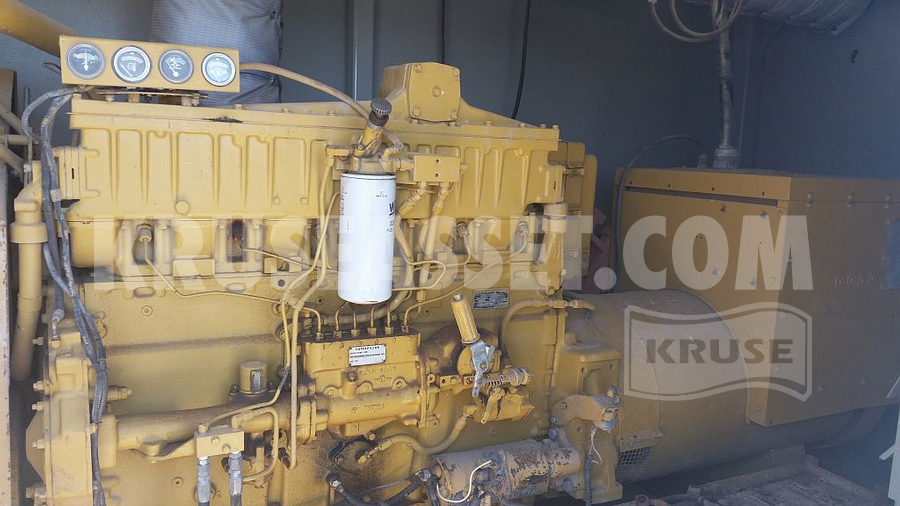

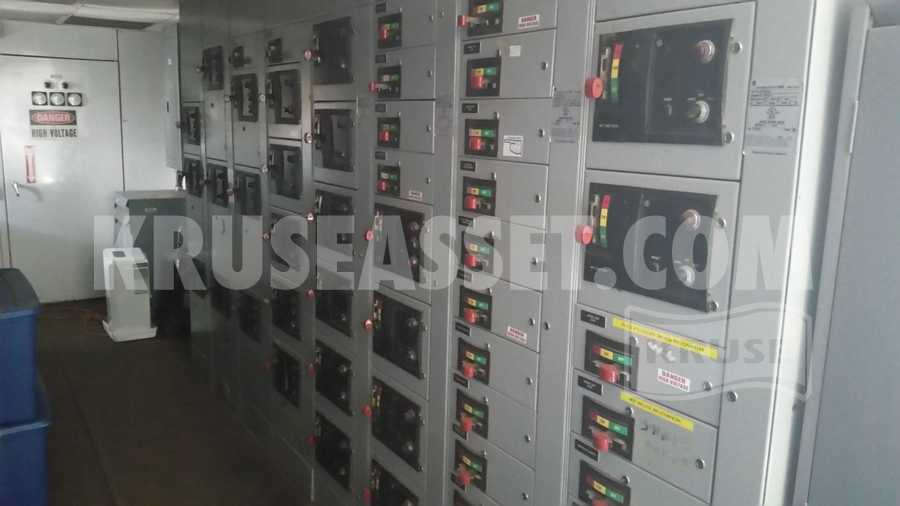

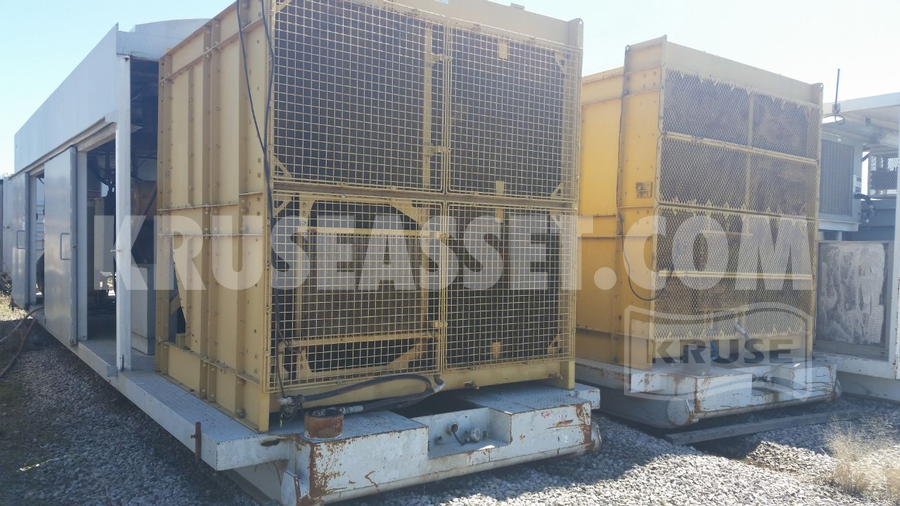

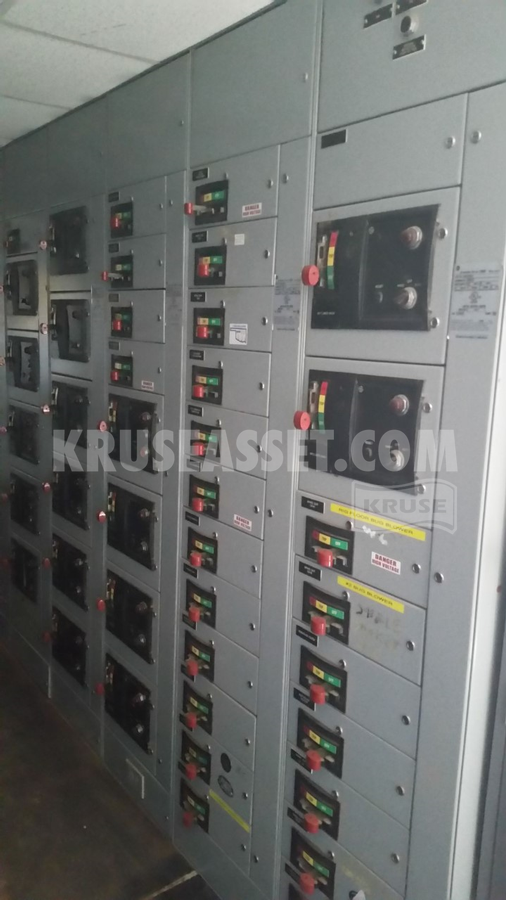

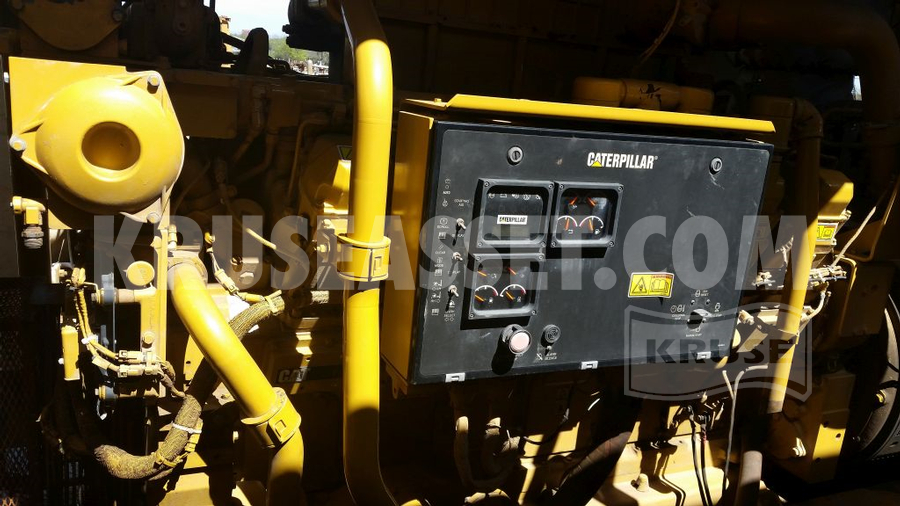

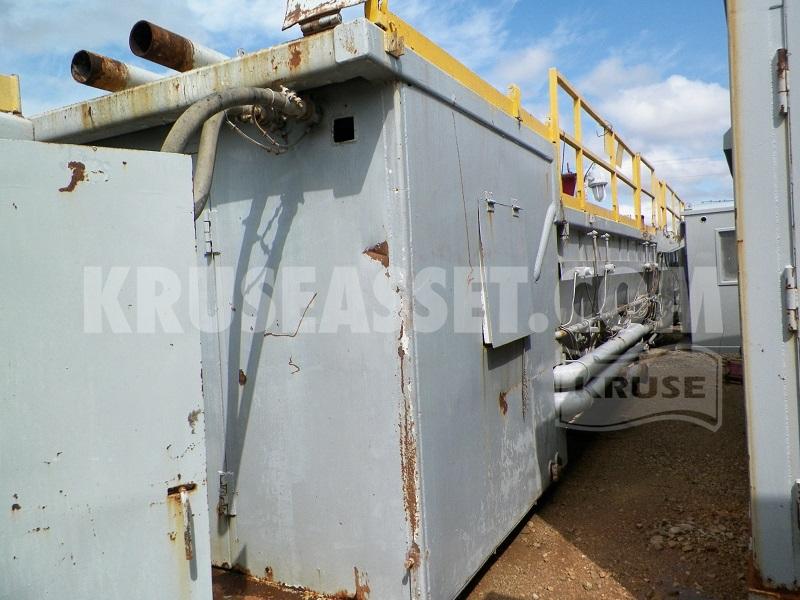

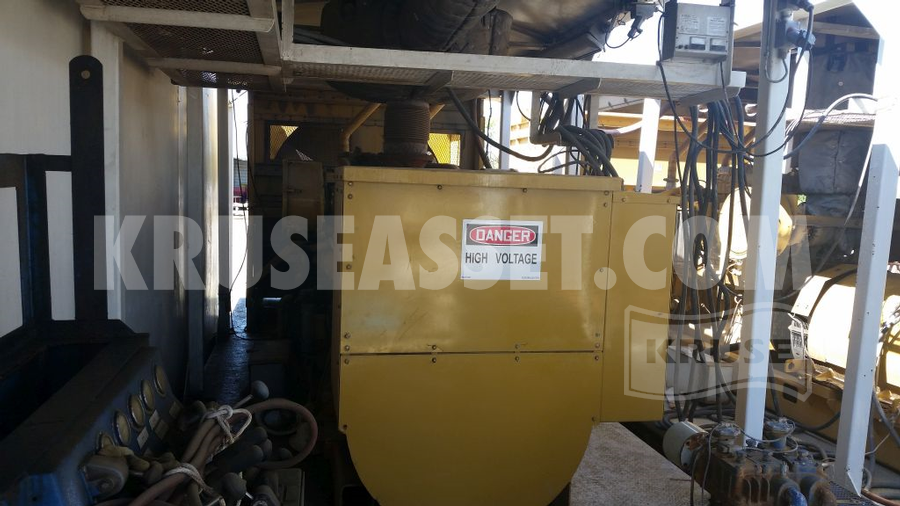

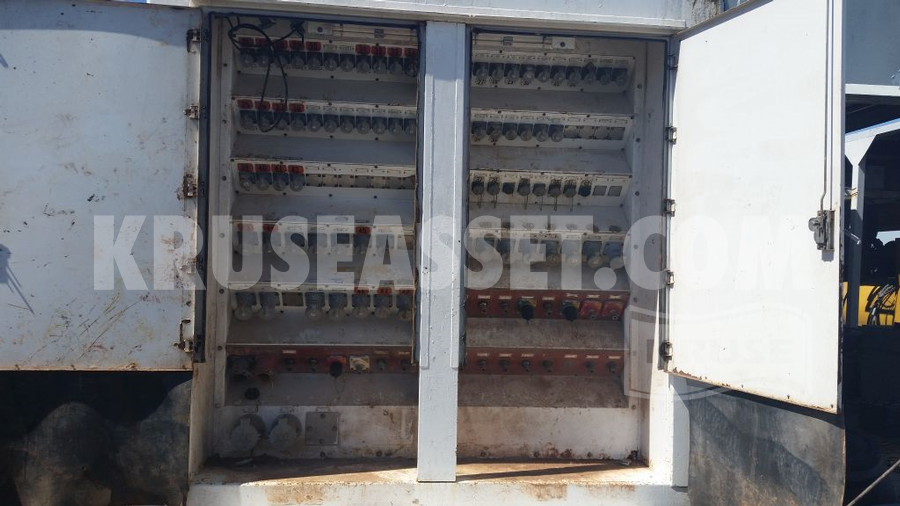

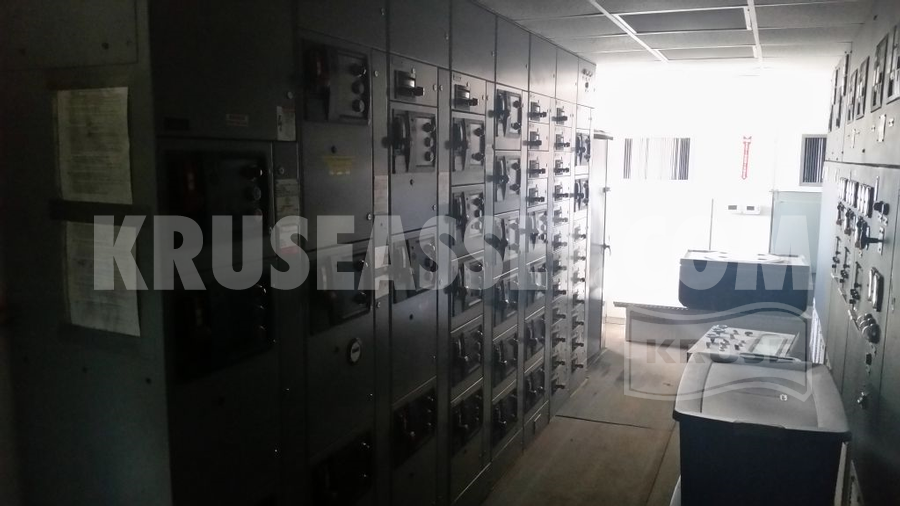

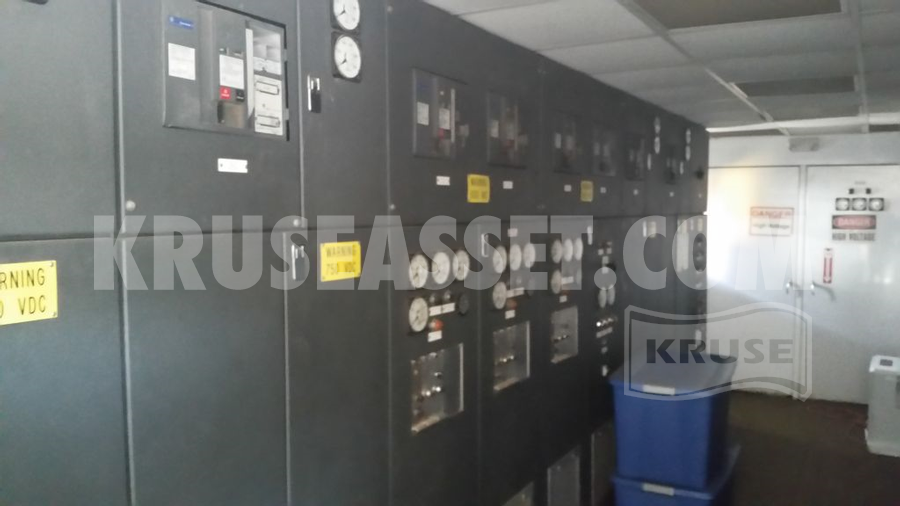

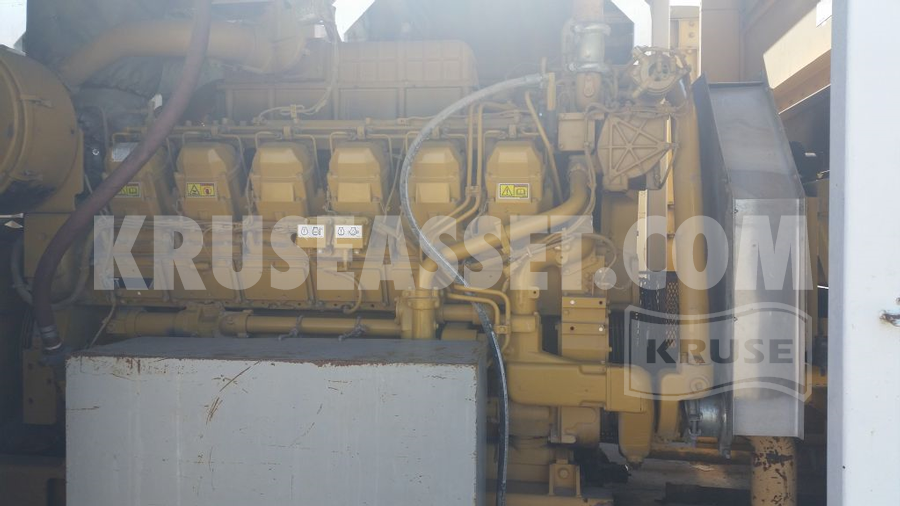

POWER –TWO (2) CAT 3512B DIESEL ENGINES WITH TWO (2) CAT1225 KW AC, GENERATORS AND IEC SCR I DRIVE, FOUR (4) BAYS TO POWER DRAWWORKS, PUMPS, LIGHTING AND HOTEL LOAD

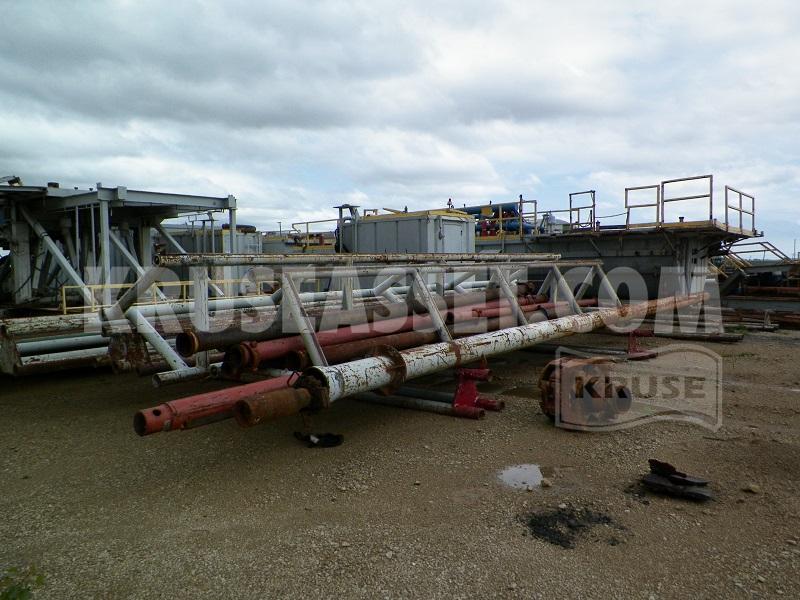

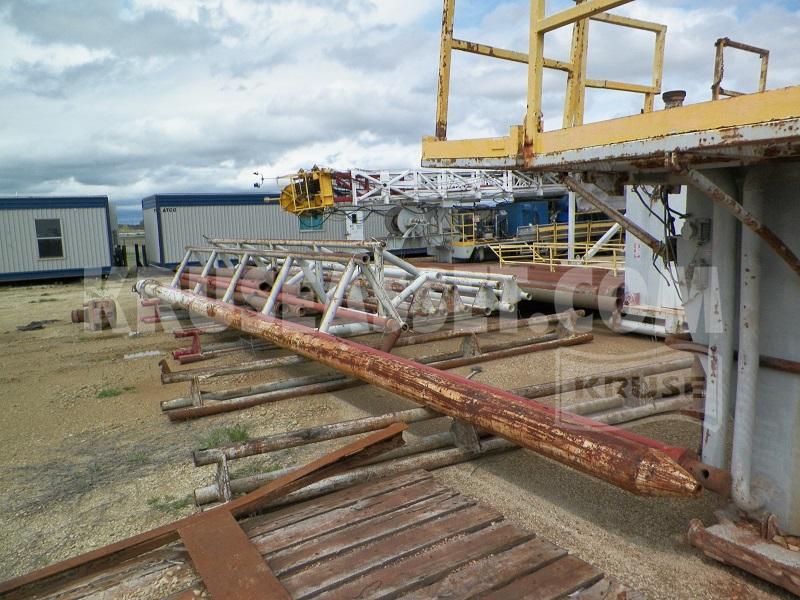

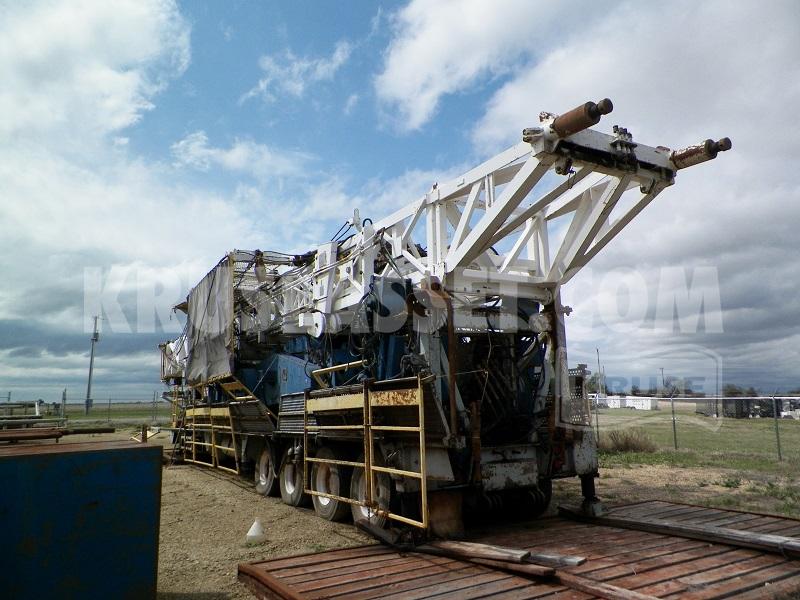

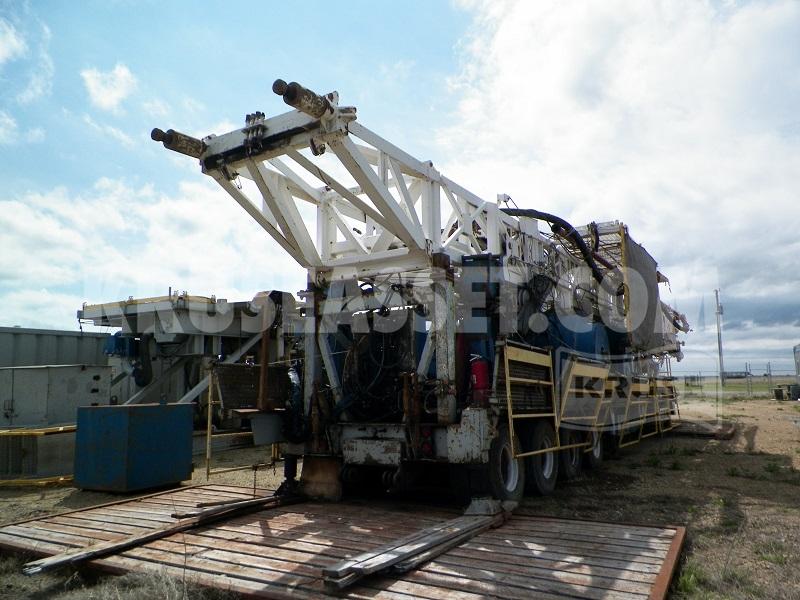

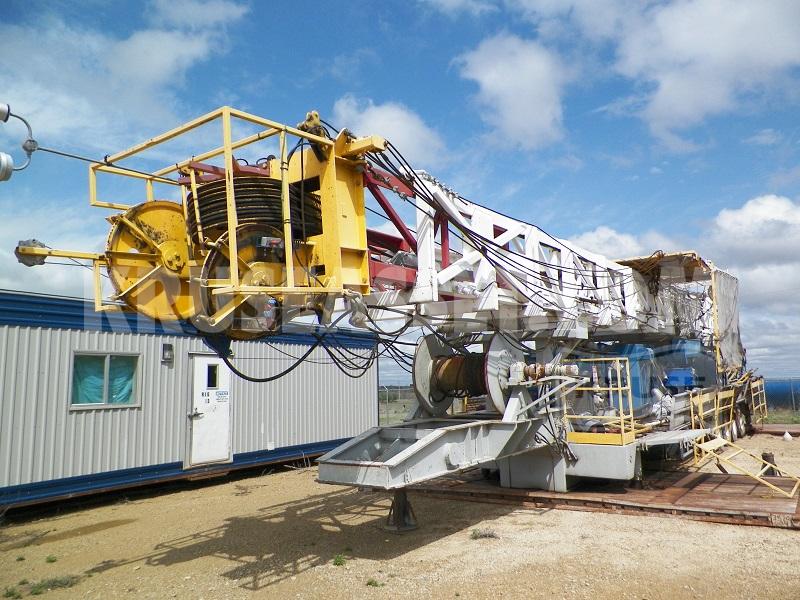

DERRICK – DSI 118’ WITH 425,000# SHL-MTD. ON A HEAVY-DUTY TRI-AXLE TRAILER

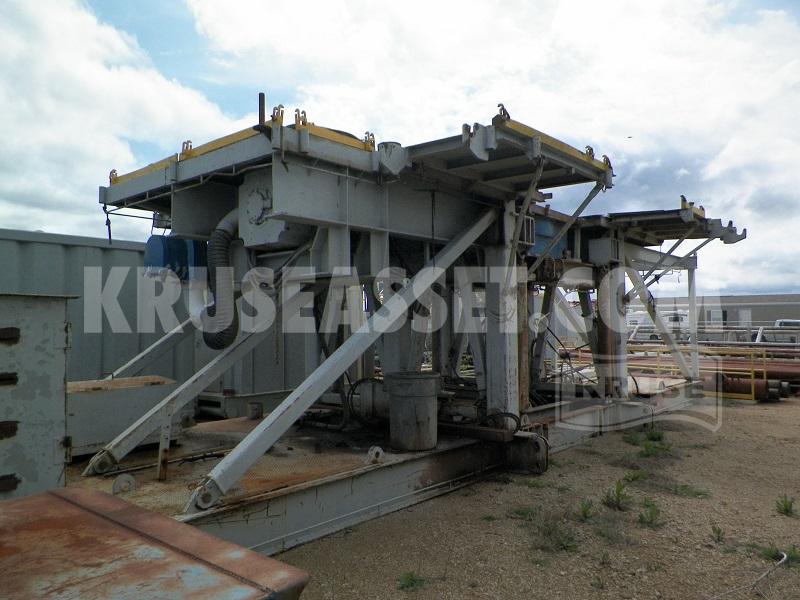

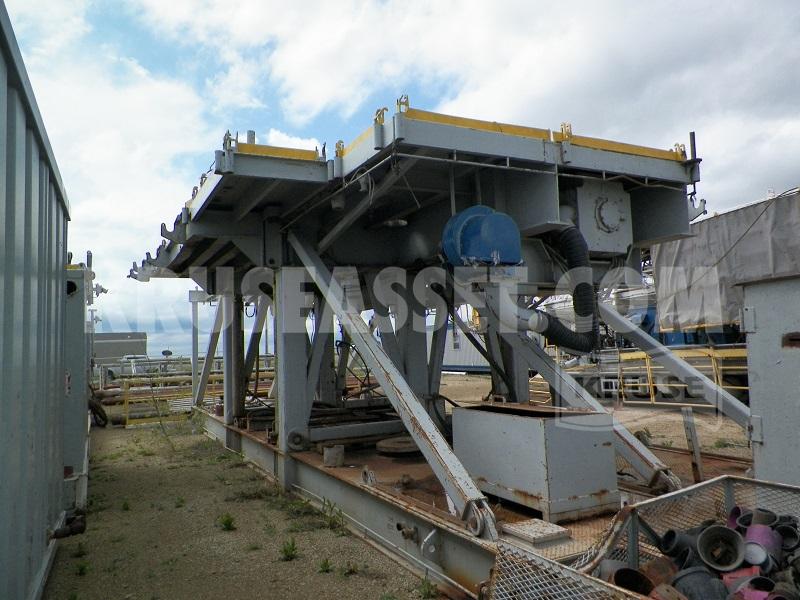

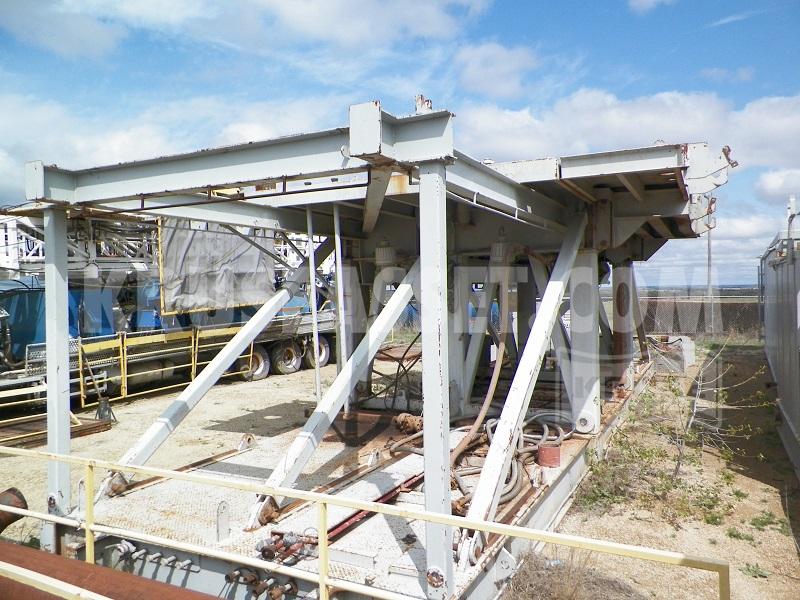

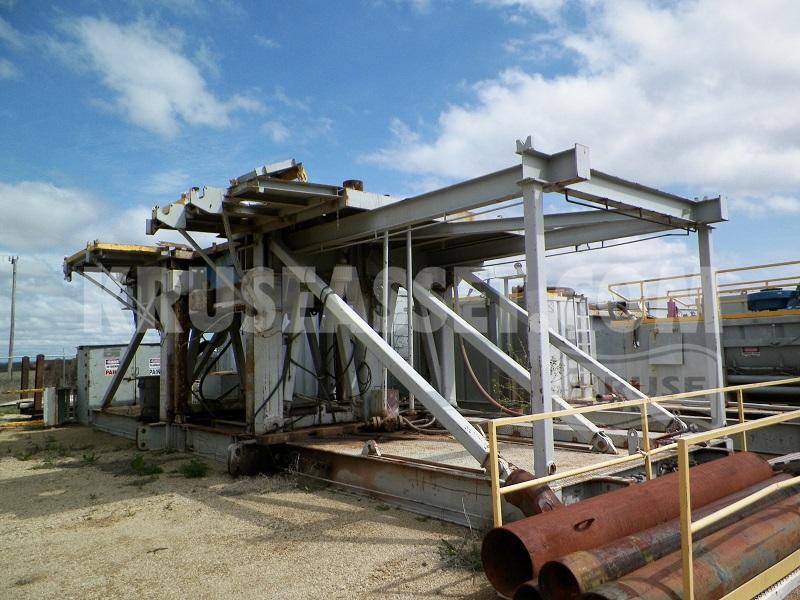

SUBSTRUCTURE – DSI 17’ TELESCOPING WITH 425,000 ROTARY CAPACITY WITH A SETBACK CAPACITY OF 300,000#, 15’ CLEAR HEIGHT FROM BOTTOM OF ROTARY TO GROUND

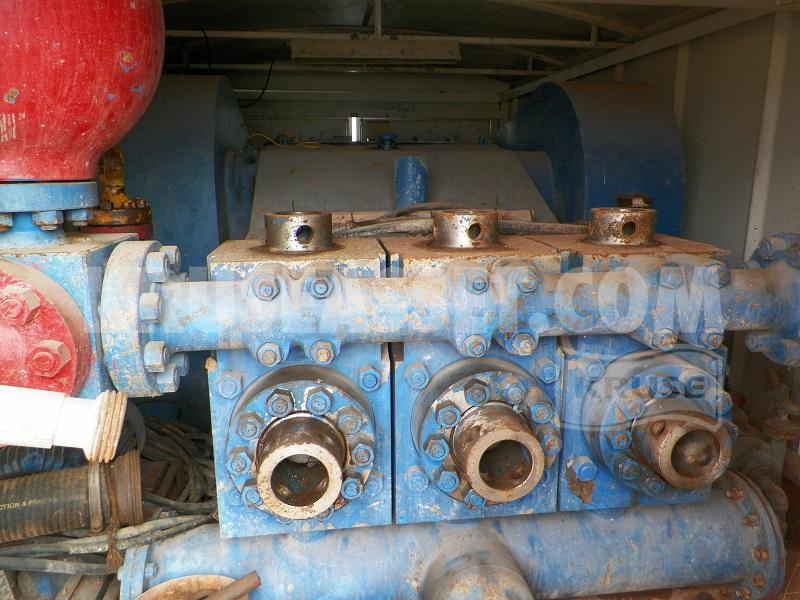

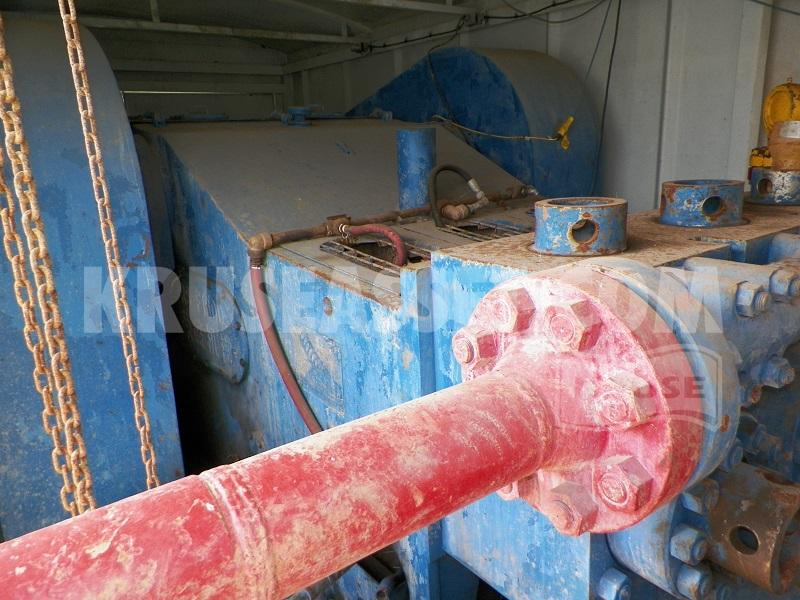

MUD PUMP – TWO (2) RS-F1600 EACH POWERED BY TWO (2) GE 752

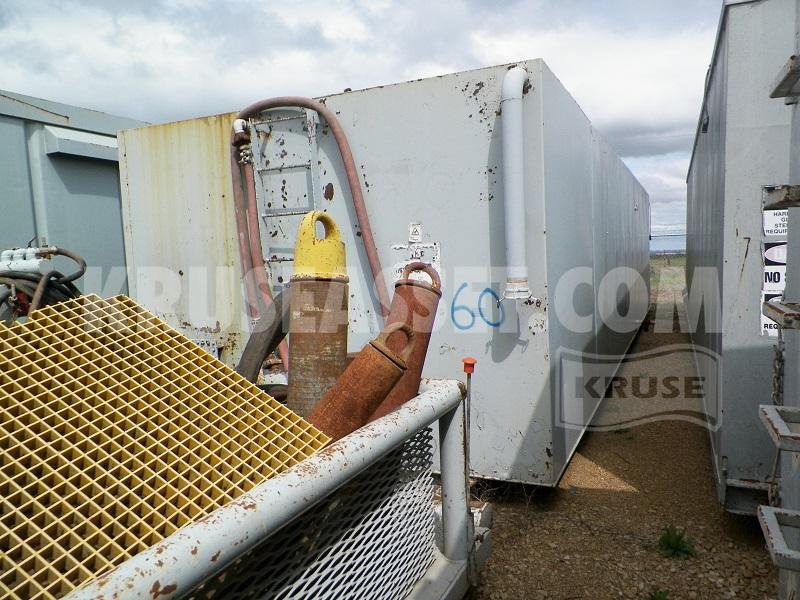

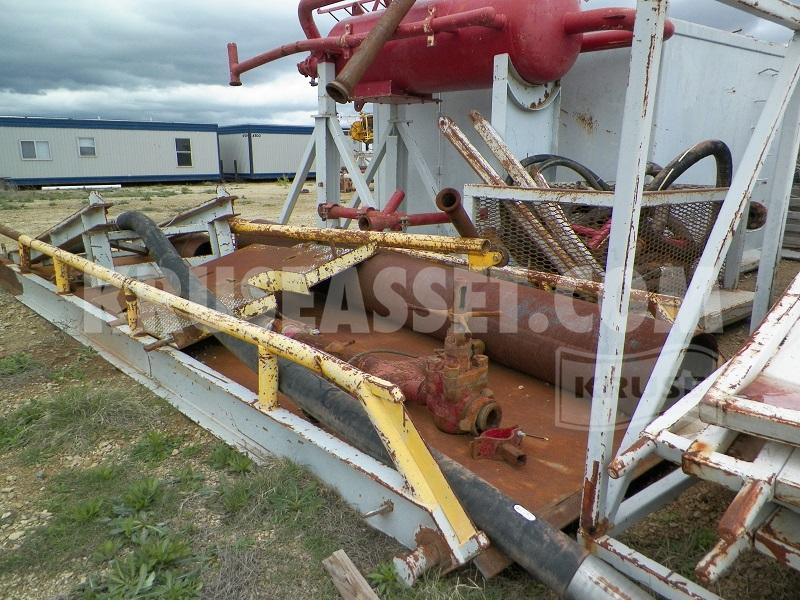

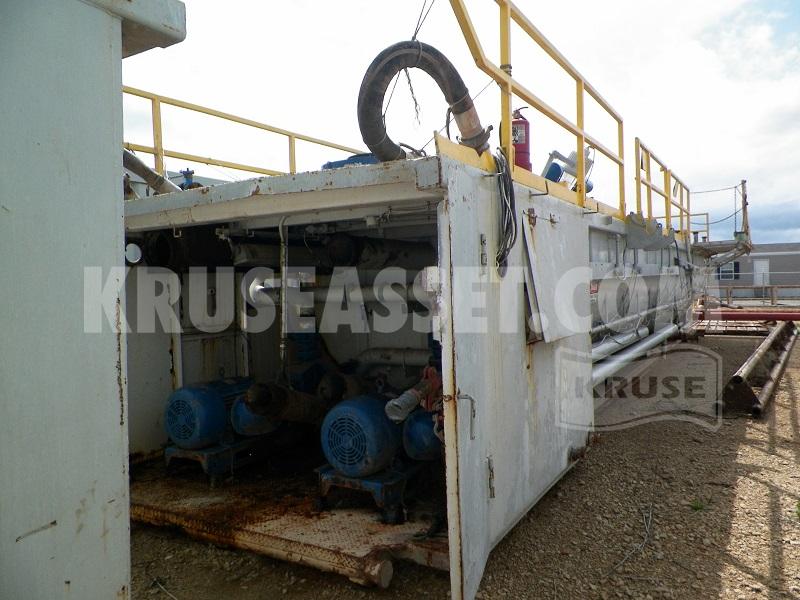

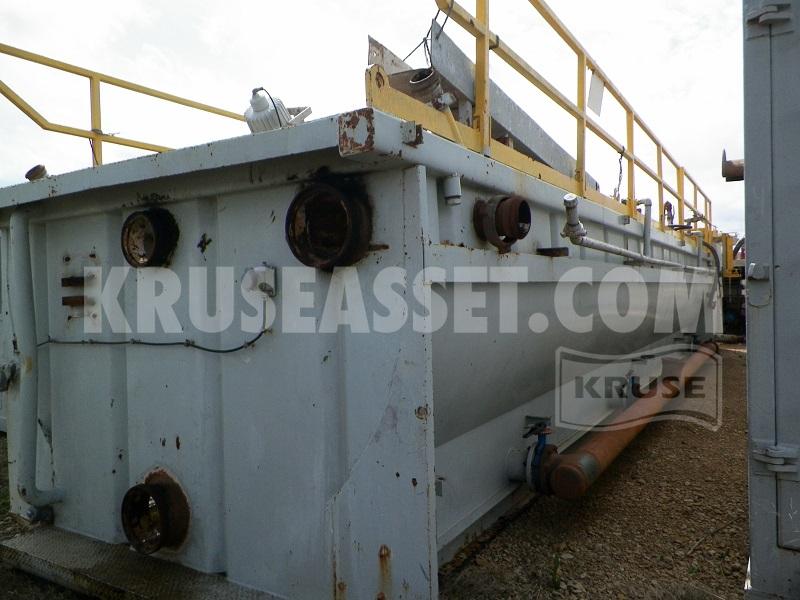

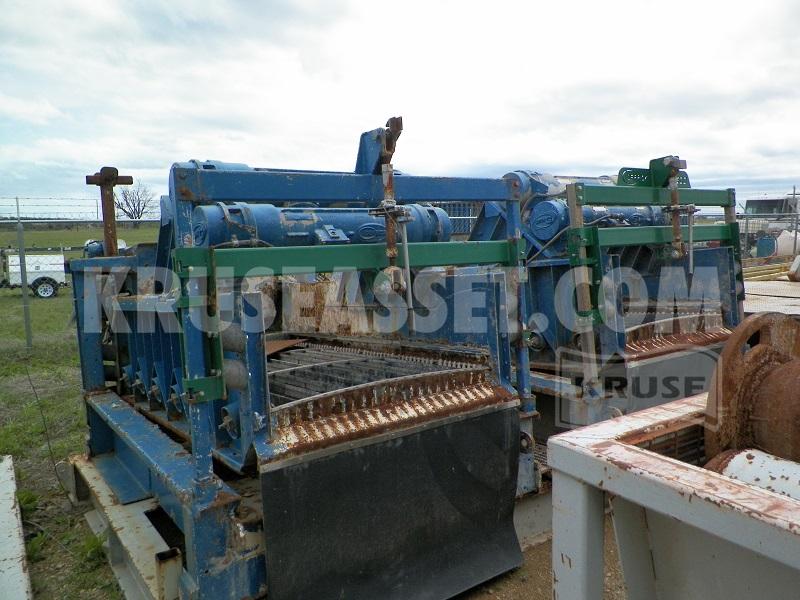

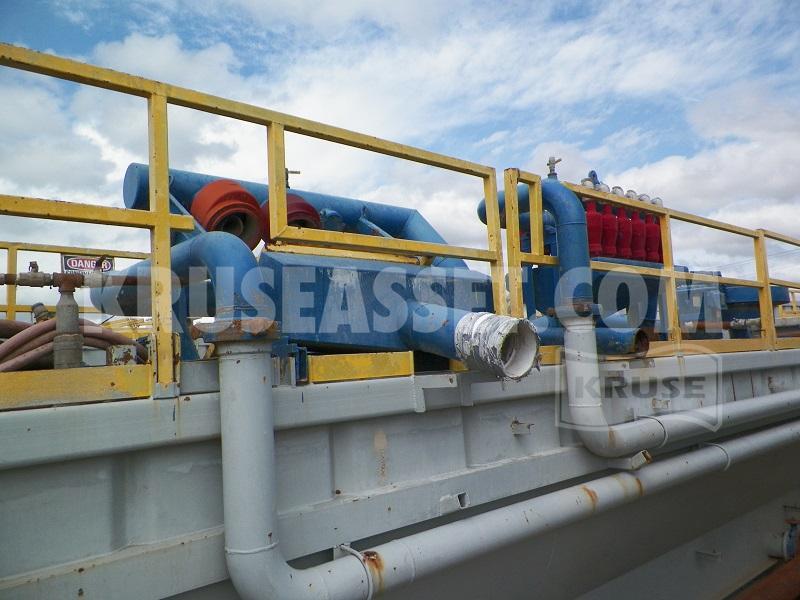

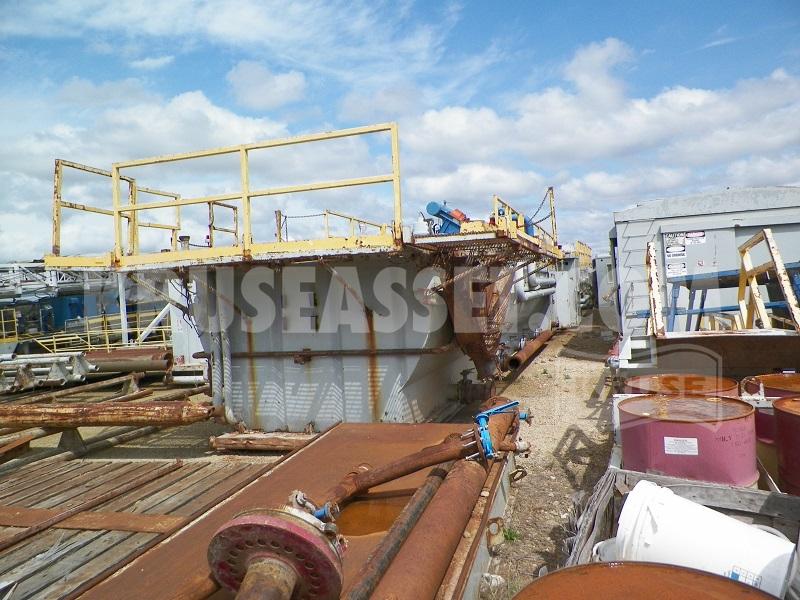

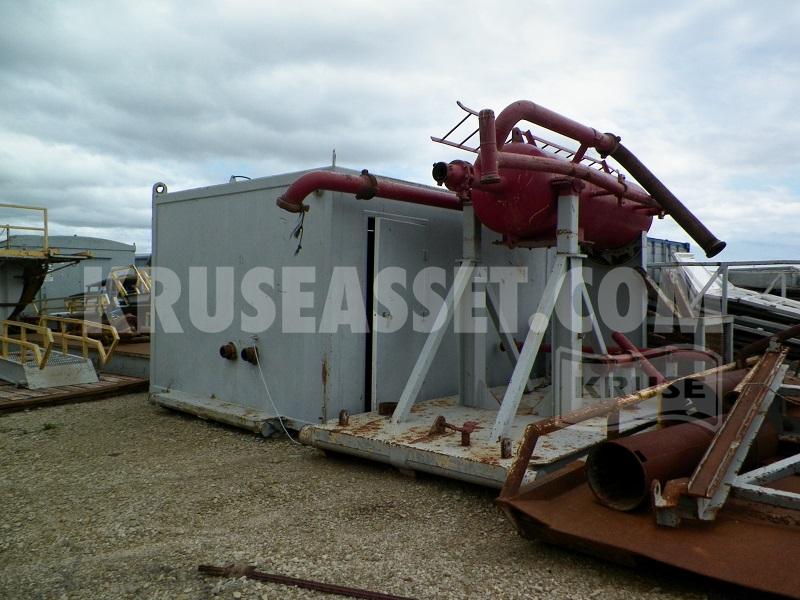

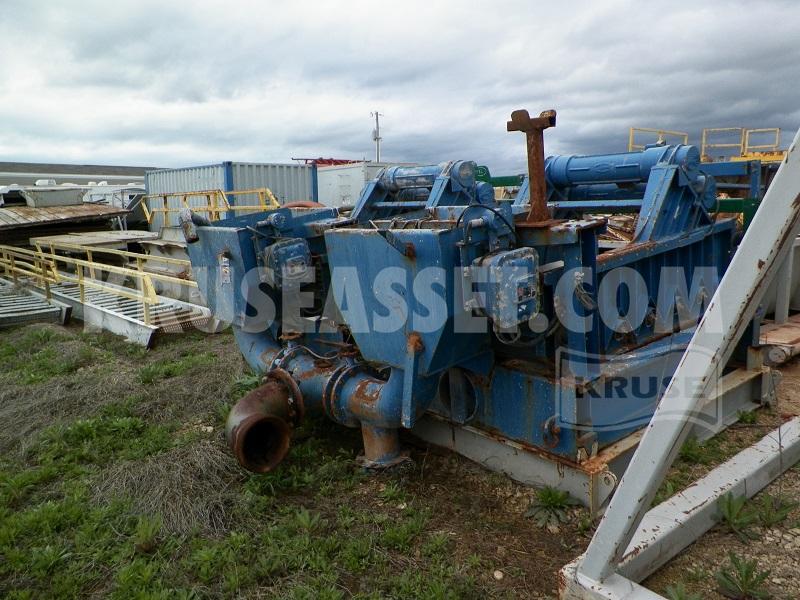

MUD SYSTEM –TWO (2) TANK 750 BBL SYSTEM, TWO (2) DERRICK HIGH “G” SHAKERS, DERRICK 2 CONE DESANDER, DERRICK 16 CONE DESILTER, DRILCO STYLE DEGASSER

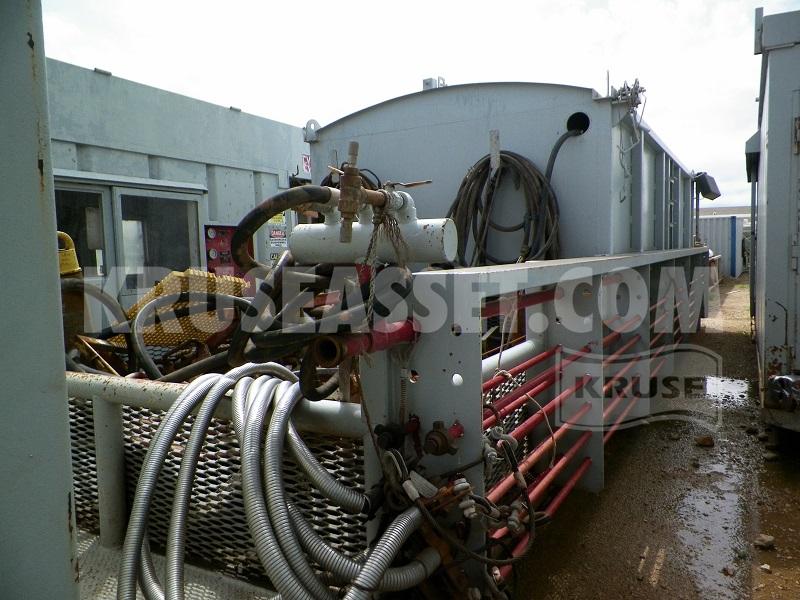

BOP’S–ANNULAR – TOWNSEND TYPE 84 11” 5000 PSI WP, PREVENTER – TOWNSEND TYPE 82 11” 5000 PSI WP DOUBLE RAM, ACCUMULATOR SYSTEM – CHILES (5) STATION 180 GAL WITH REMOTE   CONTROL

CHOKE MANIFOLD – 4” X 2” 5000 PSI WP

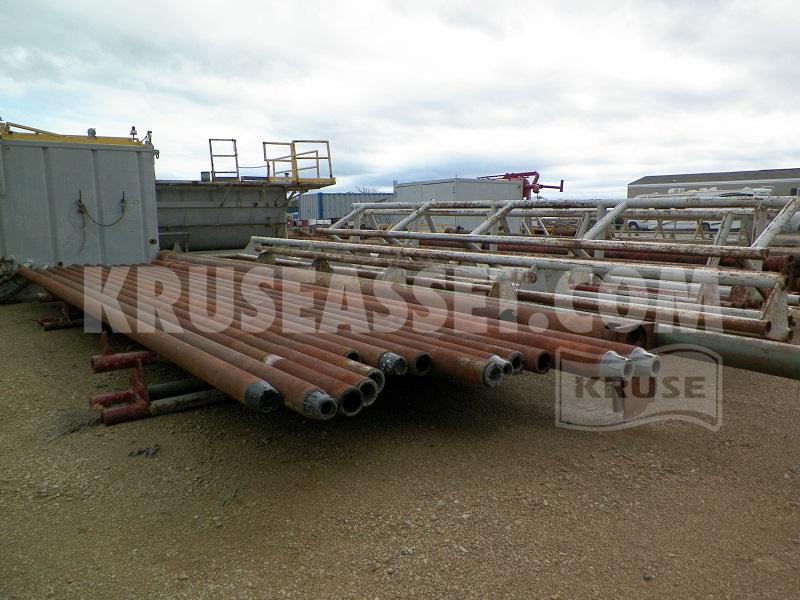

DRILLPIPE – 4-1/2” OD 10,000’ GRADE “E”

DRILL COLLARS –   AS REQUIRED (18) COLLARS INCLUDING: (4) 8” COLLARS, (14) 6” COLLARS

DRILL LINE – 1-1/8” EIPS, 3,500 FEET

TOP DRIVE – NOV TDS – 10SA, 250 TON

BLOCK AND HOOK – 250 TON AMERICAN BLOCK

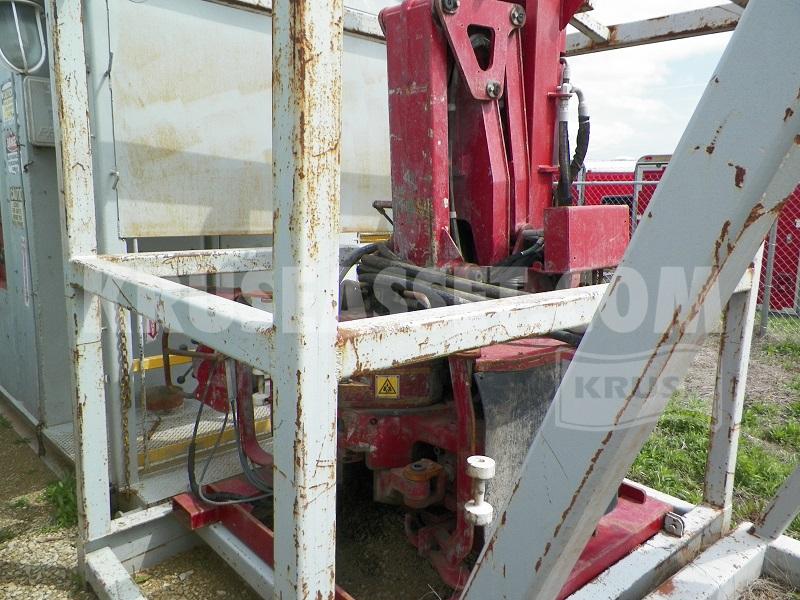

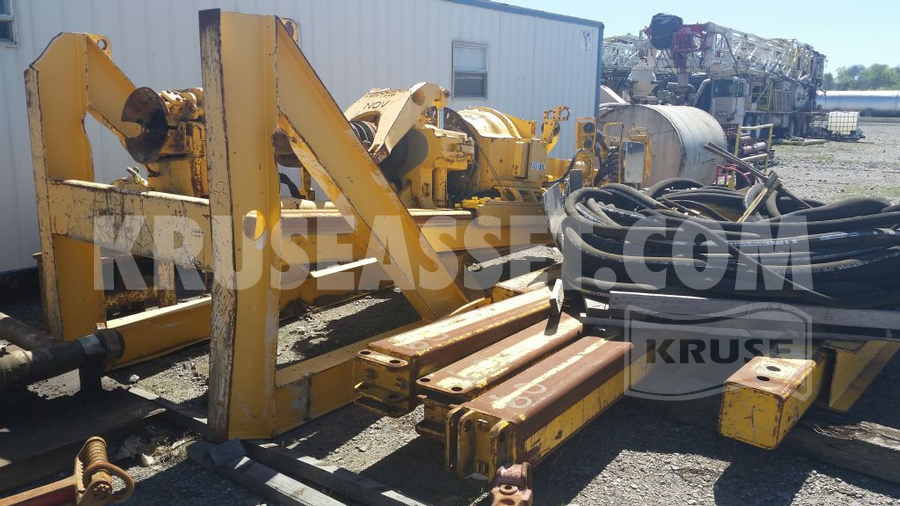

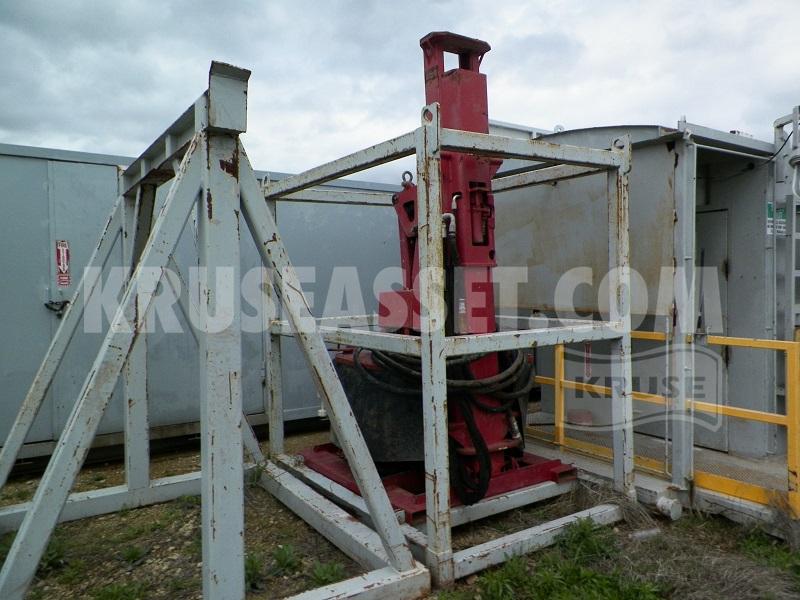

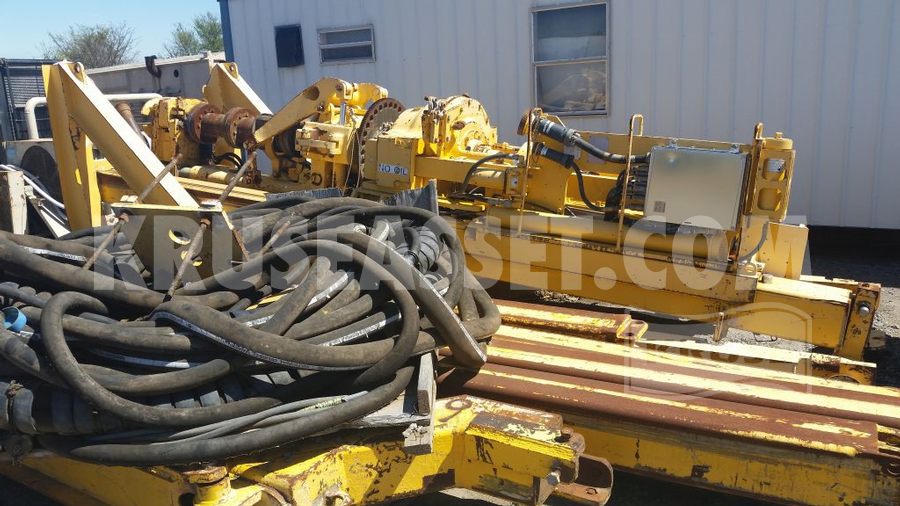

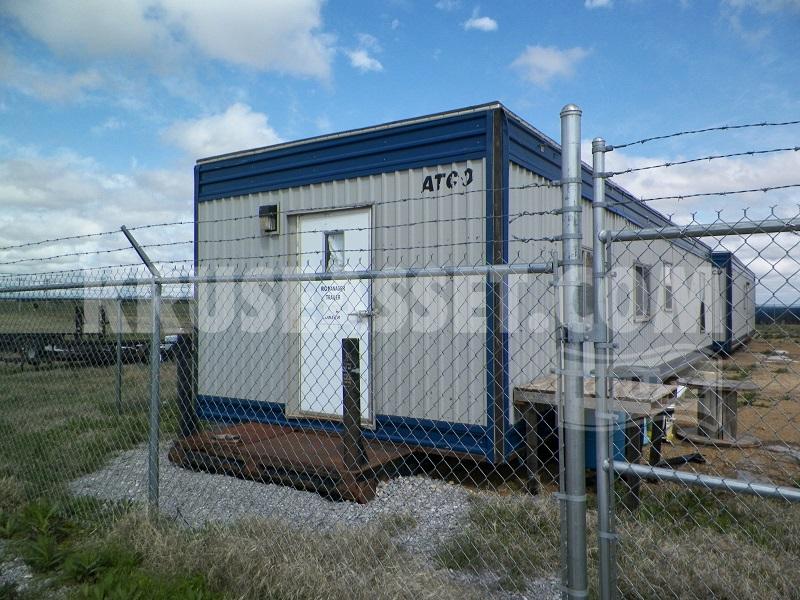

AUXILLARY EQUIPMENT – NOV IRON ROUGHNECK TYPE ST 80-C, TOOLPUSHER QUARTERS, ONE (1) 300 BBL WATER TANK. AUTOMATIC DRILLER (PASON), 200 BBL FUEL TANK

Listing No. 217
