Listing Details

MESA 1500 HP MECHANICAL DRILLING RIG

DRAWWORKS:

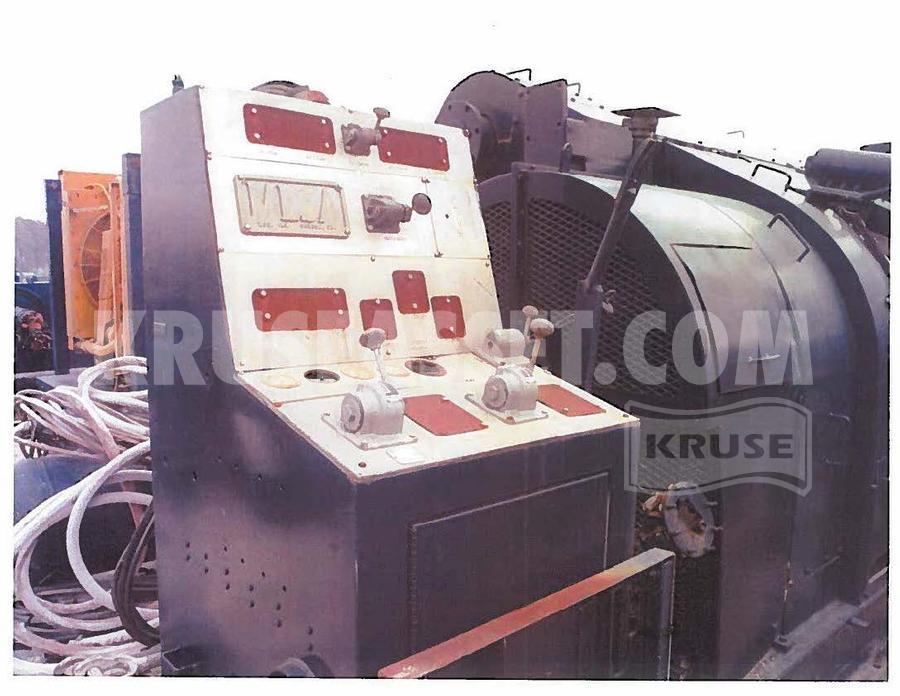

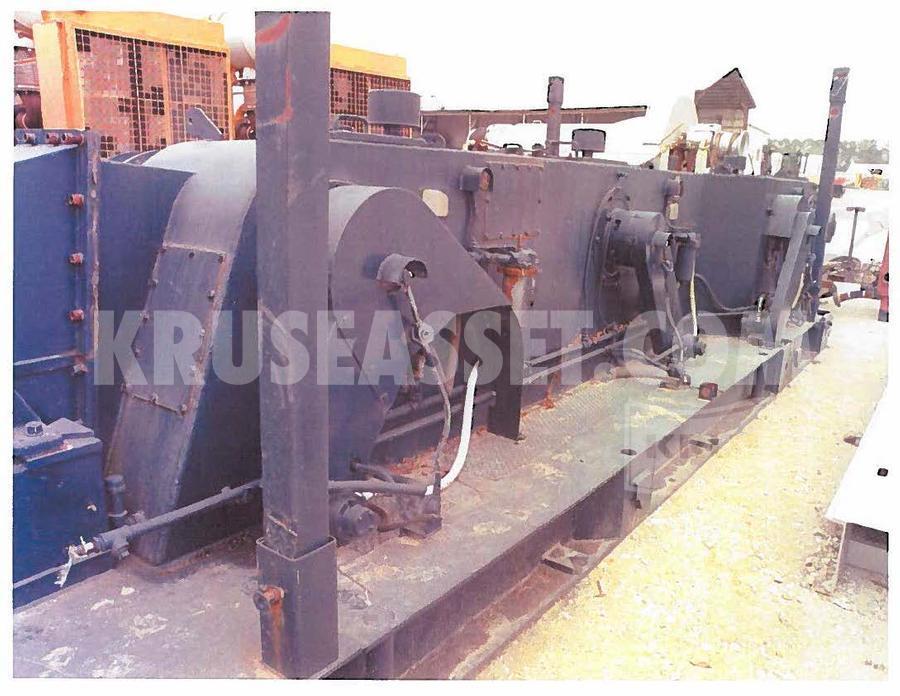

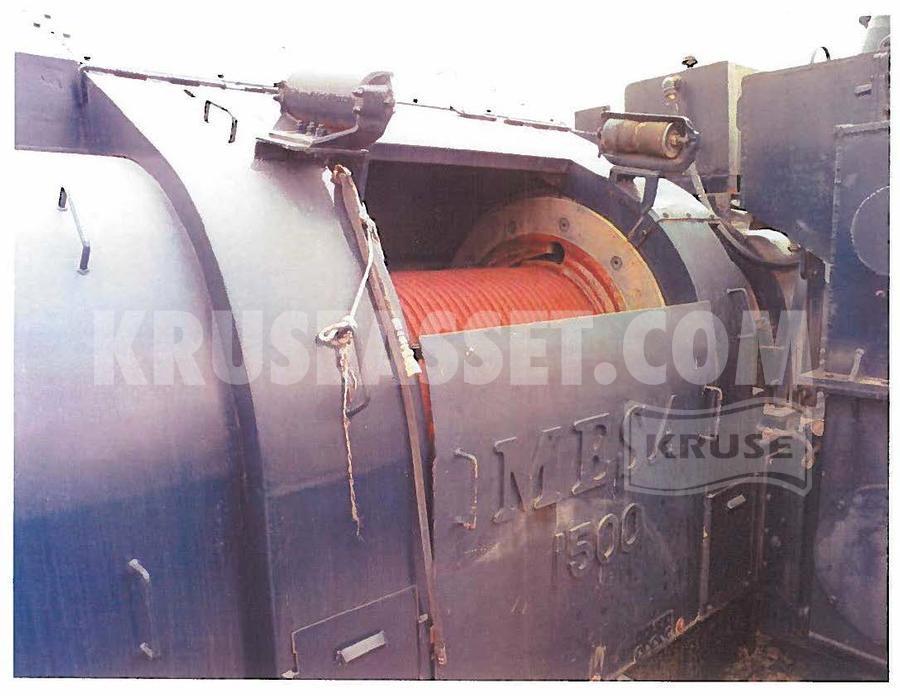

MESA MFG. MODEL 1500 SINGLE DRUM DRAWWORKS, S/N NA, 1,500 INPUT H.P. RATING, SIX FORWARD AND TWO REVERSE DRUM   SPEEDS, THREE  ROTARY DRIVE SPEEDS, 1318" LEBUS GROOVED DRUM, WATER COOLED DRUM  BRAKES,OUTBOARD MOUNTED DRUM CLUTCHES, PARMAC 60" AUXILIARY HYDROMA TIC BRAKE WITH OVERRUNNING CLUTCH, RIGHT ANGLE DRIVE GEAR BOX, WITH SPICER DRIVE FLANGE, WIRE LINE GUIDE ROLLERS,DRILLER'S CONTROL CONSOLE, MOUNTED AND UNITIZED ON A STEEL OILFIELD MASTER SKID WITH LOADING HITCHES

CATWORKS:

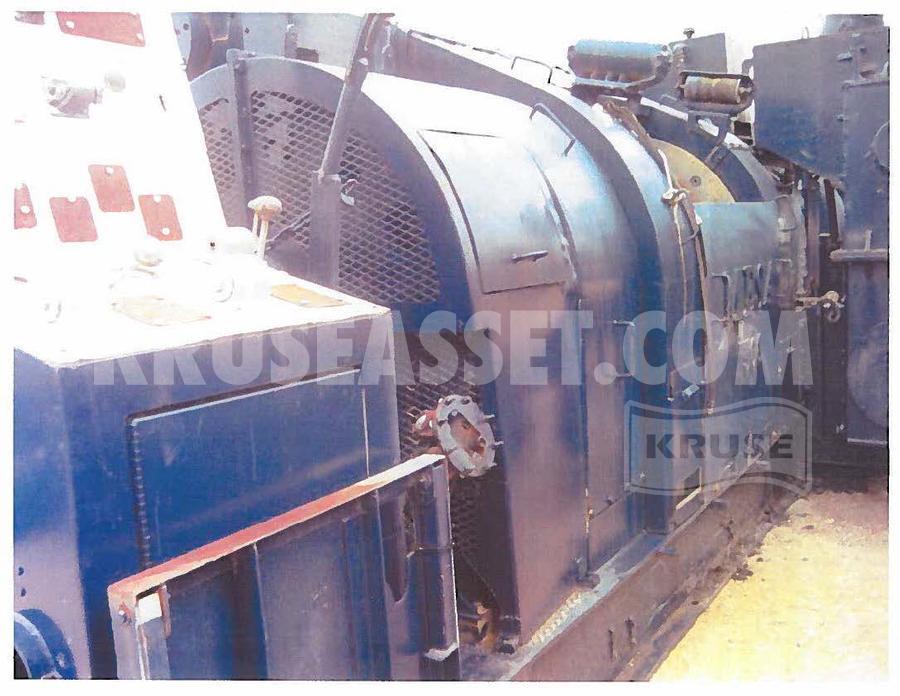

MESA MFG.MODEL 1500 CA TWORKS, S/N NA, WITH FOSTER STYLE MAKE-UP AND BREAK-OUT CATHEADS, SPINNING CHAIN ROLLERS,DRILLER'S CONTROL CONSOLE,MOUNTED AND UNITIZED ON A STEEL OILFIELD  MASTER SKID WITH LOADING  HITCHES

AUXILIARY BRAKE:

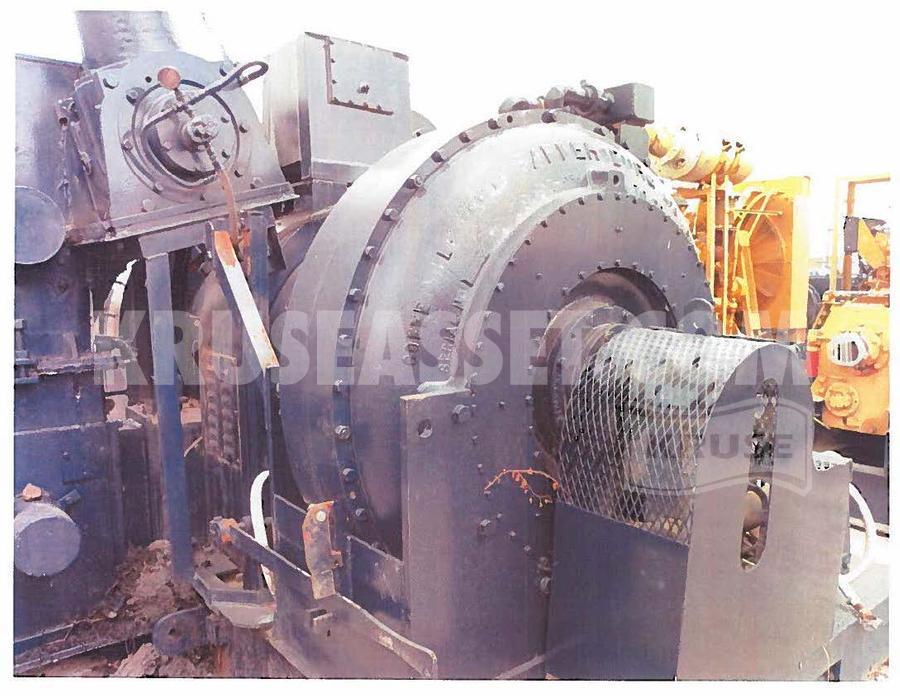

PARMAC 60" SR SINGLE ROTOR (UNITIZED WITH DRAWWORKS)

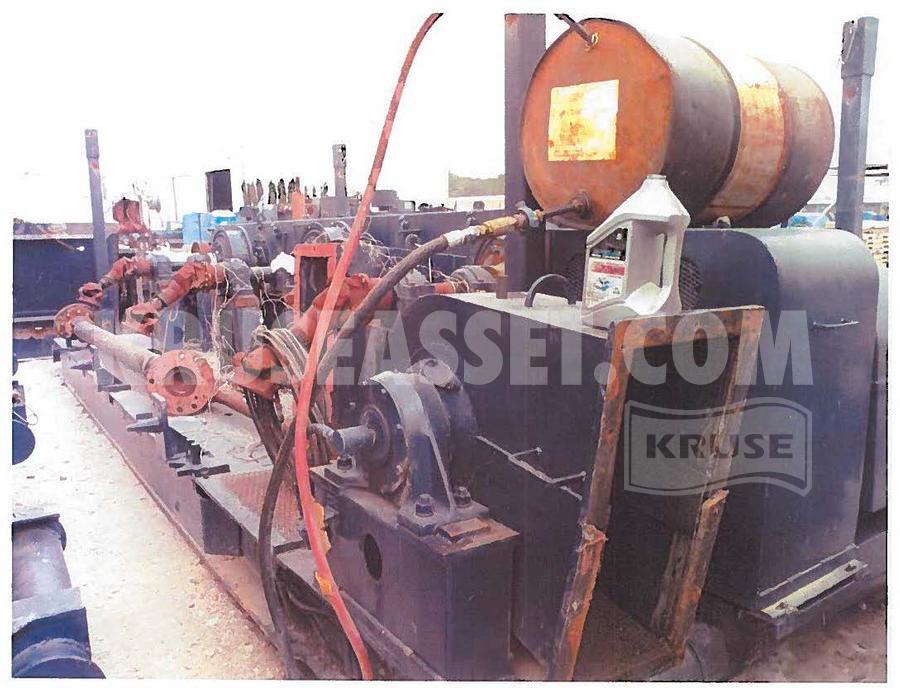

ENGINE COMPOUND:

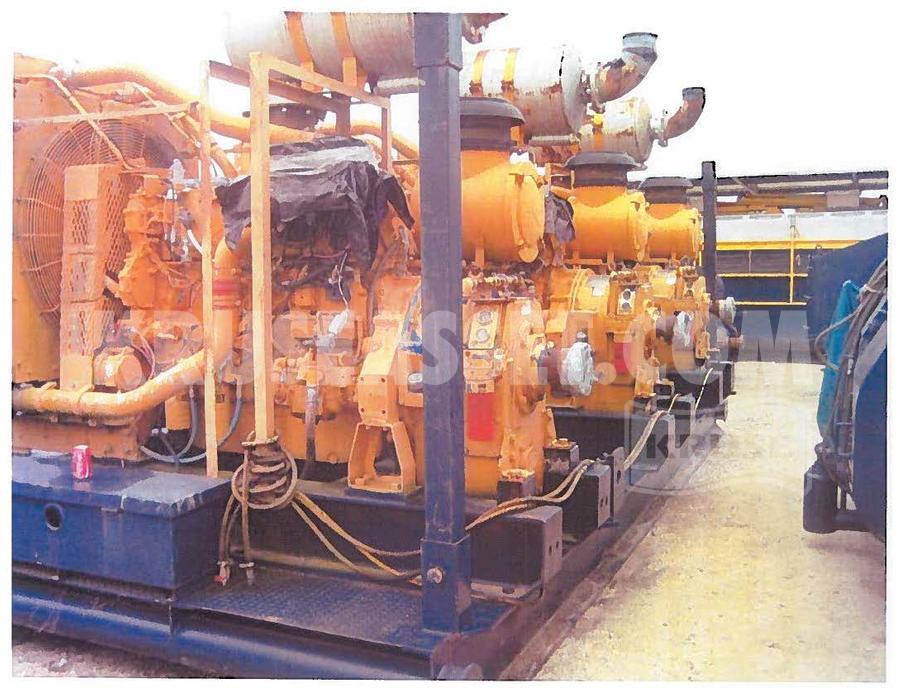

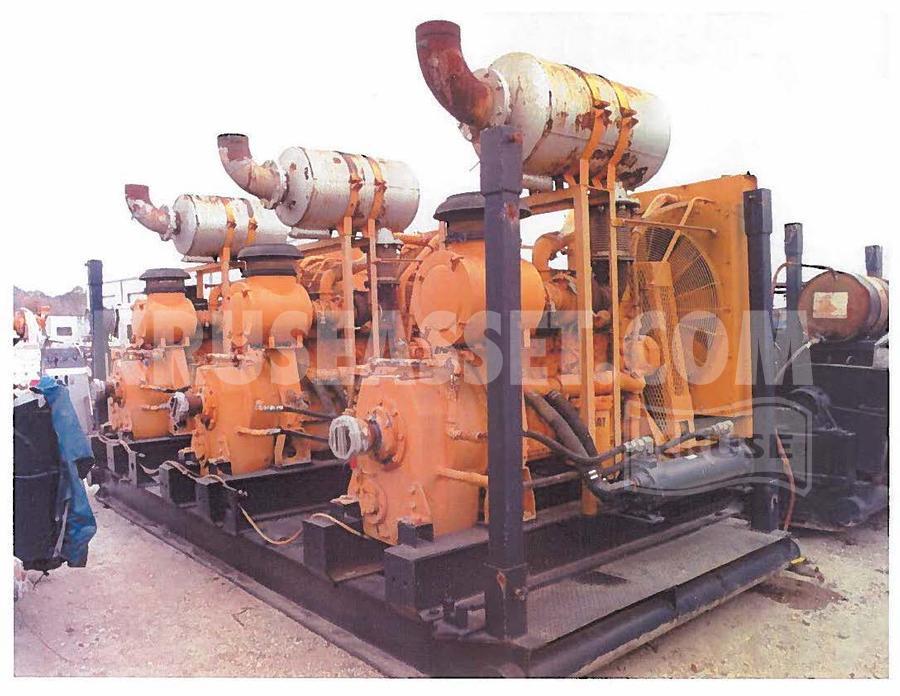

1,500 INPUT H.P. 3-ENGINE COMPOUND,COMPLETE WITH THE FOLLOWING:  :  THREE (3) EACH: CAT MODEL C-18 DIESEL  ENGINES, S/N NJH00406, S/N NJH00410 AND S/N NJH00640; COMPLETE WITH RADIATORS,MUFFLERS, INSTRUMENT GAUGE PANELS, AIR STARTERS, FRONT BUMPER RAILS,UNITIZED WITH OIL WORKS  MODEL C195-100-FH  TORQUE CONVERTERS, WITH OIL COOLERS,WITH ENGINE SKIDS;UNITIZED WITH ENGINE COMPOUND, ROLLER CHAIN DRIVEN SPROCKETS, WITH AIR CLUTCHES,PEDESTAL MOUNTED PILLOW BLOCK BEARINGS, DRIVE SHAFTS WITH COMPANION FLANGES, AIR COMPRESSOR (BELT DRIVENFROM COMPOUND WITH BELT GUARD), 4-POST  TELESCOPING  SLOPED ROOF (ROOF NOT MOUNTED); ALL  ABOVE  MOUNTED AND UNITIZED ON A STEEL MASTER OILFIELD SKID WITH LOADING  HITCHES

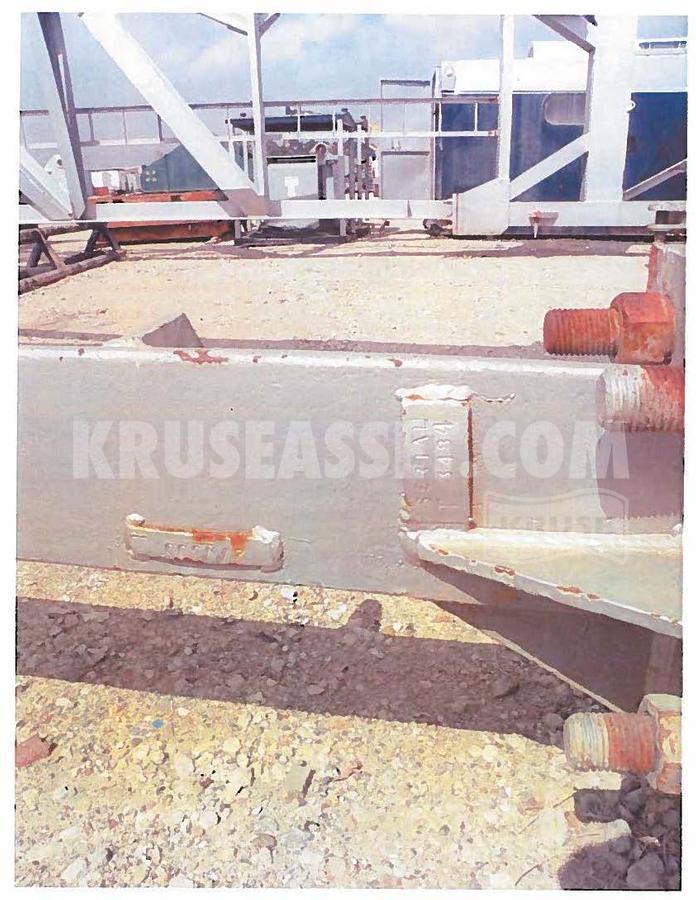

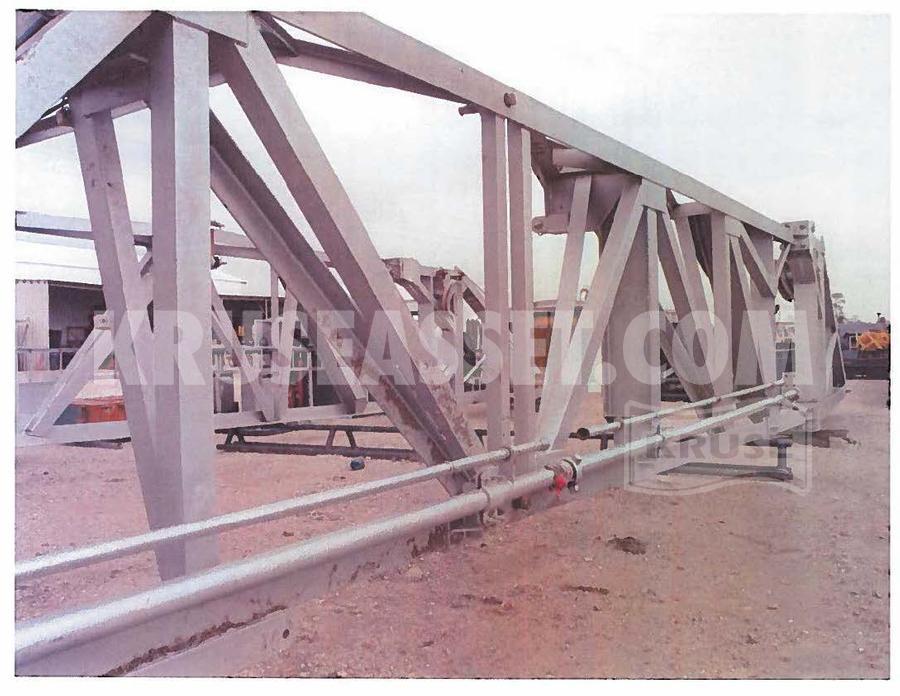

MAST:

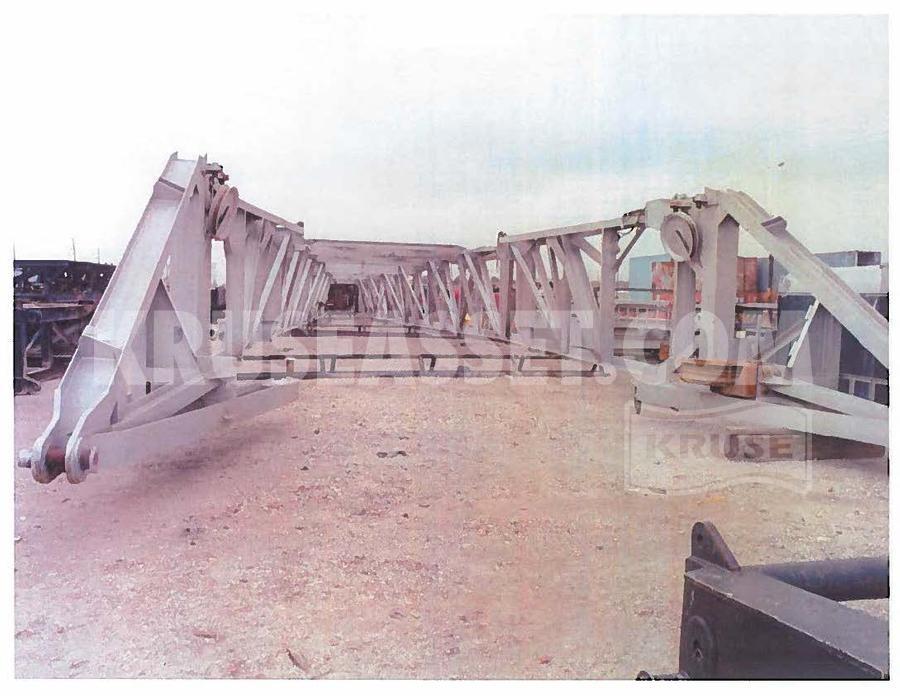

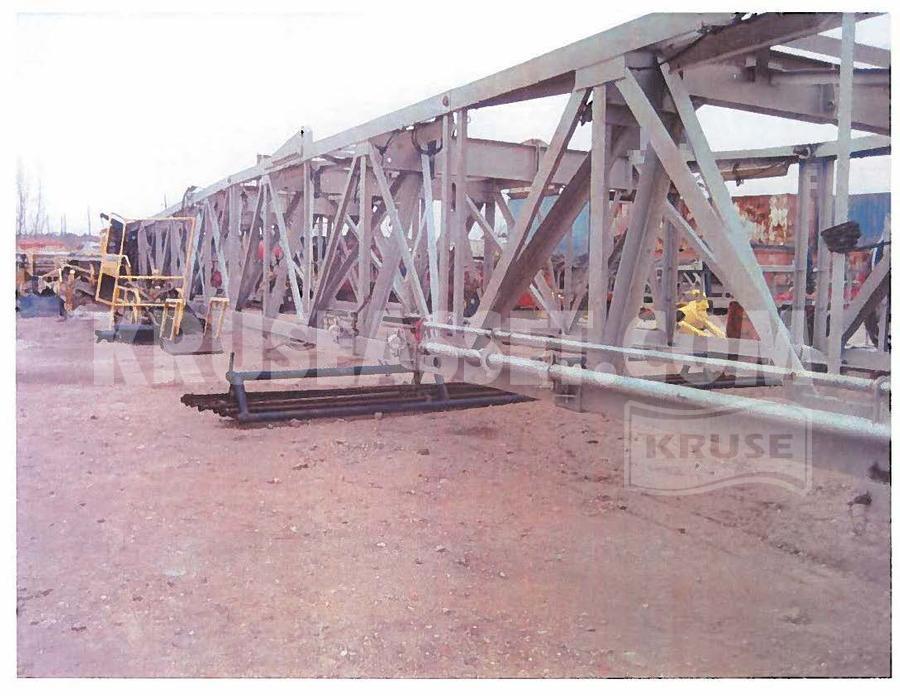

LEE C MOORE 142' H  MAST, S/N T3484,25' LEG SPREAD,1,385,000 LB.HOOK LOAD (12 LINE), ANGLE IRON CONSTRUCTION, STARTING LEGS, RACKING BOARD, 6-SHEAVE CROWN  BLOCK ASSEMBLY W/(1) FASTLINE SHEAVE, GROOVED FOR 1 318"WIRE LINES, STANDPIPE MANIFOLD, 4" x 55' L ROTARY HOSE, TONG COUNTERWEIGHTS., WITH MAST STAND

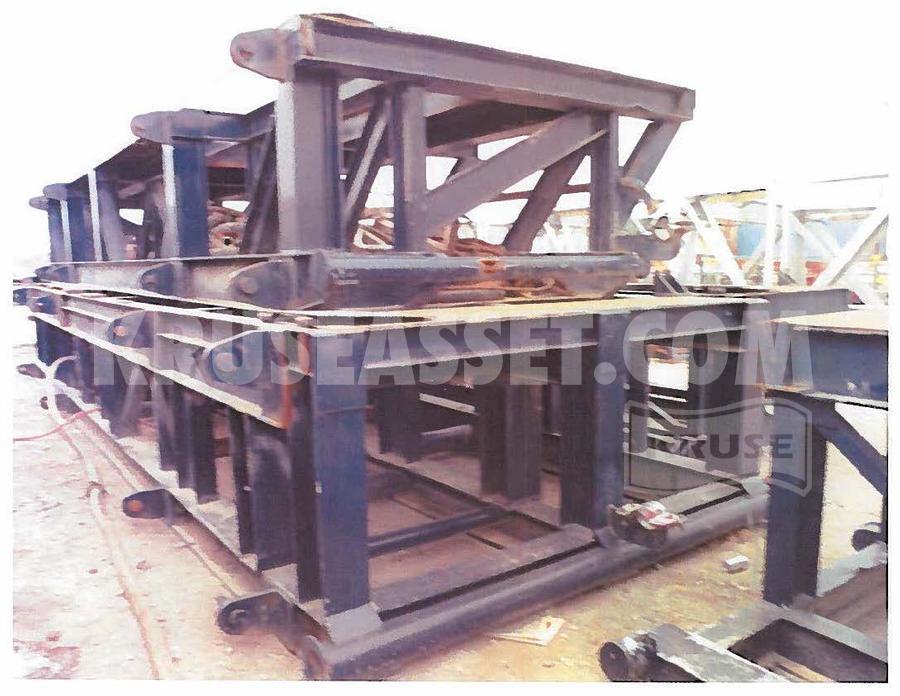

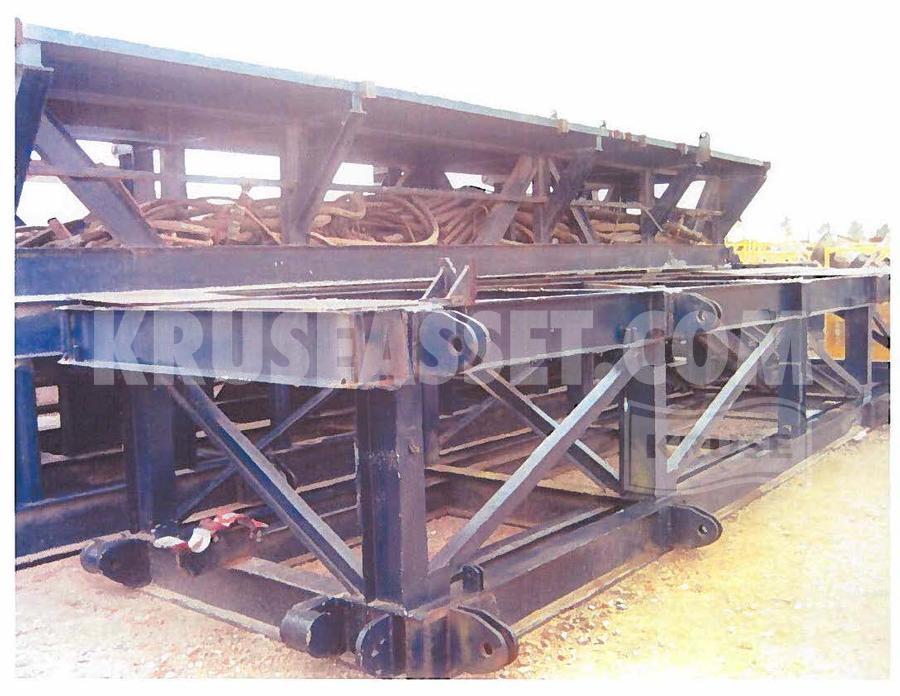

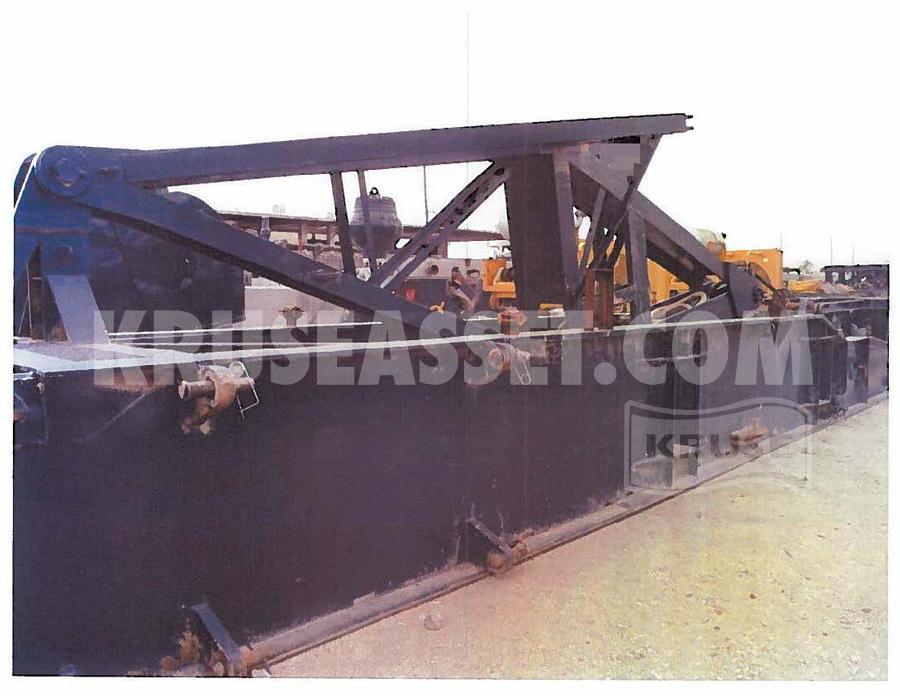

SUBSTRUCTURE:

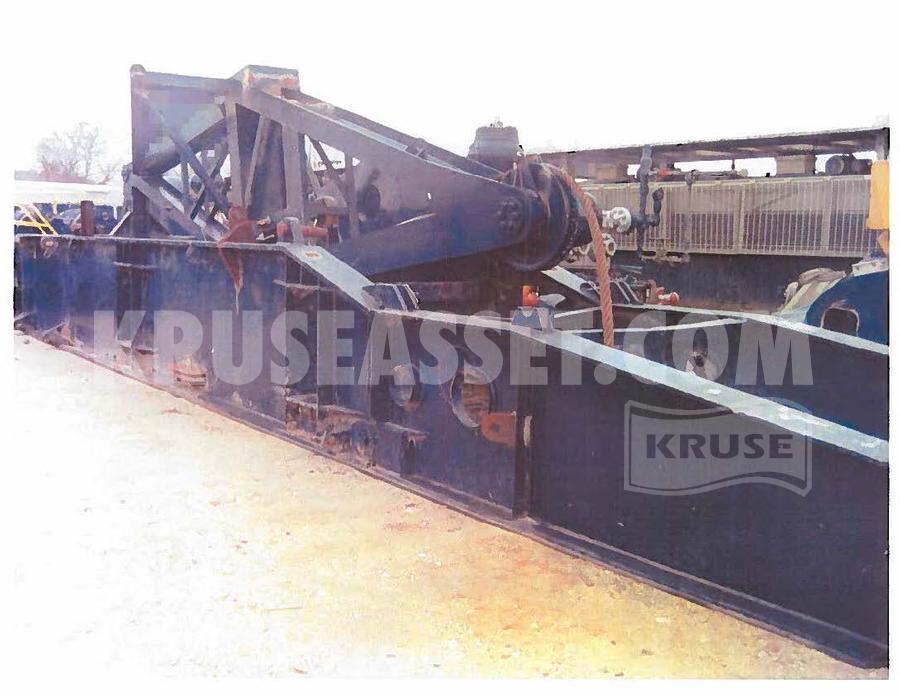

APPROX. 22'HIGH (SPLIT LEVEL DESIGN) SUBSTRUCTURE (APPROX.17'-18' ROTARY BEAM CLEARANCE), V-DOOR, STAIRS, HANDRAILS, NATIONAL TYPED WIRELINE ANCHOR (PARCO STYLE) (DATA PLATE UNAVAILABLE)

ROTARY TABLE:
T. CLAY 27112" x 53114" ROTARY TABLE, WITH VARCO MSPC PIN DRIVE MASTER BUSHING, WITH PIN DRIVE KELLY DRIVE BUSHING, BIT BREAKER ADAPTER PLATE

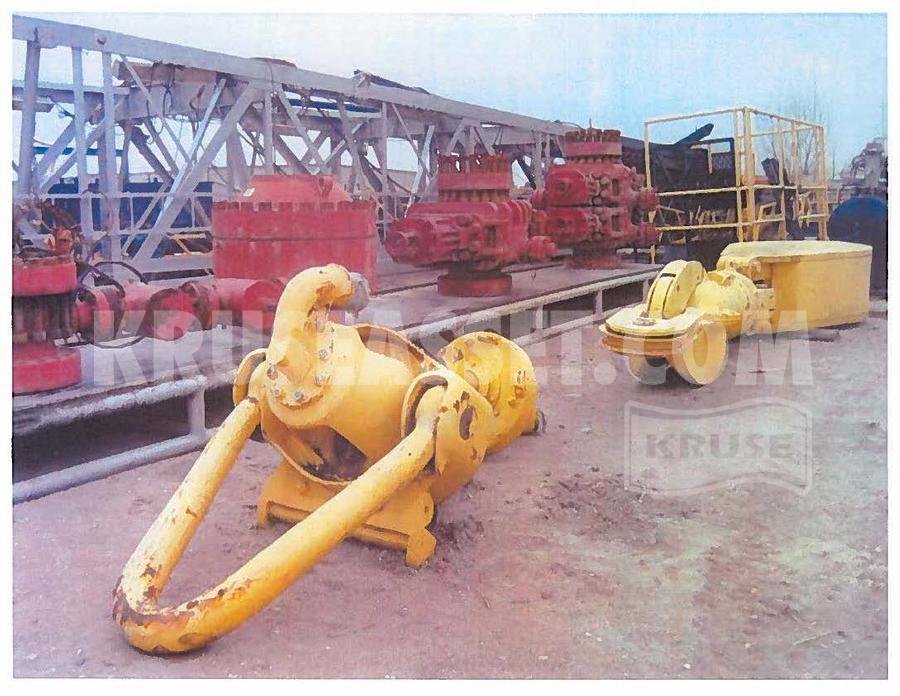

BLOCK/HOOK:

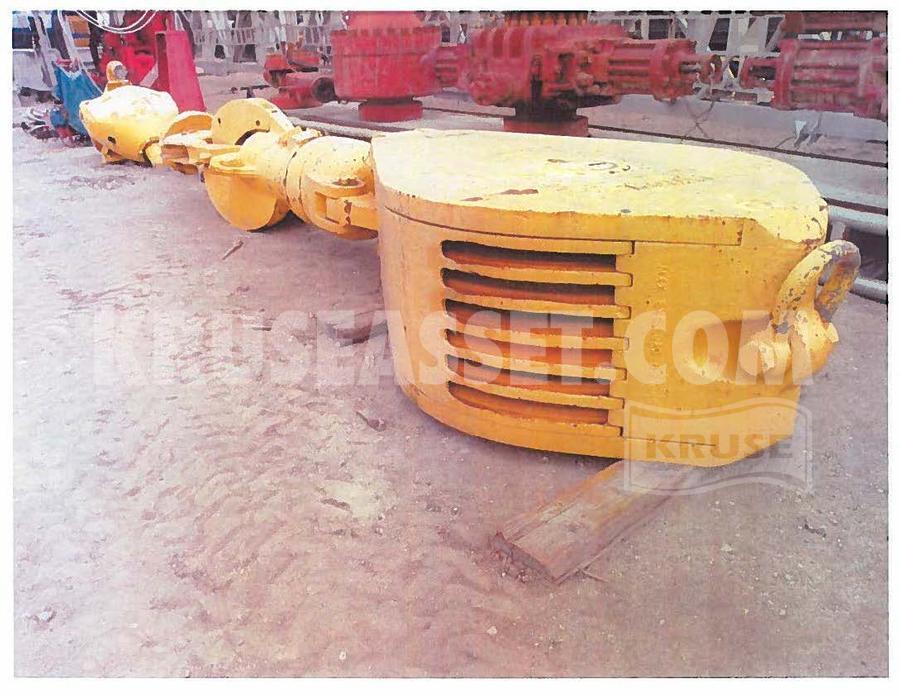

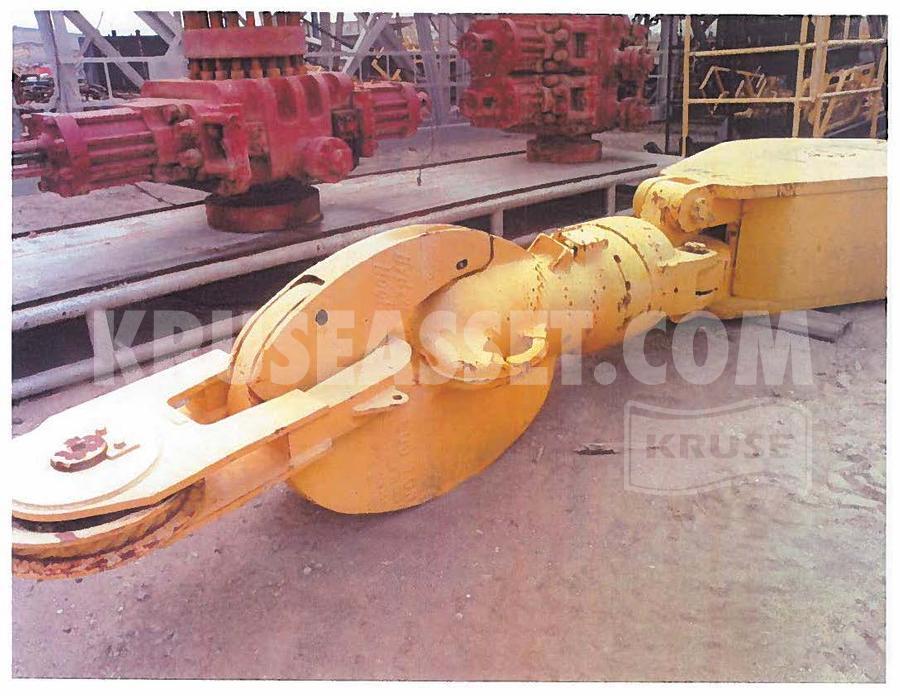

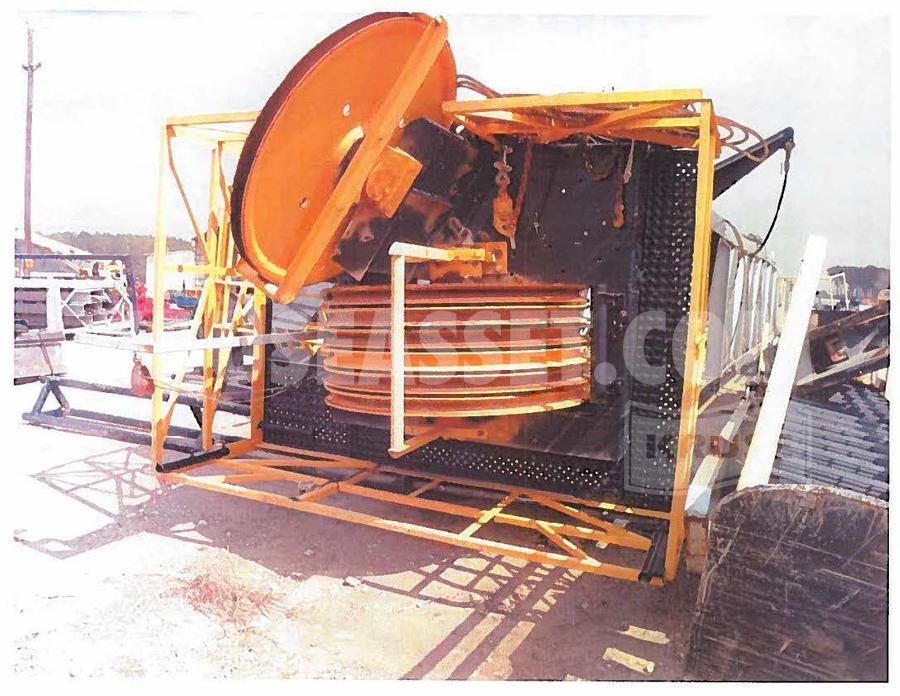

NATIONAL 660H BLOCK, 6-60" SHEAVES, GROOVED FOR 13/8"WIRE LINE, 500 TON CAPACITY, COMPLETE, WITH WEB WILSON HYDRA-HOOK ASSEMBLY, 500 TON CAPACITY

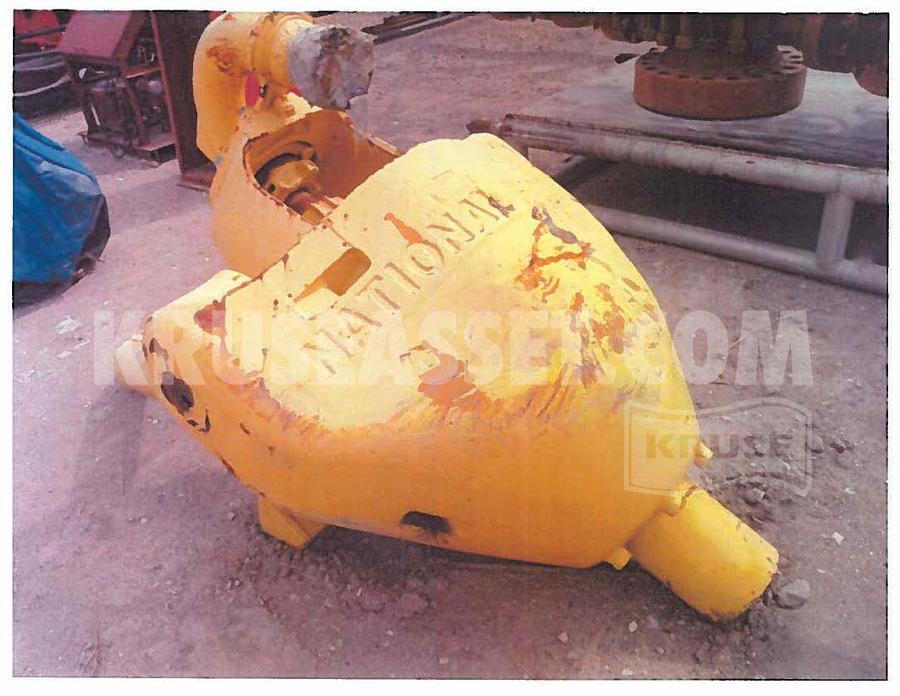

ROTARY SWlVEL:
NATIONAL N-1324 ROTARY SWIVEL, 500 TON CAPACITY

ELEVATOR LINKS:
(1) SET: 2 3/4" x 132" L ELEVATOR LINKS, 350TON CAPACITY

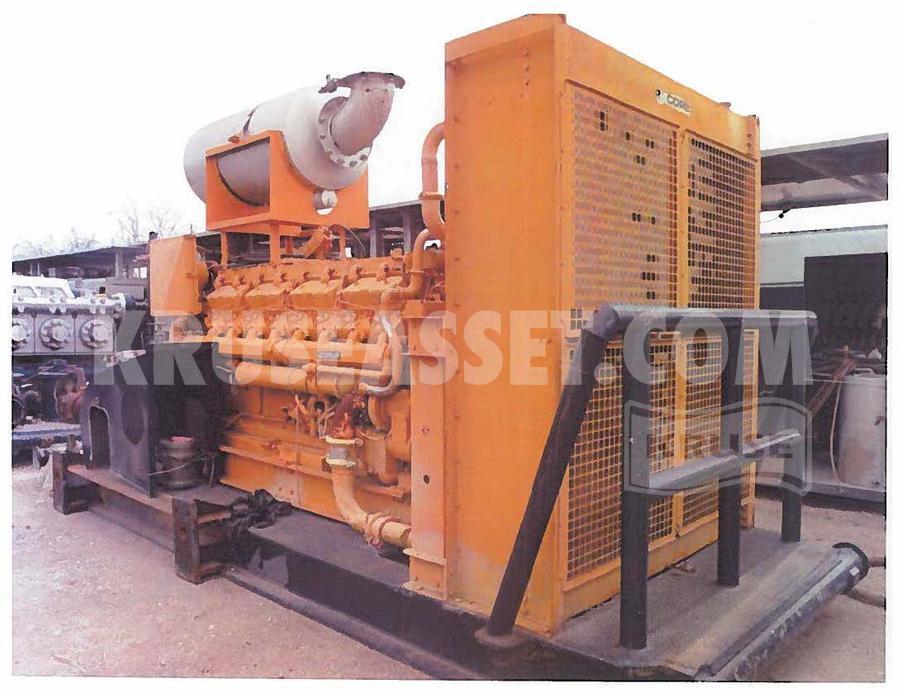

MUD PUMPS:

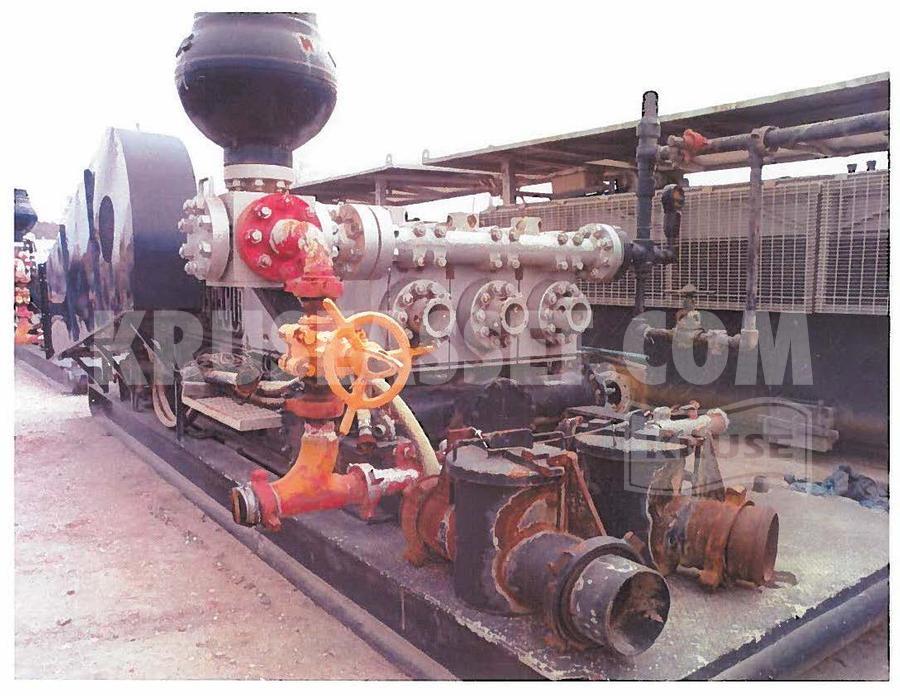

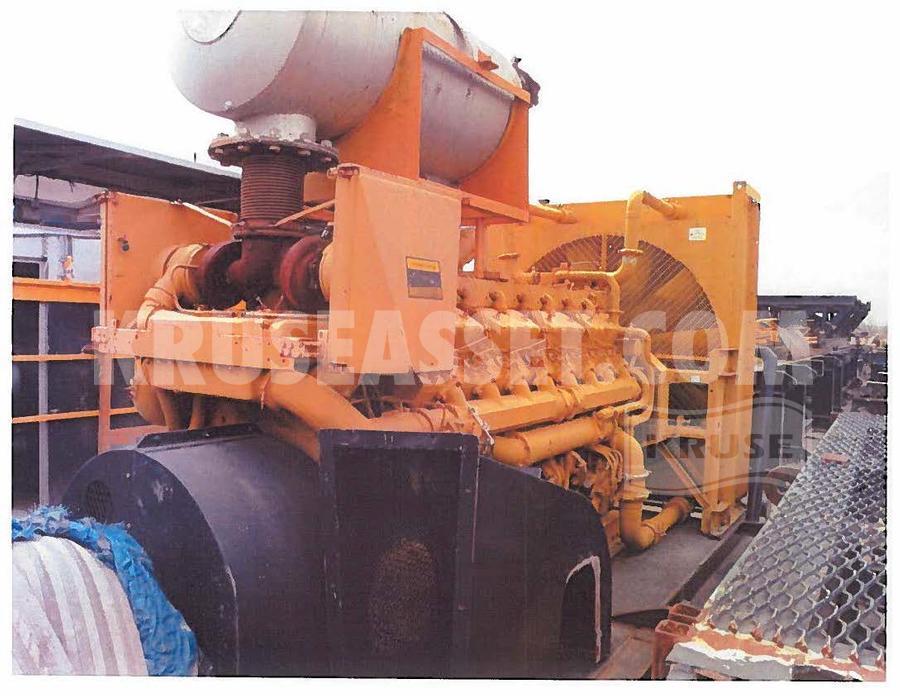

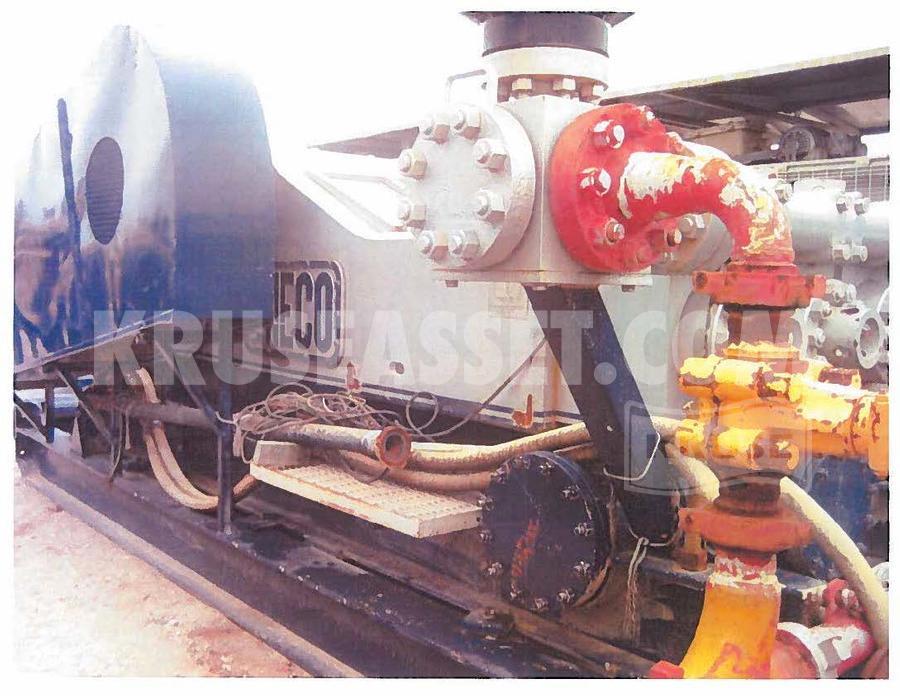

TWO (2) EACH: EWECO MODEL E-1300HD TRIPLEX MUD PUMPS, S/N 13000605 AND S/N 130000705, 7'' MAXIMUM   LINER SIZE, 12" MAXIMUM STROKE, GEAR RATIO: 4.4688:1,"FB" (C­E STYLE) FLUID END ASSEMBLIES, DISCHARGE MANIFOLD, SUCTION MANIFOLD WITH BUTTERFLY VALVE,HYDRIL K20-5,000 20 GALLON PULSATION DAMPENER, STRAINER BLOCK, O'DRILUMCM 4" 5,000 PSI W.P. MANUAL GATE VALVE (BUTIWELD), O'DRILUMCM TYPED 0-5,000 PSI PRESSURE GAUGE, O'DRILUMCM 3" SHEAR RELIEF VALVE, LINER WASH PUMP (BELT DRIVEN WITH BELT GUARD), POWER END OILER PUMP, PUMP DRIVE SHEAVE WITH BELT GUARD, STRAINER BASKET, UNTIZED AND MOUNTED ON STEEL MASTER OILFIELD SKID WITH LOADING HITCHES;POWERED BY TWO (2) EACH:CAT MODEL D399TA DIESEL ENGINE, S/N’s N/A, COMPLETE WITH RC CORE F40-8 RADIATOR,MUFFLER, INSTRUMENT GAUGE PANEL, AIR STARTER, AIR CLUTCH DRIVE WITH ORNE SHEAVE AND BELT GUARD, FUEL TANK, AIR TANK, FRONT BUMPER RAIL, UNITIZED AND MOUNTED ON STEEL OILFIELD MASTER SKID WITH LOADING HITCHES

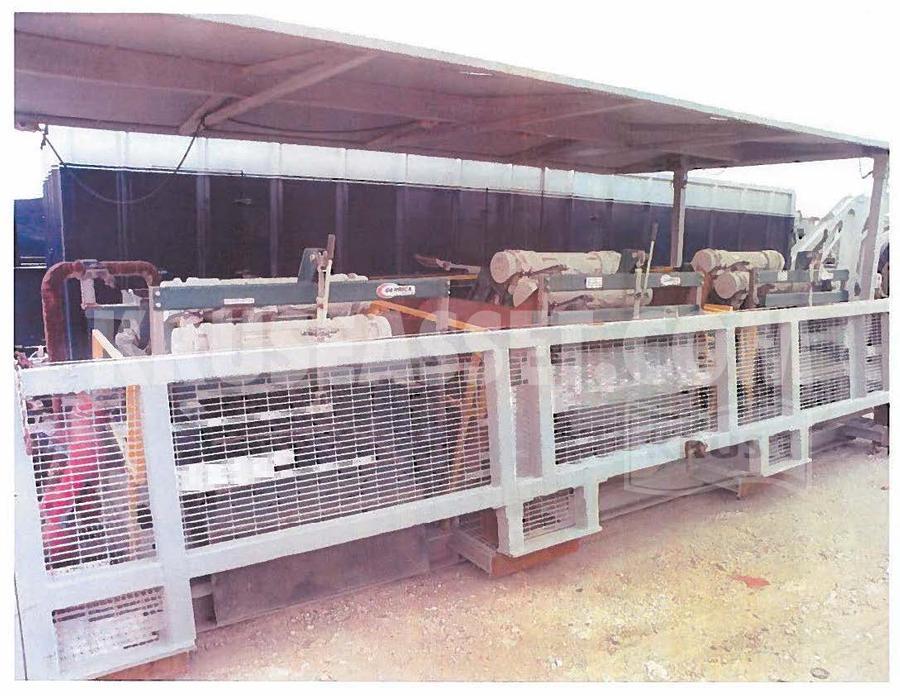

MUD SYSTEM:

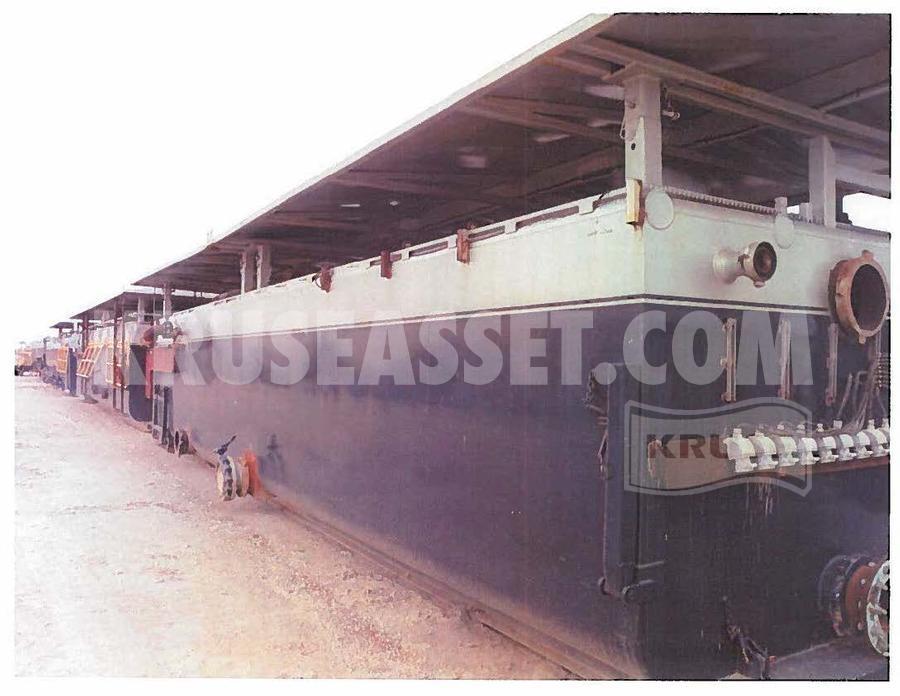

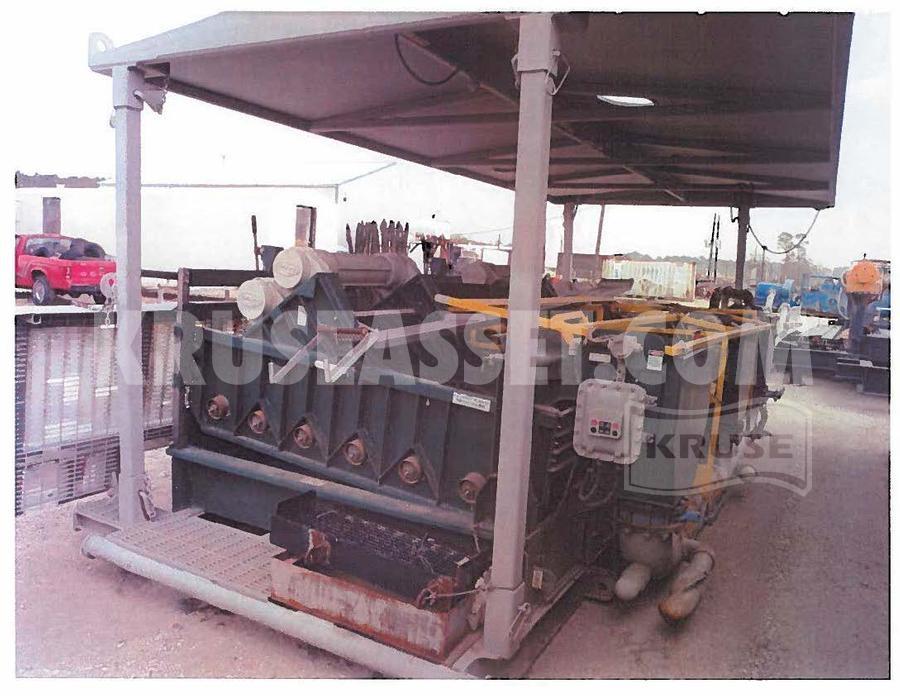

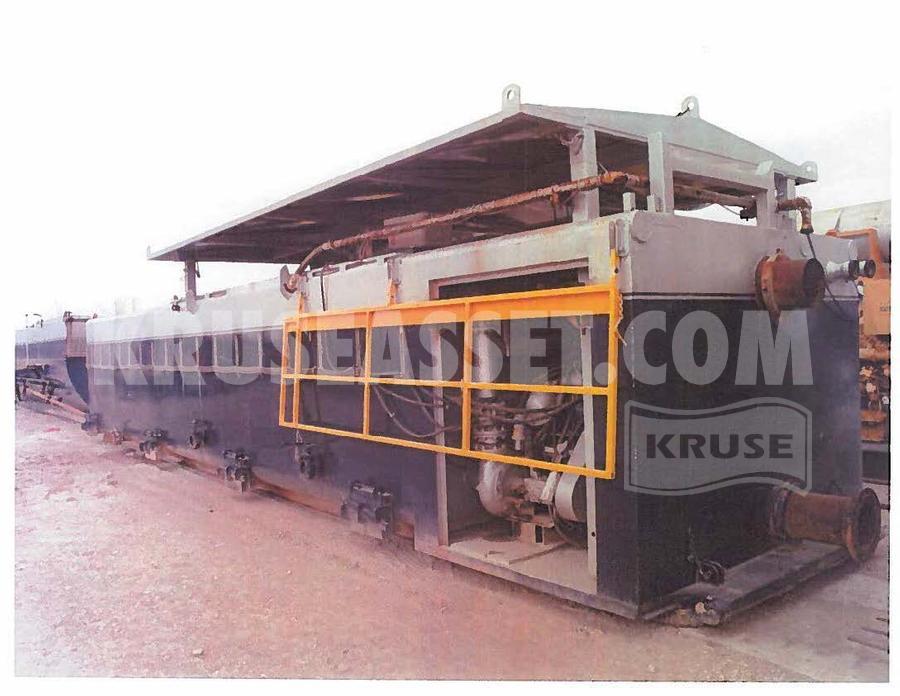

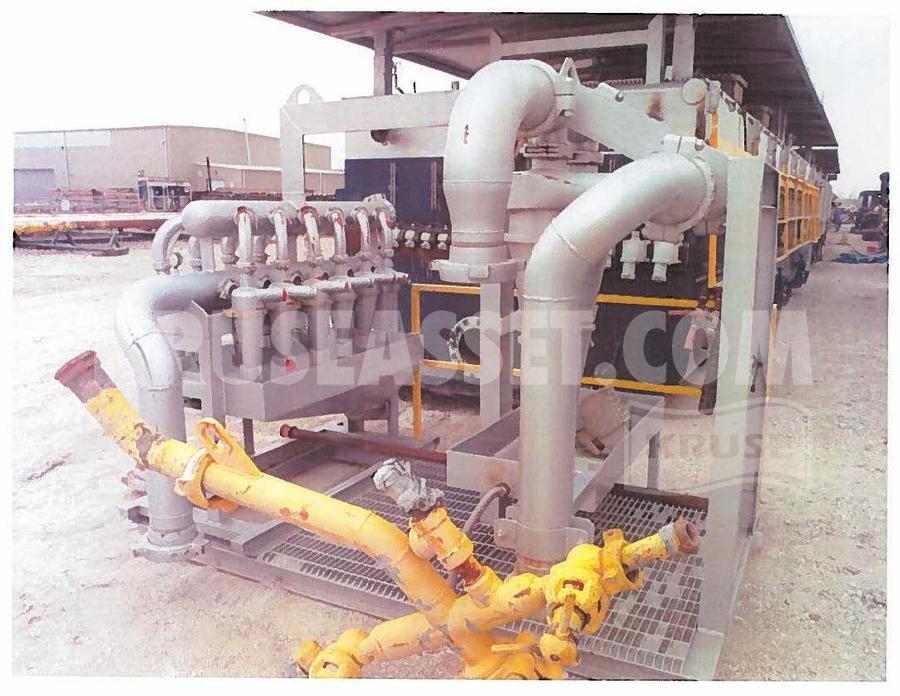

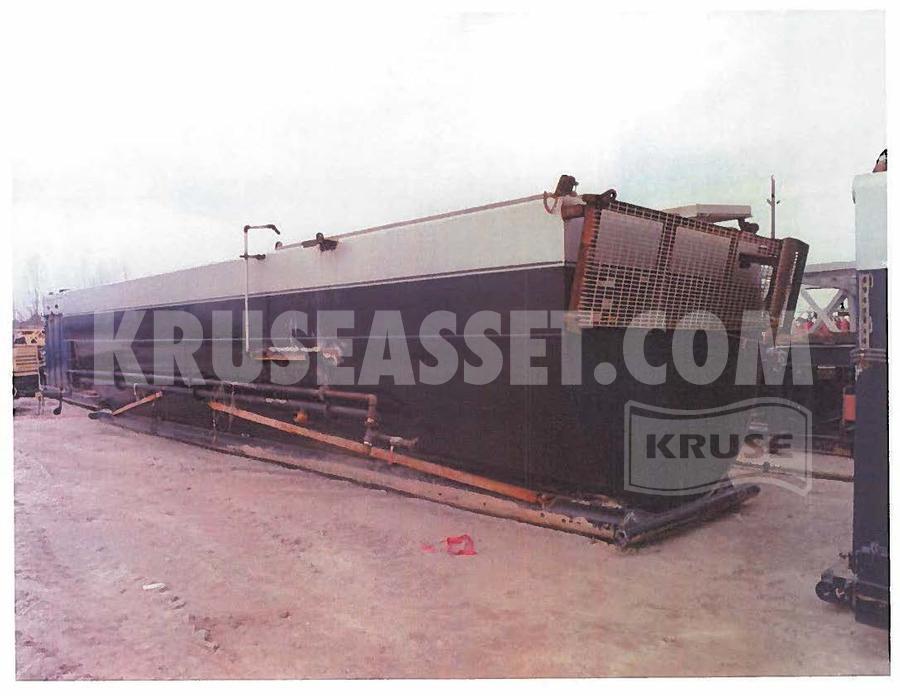

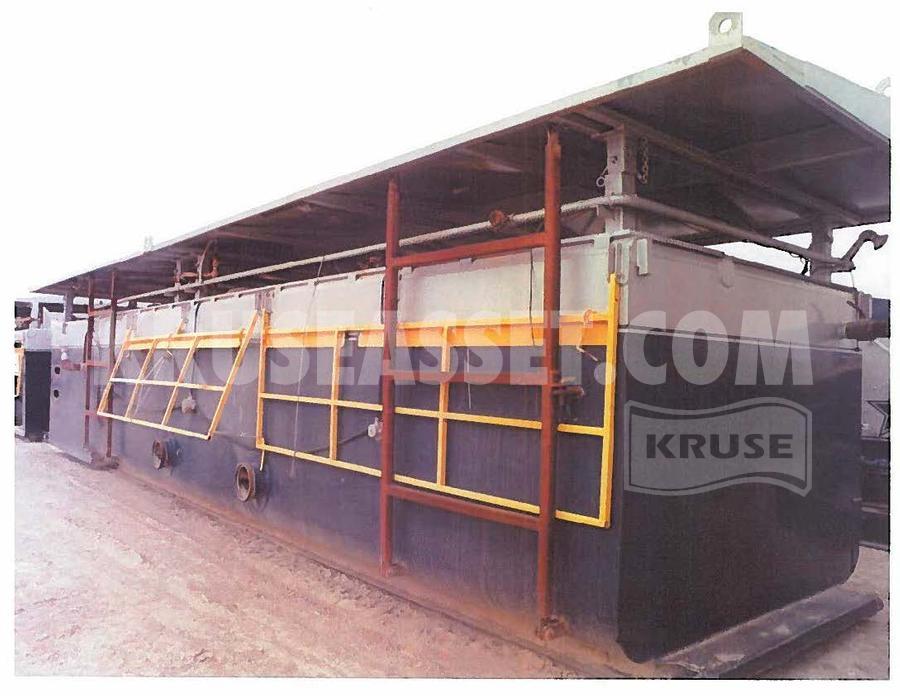

THREE (3) ROUND BOTTOM TANK MUD SYSTEM,APPROX.1,500 BBL TOTAL CAPACITY, COMPLETE WITH MUD AGITATORS, MUD GUNS,TVVELVE CONE DESIL TER, TWO CONE DESANDER, (3) DERRICK LINEAR SHALE SHAKERS, (2) EACH:MISSION 5" X6 ” R CENTRIFUGAL MIXING PUMPS POWERED BY VERTICAL MOUNTED 75 H.P.ELECTRIC MOTORS, BELT DRIVE WITH GUARD, MUD HOPPER, HANDRAILS, STAIRS,GRATED CATWALKS, PIPE MANIFOLDING, CLEAN-OUT GATES,VAPOR PROOF LIGHTING,AND WIRING TO COMPLETE MUD SYSTEM; MOUNTED AND UNITIZED ON STEEL OILFIELD MASTER SKID WITH LOADING HITCHES, WITH SLOPED TELESCOPING ROOFS (INSTALLED)

(1) MIXING TANK (APPROX.50 BBL CAPACITY, WITH (2) MISSION MAGNUM CENTRIFUGAL PUMPS POWERED BY ELECTRIC MOTORS, ELECTRICAL CABLE, HOSES, MOUNTED AND UNITIZED ON STEEL OILFIELD MASTER SKID (PUMPS HAVE BUMPER RAIL)

(1) DEGASSER POWERED BY ELECTRIC MOTOR, BELT DRIVEN, BELT GUARD, MOUNTED AND UNITIZED ON A STEEL OILFIELD MASTER SKID WITH LOADING HITCHES

BLOWOUT PREVENTER:

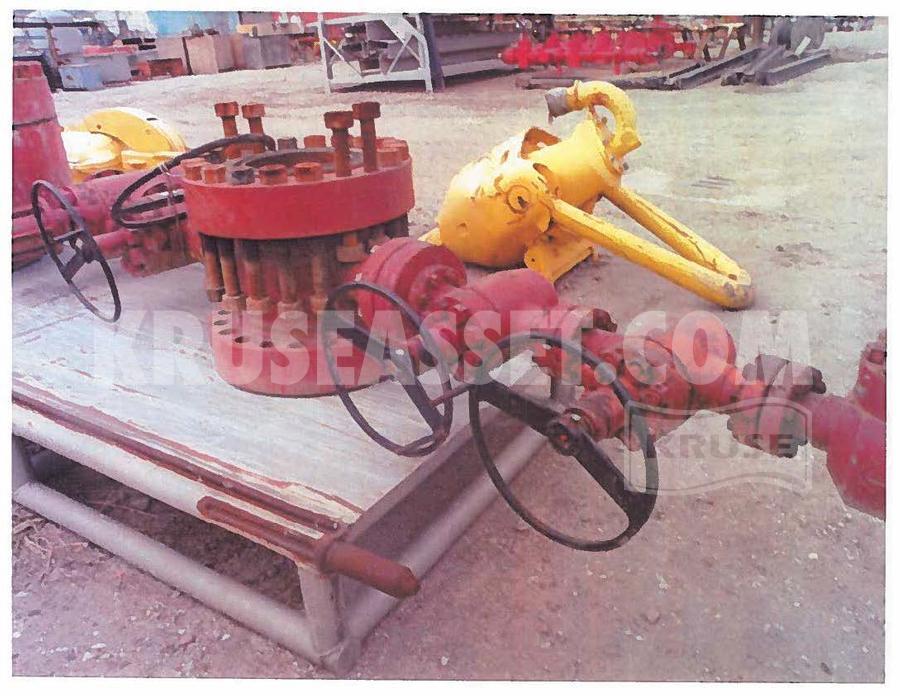

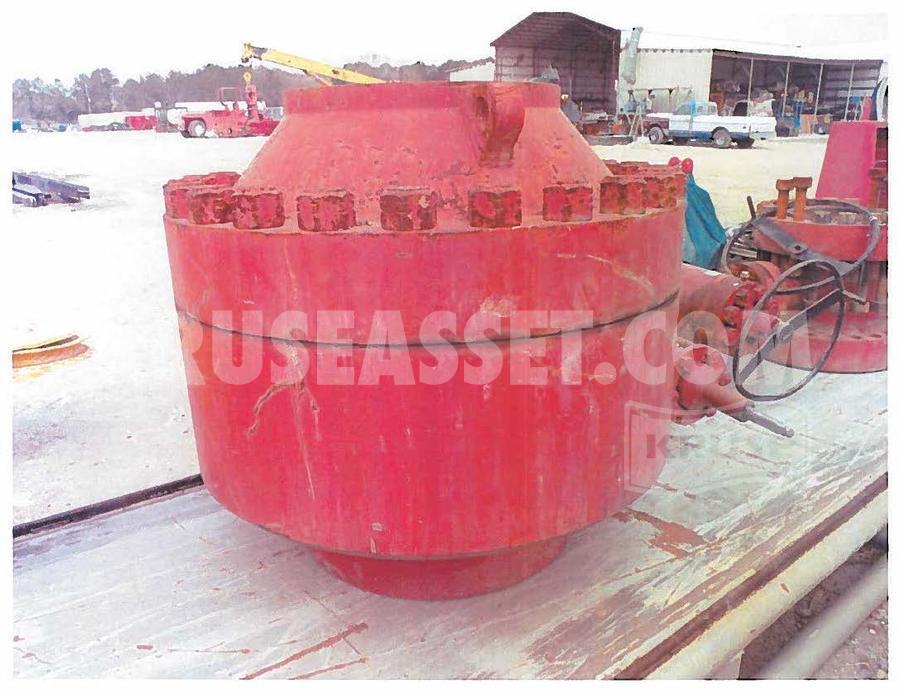

SHAFFER TYPE "SPH" SPHERICAL (ANNULAR) BLOWOUT PREVENTER, S/N 119601, 13 5/8" 5,000 PSI W.P, 13 5/8" 5,000 PSI W.P STUDDED TOP CONNECTION, 13 5/8" 10,000 PSI W.P FLANGED BOTTOM CONNECTION

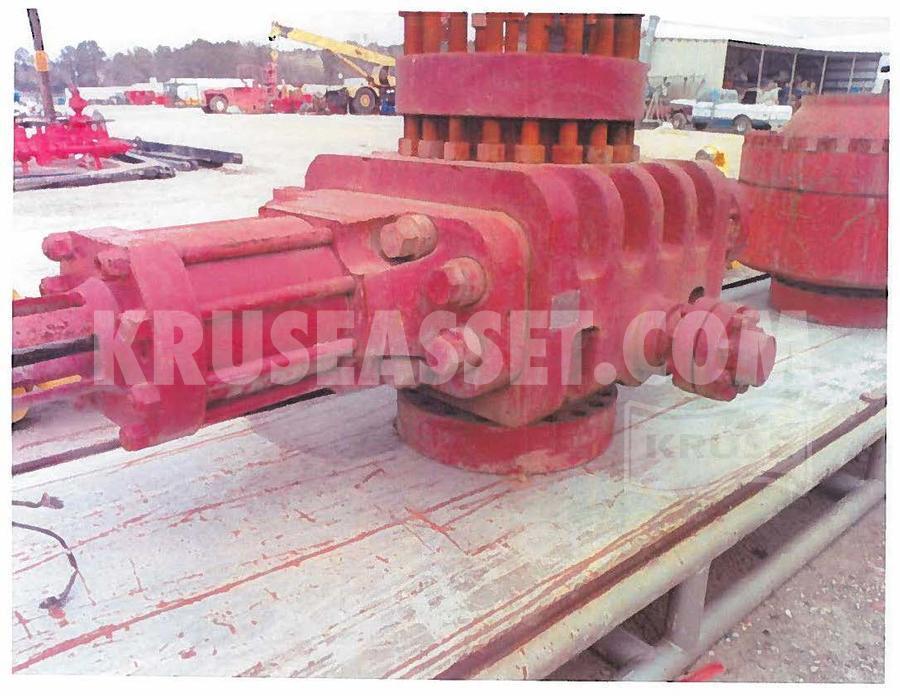

SHAFFER TYPE "SL" DOUBLE RAM TYPE BLOWOUT PREVENTER, S/N 119602,13 5/8" 10,000 PSI W.P FLANGED TOP AND BOTTOM CONNECTION, (4) 4 1116" 10,000 PSI  W.P. FLANGED OUTLETS

SHAFFER TYPE "SL" SINGLE  RAM TYPE BLOWOUT PREVENTER, S/N 119603,13 5/8" 10,000 PSI  W.P FLANGED TOP AND BOTTOM CONNECTION, (2) 4 1116" 10,000 PSI  W.P.FLANGED  OUTLETS

DRILLING SPOOL:
13 5/8" 10,000 PSI   W.P DRILLING SPOOL, FLANGED TOP AND BOTTOM CONNECTION, (2) 4 1116" 10,000 PSI   W.P.FLANGED OUTLETS 1-11" 3000 DRILLING FLANGE 1-13 5/8" 10000 X 11” 3000 DOUBLE STUD

SPACER SPOOL:
13 5/8" 10,000 PSIW.P SPACER SPOOL, FLANGED TOP AND BOTTOM CONNECTION

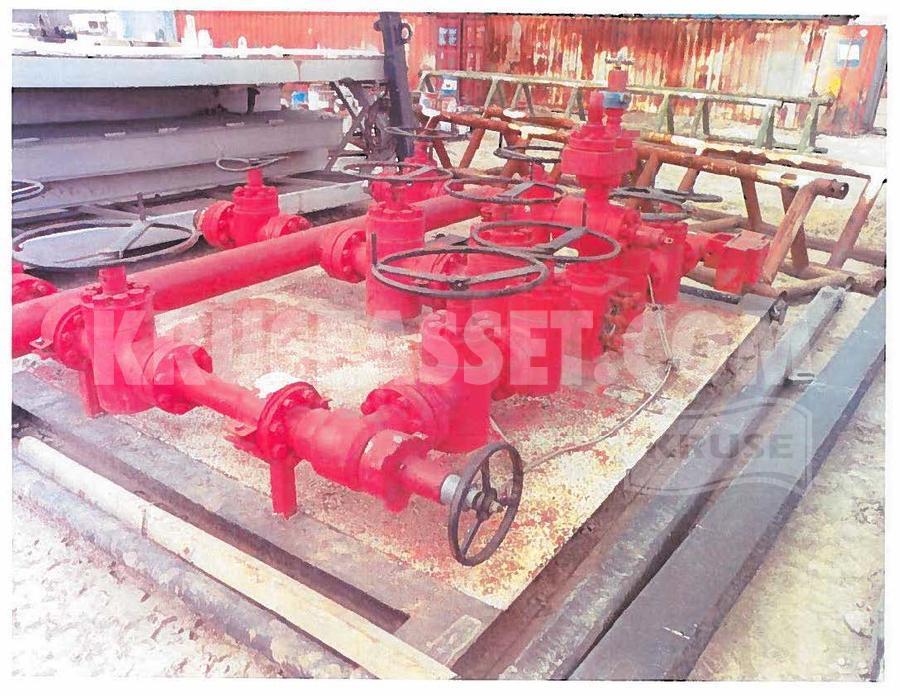

CHOKE MANIFOLD:
CHURCH ENERGY 3 1/16" 10,000 PSI W.P. CHOKE AND KILL MANIFOLD, COMPLETE WITH: (9) CHURCH 3 1/16" 10,000 PSI W.P MANUAL GATE VALVES,FLANGED; (2) CHURCH 4  1/16" 10,000 PSI  W.P.MANUAL GATE VALVES,FLANGED,(1) CHURCH 2 9/16" 10,000 PSI  W.P.POSITIVE CHOKE; (1) CHURCH 3 1/16" 10,000 PSI  W.P.ADJUSTABLE CHOKE; (1) CHURCH REMOTE CHOKE OPERATOR'S PANEL; BUFFER CHAMBER, WADECO 2" 0-10,000 PSI  W.P.MODEL 10 PRESSURE GAUGE, MOUNTED AND UNITIZED ON A STEEL OILFIELD MASTER SKID WITH LOADING HITCHES

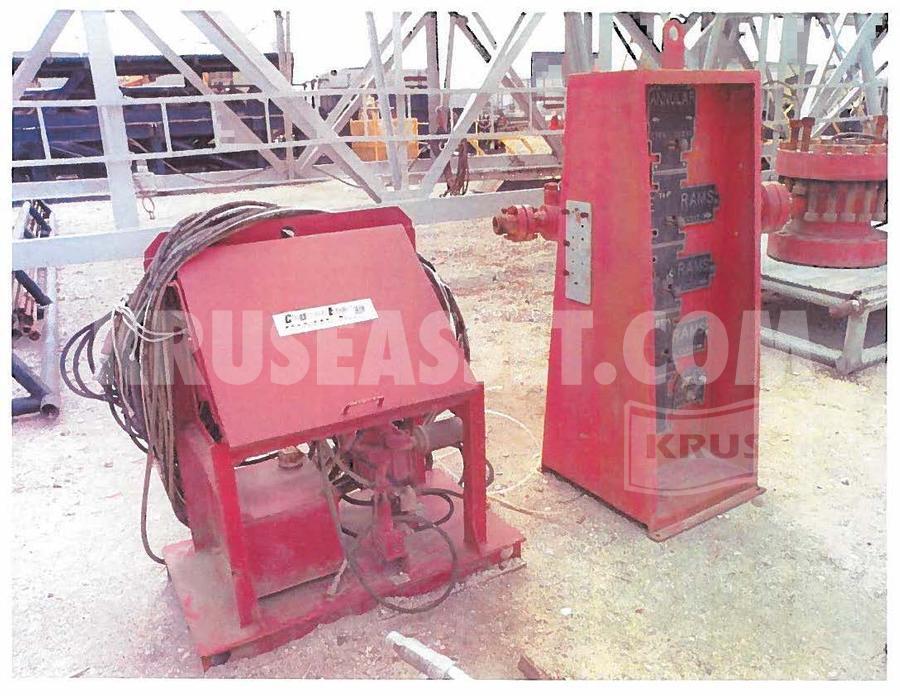

CLOSING UNIT:

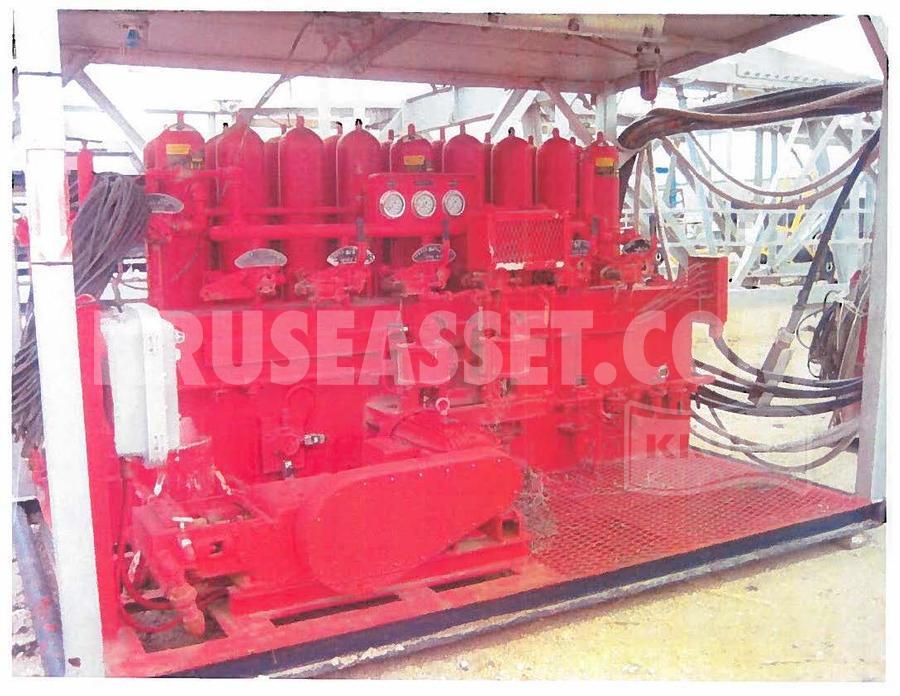

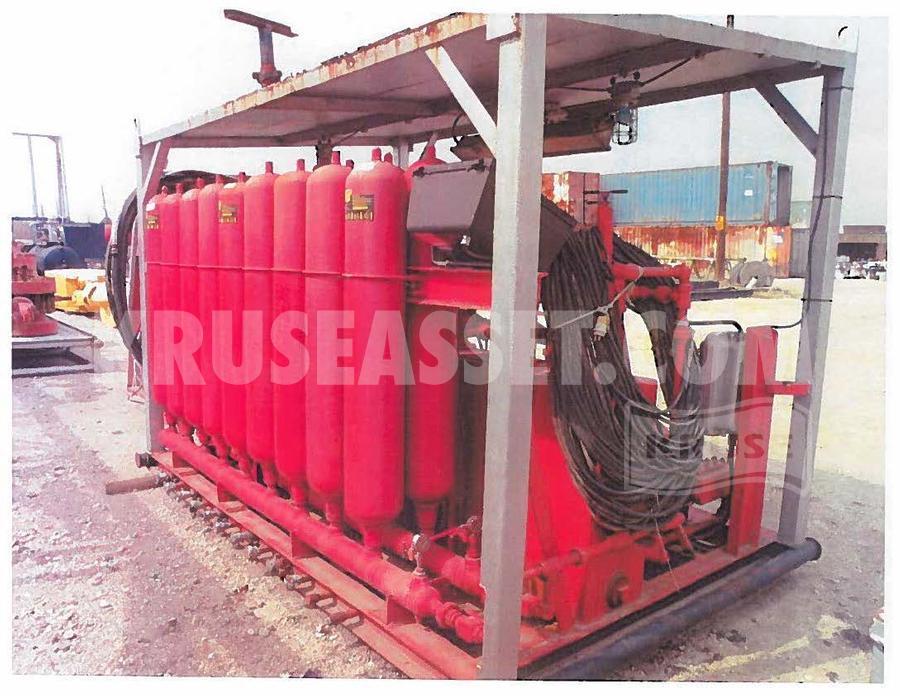

CAD SPECIALTIES (KOOMEY TYPE 80) SIX STATION CLOSING UNIT, WITH (1) BY-PASS VALVE, (18) 11-GALLON  ACCUMULATOR BOTTLES, (1) TRIPLEX PUMP POWERED BY 25 H.P.ELECTRIC MOTOR,(2) AIR PUMPS,HYDRAULIC  RESERVOIR  TANK, JUNCTION MANIFOLD,BOP HOSES, ELECTRICAL CABLE WITH PLUG, FREE STANDING PANEL TYPE REMOTE CONSOLE WITH UMBILICAL CABLE,LIGHTS, STARTER BOX, SLOPED ROOF, MOUNTED AND UNITIZED ON A STEEL OILFIELD MASTER SKID WITH LOADING HITCHES

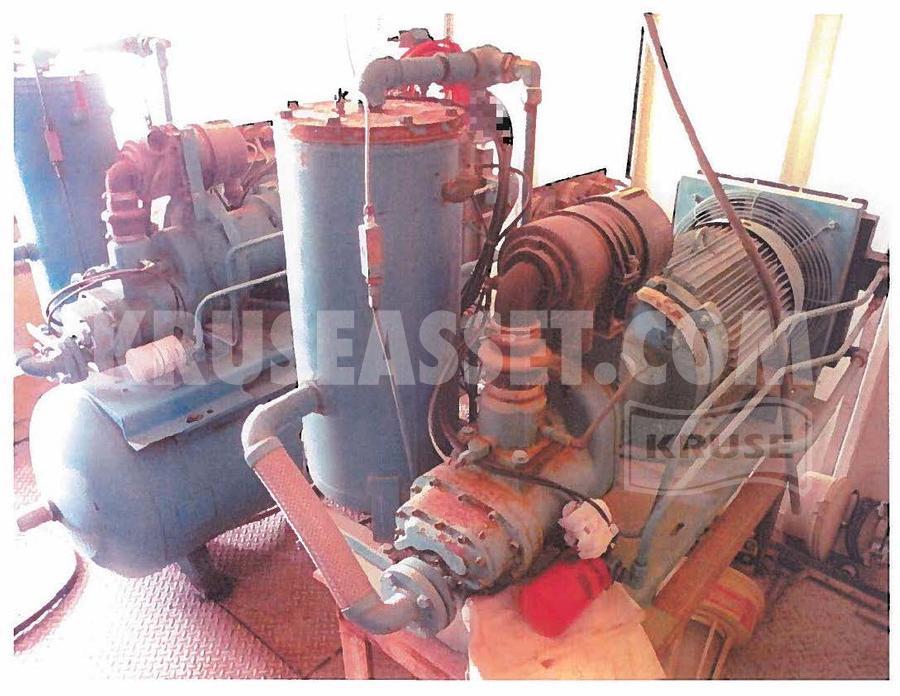

GENERATOR HOUSE:
10’Wx40'L CRIMPED WALLED STEEL GENERA TOR HOUSE, WITH TWO (2) EACH: CAT D3412 DIESEL ENGINES, S/N’s N/A,RADIATOR, MUFFLER, INSTRUMENT GAUGE PANEL, ELECTRIC START, WITH CAT SR4 GENERATOR ENDS;(2) EACH: SULLIVAN PALATEK 30DG  AIR COMPRESSORS; (1) SQUARED MODEL 6 480 VOLT MOTOR CONTROL CENTER MASTER DISTRIBUTION CONTROL PANELS, MOUNTED AND UNITIZED ON A STEEL OILFIELD  MASTER SKID WITH LOADING HITCHES

TOP DOGHOUSE:
8' W x 20' L WITH KNOWLEDGE BOX,STORAGE BINS, CREW LOCKERS, (2) WALK-THROUGH DOORS, SLOPED ROOF, WITH (4) LIFTING EYES,MOUNTED AND UNITIZED ON A STEEL OILFIELD MASTER SKID WITH LOADING HITCHES BOTTOM DOGHOUSE: STEEL BOTTOM DOGHOUSE, SKID MOUNTED

PARTS HOUSE:
STEEL PARTS HOUSE, SKID MOUNTED

WATER TANK:
ROUND BOTTOM  OPEN TOP WATER TANK,APPROX.500 BBL TOTAL CAPACITY,HANDRAILS, STAIRS, GRATED CATWALKS, PIPE MANIFOLDING,CLEAN-OUT GATES, VAPOR PROOF LIGHTING, AND WIRING TO COMPLETE WATER TANK: MOUNTED AND UNITIZED ON STEEL OILFIELD MASTER SKID WITH LOADING  HITCHES

DRILL LINE SPOOLER:
DRILL LINE SPOOLER, I.D. NO. 6606, SPROCKET DRIVEN,WITH GUARD, SKID MOUNTED

LUBESTER:
SIX COMPARTMENT LUBESTER, WITH EXPANDED  METAL WRAP AROUND BOTTOM STORAGE AREA FOR 5-GALLON BUCKETS, SKID MOUNTED

KELLY:
1-5 1/4" HEX x 40' OAL KELLY WITH SHIPPING SCABBARD 2-55'X3.5" GRADE D ROTARY HOSES

DRILL COLLARS: NONE

2-COLLAR CLAMPS

KELLY SPINNER:
KELLY SPINNER,COMPLETE, LESS MOTORS

ROTARY TONGS:
TYPE ''B" ROTARY TONG,COMPLETE, WITH HANGERS AND LUG JAW ASSEMBLIES

DRILL PIPE ELEVATOR:
2-WEB WILSON 5" T-250 DRILL PIPE ELEVATORS
1-WTC 4.5" 225 TON DRILL PIPE ELEVATORS

DRILL PIPE SLIPS:
2-ROTARY SLIPS FOR 5" DRILL PIPE

DRILL COLLAR SLIPS:
ROTARY SLIPS FOR 6 1/4" DRILL COLLARS

AIR WINCHES:
INGERSOLL-RAND  MODEL H5W AIR WINCH, S/N RJJ74335, PEDESTAL MOUNTED
INGERSOLL-RAND  MODEL K4UL AIR WINCH, S/N 69135, PEDESTAL MOUNTED
TWO (2) INGERSOLL-RAND  MODEL FA28-LMX1 AIR WINCH, S/N MW2470999 AND S/N MW2470999, PEDESTAL MOUNTED

JUNK BIN:
JUNK BIN, SKID  MOUNTED

PIPE RACKS:
SEVEN (7) SETS, PIPE RACKS, VARIOUS HEIGHT AND LENGTH

SUITCASES:
COMPLETE SET OF SUITCASES, WITH ELECTRICAL CABLES, FUEL LINES, AND AIR LINES FOR RIG OPERATIONS

CATWALK:
STEEL CATWALK

FUEL TANK:
1300 GAL 32'x8' SKIDDED FUEL TANK W/TTWO ELECTRIC TRANSFER PUMPS.

MISCELLANEOUS:
FIFTEEN (15) FIRE EXTINGUISHERS
LOT: WOODEN (STEEL) RIG  MATS: SET UP FOR  MUL TIPLE WELLS PADS.
FLOW LINES FOR   MULTIPLE  WELLPADS.
AIR, FUEL AND ELETRICAL CORDS FOR  MULTIPLE WELL PADS.
2-20' STEEL XXH 4" MUD LINES FOR MULTIPLE WELL PADS
5-4' XH HANDELING SUBS.
3- 3'X6.25" 4.5  IF BOX X 4.5" PIN SAVOR SUBS
1-4'X4.5" REG.PIN X6.5/8" BOX BELL SUB.
1-3'X4.5"REG.BOX X 4.5"XH BOX FLOAT SUB
1-7.5/8 REG LEFT LH X 6.5/8 REG LH SUB
