NOV-TDS11 SA 500 ton AC Top Drive
Excellent Price for Quality Rig
w/ Bi-Directional Walking System!
Located in South Texas

Call to Inspect and Buy Today!!!

Call NOW! (800) 952-1973

Listing Details

Classification
1500 hp Electric

Racking Capacity
18,000’

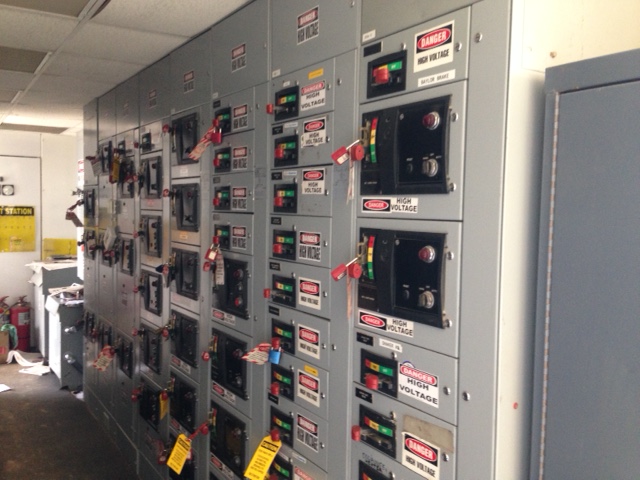

Power System

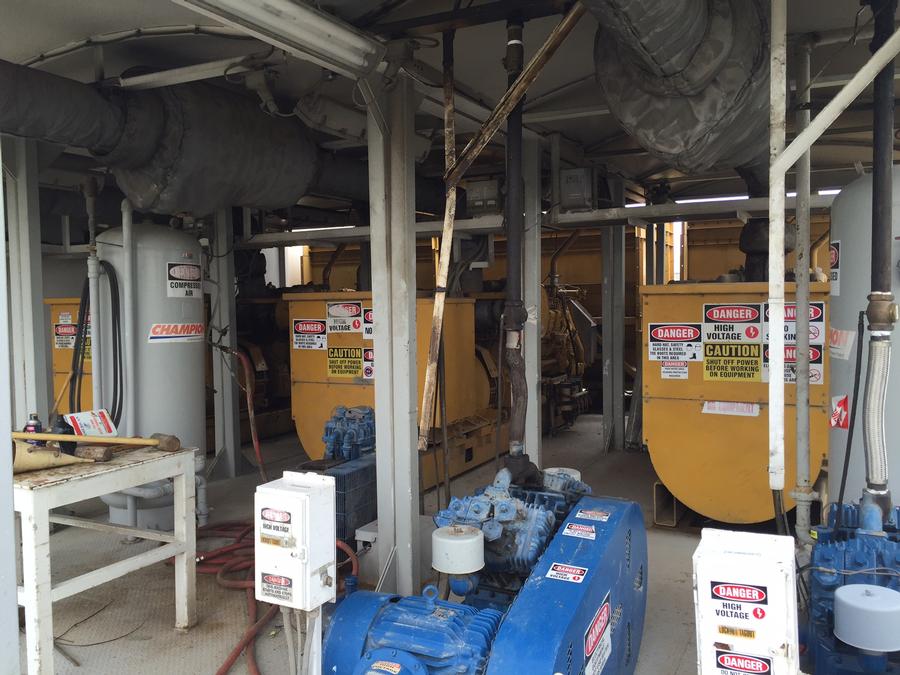

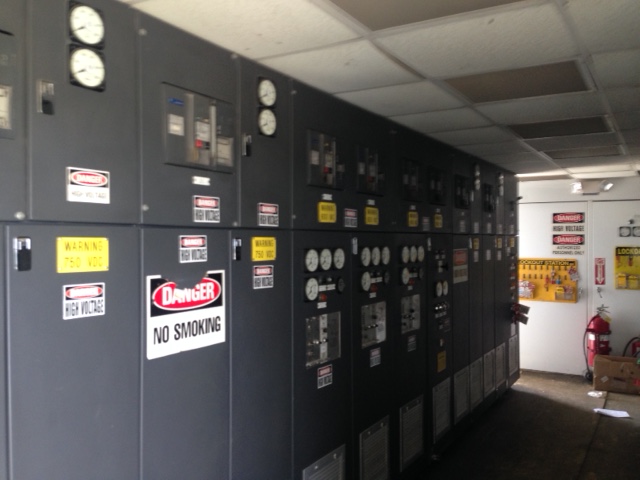

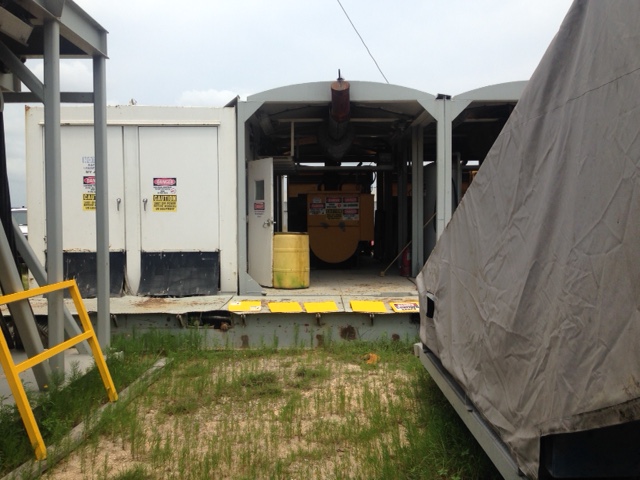

Three (3) Caterpillar 3512/1225 kw generator sets One (1) IEC SCR I-Drive system

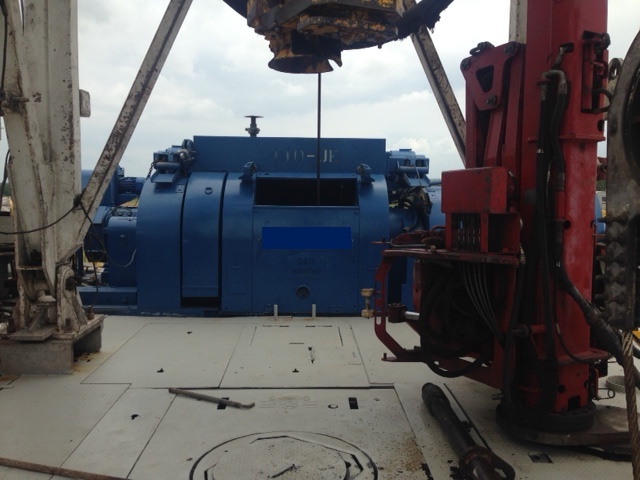

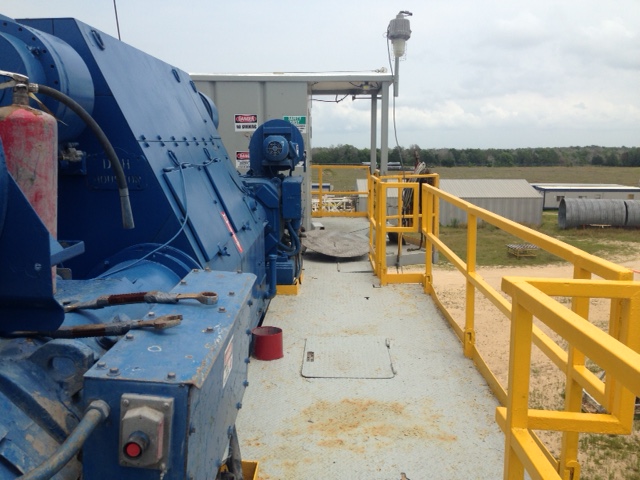

Draw Works

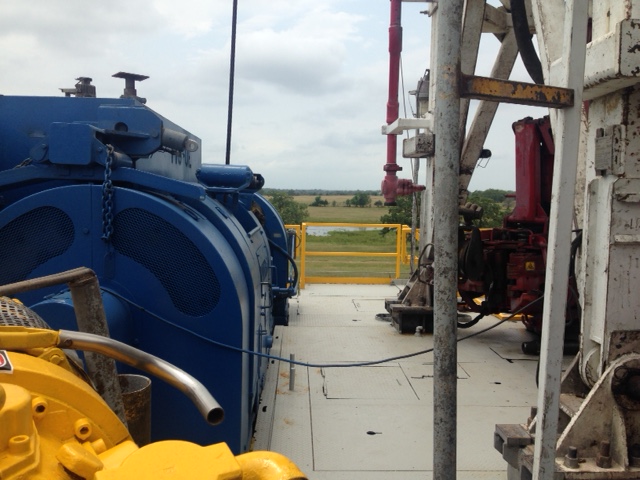

NOV 110-UE with 7040 Baylor brake powered by Two (2) GE 752 traction motors

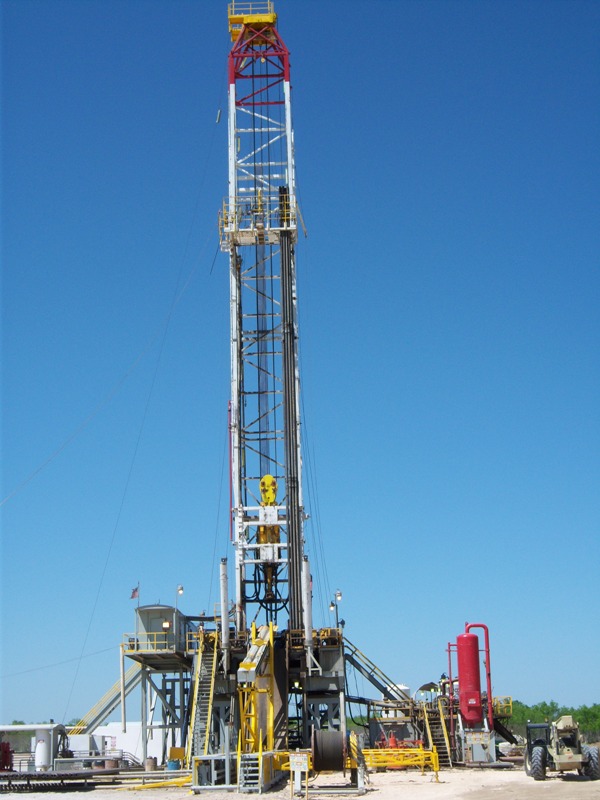

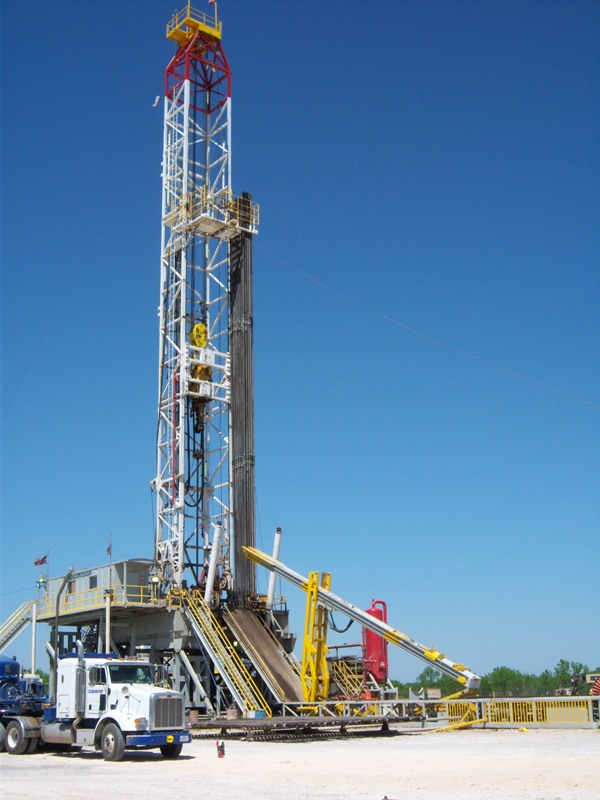

Mast

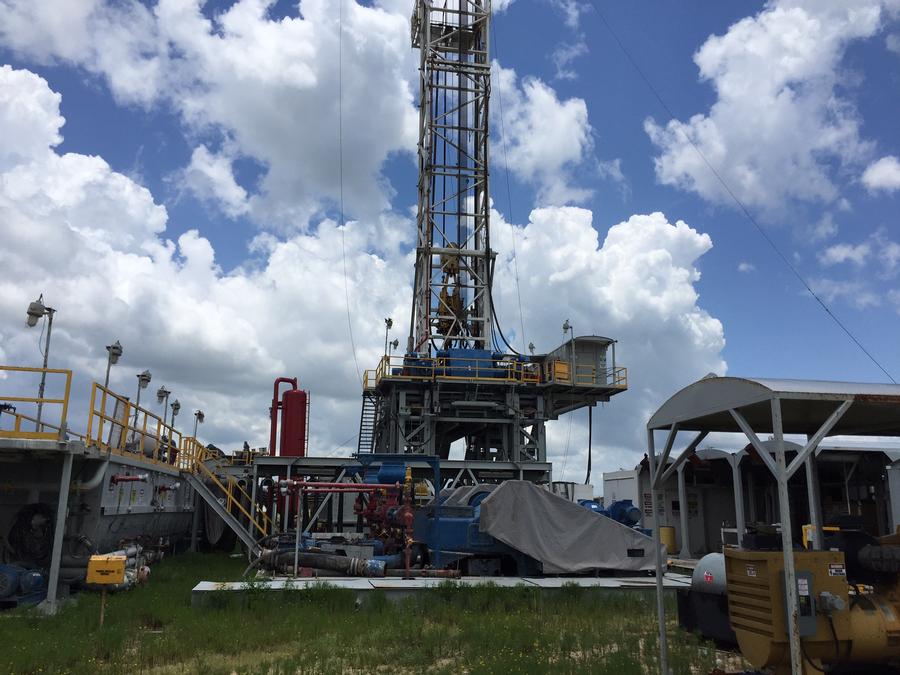

142' mast rated at 750,000 lb SHL with integrated Top drive

Drill Line
1-3/8” EIPS

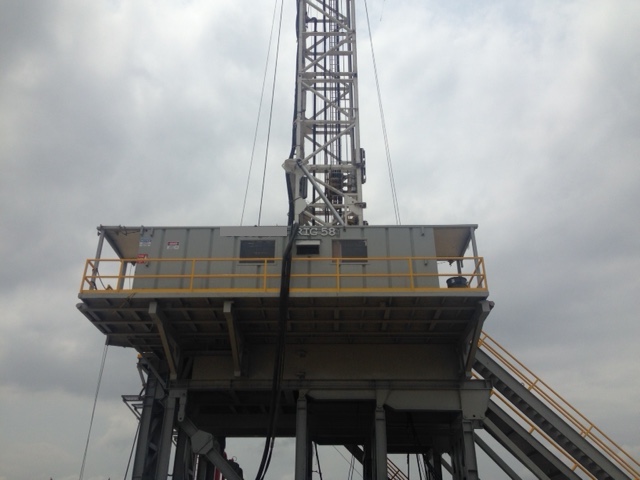

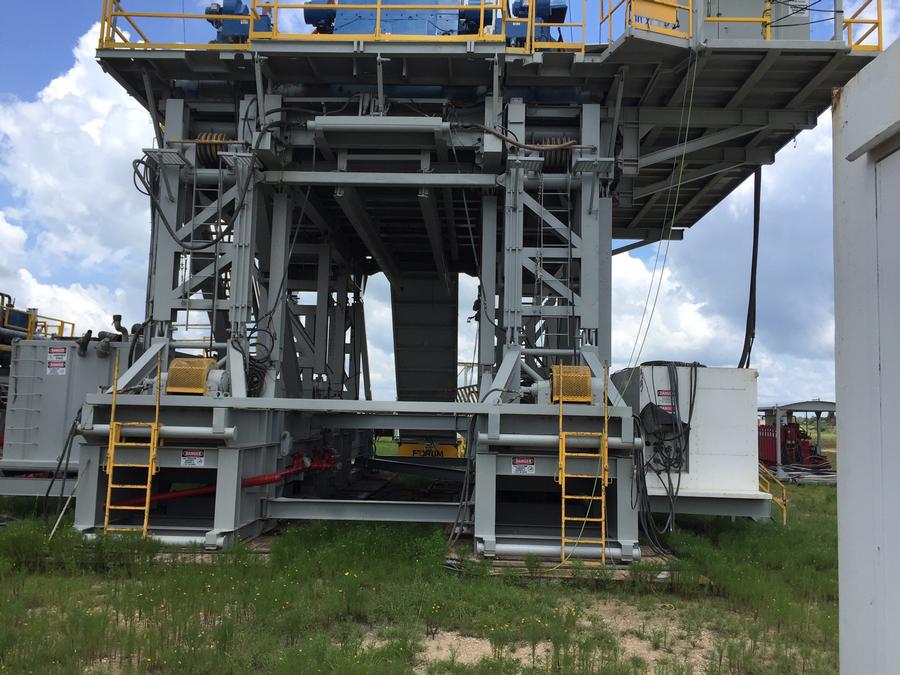

Substructure

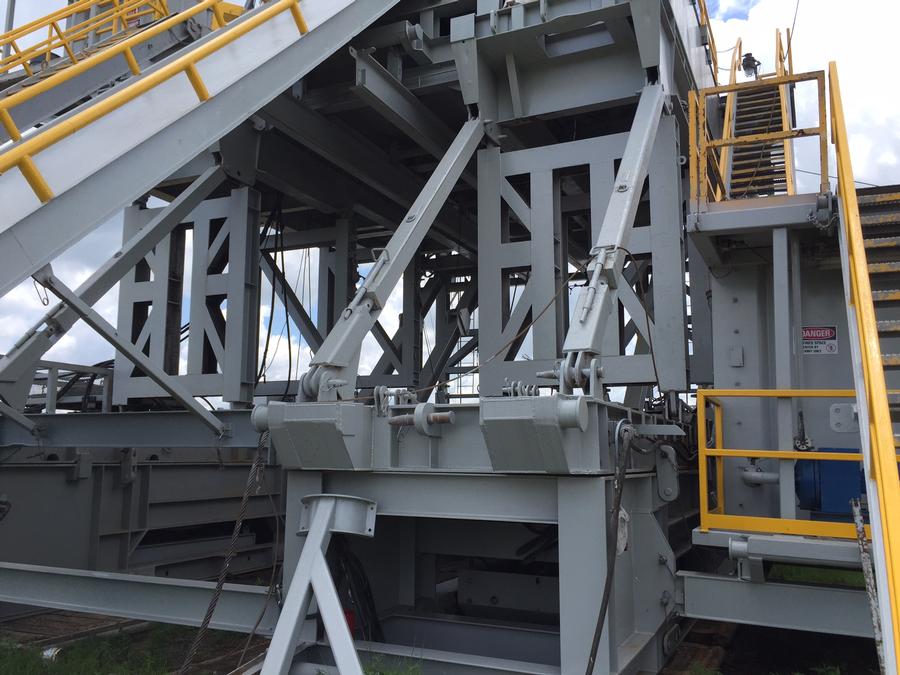

27' high self-elevating with 24’ clear height under beams with a simultaneous rotary capacity of 750,000 lb and 400,000 lb setback

Mud Pumps

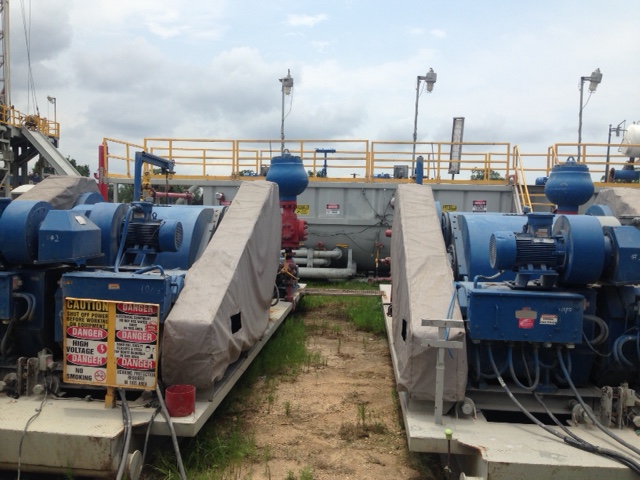

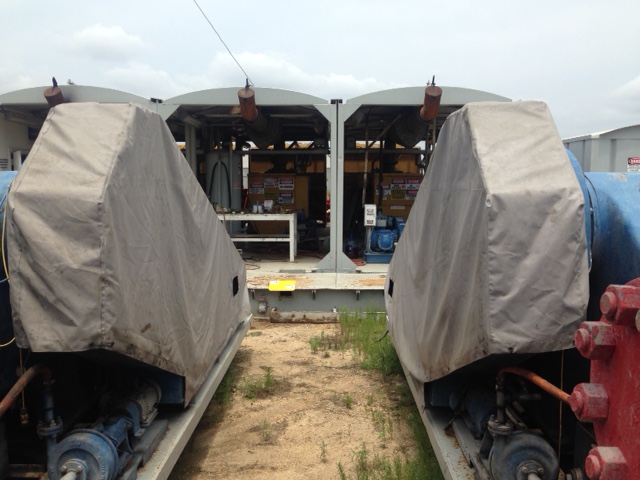

Two (2) 1600 hp Gardner-Denver PZ11 pumps each driven by two (2) 1000 hp traction motors

Rotary
27-1/2” powered by one (1) GE 761 traction motor

Top Drive
NOV-TDS11 SA 500 ton AC

Block and Hook
Oilwell 400 ton block

Drill Pipe
5" od 19.50 ppf G-105 NC 50

Drill Collars
As Required

Annular Preventer
13-5/8” 5,000 psi wp

Ram Preventers
13-5/8” 10,000 psi wp double ram
13-5/8” 10,000 psi wp single ram

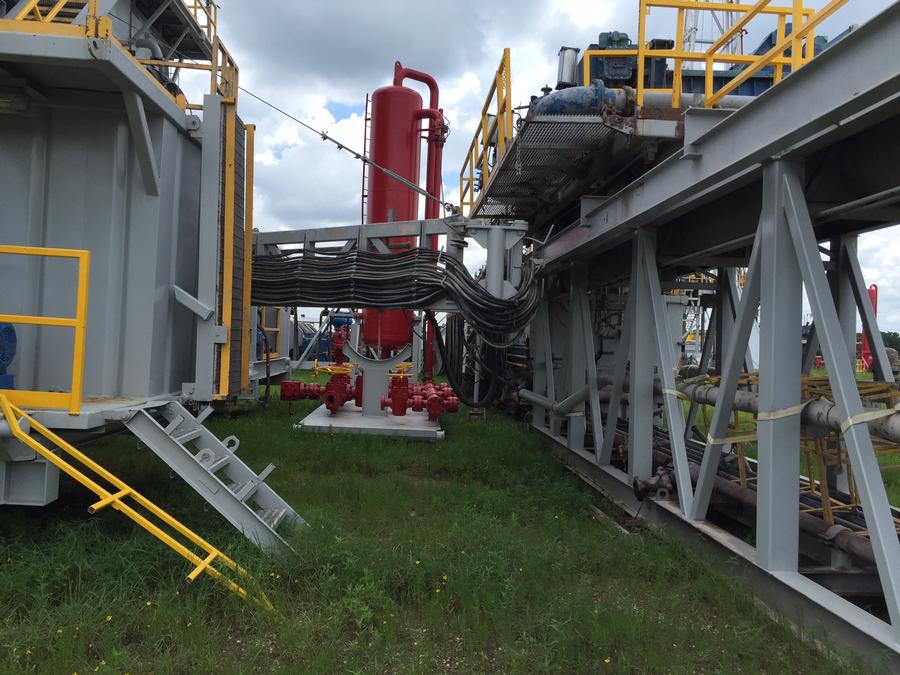

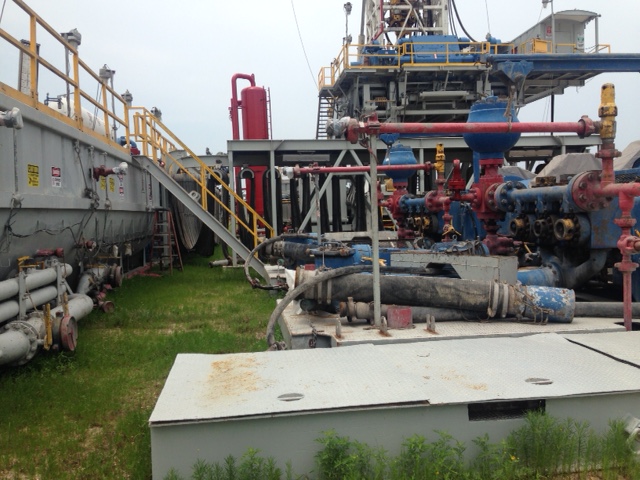

Choke Manifold
4-1/16"x 3-1/16" 10,000 psi wp

Accumulator System
200 gal six (6) station with remote control

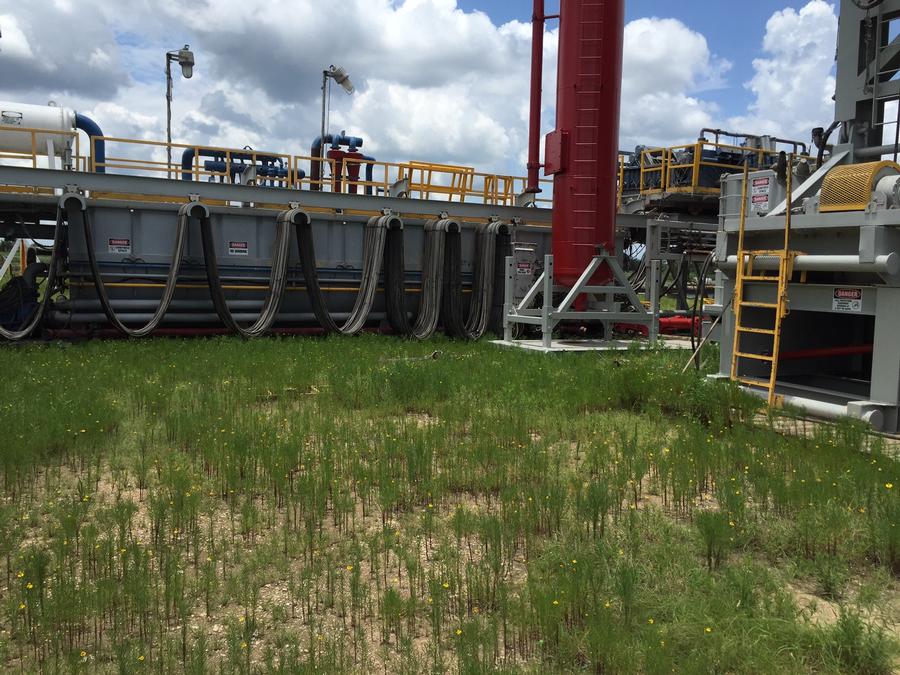

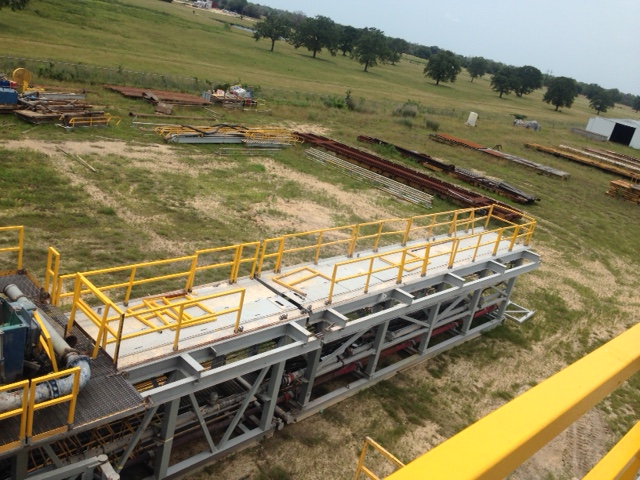

Mud System
Two (2) Tank 1,000 bbl system

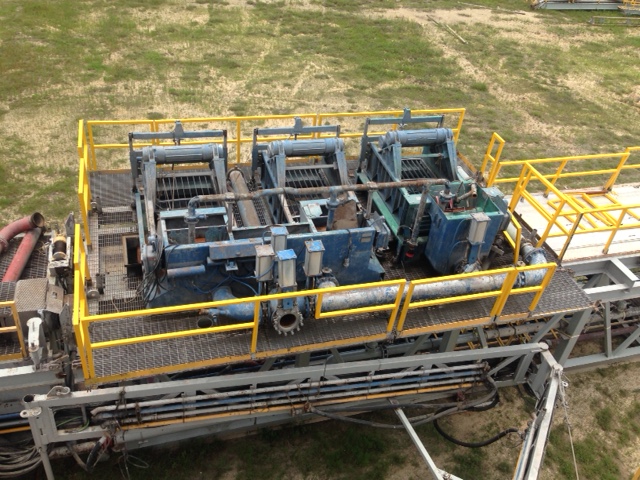

Three (3) Derrick 513 High G shakers

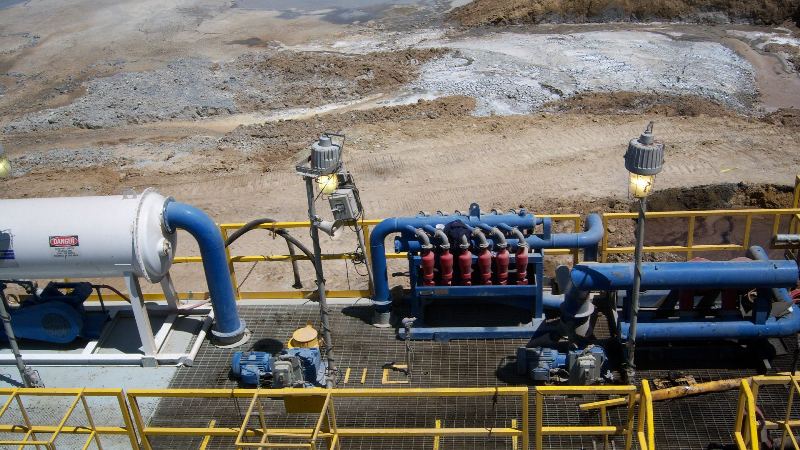

Two (2) cone desander
Twelve (12) cone desilter
Degasser

Auxillary Equipment
Toolpusher and crew quarters
One (1) 300 bbl water tank
One (1) 9,000 gal fuel tank

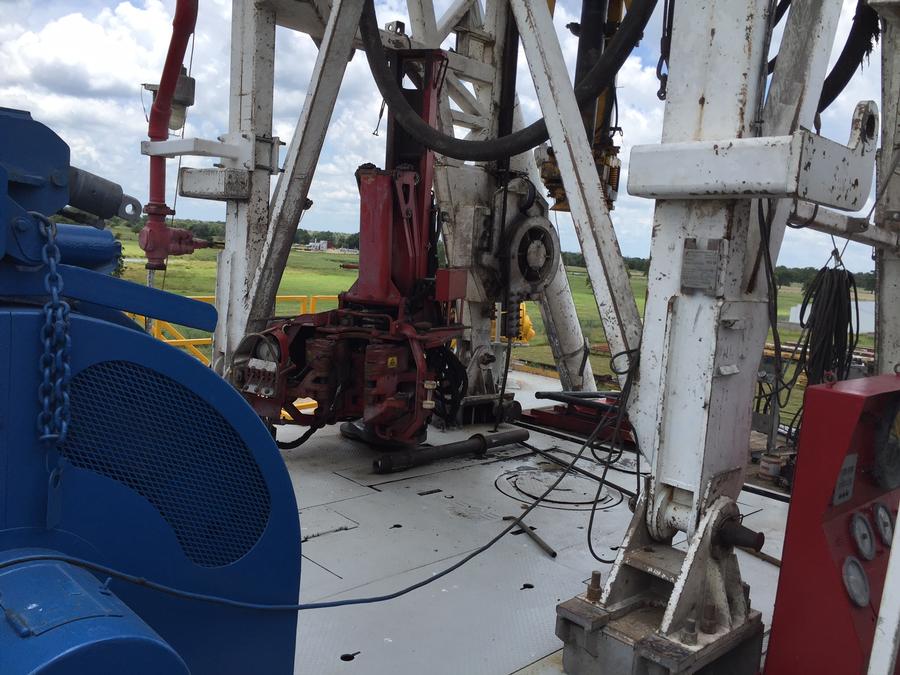

NOV-Iron Roughneck Type ST-80 C

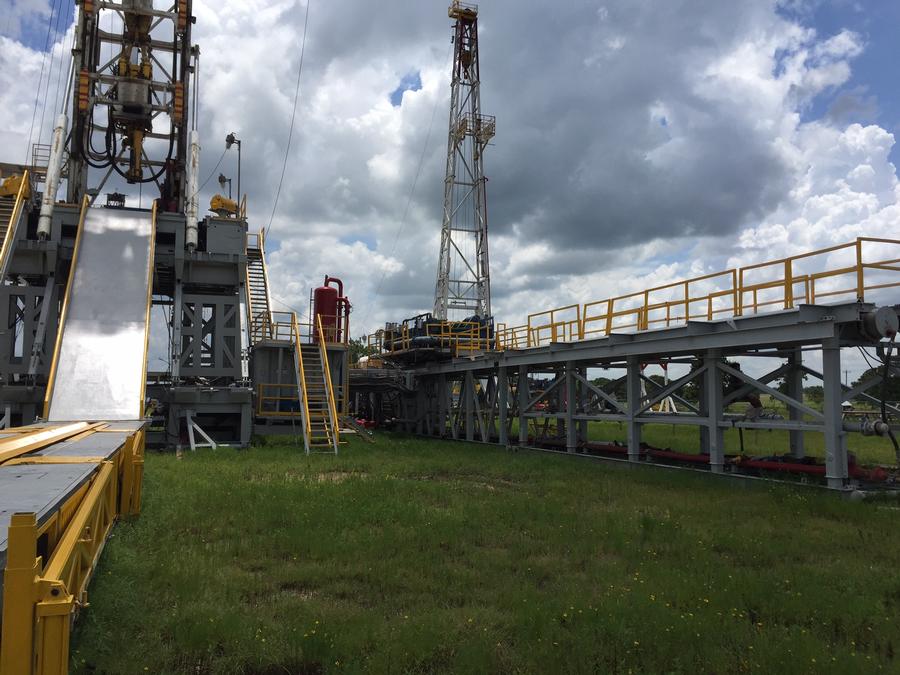

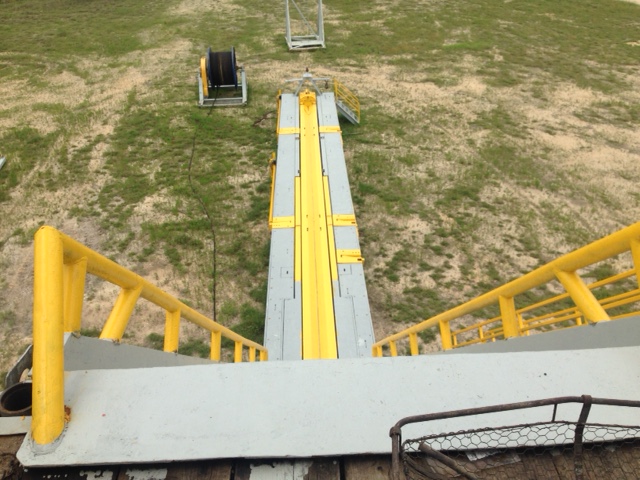

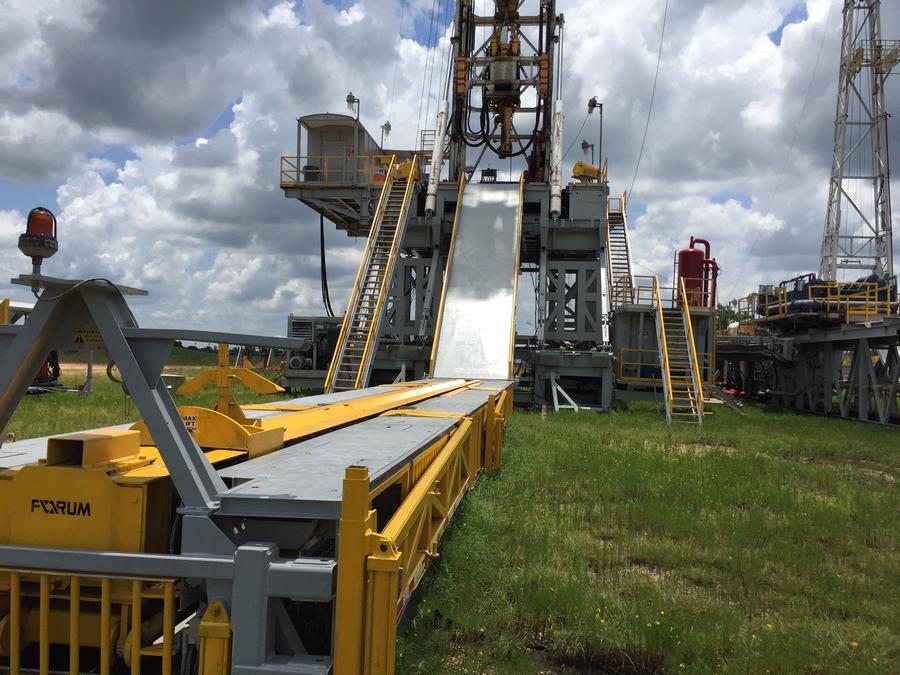

Hydraulic catwalk
30 ton BOP handling system
Bi-directional walking system
