Classification
1500 hp Electric

Racking Capacity
20,000’

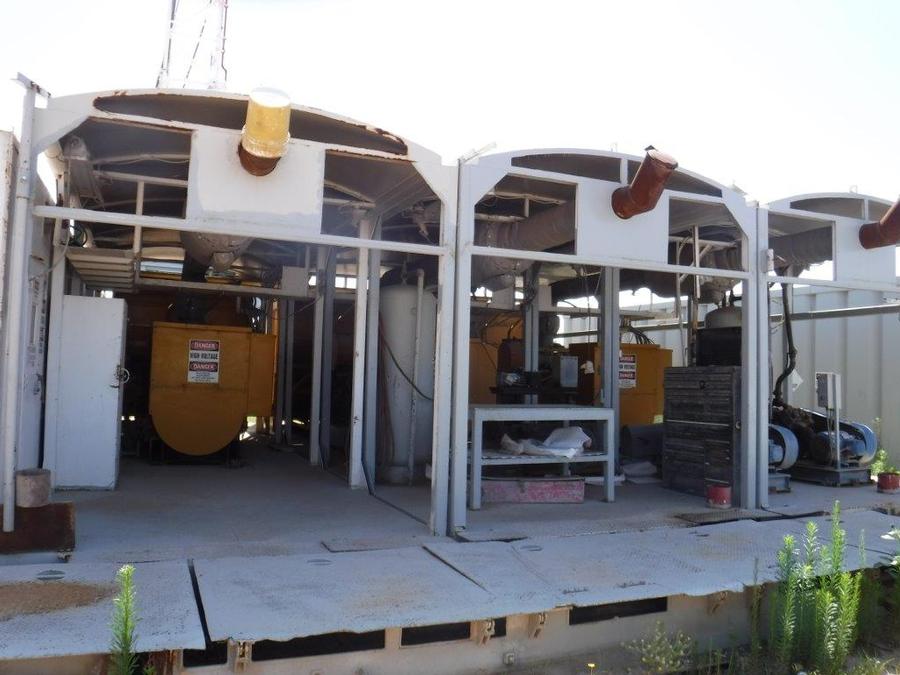

Power System
Two (2) Caterpillar 3512/1225 kw generator sets
One (1) IEC SCR I-Drive system

Draw Works
OIME SD7E with Wichita 2-36 KKB disc brake Powered by two (2) GE 752 traction motors

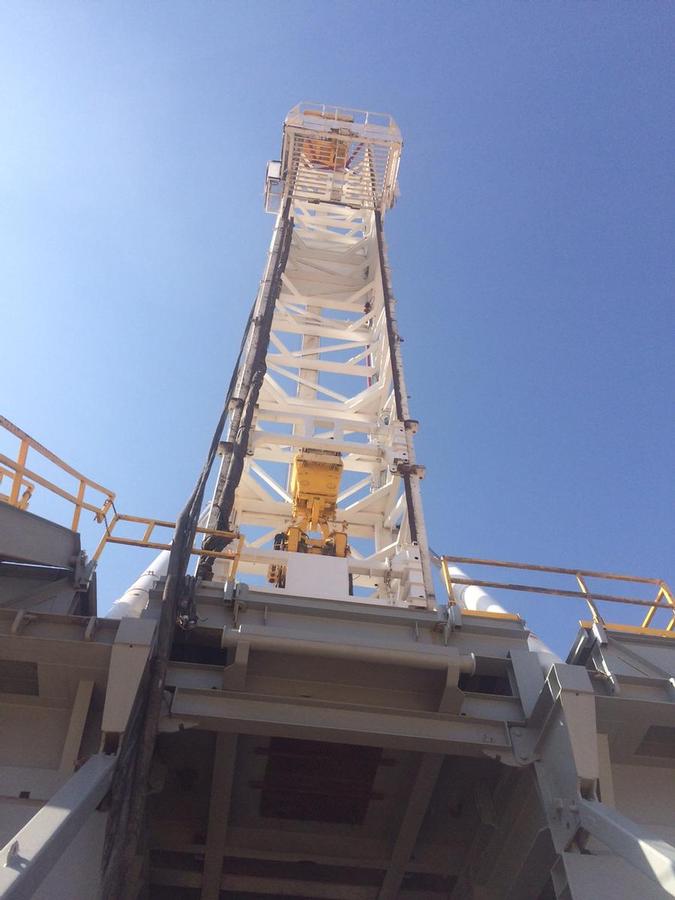

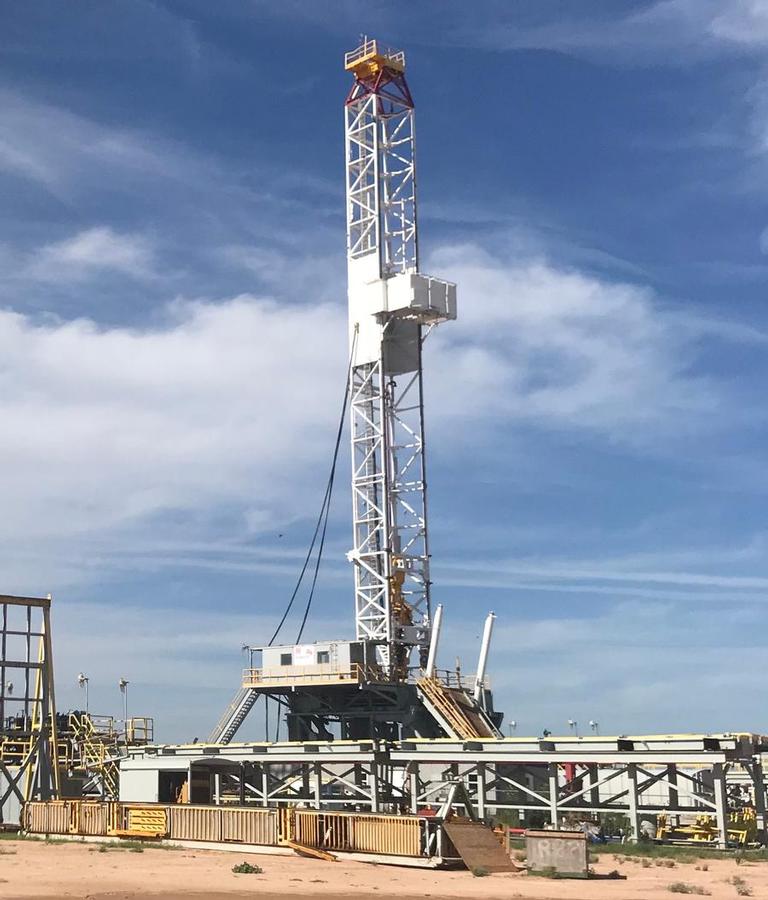

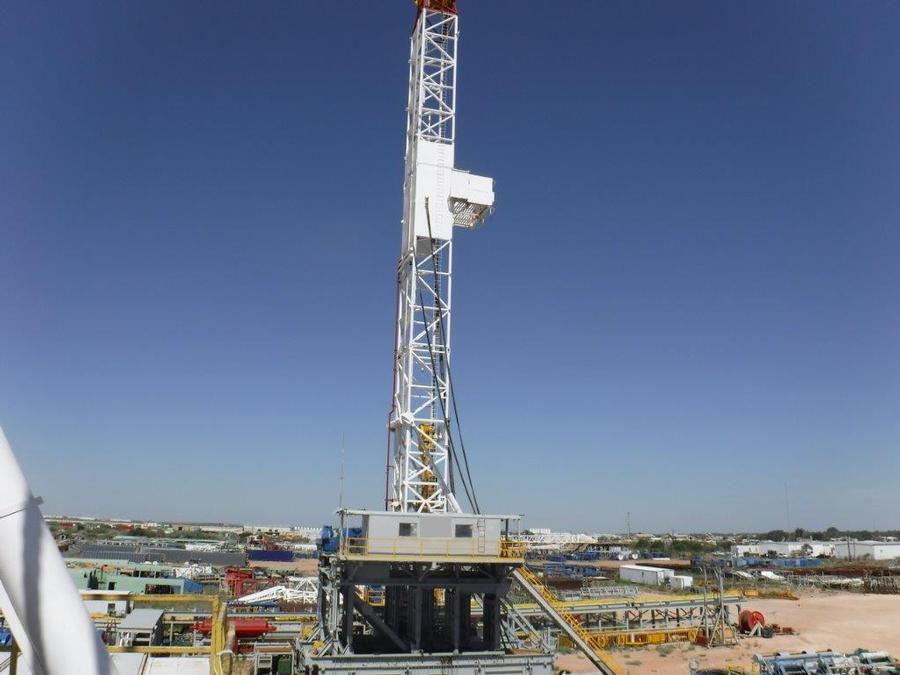

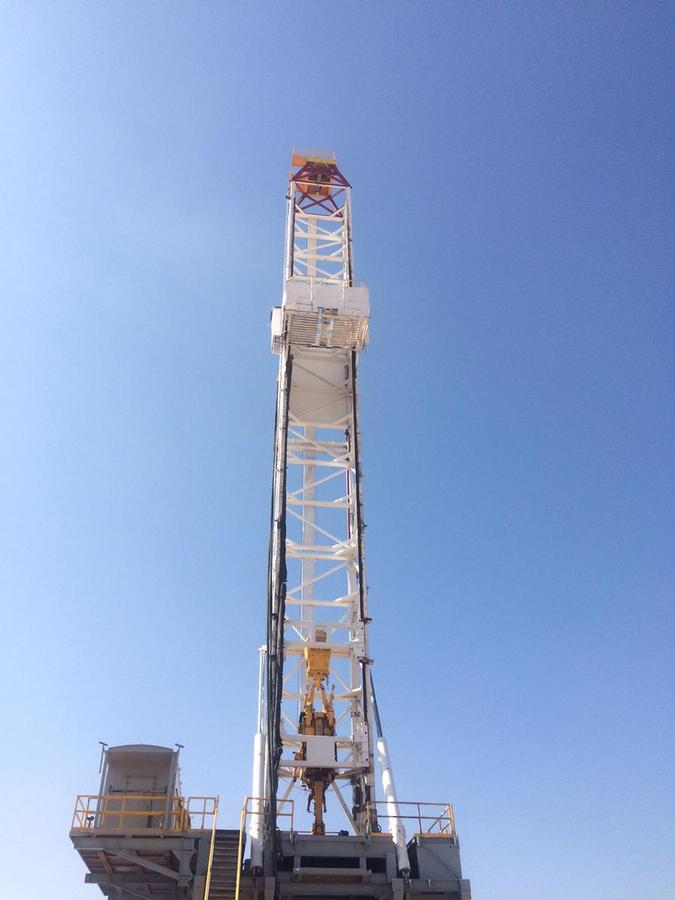

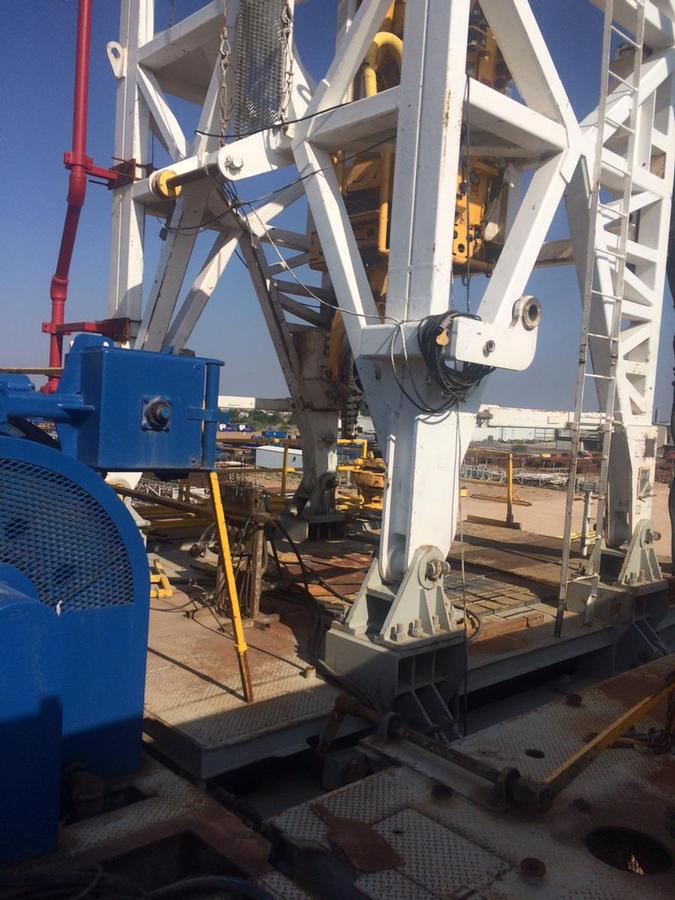

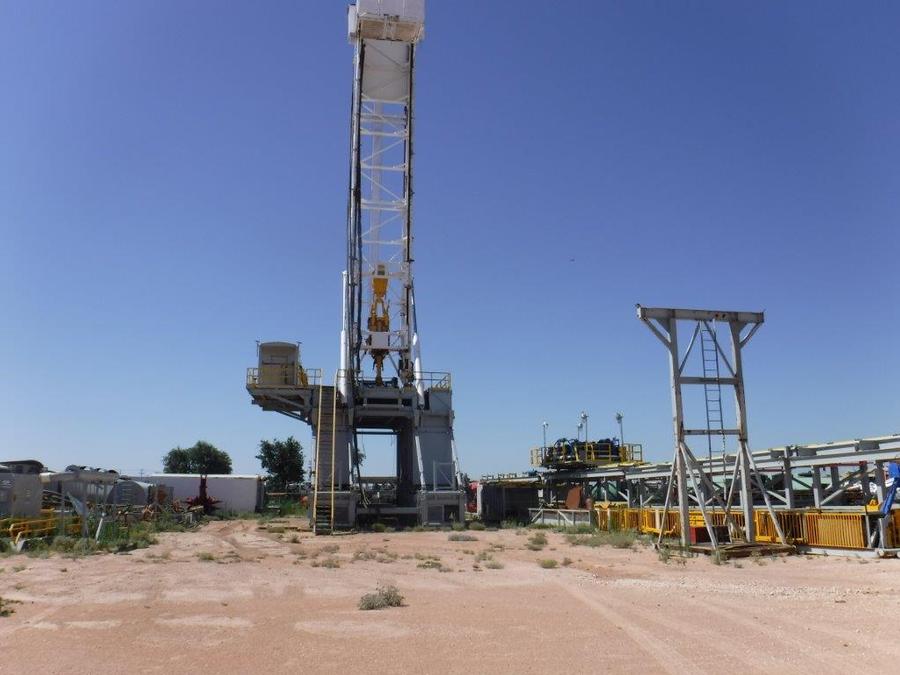

Mast
147' mast rated at 750,000 lb SHL with integrated Top drive

Drill Line
1-3/8” EIPS

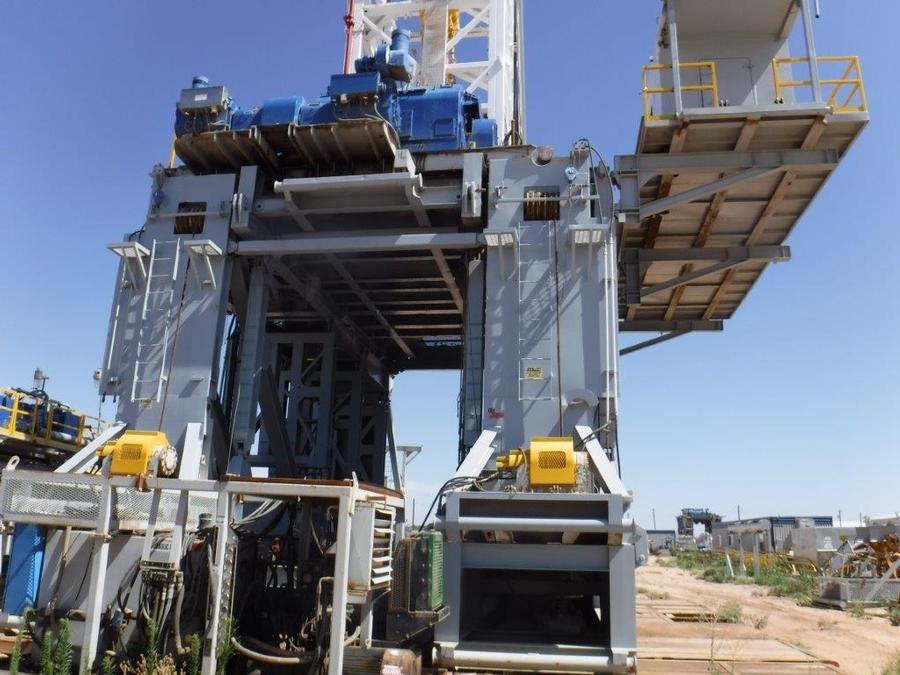

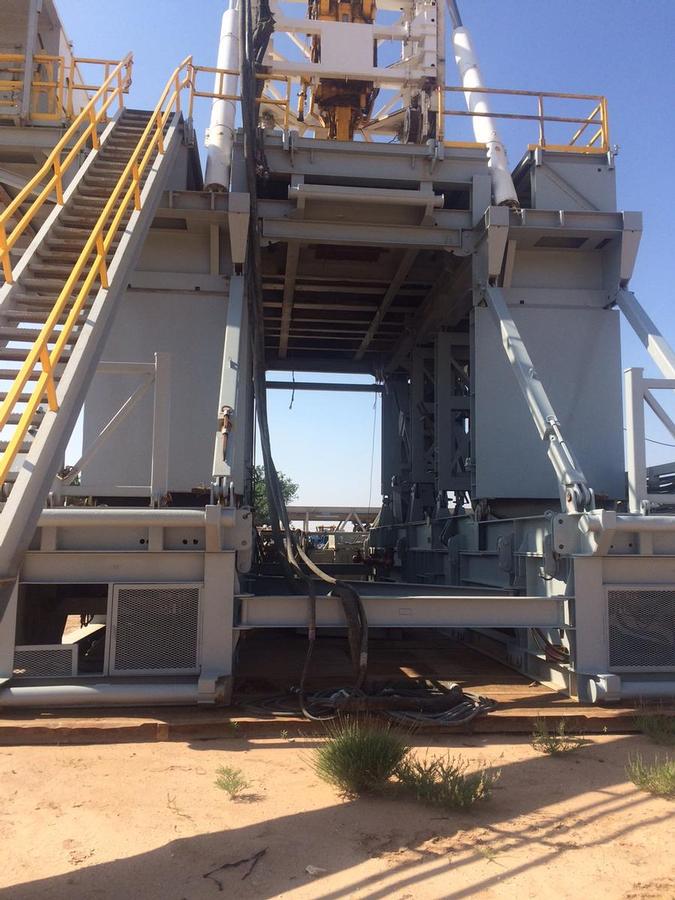

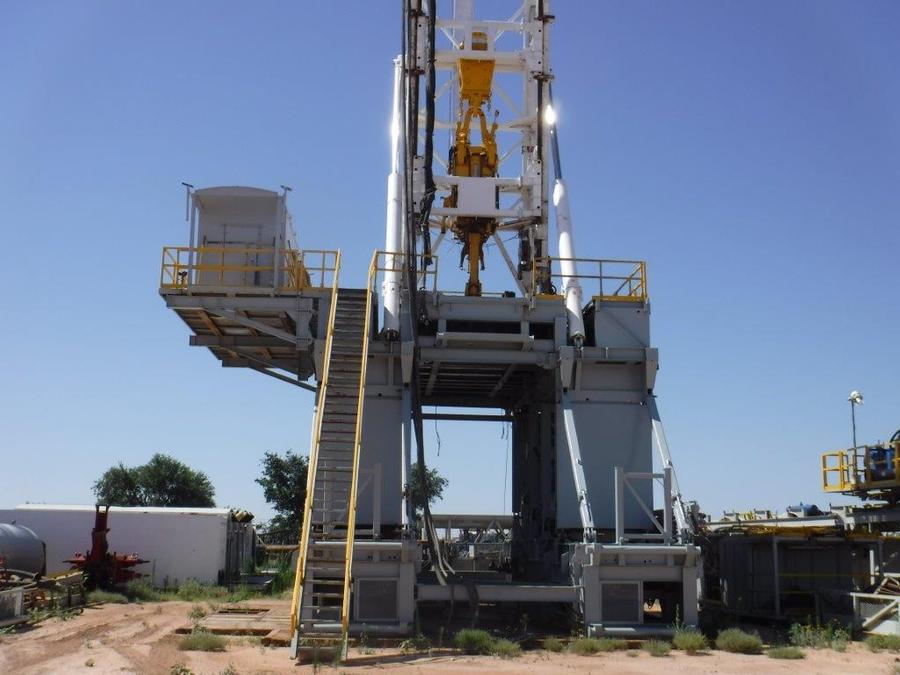

Substructure
27' high self-elevating with 24’ clear height under beams with a simultaneous rotary capacity of 750,000 lb and 400,000 lb setback

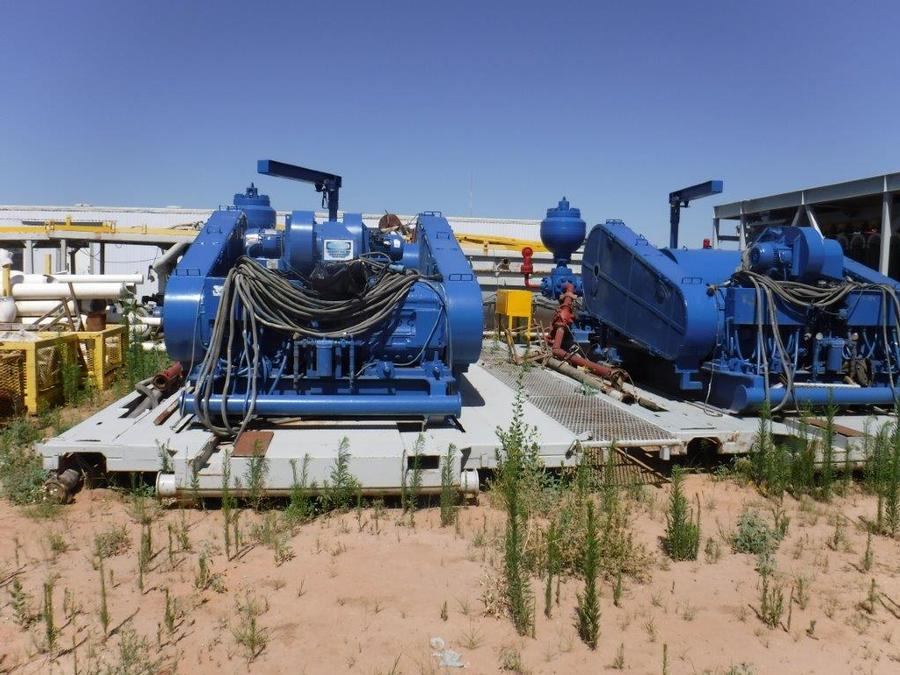

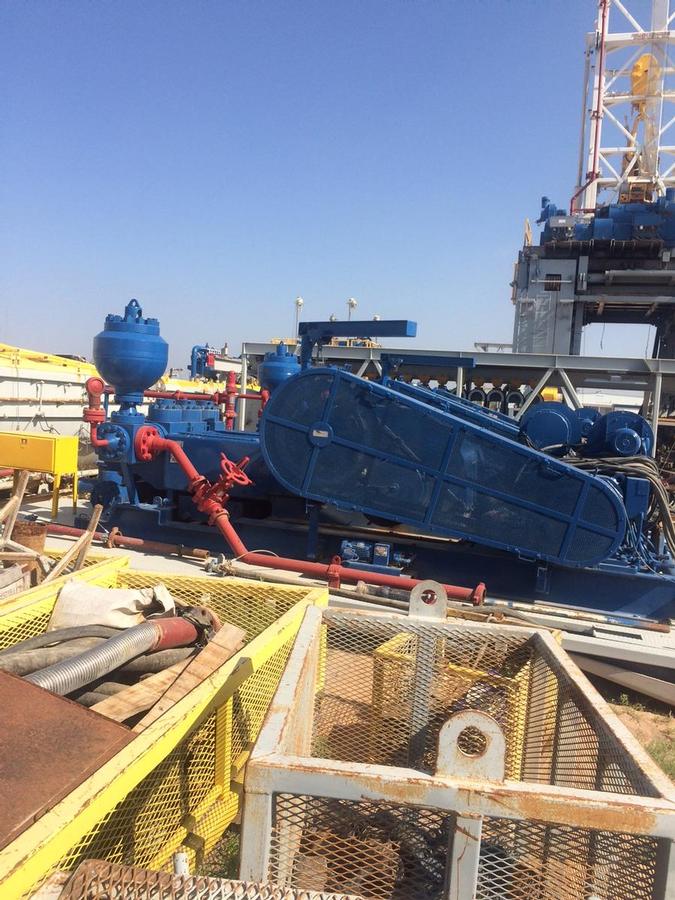

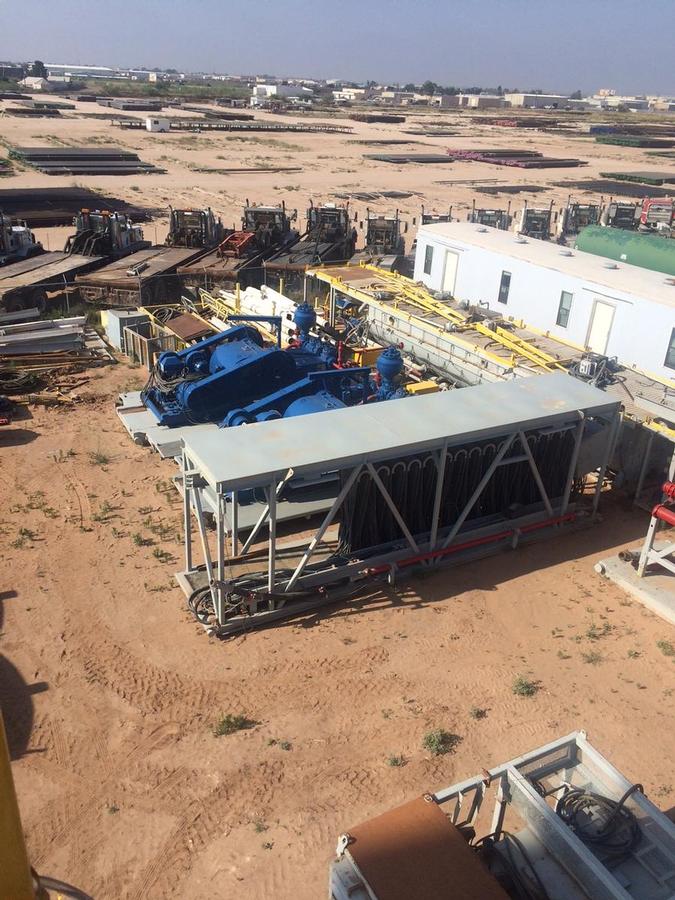

Mud Pumps
Two (2) 1600 hp Lewco WH1612 triplex pumps
each driven by two (2) GE 752 series traction motors

Rotary
27-1/2” powered by one (1) GE 761 traction motor

Top Drive
NOV-TDS11 SA 500 ton AC

Block and Hook
American 350 ton block

Drill Pipe
Available Not

Drill Collars
Not Available

Annular Preventer
Not Available

Ram Preventers
Not Available

Choke Manifold
4-1/16"x 2-1/16" 5,000 psi wp

Accumulator System
200 gal six (6) station with remote control

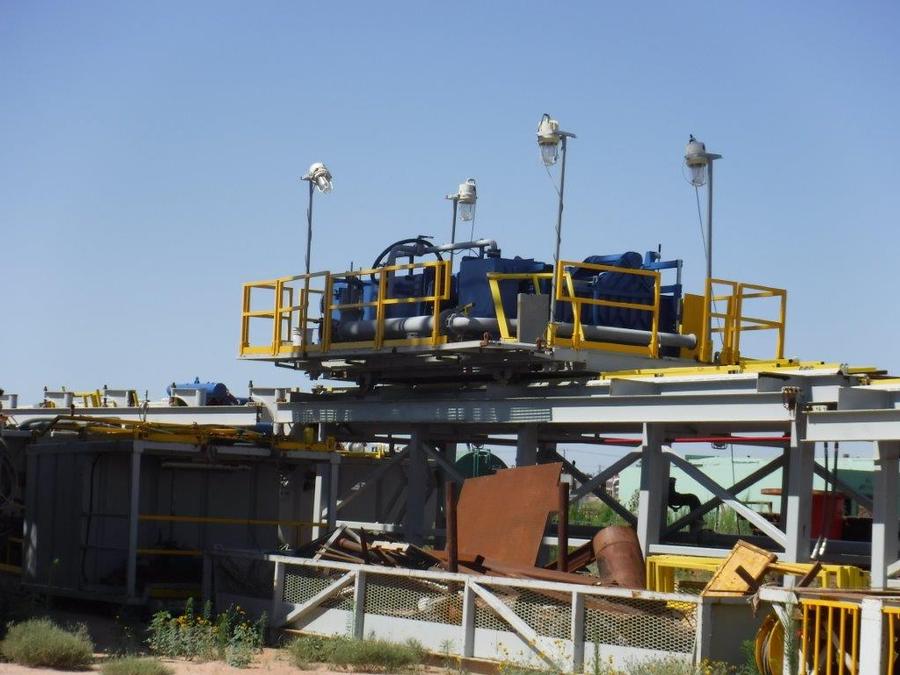

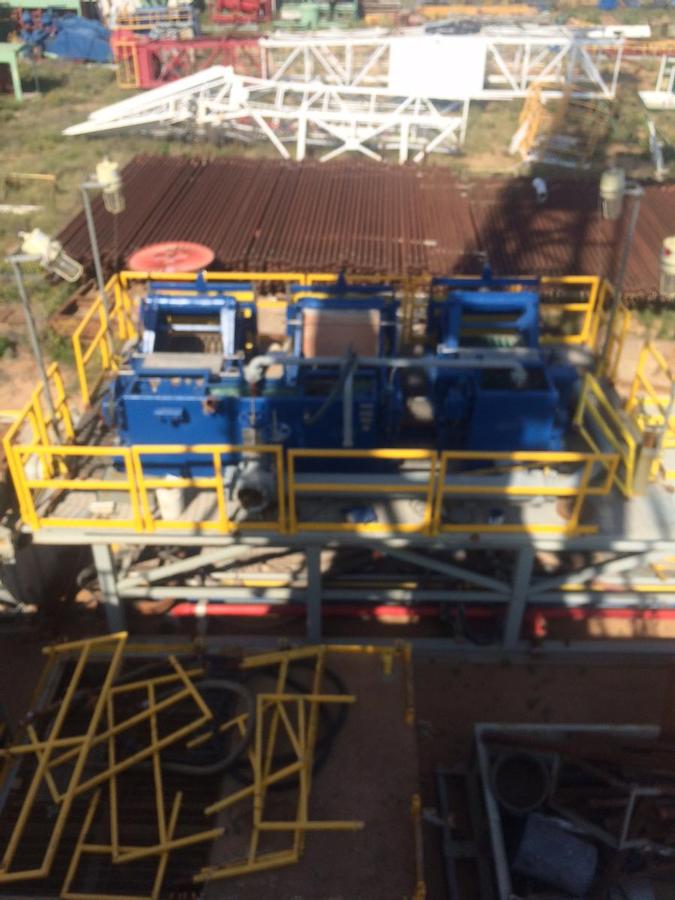

Mud System
Two (2) Tank 1,000 bbl system
Three (3) Derrick 503 High G shakers
Two (2) cone desander
Twelve (12) cone desilter
Vacuum degasser

Auxillary Equipment
Toolpusher house
One (1) 300 bbl water tank
One (1) 9,000 gal fuel tank
NOV-Iron Roughneck Type ST-80 C
Hydraulic catwalk
30 ton BOP handling system                                              Bi-directional walking system
