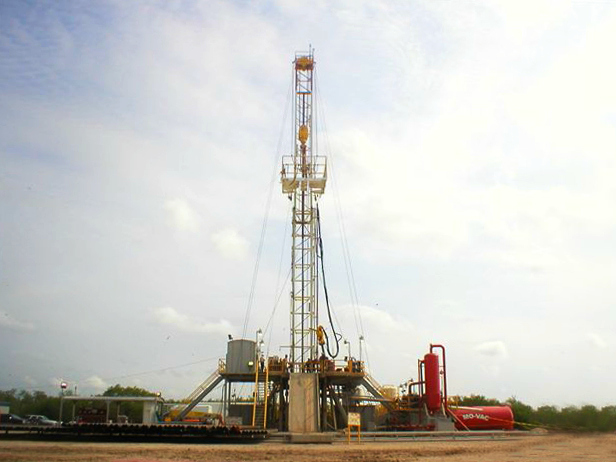

"Sister Rigs" - Each Complete w/SCR System, Top Drive, Skid System, & Iron Roughneck, 1000HP Pumps NOW ONLY 2 LEFT!!!

W/ TUBULARS - READY TO DRILL
12,500’ DRILL DEPTH – COST $15M NEW!!!
*Rigs located in Utah. Call NOW! (800) 952-1973

best swiss sports watches

Listing Details

Make an offer on this deal... won't be here long!!!

CLASSIFICATION: 1000 HP Trailer Electric

DRILLING DEPTH CAPACITY: 12,500’ w/ 4-1/2" DP

DRAW WORKS: HRI 1000-E Single Drum with Wichita 3-25 KKB disk brake powered by two (2) GE 761 Traction motors

MAST: DSI 118' with 425,000# SHL

SUBSTRUCTURE: DSI 17' telescoping with 425,000 rotary capacity with a setback capacity of 300,000# 15' clear height from bottom of rotary to ground

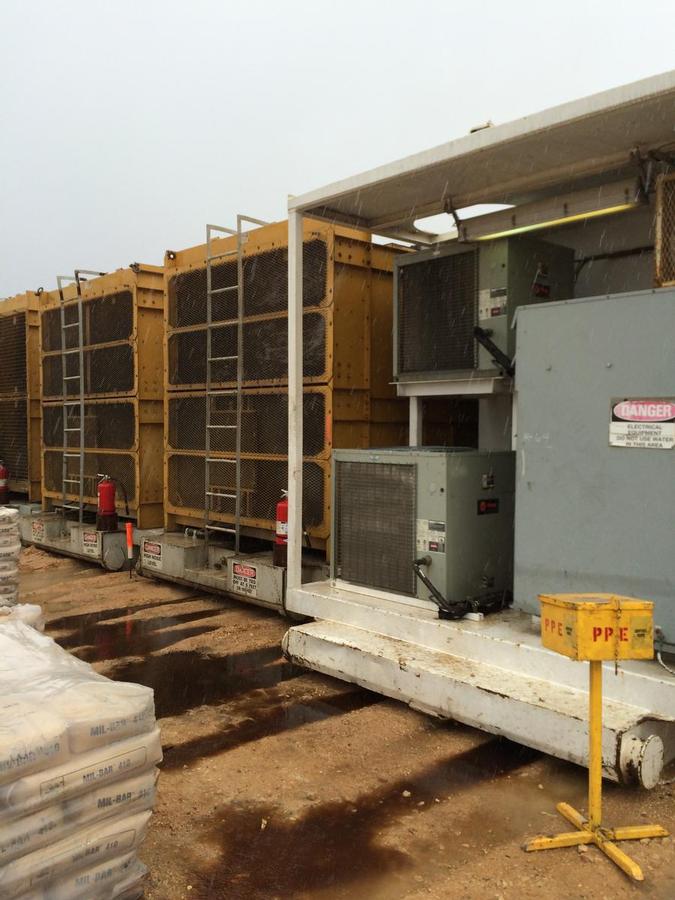

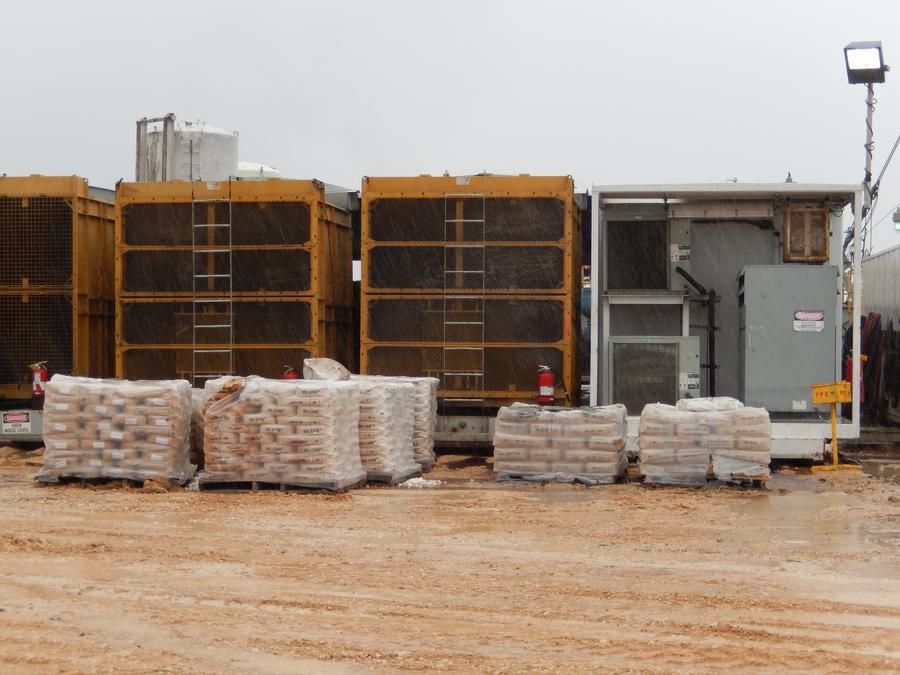

POWER SYSTEM: Two (2) CAT 3512B Diesel Engines with (2) CAT 1225 KW AC Generators and IEC SCR I Drive, 4 Bays to power Drawworks, Pumps, Lighting and Hotel Load

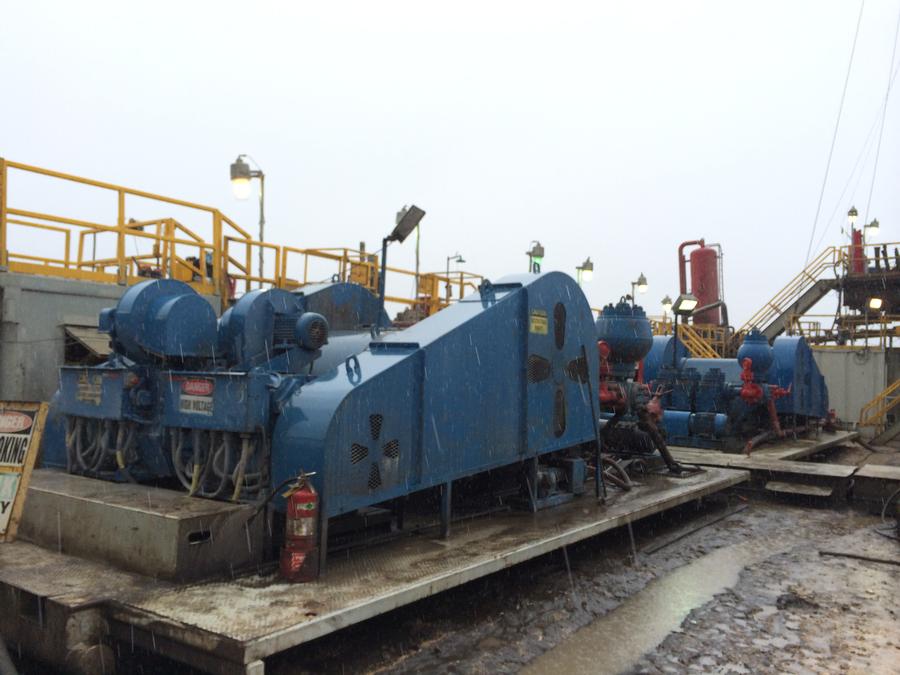

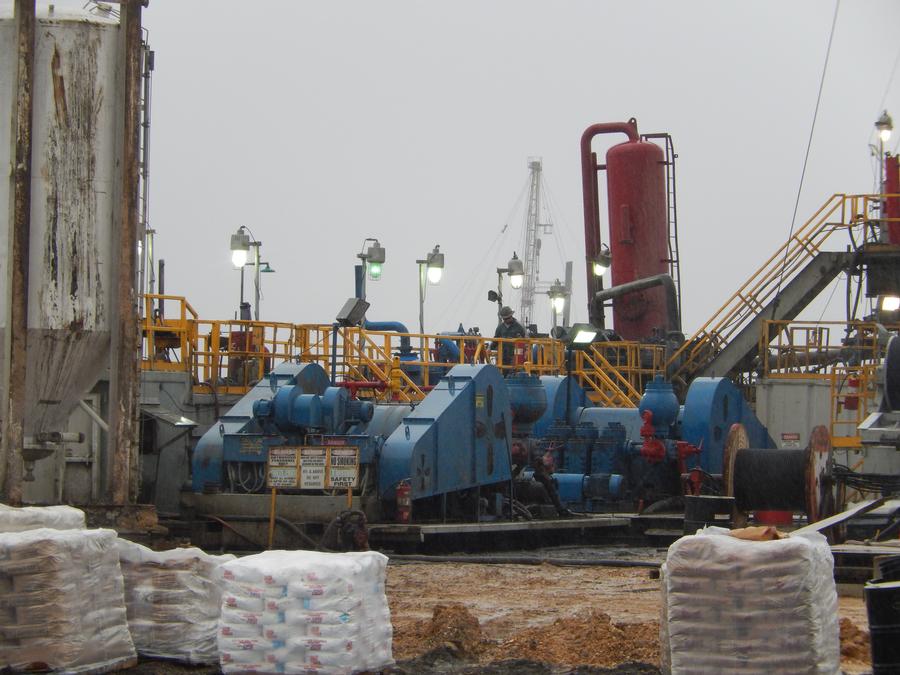

MUD PUMPS: (2) BOMCO F-1000HP Triplex Pumps each P/B (2) GE Model 752 Electric Motors

MUD SYSTEM: Two (2) Tank 750 BBL System, Two (2) Derrick High "G" Shakers Derrick, 2 cone desanders, Derrick 16 cone desilter, Drilco style degasser

ROTARY: AB 27-1/2" with 53-1/4" center powered by GE 752

TOP DRIVE: NOV TDS - 10SA 250 Ton Top Drive

BLOCK AND HOOK: 250 Ton American Block

SWIVEL: American Block 200 Ton

ANNULAR PREVENTER: Townsend Type 84, 11" 5000 psi WP

RAM PREVENTERS: Townsend Type 82, 11" 5,000 psi WP double ram

CHOKE MANIFOLD: 4" x 2" 5,000 psi WP

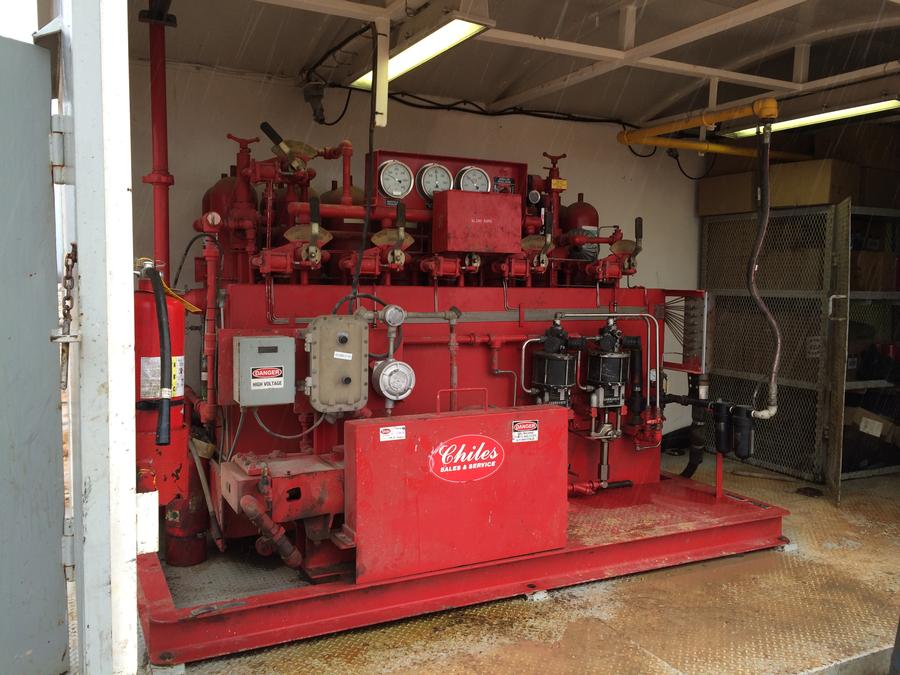

ACCUMULATOR SYSTEM: Chiles (5) station 180 gal. with remote control

DRILL PIPE: 12,500' 4-1/2"OD 16.60 ppf Grade G 105 Drill Pipe

DRILL COLLARS: (18) 6" OD Drill Collars and (4) 8" OD Drill Collars

DRILL LINE: 1-1/8” EIPS

AUXILLARY EQUIPMENT: NOV-Iron Roughneck Type ST 80-C, Toolpusher and crew quarters, One 300 BBL water tank, Automatic driller, Pipe spinner, Kelly spinner, 200 BBL Fuel Tank

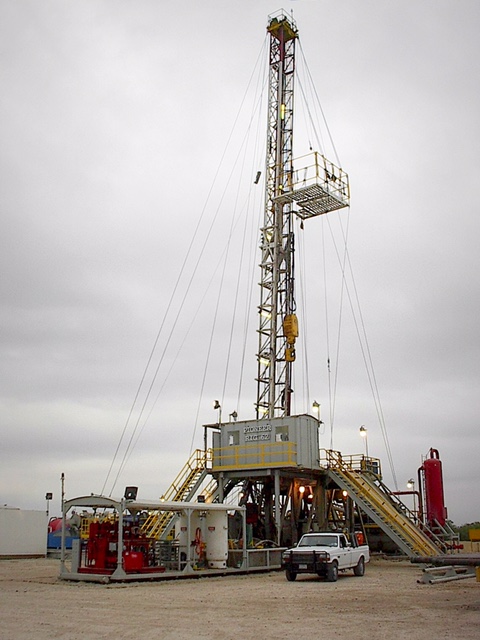

*Rigs Located in Utah: except Rig #65 Gen Sets in Alice,TX; Rig #62 Mast in Houston. All available for immediate transport.
