SOLD - (2) NATIONAL 110 UE SCR Walking Rigs

Sale Price $5,250,000 EACH

Excellent Price for Quality Rigs
w/ Bi-Directional Walking Systems, like New!
Both Located in Corpus Christi, TX

BUY ONE OR BOTH, READY NOW
Call to Inspect and Buy Today!!!

Call NOW! (800) 952-1973

Buy ONE or BOTH Rigs!!

Listing Details

RIG NO. 24

Classification
1500 hp Electric

Racking Capacity
18,000’

Power System

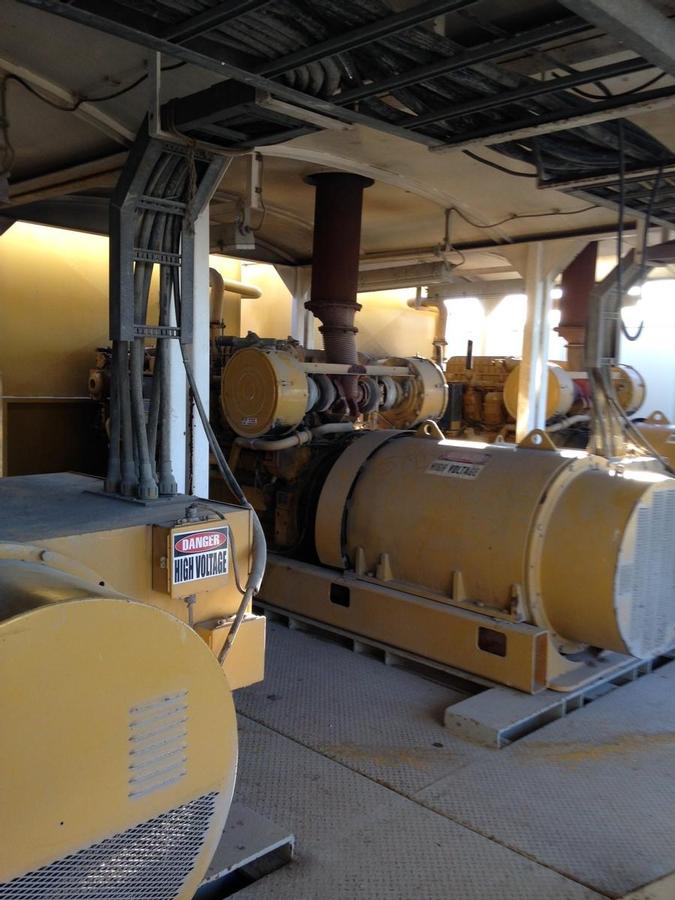

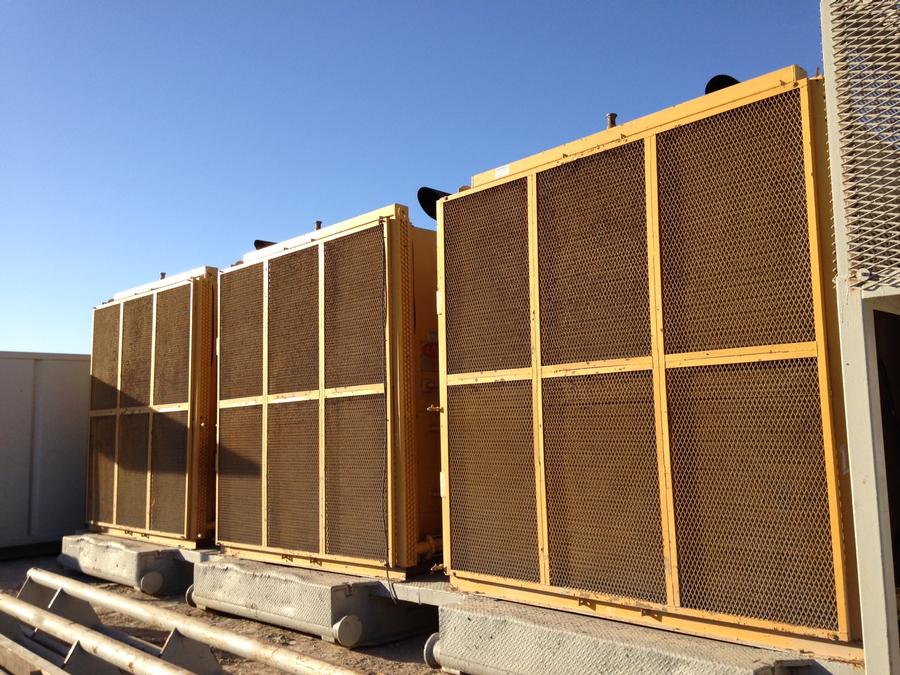

Three (3) Caterpillar 3512/1365 kw generator sets

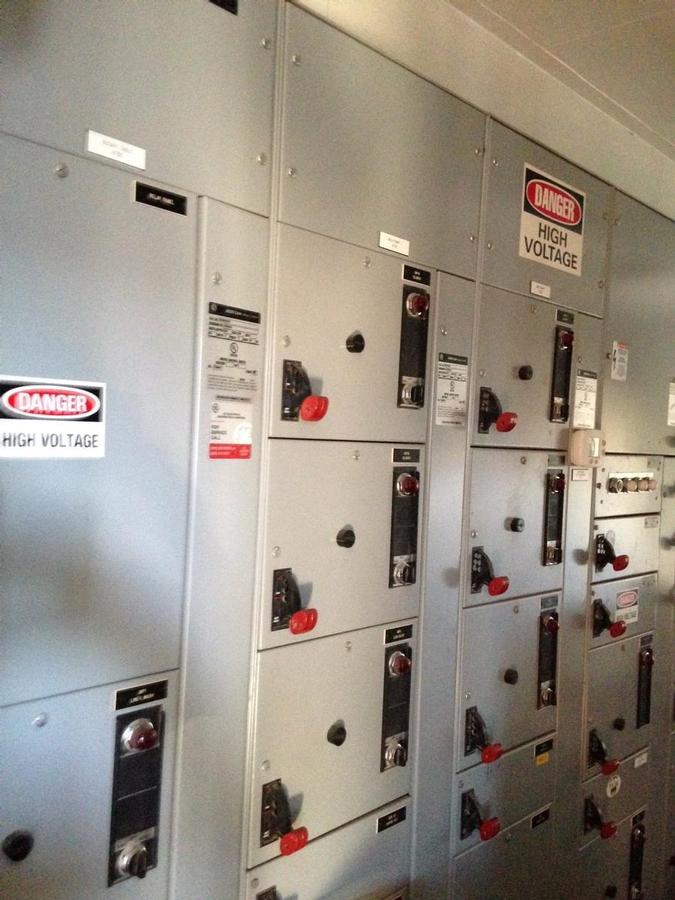

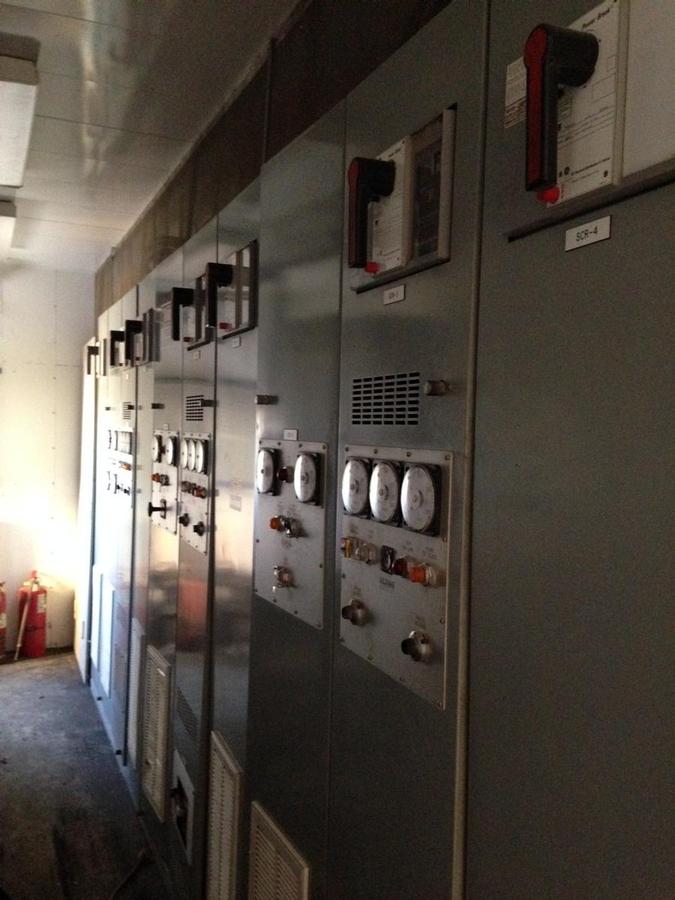

One (1) IDM Model 2400 SCR system

Draw Works
National 110-UE with 7040 Baylor brake powered by
Two (2) GE 752 traction motors

Mast

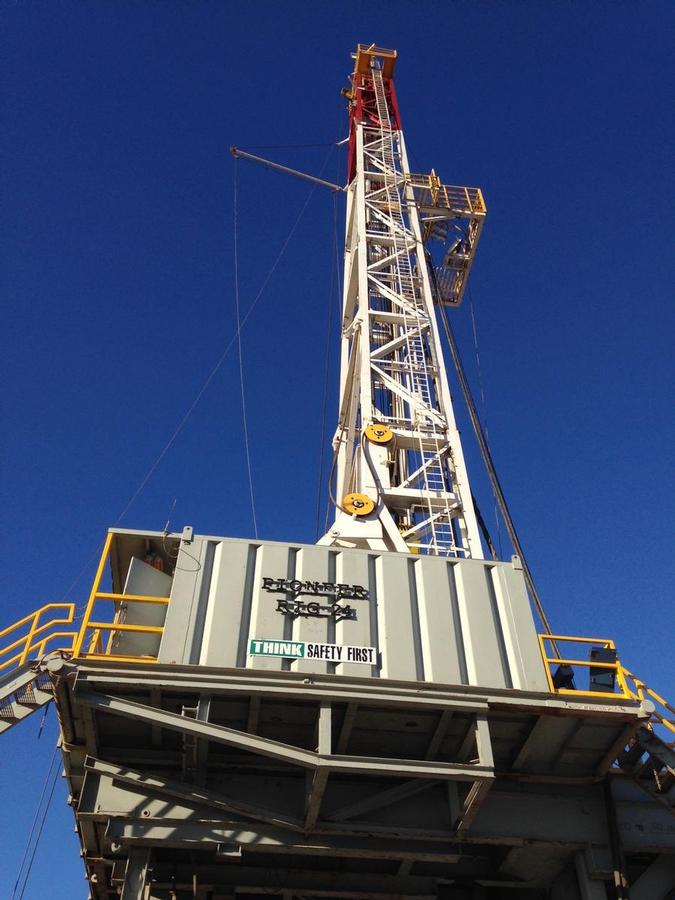

142' mast rated at 800,000 lb SHL

Drill Line
1-3/8” EIPS

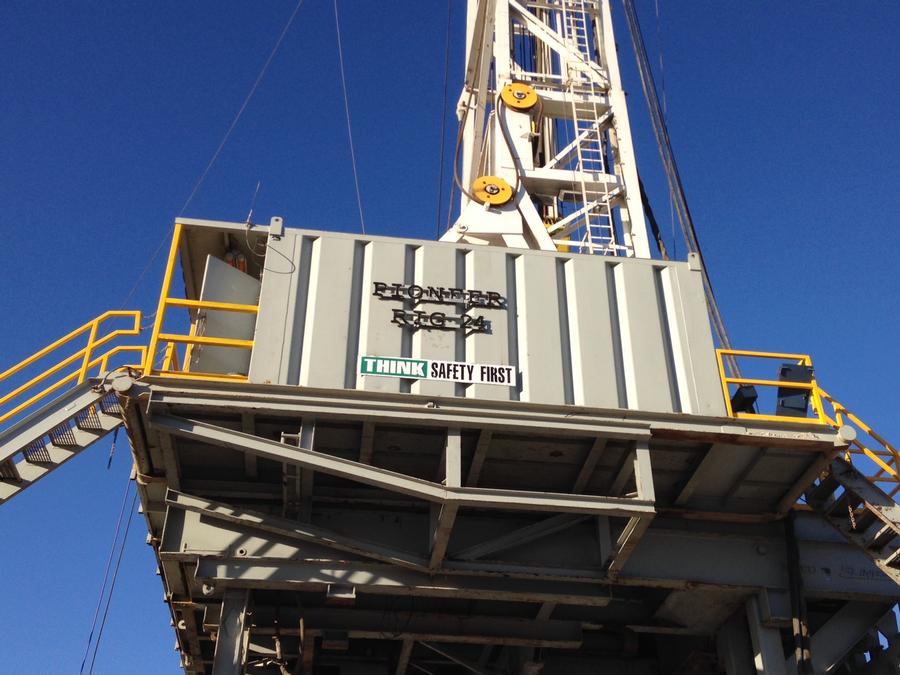

Substructure

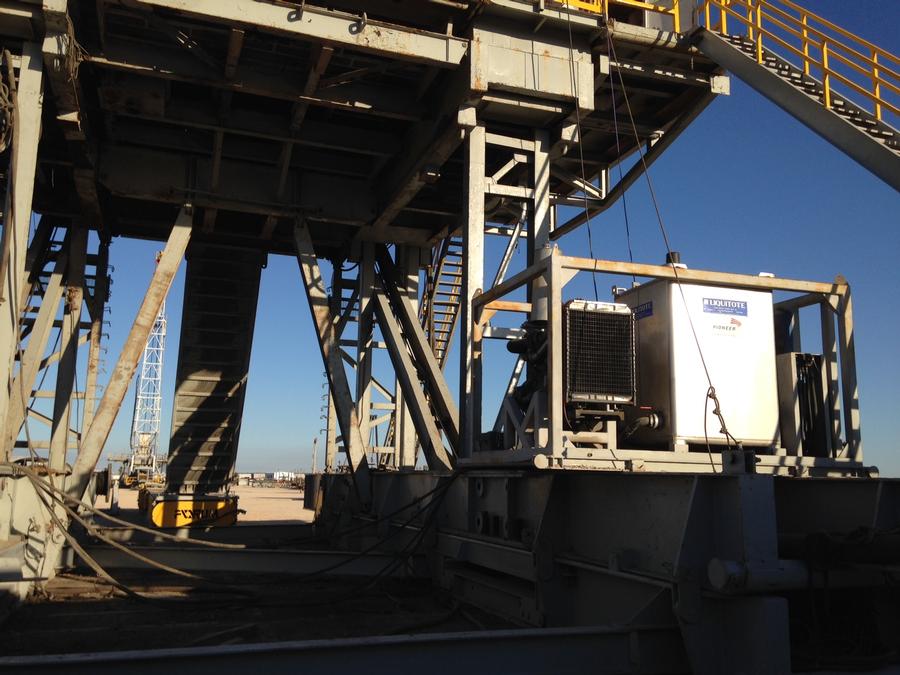

28' high self-elevating with 24’ clear height under beams
with a simultaneous rotary capacity of 750,000 lb and 500,000 lb setback

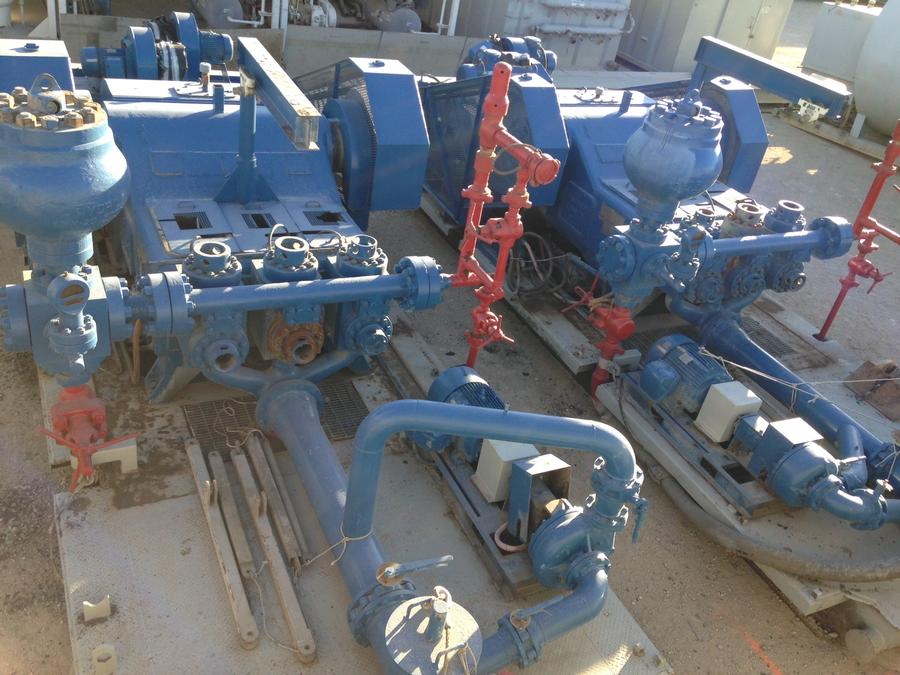

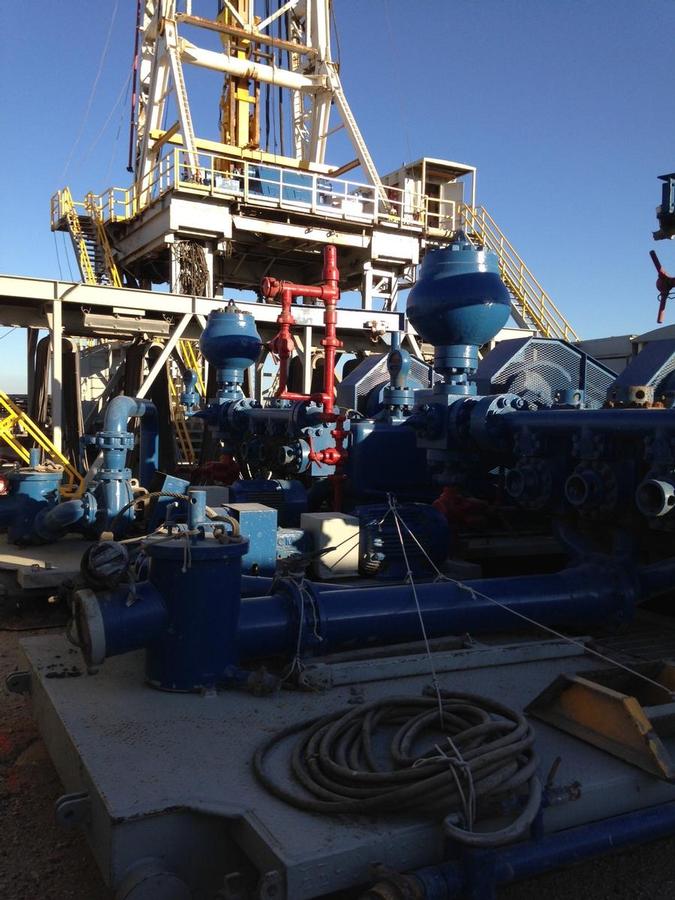

Mud Pumps
Two (2) 1600 hp Gardner-Denver PZ11’s each driven by
Two (2) 1000 hp GE 752 traction motors

Rotary
27-1/2” powered by one (1) GE 752 traction motor

Top Drive

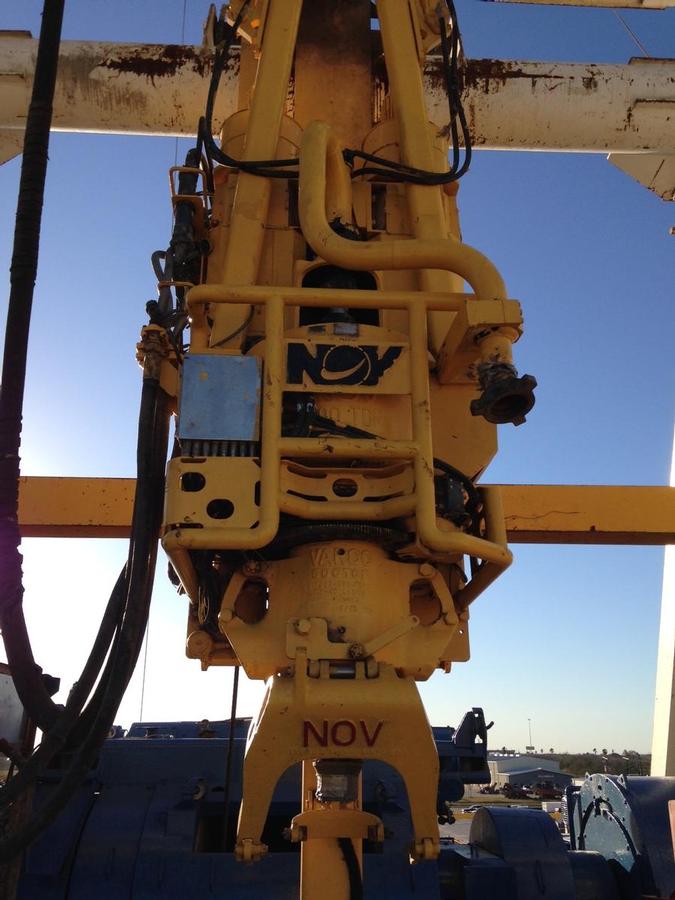

NOV-TDS11 SA 500 ton AC

Block and Hook
Gardner Denver 400 ton block
Web Wilson 350 ton hook





Drill Pipe
5" od 19.50 ppf S-135 NC 50

Drill Collars
As Required

Annular Preventer
13-5/8” 5,000 psi wp

Ram Preventers
13-5/8” 10,000 psi wp double ram
13-5/8” 10,000 psi wp single ram

Choke Manifold
4-1/16"x 3-1/16" 10,000 psi wp

Accumulator System
200 gal six (6) station with remote control

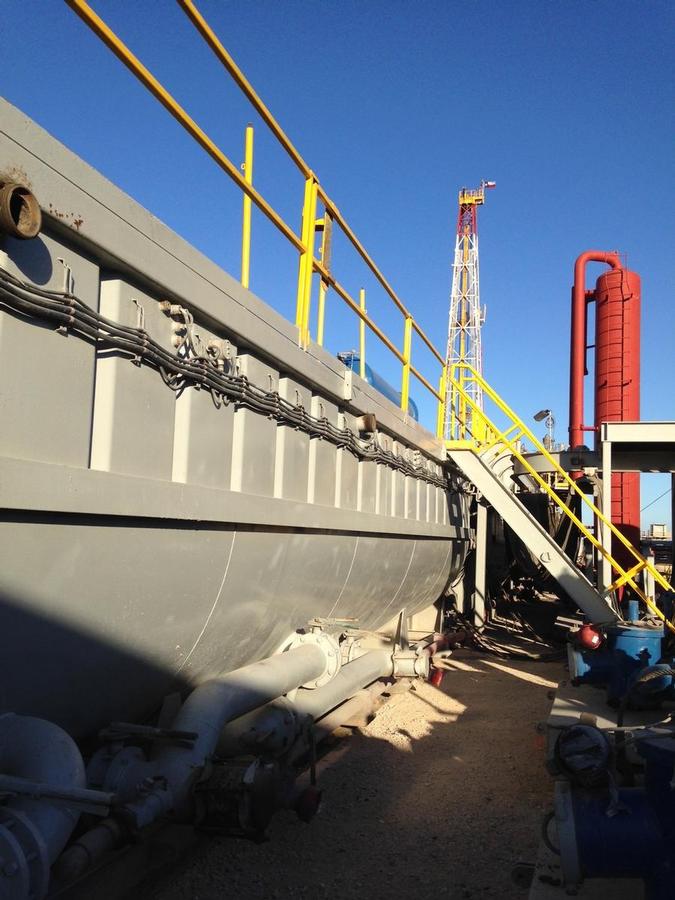

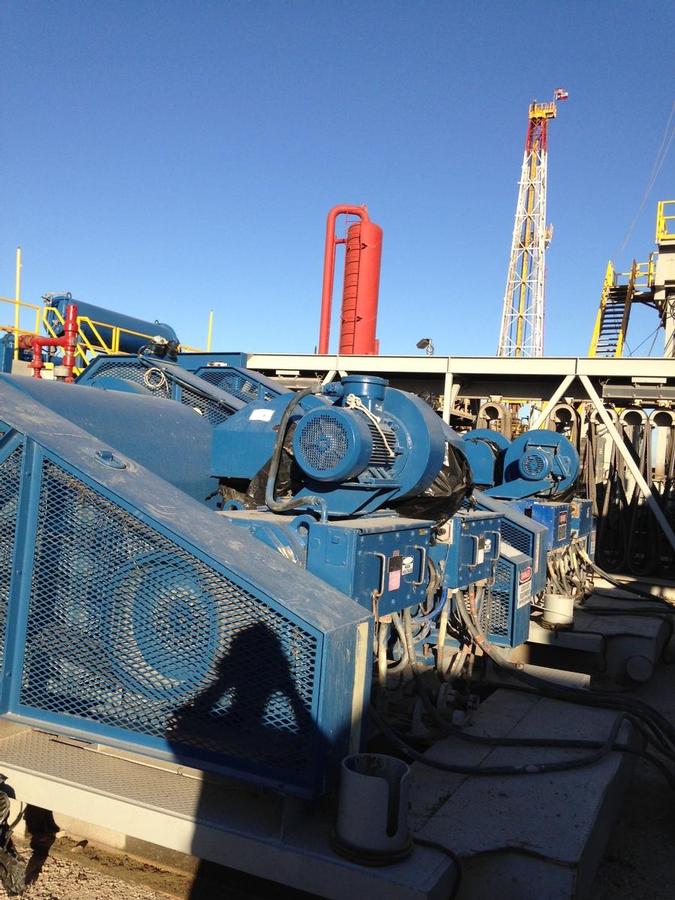

Mud System
Two (2) Tank 1,000 bbl system
Three (3) Derrick 513 High G shakers
Two (2) cone desander
Twelve (12) cone desilter
Vacuum degasser

Auxillary Equipment
Toolpusher and crew quarters
One (1) 500 bbl water tank
NOV-Iron Roughneck Type ST-80 C
Hydraulic Catwalk
30 ton BOP handling system
Bi-directional walking system





























RIG NO. 25 (STACKED)

Classification
1500 hp Electric

Racking Capacity
18,000’

Power System
Three (3) Caterpillar 3512/1365 kw generator sets
One (1) IDM Model 2400 SCR system

Draw Works
National 110-UE with 7040 Baylor brake powered by
Two (2) GE 752 traction motors

Mast
142' mast rated at 800,000 lb SHL

Drill Line
1-3/8” EIPS

Substructure
28' high self-elevating with 24’ clear height under beams with a simultaneous rotary capacity of 750,000 lb and 500,000 lb setback

Mud Pumps
Two (2)  RSF-1600 triplex pumps each driven by
Two (2) 1000 hp Joilet traction motors

Rotary
27-1/2” powered by one (1) GE 752 traction motor

Top Drive
NOV-TDS11 SA 500 ton AC

Block and Hook
National 400 ton block



Drill Pipe
5" od 19.50 ppf S-135 NC 50

Drill Collars
As Required

Annular Preventer
13-5/8” 5,000 psi wp

Ram Preventers
13-5/8” 10,000 psi wp double ram
13-5/8” 10,000 psi wp single ram

Choke Manifold
4-1/16"x 3-1/16" 10,000 psi wp

Accumulator System
200 gal six (6) station with remote control

Mud System
Two (2) Tank 1,000 bbl system
Three (3) Derrick 513 High G shakers
Two (2) cone desander
Twelve (12) cone desilter
Vacuum degasser

Auxillary Equipment
Toolpusher and crew quarters
One (1) 500 bbl water tank
NOV-Iron Roughneck Type ST-80 C
Hydraulic Catwalk
30 ton BOP handling system
Bi-directional walking system












































Listing No. 188
