(4) NATIONAL 110-UE DRILLING RIGS W/SCR Walking System

No Longer Available

Sister Rigs, Special Price for all 4
(3) 1600hp pumps, 500 Ton NOV P/S
All 4 Rigs Working
$11M each / Sold with Tubulars
These rigs would cost new today $27M Each
MAKE AN OFFER
Located in Columbia, South America
Call NOW! (800) 952-1973

Listing Details

DSI Walking Systems were added in 2012 and 2013 and cost $2.4Million



RIG 51 INVENTORY W/WALKING SYSTEM



 Classification
1500 hp Electric

Racking Capacity
18,000’

Power System

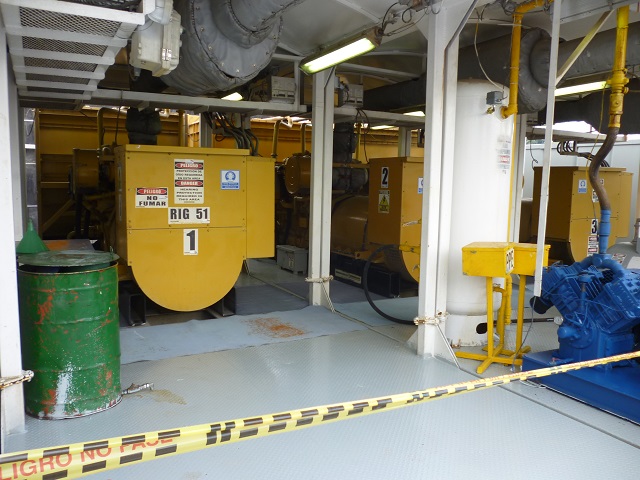

Three (3) Caterpillar 3512B/1225 generator sets One (1) IEC SCR model I-Drive

Draw Works

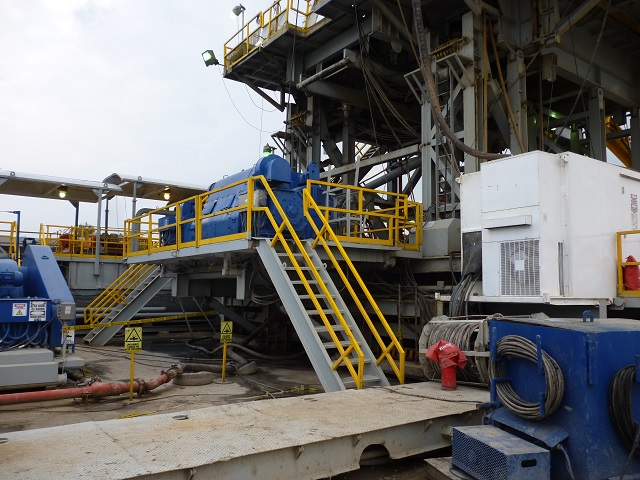

National 110-UE with Wichita 2-36 KKB Disc brake powered by two (2) GE 752 traction motors

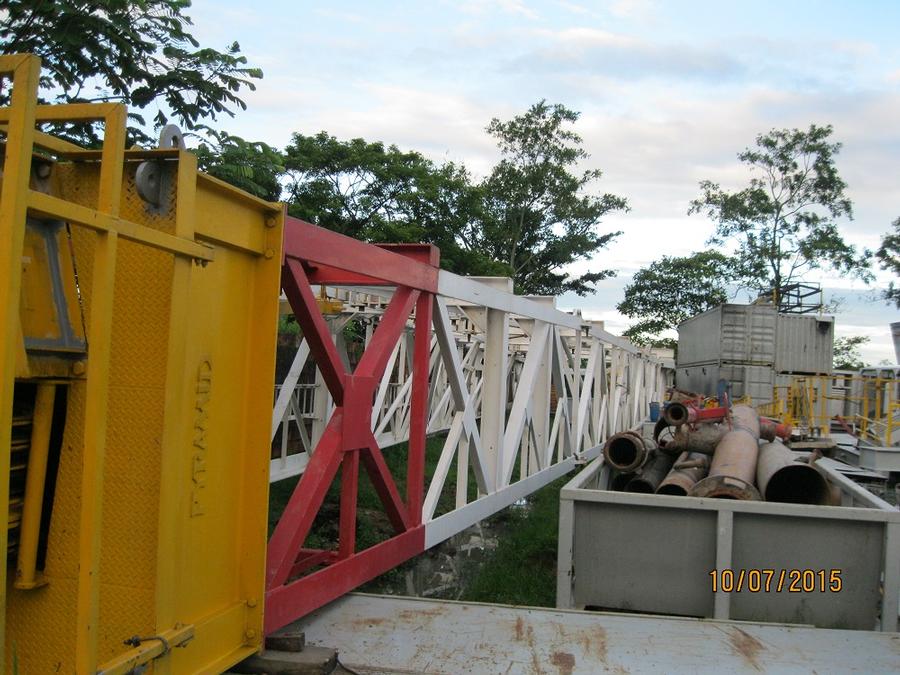

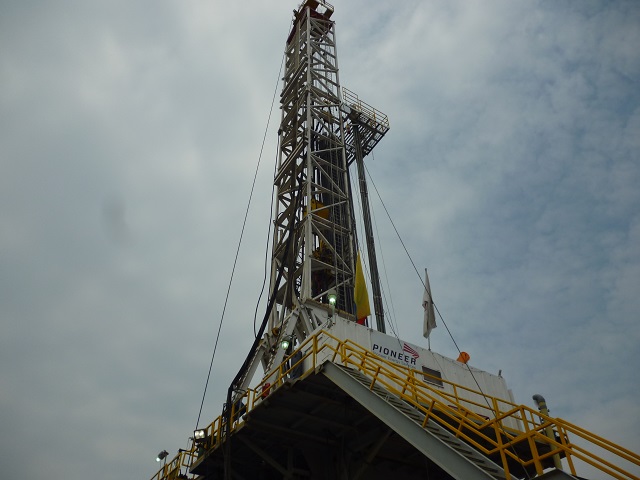

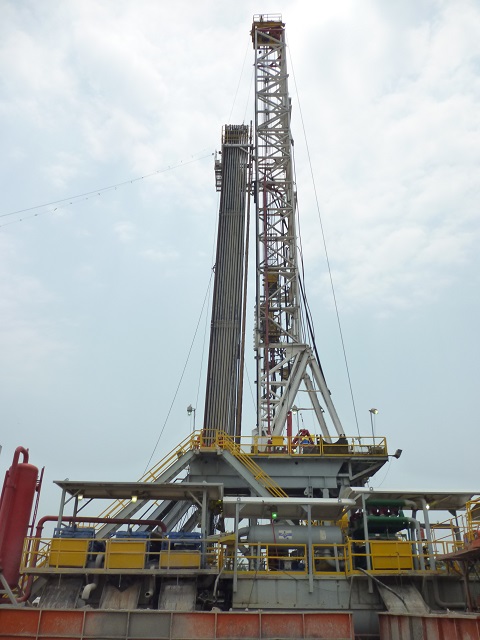

Mast
DSI 147' Mast rated at 1,000,000 SHL 12 part line

DSI Walking System

Drill Line
1-3/8” EIPS

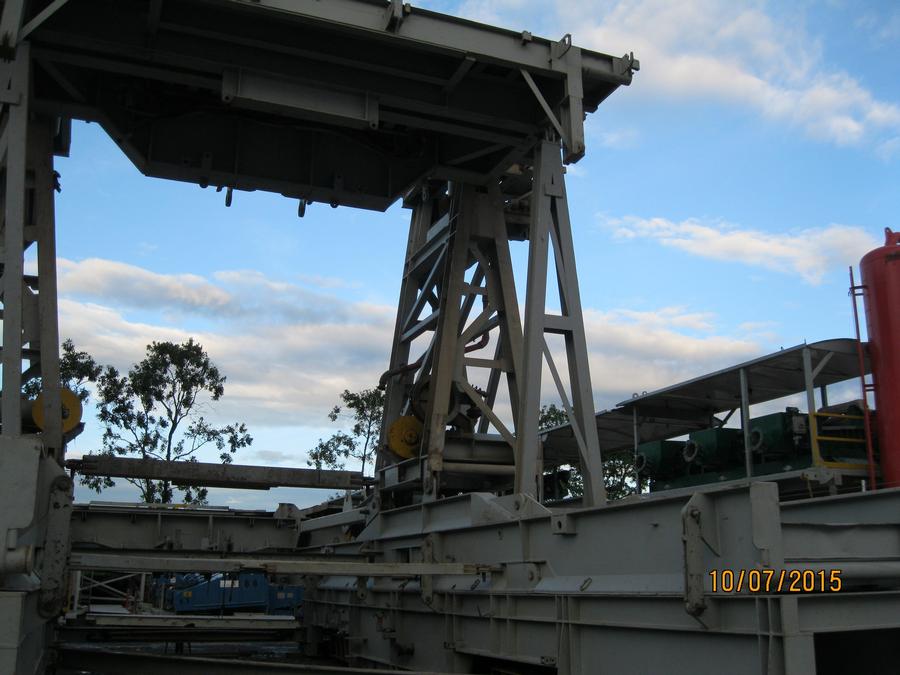

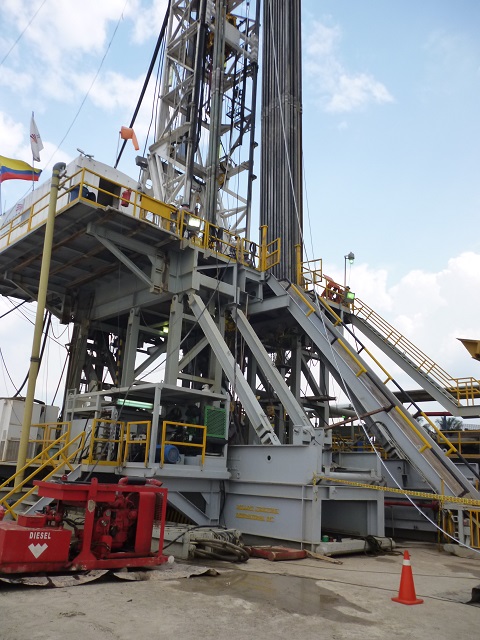

Substructure

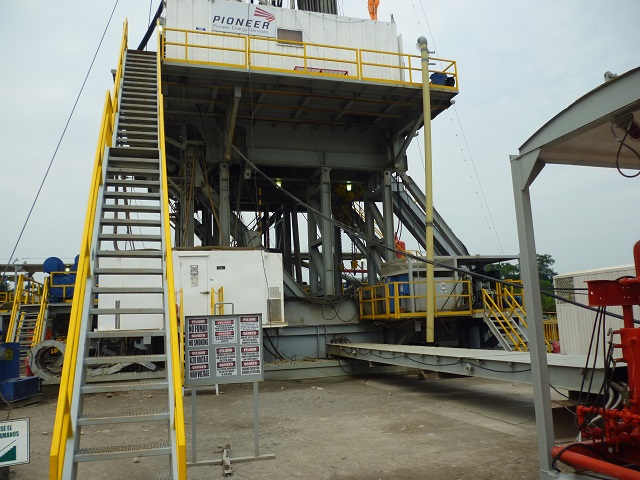

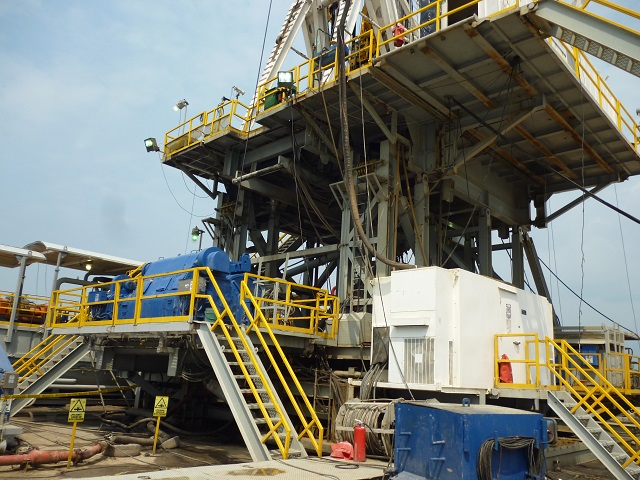

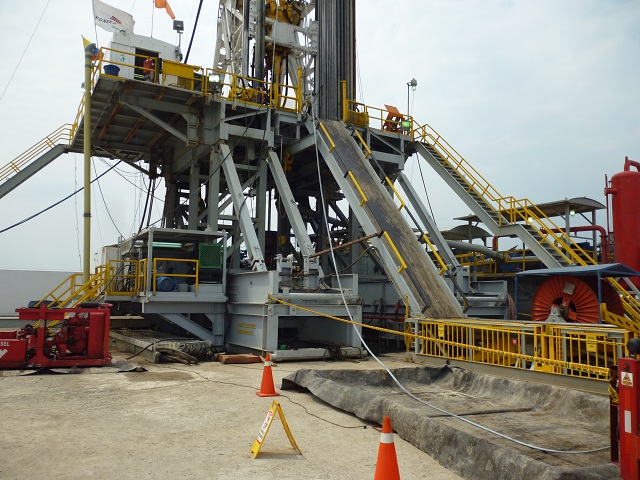

DSI 30' high self-elevating substructure with 25' clear height under beams with simultaneous rotary capacity of 1,000,000 lb with 800,000 lb setback

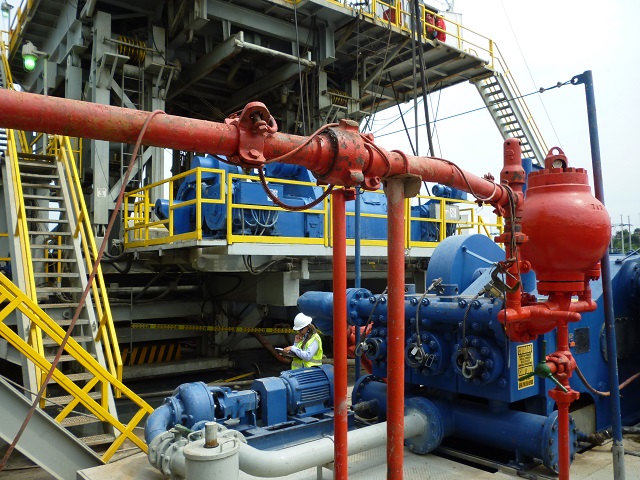

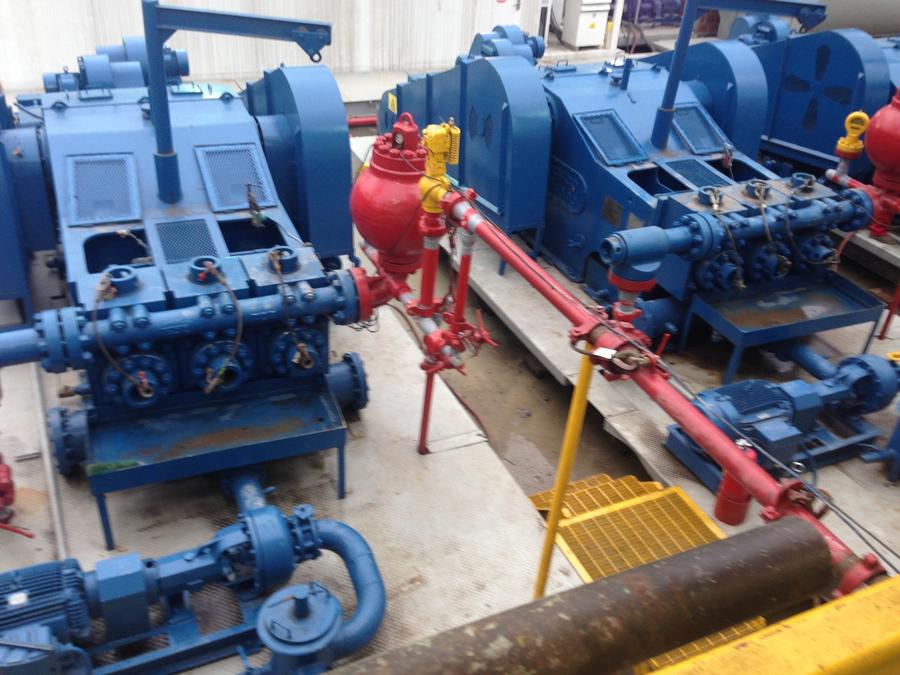

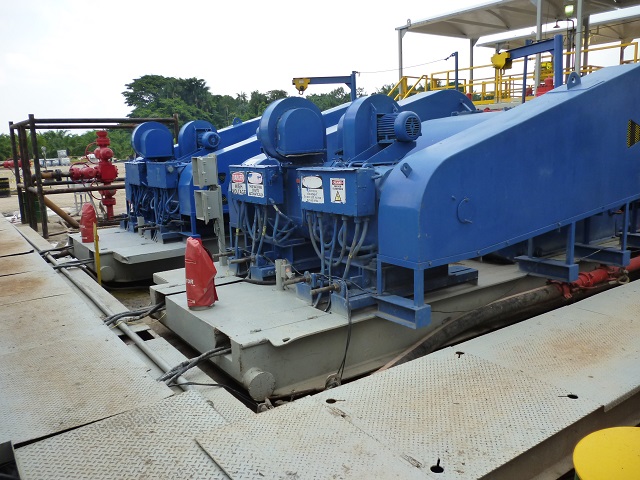

Mud Pumps

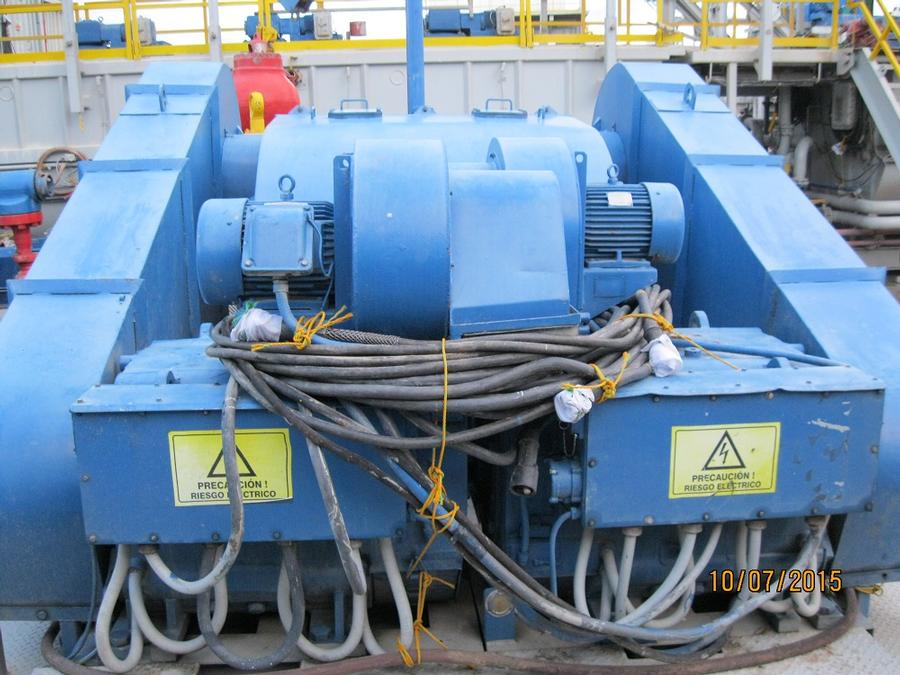

Three (3) Bomco 1600 pumps each driven by Two (2) GE 752 traction motors

Rotary
NOI 27-1/2” powered by One (1) GE 752 traction motor

Top Drive
NOV-TDS11 SA 500 ton

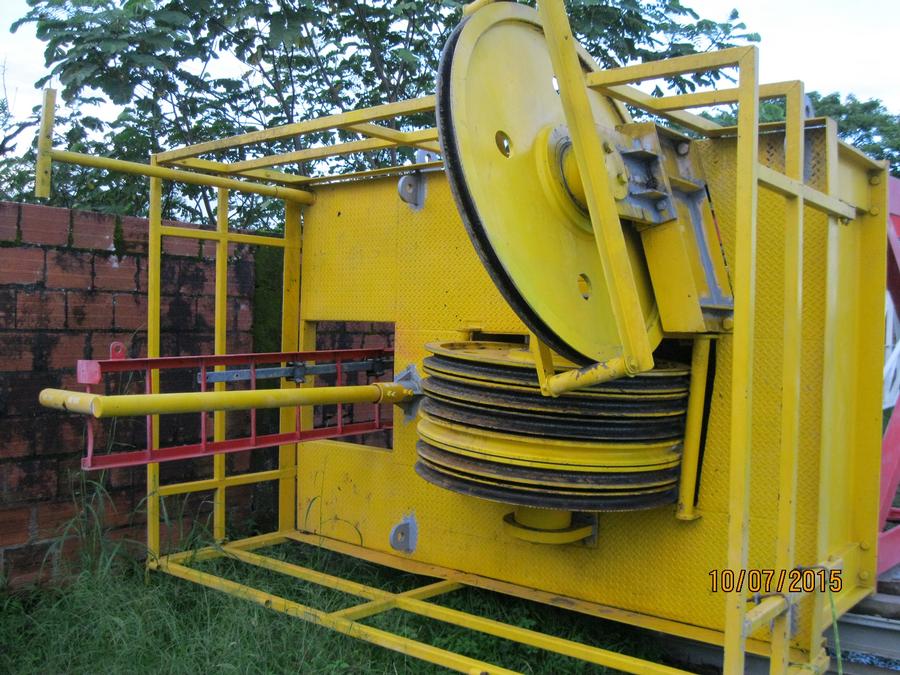

Block and Hook
One (1) McKissick 550 ton block 6-60" sheaves

Drill Pipe
15,000' of 5" od 19.50 ppf S-135 NC 50

Drill Collars
(10) 8" collars and (20) 6" collars

Annular Preventer
13-5/8” 5,000 psi wp with 10,000# flange

Ram Preventers
13-5/8" 10,000 psi wp double ram 13-5/8" 10,000 psi wp single ram

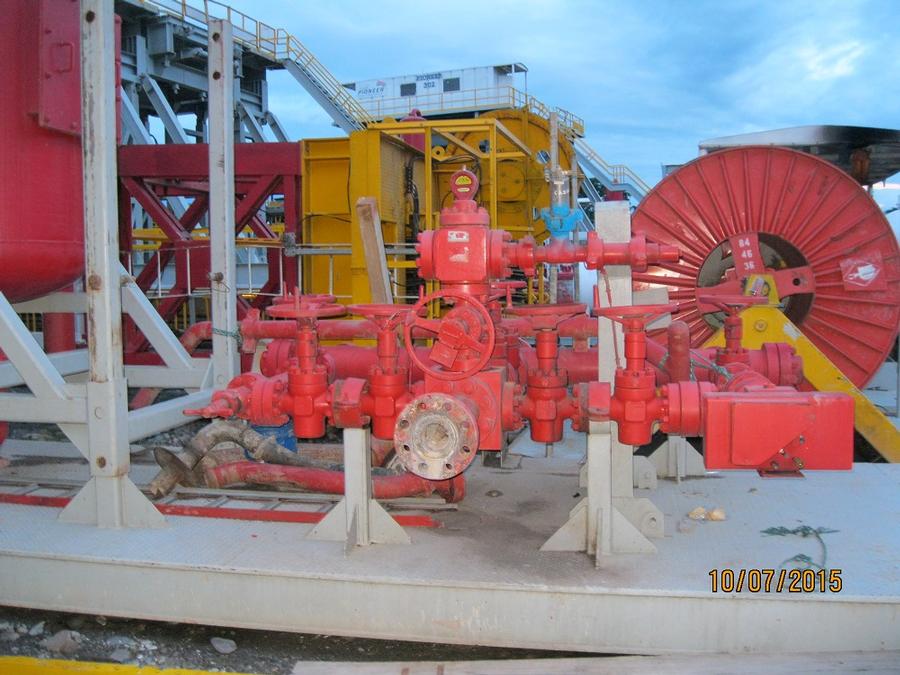

Choke Manifold
4-1/16" x 3 1/16" 10,000 psi wp

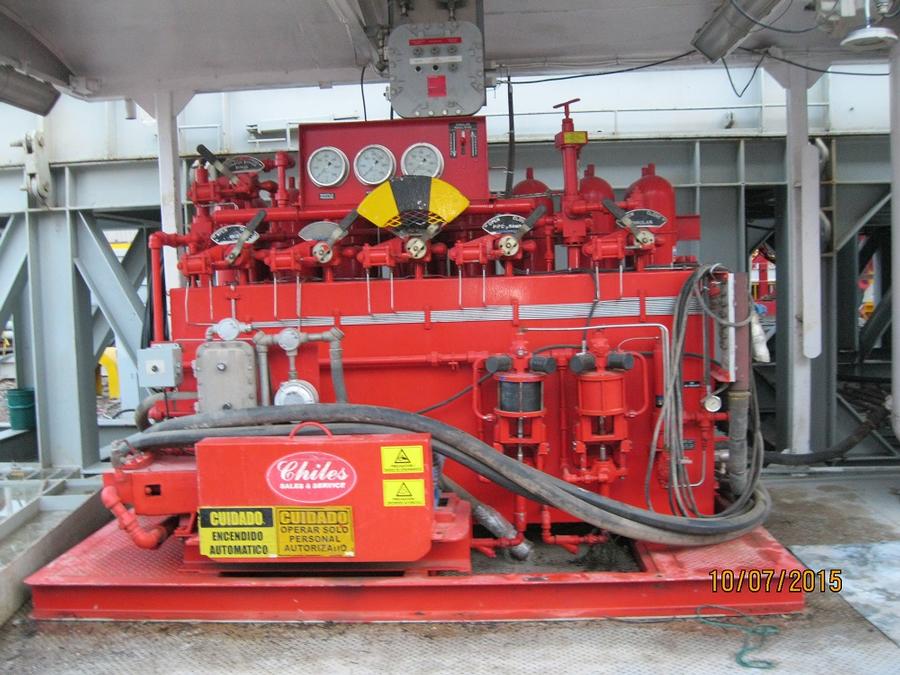

Accumulator System
200 gal six (6) station with remote control

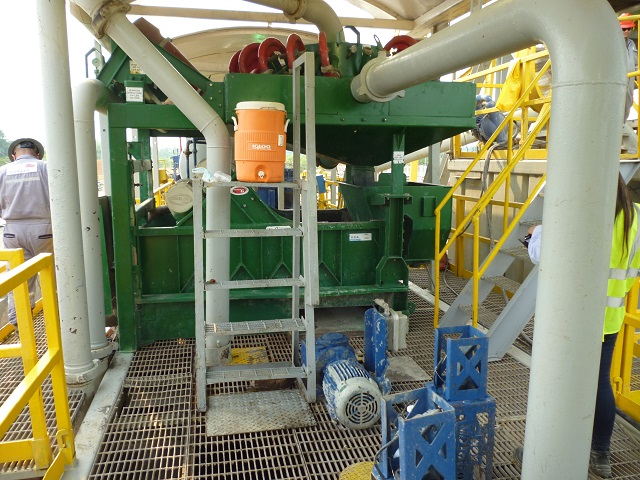

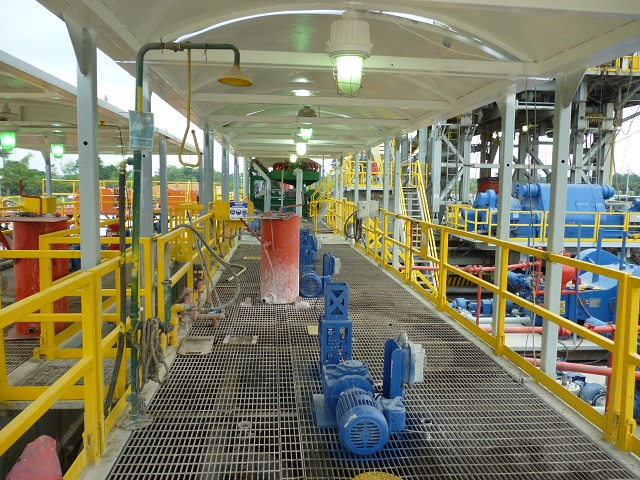

Mud System

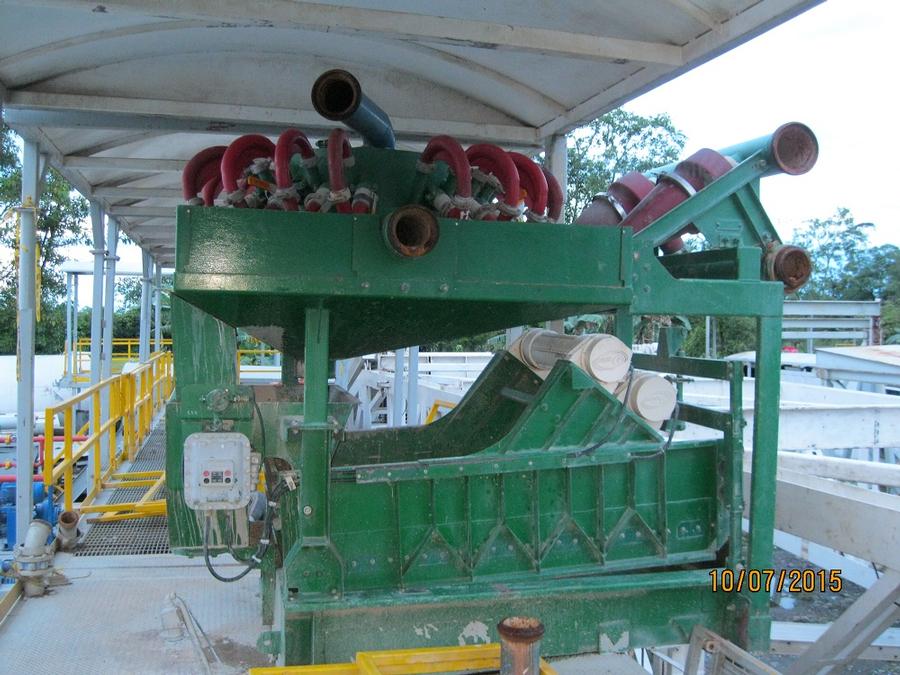

Three (3) Tank 1000 bbl System Three (3) Derrick 513 HG shakers One (1) 3 in 1 mud cleaner Tri-Flo Vacuum Degasser

Auxillary Equipment
One (1) 500 bbl water tank Two (2) 12,000 gal fuel tank NOV- Iron Roughneck type ST-80 C One (1) .092 Wireline unit Forum Pipe Wrangler

100-Man self contained living camp quarters



Rig 21 Inventory W/WALKING SYSTEM




 Classification
1500 hp Electric

Racking Capacity
18,000’

Power System

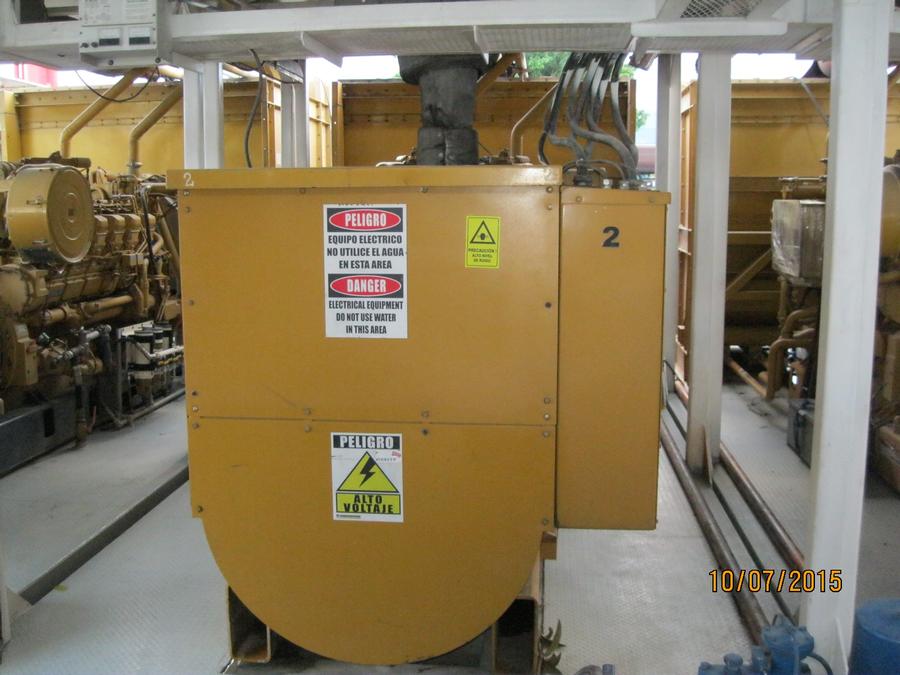

Three (3) Caterpillar 3512B/1225 generator sets One (1)Ross Hill SCR model 1400

Draw Works
National 110-UE with 7040 Baylor brake powered by Two (2) GE-752 traction motors

Mast
Superior 142' Mast rated at 730,000 SHL

DSI Walking System

Drill Line
1-3/8” EIPS

Substructure
Pyramid 31' high self-elevating substructure with 24' 8" clear height under beams with simultaneous rotary capacity of 750,000 lb with 450,000 lb setback

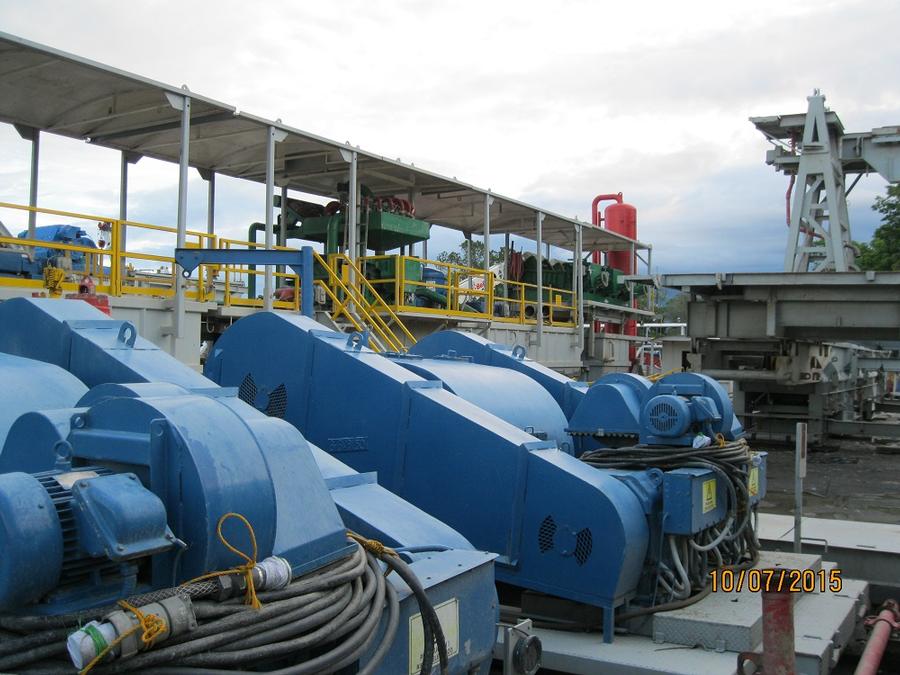

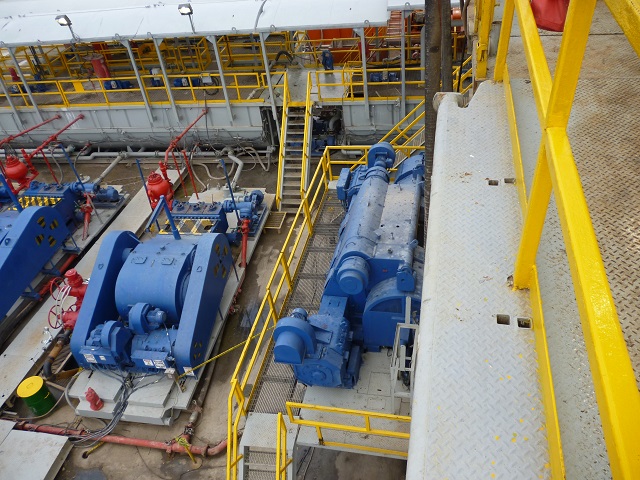

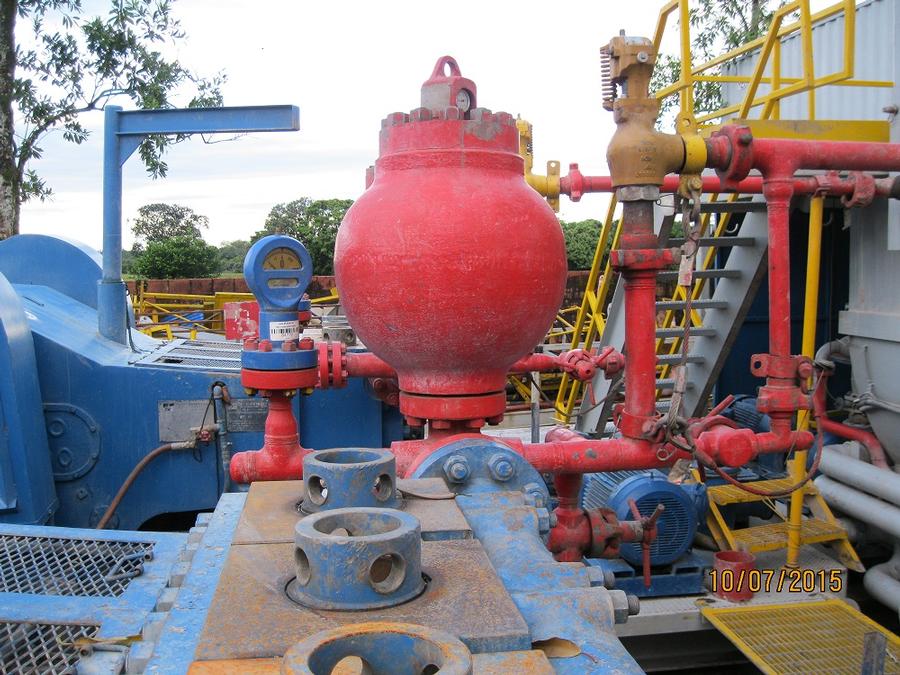

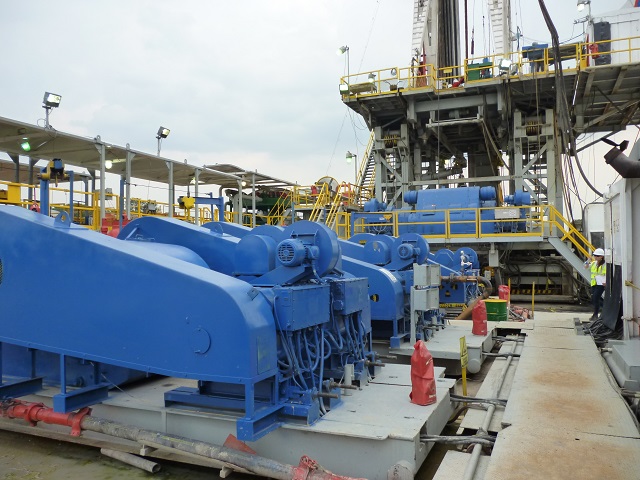

Mud Pumps
Three (3) Bomco F1600 triplex pumps each driven by Two (2) GE752 traction motors

Rotary
National 27-1/2” powered by One (1) GE 752 traction motor

Top Drive
NOV-TDS11 SA 500 ton

Block and Hook
National 400 ton block Web-Wilson 350 ton hook

Drill Pipe
15,000' of 5" od 19.50 ppf S-135 NC 50

Drill Collars
(10) 8" collars and (20) 6" collars

Annular Preventer
13-5/8” 5,000 psi wp with 10,000# flange

Ram Preventers
13-5/8" 10,000 psi wp double ram 13-5/8" 10,000 psi wp single ram

Choke Manifold
4-1/16" x 3-1/16" 10,000 psi wp

Accumulator System
240 gal seven (7) station with remote control

Mud System
Three (3) Tank 1500 BBL System Three (3) Derrick 503 HG shakers One (1) 3 in 1 mud cleaner Vacuum Degasser

Auxillary Equipment
One (1) 500 BBL water tank Two (2) 12,000 gal fuel tanks NOV- Iron Roughneck type ST-80 C One (1) .092 Wireline unit Forum Pipe Wrangler

100-Man self contained living camp quarters



Listing No. 172
