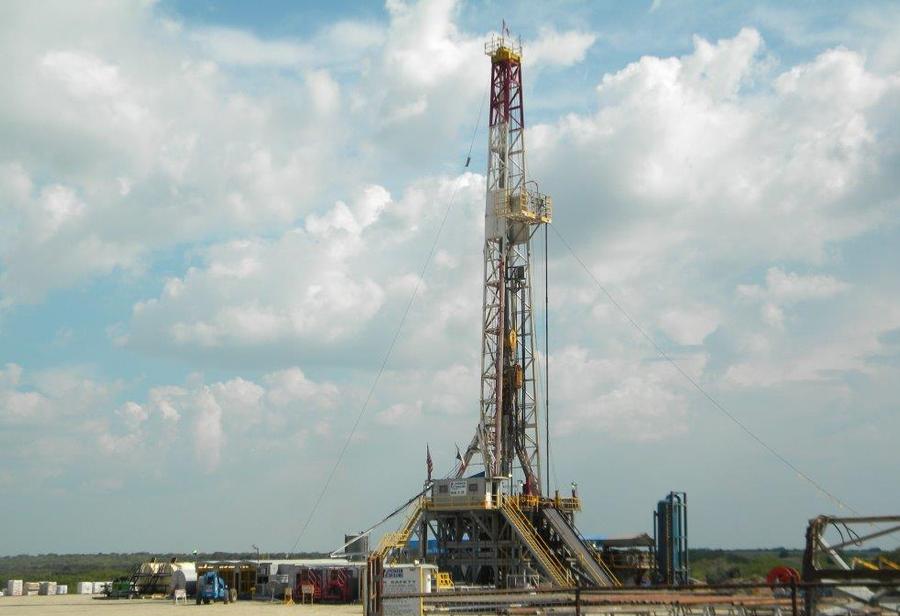

NATIONAL OILWELL 80UE Electric Drilling Rig

No Longer Available

New would cost $20Million
Worked 2015, Field Ready
Good Condition, FOB Midland, TX
Sold with Tubulars / Ready to Drill

Call to Inspect and Buy Today!!!

Call NOW! (800) 952-1973

Listing Details

1000 HP Electric

Drilling Depth Capacity
15,000’ w/ 5” dp

Power System
Three (3) CAT 399TA diesel engines with
Three (3) KATO 1050 KW AC generators and
National Ross Hill Model 1400-Drive
Four (4) bays to power pumps, drawworks, lighting and hotel load

Draw Works
National Oilwell 80UE with 6032 baylor brake
powered by two (2) GE 752 traction motors

DSI 136' Mast rated at 650,000 SHL

Drill Line
1-1/4” EIPS

DSI 25' high Box on Box substructure with 21'
clear height under beams with a rated rotary
capacity of 650,000 lb and 300,000 lb setback

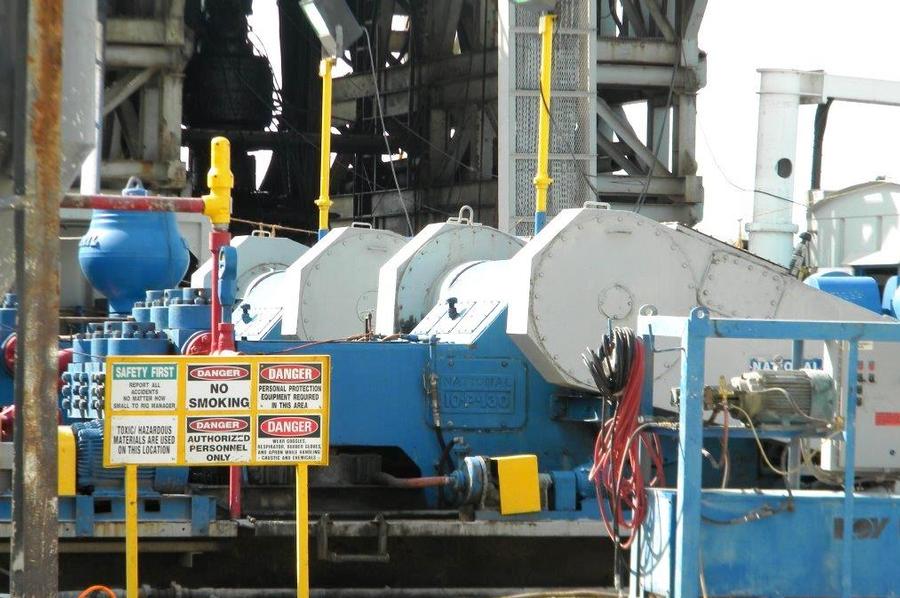

Mud Pumps
Two (2) National 10-P-130 triplex pumps each
rated at 1300 hp, each driven by two (2) GE 752
traction motor

IDECO NOV 27-1/2” Powered by one (1) GE 761 traction motor

Top Drive
One (1) NOV-TDS11 500 Ton AC Top Drive

National 350 ton block


Drill Pipe
5" od

Drill Collars
As Required

Annular Preventer
Hydril GK 13 5/8 " X 5,000 psi WP

Ram Preventers
Cameron Type double ram 13 5/8" 10,000 psi WP
Cameron Type single ram 13 5/8" 10,000 psi WP

Choke Manifold
4-1/16" x 3-1/16" 10,000 psi WP

Accumulator System
Koomey (6) station with remote control, 160 gal.

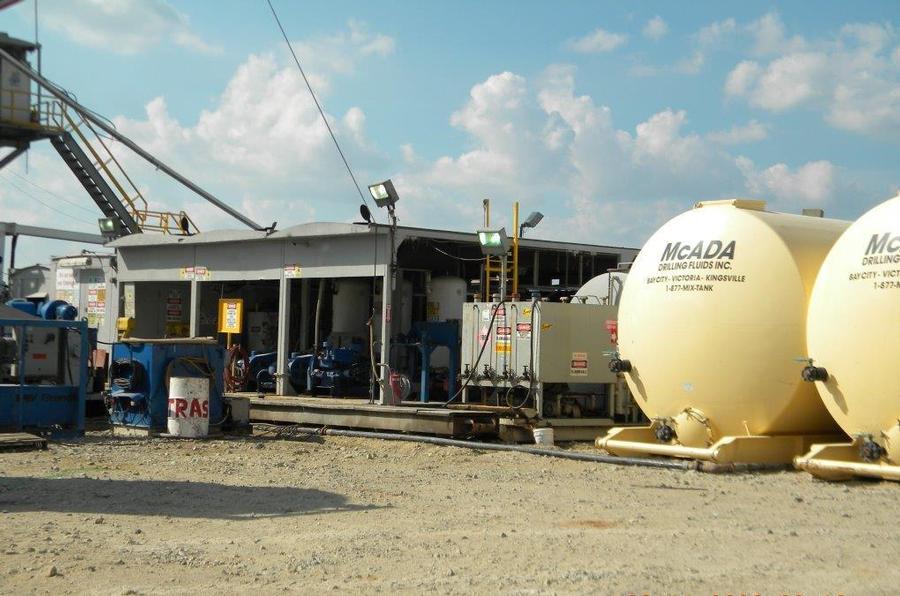

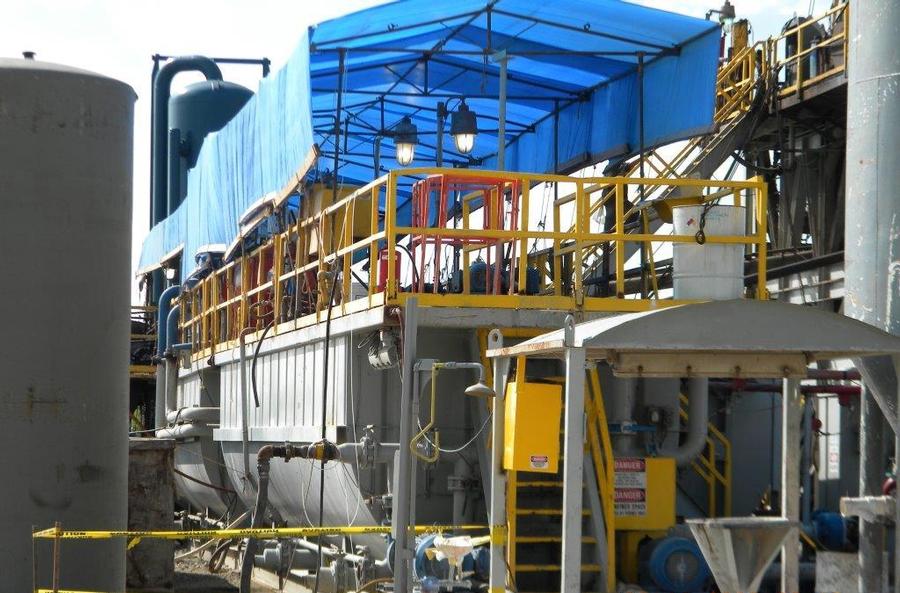

Mud System
Two (2) Tank 1000 BBL System
Three (3) Swaco PT Linear Motion Shakers
Swaco 2 cone desander
Swaco 16 cone desilter
Swaco Vacuum Degasser

Auxillary Equipment
Toolpusher and crew quarters
One 500 BBL water tank
Automatic driller
Pipe spinner
Totco electronic drilling recorder
0-7 degree drift indicator
Wrangler 3500 Hydraulic Catwalk
NOV-Iron Roughneck Type ST-80-C

Listing No. 170
