Classification
1200 HP Mechanical
Drilling Depth Capacity
13,500’ w/ 5” dp

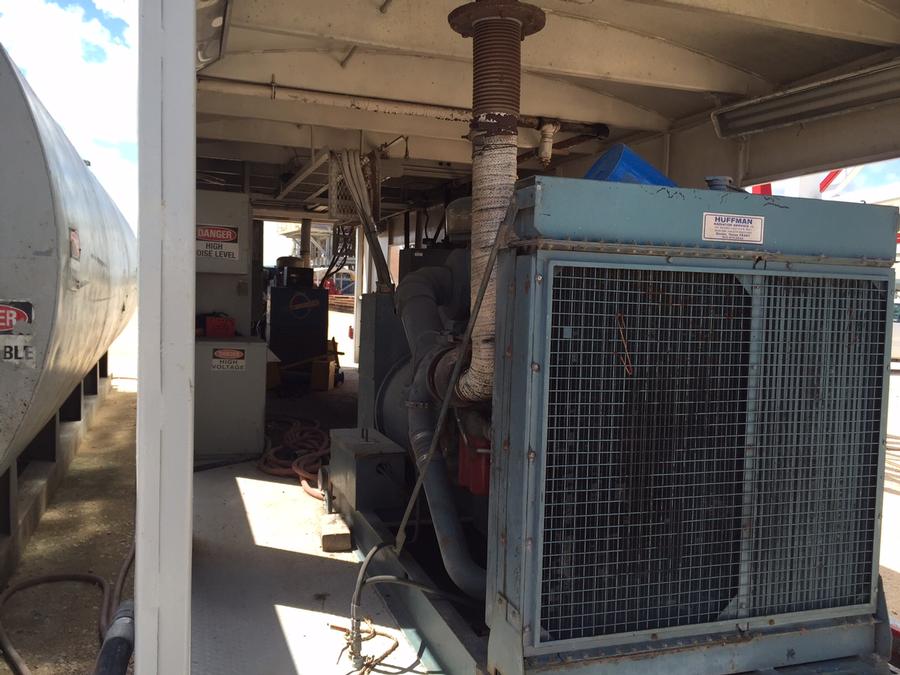

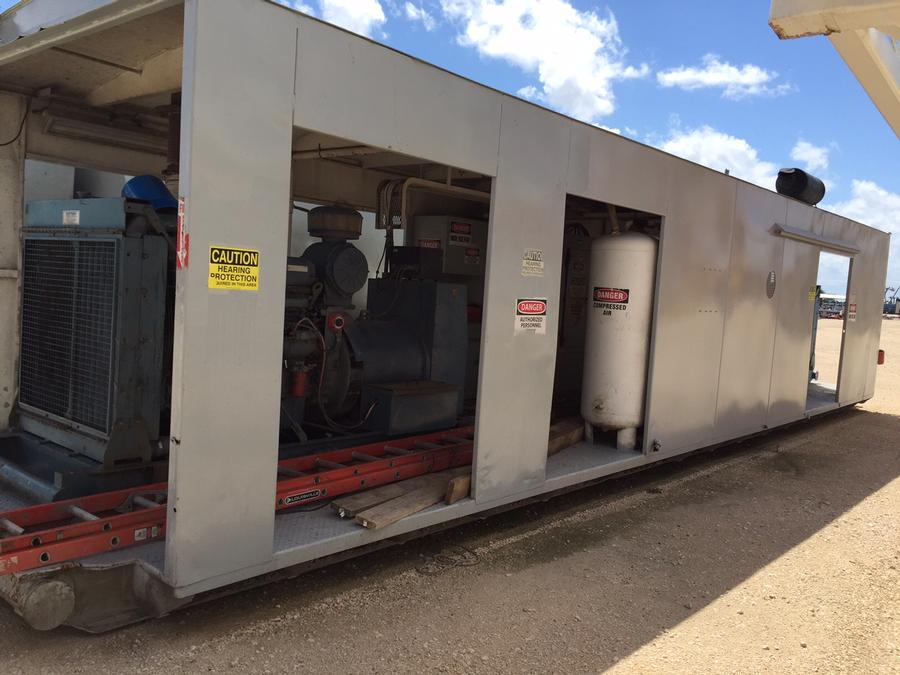

Power System

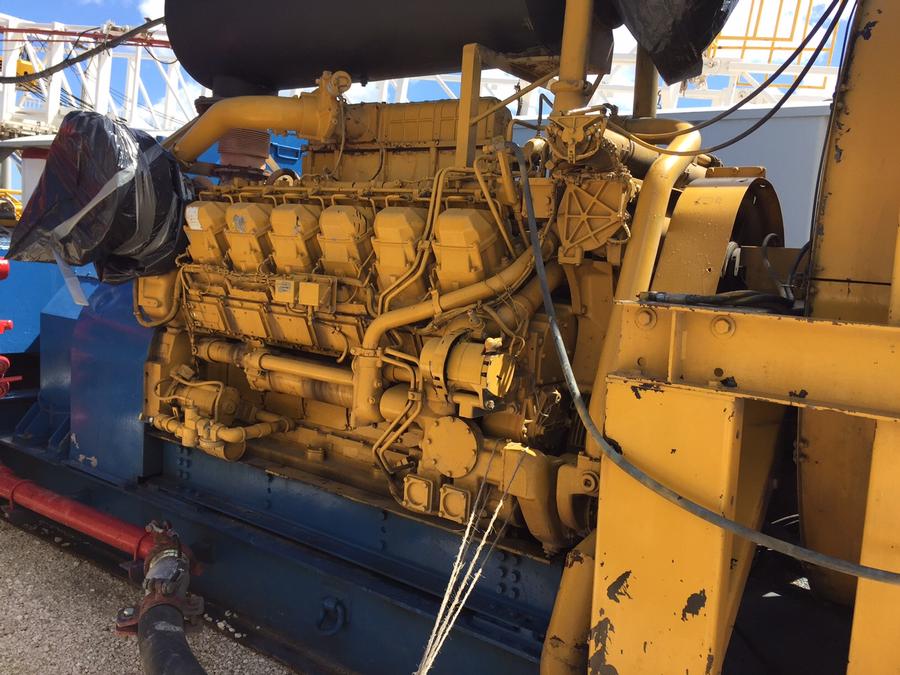

Two (2) CAT 3412 deisel engines with 6061 transmissions on drawworks. Two (2) Detroit 60 series 14 liter engines with Two (2) 380 KW AC Generators

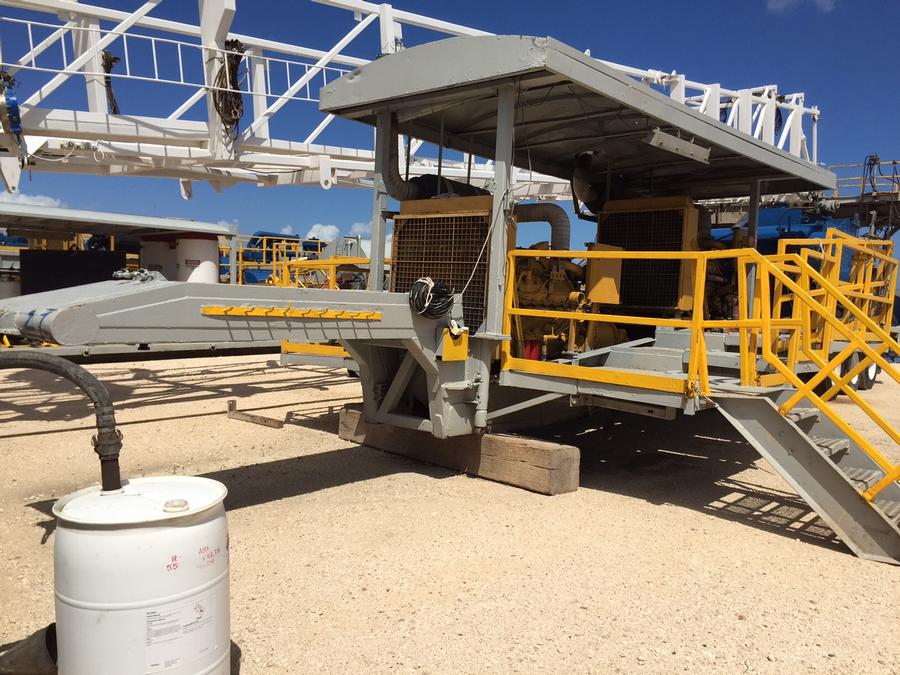

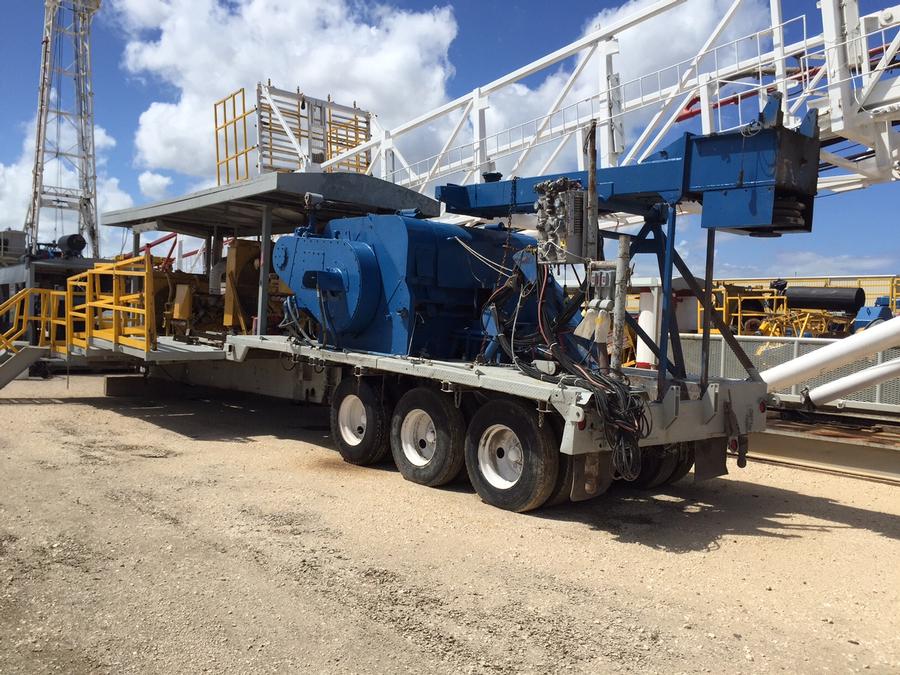

Draw Works
Cabot 1200 Model 2550 with Parmac V-80 hydromatic brake
Mast
Cabot 127' mast rated at 715,000# SHL
Drill Line
1 1/4" EIPS

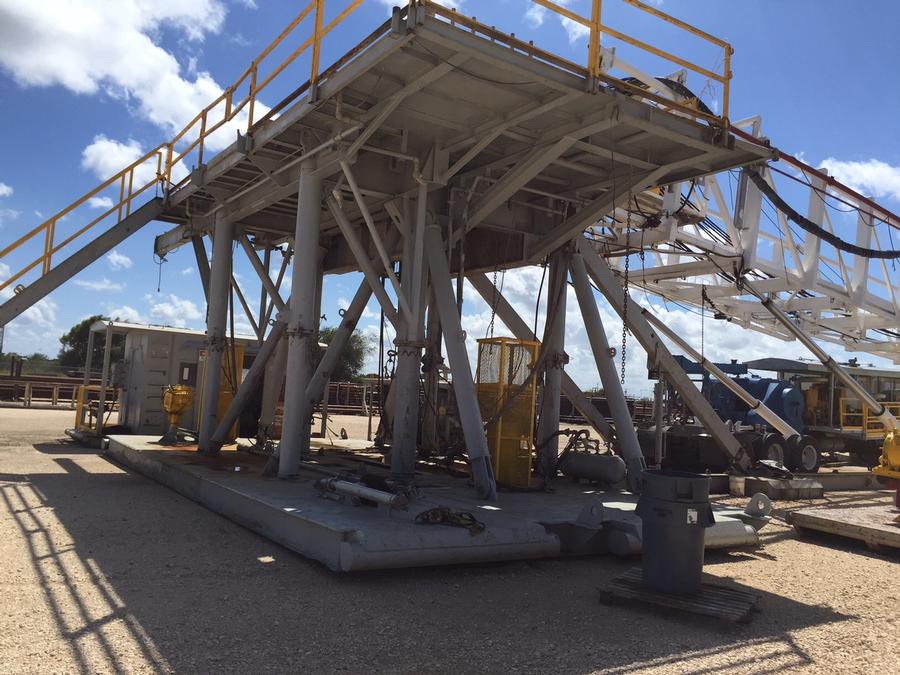

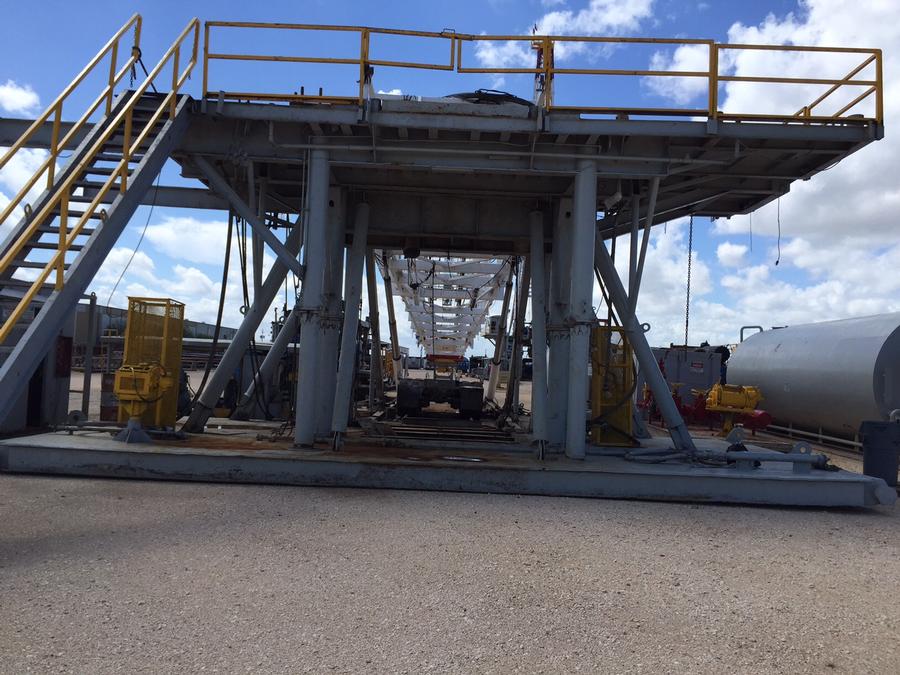

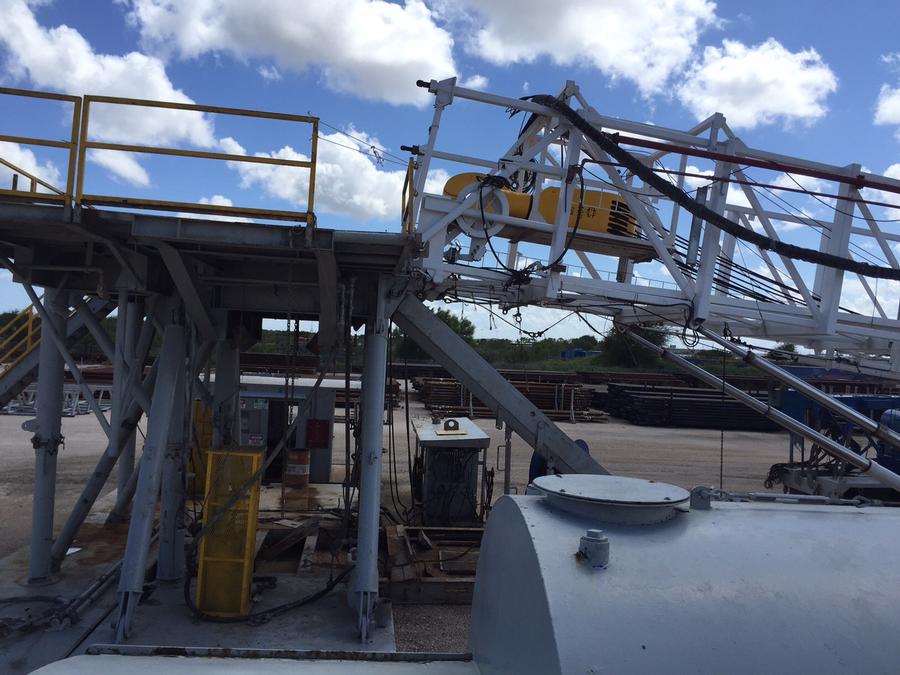

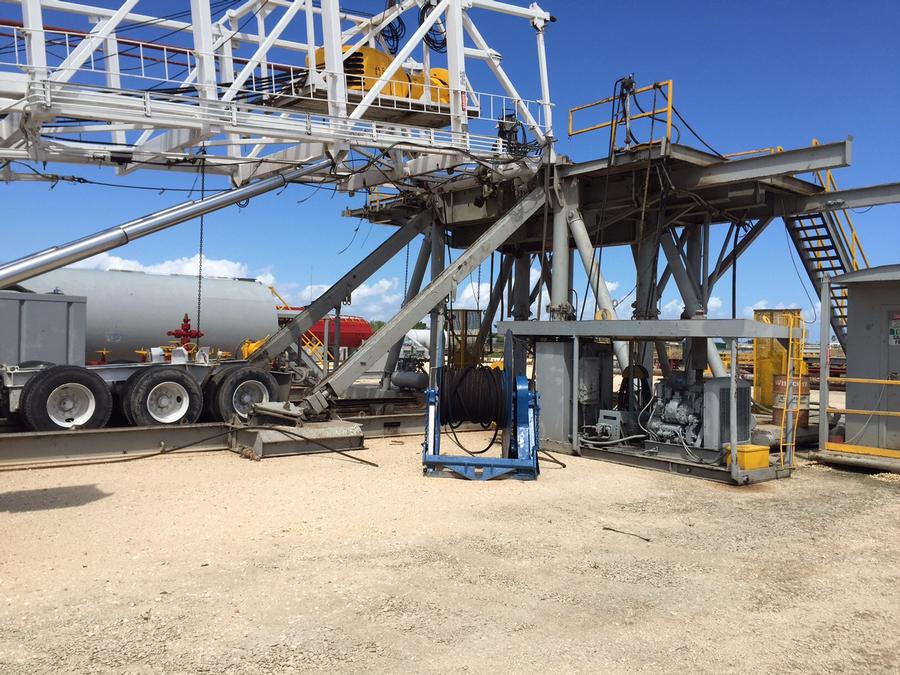

Substructure
Cabot 17' telescoping with 735,000 lbs rotary capacity with a setback capacity of 400,000 15' clear height from rotary bottom to ground

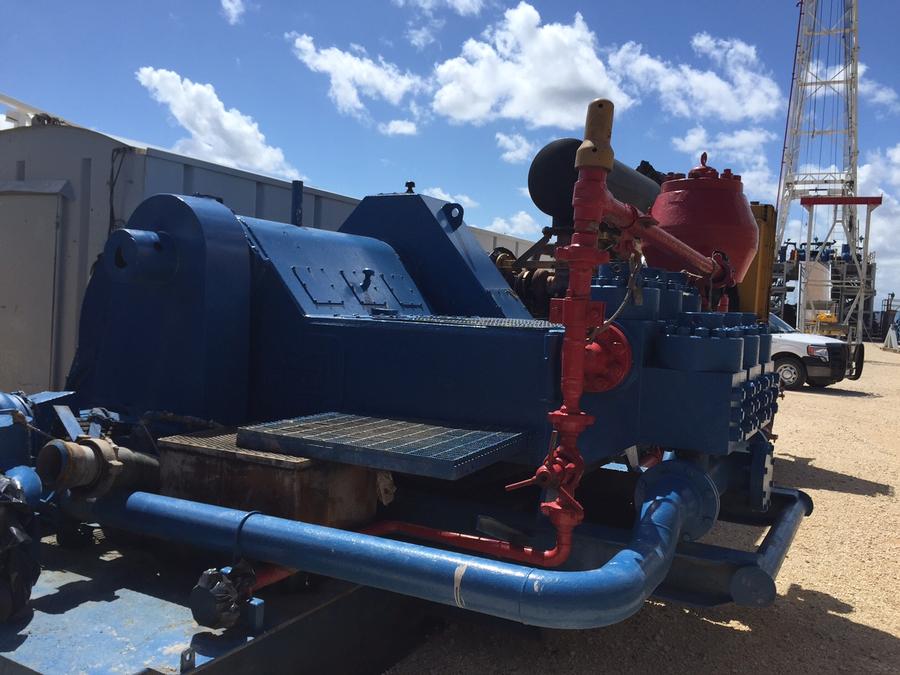

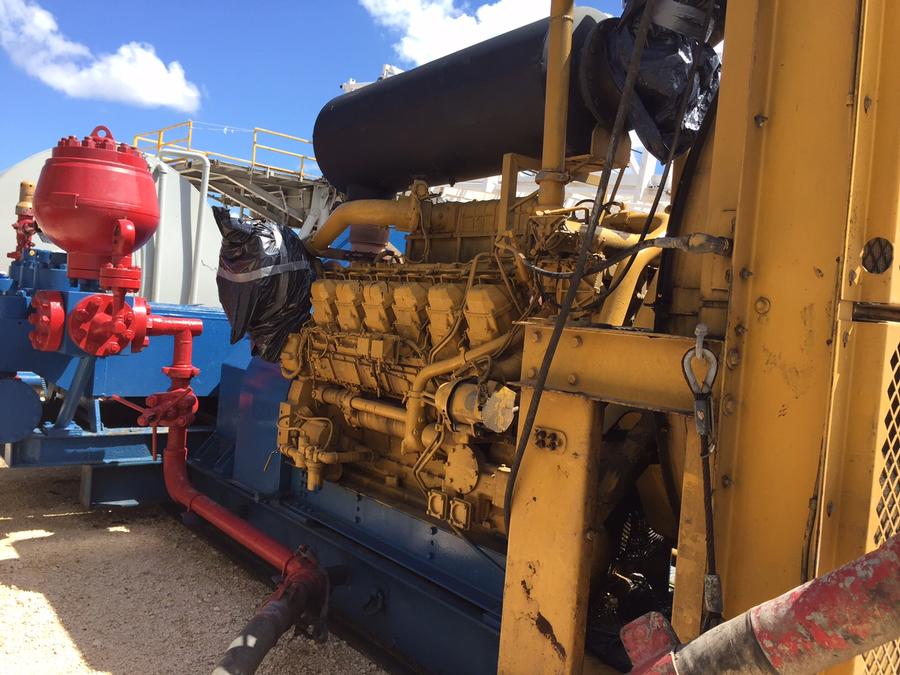

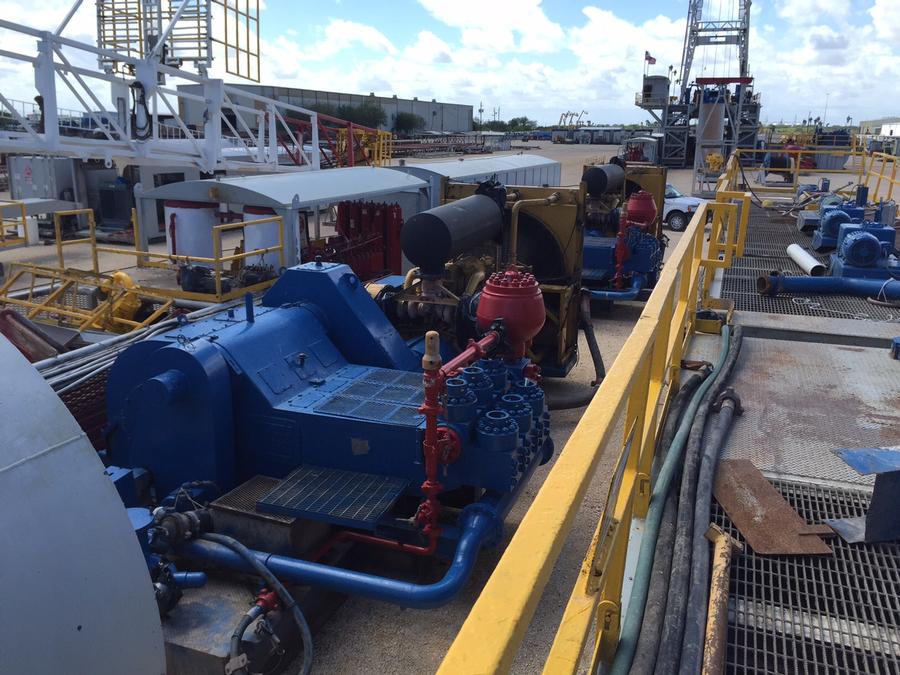

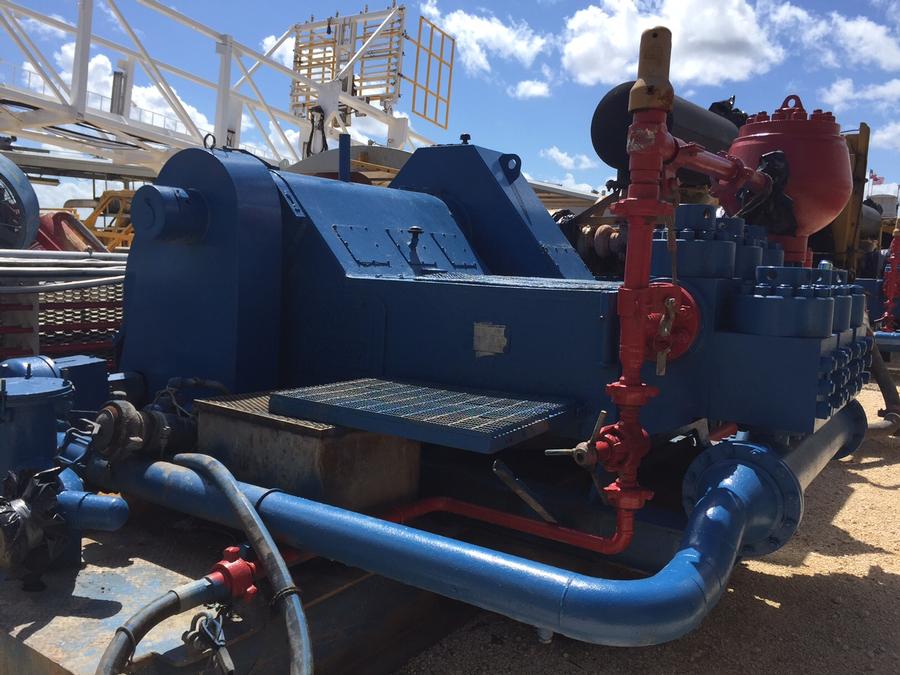

Mud Pumps
Two (2) NOV 10P-130 1300 HP each powered by a Cat 3512C-HD
Rotary
Ideco 27-1/2

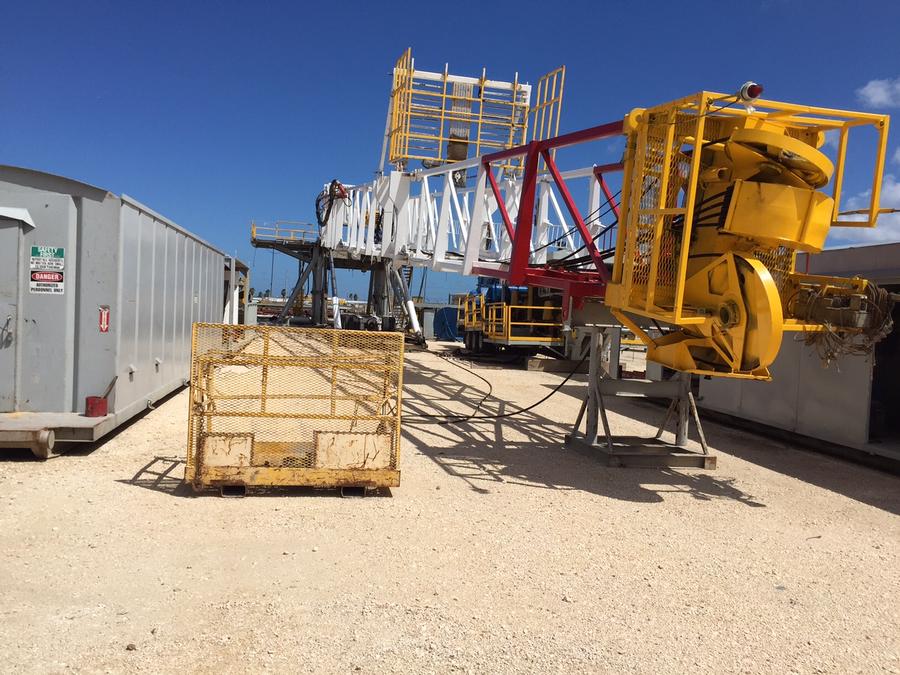

Block and Hook
Gardner-Denver 400 ton block Gardner-Denver 400 ton hook
|
Swivel
NOV N-69 300 Ton
Drill Pipe
5"
Drill Collars
As Required
Annular Preventer
Hydril GK 11" 5,000 psi WP
Ram Preventers
Cameron type U 11" 10,000 psi WP Double Ram Cameron type U 11" 10,000 psi WP Single Ram
Choke Manifold
4-1/16" x 2-1/16" 10,000 psi WP

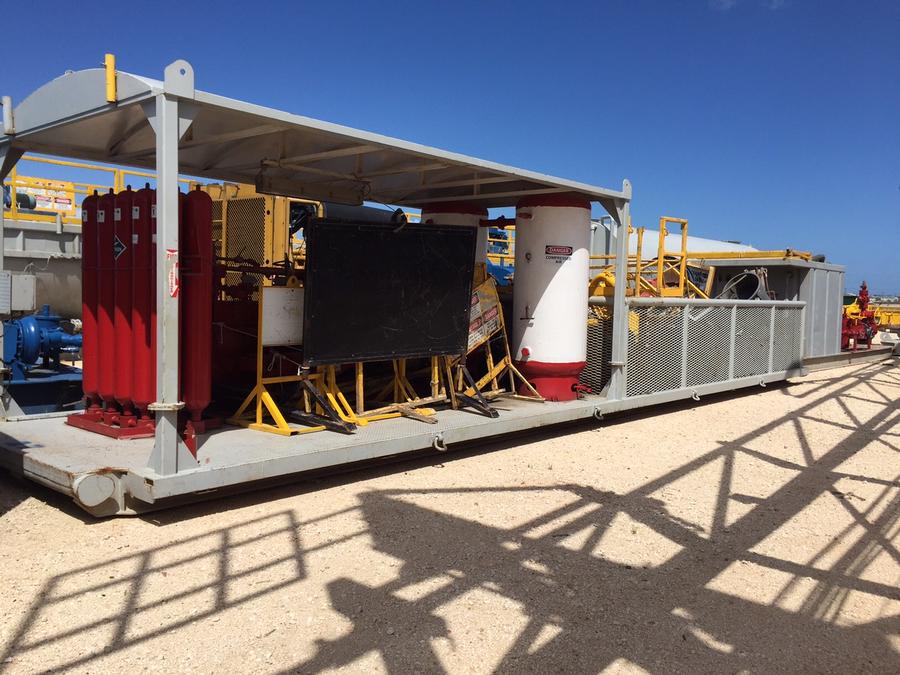

Accumulator System
Koomey Type 80 with remote control 5 (5) station 180 galaccumulators

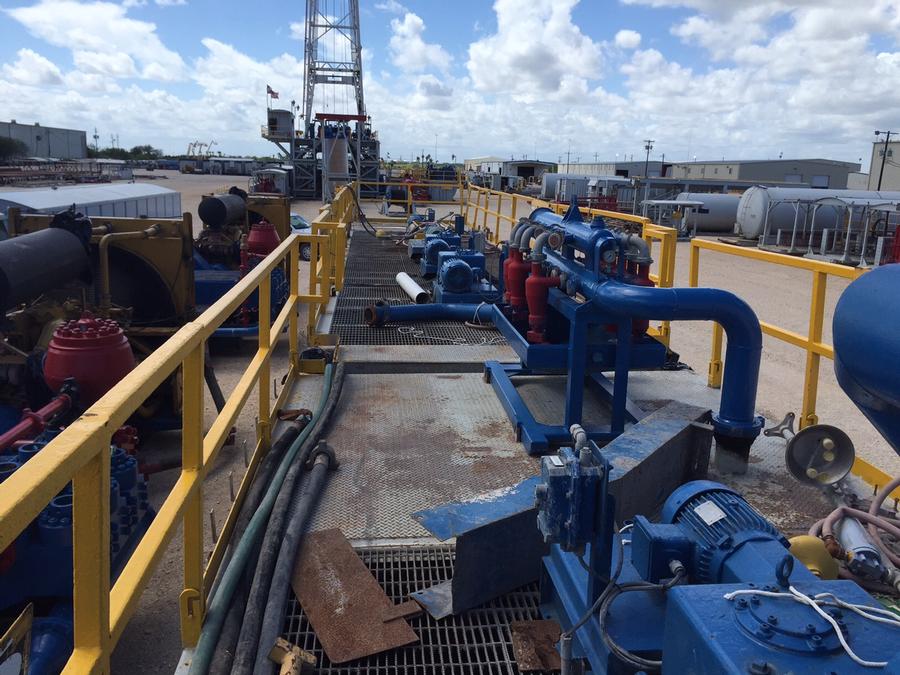

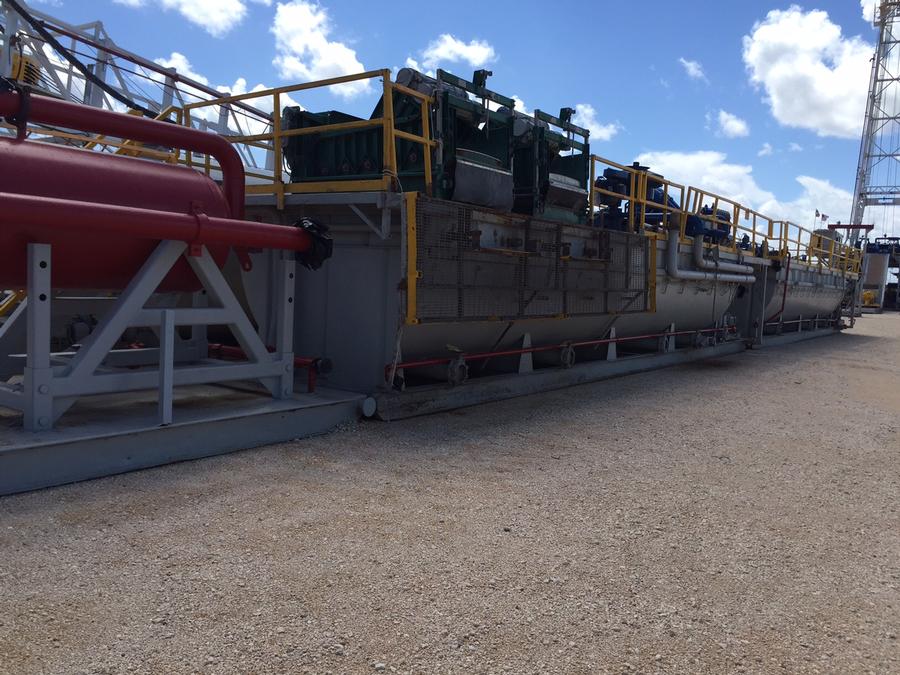

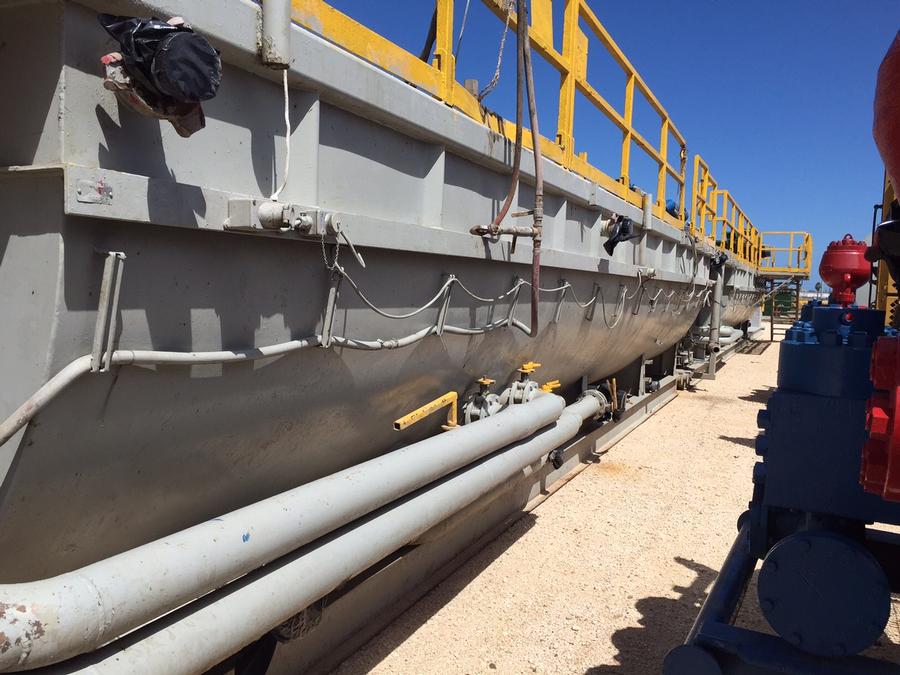

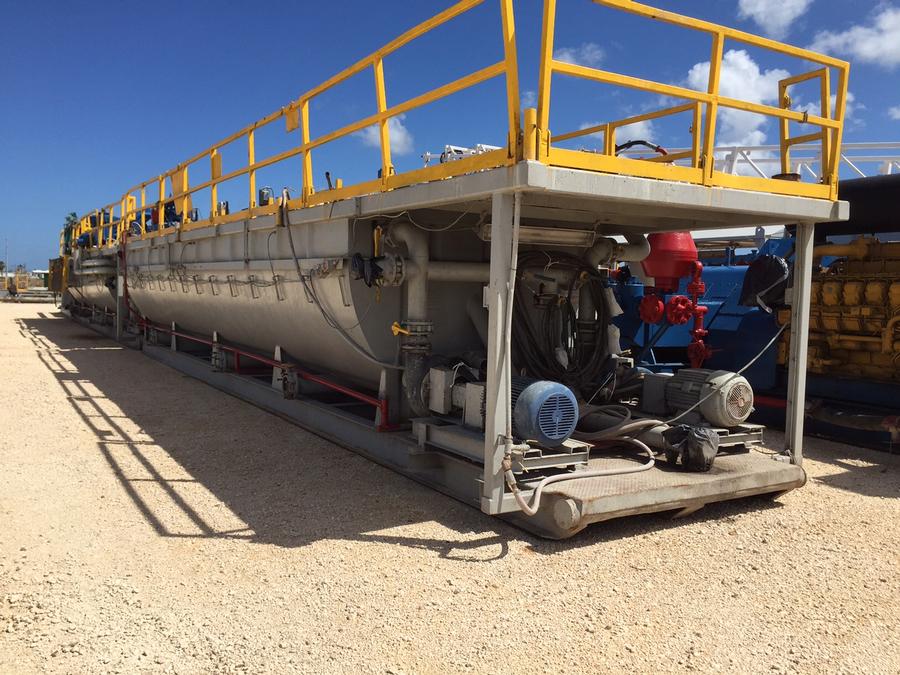

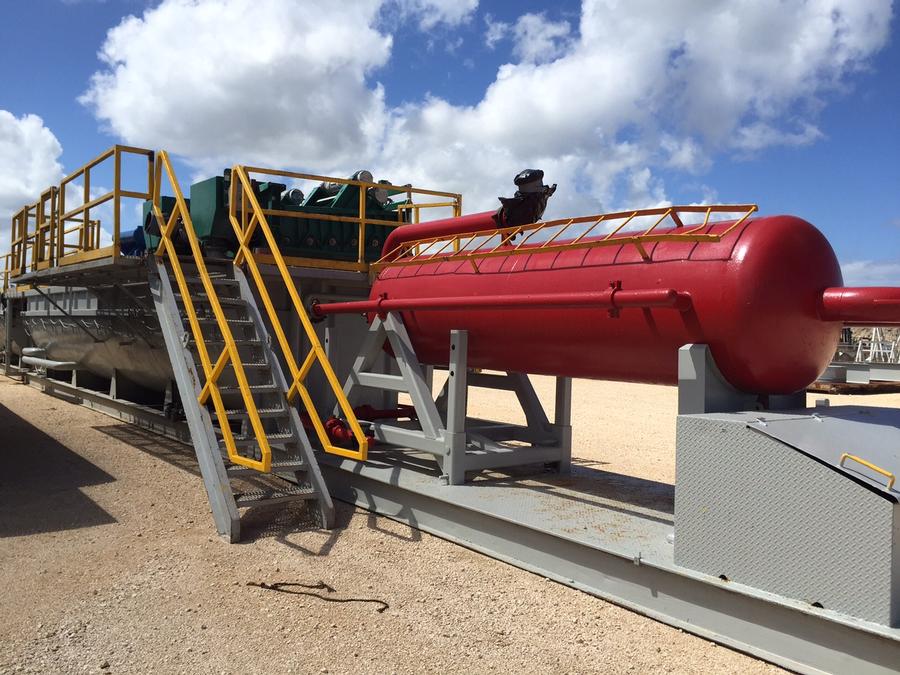

Mud System

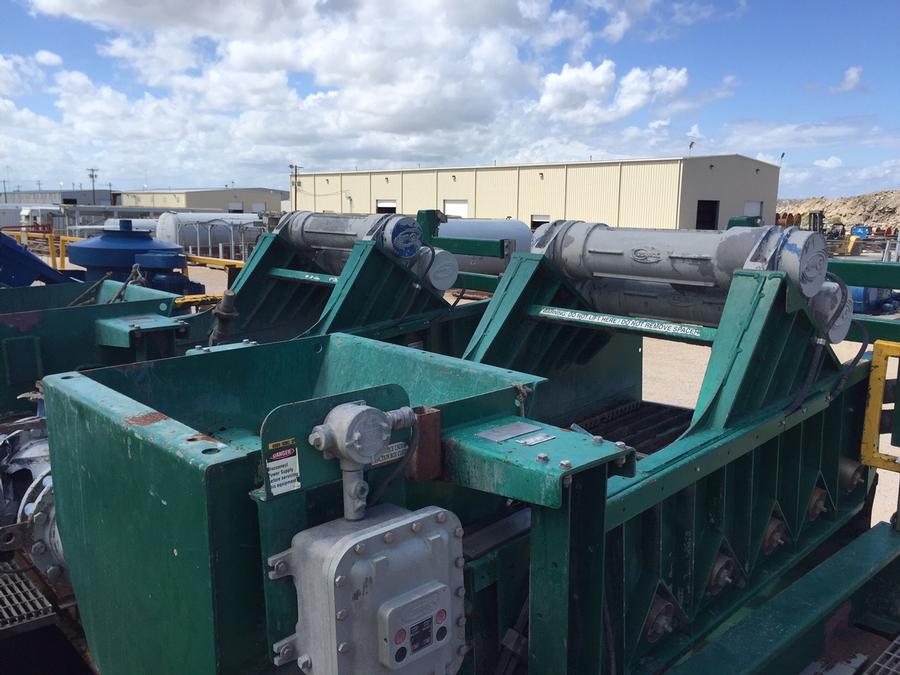

Two (2) Tank System (Approx 900 bbls) Two (2) Derrick 514 HG Shakers Derrick 2 cone desander Derrick 20 cone destiller Tri Flow Vacuum
Auxillary Equipment
Toolpusher and crew quarters
Automatic driller
Pipe spinner
Kelly spinner
Totco electronic drilling recorder
0-7 degree drift indicator
|
