Classification
900 HP Mechanical
Drilling Depth Capacity
10,500’ w/ 4-1/2” dp
Power System

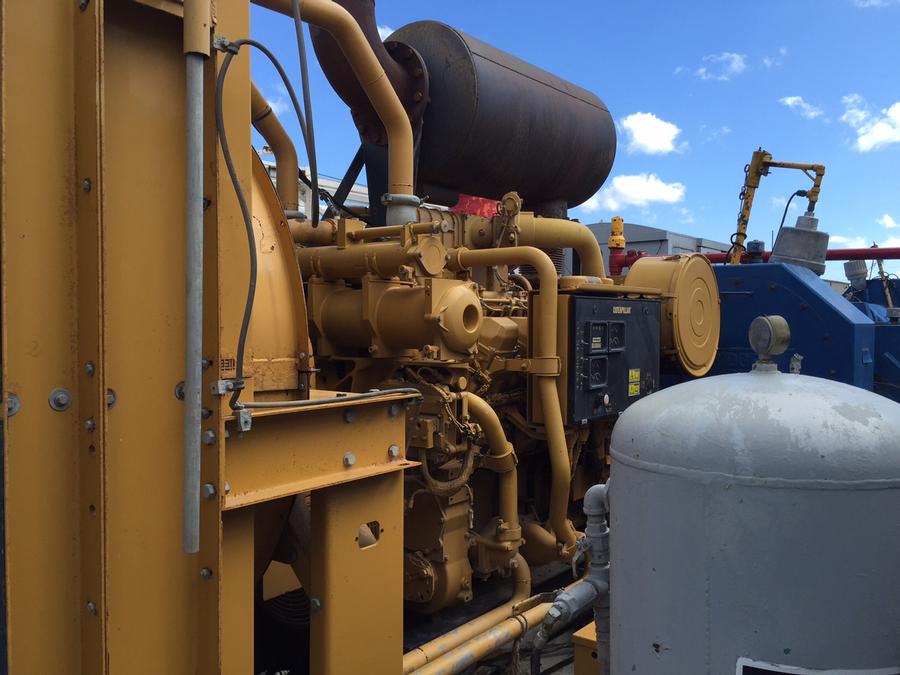

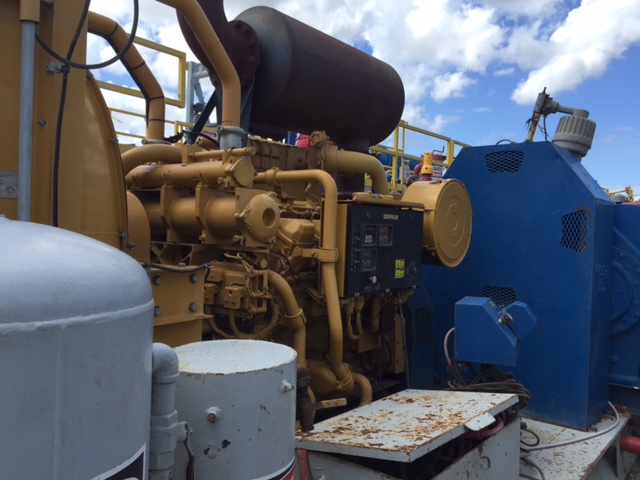

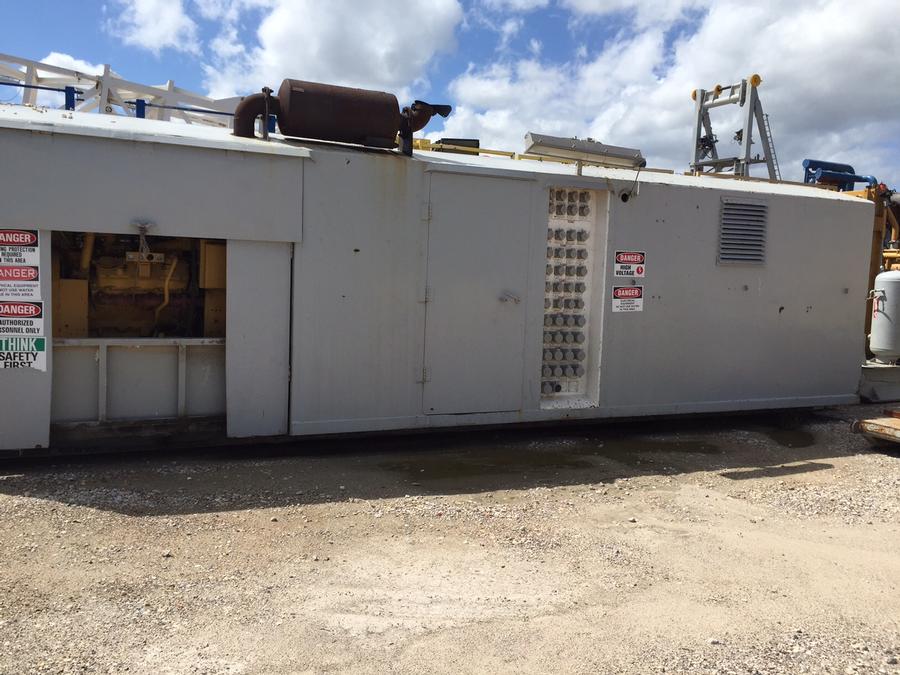

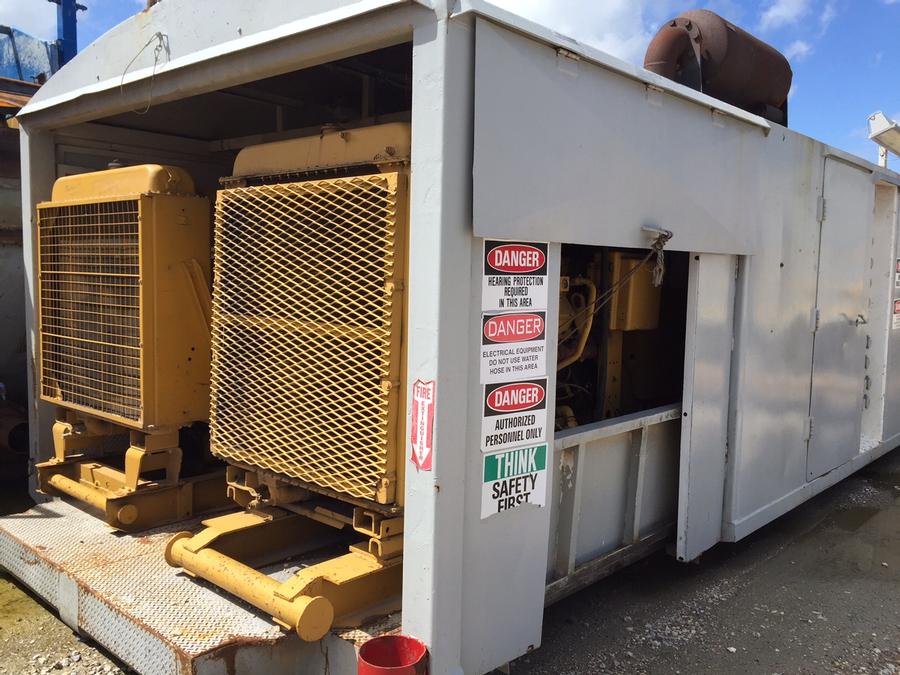

Two (2) Detroit 60 series 14.0 L diesel engines with 5860 transmissions and two (2) CAT D- 3408 diesel engines with two (2) SR-4 275 KW AC generators
Draw Works
Cabot Model 900 with Parmac V-80 hydromatic brake

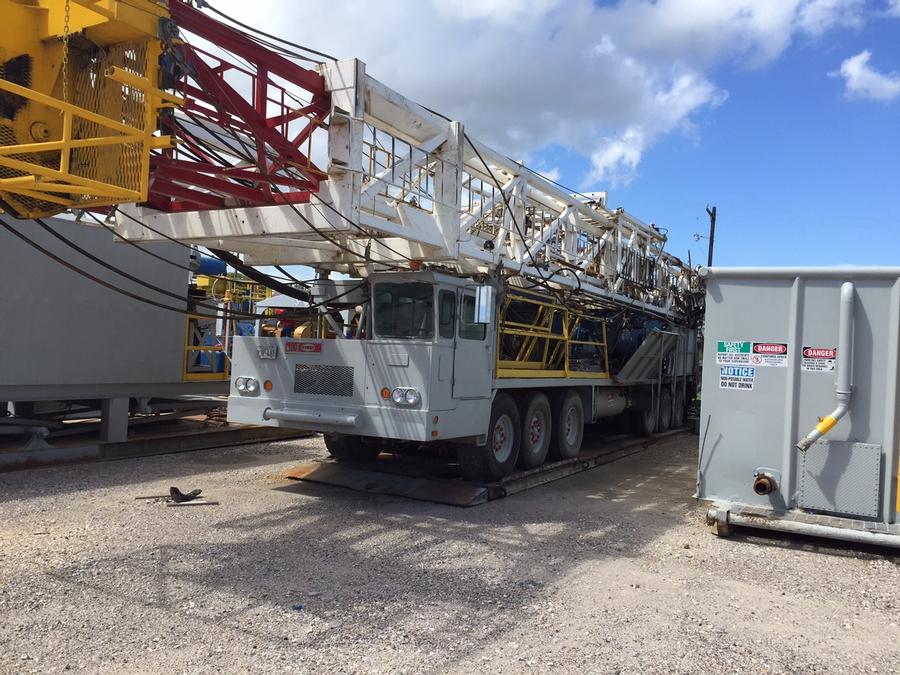

Mast

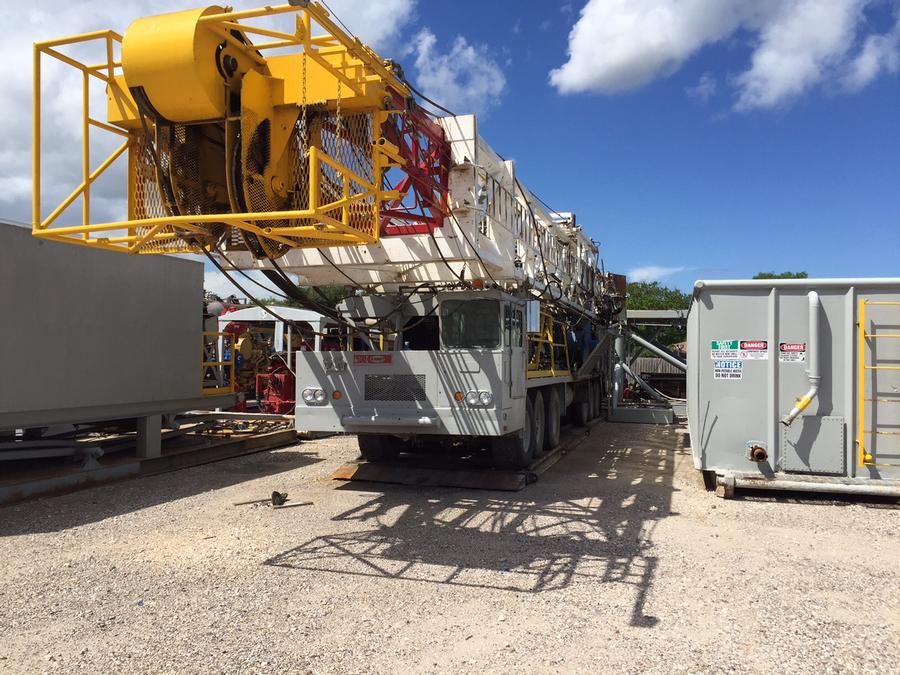

Cabot 112' mast rated at 365,000# SHL
Drill Line
1-1/8"

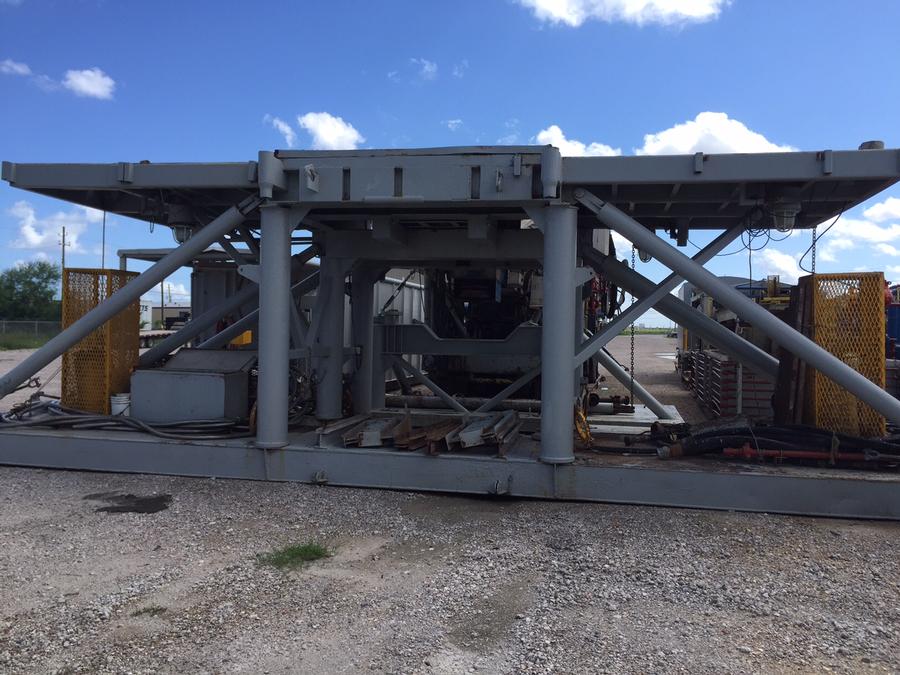

Substructure
Cabot 15' telescoping with 365,000 lbs rotary capacity with a setback capacity of 200,000#, 14' clear height from rotary beam to ground

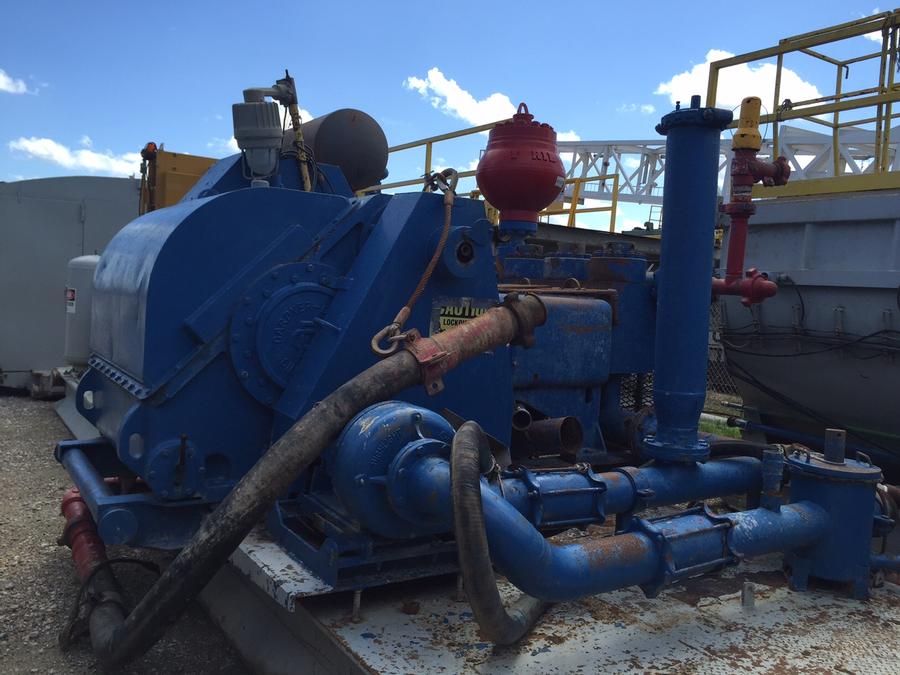

Mud Pumps

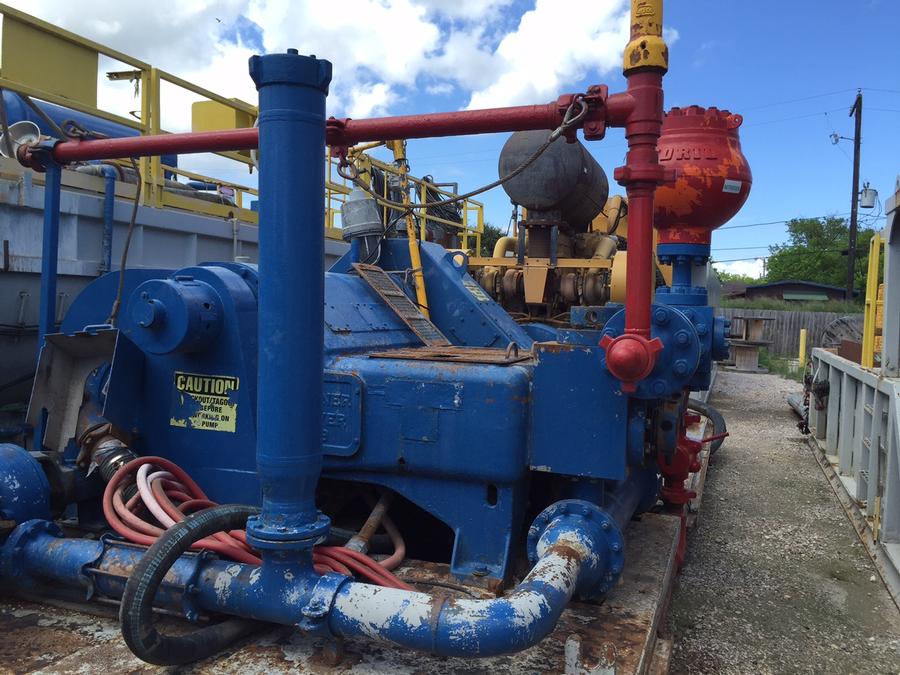

Two (2) GD PZ-9 each powered by a Cat. D-398
Rotary
Ideco 23"
Block and Hook
Ideco SBS 160 ton block Web-Wilson 250 ton hook
|
Swivel
Gardner Denver S-200
Drill Pipe
4-1/2” od
Drill Collars
As Required
Annular Preventer
Hydril GK 11” 5000 WP
Ram Preventers
Shaffer LWS 11” 5000 psi WP double ram
Choke Manifold
3-1/16" x 2-1/16" 5000 psi WP

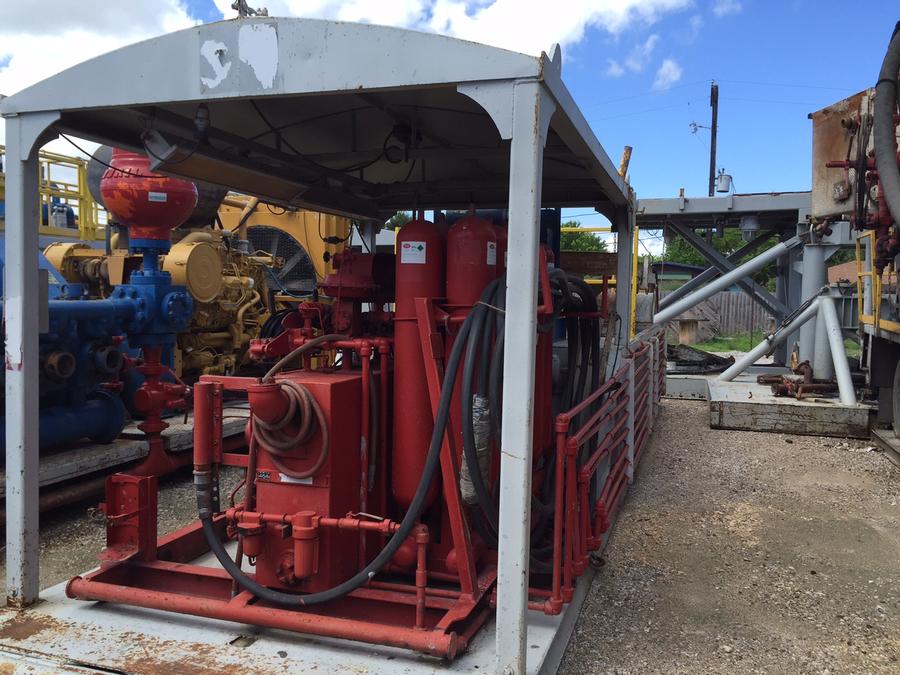

Accumulator System
Koomey Type 80 with remote control five (5) station 120 gal.
Mud System
Two Tank System (Approx. 800 bbls.) Two Vortex Orbital 3000 Shakers Derrick 2 cone desander Derrick 16 cone desilter Drilco Degasser
Auxillary Equipment
Toolpusher and crew quarters
Automatic driller
Pipe spinner
Kelly spinner
Totco electronic drilling recorder
0-7 degree drift indicator

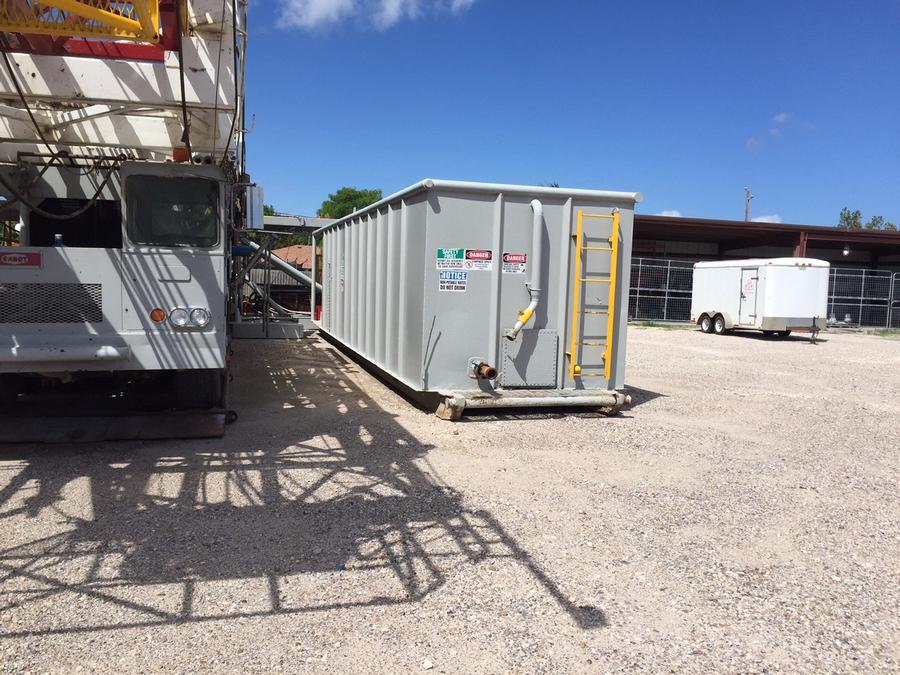

400 bbl water tank
|
