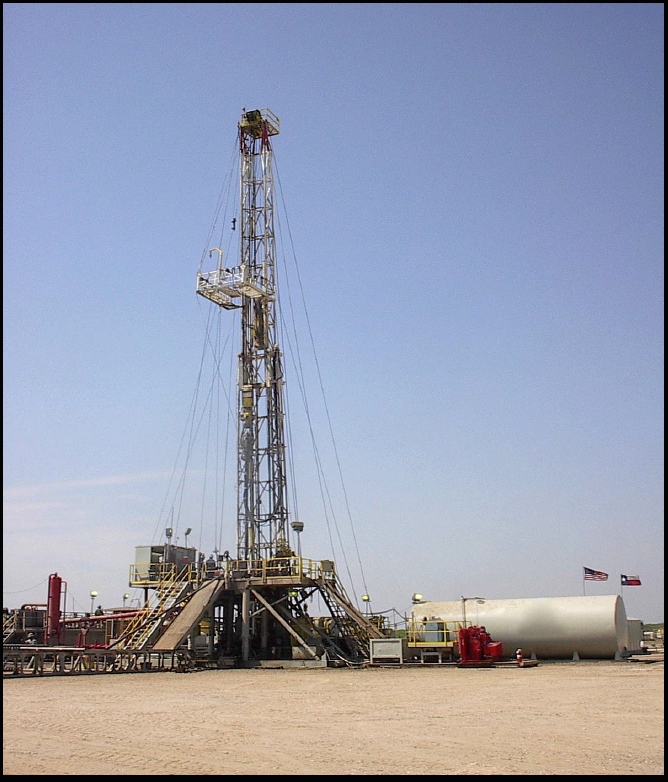

FRANKS CABOT 750 Drilling Rig

No Longer Available

Complete w/Tubulars
Ready to Drill
Located in South Texas


MAKE AN OFFER
Call to Inspect and Buy Today!!!


Call NOW! (800) 952-1973

Listing Details



 Classification
750 HP Trailer Mechanical

Drilling Depth Capacity
9,500 w/ 4-1/2” dp

Power System
Two (2) 60 series Detroit diesel engines with Allison 5860 transmissions and Two (2) Cat D-3408 diesel engines with two 275 KW generators

Draw Works
Cabot Model 750 with Parmac SR 22" single hydromatic and two (2) engine compound

Mast
Double telescoping 112' mast rated to 300,000# SHL

Drill Line
1-1/8"

Substructure
Cabot 15' telescoping with 300,000# rotary capacity with a setback capacity of 200,000#, 12' clear height from rotary beam to ground

Mud Pumps
Two (2) Bomco F-1000 Triplex pumps Each powered by one (1) CAT 398

Rotary
Ideco 27-1/2"

Block and Hook
McKissick 150 ton block and hook combination

Swivel
Ideco TL 200-ton

Drill Pipe
4-1/2” od 7,500’ 16.60 PPF

Drill Collars
Eighteen (18) 6” Two(2) 8”

Annular Preventer
11” 5000 psi WP

Ram Preventers
11” 5000 psi WP double ram

Choke Manifold
4-1/16" x 2-1/16" 5000 psi WP

Accumulator System
JEBCO 5 station with remote 80 gal.

Mud System
One (1) Tank 350 BBL System Two (2) Brandt Cobra Shakers Brandt 2 cone desander Brandt 10 cone desilter Drilco Degasser

Auxillary Equipment
Toolpusher and crew quarters 500 bbls water tank Automatic driller Pipe spinner Kelly spinner 8,000 gal Diesel Tank

Listing No. 152
