Field Gas Processing Plant:
Equipment Data from Nameplates

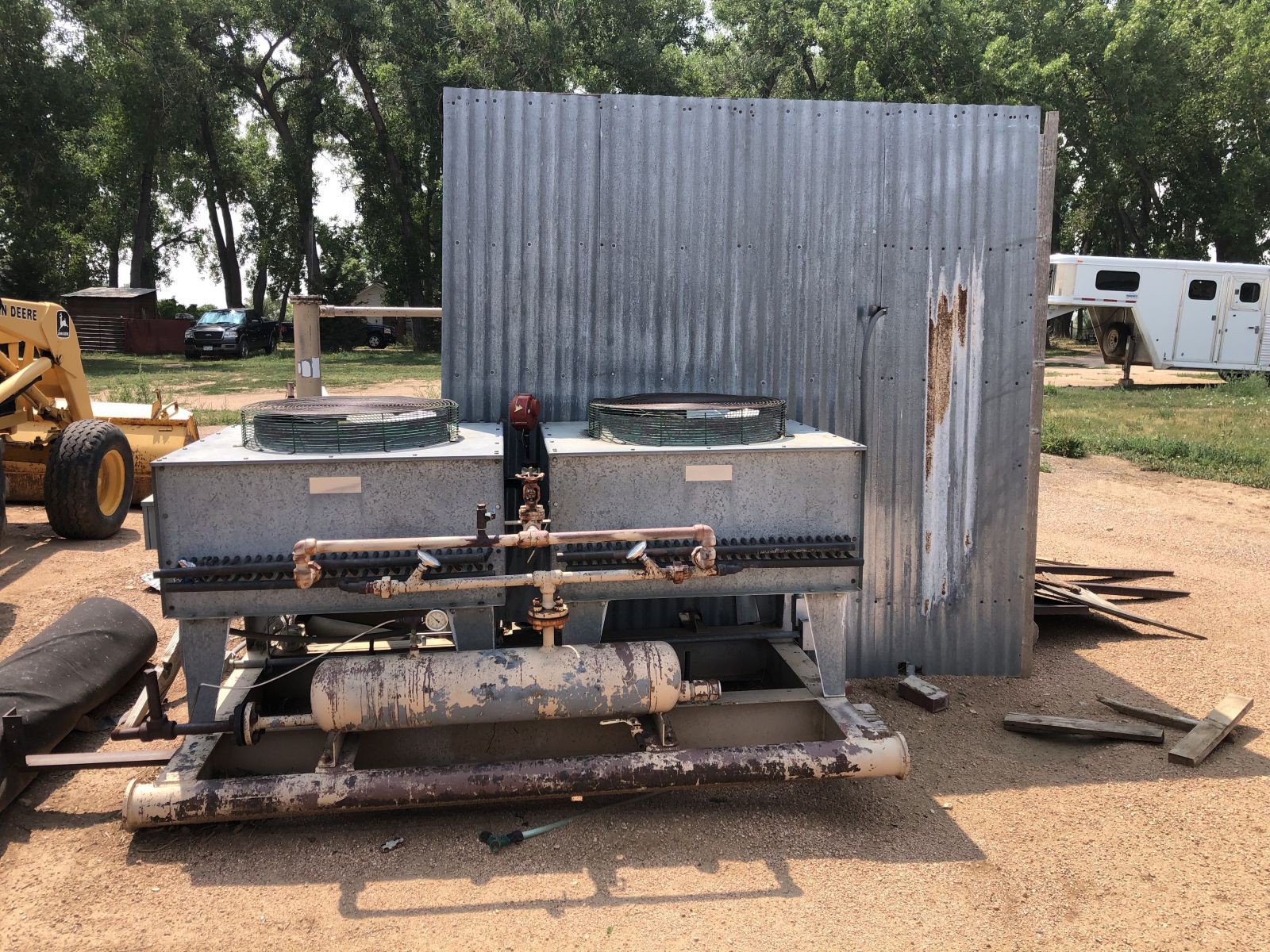

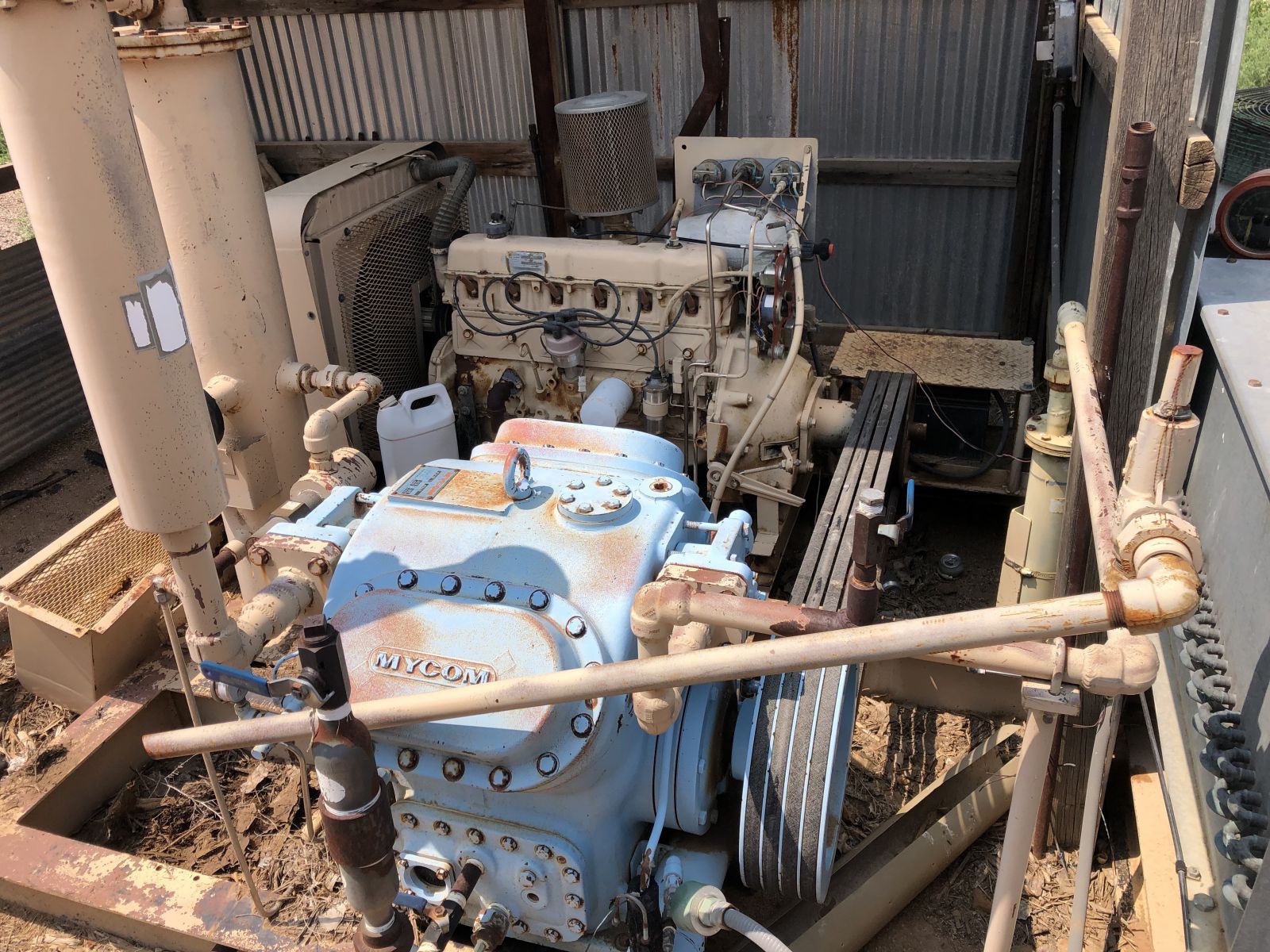

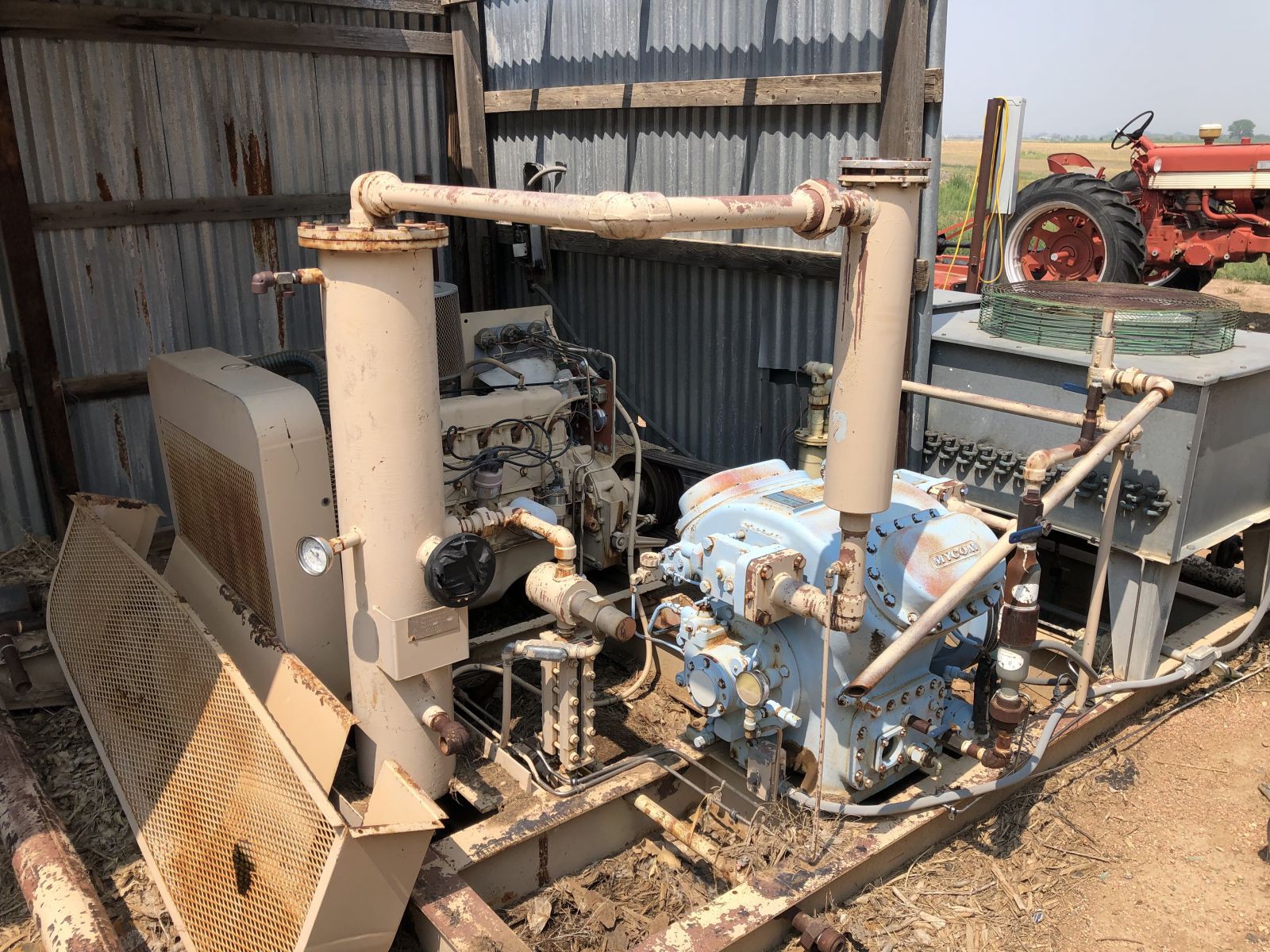

MYCOM Compressor:
Mayekawa MFG Co. LTD
Model # 4WJ-BB
s/n 470148
Leak tested 313 psig/185 psig
Hydro tested 470 psig/470 psig

Sub-cooler:
shell/tube heat exchanger
shell:  300 psig MAWP @ 150° F, 450 psig test
tube: 50/300 psig MAWP @ -50/150° F, 450 psig test
Item E-106, size 8-120, Type BEM
Designed per UC S66 U# W-S, RT-3
No National Board number
Tulsa Multi Tube Exchangers, Inc (TMT) sin MT-192-7 in 1983

Reboiler:
shell: 300 psig MAWP @ 175 psig, 450 psig test
tube: 100 psig @ 300° F, 150 psig test
Item #E-1058, size 8-240, type BEU U# W-S, RT-3
No National Board number
TMT s/n MT-192-6 in 1983

Fuel Gas Scrubber:
125 psig MAWP @ 100° F
10" od x 7-1/4"

Inlet Scrubber:
711 psig@ 100° F
12-3/4" X 5'
1067 psig test
U# W, RT-2
No National Board number

Chiller:
shell: 50/300 psig@ -50/150° F, 450 psig test
tube: 1200 psig @ -50/150° F, 1800 psig test
Item #E-102, size 8/19-240, type BKU
shell side designed per UCS-66(C)
U# H-S, PT-4, PH-T
TMT s/n MT-192-2
No National Board number

Glycol Separator:
Altered by Welch: Test pressure 1800 psig
U#W, RT-2
original tag says 1200 psig @ -50°F

Stabilizer Vessel:
300 psig @ 150° F, test@ 450 psig
Item #V-104
U#W, RT-2
No National Board number

Vessels on North side of Plant:
Short/fat vessel:
     92 psig MAWP (altered)
     old National Board #4899
Tall/skinny vessel:
     MAWP 50 psig (altered)

Note:  The NGL storage tank seen in photos is NOT included.

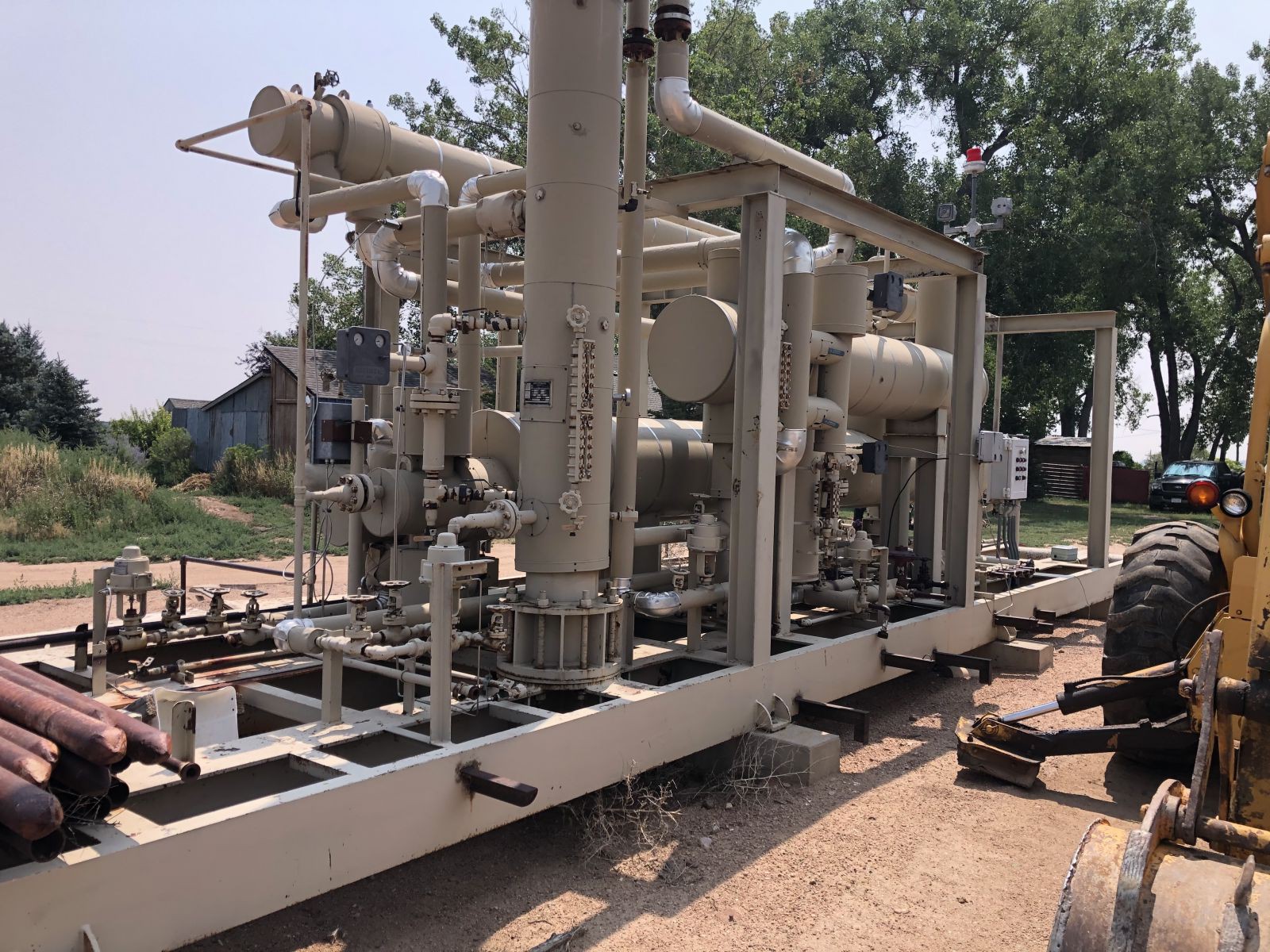

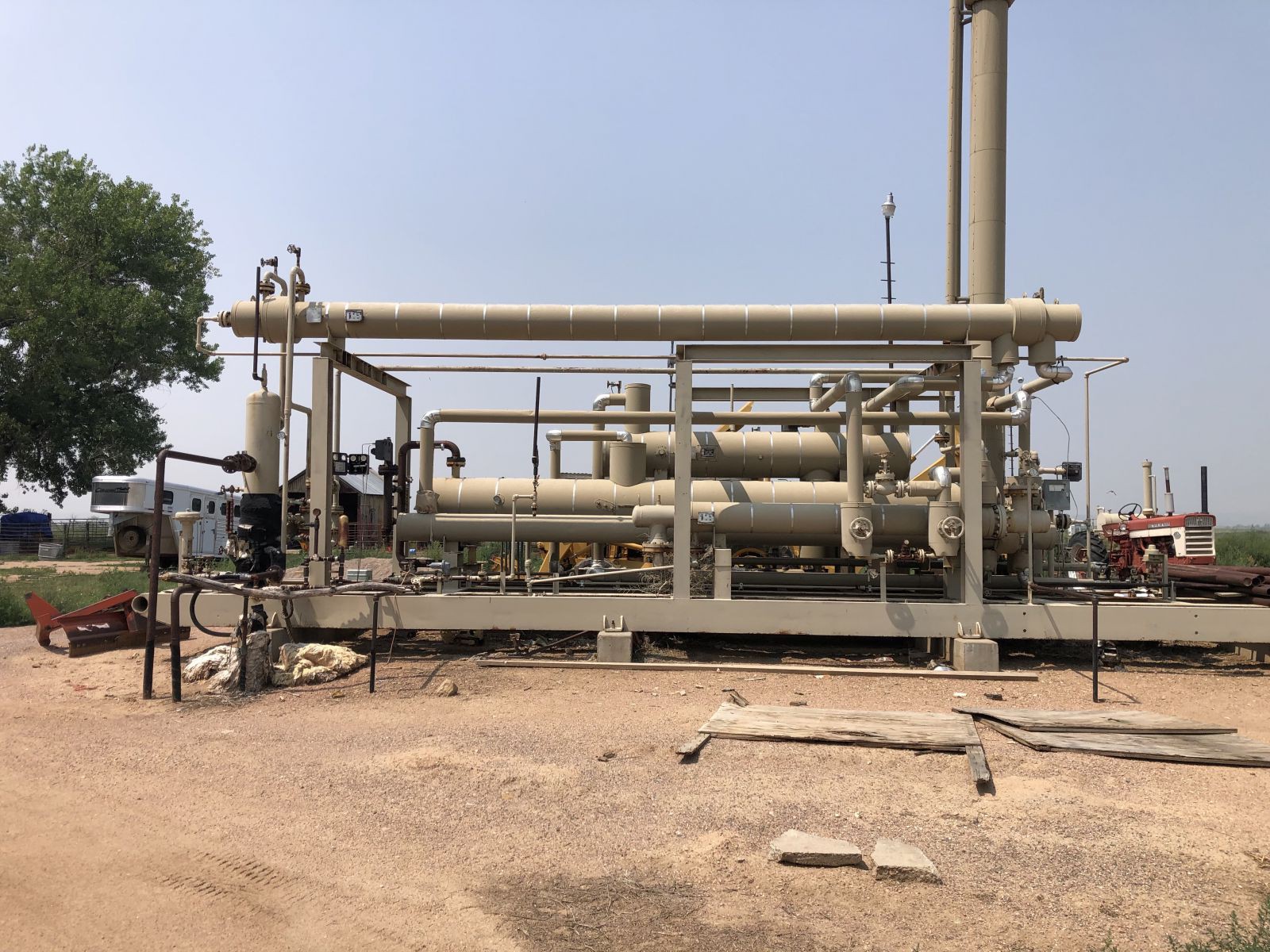

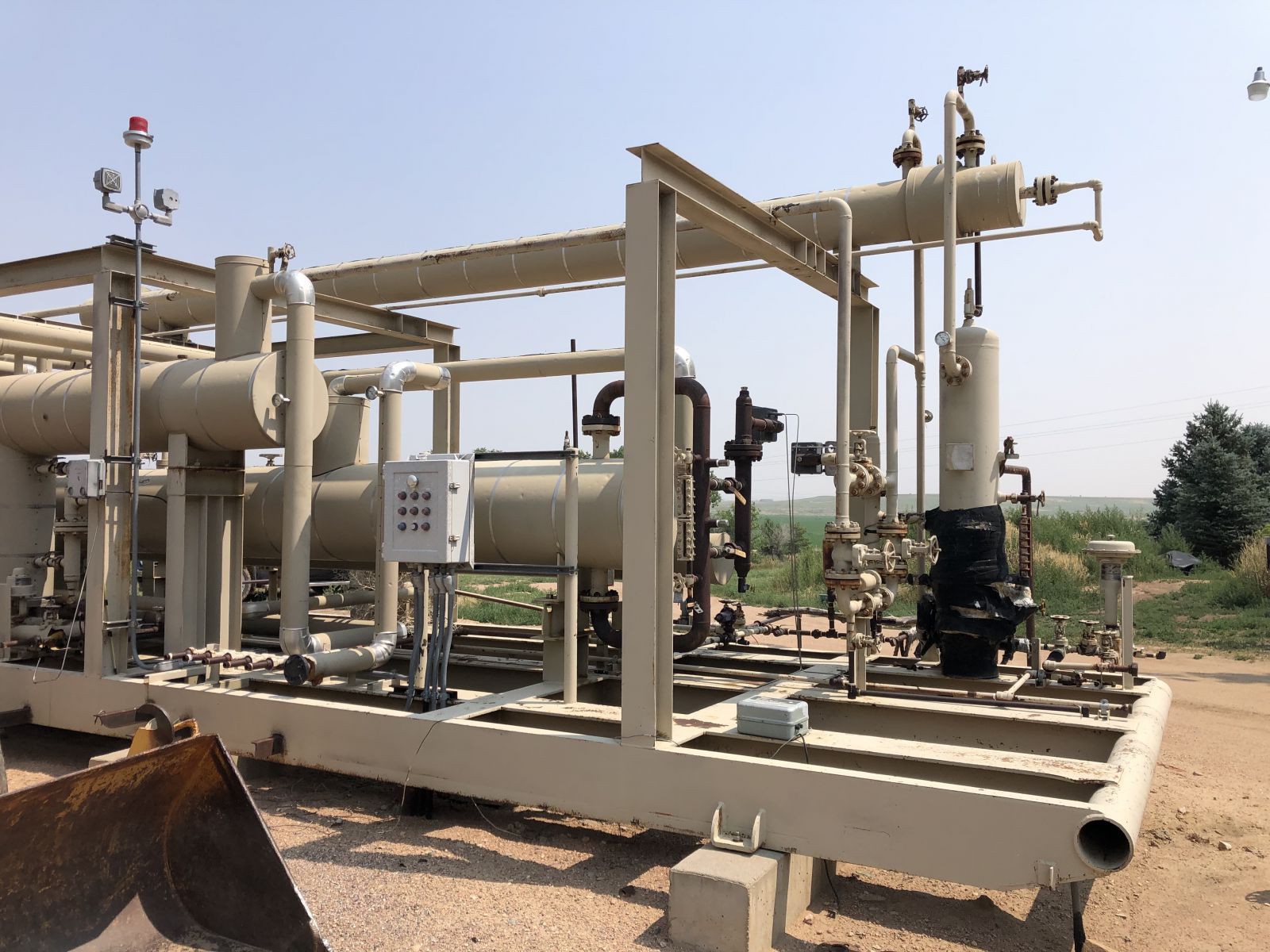

Summary of Physical Dimensions and Pressure Ratings of Plant Vessels

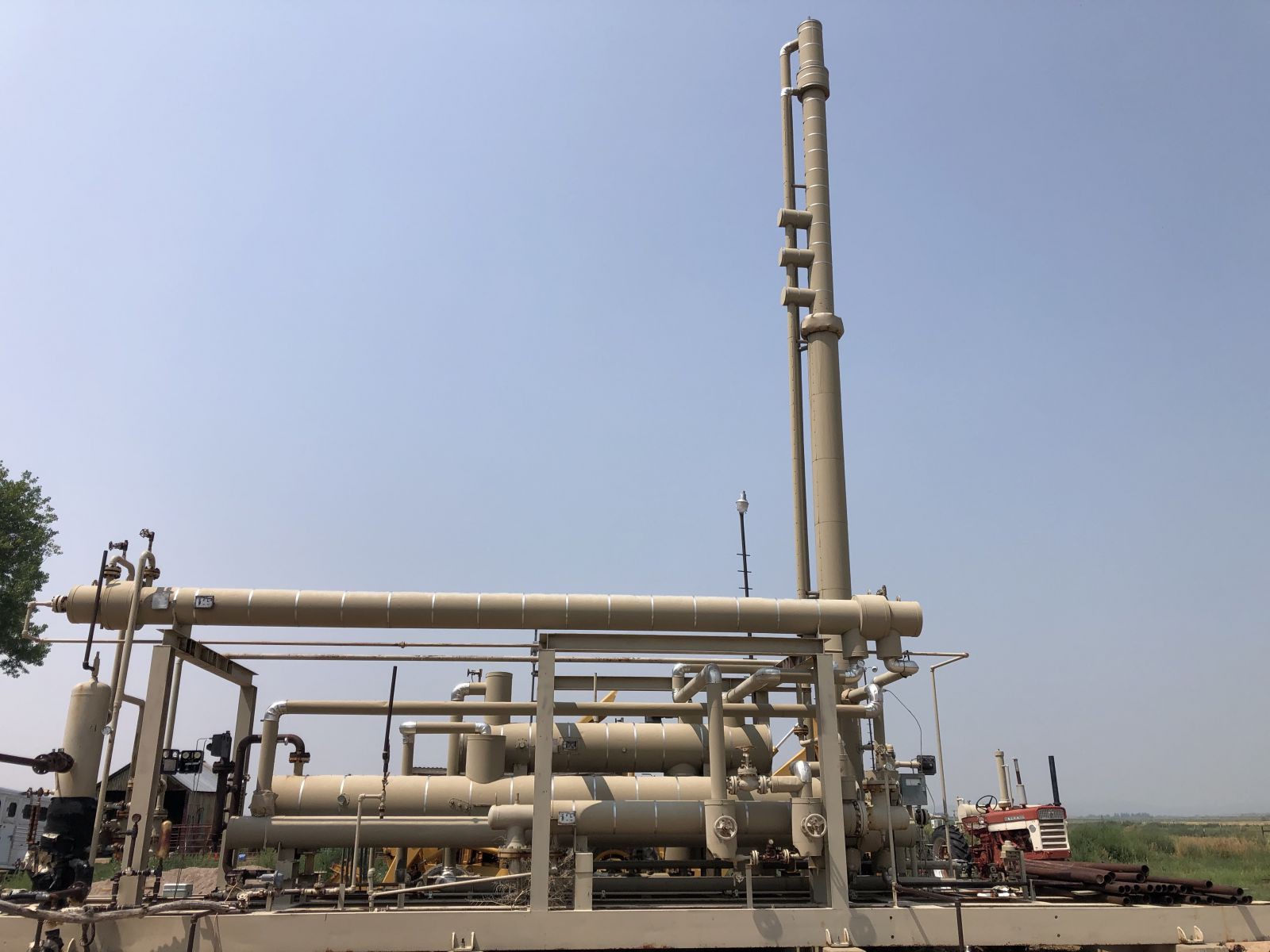

De-ethanizer Column (V-A04):                      12 3/4" diam X 21' tall - 300 psig.

Glycol Seperator (V-A05):                              18" diam X 10' long - 1200 psig

Gas/Gas Exchanger (X-A31):                        10 3/4" diam X 27 1/2' long (63 MBTU/hr)

Gas Chiller (X-A32):                                       20" diam X 19' long - (99 MBTU/hr)

De-Ethanizer Bottom ReBoiler (X-A33):         8 5/8" diam X 22' long - (32 MBTU/hr)

Product Cooler (X-A34):                                 8 5/8" diam X 15' 9" long - (10 MBTU/hr)

Glycol Exchanger (X-B31):                             3 ½" diam X 17' long

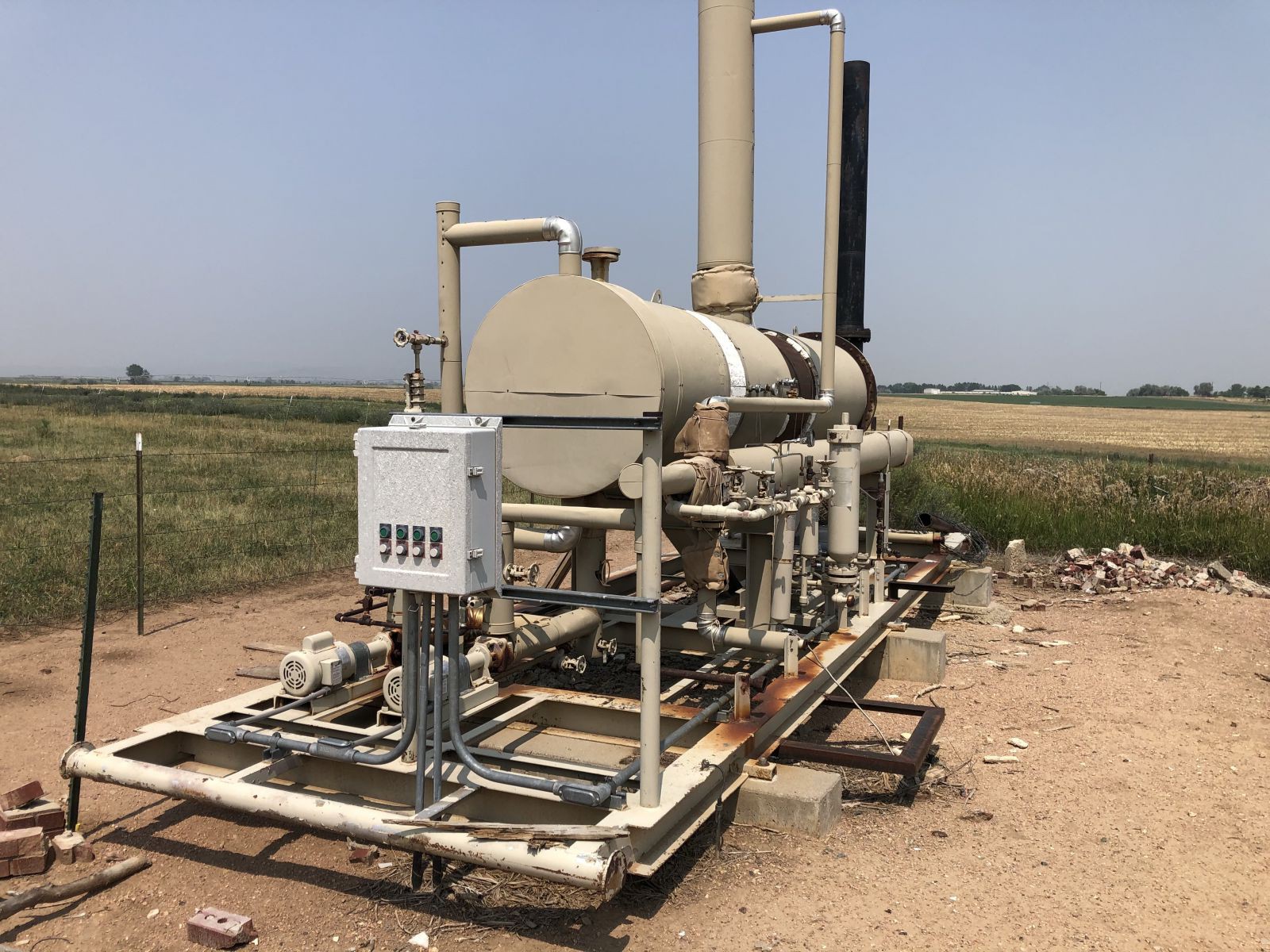

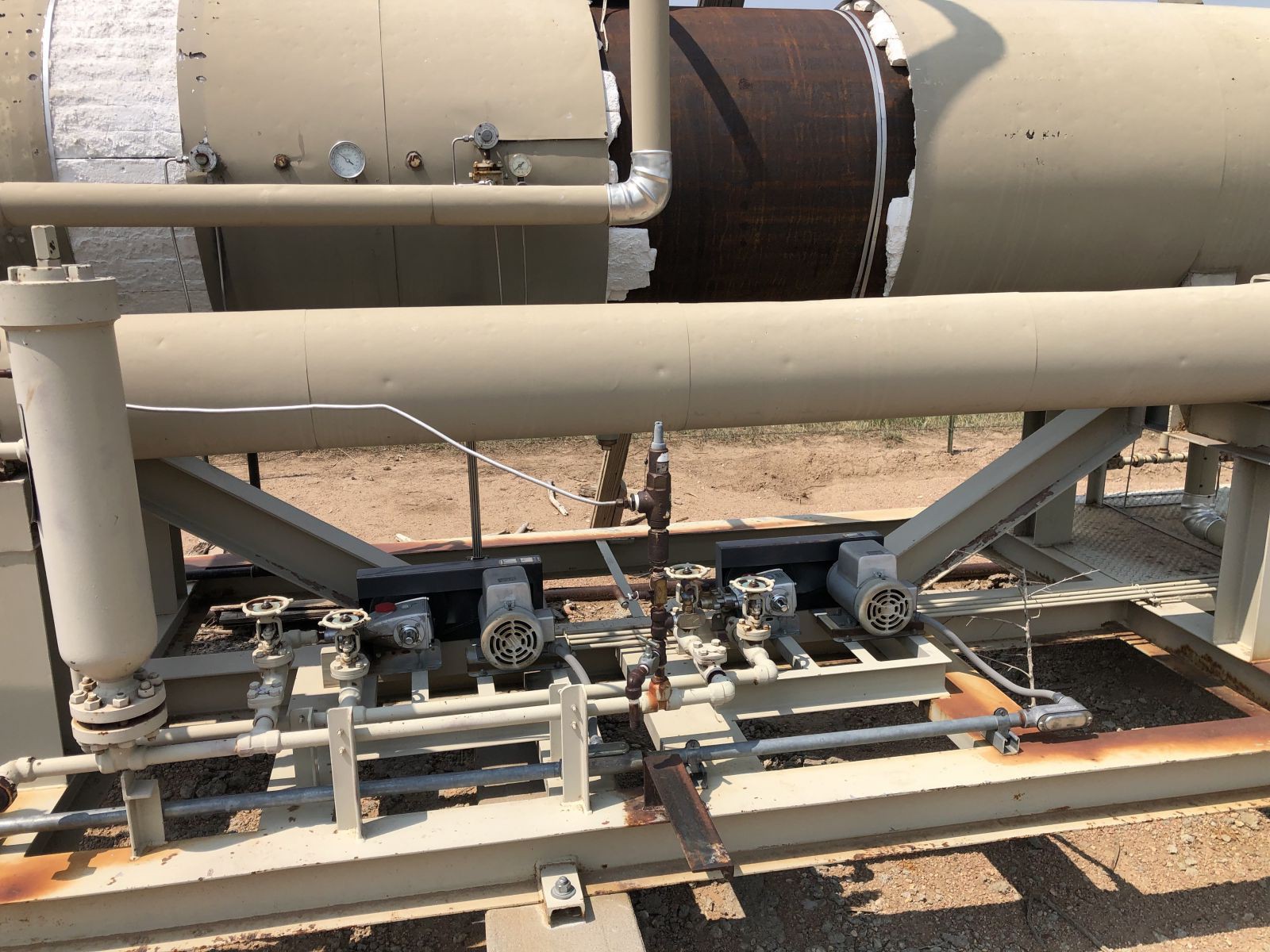

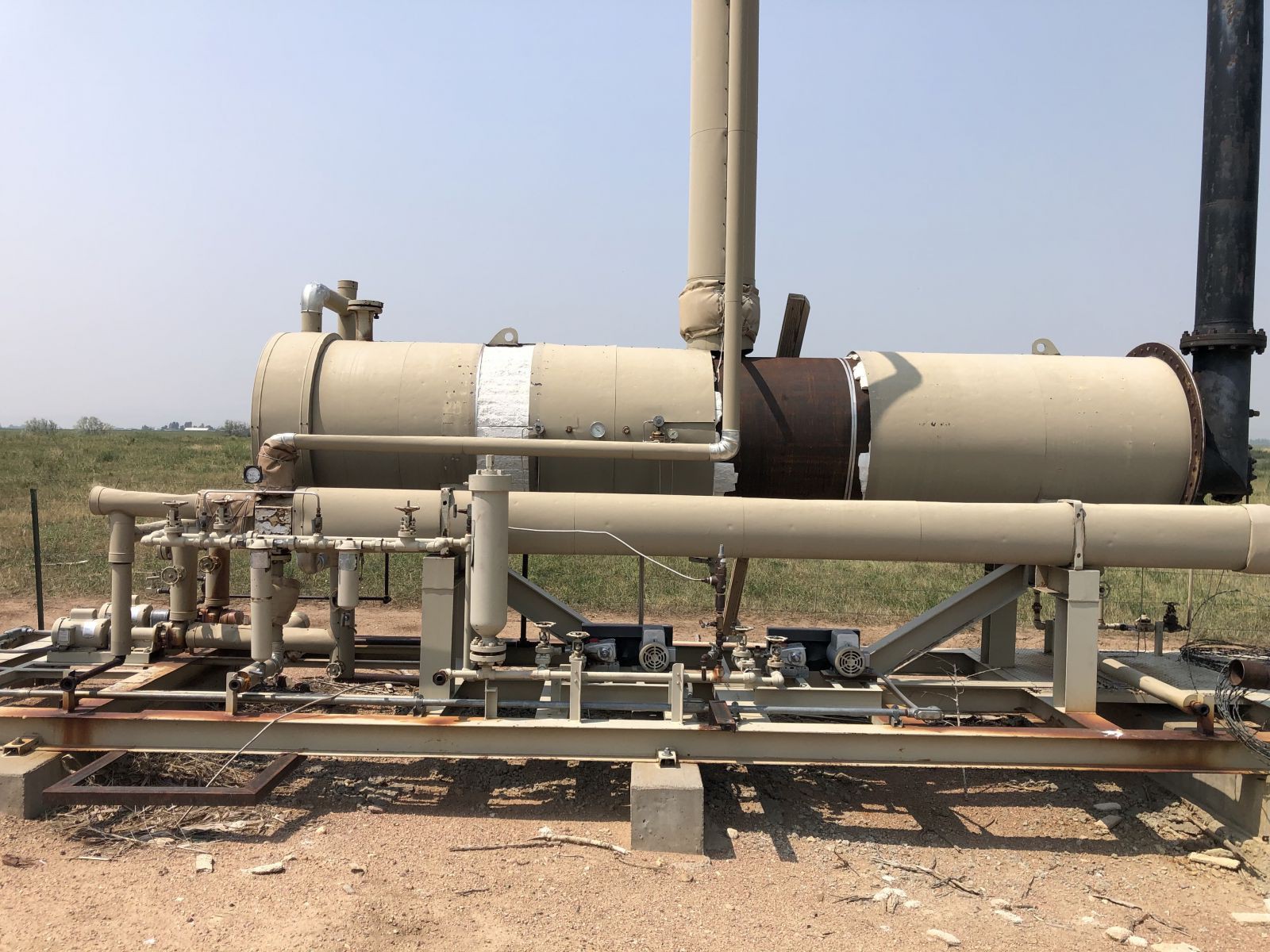

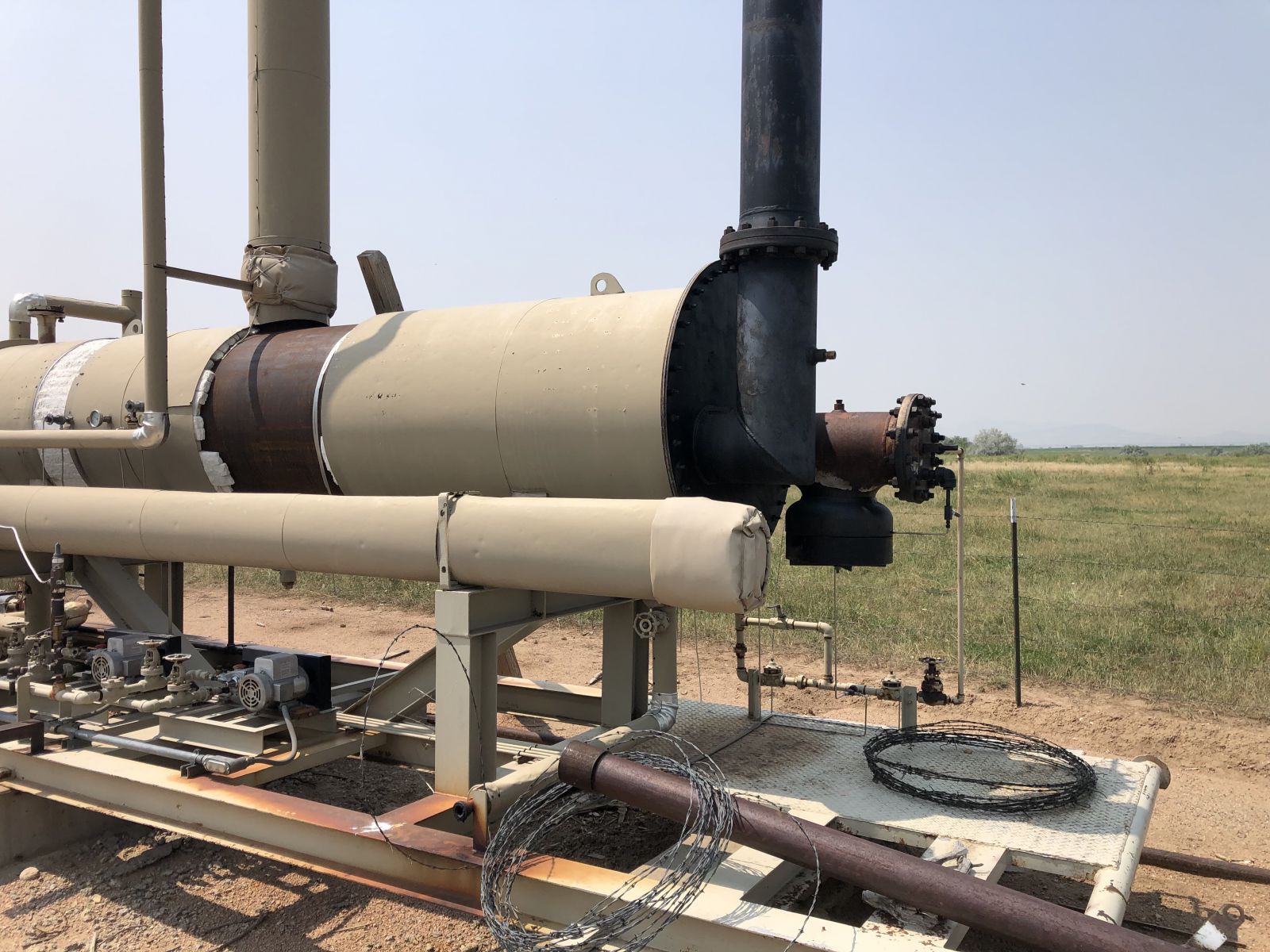

Glycol ReGenerator (X-B32):                          36" diam X 16' long - (50 MBTU/hr)
