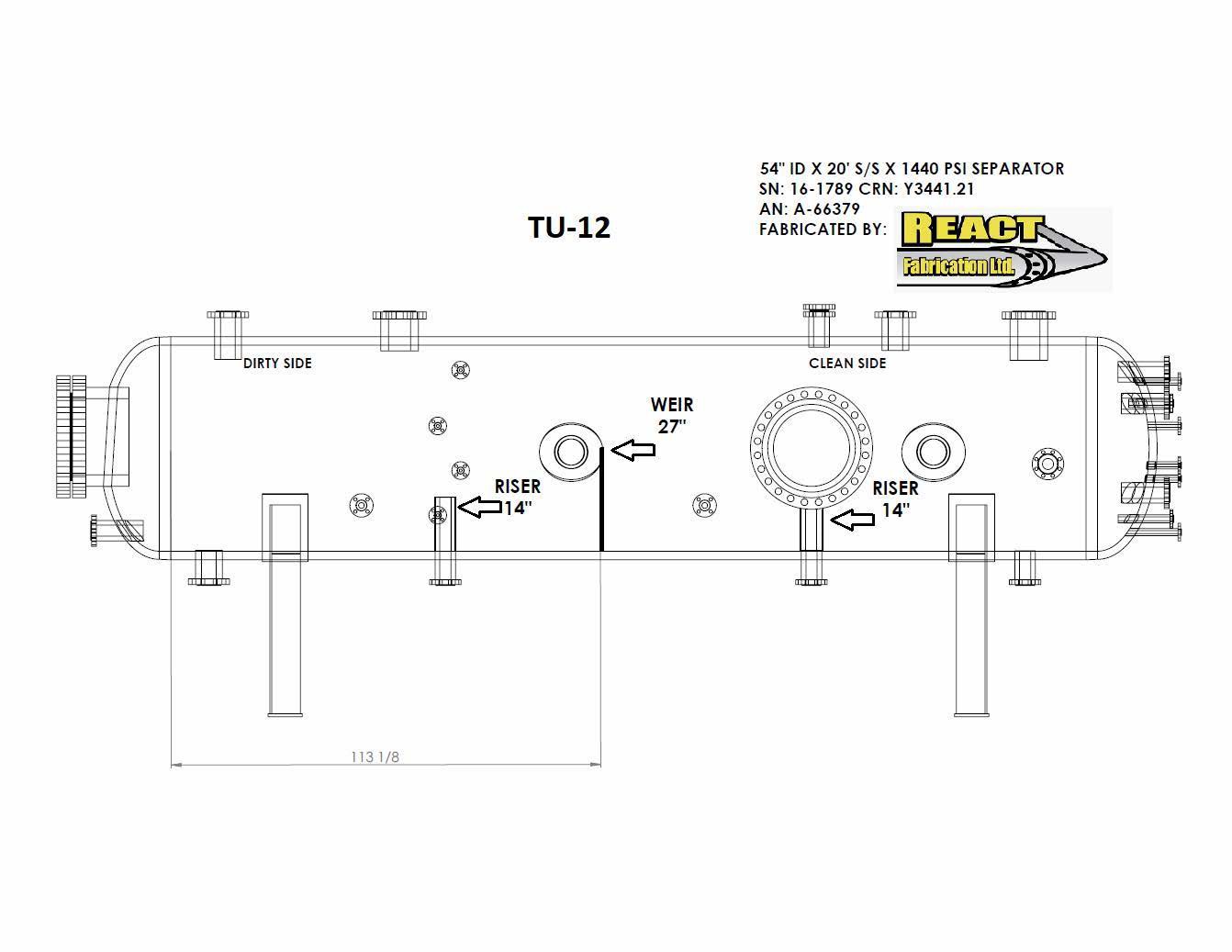

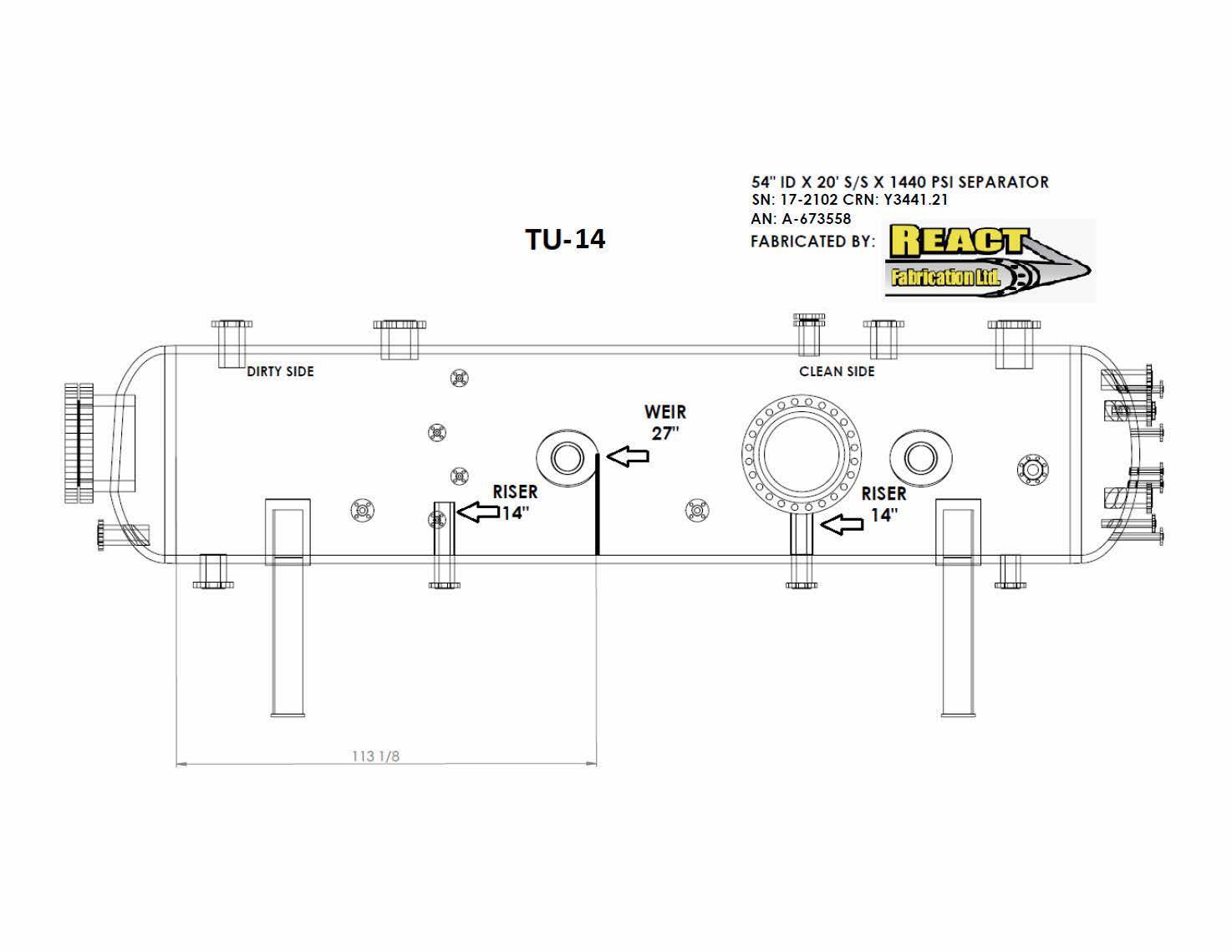

(2) 2017 54in x 20ft 1440 PSI Frac Test Separators

Sale Price: $275,000 Each

2" & 4" Wafer Style V-Cone Gas Meters
w/Digital Displays, Barton Chart Recorders
10,000 PSI & 5,000 PSI Chemical Pumps
Located: Grand Prairie, Alberta

NOW ACCEPTING OFFERS
Call to Inspect and Buy Today!!!
Call NOW (800) 952-1973



Listing Details

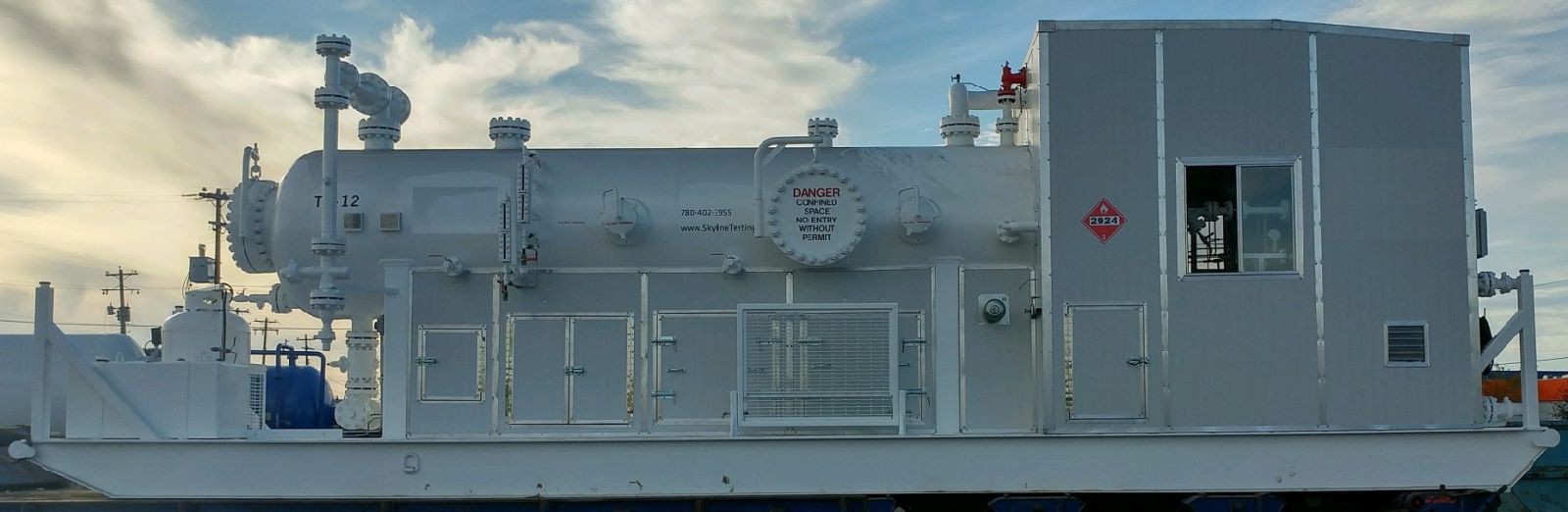

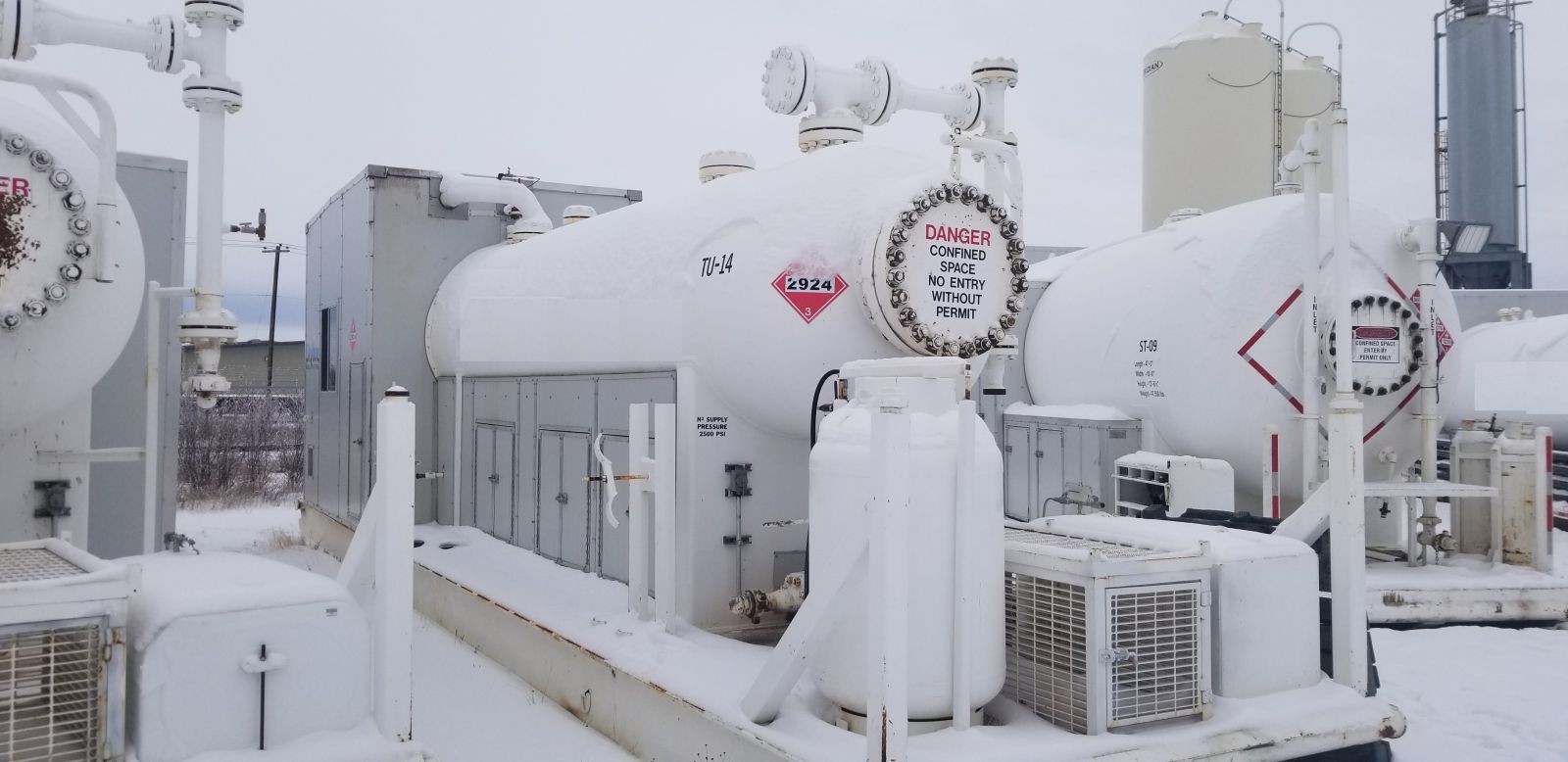

Two – 2017 built 1440psi high stages in like new condition are built with v-cone gas meters and all modern design features. They are structurally sound and upgraded with skirting, catadyne heaters, pipe racks, lights and some spooling modifications to connect dirty and clean side.



  • Pressure Rating: 1440 psi

  • Volume: 10.58 m³ (66.54 bbl)

  • Year Built: 2017

  • Temp Rating: -50f to 130f

  • 2” & 4” Wafer style V-Cone gas meters w/ digital displays and Barton chart recorder

  • 2” pneumatic fluid dumps and controllers w/ digital fluid meters.

  • Enclosed heated belly and man compartment

  • 1” Sparge Ring (dirty side of weir) & 1.5” Gama Jet™ Line to supply sparging heads

  • 10,000 psi and 5,000 psi chemical pumps

  • 2” pneumatic fluid dumps and controllers w/ digital fluid meters.

  • 120v Cata-dyne™ heaters with enclosed belly.

  • Backpressure control valve

  • 400 lbs. propane tank and 429L methanol tank mounted on skid

  • 220/110v electrical connections

  • 2.5” Welded removable in-line heat/steam coil






Listing No. 363
