Well Testing Separator Package (10 Units) for Sale

Buy it Now: $995,795

Motivated Seller, Make an Offer
(10) 2011 & 2012 Manf. 9' x 30'
Test Separators, Skidded
Located:  GP, Alberta, Canada


NOW ACCEPTING OFFERS
Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973



Listing Details

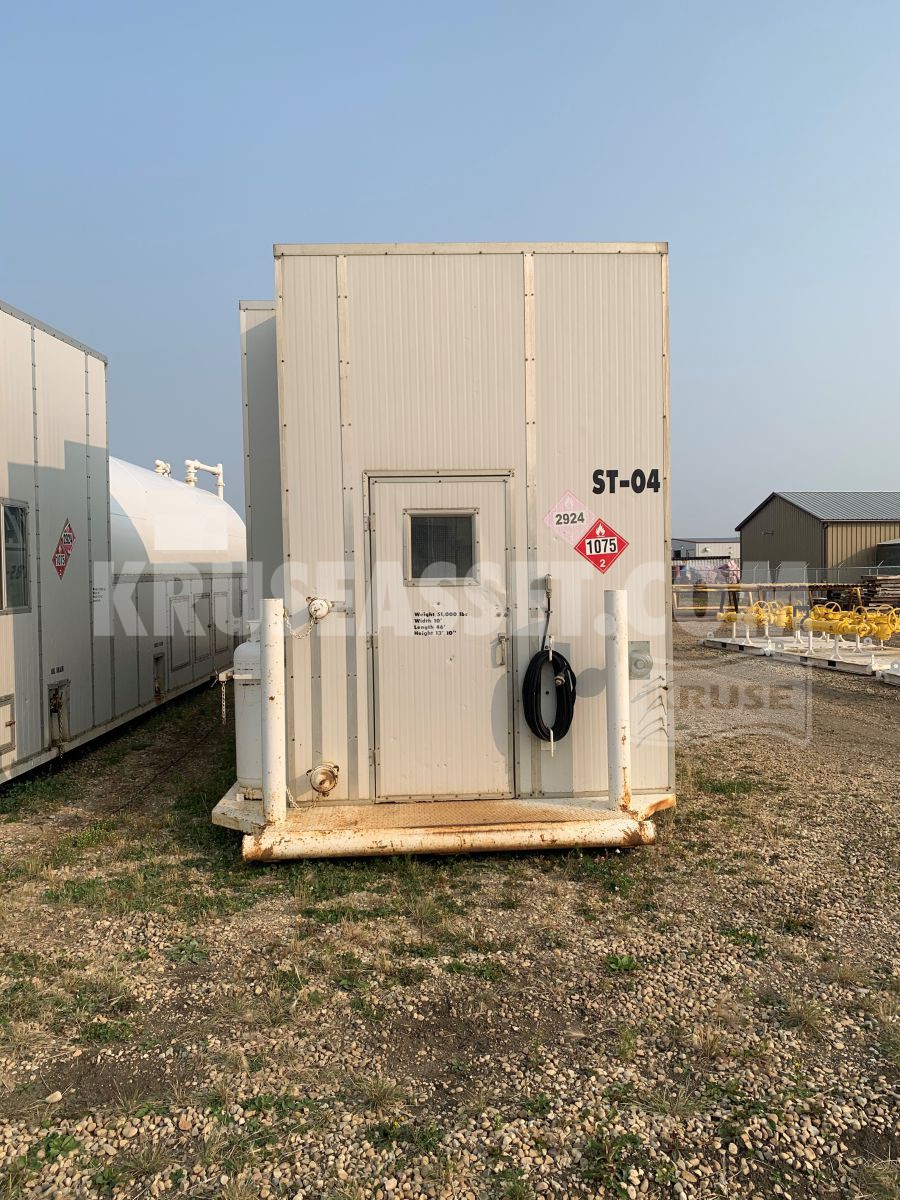

(10) 2011 & 2012 Manuf. - 9’ x 30’ Test Separators (each on a 10’ x 47’ skid) described as follows:

(6) 337 bbl. - 125 PSI MAWP MDMT -50 Deg F MAWT +300 Deg F - 9' x 30' vessel; Skidded Sour Storage Vessel -  Single Inlet - Two Phase
(2) 337 bbl. - 125 PSI MAWP MDMT -50 Deg F MAWT +300 Deg F - 9’ x 30’ vessel; Skidded Sour Storage Vessel - Dual Inlet - Three Phase
(2)
337 bbl. - 150 PSI MAWP MDMT -50 Deg F MAWT +300 Deg F - 9’ x 30’ vessel;  Skidded Sour Storage Vessel - Dual Inlet - Three Phase

Each unit is mounted on a 10’ x 47’ Skid.

Each Vessel is post weld heat-treated for sour service.
Designed and Fabricated as per ASME Section VIII,
National Board Registered.
Affixed with ASME “U” Stamp Symbol
National Board Registration

Equipped with:
3” 150# RF Senior Daniels Meter Run, AGA 2000 configuration. (unit’s #1 and 2 no Daniels Meter)
Sur-Flo 3” 150# RF, Fail Open Back Pressure Gas Regulator.
Accumulator bottle to supply Sur-Flo
3” 150# RF FP Gate Valve for isolation,
3” 150# RF FP Gate Valve for gas-out by-pass
Farris, Pilot Operated Relief Valve 2” 150# RF (x) 3” 150# RF NACE Level I
3”-150 #RF Relief spooling to skids edge, c/w 3” FIG. 206 outlet connections
Pre-Painted steel foam injected panel style building.
Vessel Belly skirted / enclosed with foam injected panels, c/w access hatches, Swinging doors, weather-stripping, hardware etc.

Each unit also has:
Heat System
(2) CCI Thermal, 12” x 24” x 120 VAC Catadyne LPG, C/w safety grills
(1) CCI Thermal, 24” x 24” x 120 VAC Catadyne LPG, C/w vent hood & safety grills
Fisher 912 LPG Regulator

Each unit is complete with an iron package consisting of:
3” FIG. 206 Butt-Welded Iron
12 – 20’ S/40 joints
2 – 10’ S/40 pup
1 – 6’ S/40 pup
1 – 5’ S/40 pup
1 – 4’ S/40 pup
1 – 3’ S/40 pup
1 – 2’ S/40 pup
1- 1’ S/40 pup
12 – S/40 Long Radius 90 Deg. Swings
2 – 4” Fig. 206 Thrd. x 3” Fig. 206 Wing
1 – 4” Fig. 206 Wing x 3” Fig. 206 Third.





Listing No. 341
