Alta Super Spec AC 1500HP Drilling Rig for Sale

Sale Price: $3,000,000

NOV Ideal Sub/Mast 1500 AC Rig
500Ton Canrig Top Drive (New 2017)
75ft Walking Capability
Omron/Schlumberger Control System
Customizable Upgrade Options
Located: Odessa, Texas

Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973


Listing Details

PHOENIX RIG 10

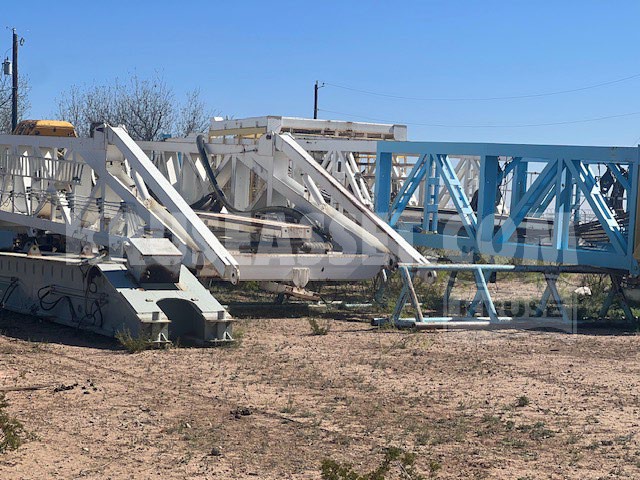

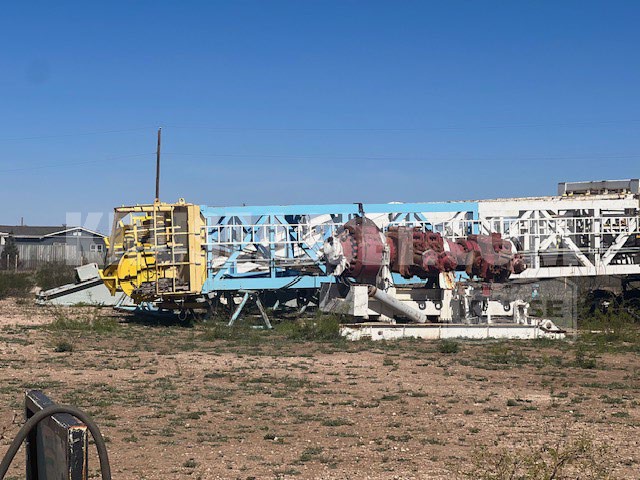

MAST

NOV 142' telescoping mast with 750,000# hookload & 17,000' racking capacity with 5" drill pipe; Top drive & block transport in mast; Raises and lowers using hydraulic cylinders

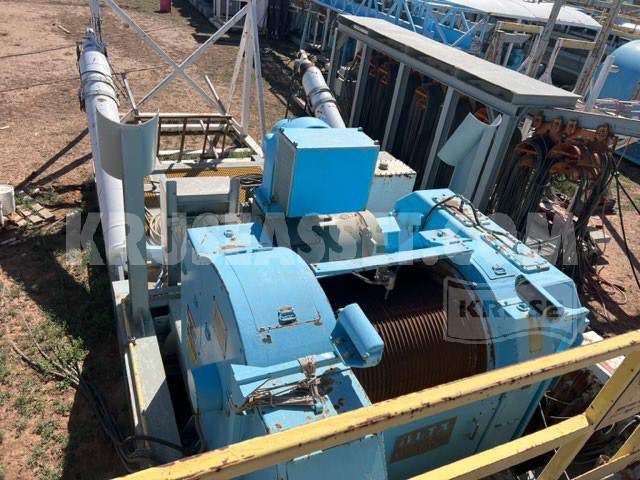

DRAWWORKS
Alta Rig AC 1500HP with 1-3/8" drill line

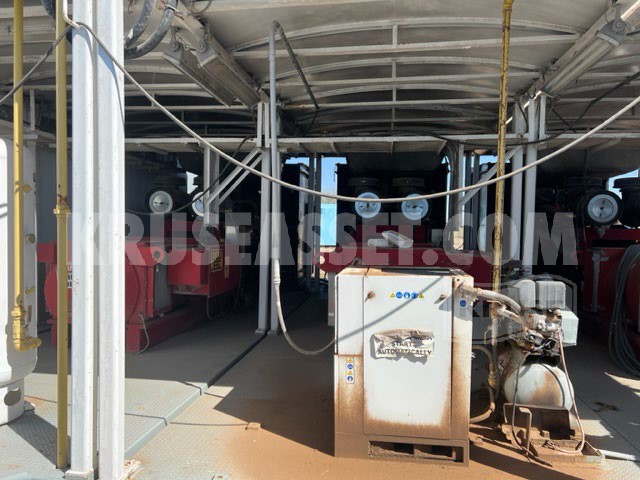

ENGINES/GENERATOR
Three (3) Cummins KTA50 diesel engines each rated at 1470HP;

Engines unitized with 1100kW generators; Includes 12,000-gallon fuel tank

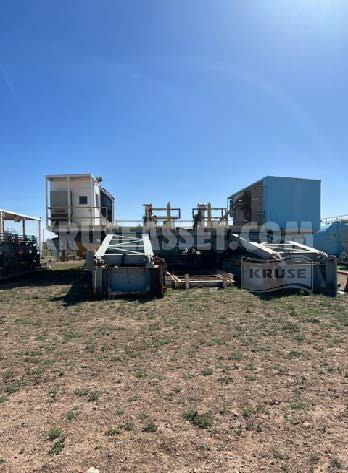

SUBSTRUCTURE
NOV 25' substructure with 21.5' clear height, 750,000# rotary load, & 500,000# setback load;

Raises and lower using hydraulic cylinders

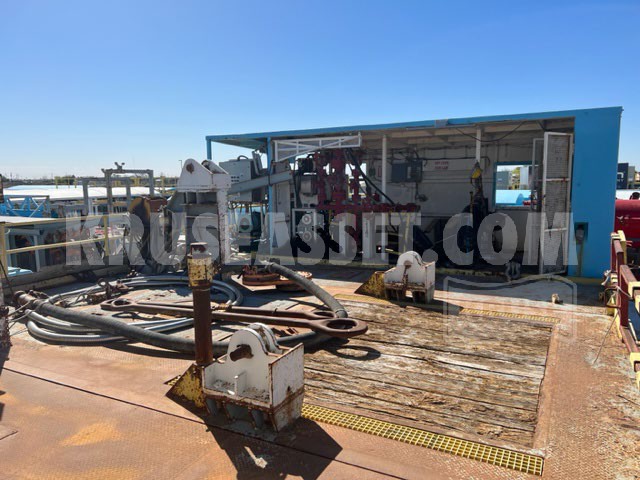

ROTARY
37-1/2'' rotary independently driven by one (1) hydraulic hagglund motor


TOP DRIVE
Canrig 500-ton AC (with "Rockit" capability)


TRAVELING BLOCK
 One (1) 400-ton, 6 sheave block, with a 12-line string-up


DRILLER CONTROLS
Omron Electronic Driller and VFD House; AC drives regulate drawworks, mud pumps, and top drive; AC Drive technology is integrated with PLC Technology


BOP
One (1) 13-5/8" 10M Single Ram BOP

One (1) 13-5/8" 10M Double Ram BOP

One (1) 13-5/8" 5M Annular

One (1) 6-station accumulator

One (1) 4" 10K choke manifold

One (1) NOV BOP Handler

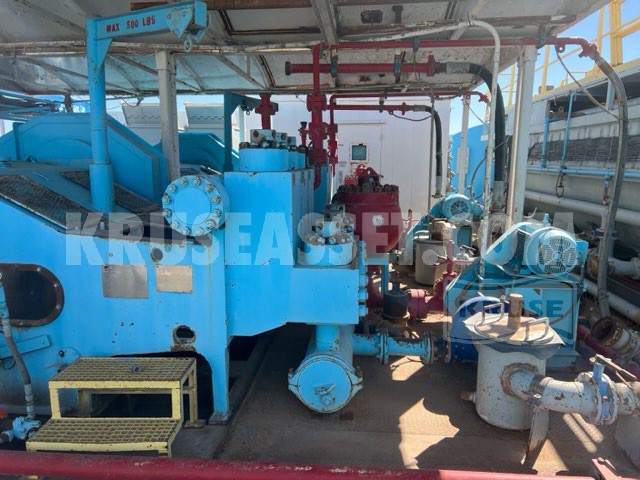

MUD PUMPS
Two (2) 1600HP Triplex AC pumps with 7500PSI working pressure in the system

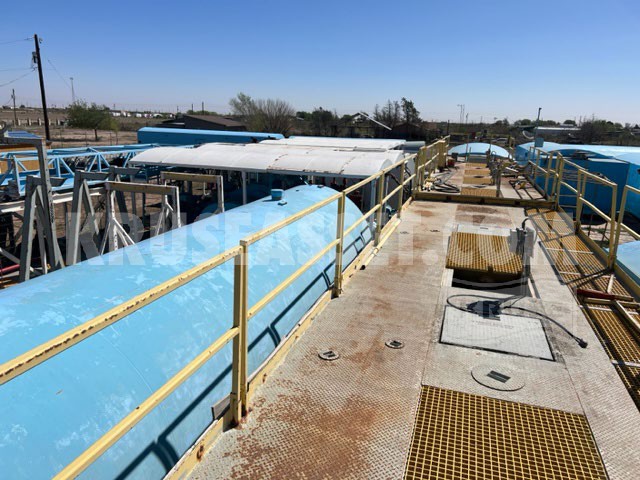

MUD SYSTEM

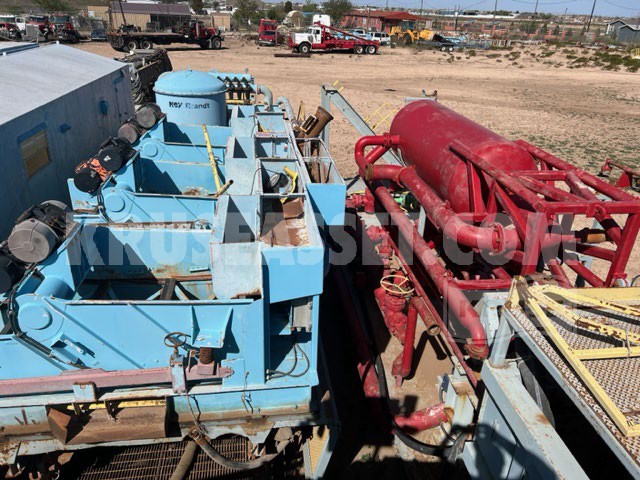

850 barrels total active capacity; Two (2) covered 425-barrel tanks with round bottoms and electric agitators for optimum mixing/blending and ease of clean out; Each tank contains two (2) 5x6x75H P centrifugal pumps; Hopper is remote for ease of use with bulk tanks; Three (3) Brandt King Cobra Venom shakers, one (1) Brandt DG-10 degasser, and one (1) Brandt SE -16 desilter are all unitized on a hydraulically raised mud processing skid; A separate skid incorporates one (1) 100-barrel trip tank with 2x3x40HP centrifugal pump; One (1) 48" Mud gas separator


DRILL PIPE
5" S-135 Drill pipe as required by contract


DRILL COLLARS
3-8" 21-6.5" Drill collars (quantity and size subject to availability)



AUXILIARY EQUIPMENT

  • Walking system - capable of walking 75'
  • Motorized drill line spool
  • Mathey wire line unit with 25,000' of 0.092''
  • Meeting and Change House Combo with A/C
  • Iron roughneck
  • Totco electronic drilling recorder
  • Toolpusher & Crew Quarters
  • Pressure washer
  • Water tank



DRILLING RIG PHOENIX NUMBER 10, NOV IDEAL 1500

SERIES, COMMISSIONED IN JAN 2011

PHOENIX MAJOR COMPONENTS APPROX. HOURS

  • ALTA-FAB RIG DRAWWORKS, 1500-HP, (1) GEB-28, 1500-HP AC TRACTION MOTOR, S/N 10046, HRS 43812
  • (3) CUMMINS, KTA50, DIESEL ENGINES, 1470-HP, W/ AIR START, SKID MOUNT ENCLOSURES, W/ GENERATORS- (3) AVK, WEG 1050-KW GENERATORS, UNITIZED, W/ ENGINES- ENGINE 1 S/N G206-33165295, HRS 40442, ENGINE 2 S/N-H303-33165302, 40189, ENGINE 3- B103-33165314, HRS 40193
  • (2) BOMCO, F-1600, TRIPLEX MUD PUMPS 7500 PSI, GEB-29 AC TRACTION MOTOR, 1500-HP, 6’’ CERAMIC LINERS, 6 X 5 X 14 CHARGING PUMP, 1 X 1.5C LINER WASHING PUMP- MP 1 S/N- A09-2008, HRS/REBUILD- 17628, MP 2- S/N A11-2008, HRS/REBUILD 16819
  • CANRIG, 500-TON AC, MODEL 1035-AC 500, S/N 1359, W/ “ROCKIT” CAPABILITY, HRS SINCE NEW IN 2017- 7631HRS


Listing No. 436
