Super Spec 1200 AC Rig
Low Working Hours, 28 Wells Since Built
Walking System w/ Walking Hydraulic Catwalk
Omron/Schlumberger Operating System

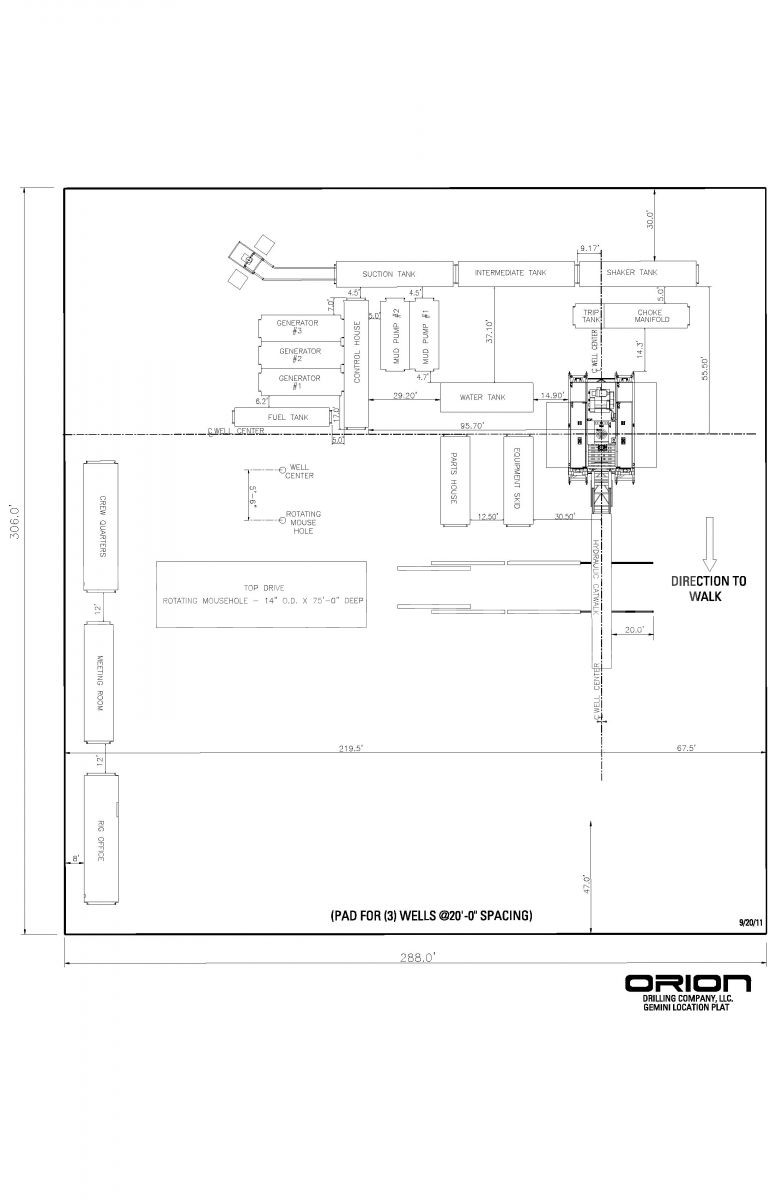

Engineered Drawing Plans for
1500HP/750KLB Available
Partially Located: Reynoldsville, PA
Partially Located: Corpus Christi, TX
Call to Inspect and Buy Today!!!


Listing Details

MINTAKA RIG 16

MAST

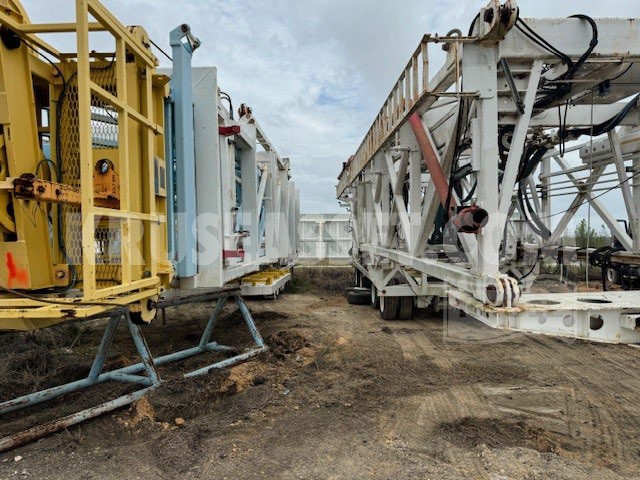

GEMINI 134' telescoping mast with 550,000# hookload & 21,000' racking capacity with 5'' drill pipe; Top drive & block transport in mast; Raises and lowers using hydraulic cylinders

DRAWWORKS

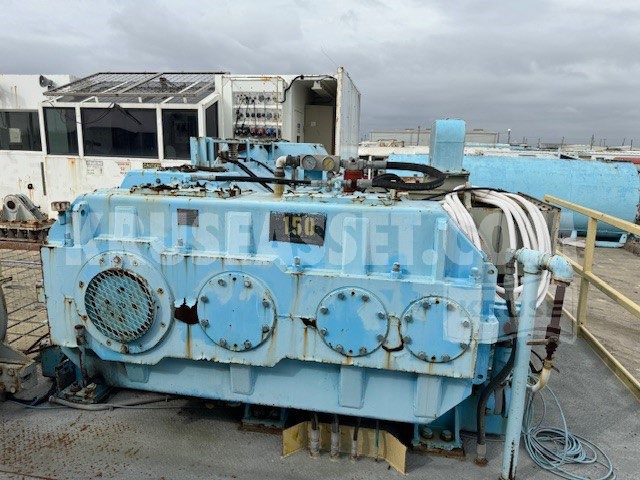

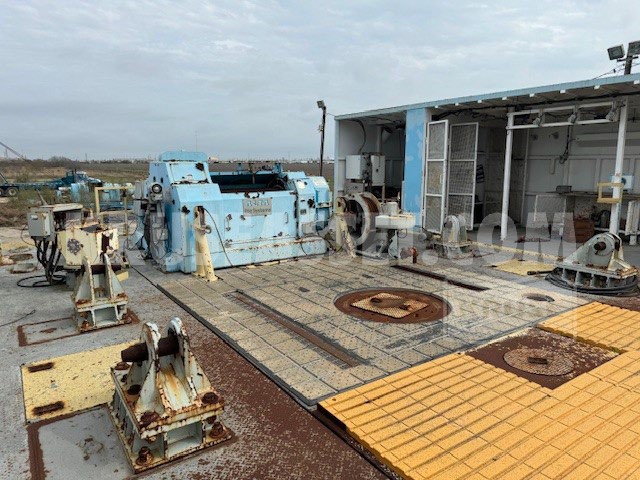

Alta Rig AC 1200HP with 1-1/4" drill line

ENGINES/GENERATOR

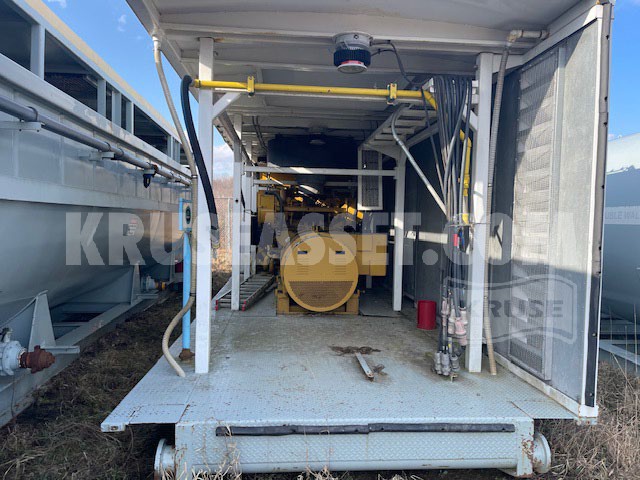

Two (2) Caterpillar 3512C diesel engines each rated at 1476HP; Engines unitized with 1365kW generators; Includes 12,000-gallon fuel tank

SUBSTRUCTURE
GEMINI 22' substructure with 18' clear height, 550,000# rotary load, & 500,000# setback load; Raises and lowers using hydraulic cylinders

ROTARY
37-1/2" rotary independently driven by one (1) hydraulic hagglund motor

TOP DRIVE
Canrig 350-ton AC (with "Rockit" capability)

TRAVELING BLOCK
One (1) 275-ton, 5 sheave block, with a 10-line string-up

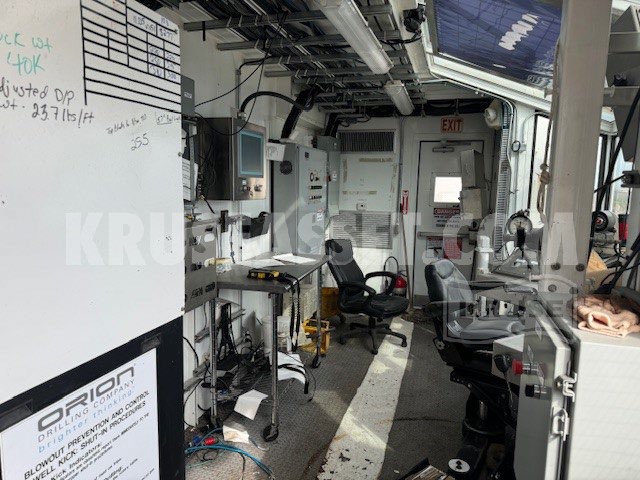

Omron Electronic Driller and VFD House; AC drives regulate drawworks, mud pumps, and top drive; AC D rive technology is integrated with PLC Technology

DRILLER CONTROLS

One (1) Single Ram BOP as per contract

BOP
One (1) 13-5/8" 5M Double Ram BOP

One (1) 13-5/8" 5M Annular

One (1) 6-station accumulator

One (1) 3" 5K choke manifold

MUD PUMPS

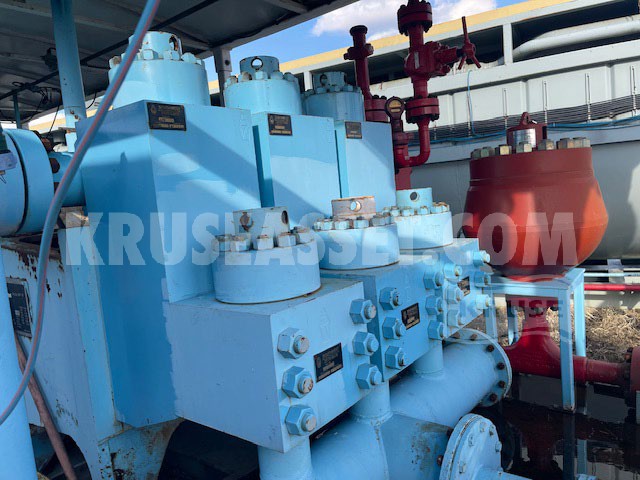

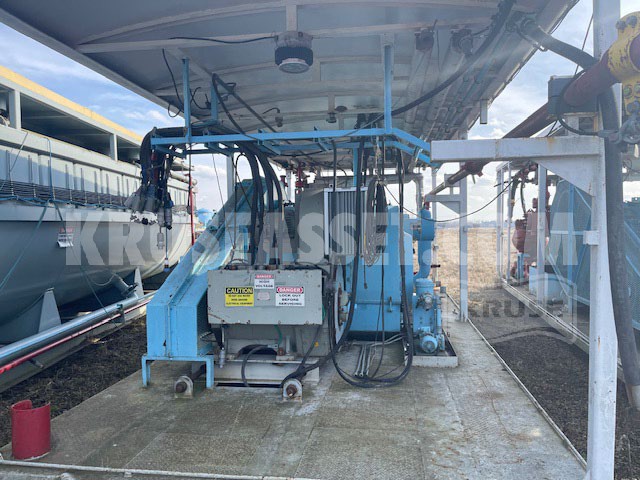

Two (2) 1600HP Triplex AC pumps with 7500PSI working pressure in the system

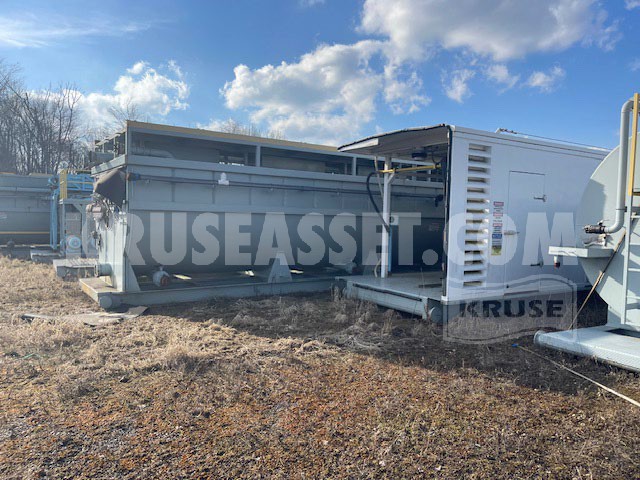

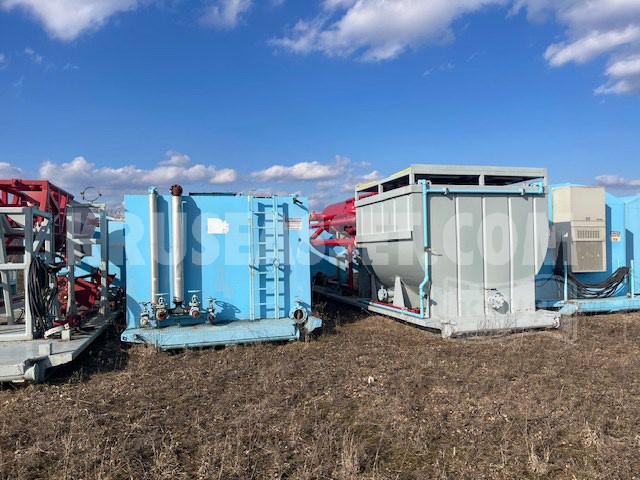

850 barrels total active capacity; Two (2) covered 425-barrel tanks with round bottoms and electric

MUD SYSTEM

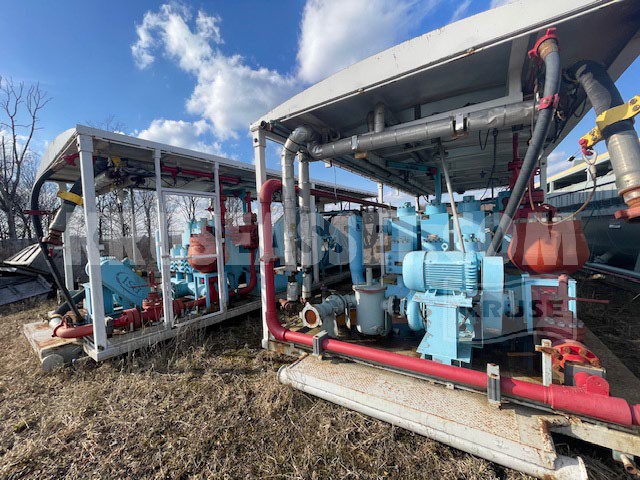

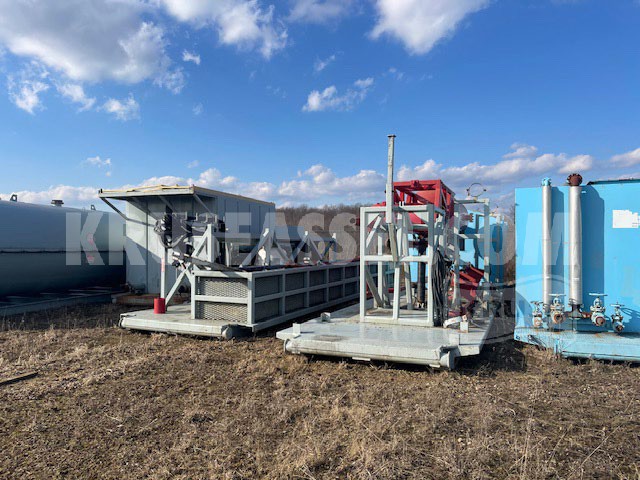

Agitators for optimum mixing/blending and ease of clean out; Each tank contains two (2) 5x6x75HP centrifugal pumps; Hopper is remote for ease of use with bulk tanks; Three (3) Brandt King Cobra Venom shakers and one (1) Brandt DG-10 degasser all unitized on a hydraulically raised mud processing skid; One (1) 48" Mud gas separator

DRILL PIPE
5" S-135 Drill pipe as required by contract

DRILL COLLARS
3-8" 21-6.5" Drill collars (quantity and size subject to availability)

AUXILIARY EQUIPMENT

• Walking system - capable of walking 45'
• Hydraulic catwalk with walking capability
• Motorized drill line spool
• Meeting and Change House Combo with A/C
• Iron roughneck
• Toolpusher & Crew Quarters
• Pressure washer
• Water tank
