Super Spec 1200 AC Rig
Low Working Hours, 38 Wells Since Built
CAT DGB Kits on Low Hour 3512C
Walking System w/ Walking Hydraulic Catwalk
Omron/Schlumberger Operating System

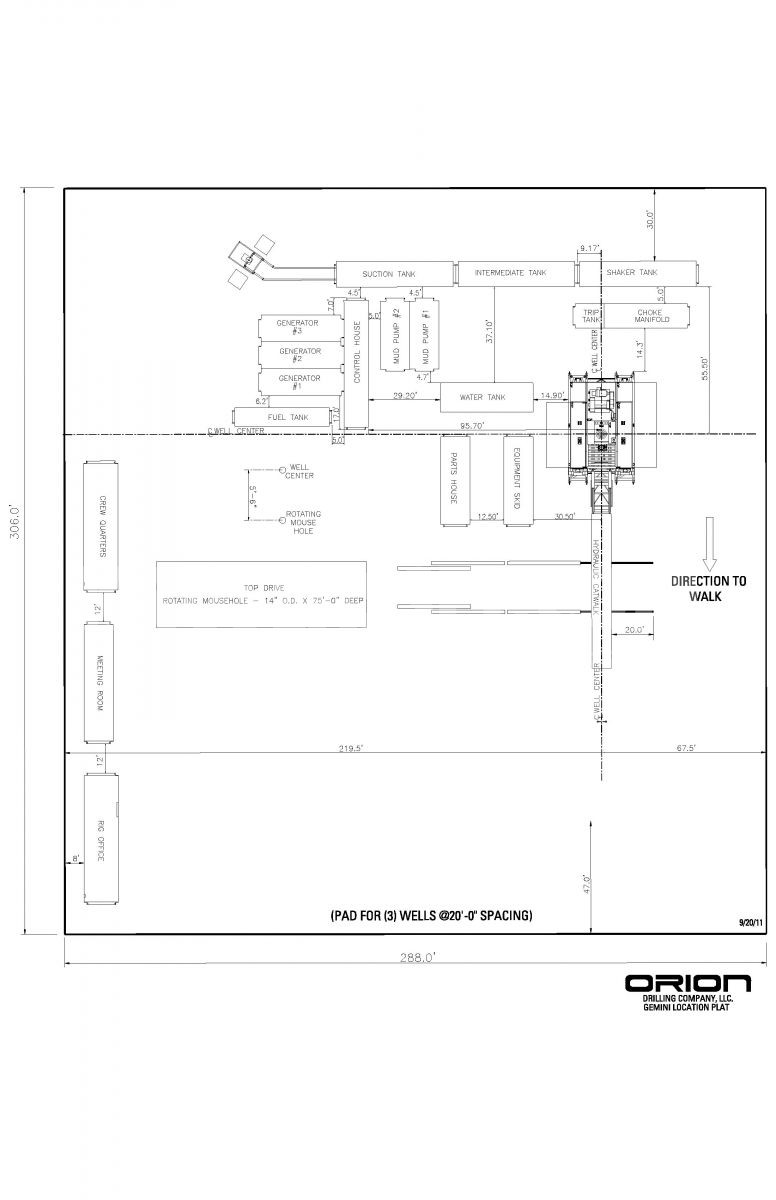

Engineered Drawing Plans for
1500HP/750KLB Available
Located: Reynoldsville, PA
Call to Inspect and Buy Today!!!


Listing Details

VIRGO RIG 15

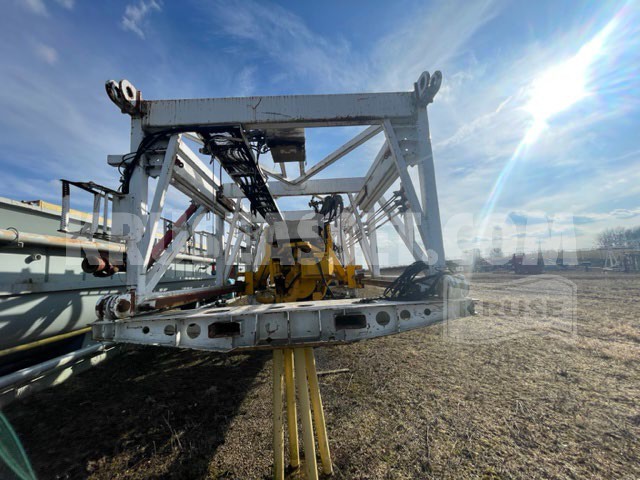

MAST

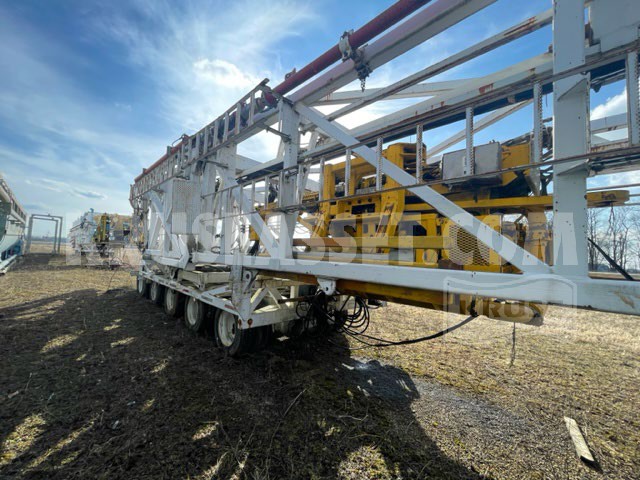

GEMINI 134' telescoping mast with 550,000# hookload & 16,500' racking capacity with 5" drill pipe; Top drive & block transport in mast; Raises and lowers using hydraulic cylinders

DRAWWORKS

Alta Rig AC 1200HP with 1-1/4" drill line

ENGINES/GENERATOR

Three (3) Caterpillar 3512C diesel engines each rated at 1476HP;

Engines unitized with 1365kW generators; Includes 12,000-gallon fuel tank

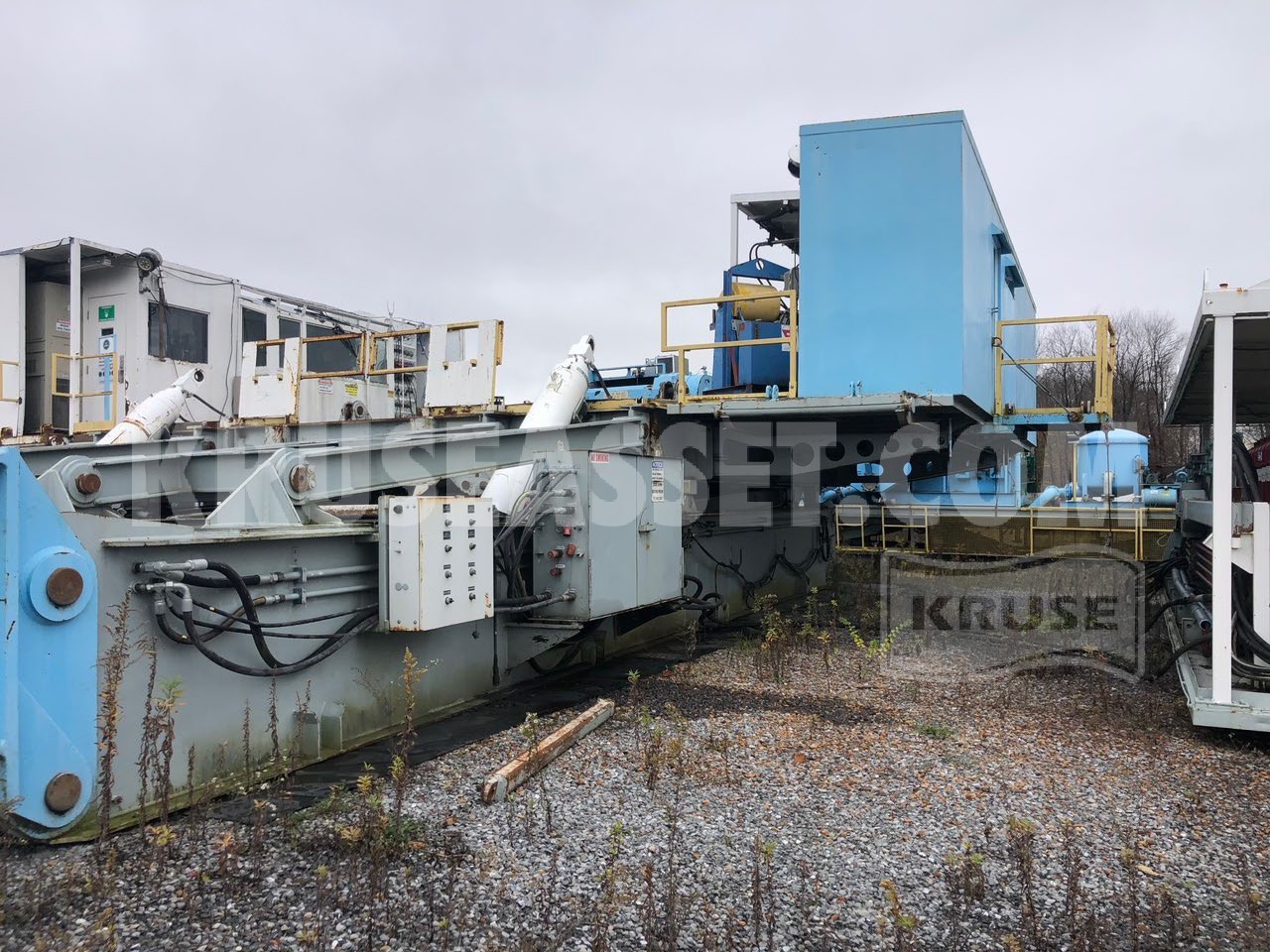

SUBSTRUCTURE
GEMINI 22' substructure with 18' clear height, 550,000# rotary load, & 500,000# setback load; Raises and lower using hydraulic cylinders

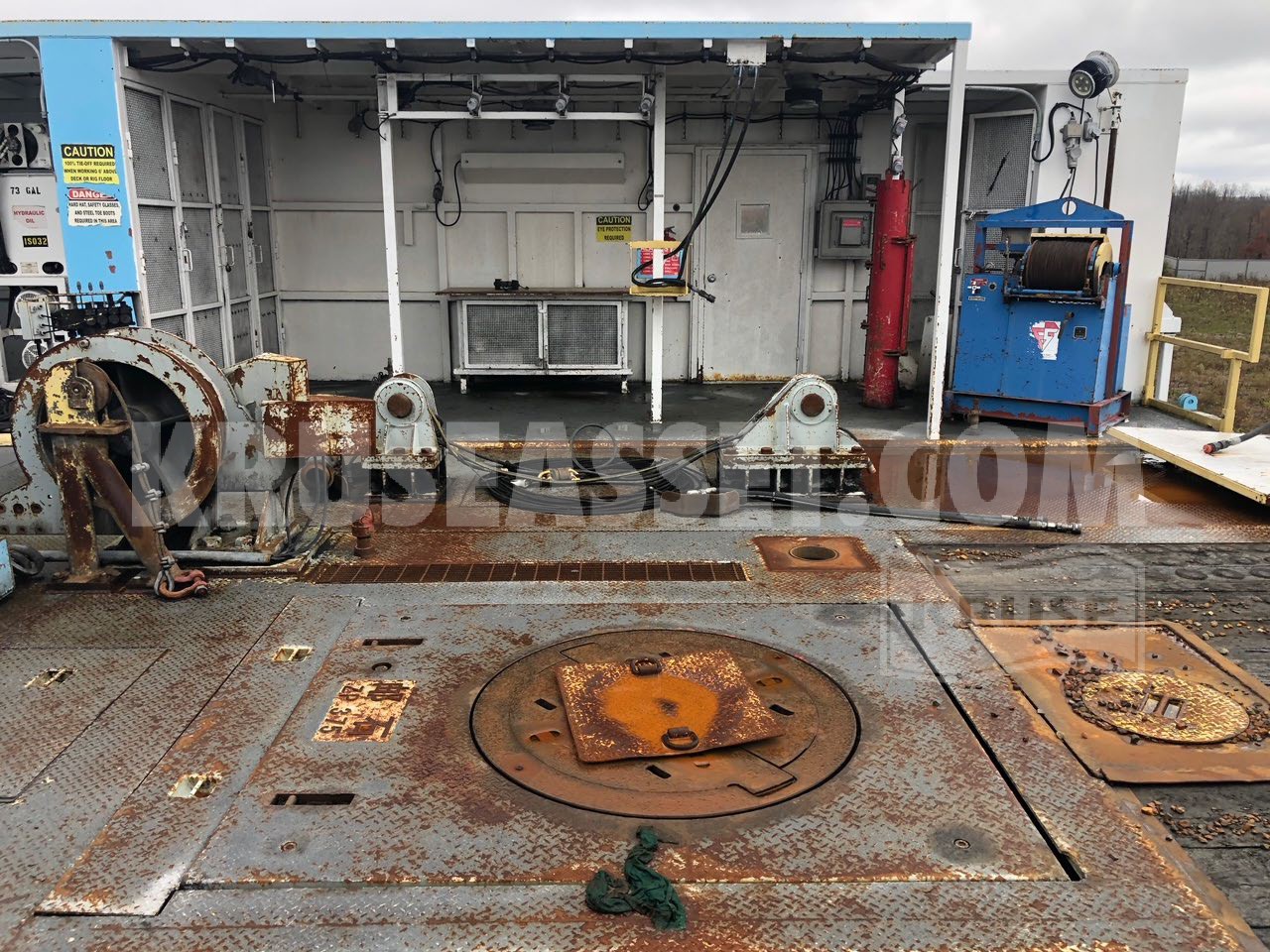

ROTARY
37-1/2" rotary independently driven by one (1) hydraulic hagglund motor

TOP DRIVE
Canrig 350-ton AC (with "Rockit" capability)

TRAVELING BLOCK

One (1) 275-ton, 5 sheave block, with a 10-line string-up

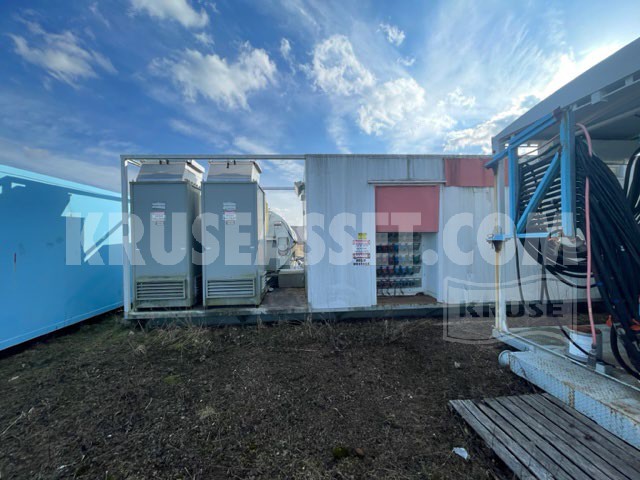

DRILLER CONTROLS

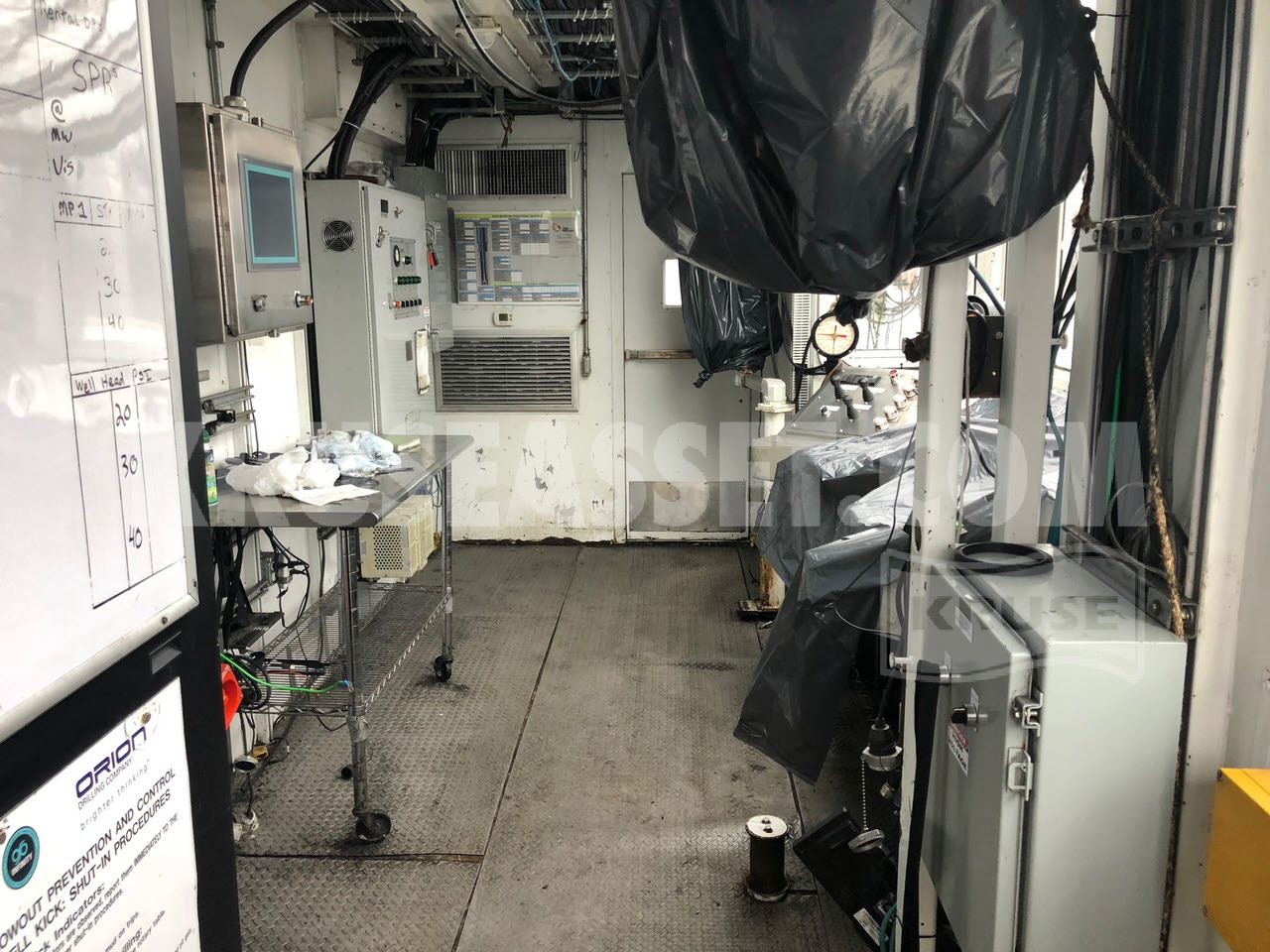

Omron Electronic Driller and VF? House; AC drives regulate drawworks, mud pumps, and top drive; AC Drive technology is integrated with PLC Technology

BOP
One (1) 11" 5M Single Ram BOP

One (1) 11" 5M Double Ram BOP

One (1) 11" 5M Annular

One (1) 6-station accumulator

One (1) 3" 5k choke manifold

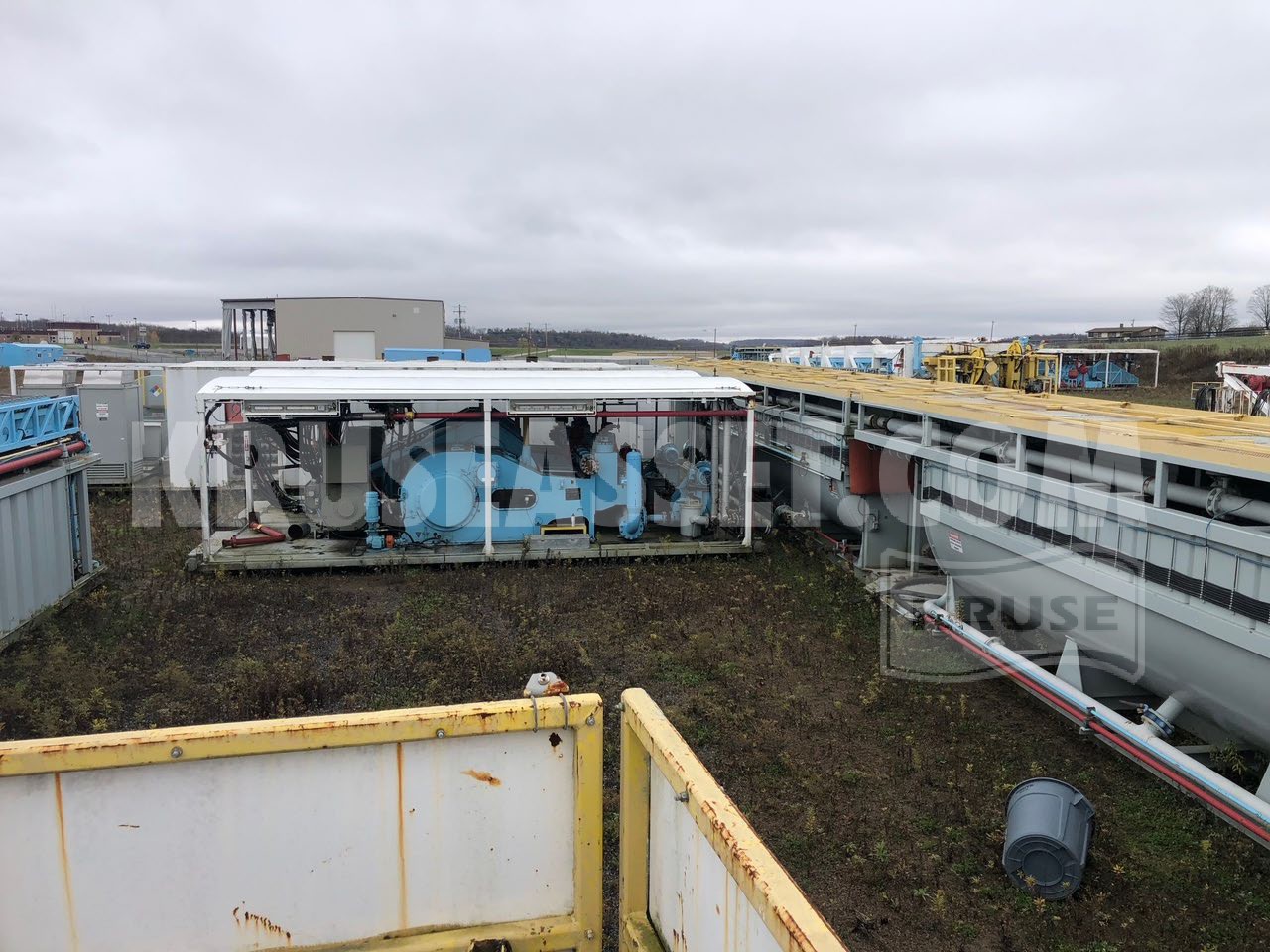

MUD PUMPS

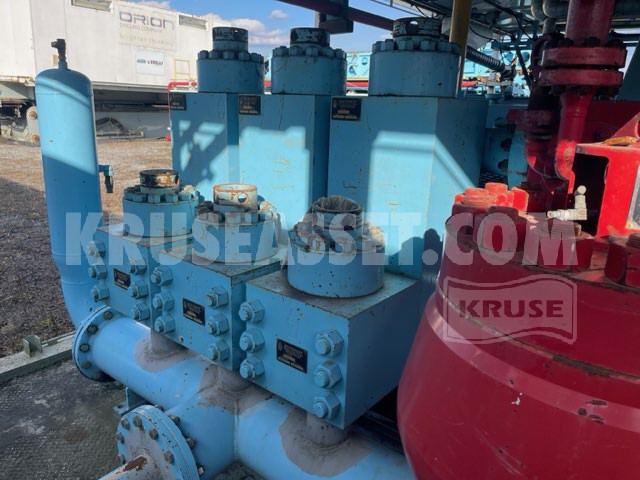

Two (2) 1600HP Triplex AC pumps with 7500PSI working pressure in the system

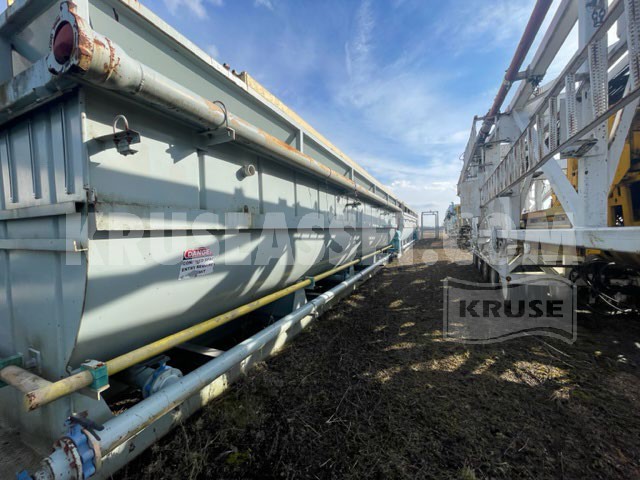

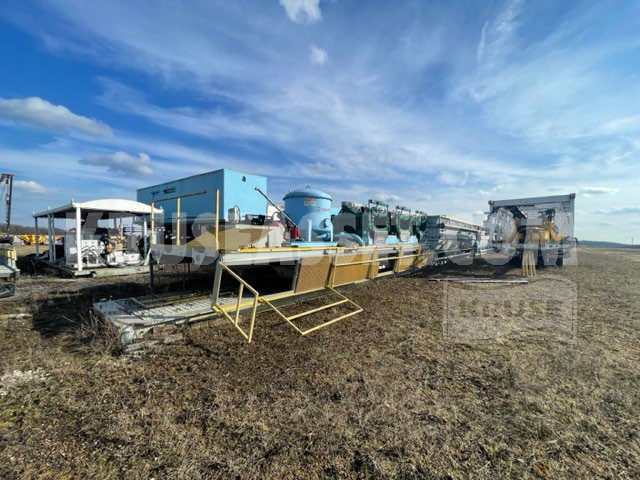

MUD SYSTEM

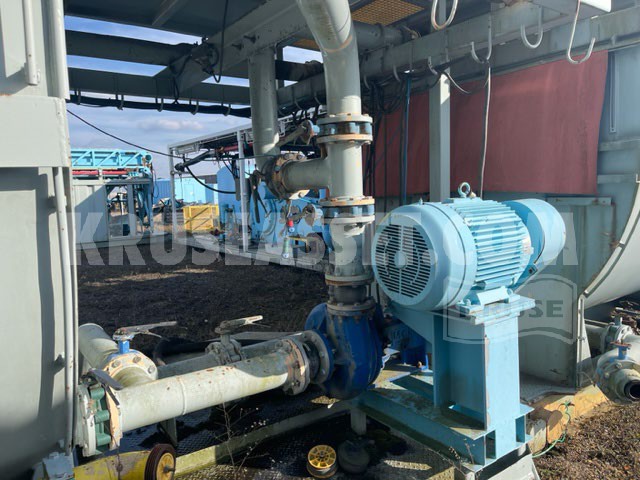

850 barrels total active ca pa city; Two (2) covered 425-barrel tanks with round bottoms and electric agitators for optimum mixing/blending and ease of clean out; Each tank contains two (2) 5x6x75HP centrifugal pumps; Hopper is remote for ease of use with bulk tanks; Three (3) Derrick Hyperpool shakers and one (1) Brandt DG-10 de gasser are all unitized on a hydraulically raised mud processing skid; A separate skid incorporates one (1) 100-barrel trip tank with 2x3x40HP centrifugal pump; One (1) 48" Mud gas separator

DRILL PIPE
5" S-135 Drill pipe as required by contract

DRILL COLLARS
3-8" 21-6.5" Drill collars (quantity and size subject to availability)

AUXILIARY EQUIPMENT

• Walking system - capable of walking 45'
• Hydraulic catwalk
• DGB Dual fuel generator kits
• Totco electronic drilling recorder
• Toolpusher & Crew Quarters
• Pressure washer
• Water tank
• Iron roughneck
• Winterization with Boiler
• Motorized drill line spool
• Mathey wire line unit with 25,000' of 0.092'' wireline
• Meeting and Change House Combo with A/C
• Manrider
