Super Spec 1200 AC Rig
4160v Reel Rig Power Distribution System
Drive House Upgraded to 4 Gen/3 Pump Setup

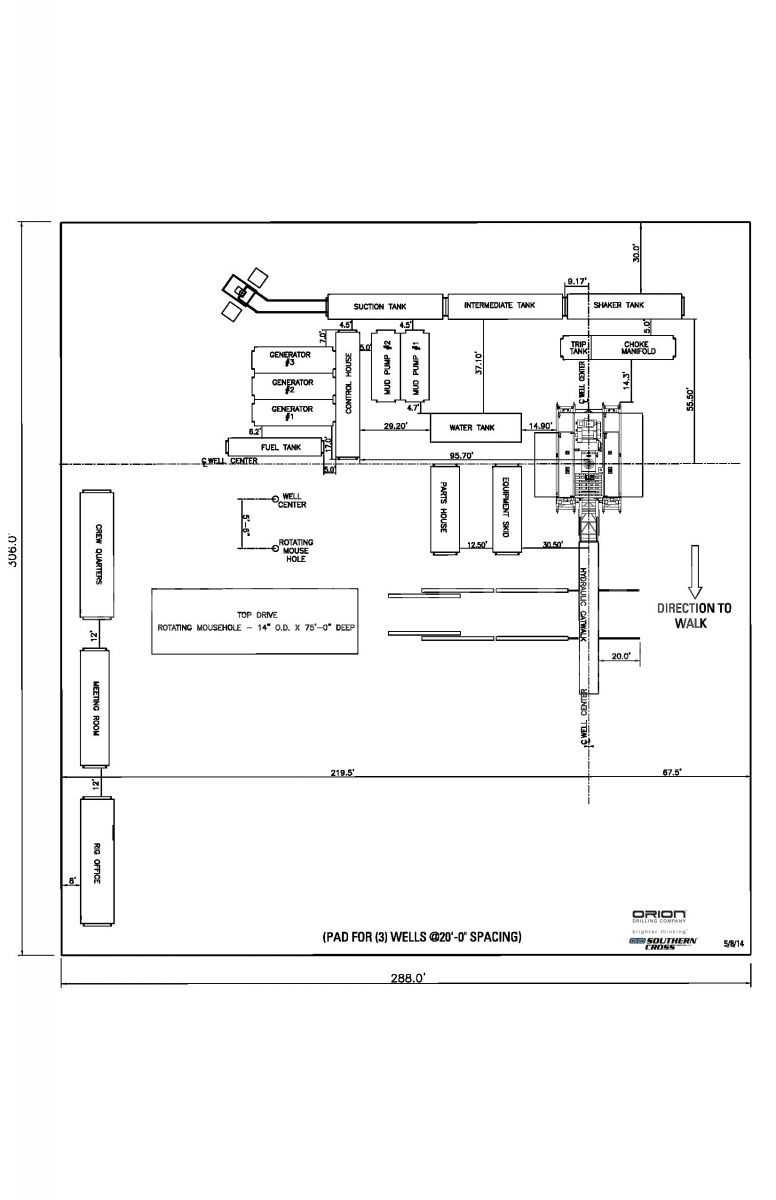

Engineered Drawing Plans for
1500HP/750KLB Available
150ft Walking System Capability
Customizable Upgrade Options
Located: Odessa, Texas
Call to Inspect and Buy Today!!!

Listing Details

SC RIG 12

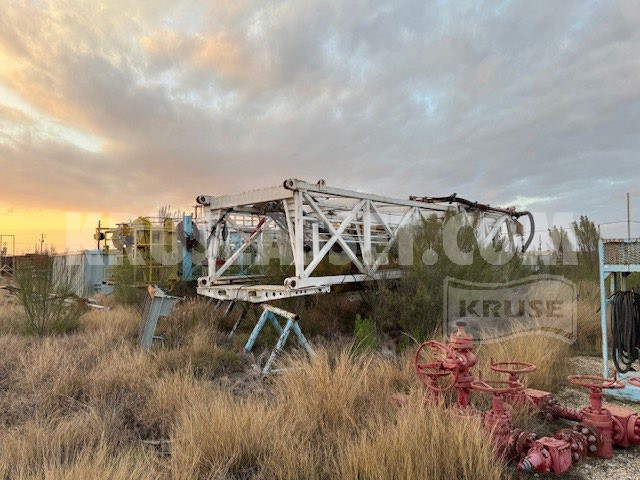

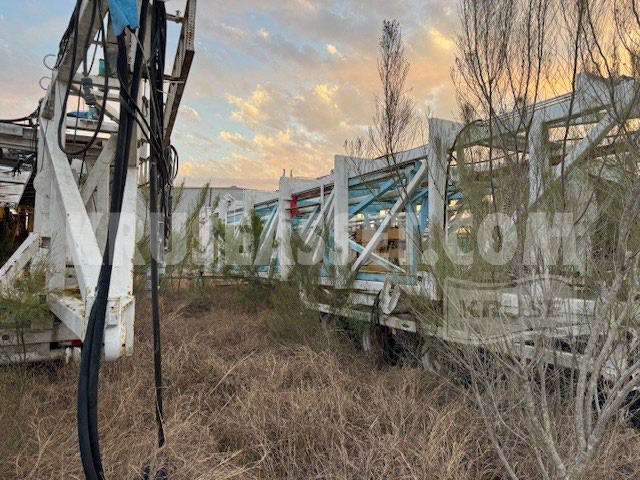

MAST
GEMINI 134' telescoping mast with 550,000# hook load & 21,000' racking capacity with 5" drill pipe; Top drive & block transport in mast; Raises and lowers using hydraulic cylinders

DRAWWORKS
Alta Rig AC 1200HP with 1-1/4" drill line

ENGINES/GENERATOR
Three (3) Cummins KTA50 diesel engines each rated at 1470HP; Engines unitized with 1100kW generators; Includes 12,000-gallon fuel tank

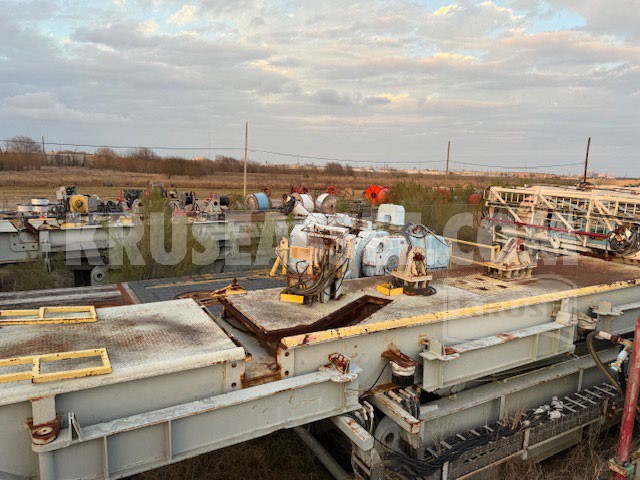

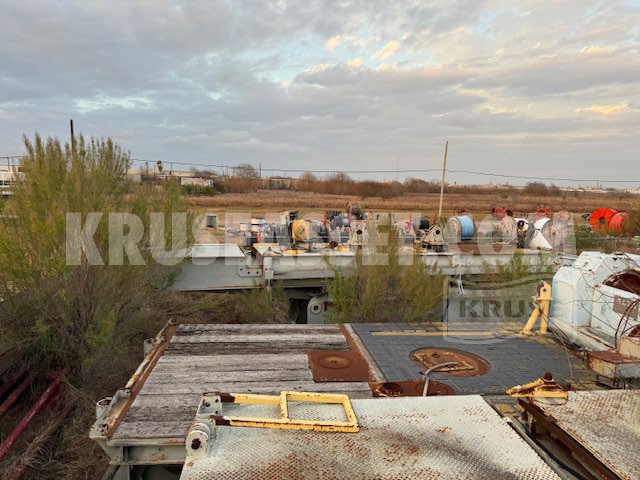

SUBSTRUCTURE
GEMINI 22' substructure with 18' clear height, 550,000# rotary load, & 500,000# setback load; Raises and lower using hydraulic cylinders

ROTARY
37-1/2" rotary independently driven by one (1) hydraulic hagglund motor

TOP DRIVE
Canrig 350-ton AC (with "Rockit" capability)

TRAVELING BLOCK
One (1) 275-ton, 5 sheave block, with a 10-line string-up

DRILLER CONTROLS
IDS Electronic Driller and VFD House; AC drives regulate drawworks, mud pumps, and top drive; AC Drive technology is integrated with PLC technology; 4160V power distribution is utilized with Reel Rig system

BOP
One (1) 11" 10M Single Ram BOP

One (1) 11" 10M Double Ram BOP

One (1) 11" 5M Annular

One (1) 6-station accumulator

One (1) 4" 10K choke manifold

One (1) NOV BOP Handler

MUD PUMPS
 Two (2) 1600HP Triplex AC pumps with 7500PSI working pressure in the system

MUD SYSTEM
850 barrels total active capacity; Two !2) covered 425-barrel tanks with round bottoms and electric agitators for optimum mixing/blending and ease of clean out; Each tank contains two (2) 5x6x75HP centrifugal pumps; Hopper is remote for ease of use with bulk tanks; Three (3) Brandt King Cobra Venom shakers, one (1) Brandt DG-10 degasser, and one (1) Brandt SE-16 desilter are all unitized on a hydraulically raised mud processing skid; A separate skid incorporates one (1) 100-barrel trip tank with 2x3x40H P centrifugal pump; One (1) 48" Mud gas separator

DRILL PIPE
5" S -135 Drill pipe as required by contract

DRILL COLLARS
3-8" 21-6.5" Drill collars (quantity and size subject to availability)

AUXILIARY EQUIPMENT

• Walking system - capable of walking 150'
• Hydraulic catwalk with walking capability
• Totco electronic drilling recorder
• Toolpusher & Crew Quarters
• Pressure washer
• Water tank
• Iron roughneck
• Motorized drill line spool
• Mathey wire line unit with 25,000' of 0.092'' wireline
• Meeting and Change House Combo with A/C
• Manrider
