Kruse Asset Management

Super Spec 1500 AC Rig
500 Ton GDM Top Drive
Omron/Schlumberger Control System
150ft Walking System Capability
Customizable Upgrade Options
Located: Odessa, Texas

Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973



Listing Details

POLARIS RIG 14

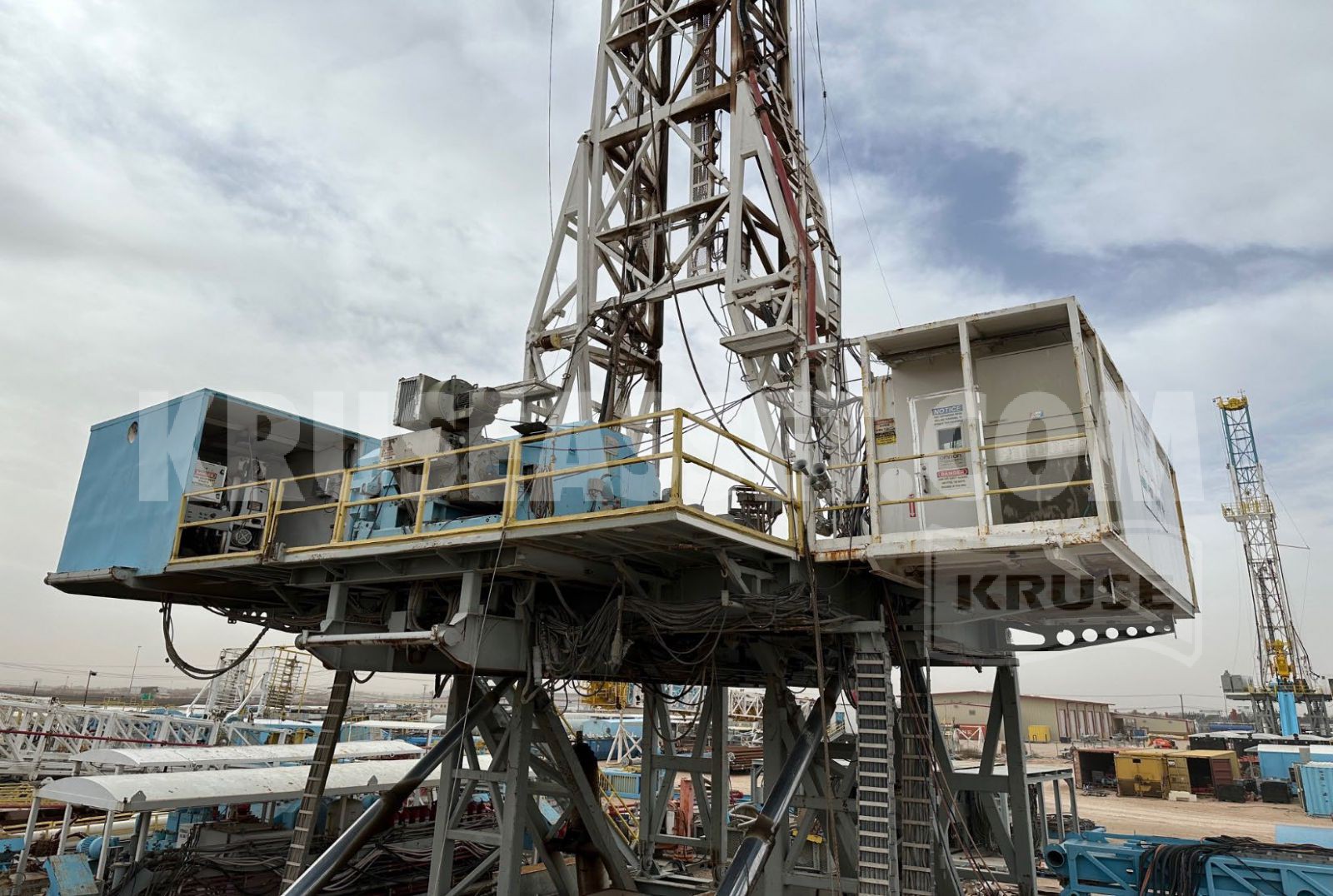

MAST
GEMINI 134' telescoping mast with 750,000# hookload & 21,000' racking capacity with 5'' drill pipe; Top drive & block transport in mast; Raises and lowers using hydraulic cylinders

DRAWWORKS
Alta Rig AC 1500HP with 1-3/8" drill line

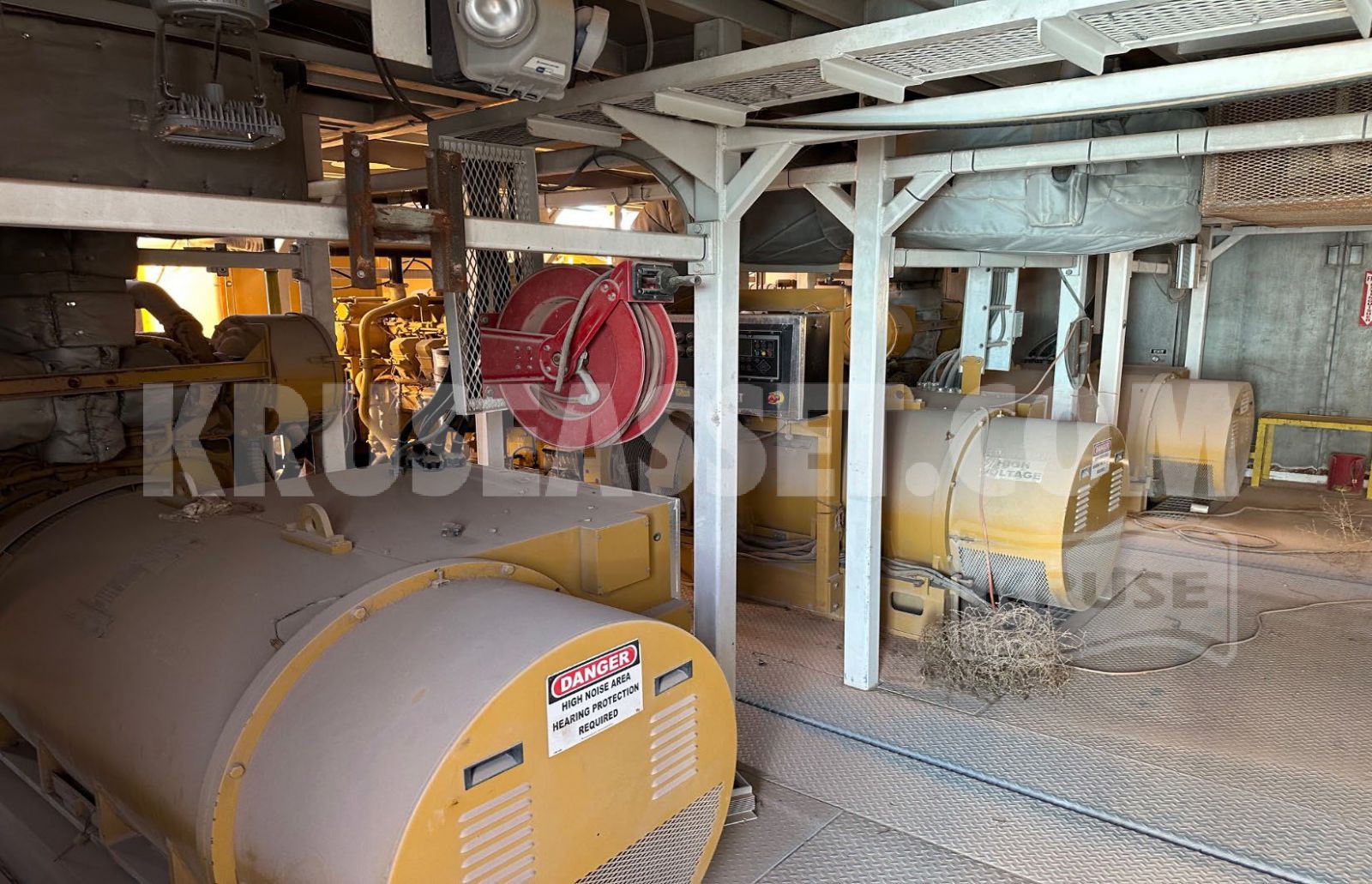

ENGINES/GENERATOR
Three (3) Caterpillar 3512C diesel engines each rated at 1476HP;

Engines unitized with 1365kW generators; Includes 12,000-gallon fuel tank

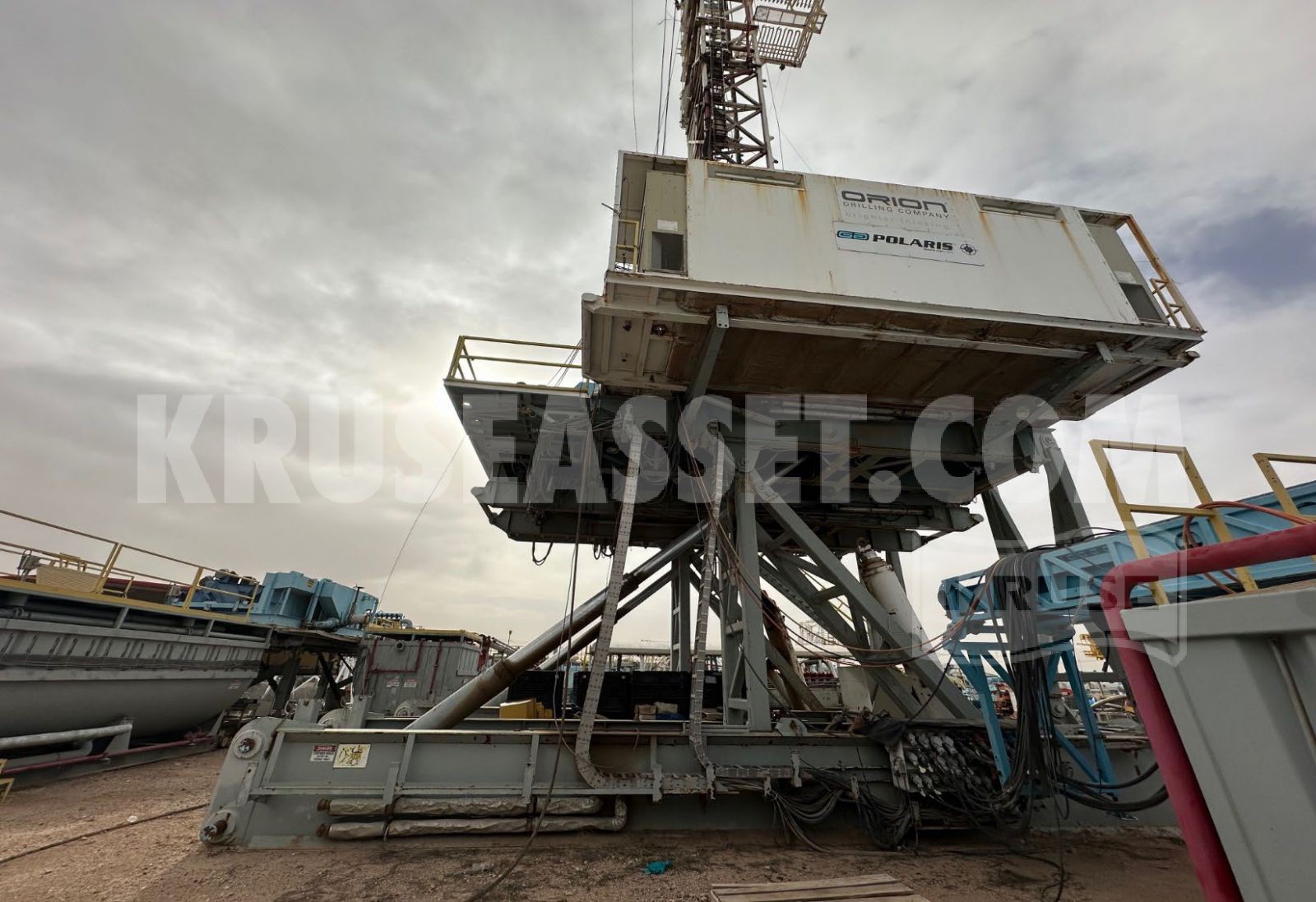

SUBSTRUCTURE

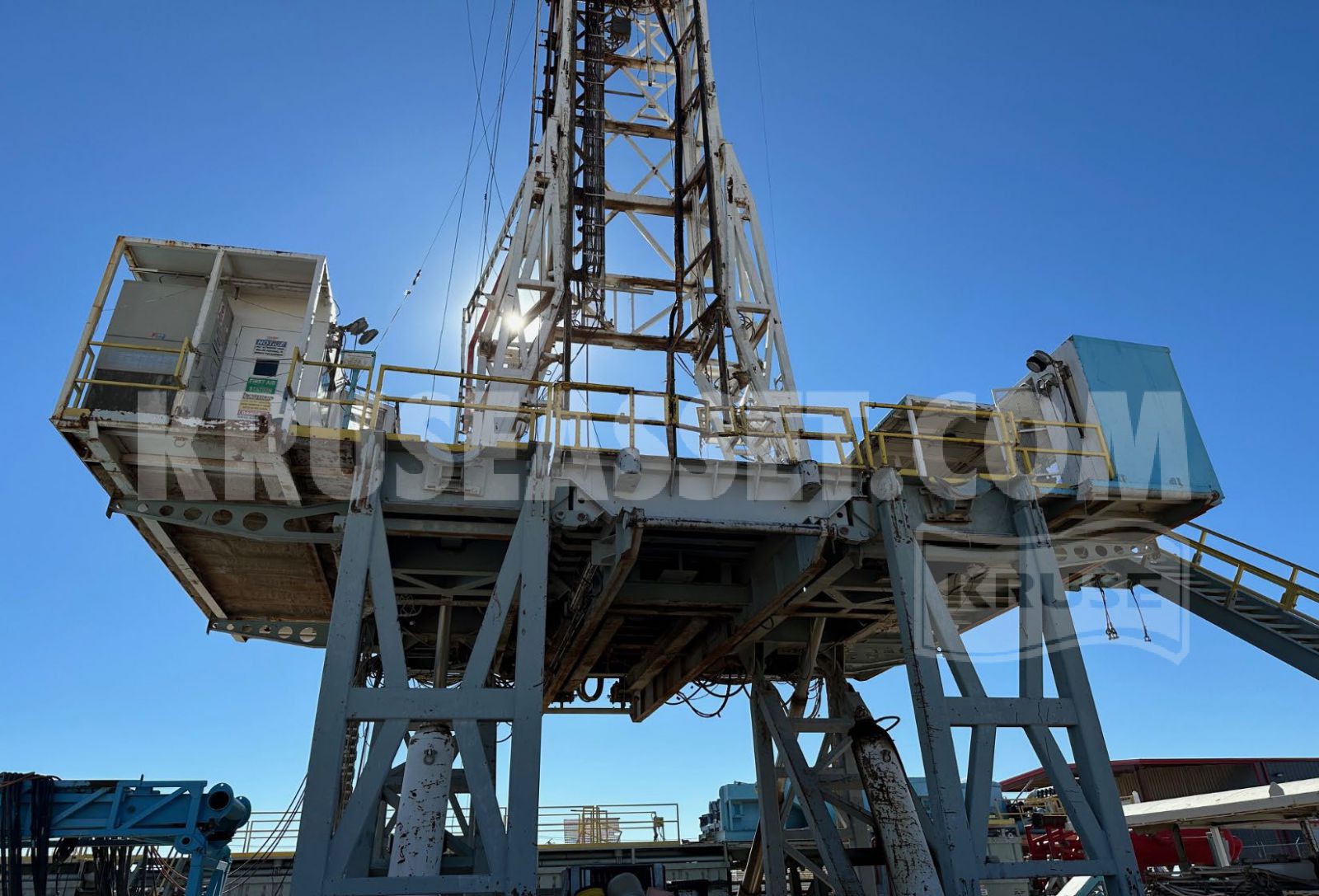

GEMINI 22' substructure with 18' clear height, 750,000# rotary load, & 500,000# setback load; Raises and lowers using hydraulic cylinders

ROTARY
37-1/2" rotary independently driven by one (1) hydraulic hagglund motor

TOP DRIVE
GOS 500-ton AC

TRAVELING BLOCK
One (1) 500-ton, 6 sheave block, with a 12-line string-up

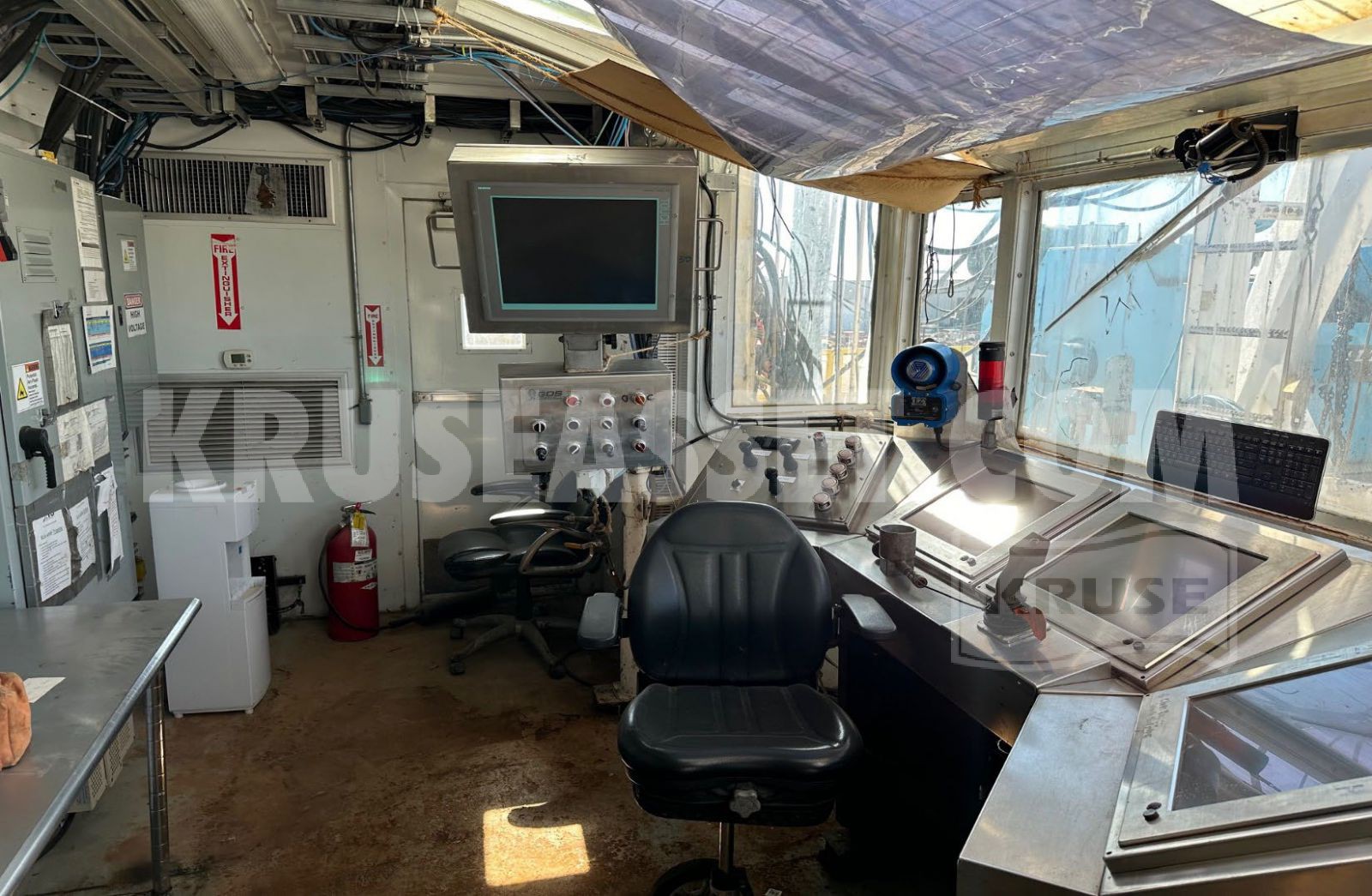

DRILLER CONTROLS

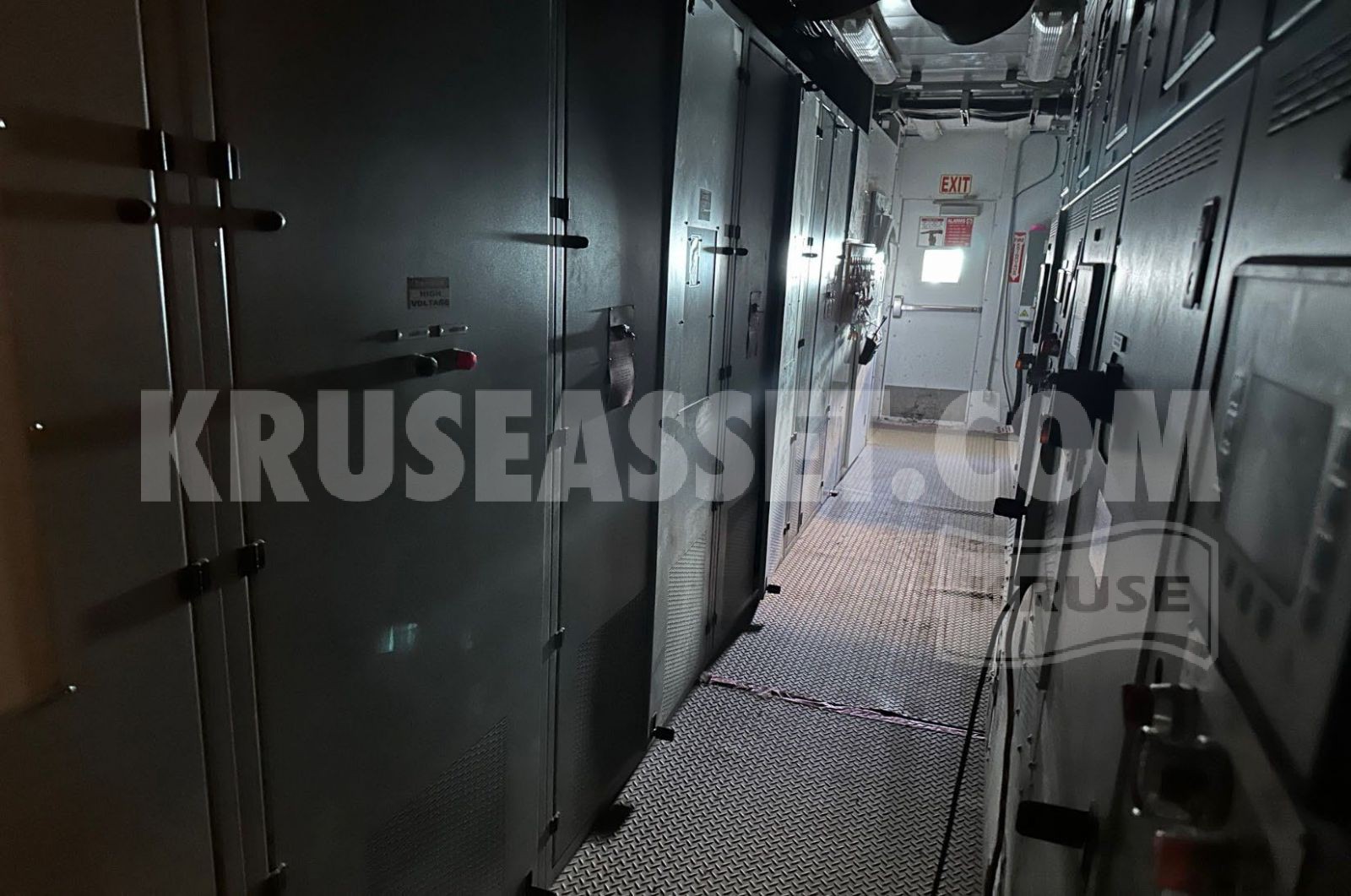

Omron Electronic Driller and VF? House; AC drives regulate drawworks, mud pumps, and top drive; AC Drive technology is integrated with PLC Technology

BOP
One (1) 13-5/8" 10M Single Ram BOP

One (1) 13-5/8" 10M Double Ram BOP

One (1) 13-5/8" 5M Annular

One (1) 6-station accumulator

One (1) 3" 10K choke manifold

One (1)T &T BOP Handler

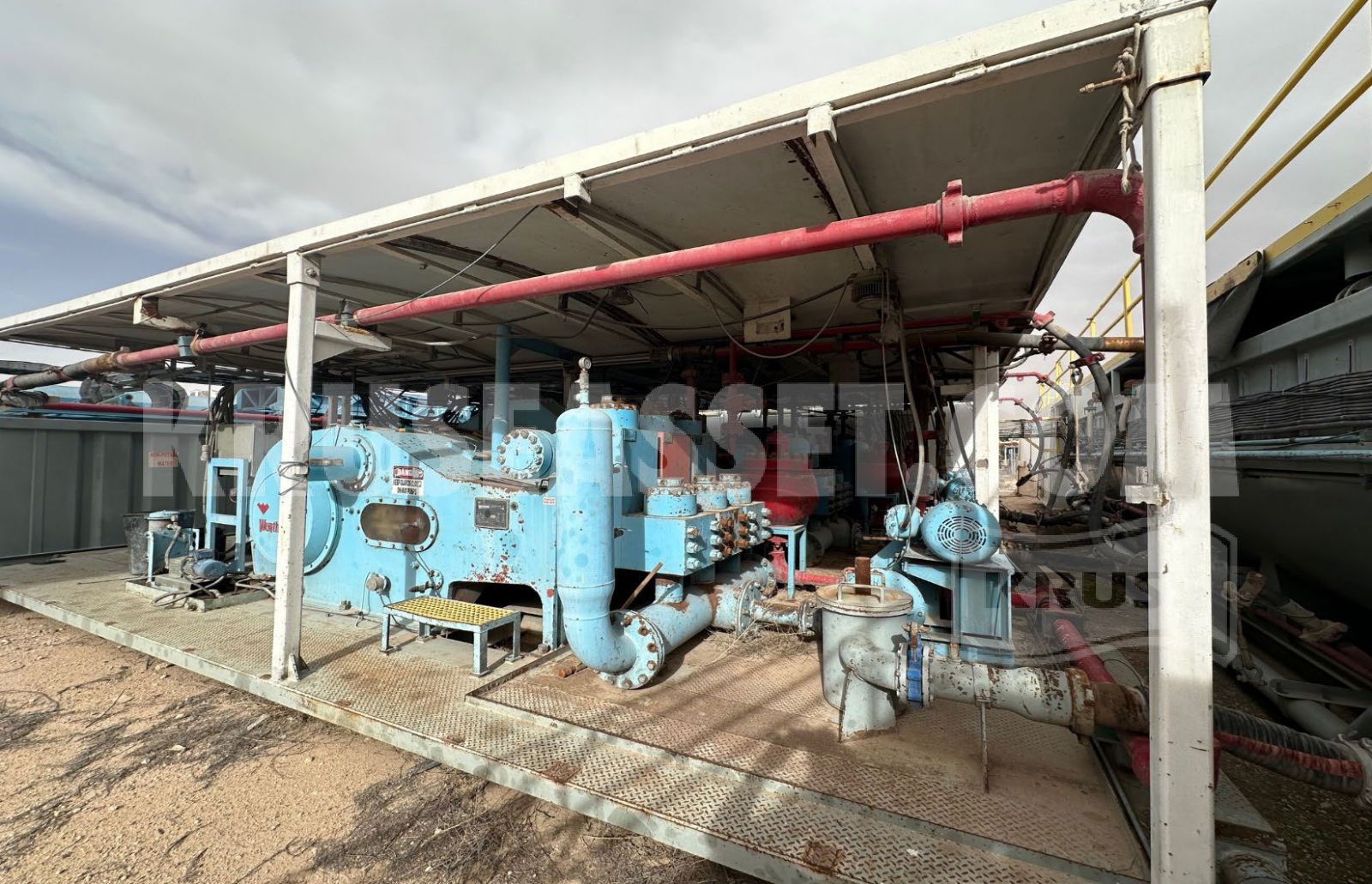

MUD PUMPS
Three (3) 1600HP Triplex AC pumps with 7500PSI working pressure in the system

MUD SYSTEM
850 barrels total active ca pa city; Two (2) covered 425 barrel tanks with round bottoms and electric agitators for optimum mixing/blending and ease of clean out; Each tank contains two (2) 5x6x75HP centrifugal pumps; Hopper is remote for ease of use with bulk tanks; Three (3) Brandt King Cobra Venom shakers and one (1) Brandt DG-10 degasser are all unitized on a hydraulically raised mud processing skid; A separate skid incorporates one (1) 100 barrel trip

tank with 2x3x40HP centrifugal pump; One (1)4 8" Mud gas separator

DRILL PIPE
5" S-135 Drill pipe as required by contract

DRILL COLLARS
3-8" 21-6.5" Drill collars (quantity and size subject to availability)

AUXILIARY EQUIPMENT

• Walking system - capable of walking 60'
• Hydraulic catwalk with walking capability
• Motorized drill line spool
• Mathey wire line unit with 25,000' of 0.092'' wire line
• Meeting and Change House Combo with A/C
• Manrider
• Iron roughneck
• Winterization with Boiler
• Totco electronic drilling recorder
• Toolpusher & Crew Quarters
• Pressure washer
• Water tank

POLARIS DRILLING RIG NUMBER 14, GEMINI 750 SERIES,
COMMISSIONED IN JUNE 2012 - UPGRADED TO
1500HP/750K HOOK IN 2015
POLARIS MAJOR COMPONENTS APPROX. HOURS

• ALTA, 1500-HP, (1) GEB-28, 1600-HP AC TRACTION MOTOR, S/N- 10127, HRS-21458
• (3) CATERPILLAR 3512 DIESEL ENGINES EACH RATED AT 1476-HP, W/ AIR START, SKID MOUNT ENCLOSURES, W/ GENERATORS-(3) KATO ENGINEERING, MODEL AA27647015, WEG 1375-KW GENERATORS, UNITIZED, W/ ENGINES- ENGINE 1 S/N- LLA02716, HRS-32116, ENGINE 2- S/N- LLA04809, HRS- 32789, ENGINE 3 S/N- LLA02746, HRS- 31727
• (3) TRIPLEX MUD PUMPS (1 as standby), WEATHERFORD, MODEL MP-16, 7500PSI FLUID ENDS, W/ GE MOTORS, MODEL GEB29A1A, AC TRACTION MOTOR, 5.5’’ CERAMIC LINERS, 6 X 5 X 14 CHARGING PUMP, 1 X 1.5C LINER WASHING PUMP- MP 1 S/N- W270, HRS/REBUILD- 15498, MP 2- S/N- W294, HRS/REBUILD- 14345, MP 3- S/N- W304, HRS/REBUILD- 12648
• GDM 500, 1200HP AC MOTOR, S/N #42, HRS- 15483
