Super Spec 1500 AC Rig
500 Ton GDM Top Drive
4160v Reel Rig Power Distribution System
150ft Walking System Capability
Customizable Upgrade Options
Located: Odessa, Texas

Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973



Listing Details

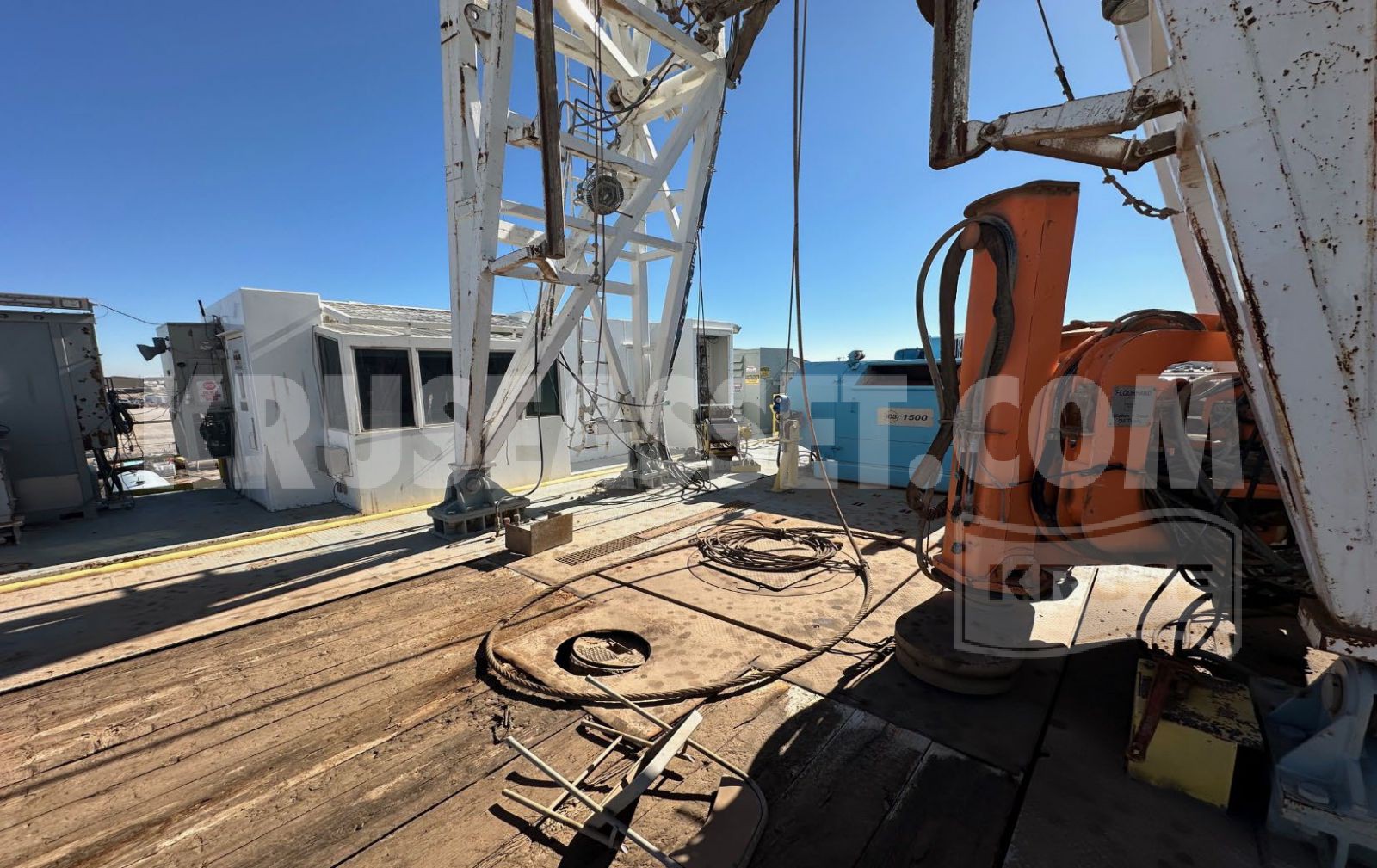

MAST
GEMINI 134' telescoping mast with 750,000# hook-load & 21,000' racking capacity with 5'' drill pipe; Top drive & block transport in mast; Raises and lowers using hydraulic cylinders

DRAWWORKS
IDS AC 1500HP with 1-3/8" drill line

ENGINES/GENERATOR
Four (4) Cummins KTA50 diesel engines each rated at 1470HP; Engines unitized with 1100kW generators; Includes 12,000-gallon fuel tank

SUBSTRUCTURE
GEMINI 22' substructure with 18' clear height, 750,000# rotary load, & 500,000# setback load; Raises and lowers using hydraulic cylinders

ROTARY
37-1/2" rotary independently driven by one (1) hydraulic hagglund motor

TOP DRIVE
GOS 500-ton AC

TRAVELING BLOCK
One (1) 500-ton, 6 sheave block, with a 12-line string-up

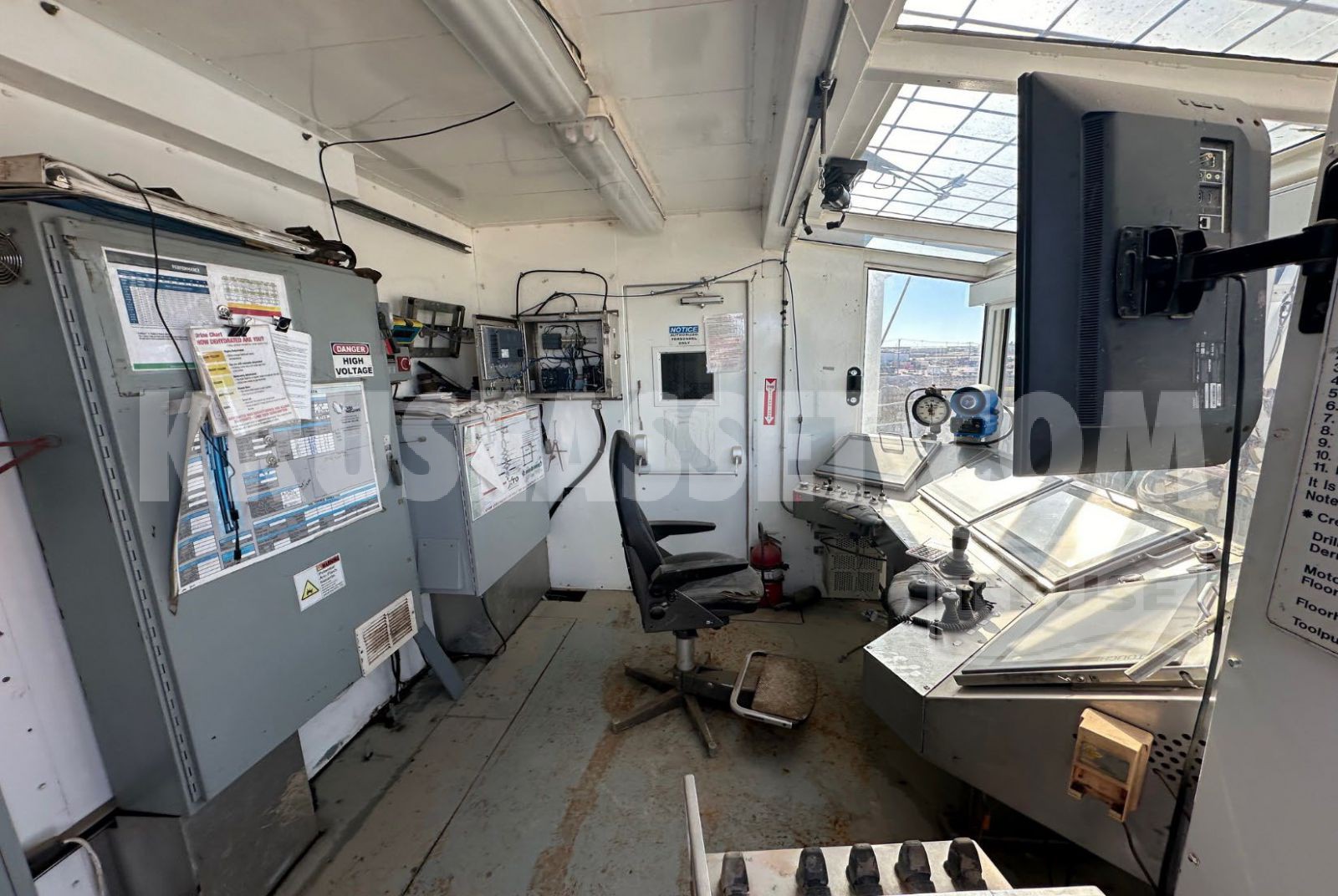

DRILLER CONTROLS

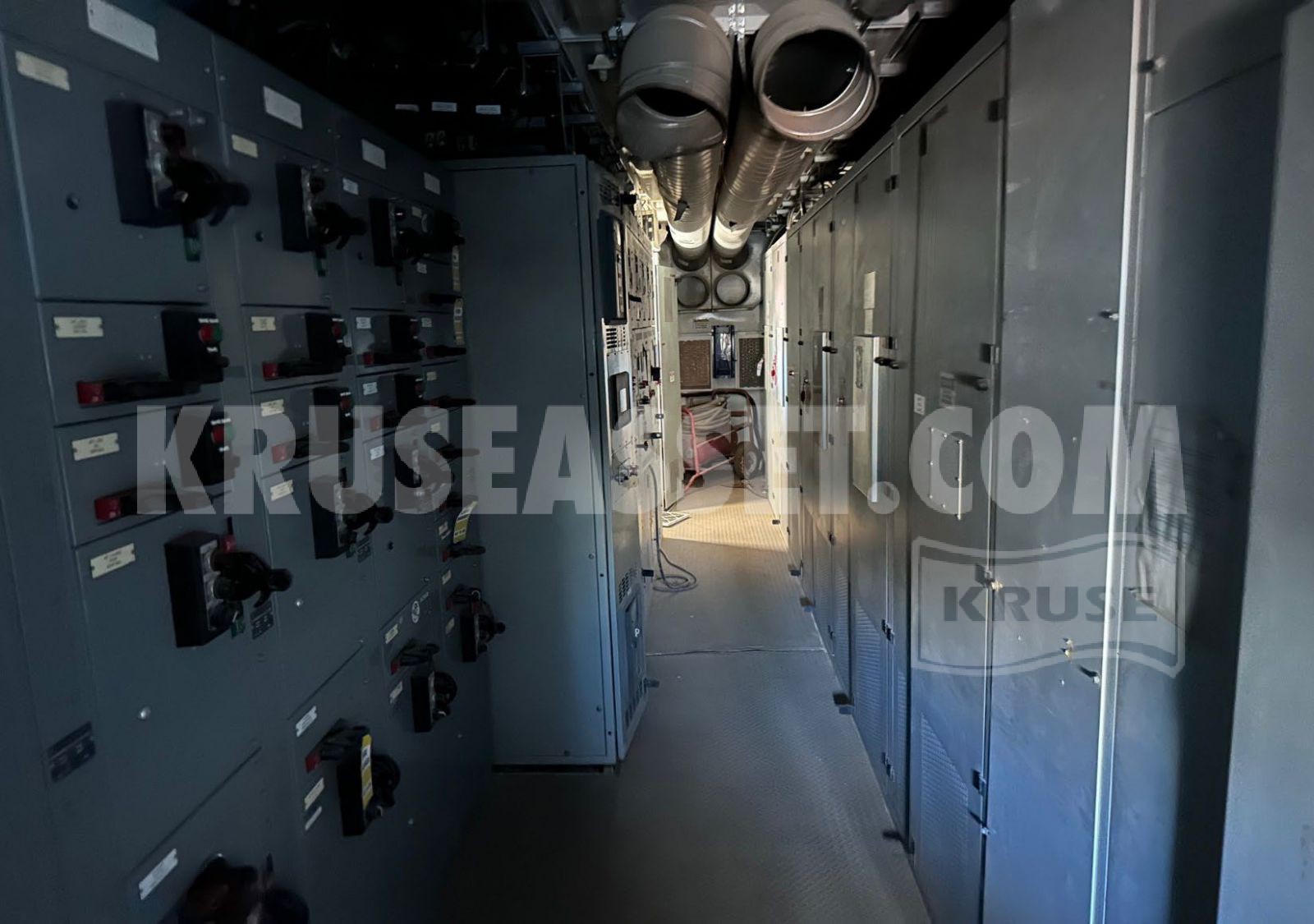

IDS Electronic Driller and VF; House; AC drives regulate drawworks, mud pumps, and top drive;
AC Drive technology is integrated with PLC technology;
4160V power distribution is utilized with Reel Rig system

BOP
One (1) 13-5/8" 10M Single Ram BOP

One (1) 13-5/8" 10M Double Ram BOP

One (1) 13-5/8" 5M Annular

One (1) 6-station accumulator

One (1) 4" 10K choke manifold

One (1)N OV BOP Handler

MUD PUMPS
Three (3) 1600HP Triplex AC pumps with 7500PSI working pressure in the system

MUD SYSTEM
850 barrels total active ca pa city; Two (2) covered 425-barrel tanks with round bottoms and electric agitators for optimum mixing/blending and ease of clean out; Each tank contains two (2) 5x6x75HP centrifugal pumps; Hopper is remote for ease of use with bulk tanks; Three (3)Derrick Hyperpool shakers, one (1) Brandt DG-10 degasser, and one (1) Brandt SE-16 desilter are all unitized on a hydraulically raised mud processing skid; A separate skid incorporates one (1) 100-barrel trip tank with 2x3x40HP centrifugal pump; One (1) 48" Mud gas separator

DRILL PIPE
5" S-135D rill pipe as required by contract

DRILL COLLARS
3-8" 21-6.5" Drill collars (quantity and size subject to availability)

AUXILIARY EQUIPMENT

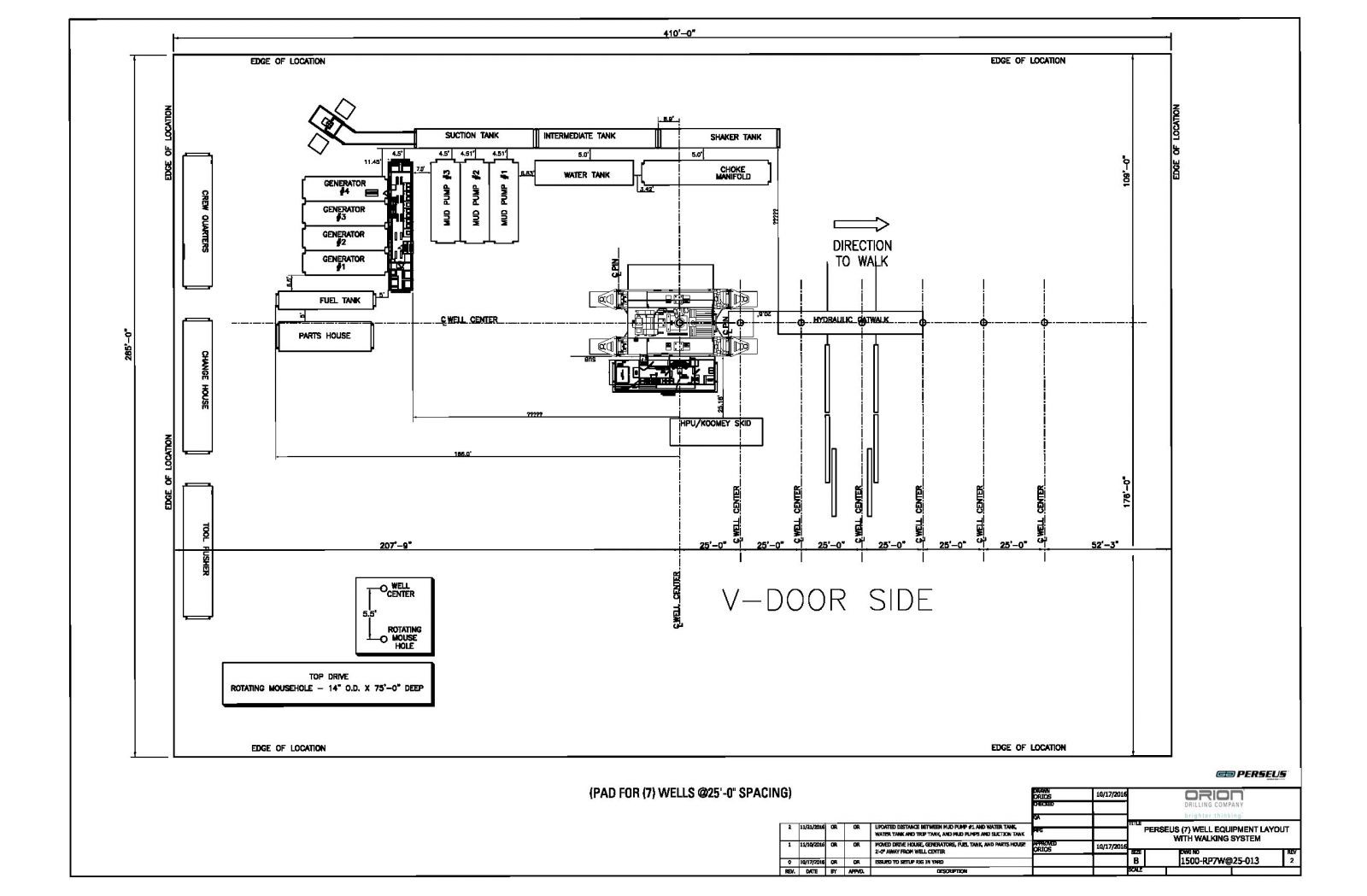

Walking system - capable of walking 150'

Hydraulic catwalk with walking capability

Totco electronic drilling recorder

Toolpusher & Crew Quarters

Pressure washer

Water tank

Iron roughneck

Motorized drill line spool

Mathey wireline unit with 25,000' of 0.092" wireline

Meeting and Change House Combo with A/C

Manrider


Perseus Major Components Approx. Hours (Commissioned in March 2012, Upgraded to 1500HP/750K Hook in 2016)

• IDS DRAWWORKS, 1500-HP, (1) GEB-28, 1500-HP AC TRACTION MOTOR S/N- 20044575-3, HRS- 12572

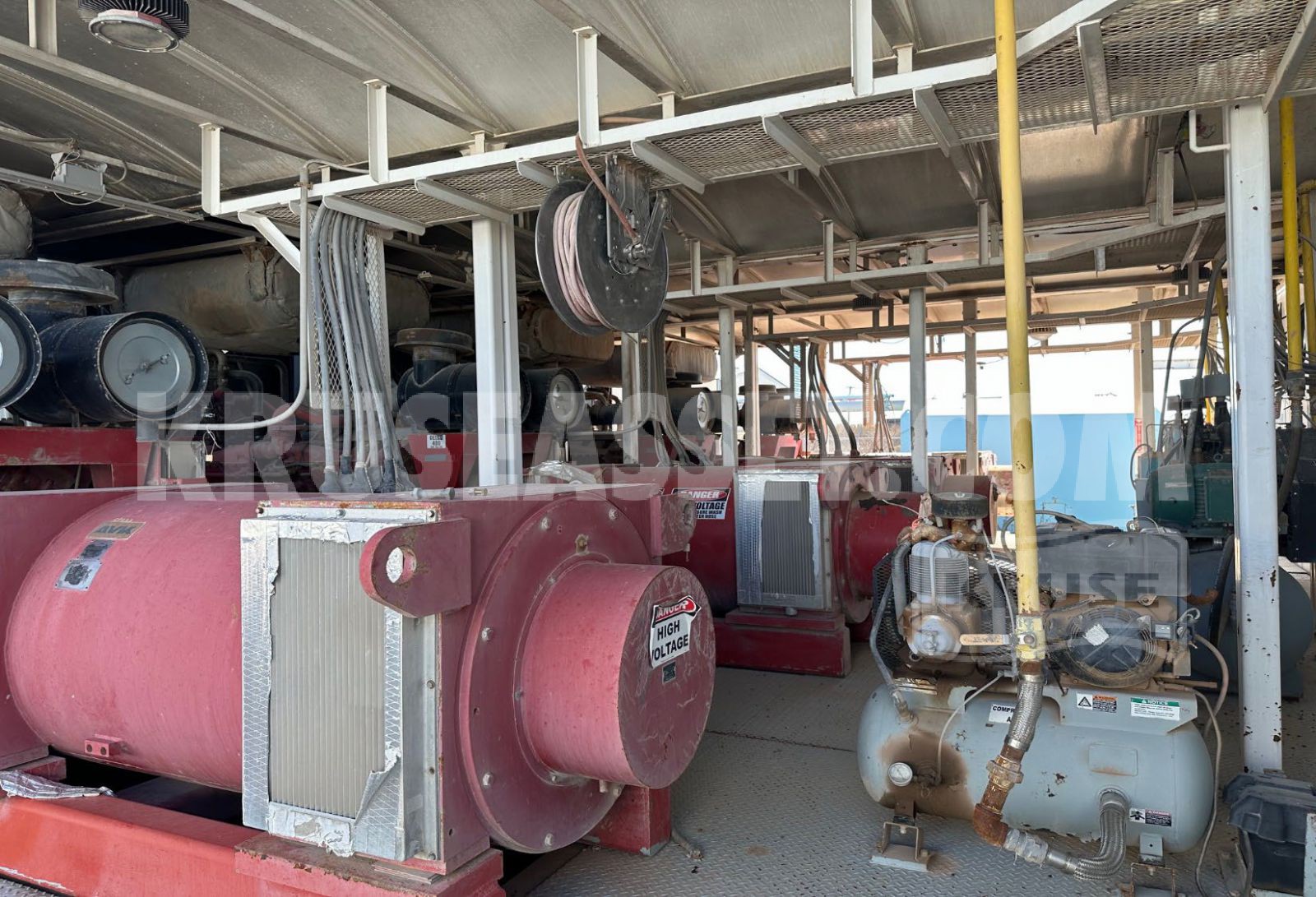

• (4) CUMMINS, KTA50 DR, DIESEL ENGINES, 1470-HP, W/ AIR START, SKID MOUNT ENCLOSURES, W/ GENERATORS- (4) AVK, WEG 1100-KW GENERATORS, UNITIZED, W/ENGINES- ENGINE 1 S/N-33167760, HRS- 46626, ENGINE 2 S/N- 33165734, HRS-46565, ENGINE 3 S/N- 33167571, HRS- 67077, ENGINE 4 S/N- 33165080, HRS- 60033

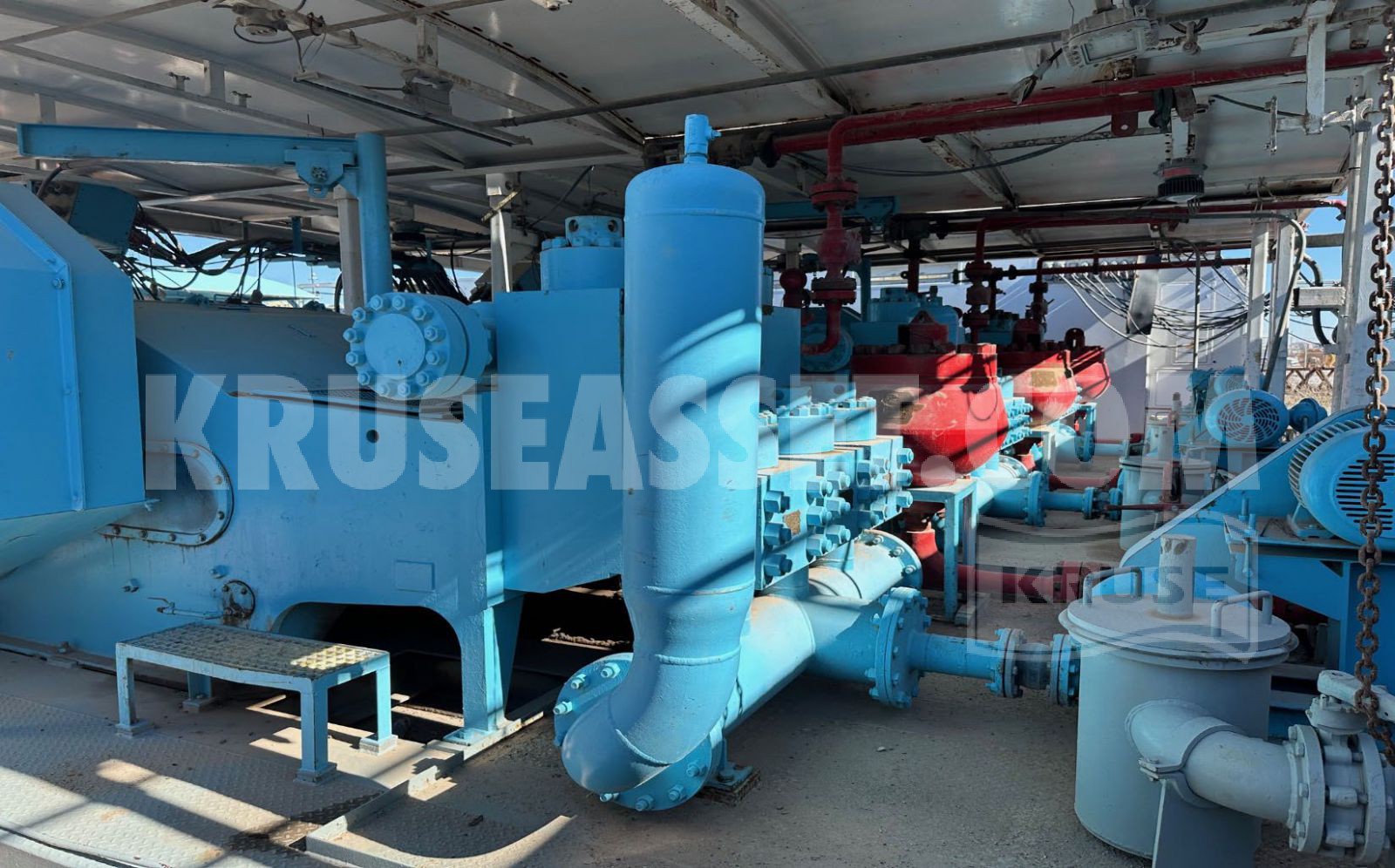

• (3) BOMCO, F-1600, TRIPLEX MUD PUMPS 7500 PSI, GEB-29 AC TRACTION MOTOR, 1500-HP, 6’’ CERAMIC LINERS, 6 X 5 X 14 CHARGING PUMP, 1 X 1.5C LINER WASHING PUMP- MP 1 S/N- 14-095, HRS/REBUILD- 5975, MP 2- S/N- 14-097, HRS/REBUILD-5797, MP 3- S/N- BZ10-198E, HRS/REBUILD- 20414

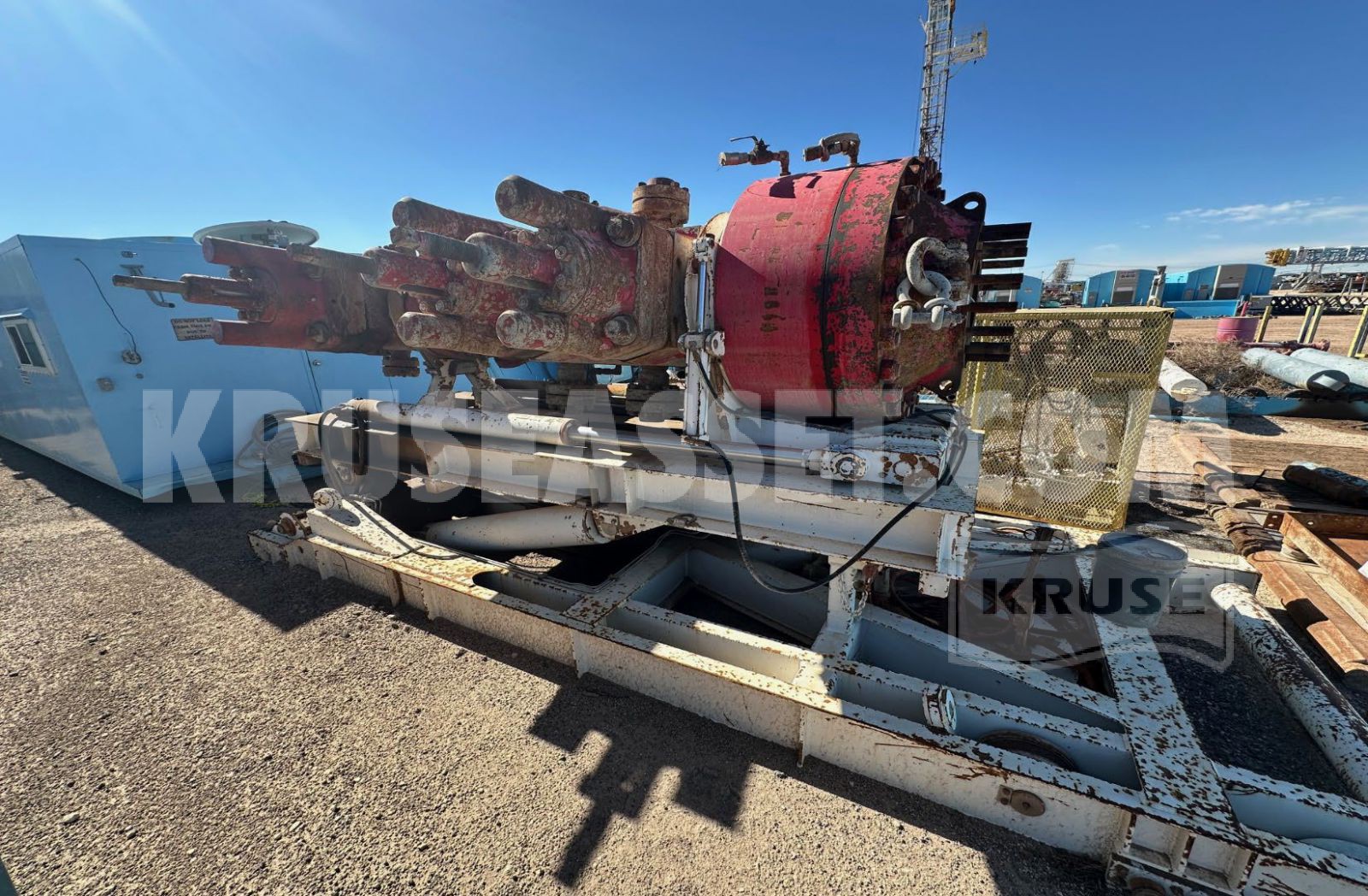

• GDM 500, 1200HP AC MOTOR, S/N #02, HRS 10237
