Super Spec 1500 AC Rig
Caterpillar DGB Kits on Low Hour 3512C
4160v Reel Rig Power Distribution System
150ft Walking System Capability
Customizable Upgrade Options
Located: Odessa, Texas

Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973


Listing Details

MAST

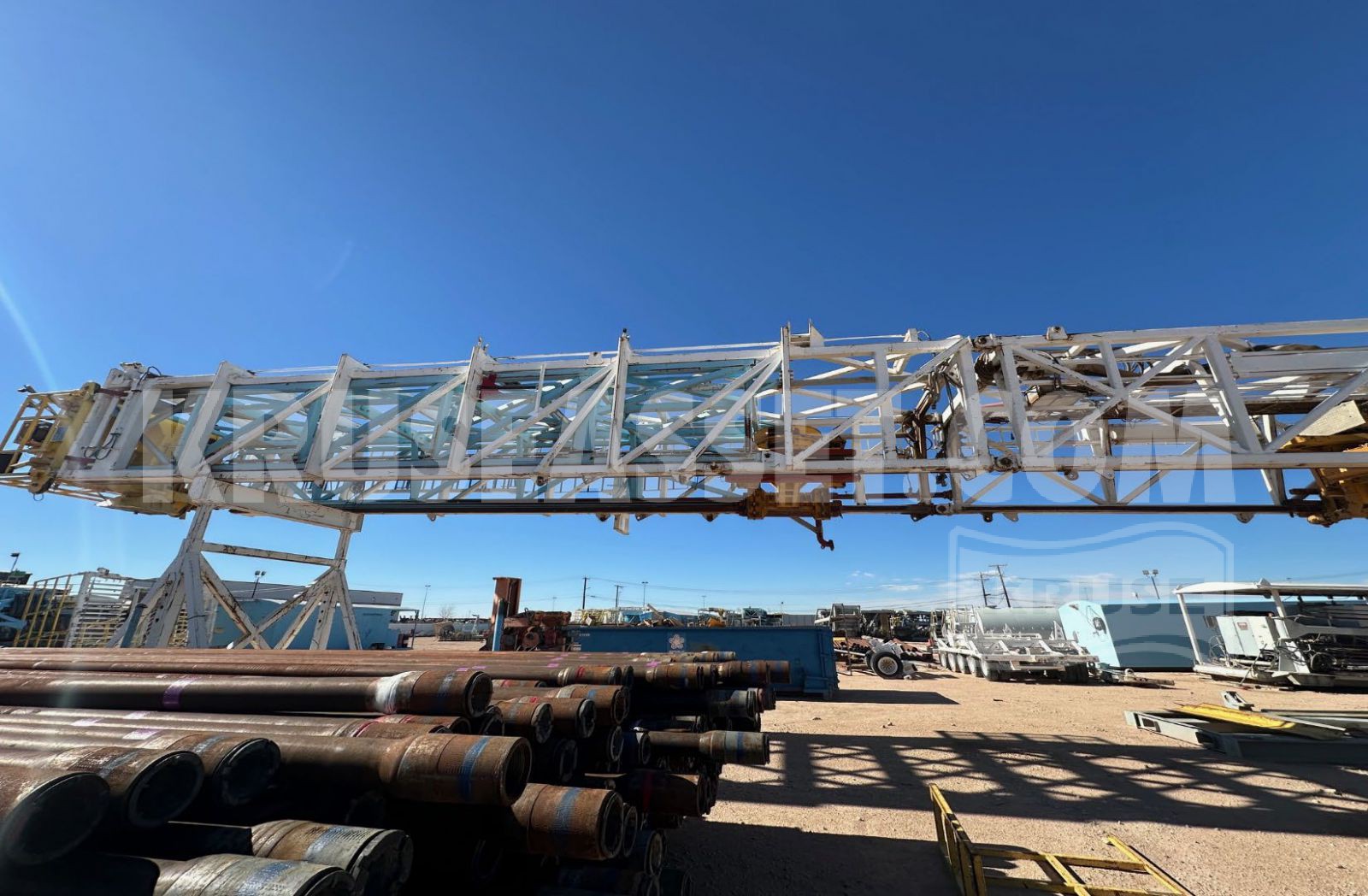

GEMINI 142' telescoping mast with 750,000# hook-load & 21,000' racking capacity with 5'' drill pipe; Top drive & block transport in mast; Raises and lowers using hydraulic cylinders

DRAWWORKS
IDS AC 1500HP with 1-3/8" drill line

ENGINES/GENERATOR

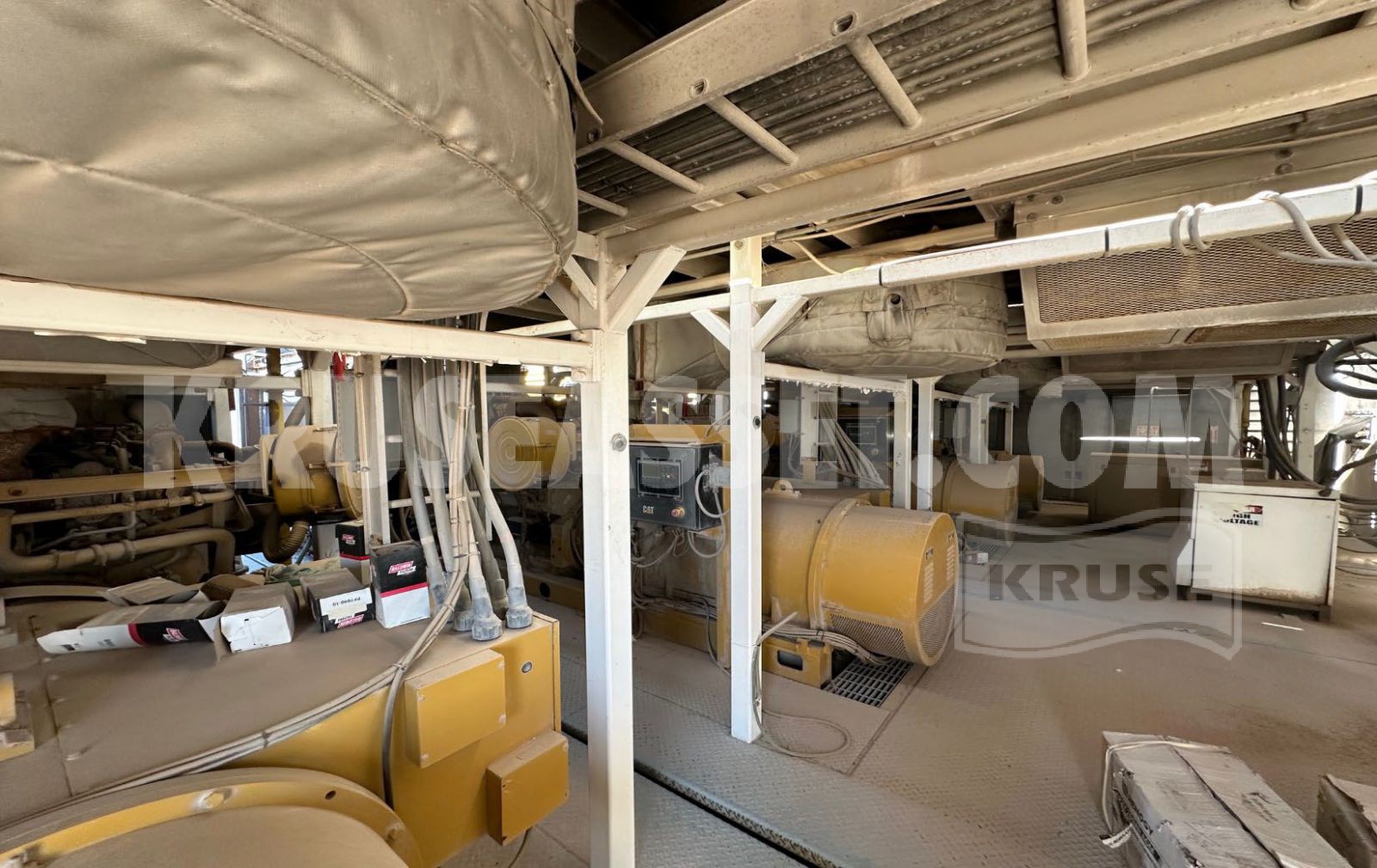

Four (4) Caterpillar 3512C diesel engines each rated at 1476HP; Engines unitized with 1365kW generators; Includes 12,000-gallon fuel tank

SUBSTRUCTURE
GEMINI 22' substructure with 18' clear height, 750,000# rotary load, & 500,000# setback load; Raises and lowers using hydraulic cylinders

ROTARY
37-1/2" rotary independently driven by one (1) hydraulic hagglund motor

TOP DRIVE
Can rig 350-ton AC (with "Rockit" capability)

TRAVELING BLOCK
One (1) 500-ton, 6 sheave block, with a 12-line string-up

DRILLER CONTROLS

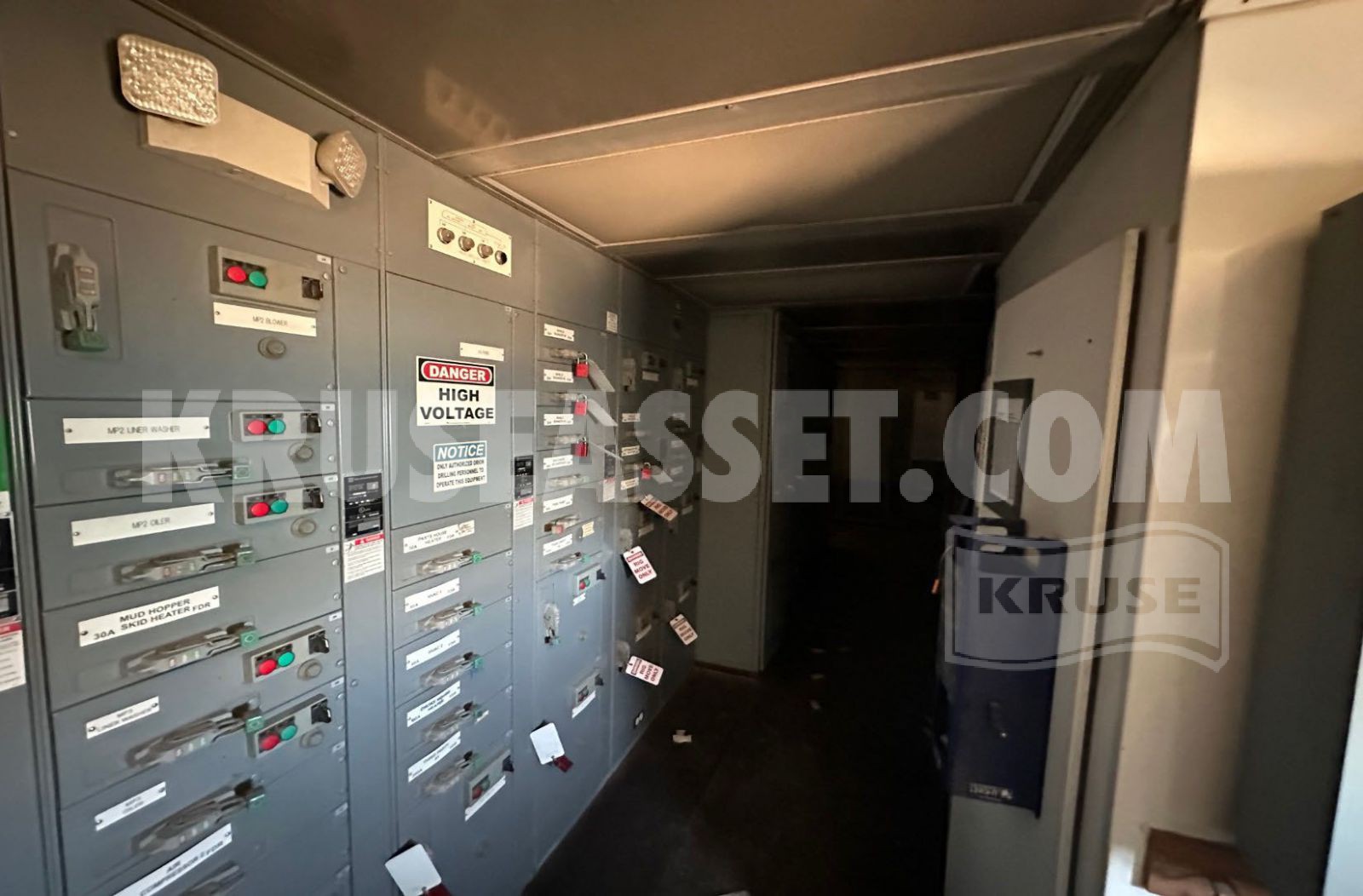

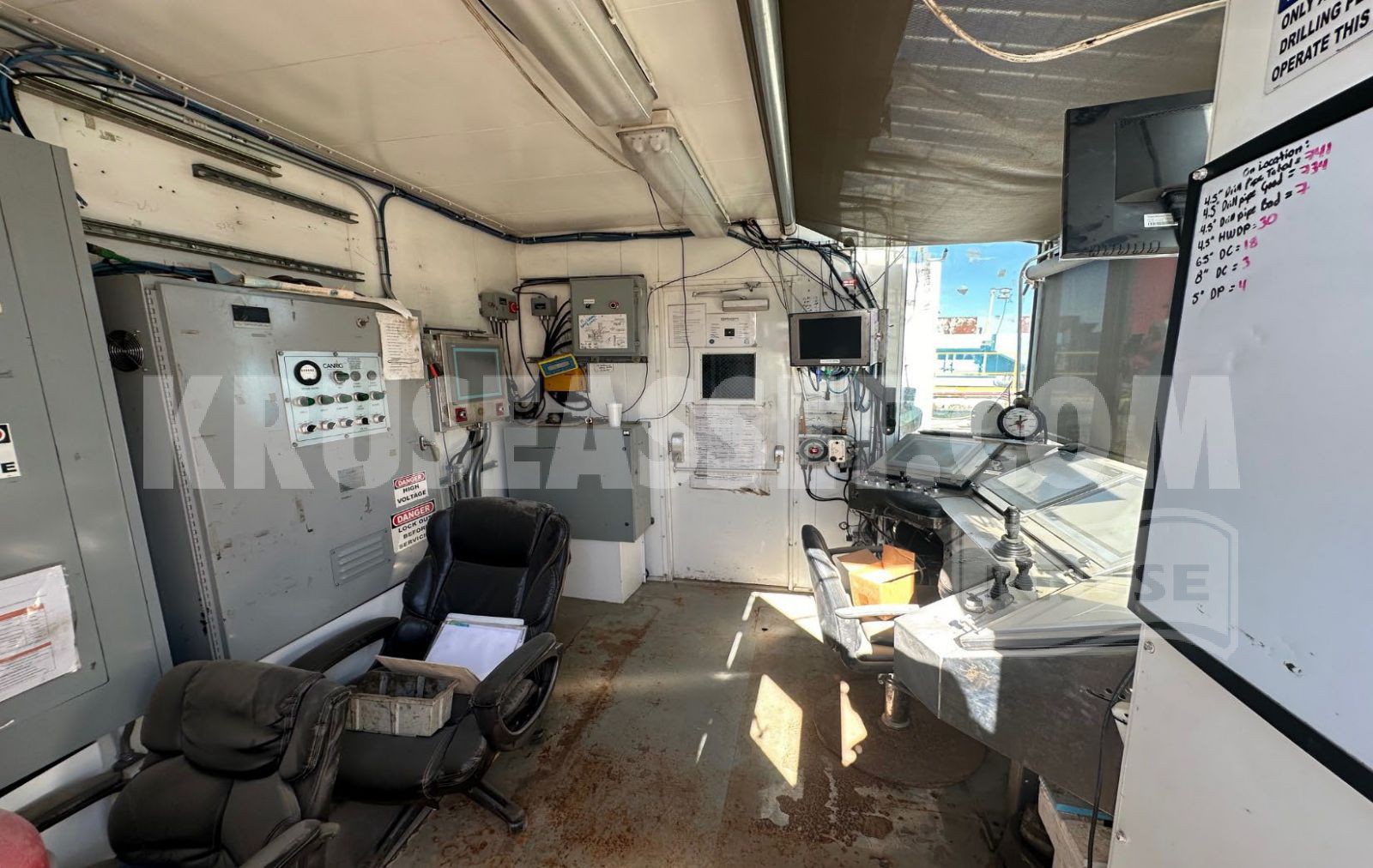

IDS Electronic Driller and VFD House; AC drives regulate drawworks, mud pumps, and top drive; AC Drive technology is integrated with PLC technology; 4160V power distribution is utilized with Reel Rig system

BOP
One (1) 13-5/8" 10M Single Ram BOP

One (1) Double Ram BOP as per contract

One (1) 13-5/8" 5M Annular

One (1) 6-station accumulator

One (1) 4" 10K choke manifold

One (1) T&T BOP Handler

MUD PUMPS

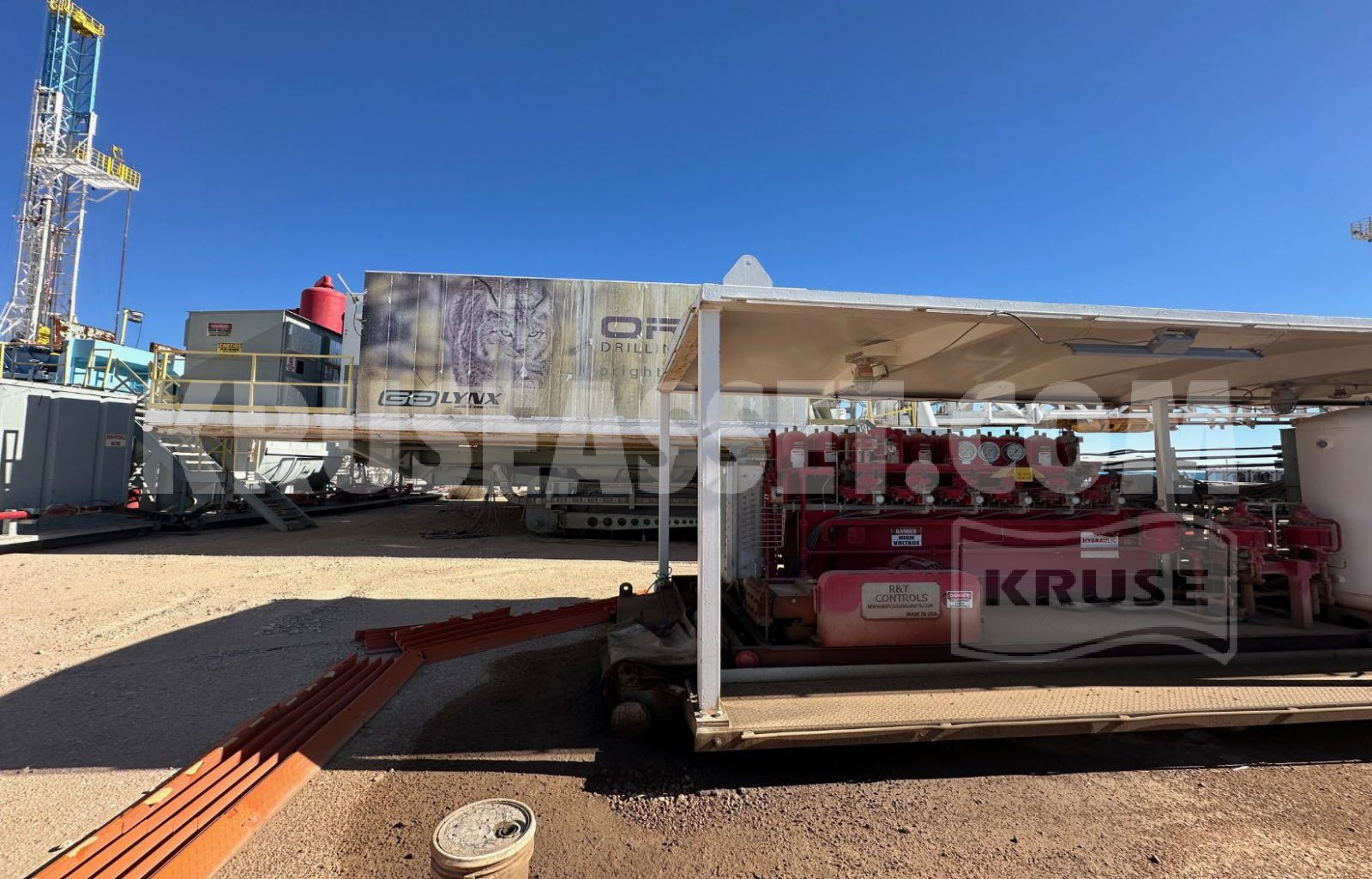

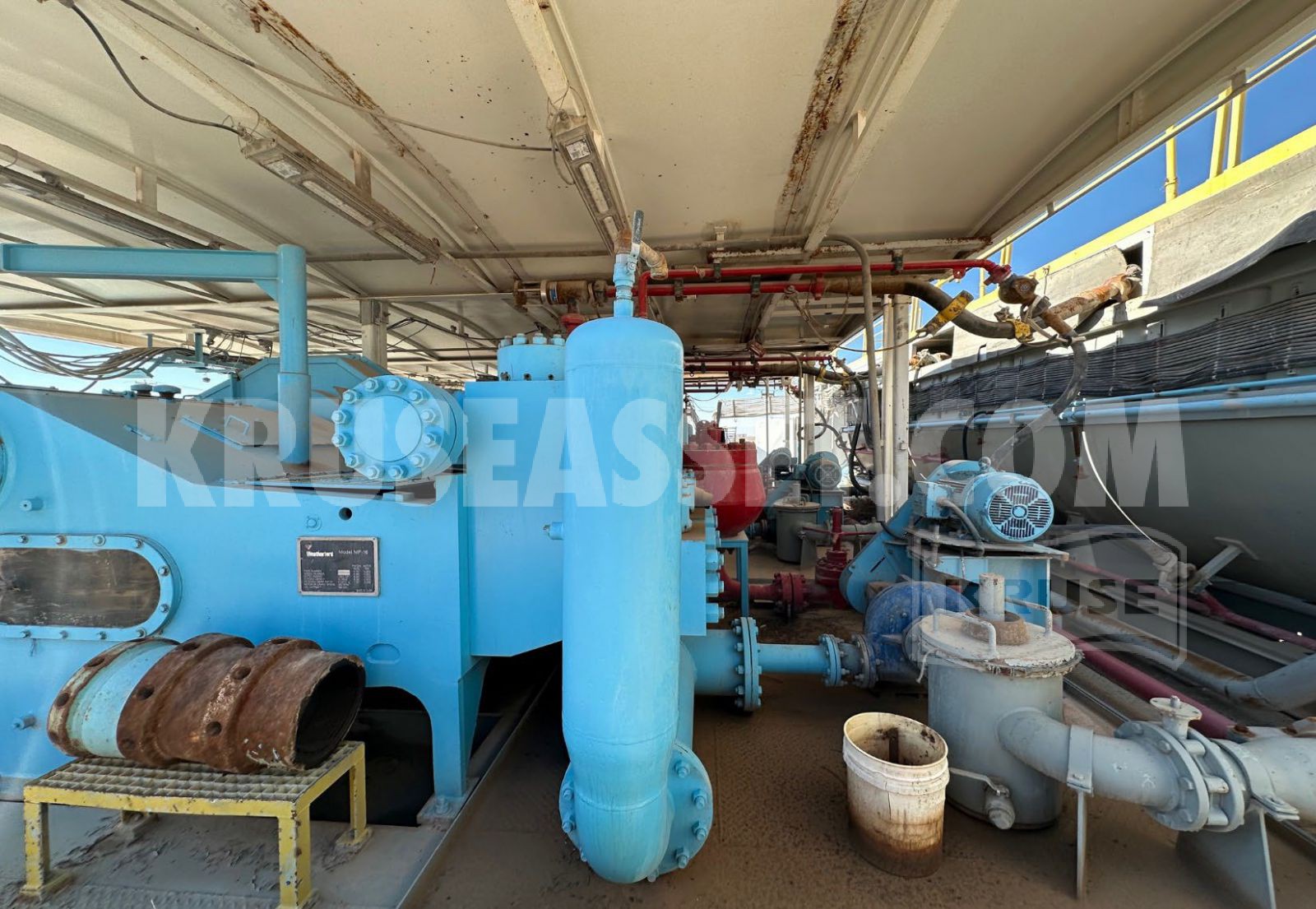

Three (3) 1600HP Triplex AC pumps with 7500PSI working pressure in the system

MUD SYSTEM

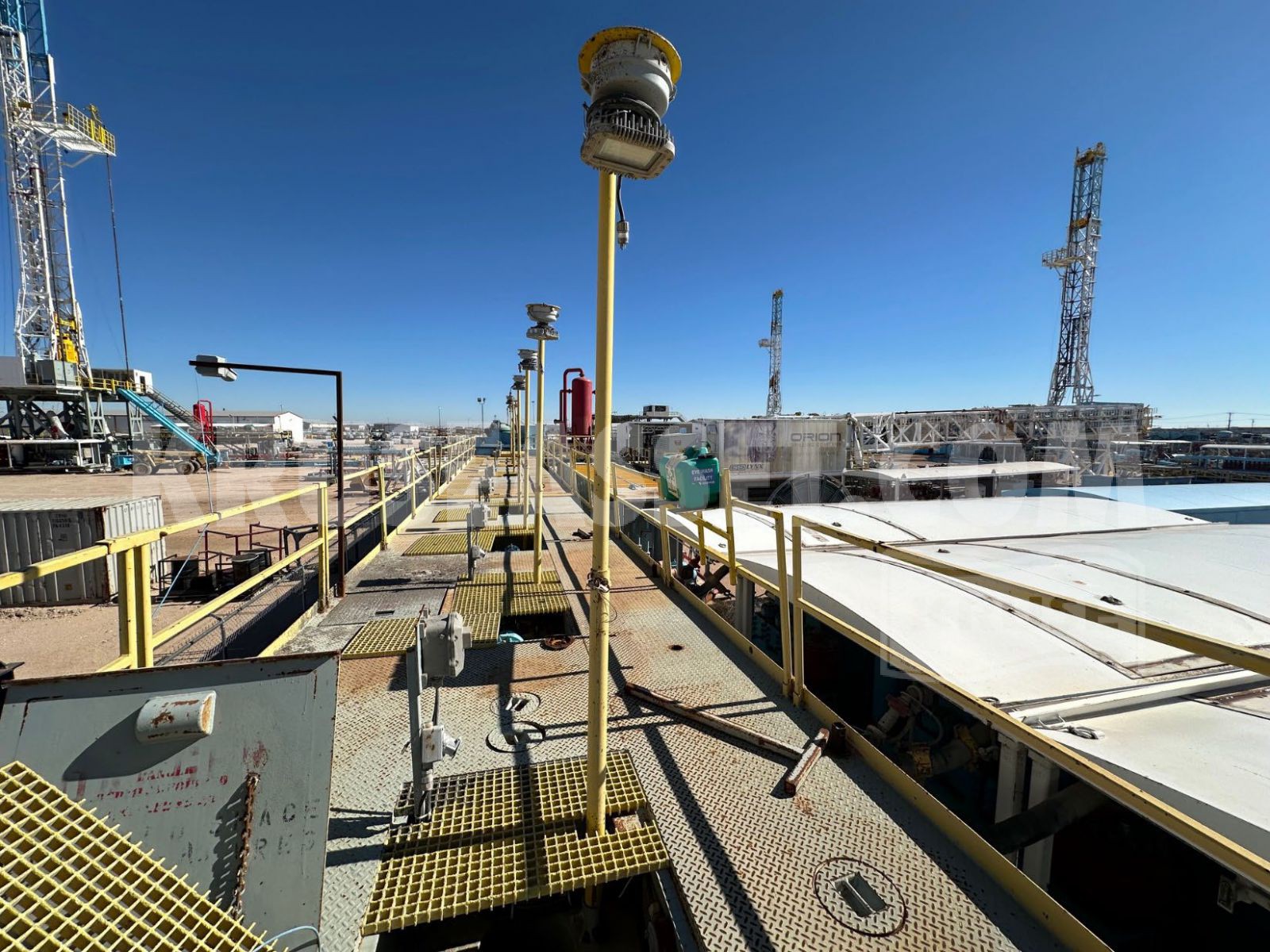

850 barrels total active ca pa city; Two (2) covered 425 barrel tanks with round bottoms and electric agitators for optimum mixing/blending and ease of clean out; Each tank contains two (2) 5x6x75HP centrifugal pumps; Hopper is remote for ease of use with bulk tanks; Three (3) Brandt King Cobra Shakers and one (1) Derrick Va cu-Flo 1200 degasser are all unitized on a hydraulically raised mud processing skid; A separate skid incorporates one (1) 100 barrel trip tank with 2x3x40HP centrifugal pump; One (1) 48" Mud gas separator

DRILL PIPE
5" S -135 Drill pipe as required by contract

DRILL COLLARS

3-8" 21-6.5" Drill collars; (quantity and size subject to availability

AUXILIARY EQUIPMENT

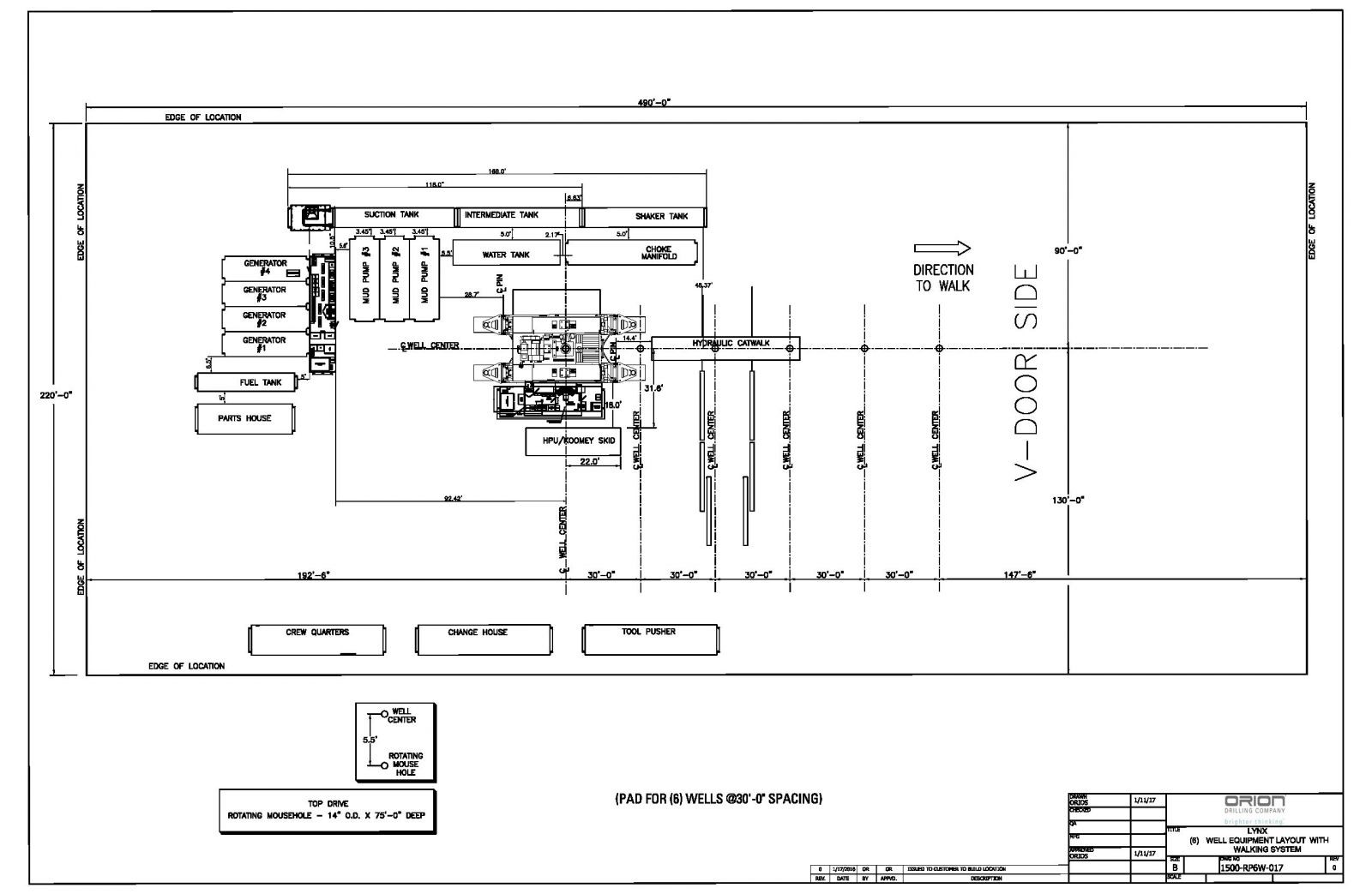

Walking system - capable of walking 175'

Hydraulic catwalk with walking capability

Totco electronic drilling recorder

Toolpusher & Crew Quarters

Pressure washer

Water tank

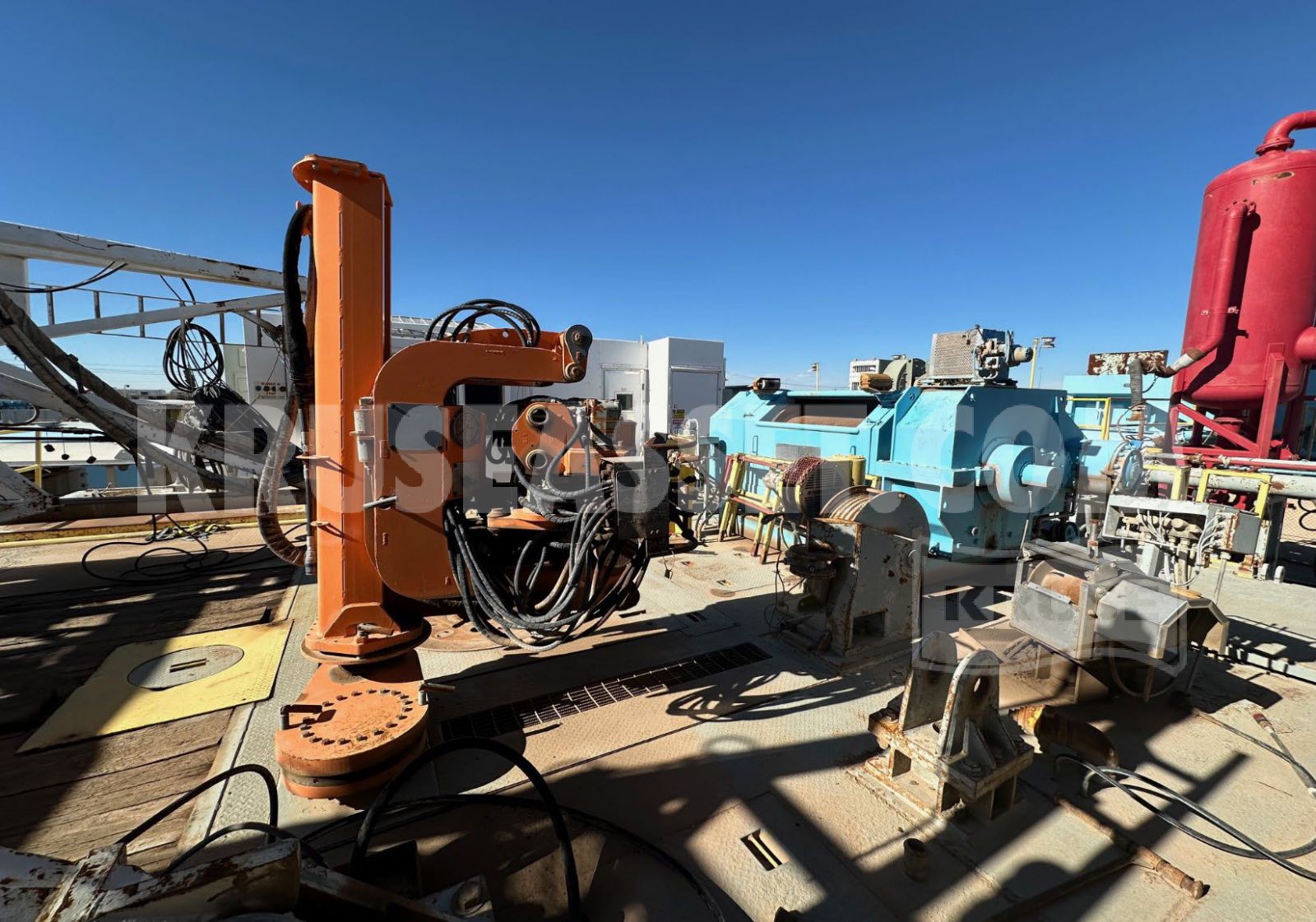

Iron roughneck

Motorized drill line spool

Mathey wire line unit with 25,000' of 0.092'' wireline

Meeting and Change House Combo with A/C

Manrider


Lynx Major Components Approx. Hours (COMMISSIONED IN DECEMBER 2013)

• IDS DRAWWORKS, 1500-HP, (1) GEB-28, 1500-HP AC TRACTION MOTOR S/NIDS-15005030, HRS- 9991
• (4) CATERPILLAR 3512 DIESEL ENGINES EACH RATED AT 1476-HP, W/ AIR START,  SKID MOUNT ENCLOSURES, W/ GENERATORS W/GAS BLENDING KITS-(4) KATO ENGINEERING, MODEL AA27647015, WEG 1375-KW GENERATORS, UNITIZED, W/ ENGINES- ENGINE 1 S/N- LLA04541, HRS-27256, ENGINE 2 S/NLLA04535, HRS- 27180, ENGINE 3 S/N- LLA027541, HRS- 33600. ENGINE 4 S/N- LLA04532, HRS- 28785
• (3) BOMCO, F-1600, TRIPLEX MUD PUMPS 7500 PSI, GEB-29 AC TRACTION MOTOR, 1500-HP, 6’’ CERAMIC LINERS, 6 X 5 X 14 CHARGING PUMP, 1 X 1.5C LINER WASHING PUMP- MP 1 S/N-W-424, HRS/REBUILD- 9001, MP 2 S/N- W- 434, HRS/REBUILD- 11319, MP 3 S/N- HHF- 14-117, HRS/REBUILD 8917
• CANRIG, 350-TON AC, MODEL1035AC, S/N 535, W/ “ROCKIT” CAPABILITY, HRS- 18528
