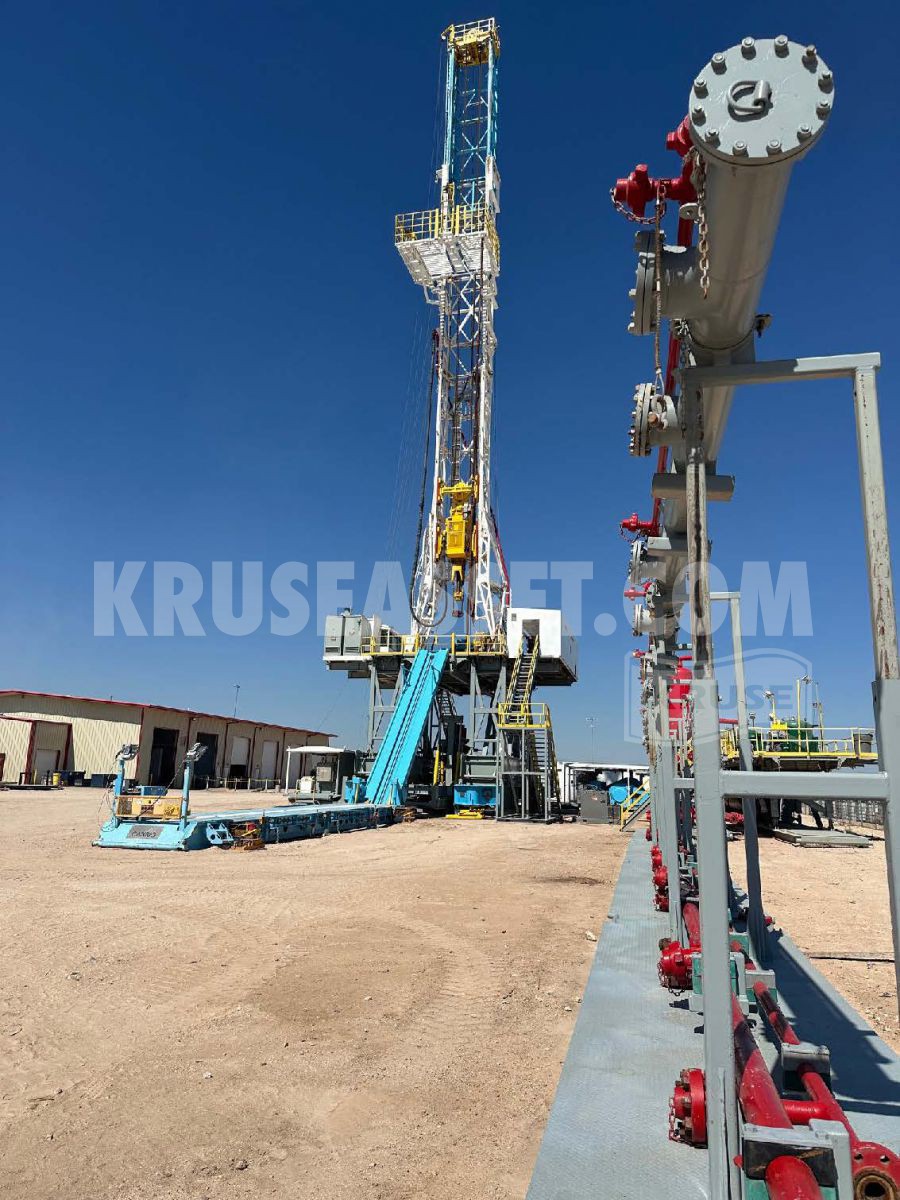

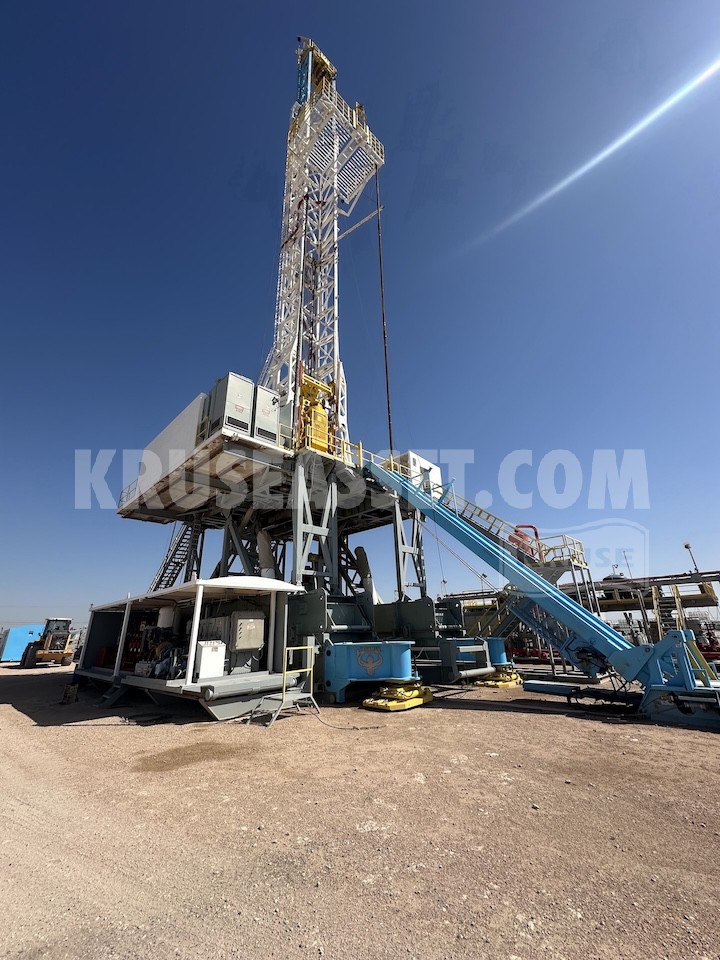

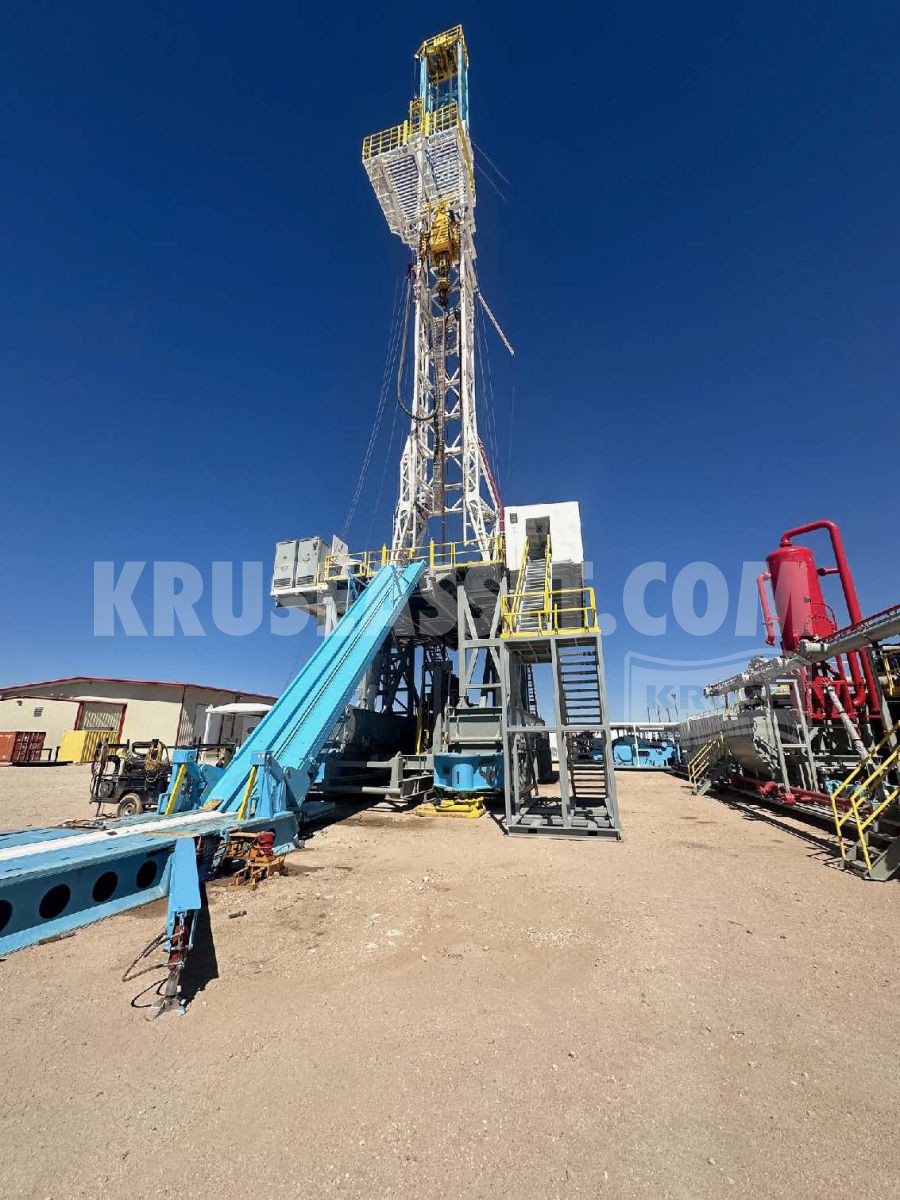

MAST

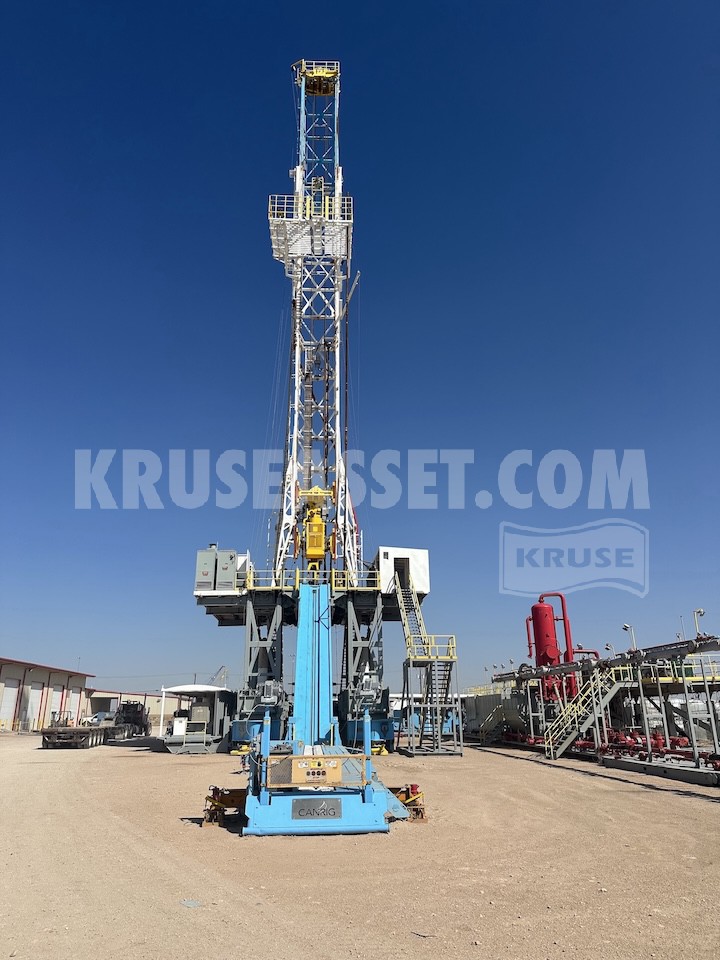

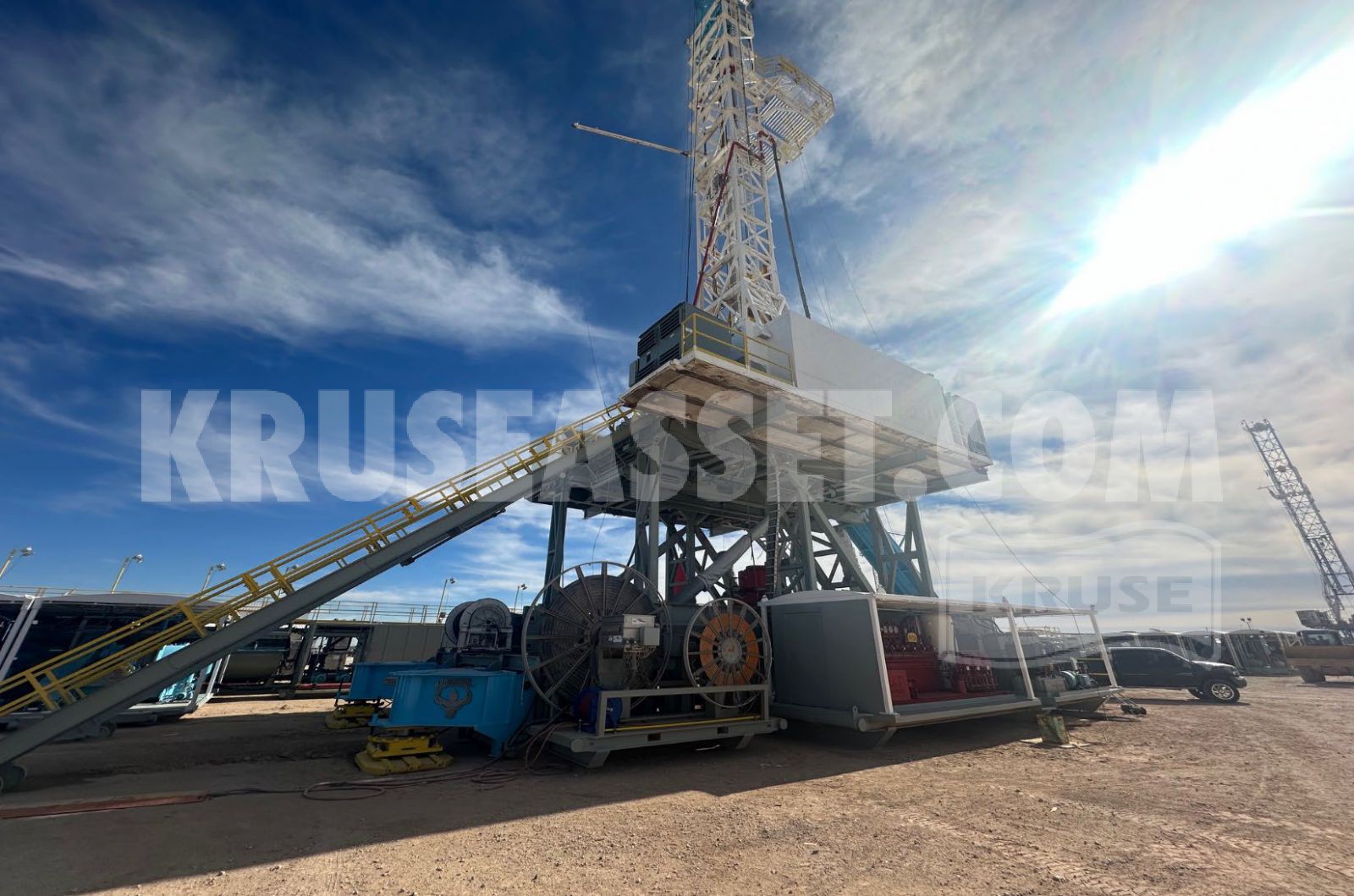

Gemini 142' Telescoping Mast w/ 850,000# hookload, 30,000ft racking capacity w/ 5in DP & 25,000ft w/ 5.5in DP. Top Drive & Block Transport in mast; Raises and lowers using newly re-manufactured hydraulic cylinders. Structural work and 10-year Cat IV inspection completed by Oil Works Inc. a 4F API Licensed Facility

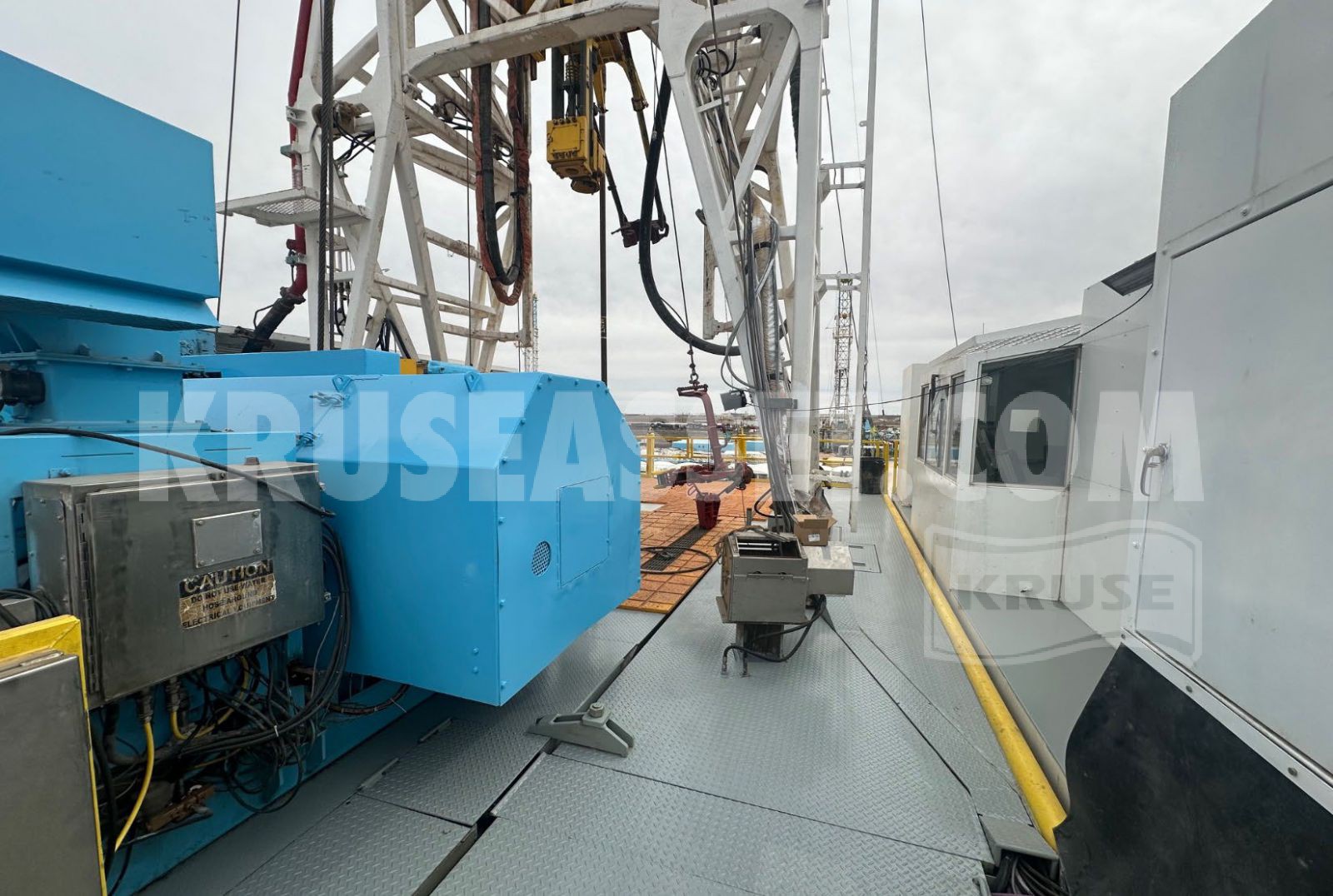

DRAWWORKS

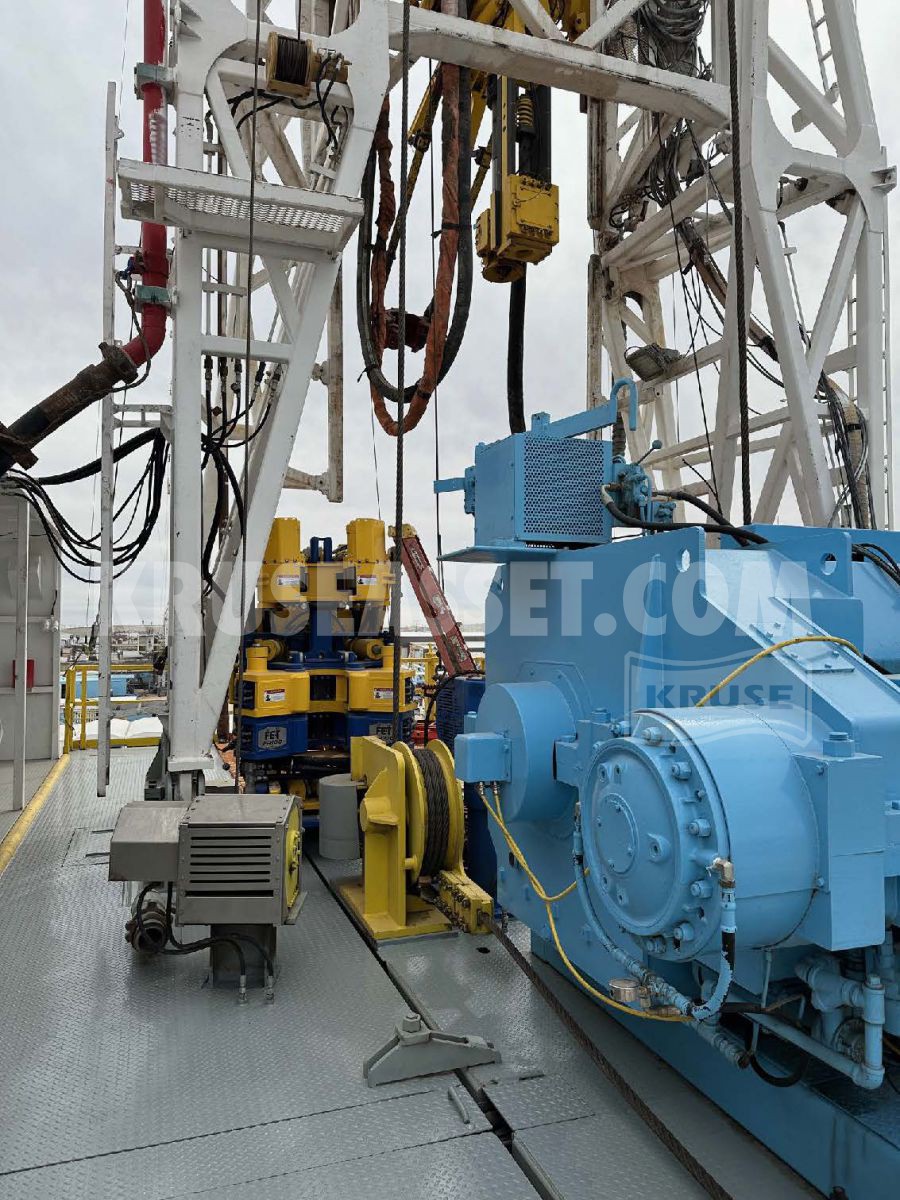

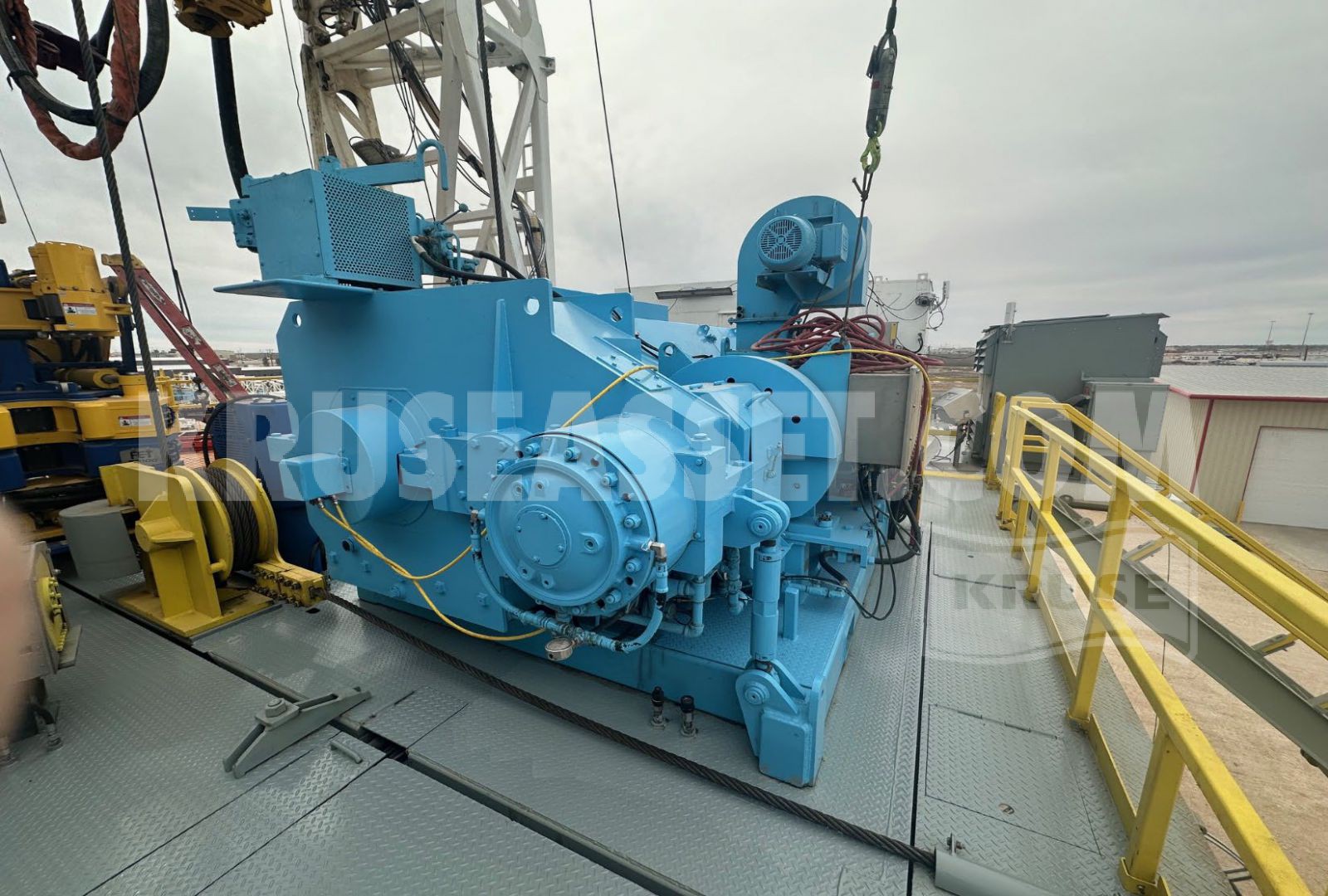

IDS AC 2000hp w/ 1-3/8" Tuf-Flex DLX compacted drilling line- capable of 680,000# pull on 8-line; New Drill Max 2300hp AC motor w/ whisper clean blower system. Cat IV inspection with new bearings, New Wichita 436 Air Max Brake

ENGINE

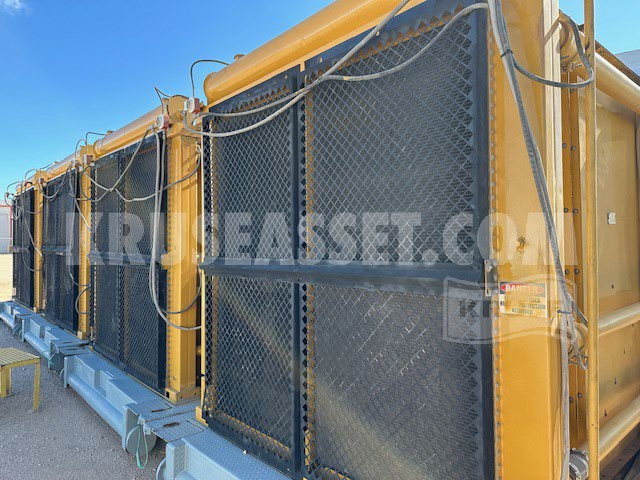

Four (4) Caterpillar 3512C diesel engines each rated at 1476HP; Engines unitized with 1365kW generators; Includes 12,000-gallon fuel tank

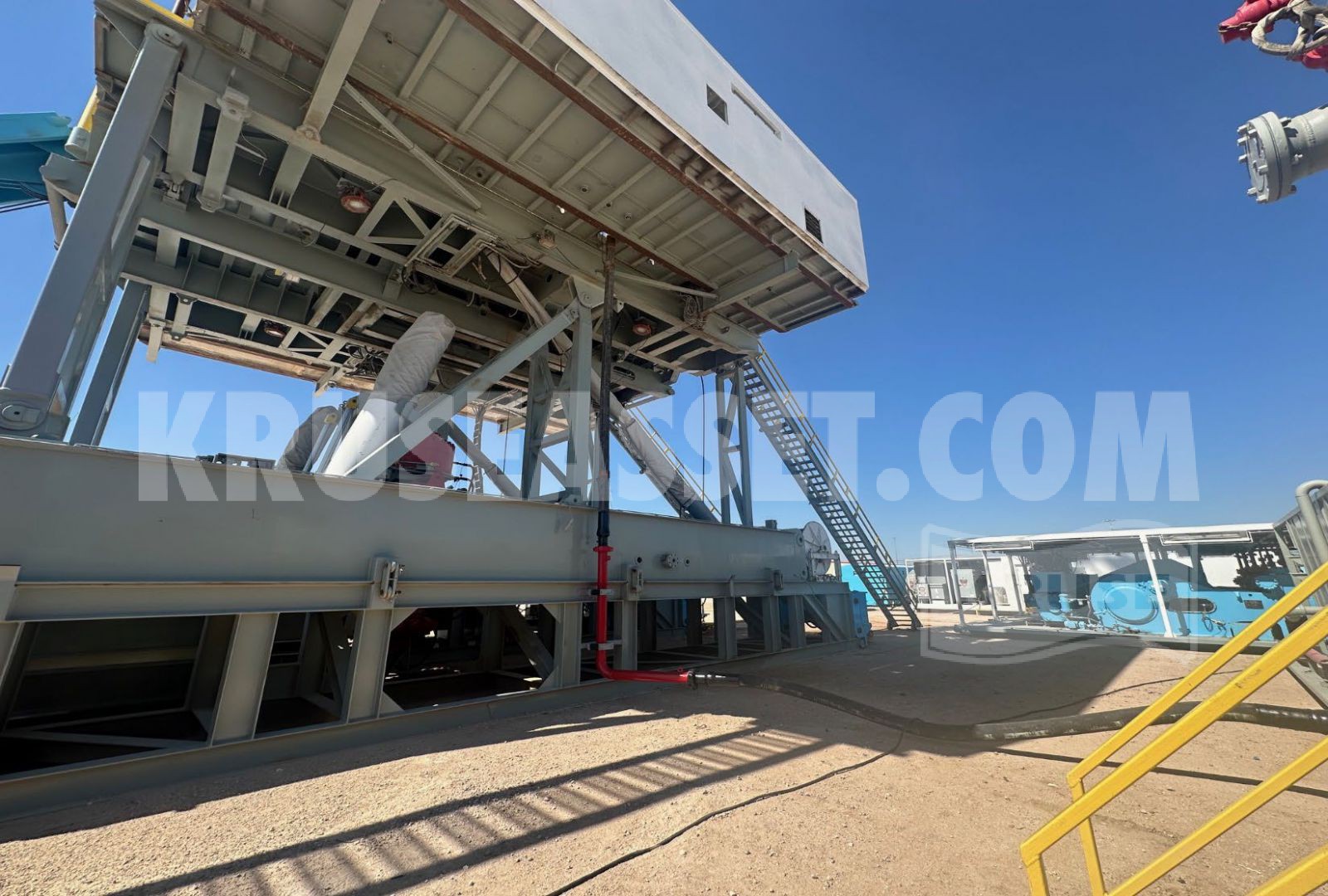

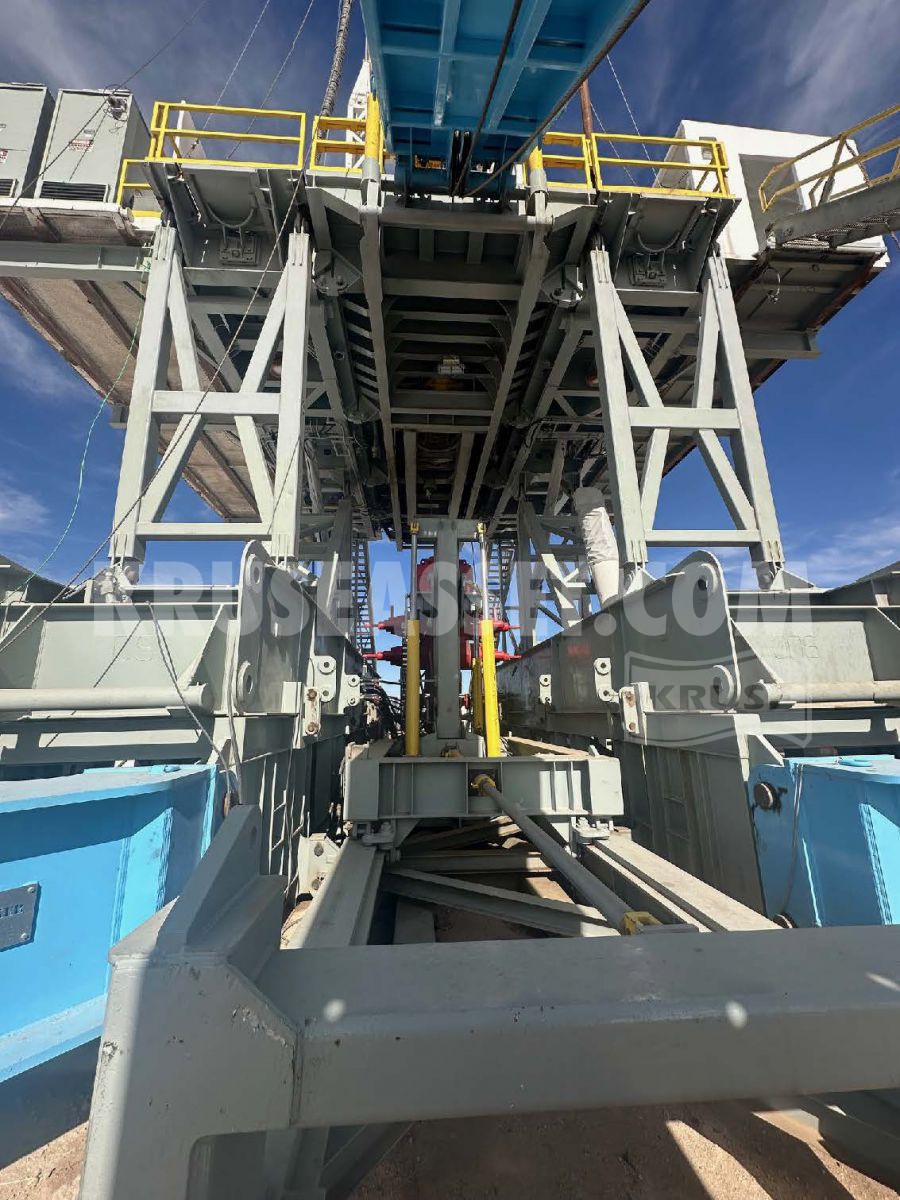

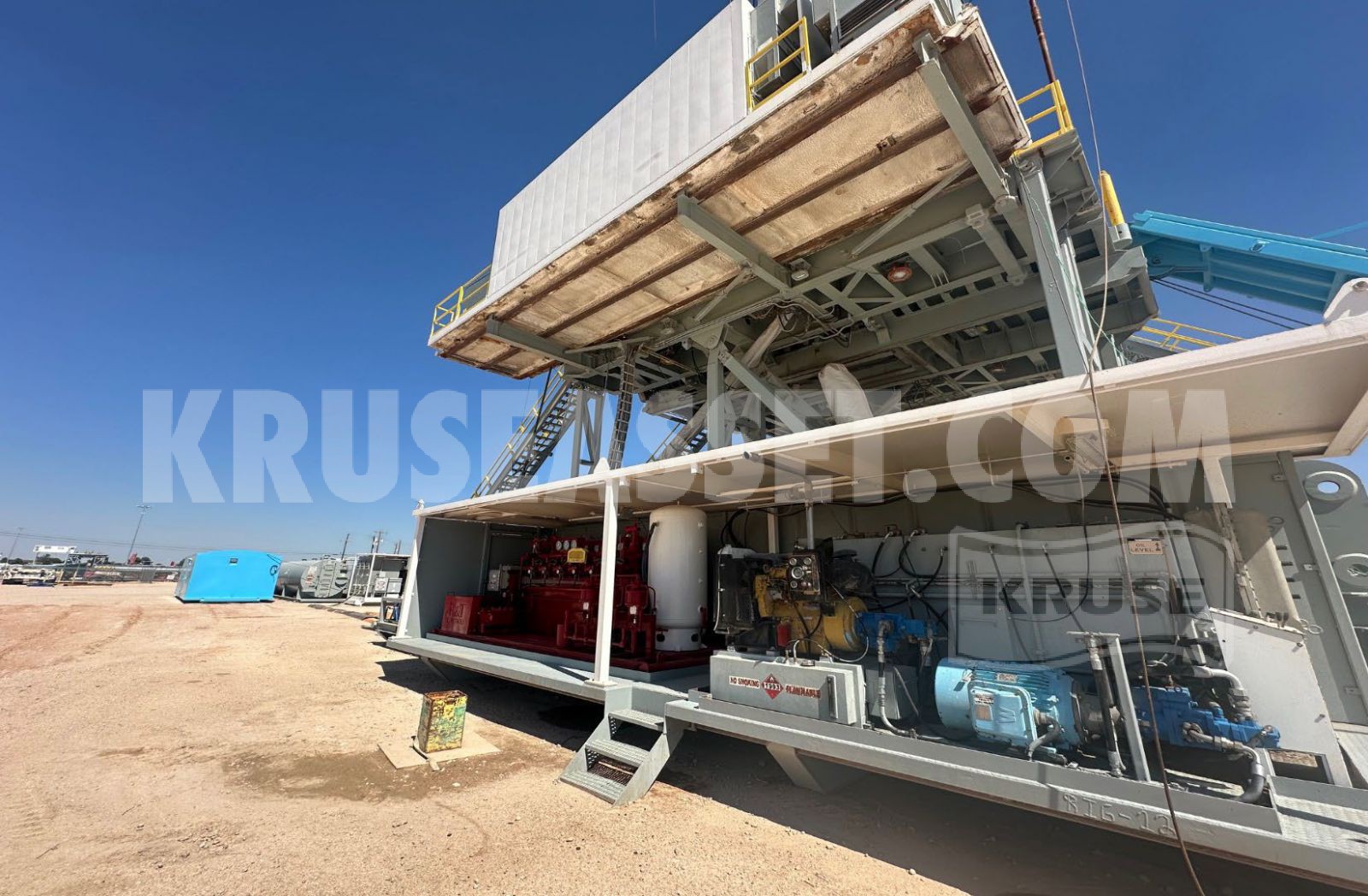

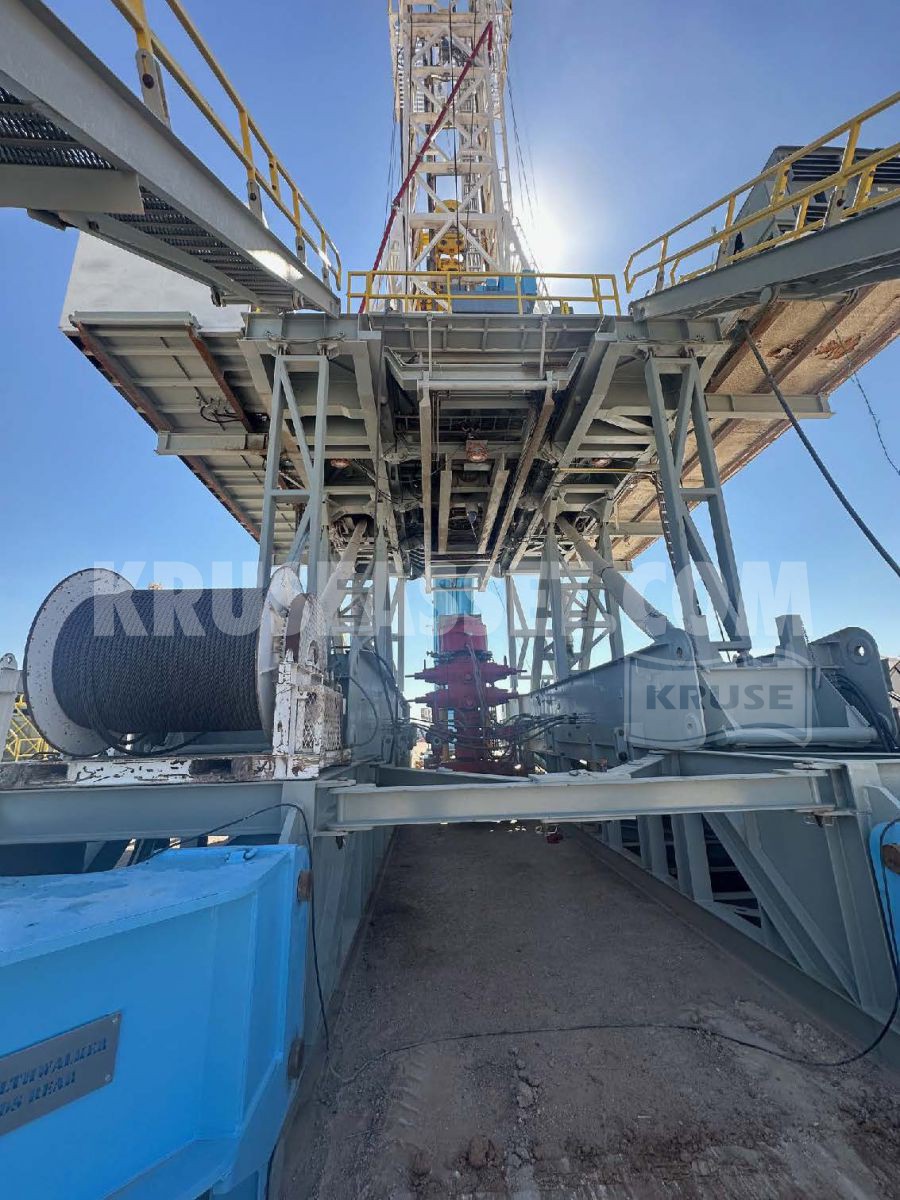

SUBSTRUCTURE

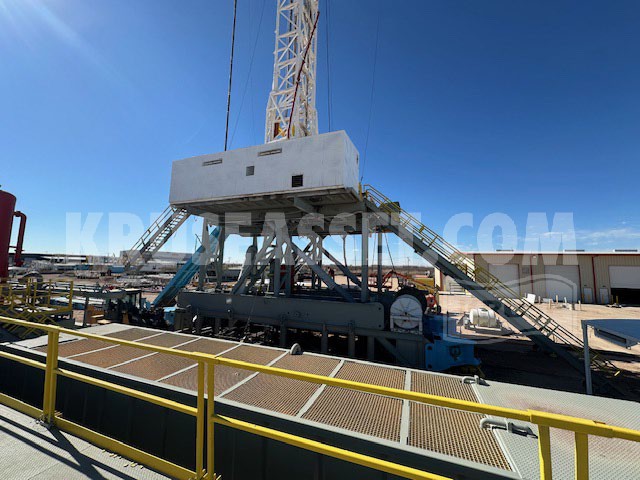

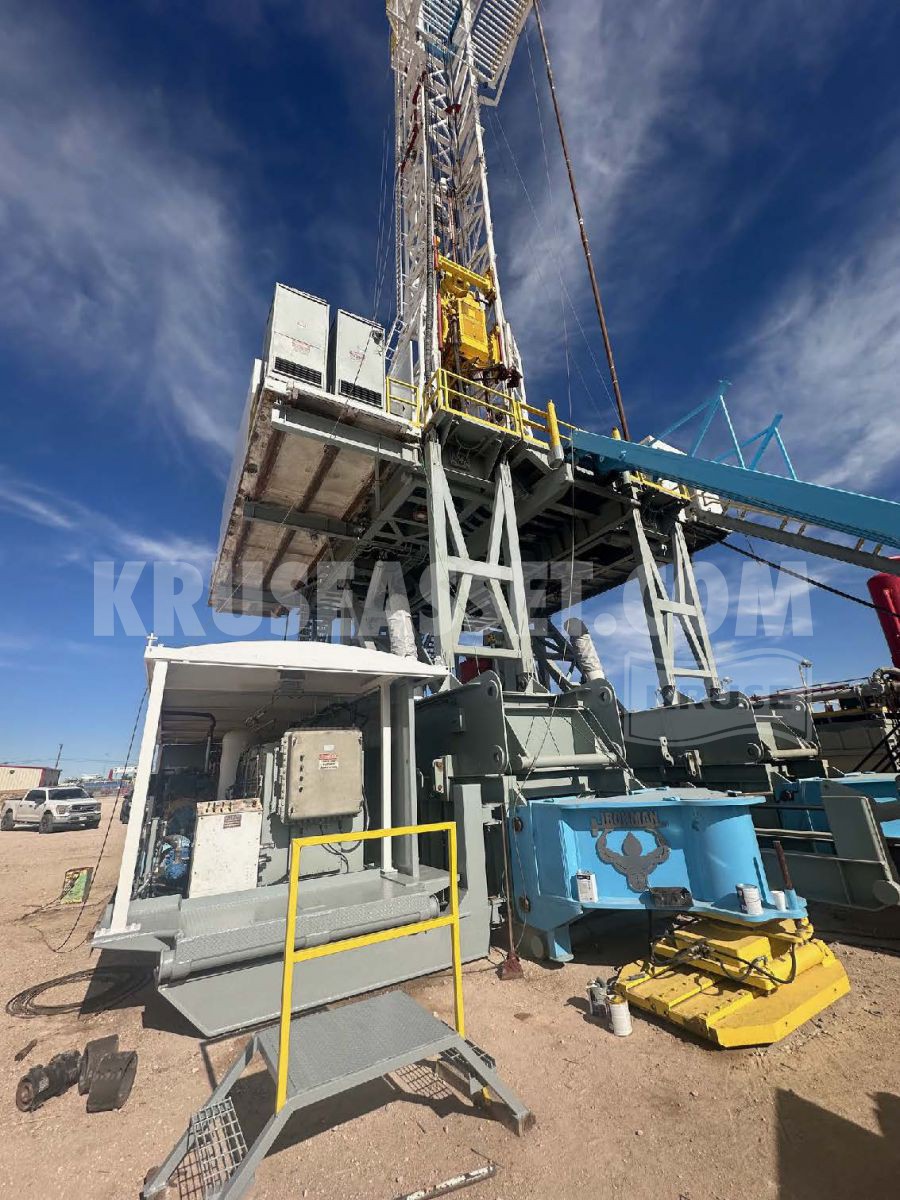

Gemini 28.5' Substructure w/ 24' clear working height, 850,000# rotary load & 750,000# setback load; utilizes a 6' tall x 8' wide x 50' long pony sub, primary sub raises and lowers using newly re-manufactured hydraulic cylinders. Structural work and 10-year CAT IV completed by Oil Works Inc.

ROTARY
Newly Re-manufactured TFI 37-1/2in rotary table independently driven by (1) hydraulic hagglund motor

TOP DRIVE

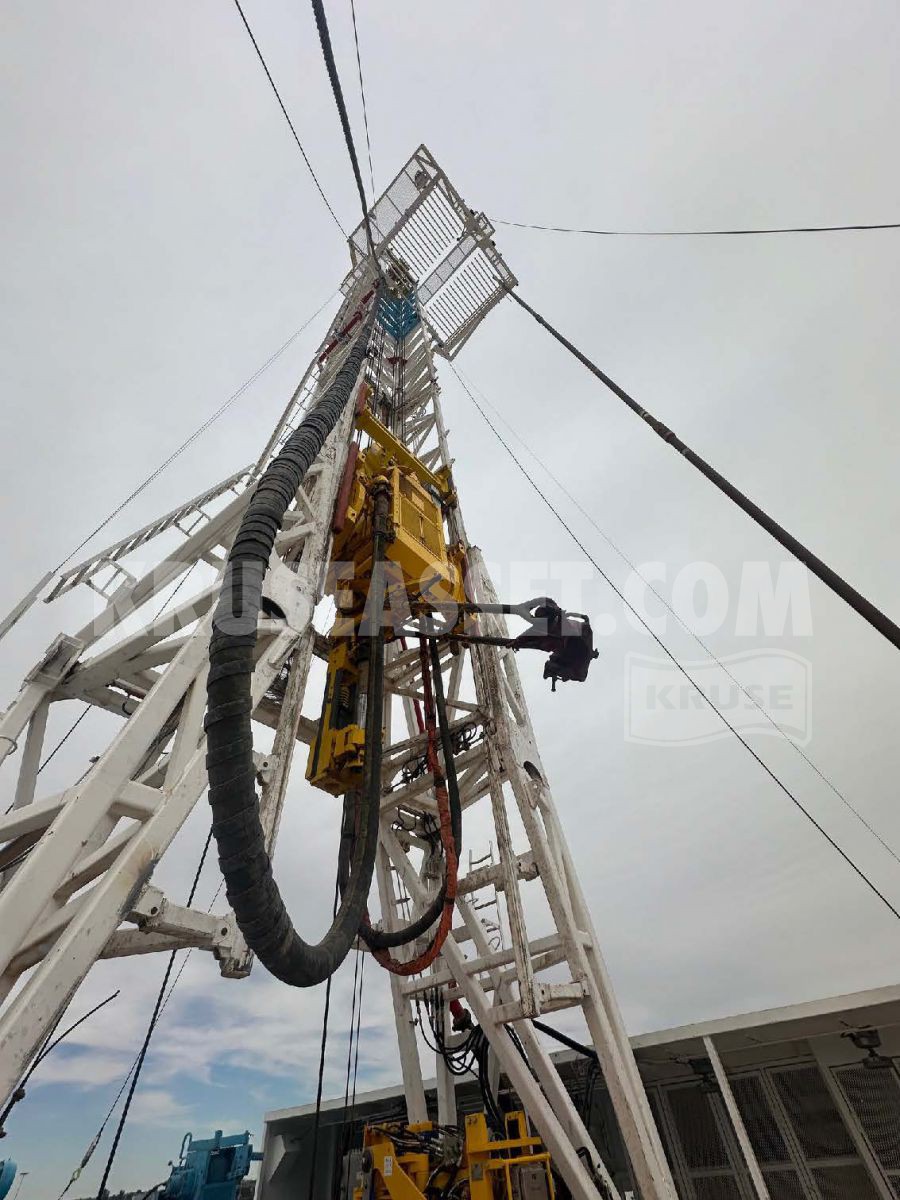

GDS GDM-500Ton, New CAT IV OEM rebuild- integrated hydraulic IBOP

TRAVELING BLOCK
One (1) 500-ton, 6 sheave block w/ 12 line string-up; New CAT IV rebuild

DRILLER CONTROLS

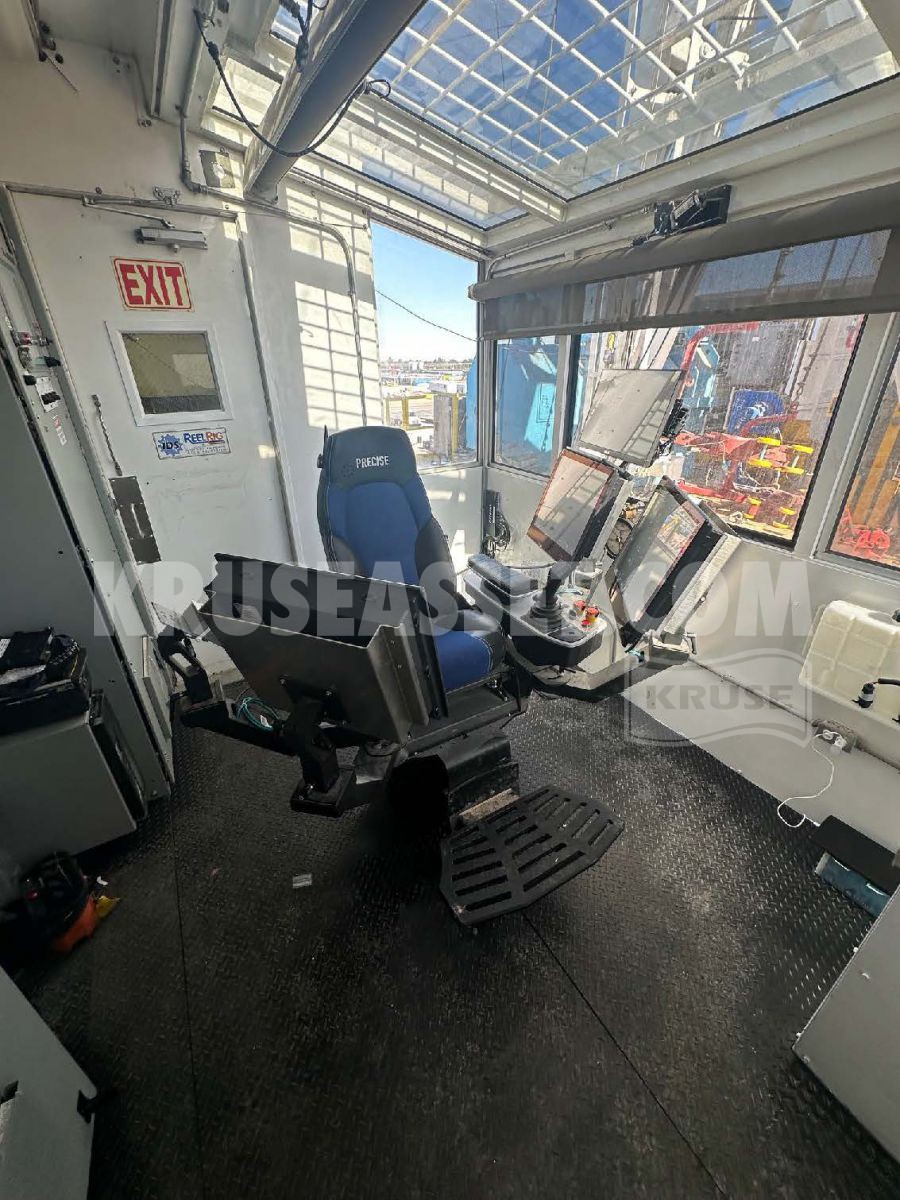

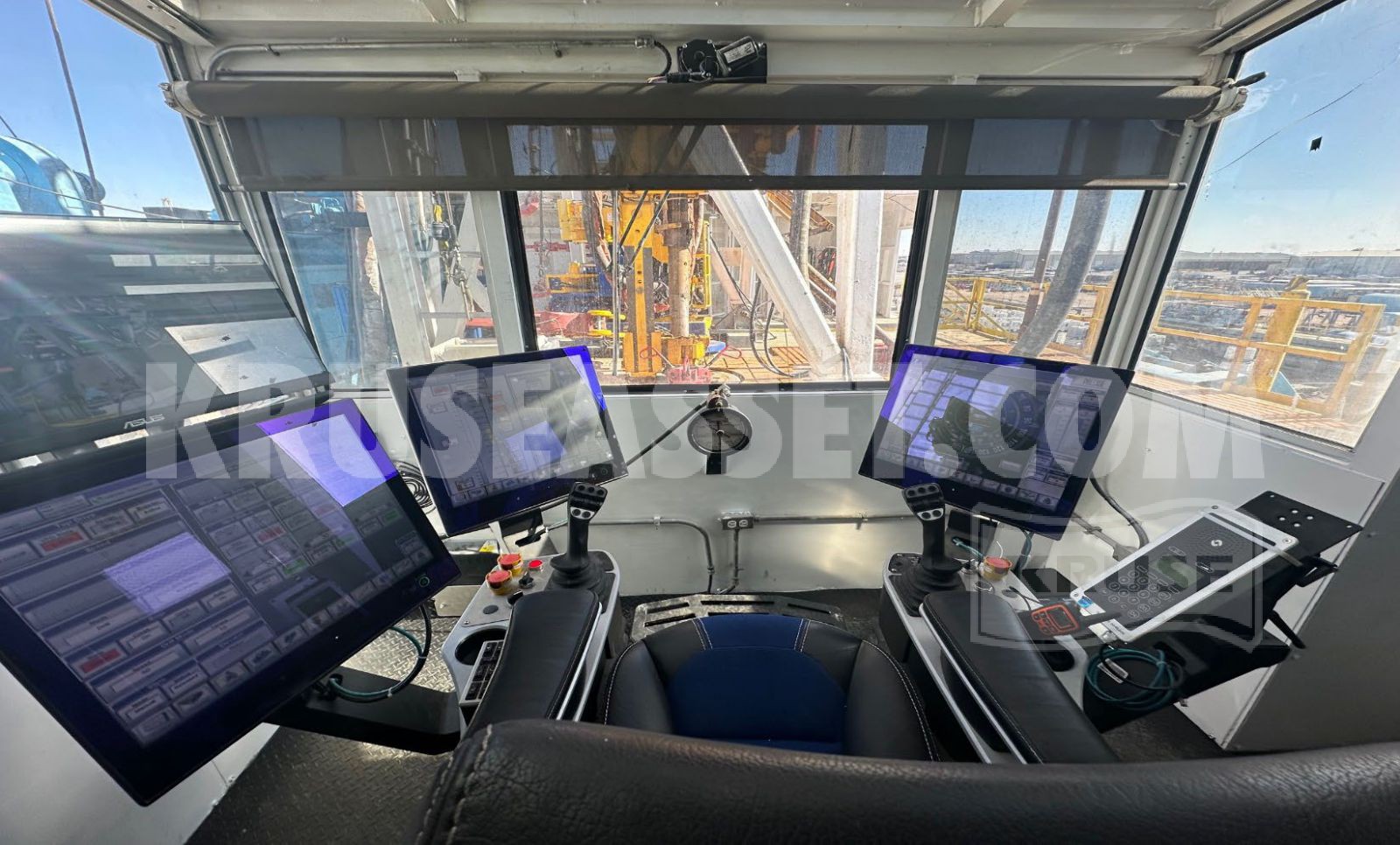

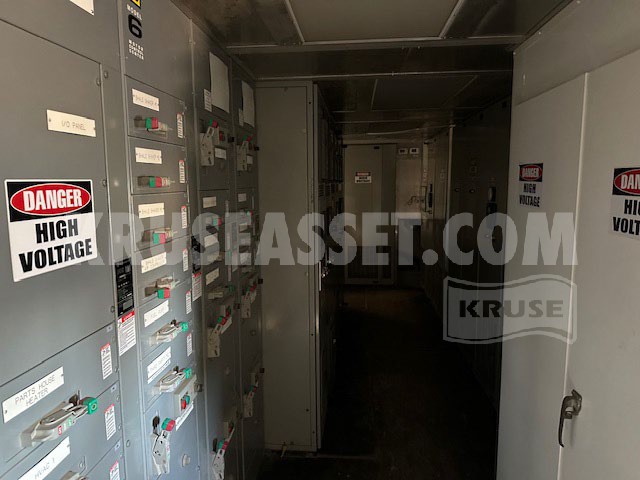

New Schlumberger Precise Fit electronic driller, Cyber Chair control system and VFD House; AC drives regulation for Drawworks, Mud Pumps & Top Drive, integrated with PLC technology; 4160V power distribution Reel Rig System. 3000KVA Transformer.

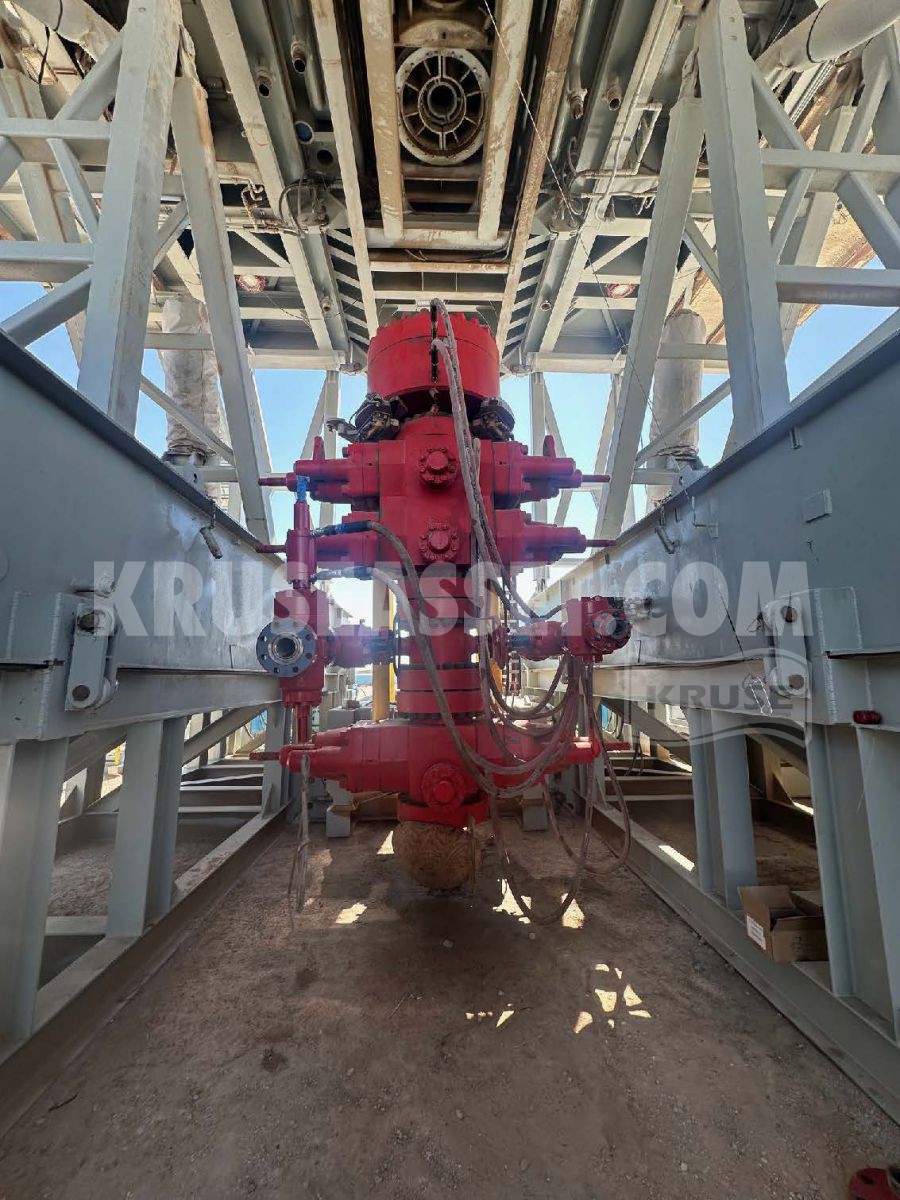

BOP
Fully Re-manufacture CAT IV re-certification Cameron Type U 13-5/8" 10M Single & Double, 5M t-90 Annular, Mud Cross, 4-1/16 10M HCR & Manual Choke, (2) 2-1/16 10M manual choke valves & 10M check valve

CHOKE MANIFOLD
Fully re-manufactured CAT IV 4-1/16" 10M choke manifold, hard line wall thickness inspection, 6in buffer tank

ACCUMULATOR

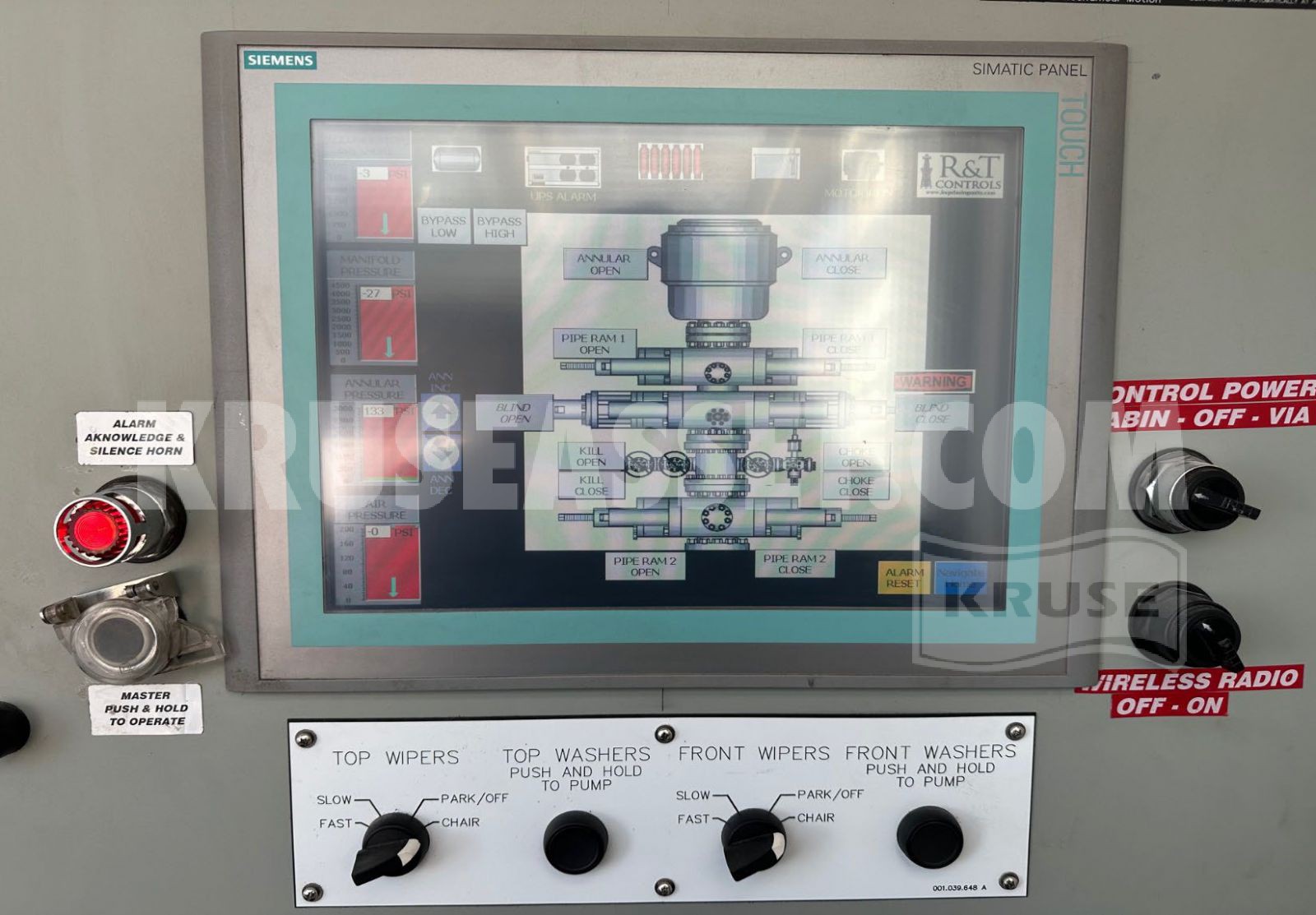

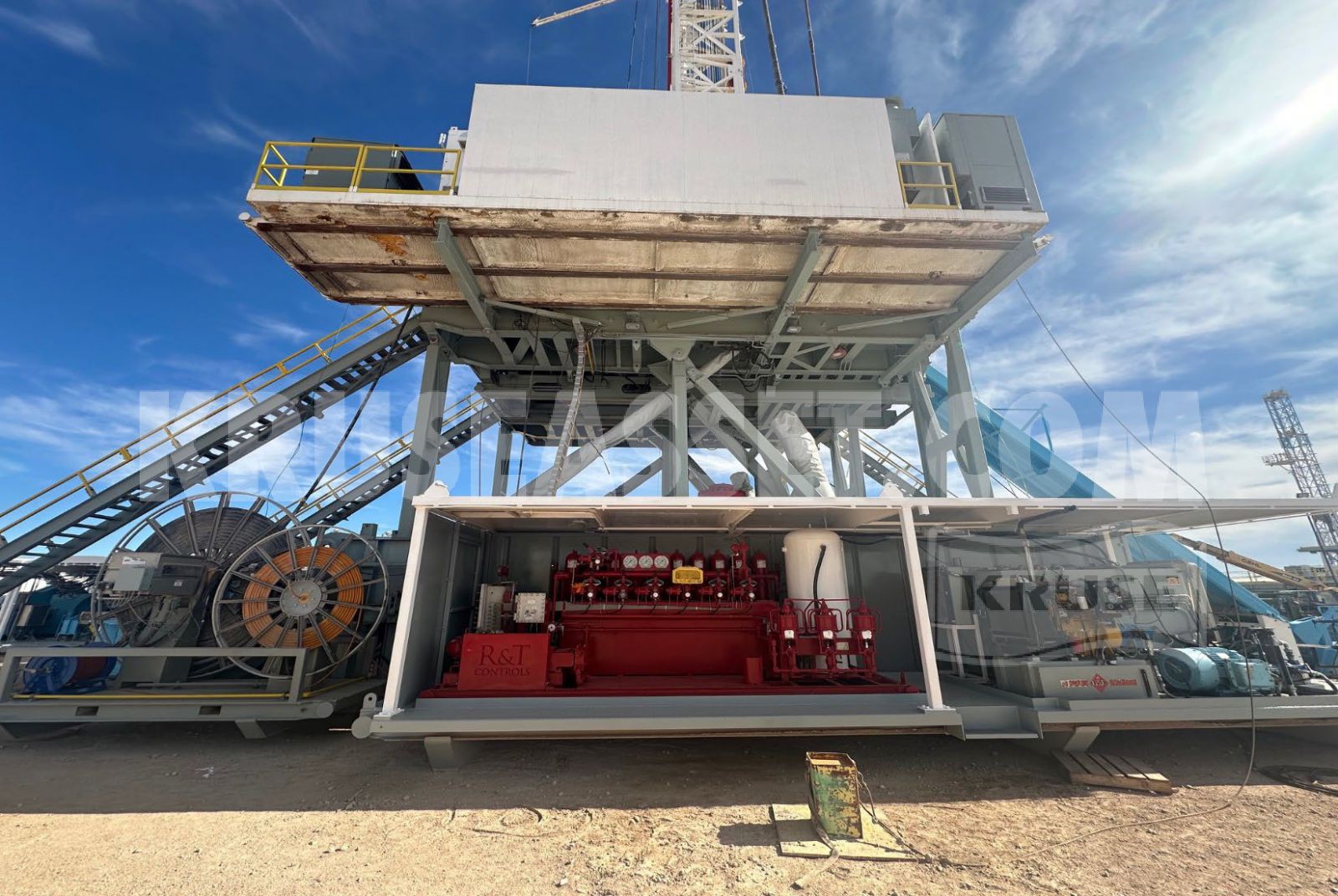

Fully re-manufactured CAT IV re-certification R&T Controls 6-Station accumulator w/ PLC & HMI touchscreen remote

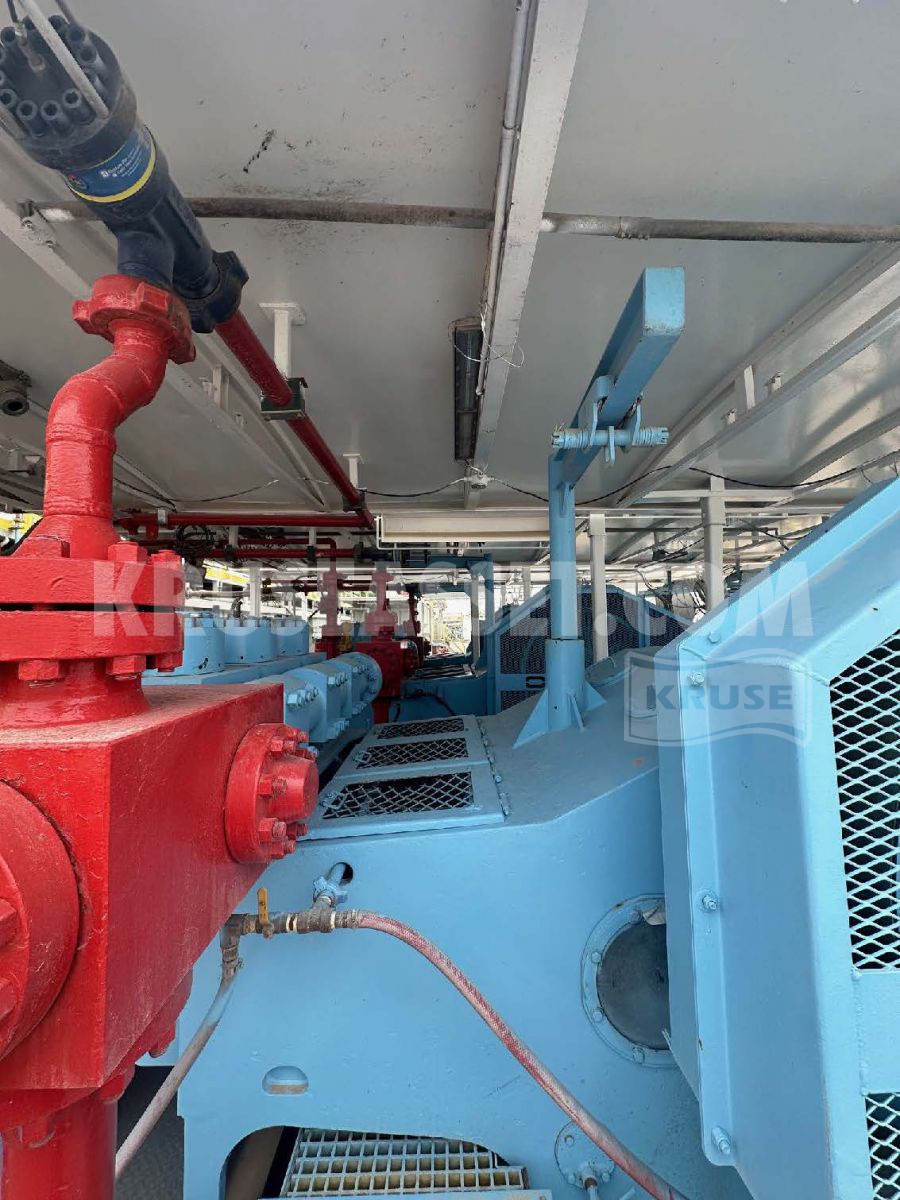

MUD PUMPS

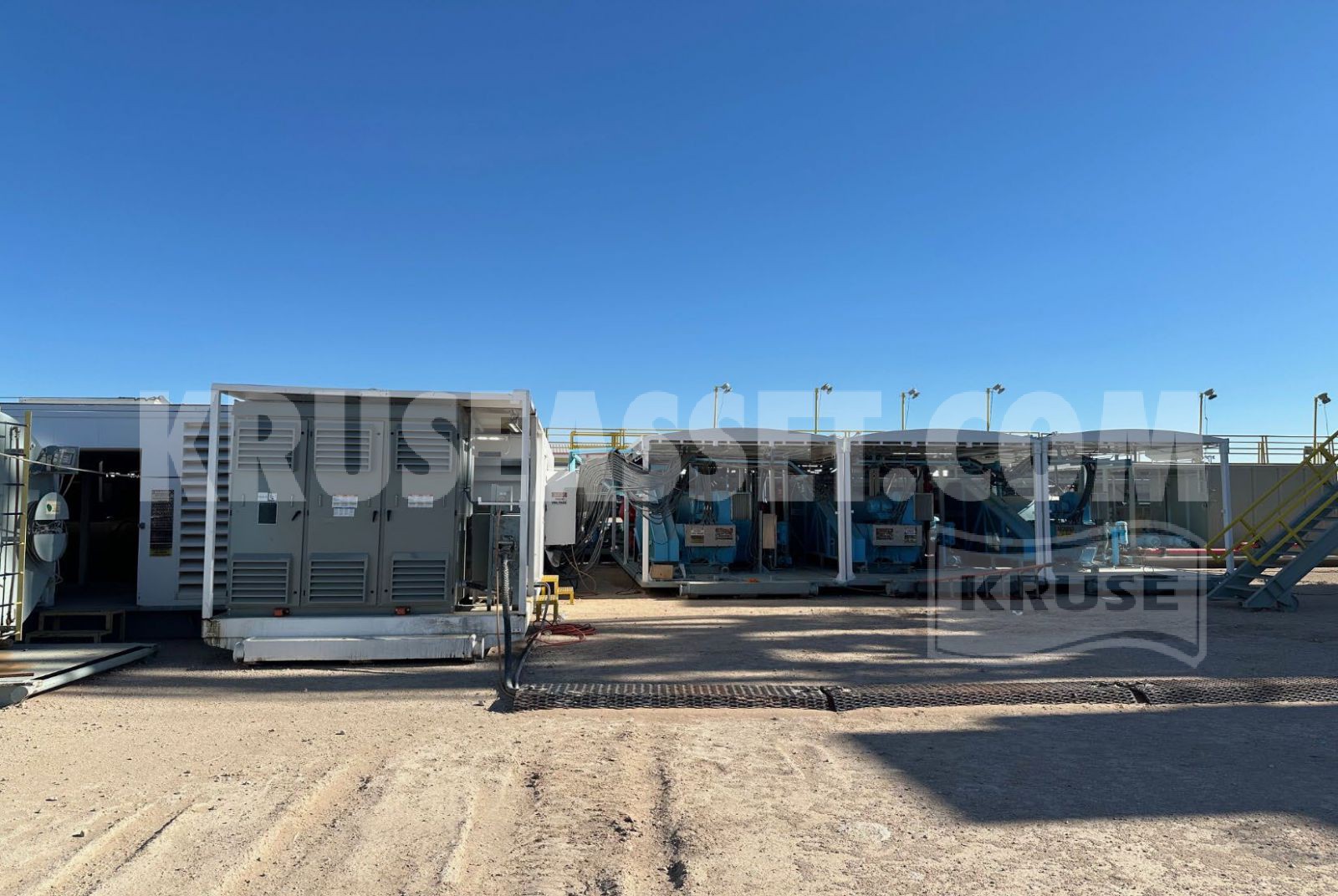

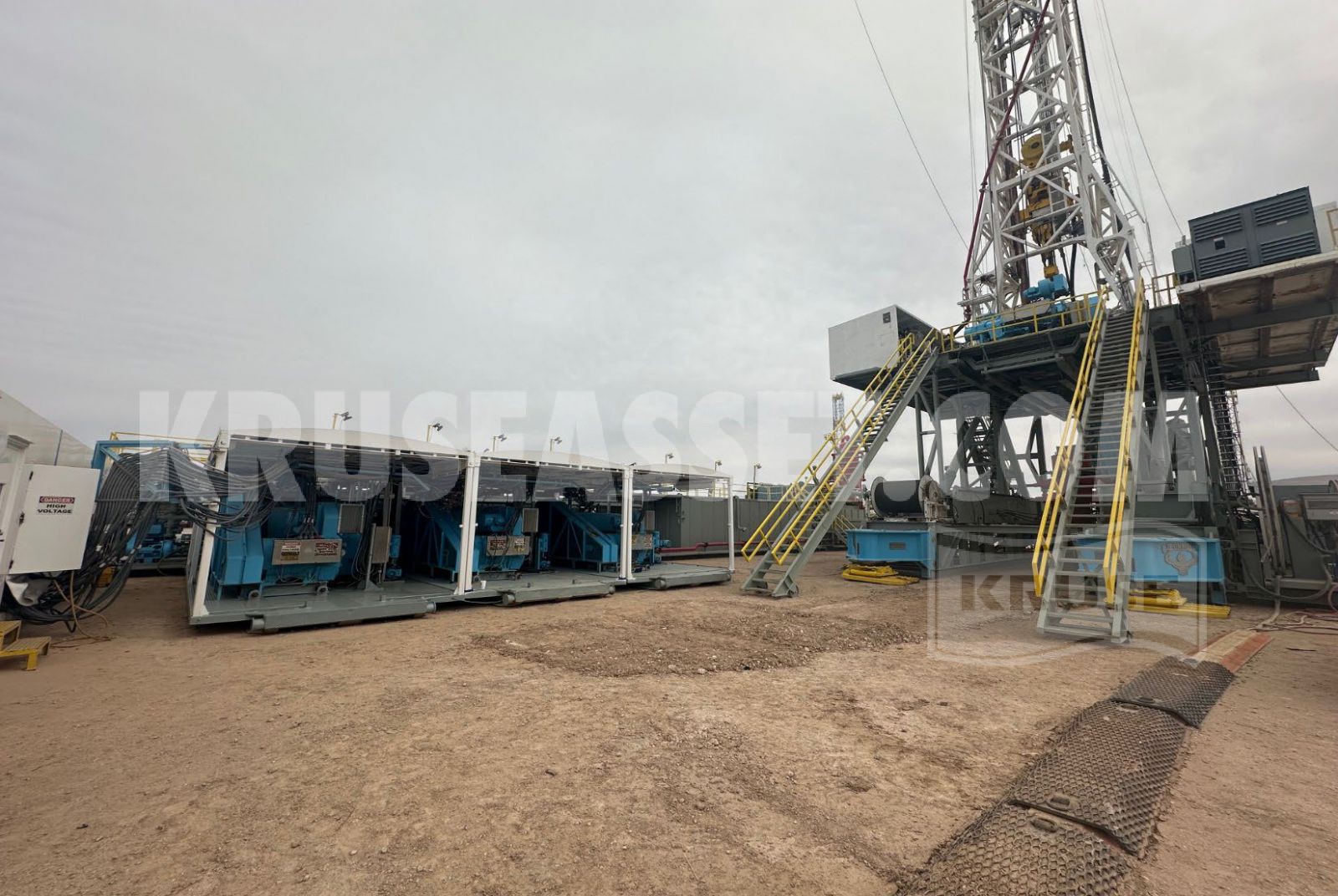

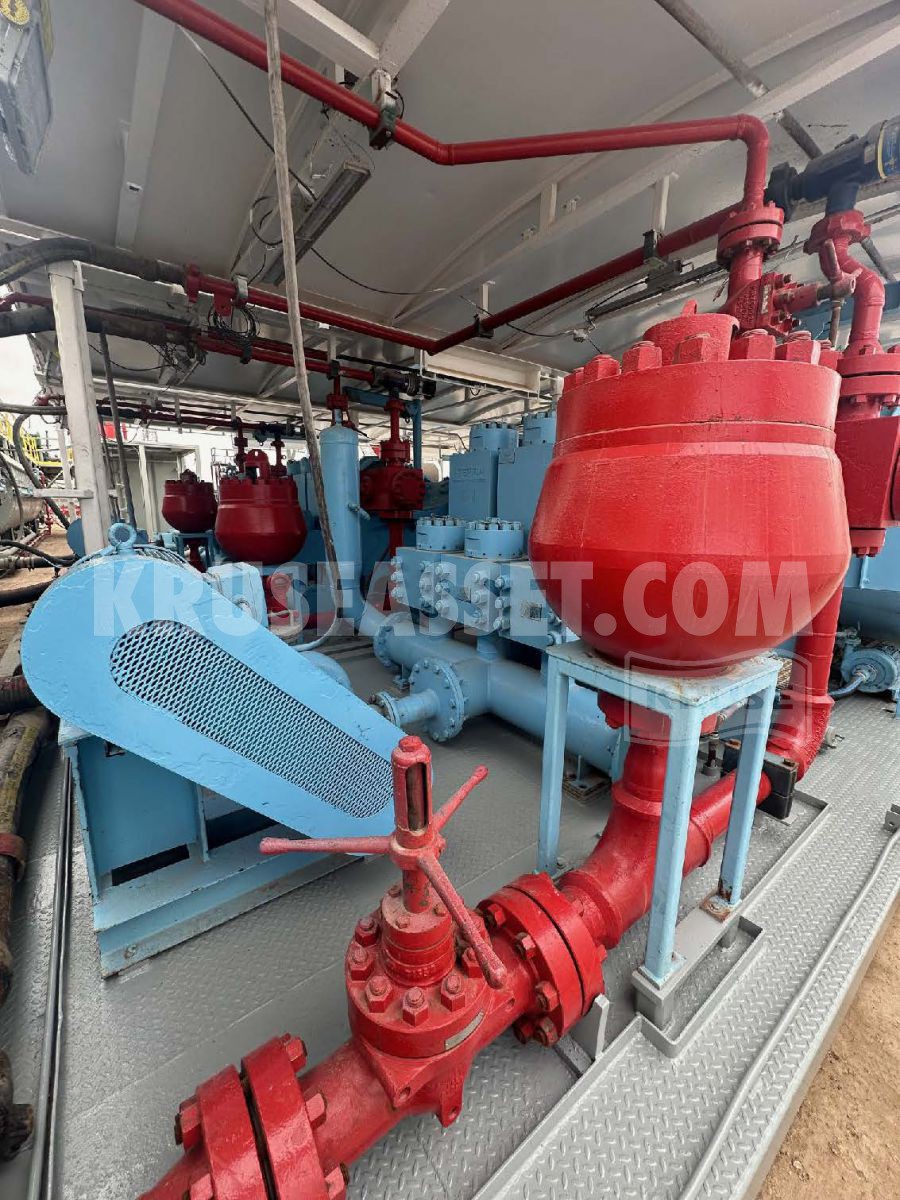

Three (3) 1600hp Triplex AC pumps w/ 7500 psi working system pressure. Full inspection reports on gear end and seat deck inspections & NDE inspections performed on fluid ends. New pony rods, piston rods, and liner washer system.

MUD SYSTEM

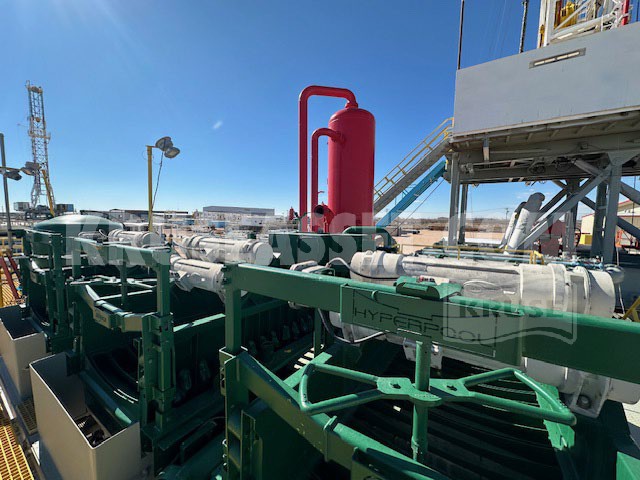

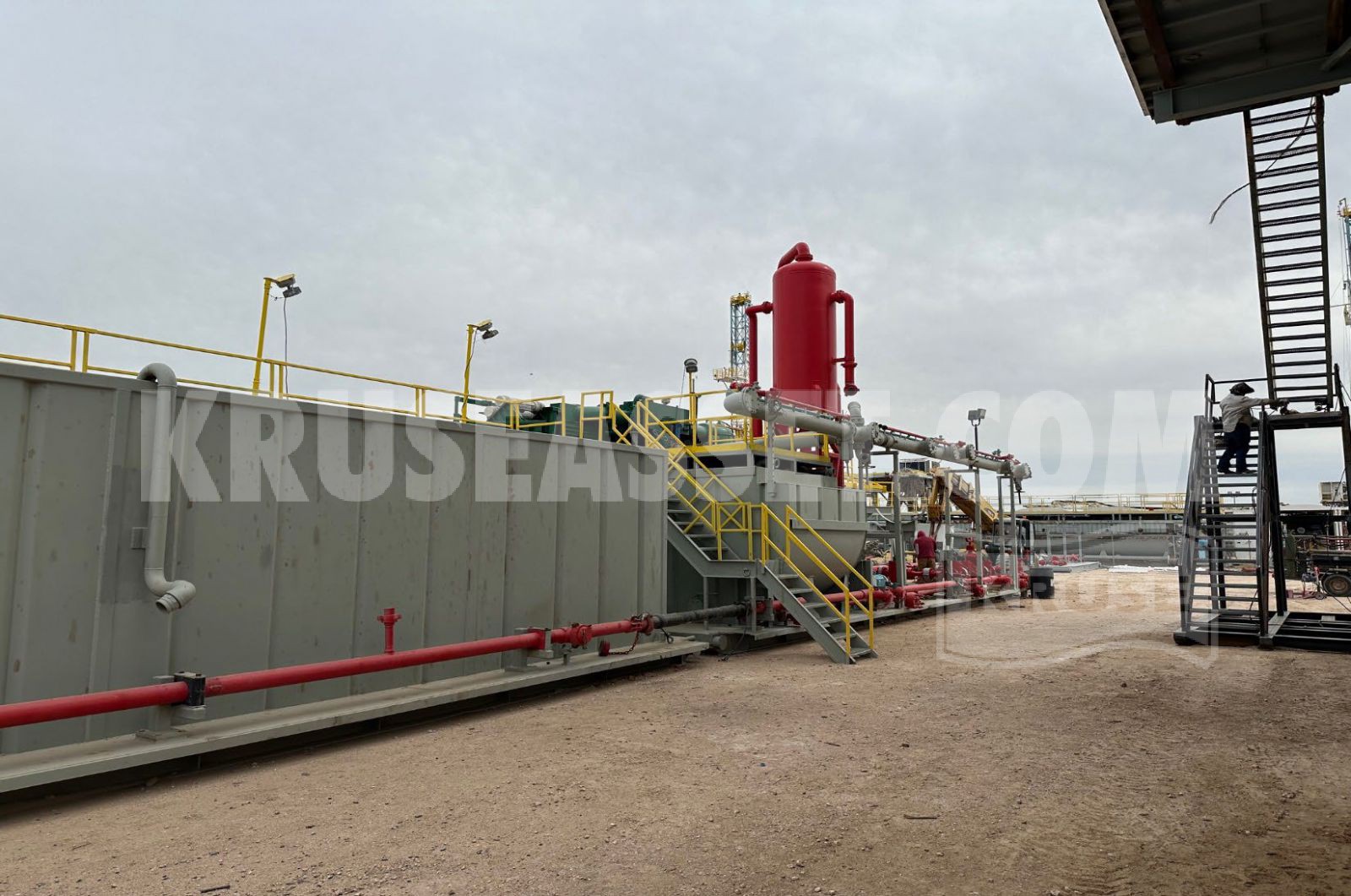

850 BBL total active capacity; Two (2) covered 425 BBL tanks w/ round bottom and electric agitators for optimum mixing/blending and ease of clean out; Each tank contains two (2) 5x6x14 75hp centrifugal pumps; Hopper is remote for ease of use with bulk tanks; three (3) derrick hyperpool shakers and one (1) Derrick Vacu-Flo 1200 degasser, fully inspected by OEM and are utilized on a hydraulically raised mud processing skid; A separate skid incorporates one (1) 100bbl total trip tank split to 50bbl systems w/ 2x3x12 40hp centrifugal pump; One (1) 48" 1200gpm Mud/Gas separator. All motors passing electrical inspection, all new centrifugal pumps, all valves new and all rubber goods replaced on entire mud system. New hopper assemblies from Process solutions International.


ARIES MAJOR COMPONENT APPROX. HOURS:


• IDS DRAWWORKS, 2000-HP, (1) NEW GEQ DRILL MAX 2300HP AC TRACTION MOTOR W/ WHISPER QUIET BLOWER SYSTEM, 436 WICHITA AIR MAX BRAKE, S/N- IDS15005031, HOURS SINCE RE-BUILD/RECERT- <25HRS
• (4) CATERPILLAR 3512 DIESEL ENGINES EACH RATED AT 1476-HP, W/ AIR START, SKID MOUNT ENCLOSURES, W/ GENERATORS- (4) KATO ENGINEERING, MODEL AA27647015, WEG 1375-KW GENERATORS, UNITIZED, W/ ENGINES. ENGINE 1 S/N- LLA02740, HRS- 20729, ENGINE 2 S/N- LLA02749, HRS- 20640, ENGINE 3 S/N- LLA04822 HRS 28646, ENGINE 4 S/N- LLA04536, HRS- 23832
• (3) BOMCO, F-1600, TRIPLEX MUD PUMPS 7500 PSI, GEB-29 AC TRACTION MOTOR, 1500-HP, 6’’ CERAMIC LINERS, 6 X 5 X 14 CHARGING PUMP, 1 X 1.5C LINER WASHING PUMP-MP 1 S/N- M02-2003, HRS/REBULD- 10599, MP 2 S/N- SB06-046, HRS/REBUILD- 6473, MP 3 S/N- 14-005, HRS- 10637
• GDM 500ton TOP DRIVE, LEVEL 4 RECERTIFICATION COMPLETED AUGUST 2023, 1200HP AC MOTOR, S/N #47 HRS- <25HRS

  VIEW SUMMARY OF INSPECTIONS AND CERTIFICATIONS, CLICK HERE
