Walker-Neer 250-40 Carrier Mounted Rig for Sale
Sale Price: $650,000
Email for more infoUnique Walker-Neer 250-40 Apache
Automated Pipe System, Depth 7,500'
Upgraded Top Drive
Call for More Details
Located: Central Texas
NOW ACCEPTING OFFERS
Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973
Listing Details
|
DEPTH |
7,500’ |
|
DRAWWORKS |
Carrier Mounted Rig – Walker-Neer 250-40, Carrier Motor – Cummins 290, Carrier Transmission – 9 Speed Fuller Road Ranger; 3406 Cat Drawworks Motor – Arr# 109349 (Serial #109349), Hydraulic Top Drive, Set of Hydraulic Tongs, Set of Air Slips w/drill pipe, drill collar and casing slip segments. Hydraulic Tank (5’ L x 30” W x 24” Tall), Red Satellite Weight Indicator & Bisquit, Hydraulic Boom. |
|
PIPE HANDLING EQUIPMENT |
Carousel with Hydraulic Boom, Scissor Lift, Pipe Wings, Casing Wings, Arm Carrier, Pipe Kickers and 8’ x 6’ Operator’s House, Carousel Pump Motor – 15 HP, Model #TEX251C, Carousel Pump – (Serial #00628128) |
|
TOP DRIVE |
Venturetech XK-150 with spare swivel. |
|
RIGHT ANGLE DRIVE BOX |
1000 HP Right angle drive box. |
|
HYDRAULIC POWER UNIT |
3126 Cat Power for Swivel top drive. |
|
DERRICK |
65’ Walker-Neer Tubing Derrick – 250,000 lbs. Static Hook Load |
|
SUBSTRUCTURE |
Walker-Neer/Apache Substructure manufactured December 1981, Model #250-40 (Serial# 2221) Max Rate Static Rotary capacity 250,000 lbs. |
|
DOGHOUSE |
Scope up Doghouse with lower Water Tank and Diesel Tank with built-in Welding/Parts Room |
|
GENERATOR / LIGHT PLANT |
Cat 3306 Light Plant Motor (Serial# 66D14385 Arr# 4N996) Generator – Model# SN18 (Serial# 45BH626) Cat 3306 Light Plant Motor (Serial# 6BRO1857 Arr# 130-8140) Generator – Model# 572RSL4027 (Serial# WA-523709-0300) |
|

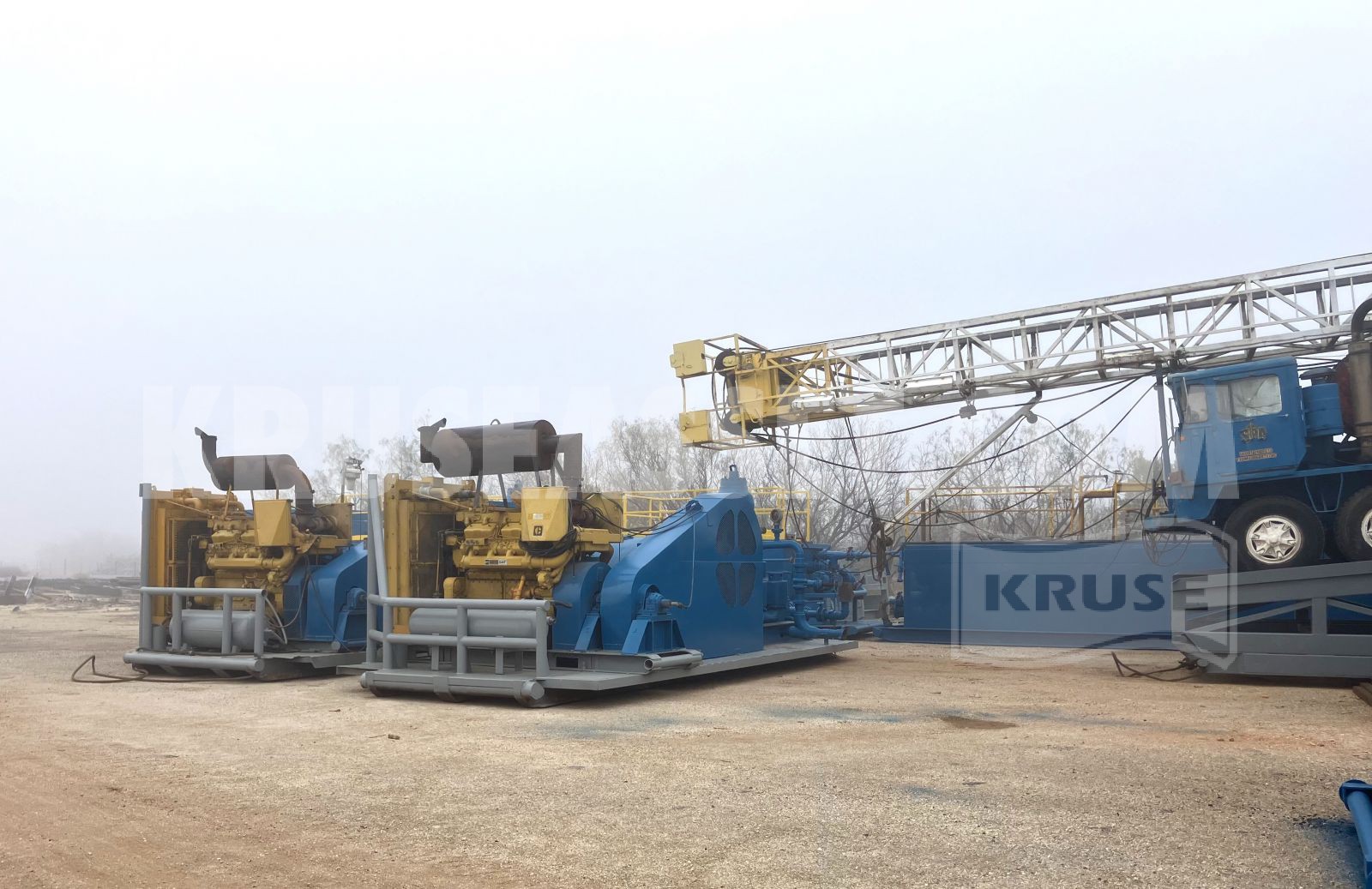

MUD PUMPS |
2 – DB550 with 379 Cat motors Optional – 2 – PZ-9 Gardner Denver with 398 Cat |
|
MUD MIXING TANK |
MGM 5 x 6 (Serial# 40185) with 50 HP 1750 RPM Mud Mixing Motor – Model# 2084A, Tupe FCT (ID# D12-R084a-M601) |
|
WORKING PITS |
Set of Steel Working Pits with Desander & Electric Shale Shaker DFTS Model DF275, 450 BBL capacity, Pill Pit – 30 BBL capacity, Set of Steel Suction Pit w/built-on Hooper House |
|
TONGS |
Hydraulic Iron Roughneck |
|
WATER TANK |
500 BBL capacity – water tank |
|
HEATERS |
2 – Electric Explosion Proof Heaters (1 – Model FX412-240360 – 7 – Serial# 5-4111-1033), (1 – Model FX412-240360-10 – Serial# 4188-1025) 3 – Kerosene 55,000 BTU Jet Heaters) |
|
DESANDER |
50 HP 1750 RPM Desander Motor (ID# R-4920-03-046M), 4 x 5 Desander Pump (Serial# 4154) |
|
PRESSURE WASHER |
Cat Pump – Model #550 + 160’ of hose with wand. |
|
AIR COMPRESSOR |
1 – Model 325 LVD p/b 30 hp Electric Motor. 1 – Model 325 p/b 30 hp Electric Motor. |
|
DRILL PIPE AND PIPE BASKETS |
Hydraulic Pipe Baskets with 184 joints of 4-1/2” 16.60 lb. Drill Pipe and 6-1/8” – 6-1/4” Tool Joints. |
|
DRILL COLLARS |
15 – 6-1/4” – Spiral |
|
COMMUNICATIONS |
Red’s Satellite Automatic Driller (Control Box, Motor and Bisquit), Spar Geolograph Chart Storage Box. |
ADDITIONAL RIG DETAILS/HISTORY:
A unique Walker-Neer 250-40 Apache that has been running over the past 12 years. It is an incredibly unique Walker-Neer in that it is carrier-mounted with back on high sub creating a 14’ KB.
Precision Drilling out of Canada, whom rig was purchased from, built an automated pipe system that will rack and un-rack to the two pipe baskets as well as role load and unload drill pipe without touching. The pipe is fed into a hydraulic boom that raises the pipe into the derrick for connections or trips.
The right-angle box has been upgraded with a 1,000hp right angle box that drives the draw works. Also upgraded, the swivel top drive to a Venturetech XK-150 swivel with a backup swivel. The rig has drilled to a depth of 7,500’, but 5,500’ – 6,000’ is a very comfortable depth. We have casing swages that make up to the swivel which allows us to run our own casing, which is a big money saver.
The rig is very mover friendly in the field, the rig with (2) trucks and a forklift from location to location can be moved within 4 hours without additional assistance. It can be set in and ready to raise the derrick when the roughnecks return from days off. It is operated with a 2 – 3-man crew. It is the most efficient rig made.
Seller has drilled over two million feet of hole with an average depth of 5,000’. It will out drill any Jackknife made to 5,000’. Rig has been very well maintained and drilled its last well in October 2024. Rig is in central Texas and ready for inspection.
