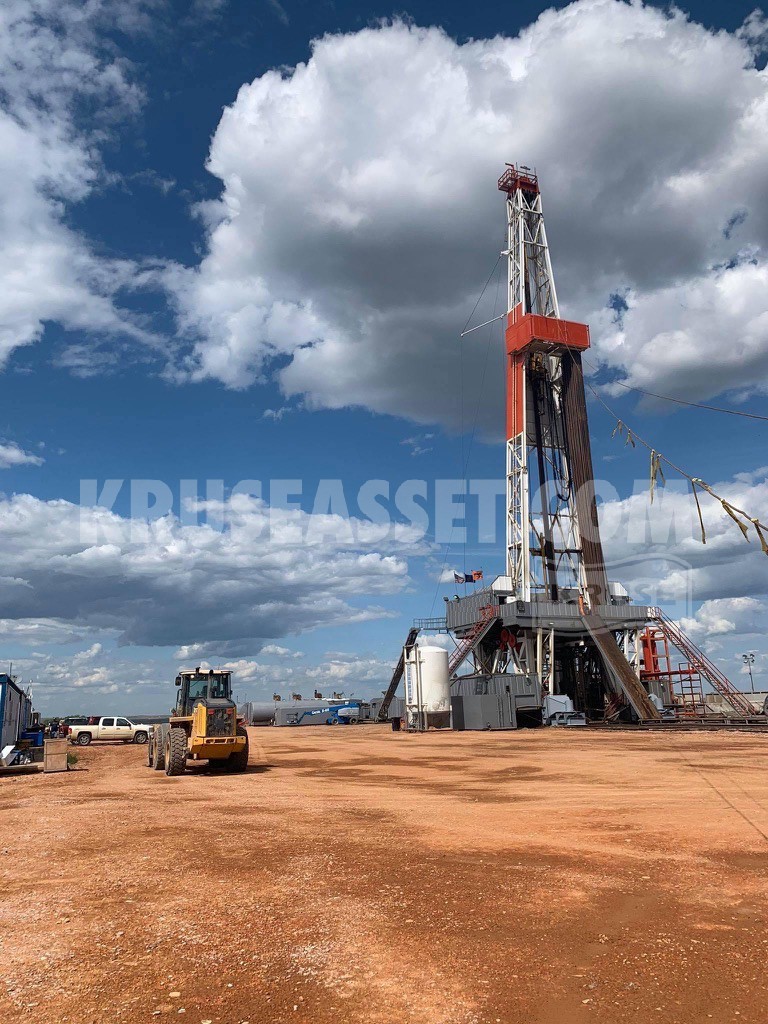

Oilwell E-2000 Drilling Rig for Sale

NEW Sale Price: $2,500,000

MAJOR PRICE REDUCTION $3,9M
Completely Refurbished in 2012
Good Condition w/Tubulars, Stacked 2021
500 Ton NOV TDS11 Top Drive Unused Since

2021 Reburb. 5" Drill Pipe, Spare Equipment.
Located in North Dakota


DON'T DELAY, NOW ACCEPTING OFFERS
Call to Inspect (800) 952-1973






Listing Details



Raven Drilling

RIG No. 1                                     Inventory

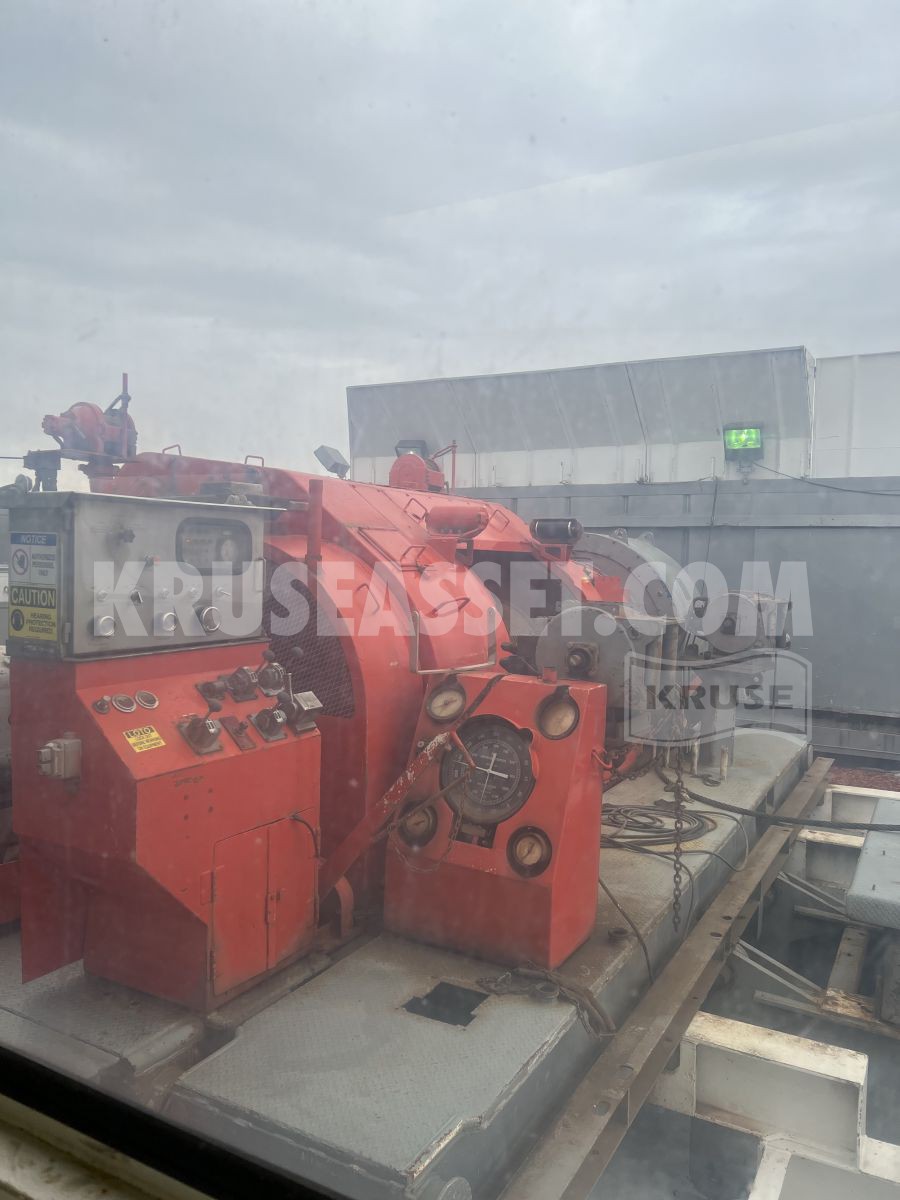

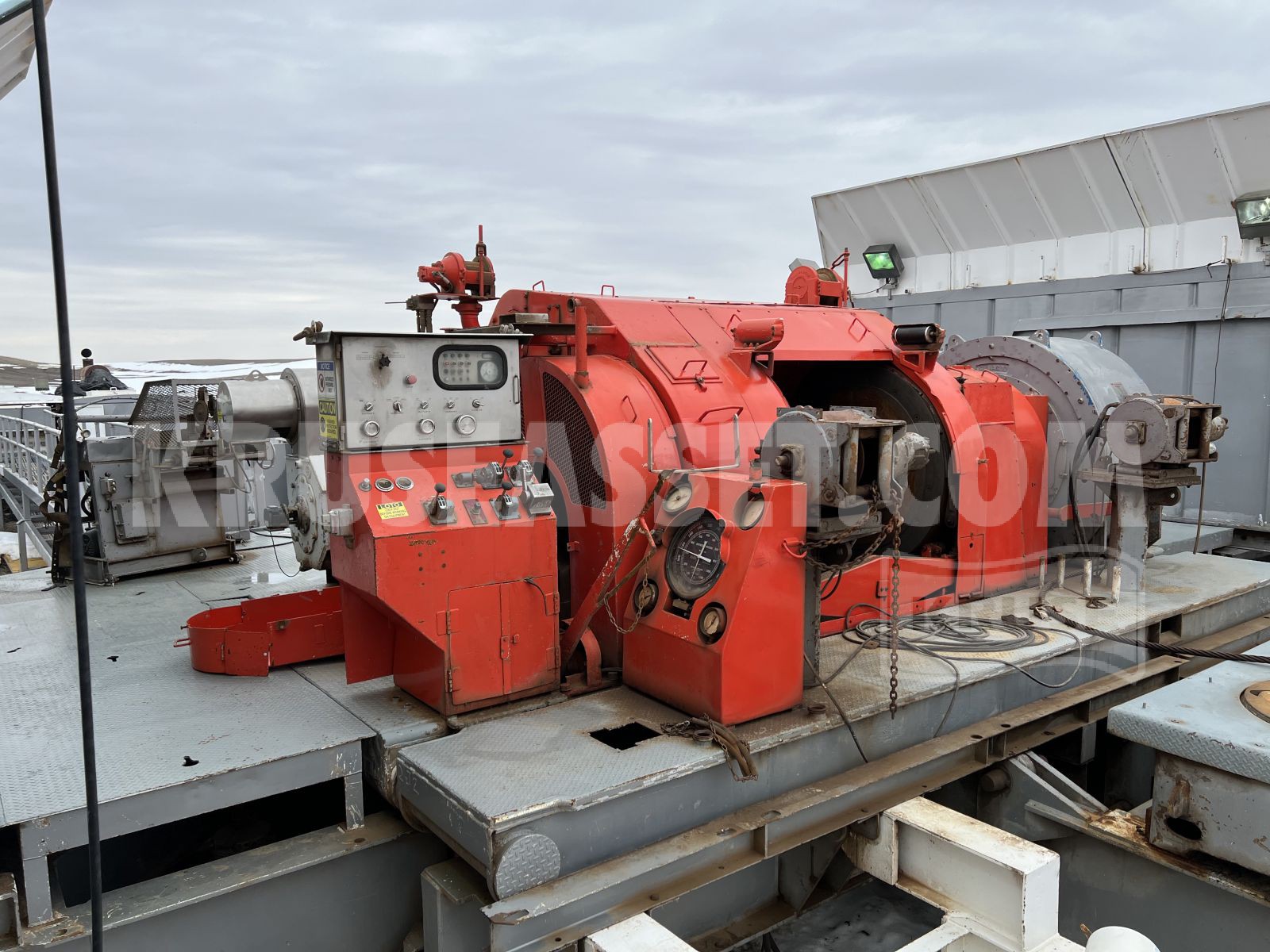

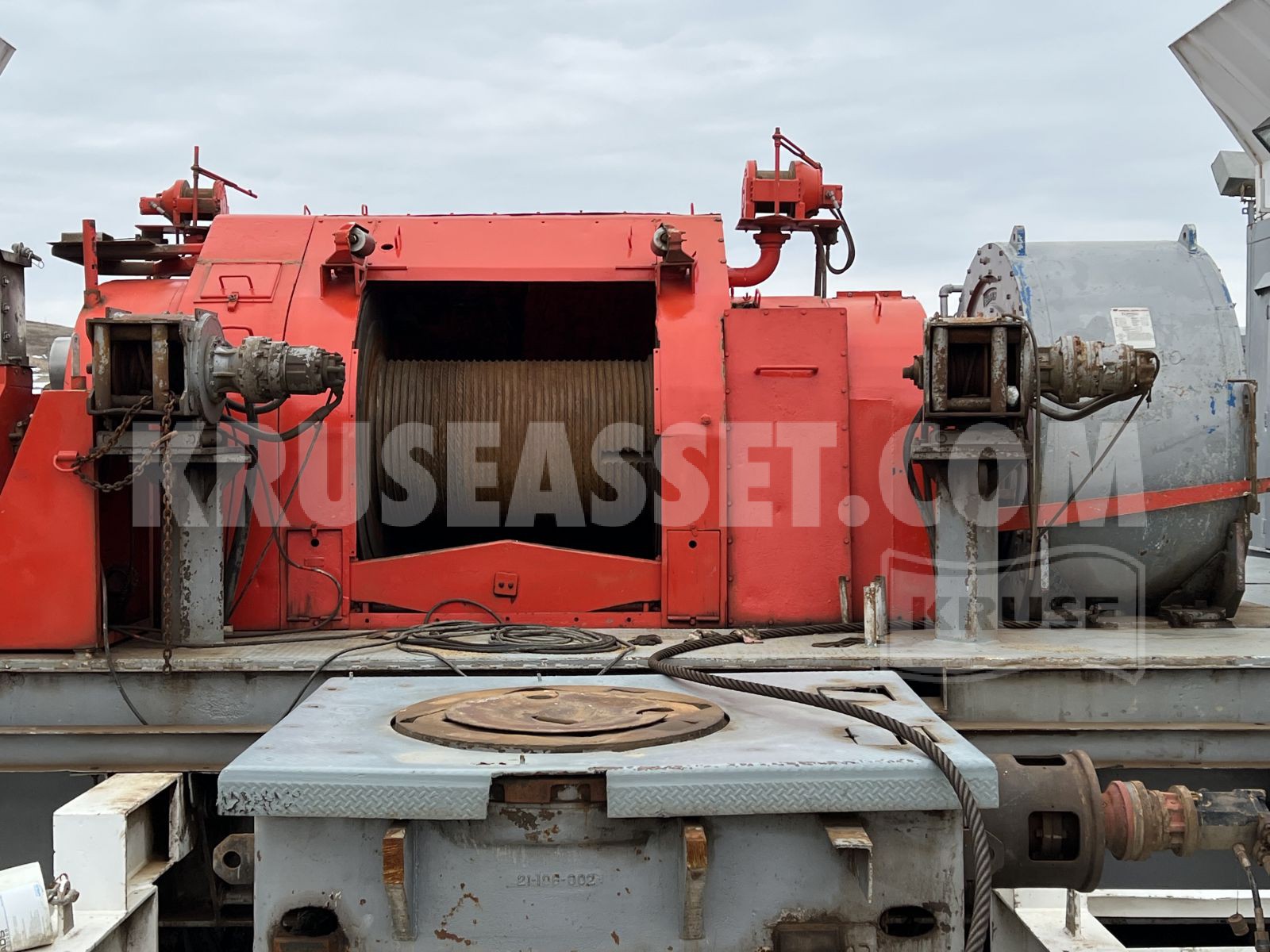

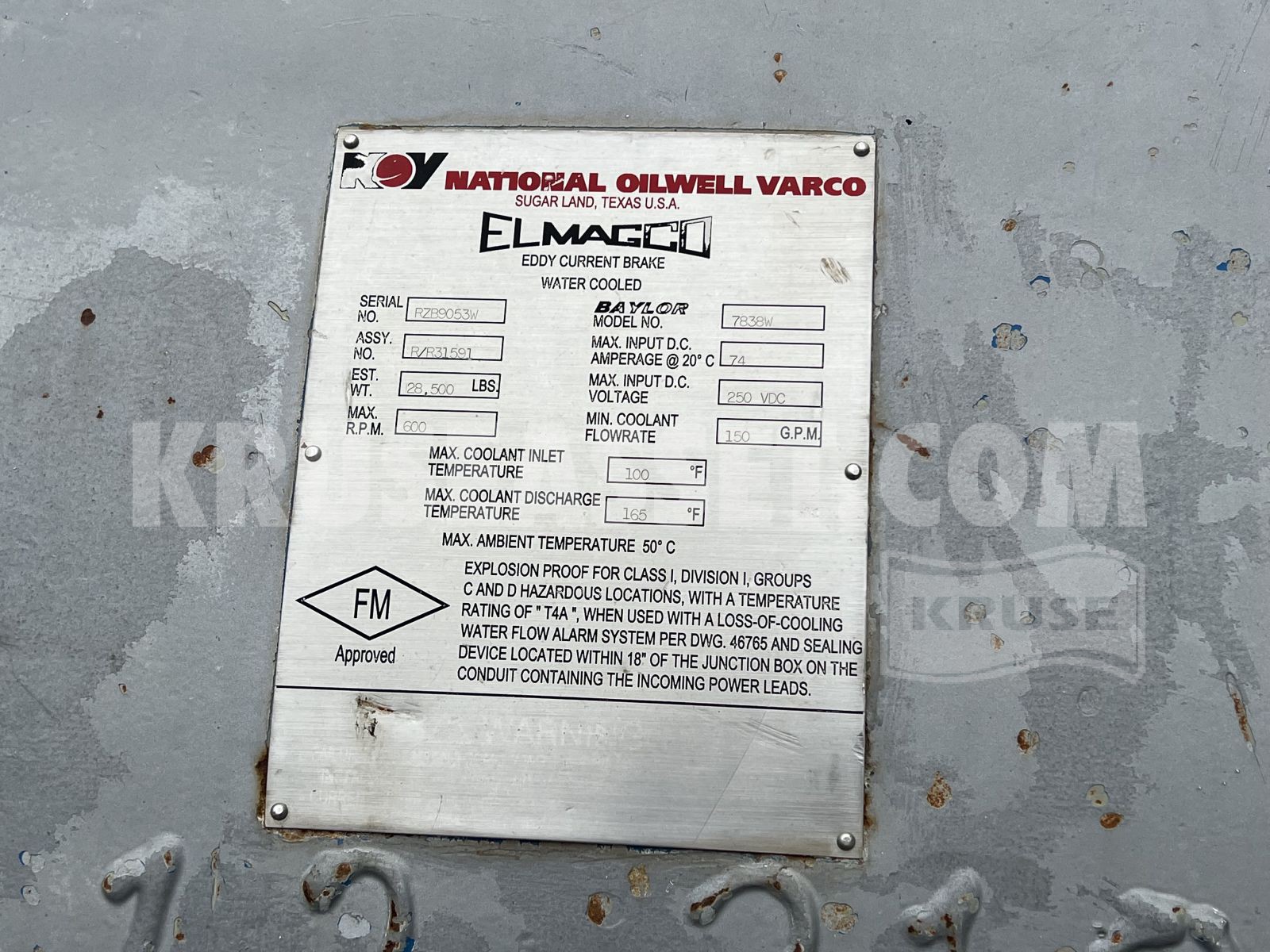

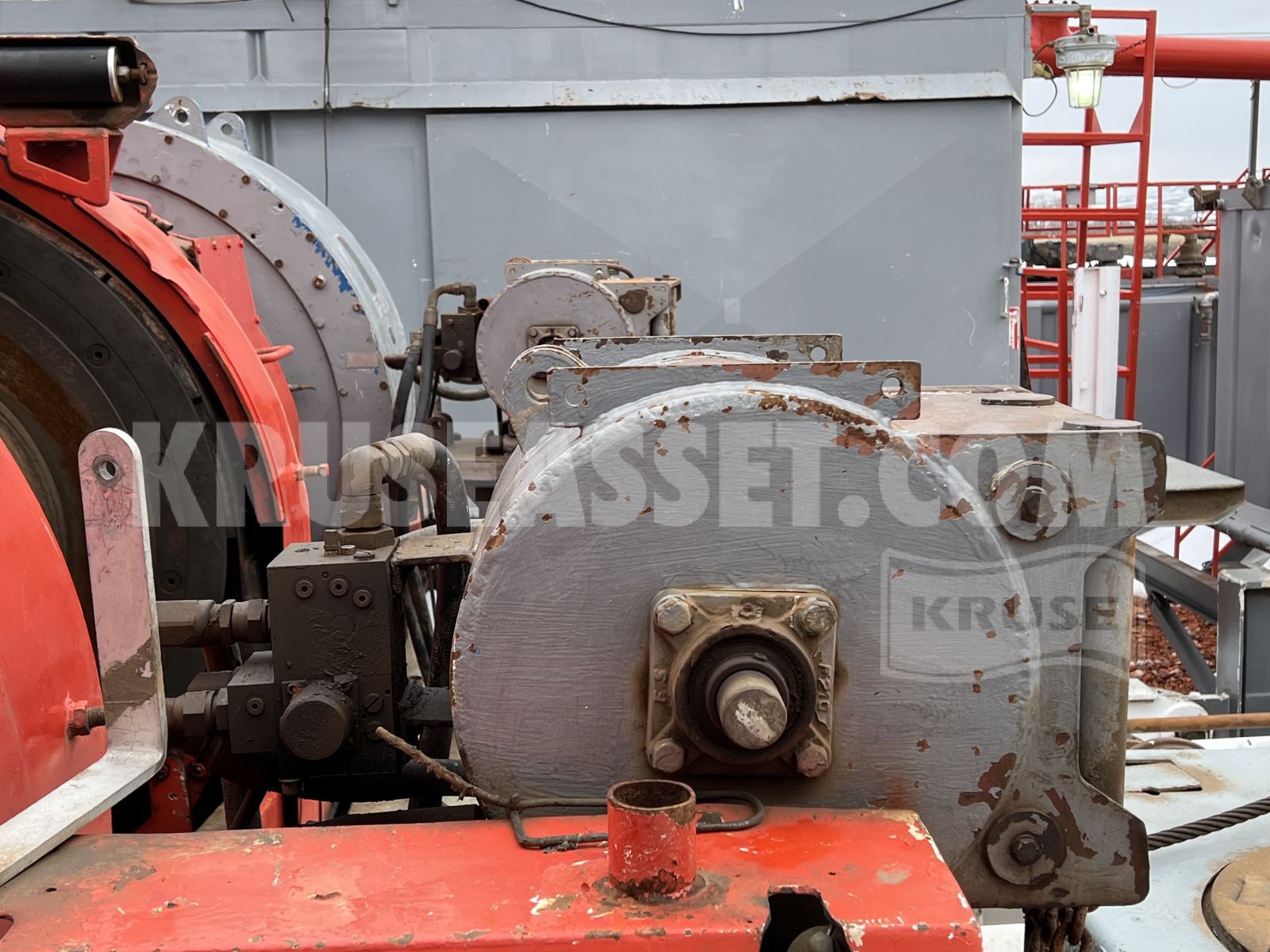

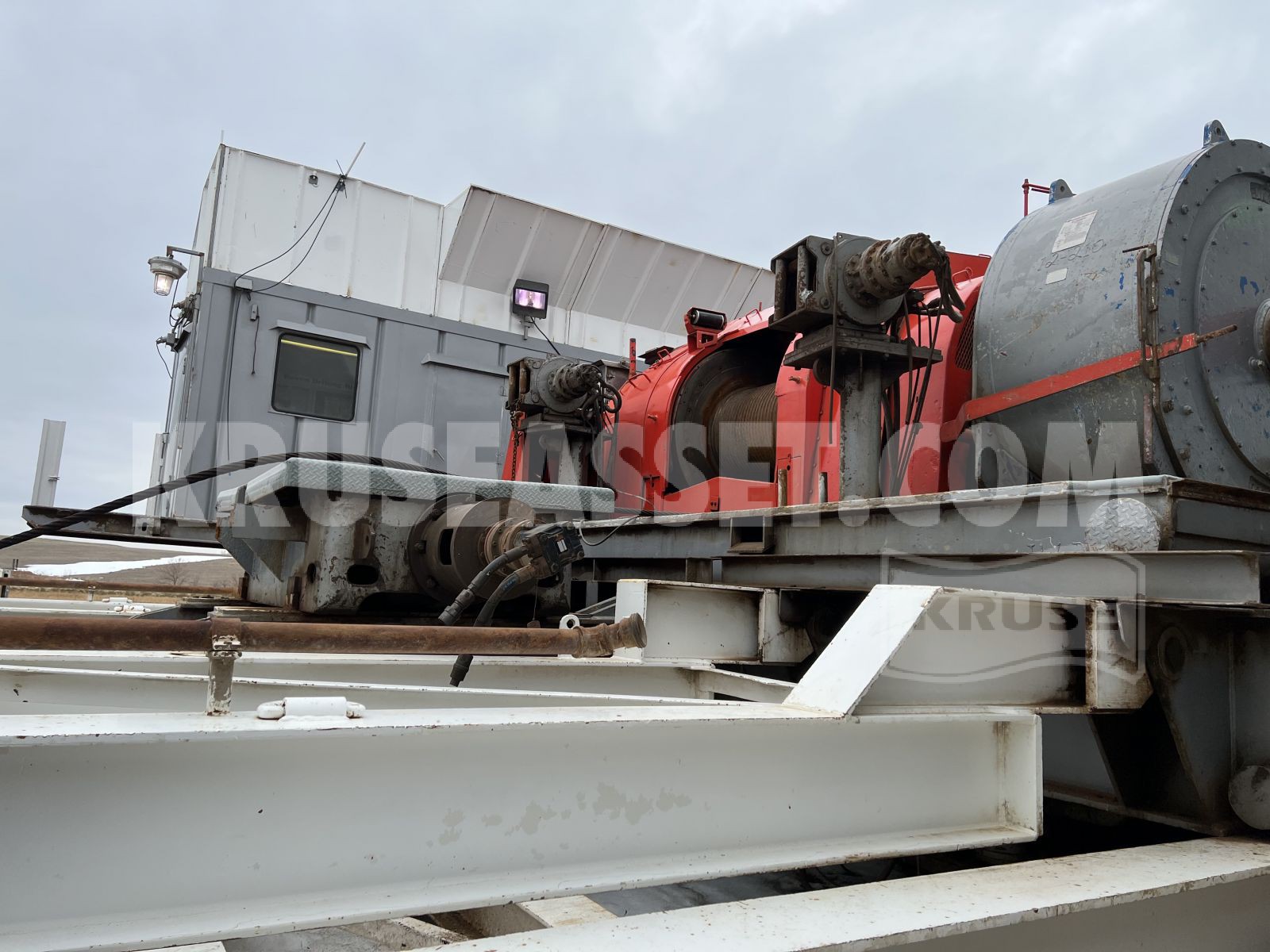

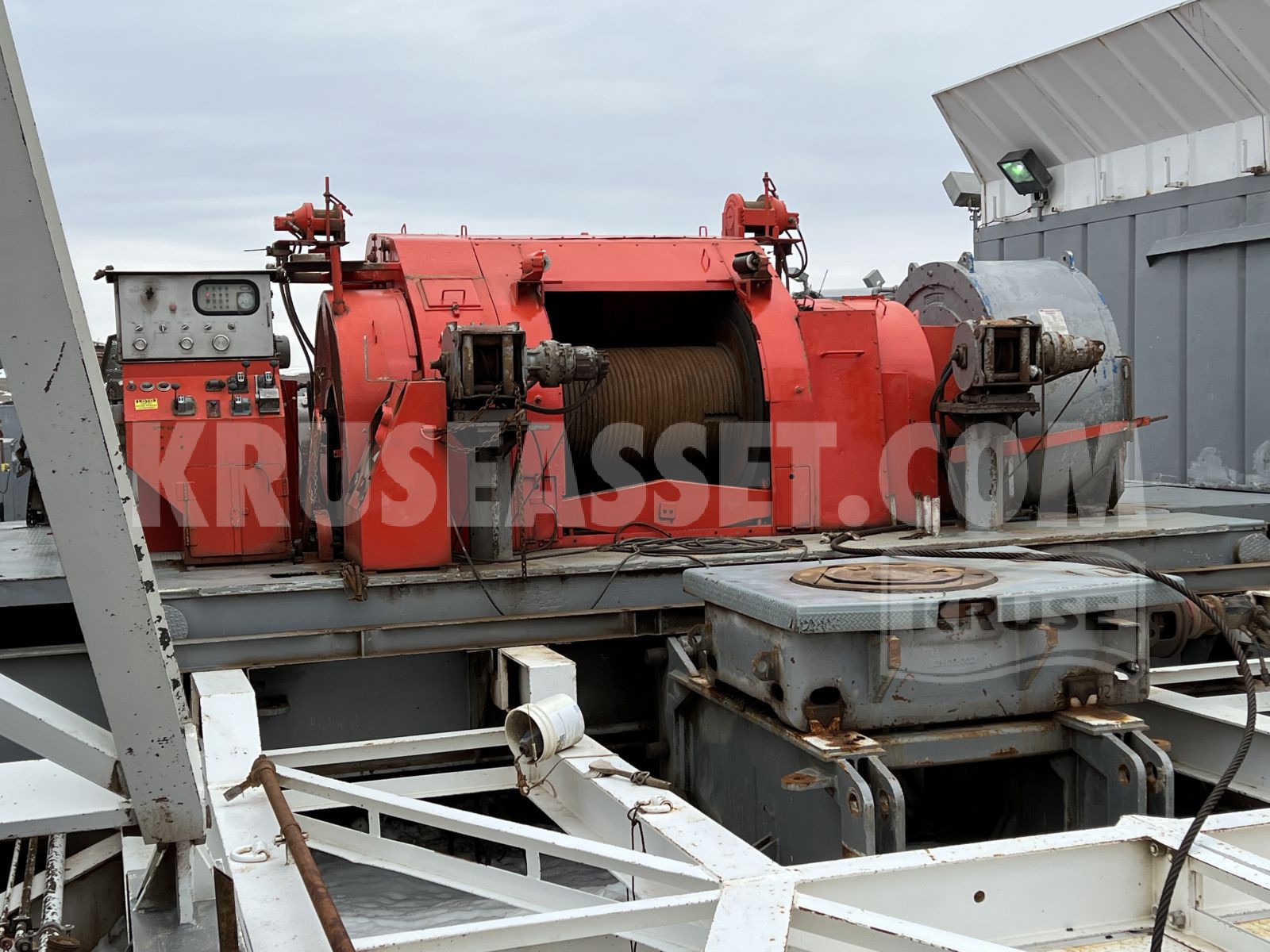

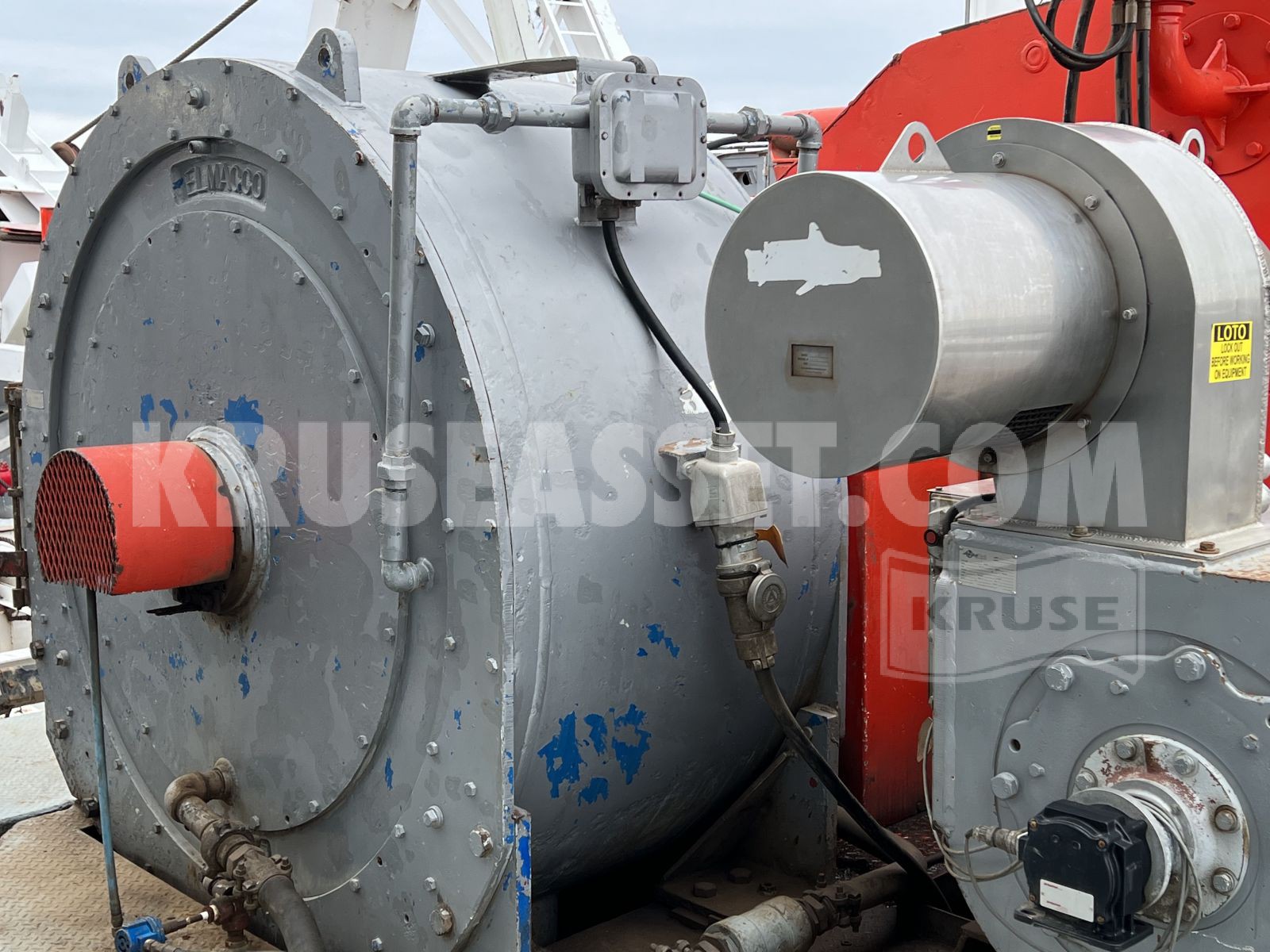

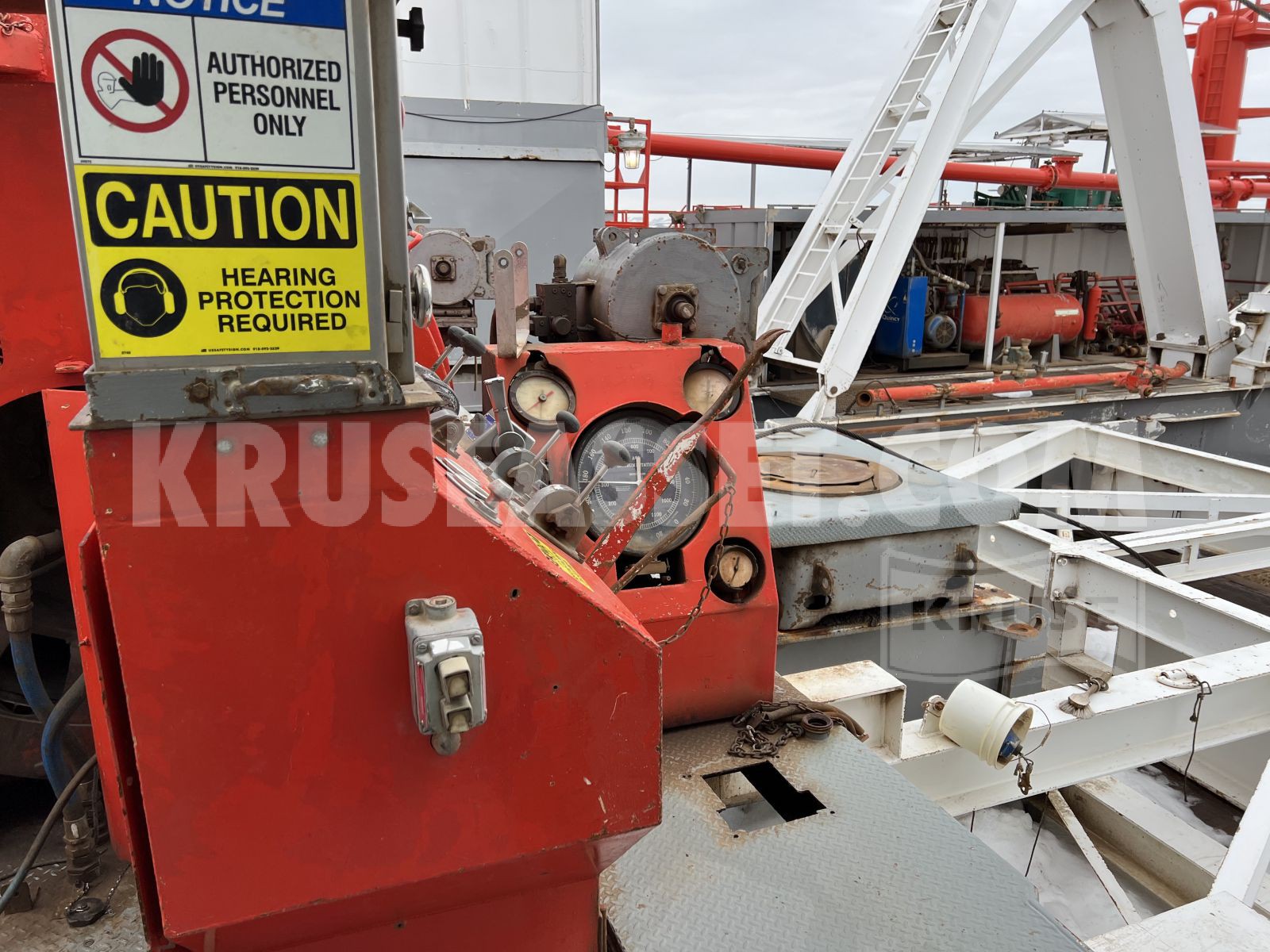

DRAWWORKS:           Oilwell E-2000 (2000hp) -with Elmago 7838 Auxiliary Electric Brake.

Powered by Two (2) G.E. 752 -1000 HP Electric Motors, Drillers Console, Grooved for 1 ½" Wire-line,Single Drum. With 2 Hyd catheads.

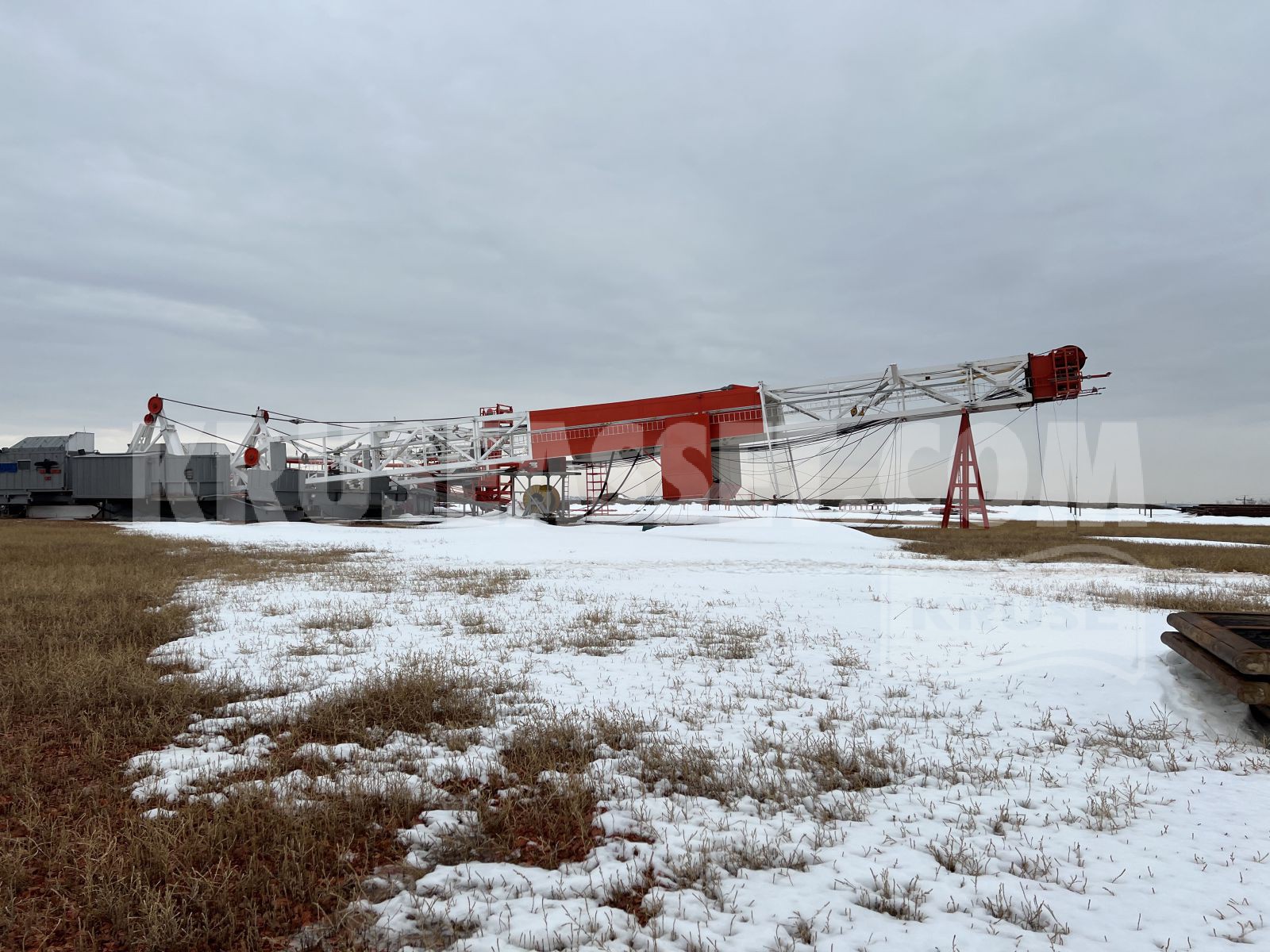

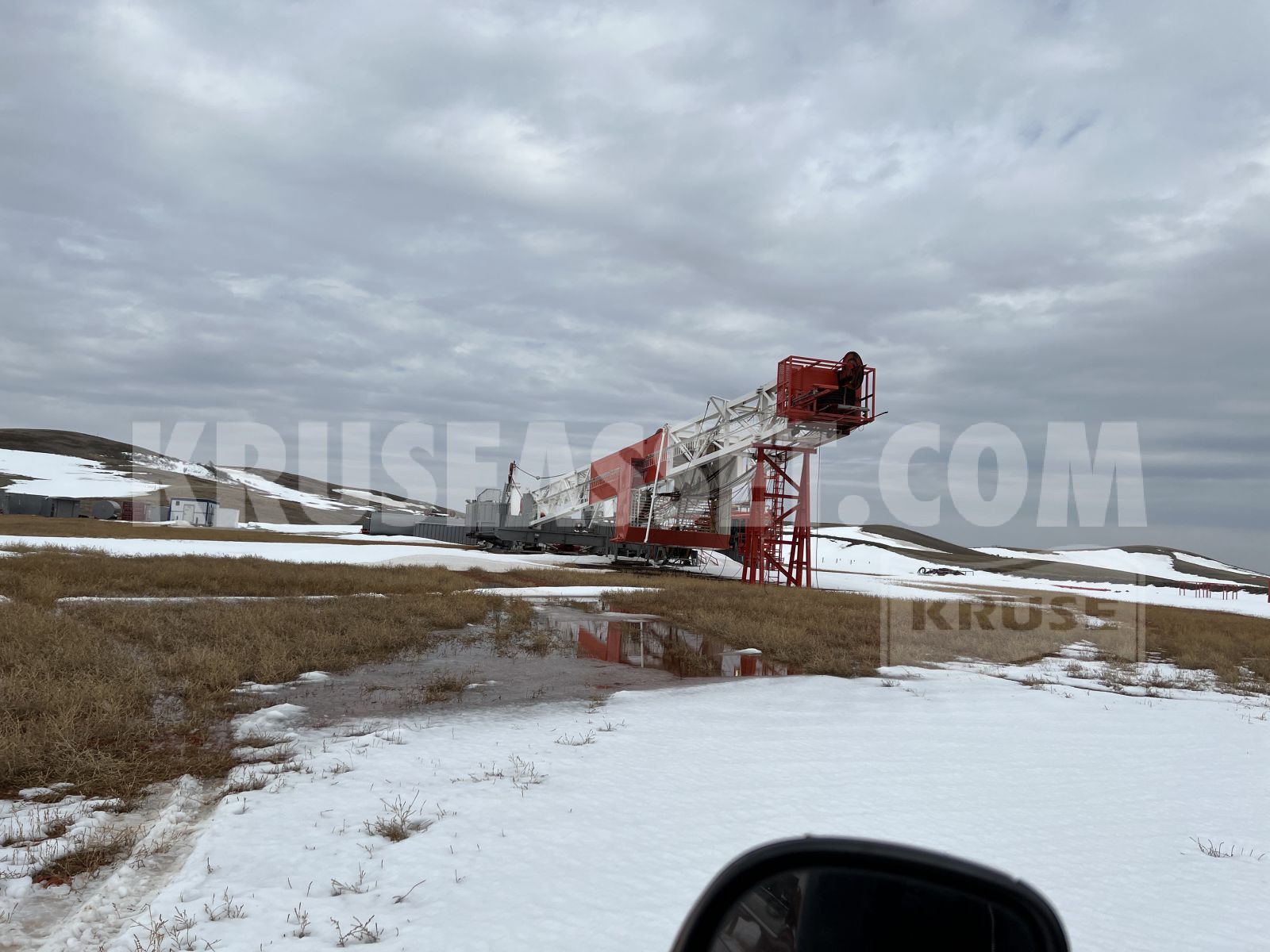

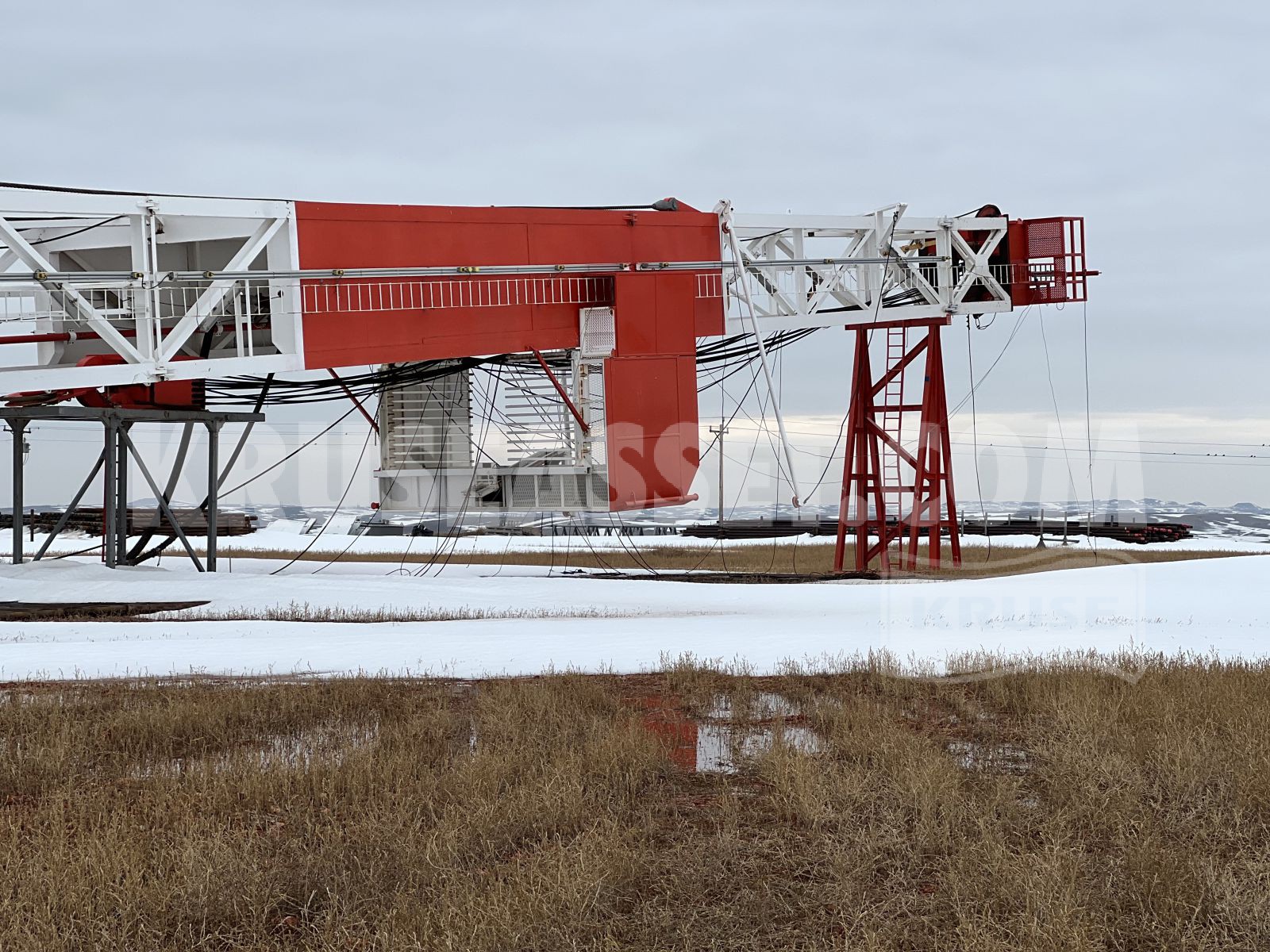

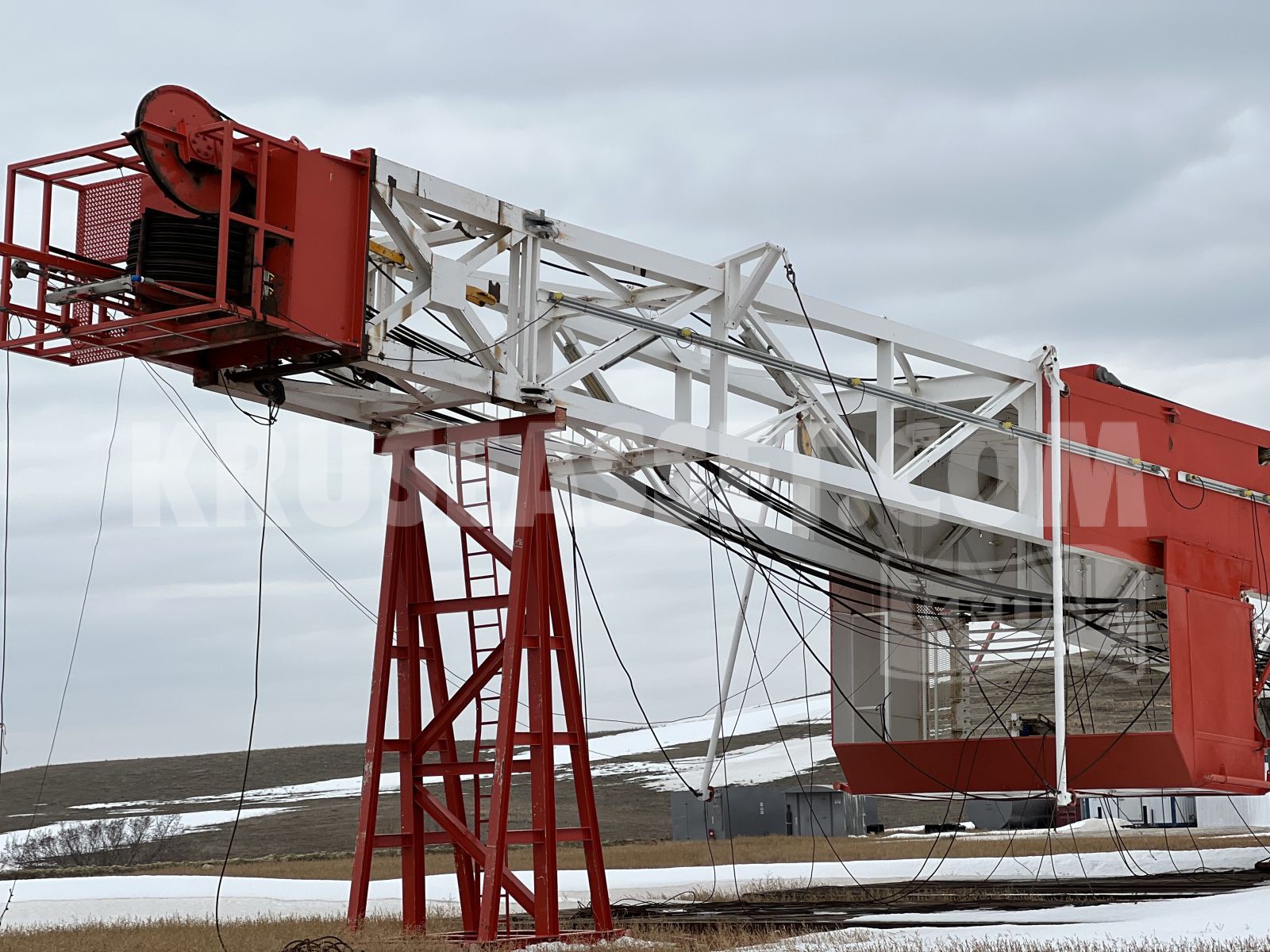

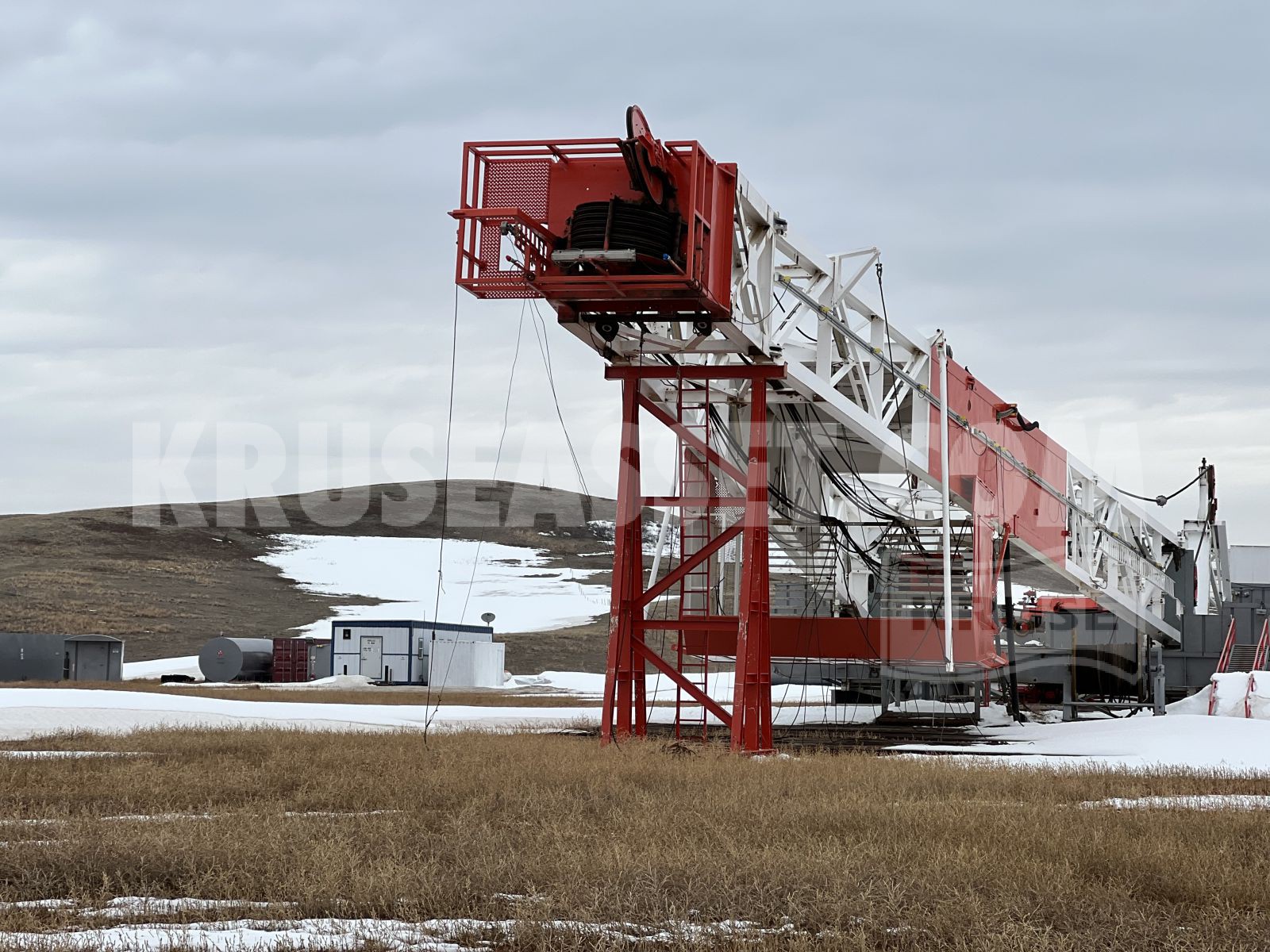

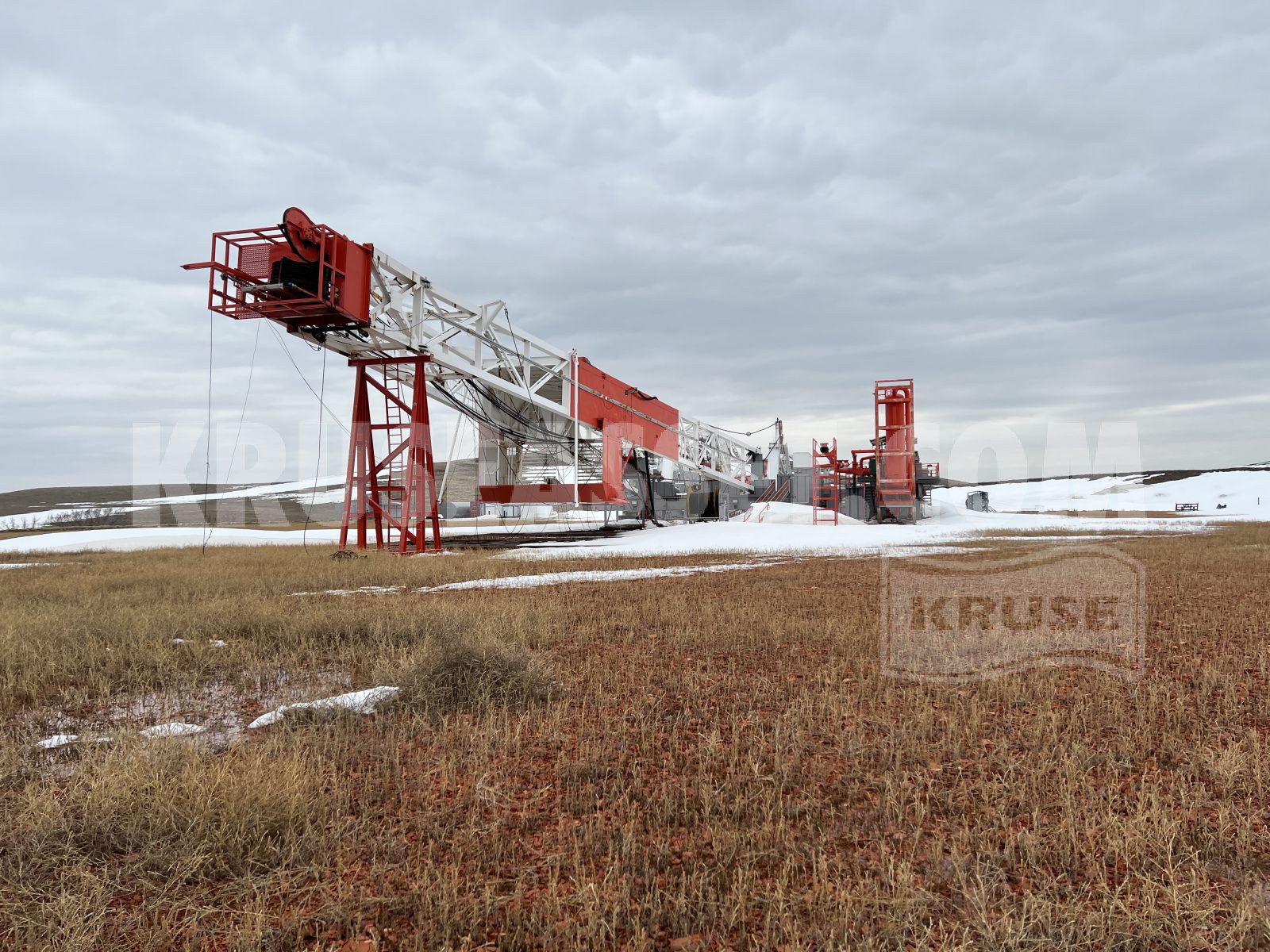

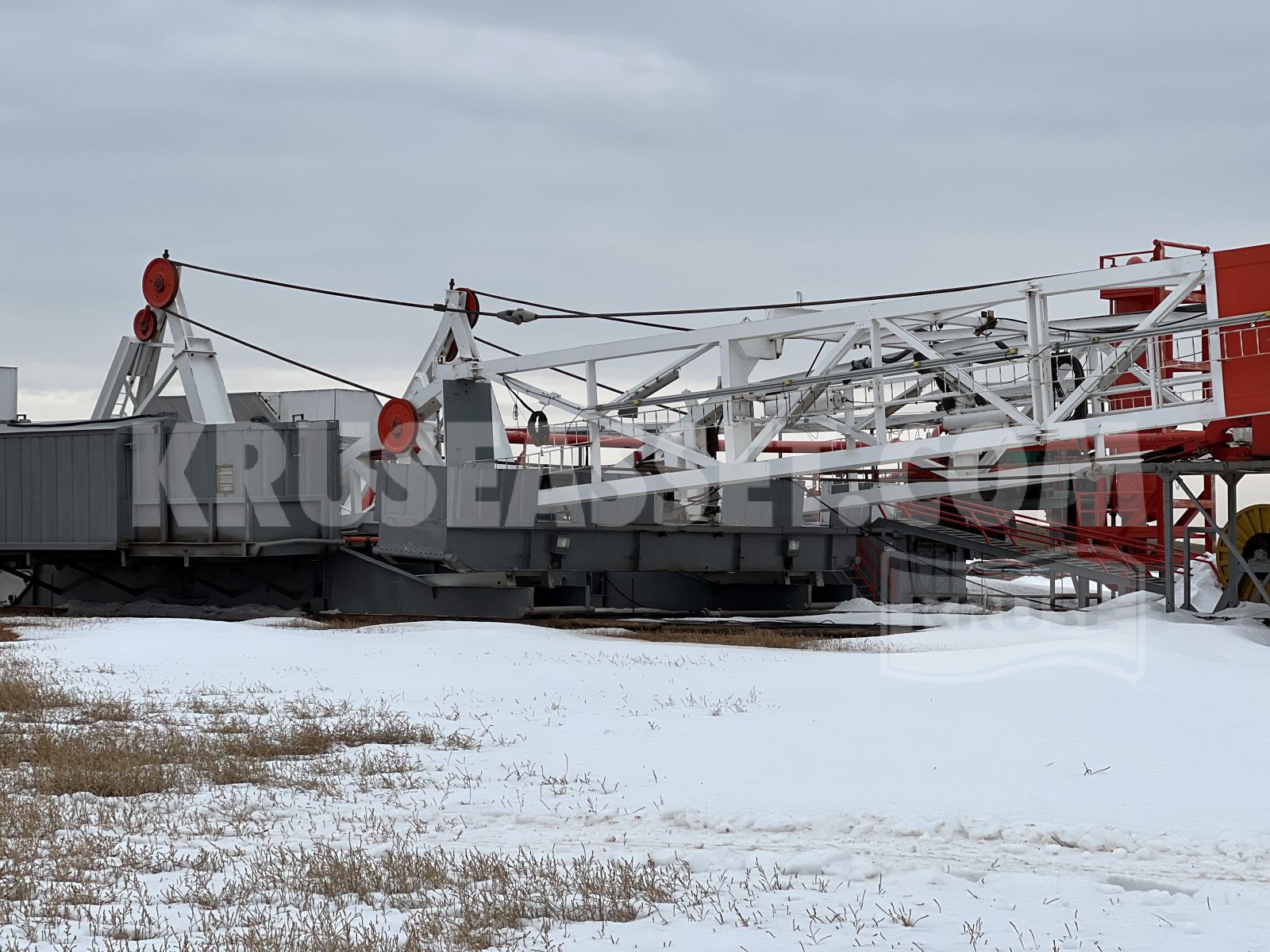

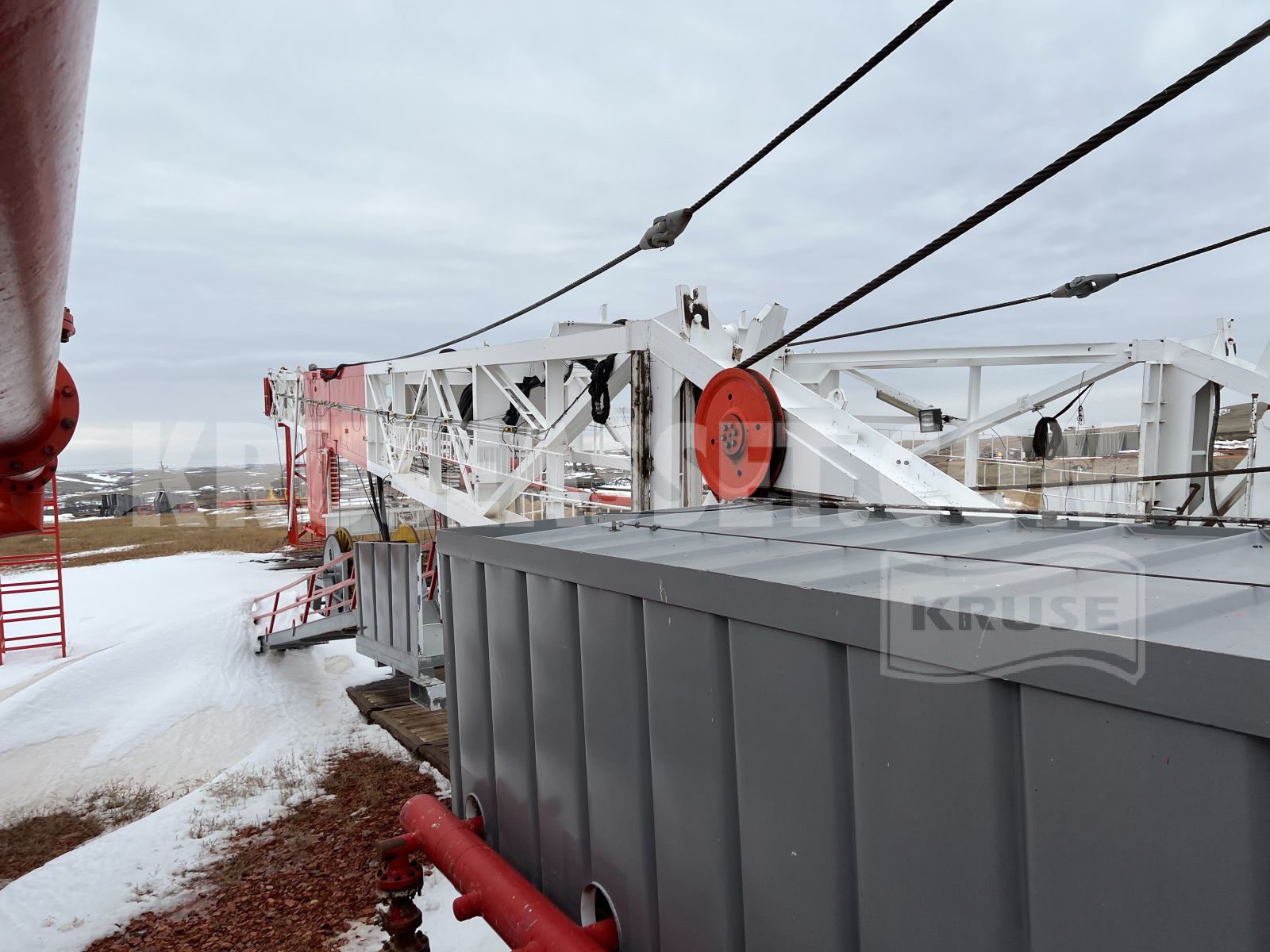

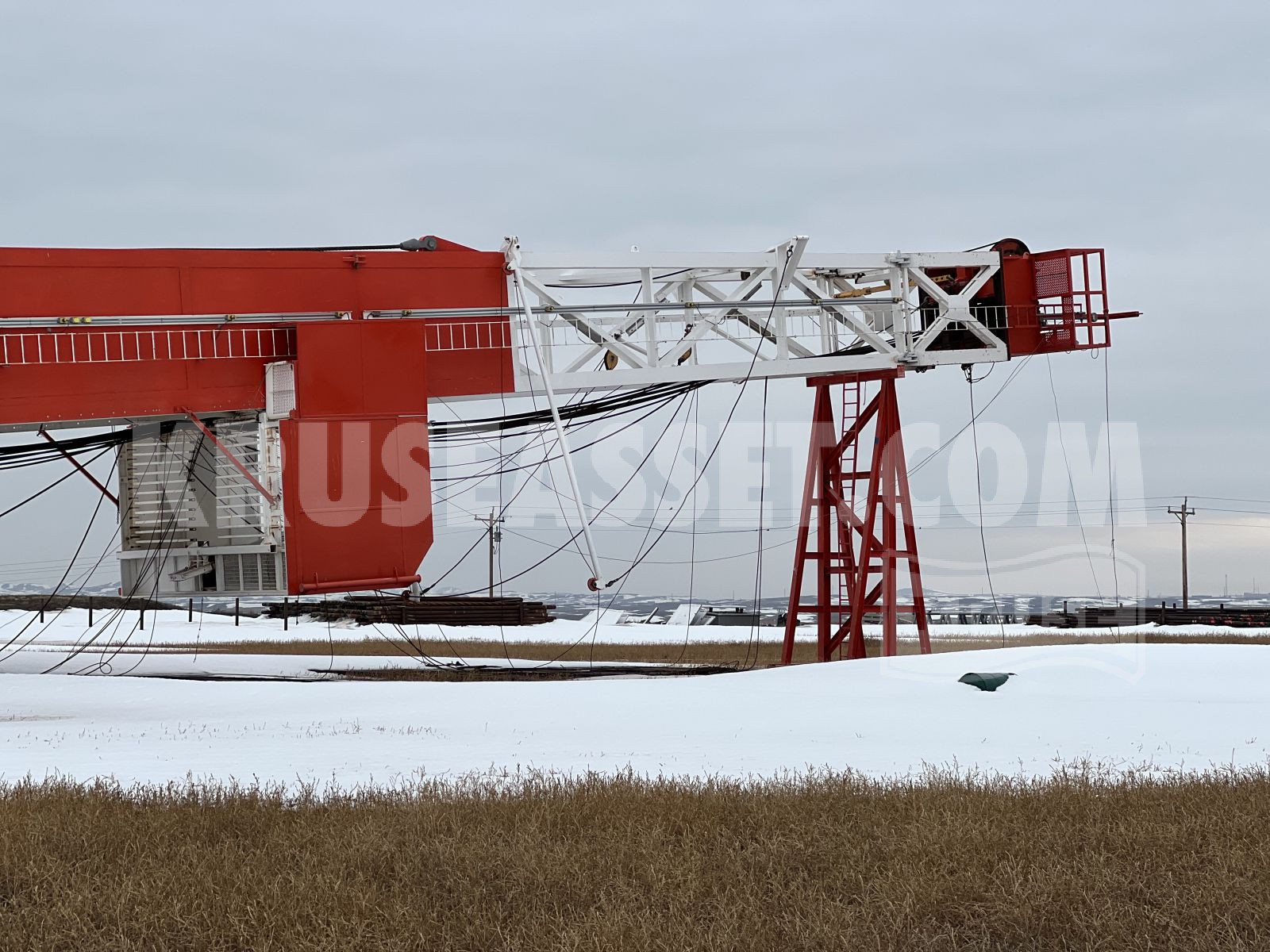

MAST:                         Lee C. Moore, 152' Beam Leg, 1,300,000# SHL. Seven (7) 60" Sheaves with (1) 60" Fast-line Sheave. Boom Pole, Derrick Shoes, Stand Pipe Manifold. Derrick Ladder.

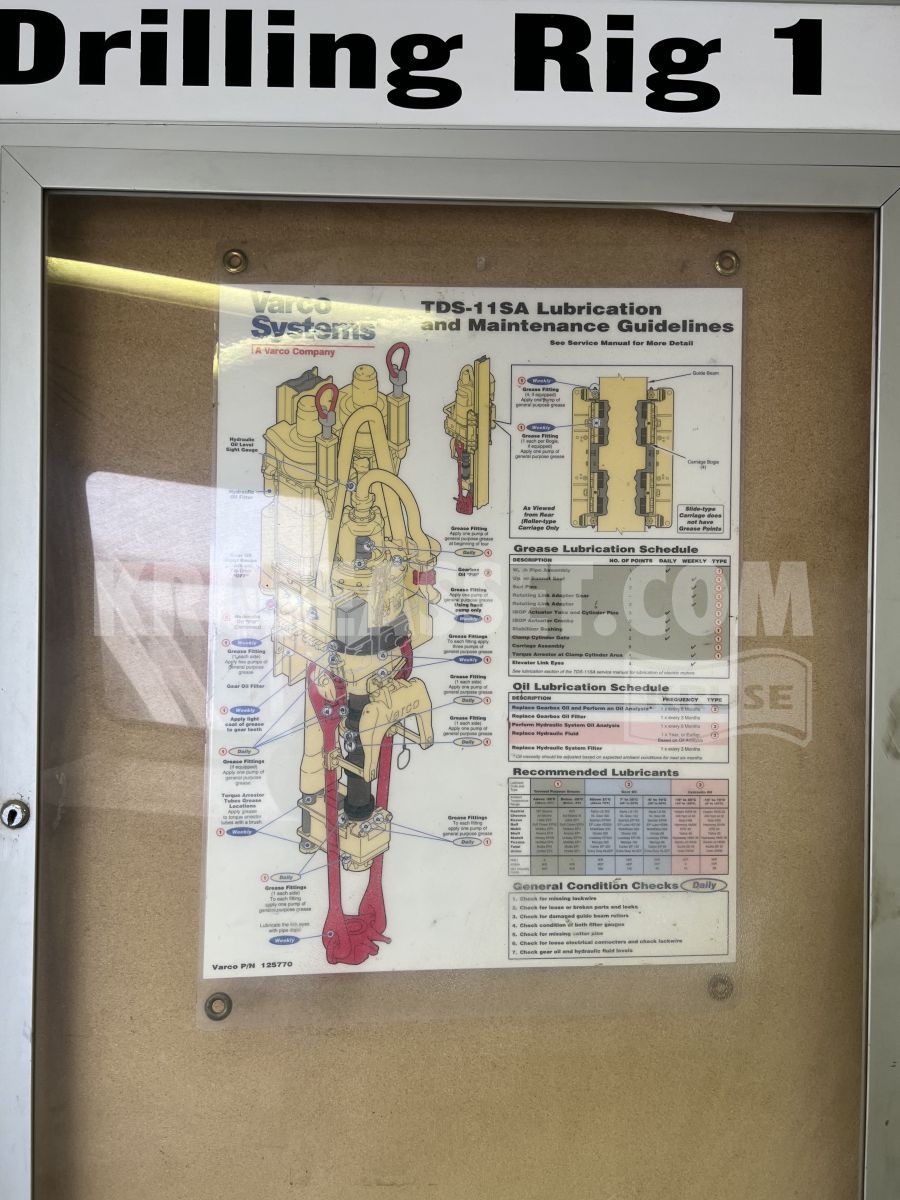

TRAVELING EQUIP:  Oilwell 650 Ton Blocks. VARCO TDS-11S 500 ton top drive with 120" 500 ton bales

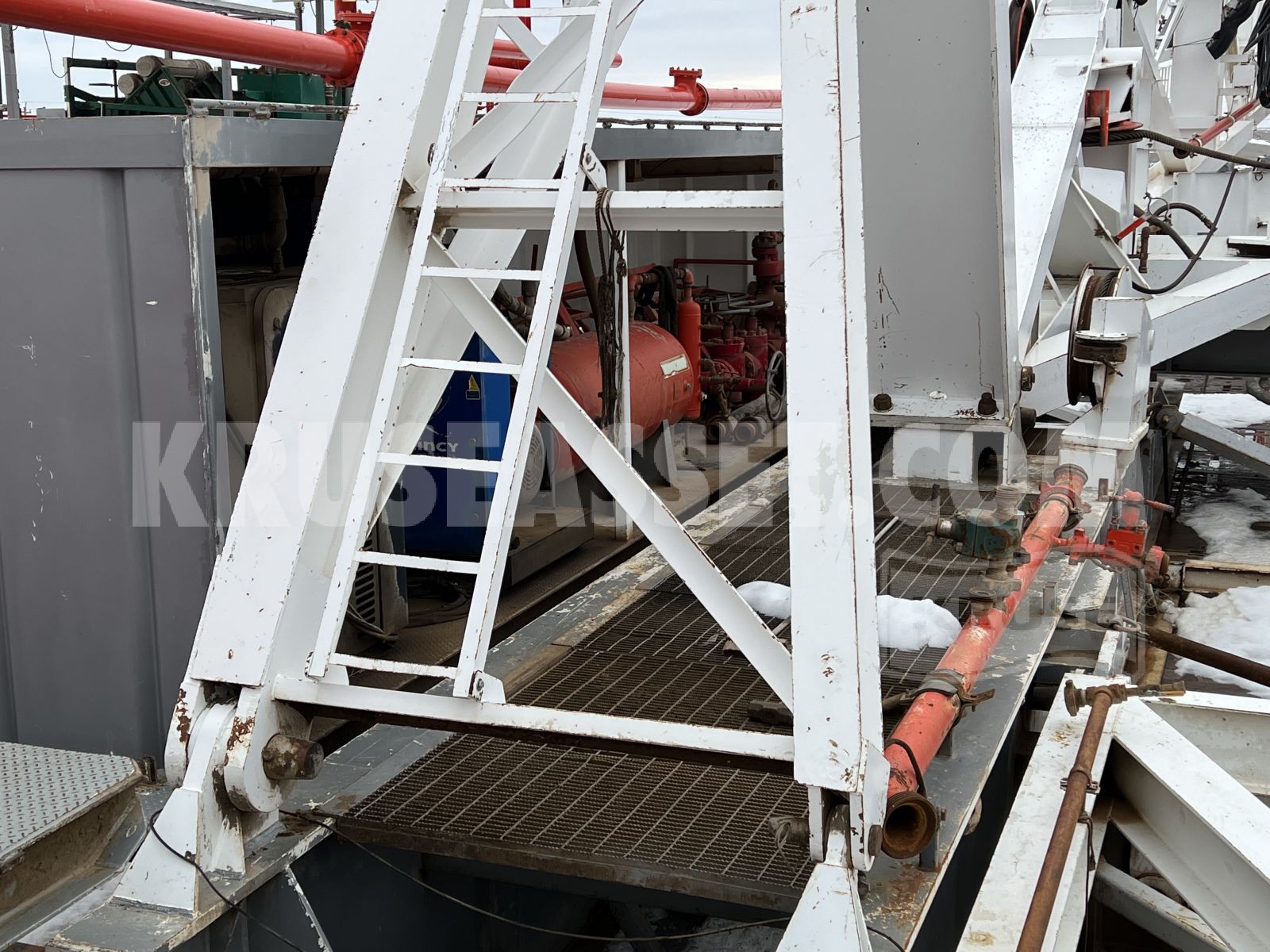

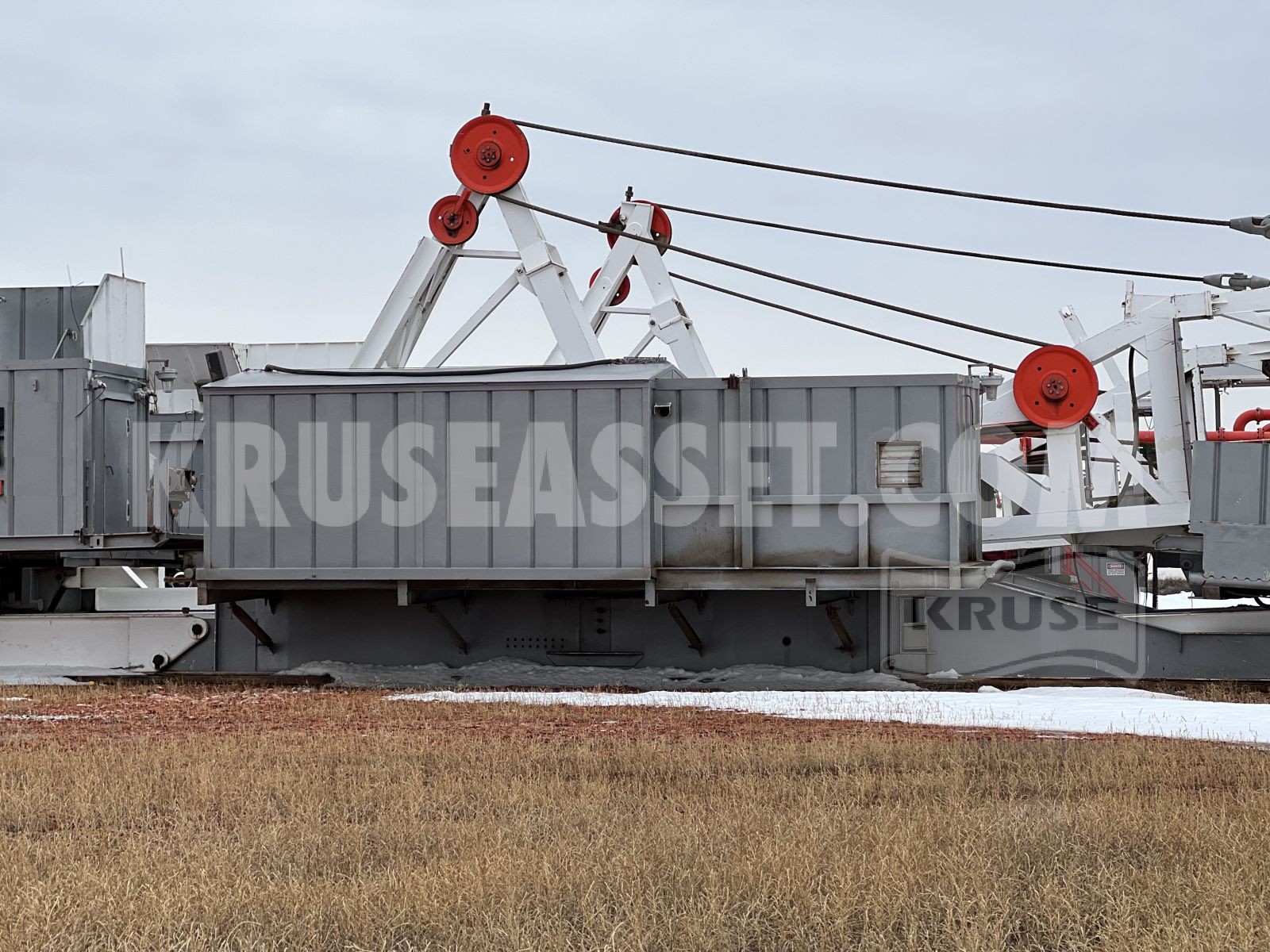

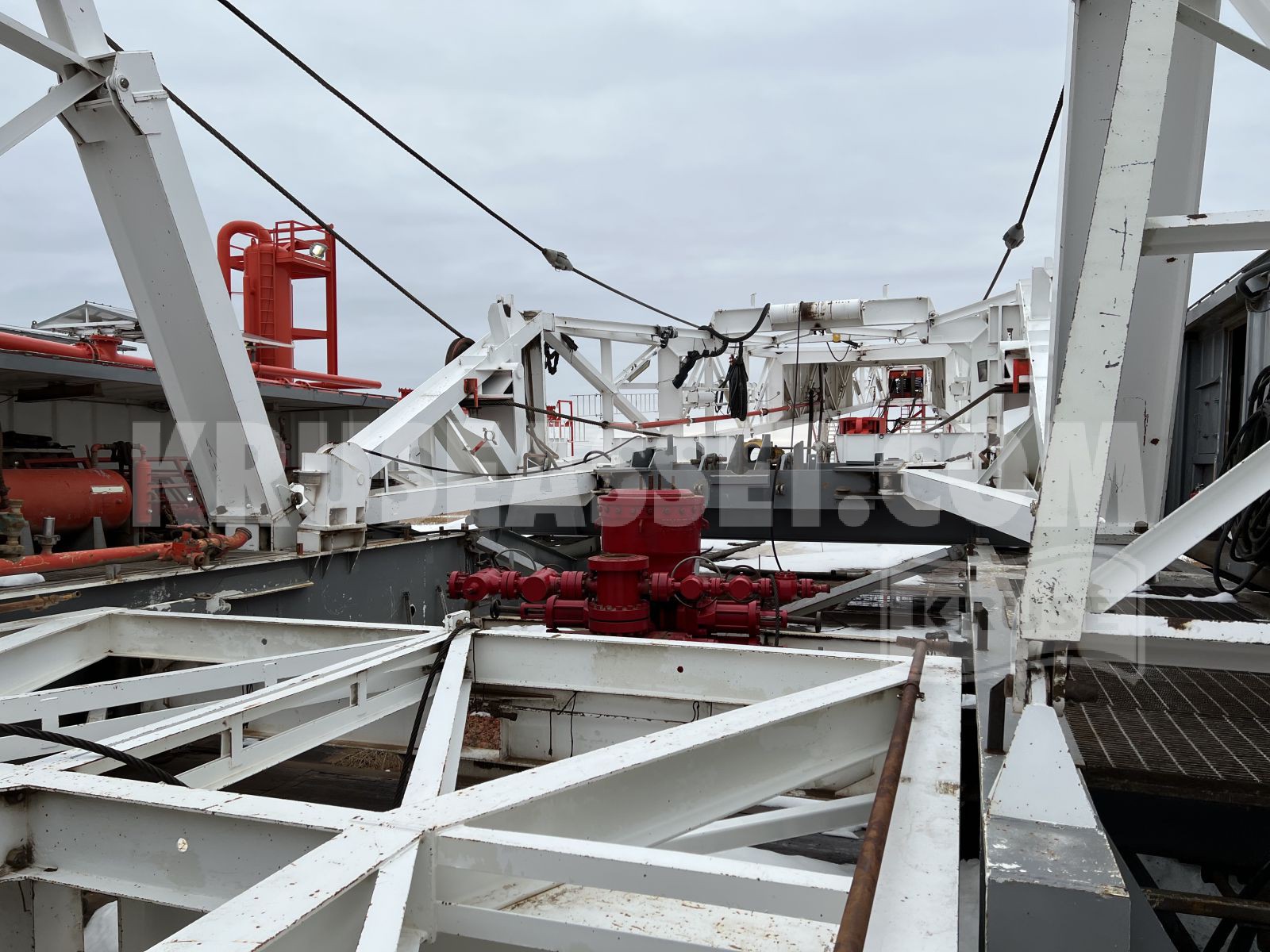

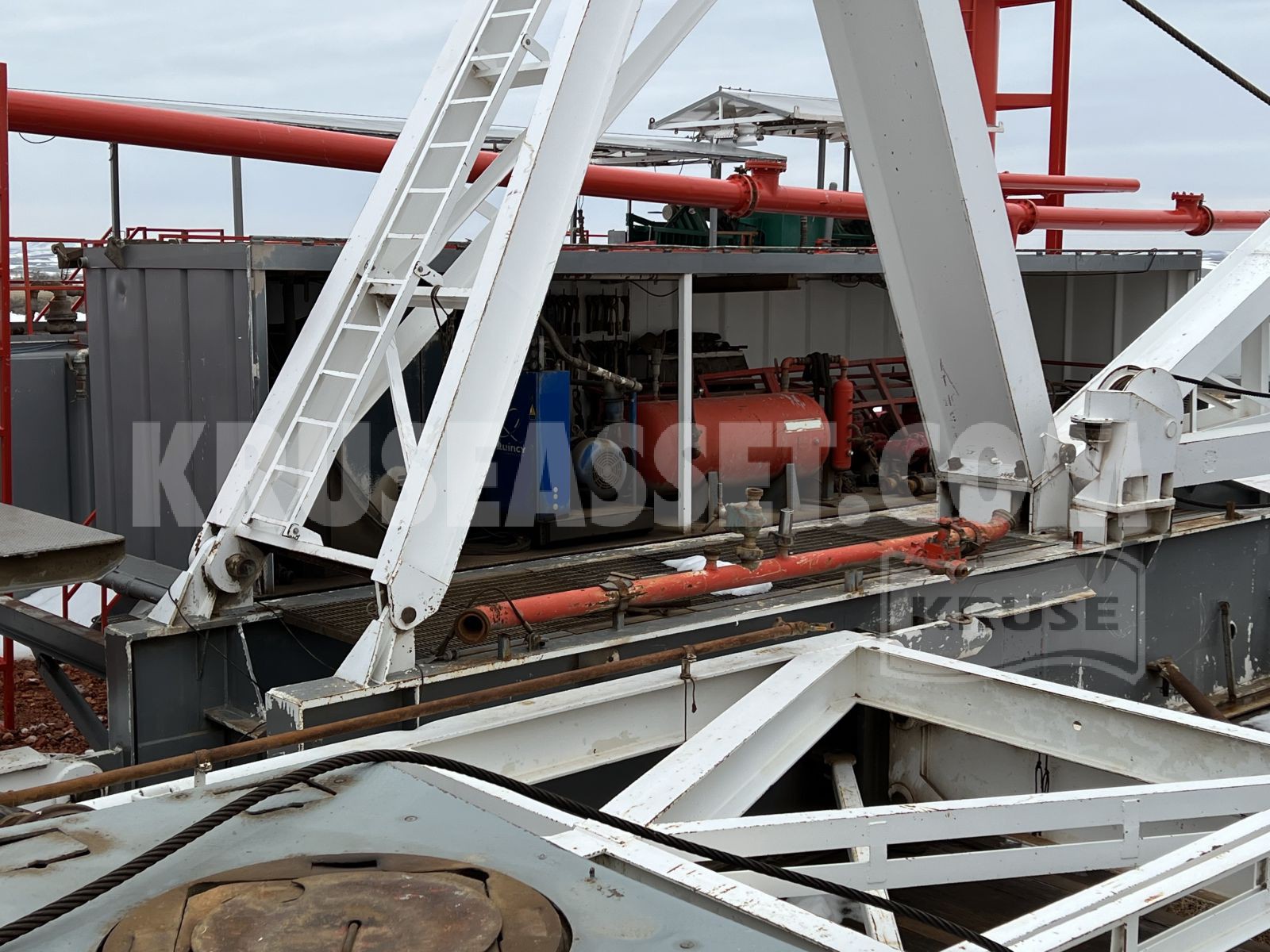

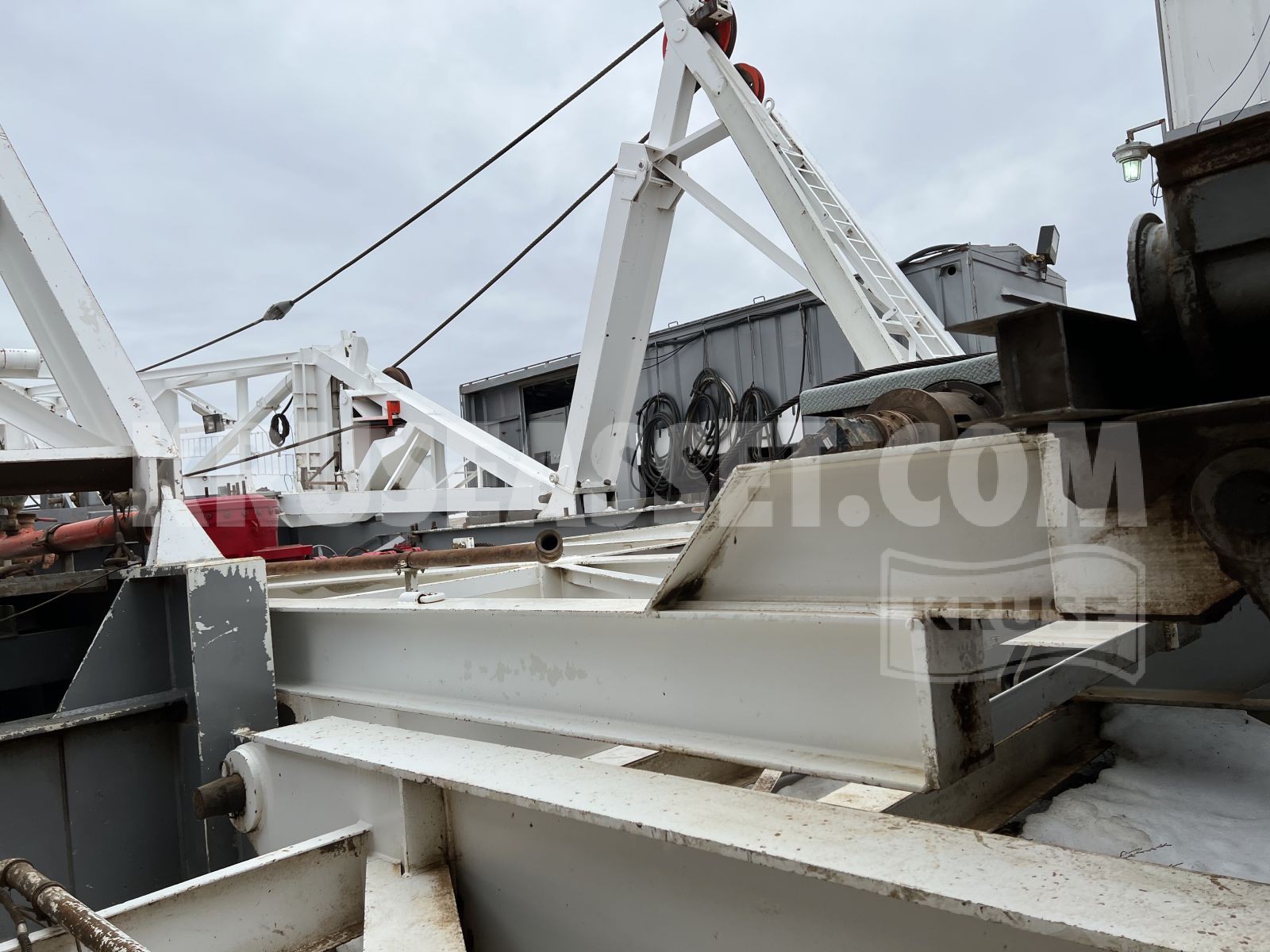

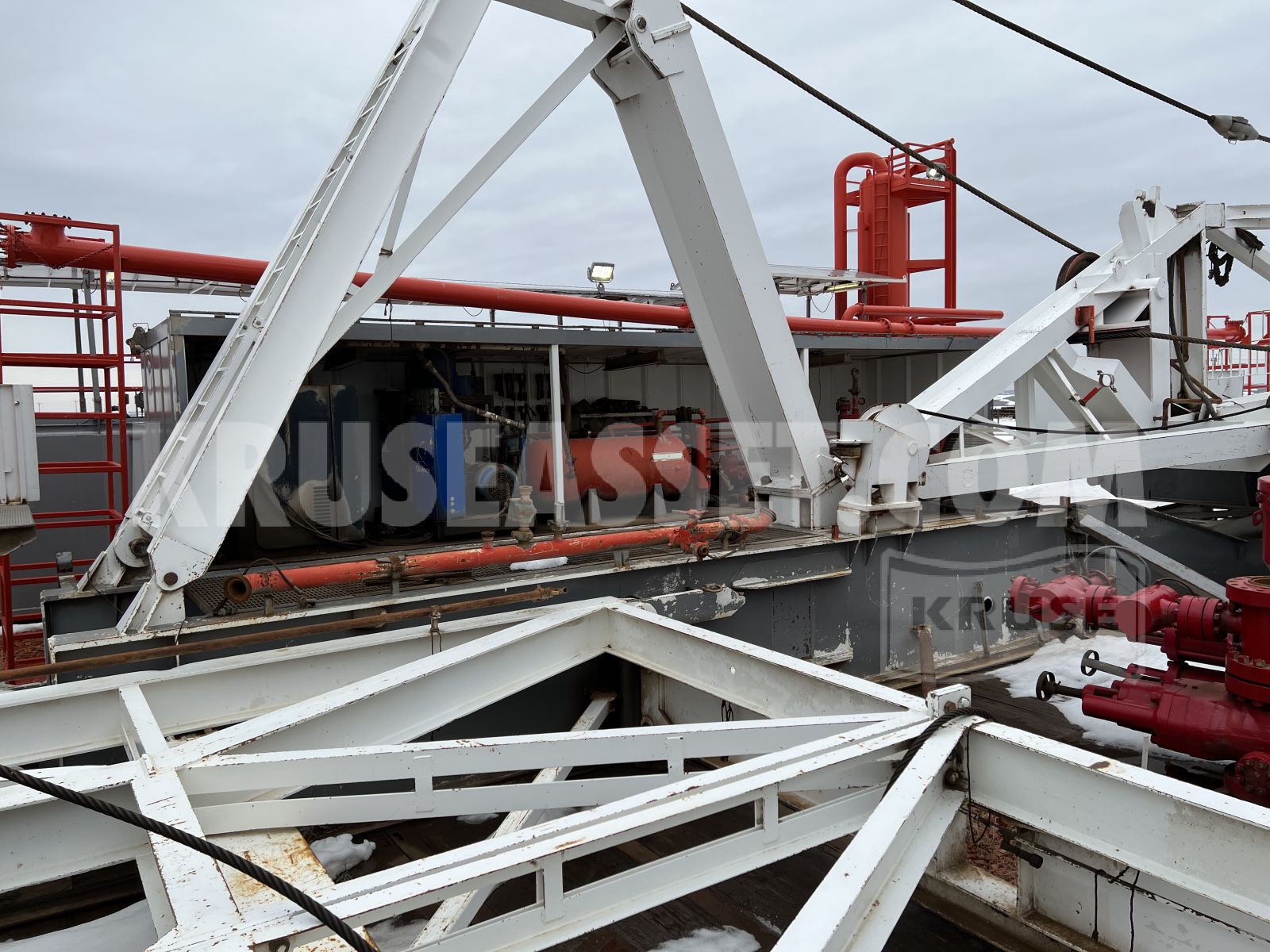

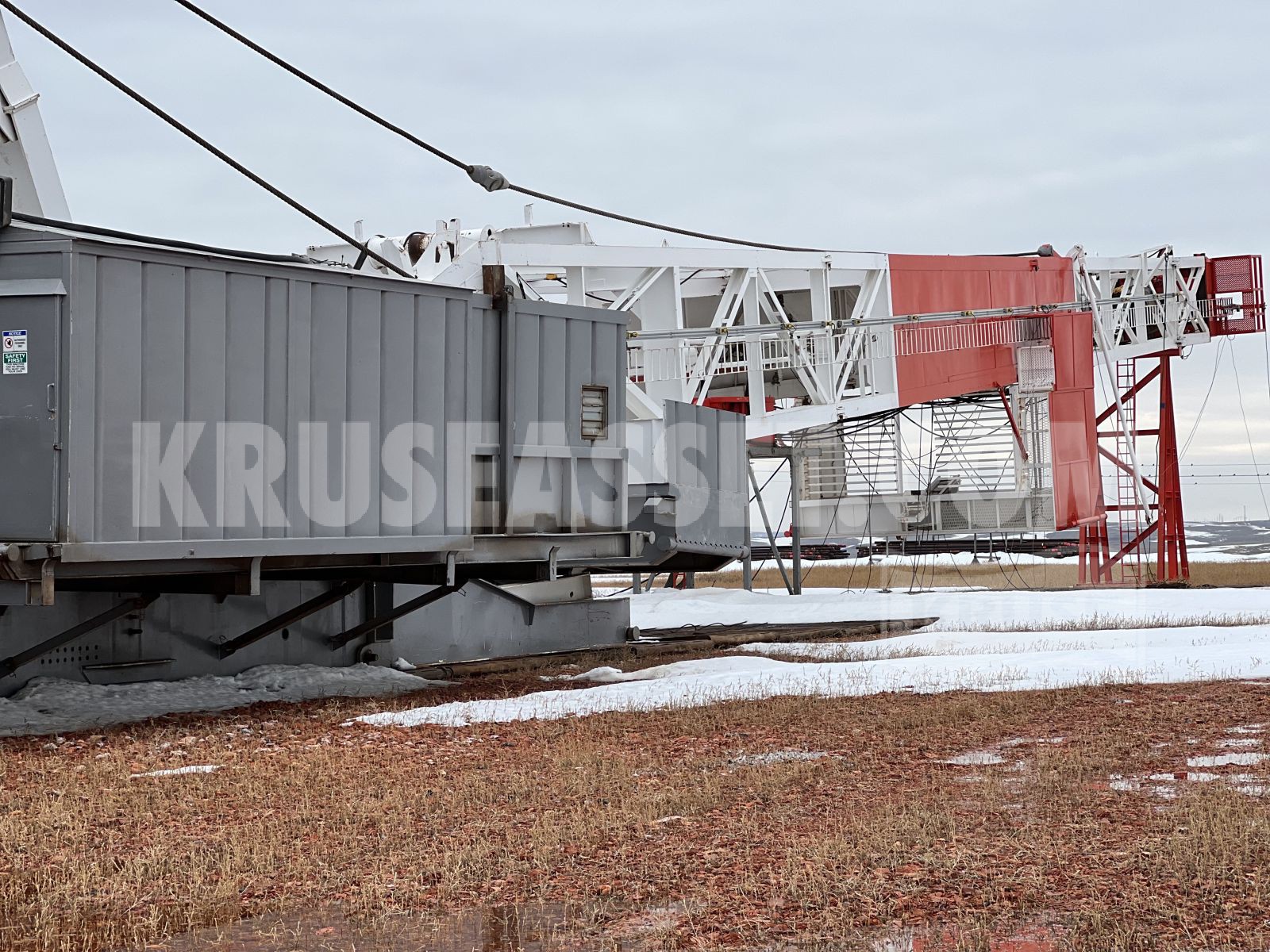

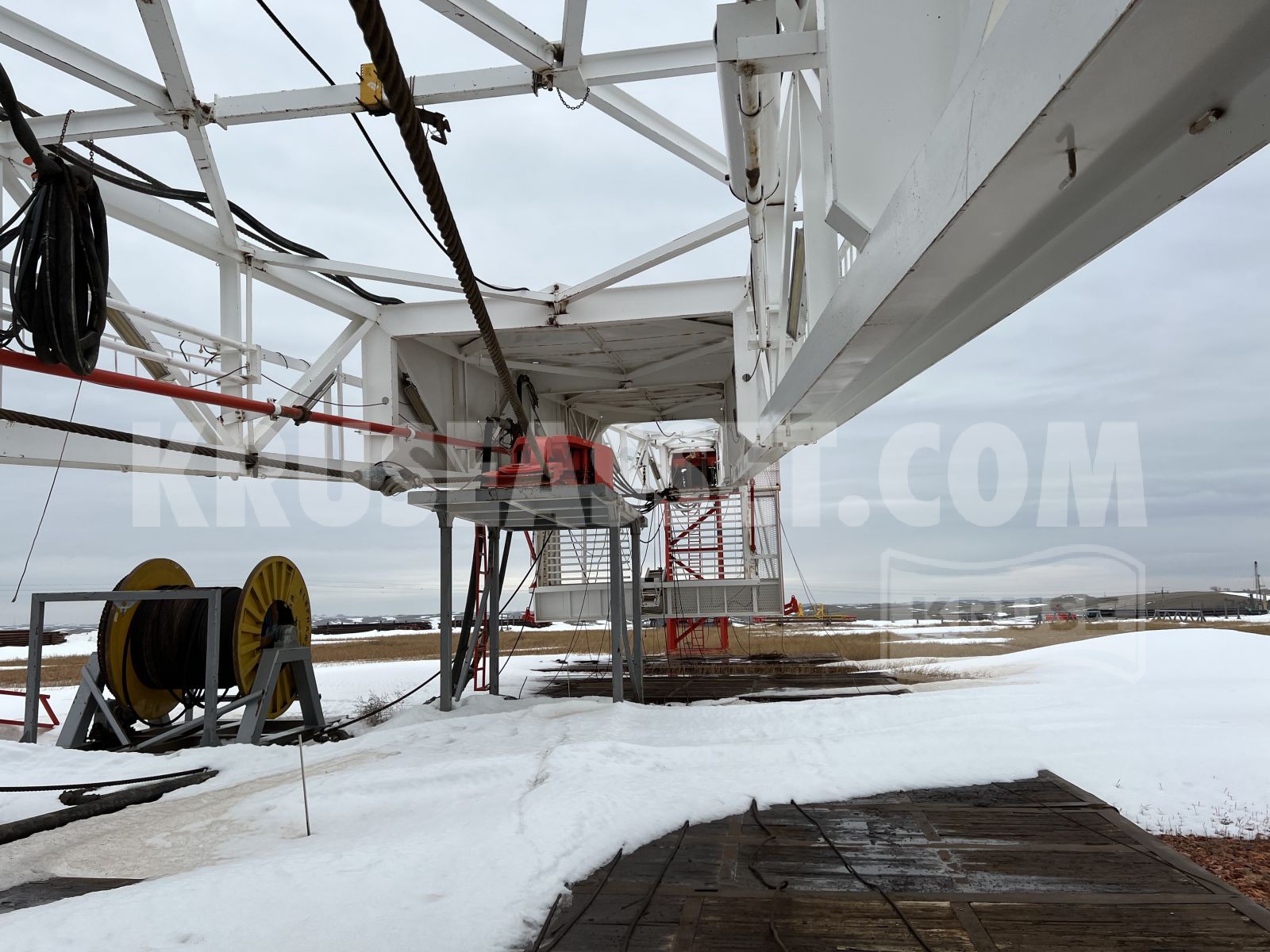

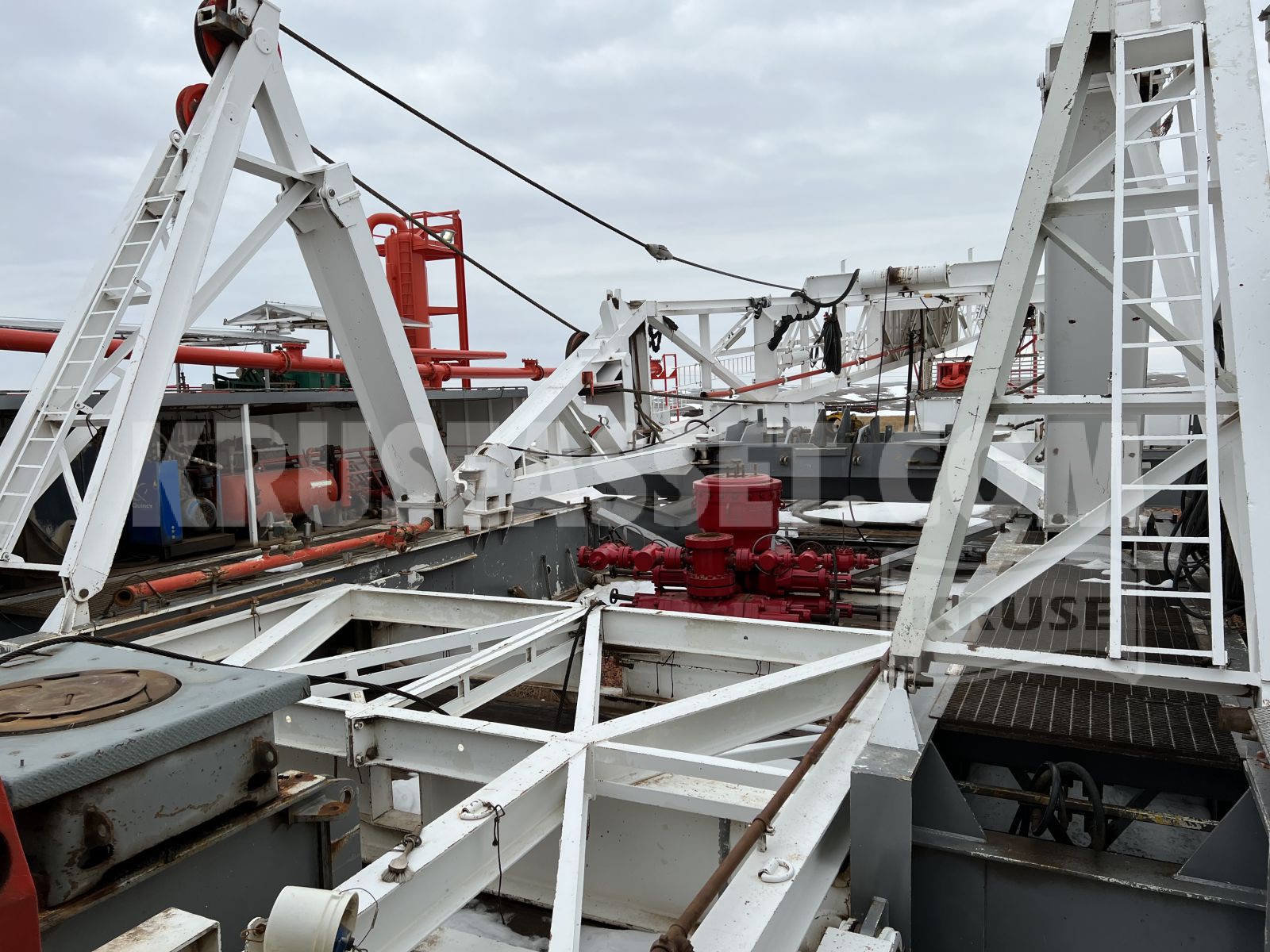

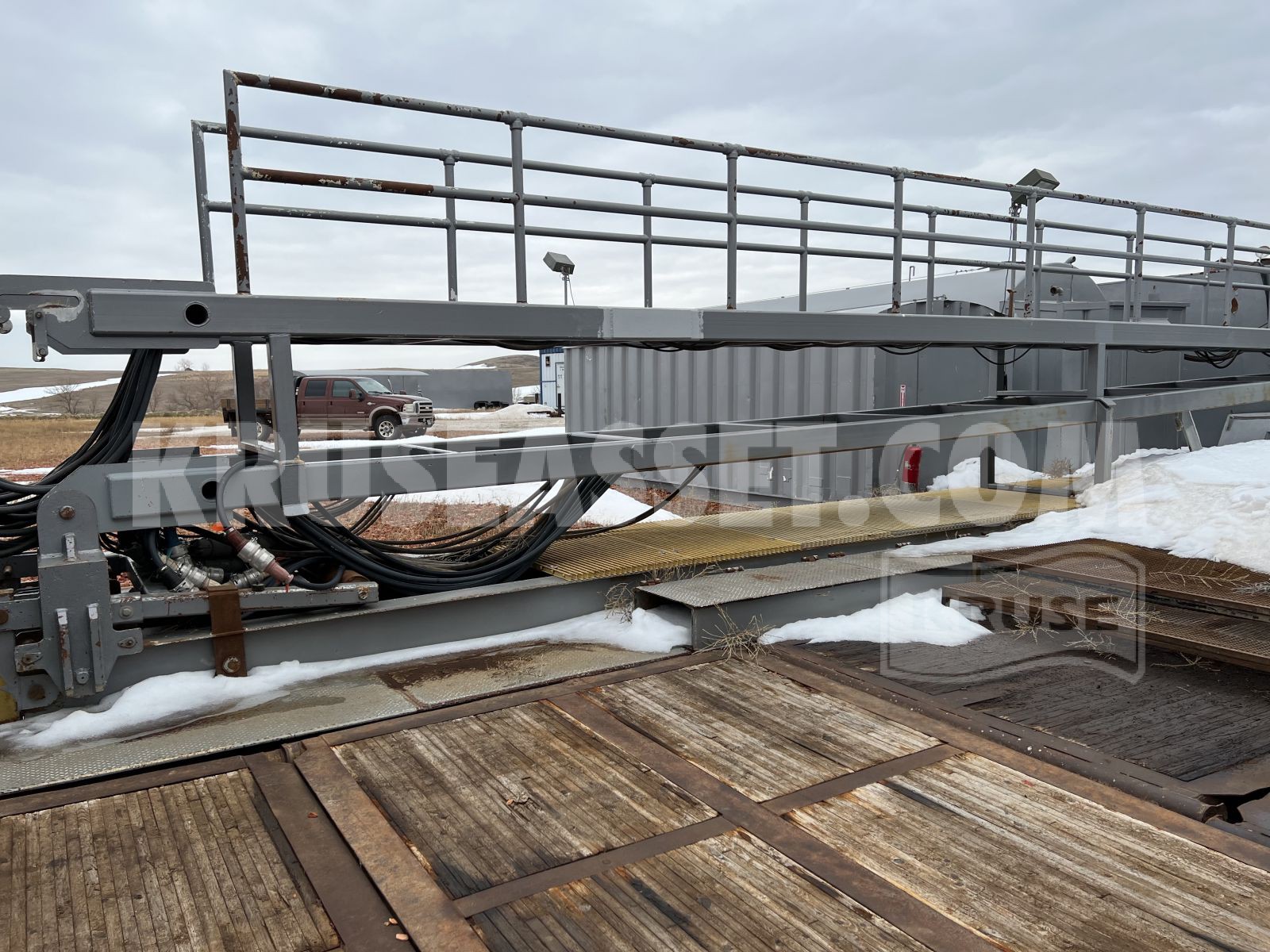

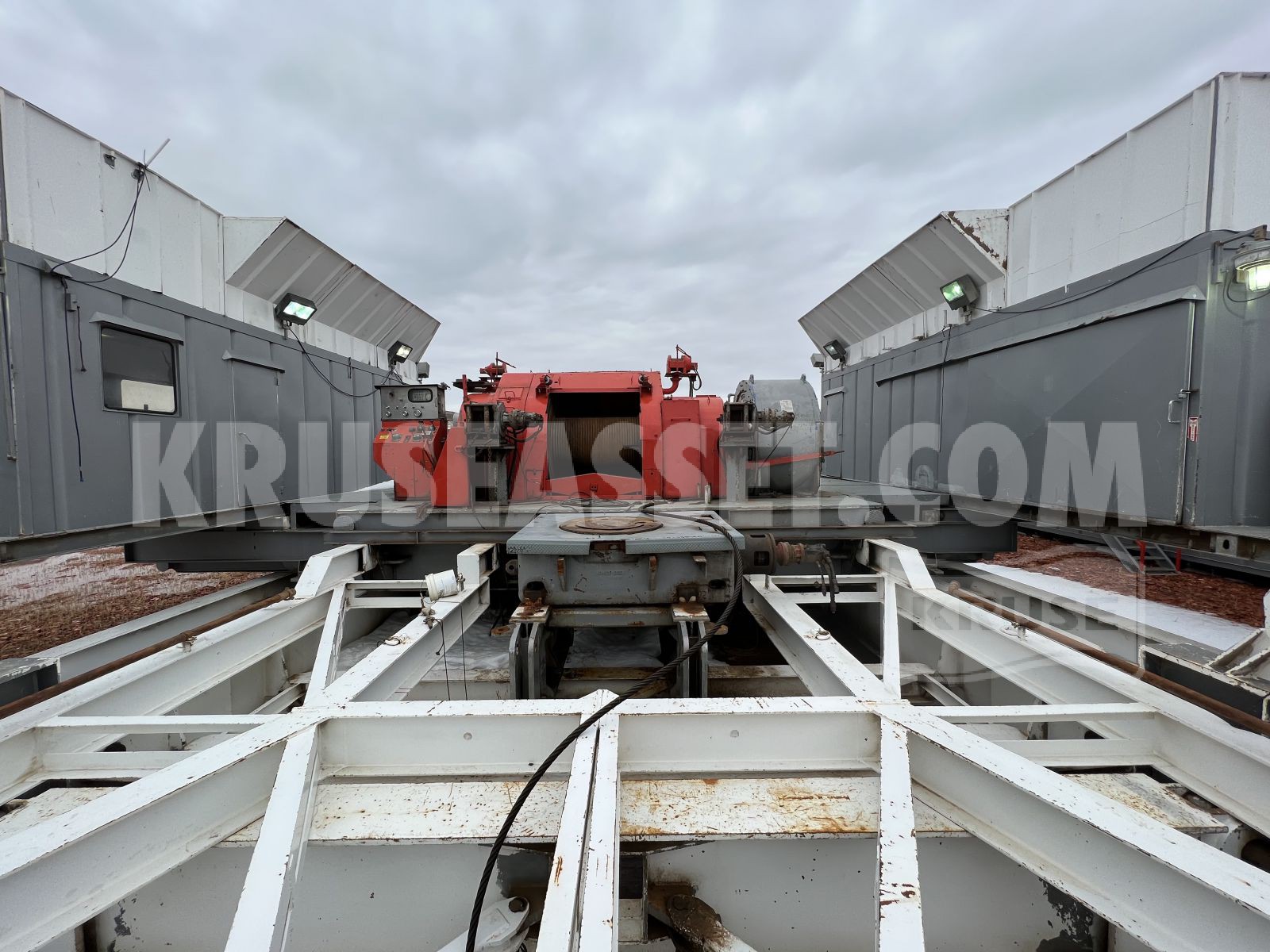

SUBSTRUCTURE:     Substructure - Lee C. Moore Swing-Up With Elevator, 32' Floor Height, Rated 800,000# Setback,Sub Skids (2) 5' H x 60' long.

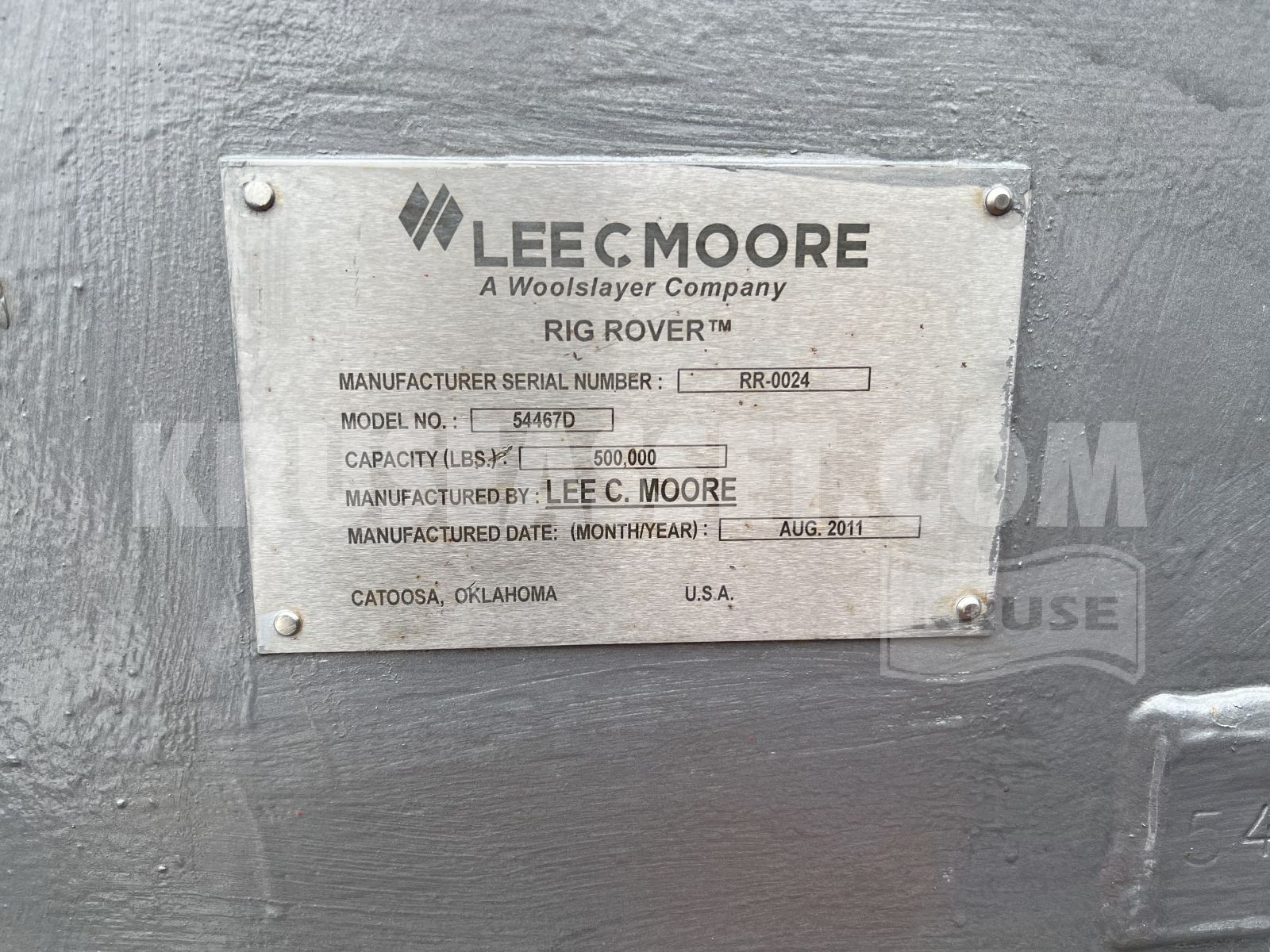

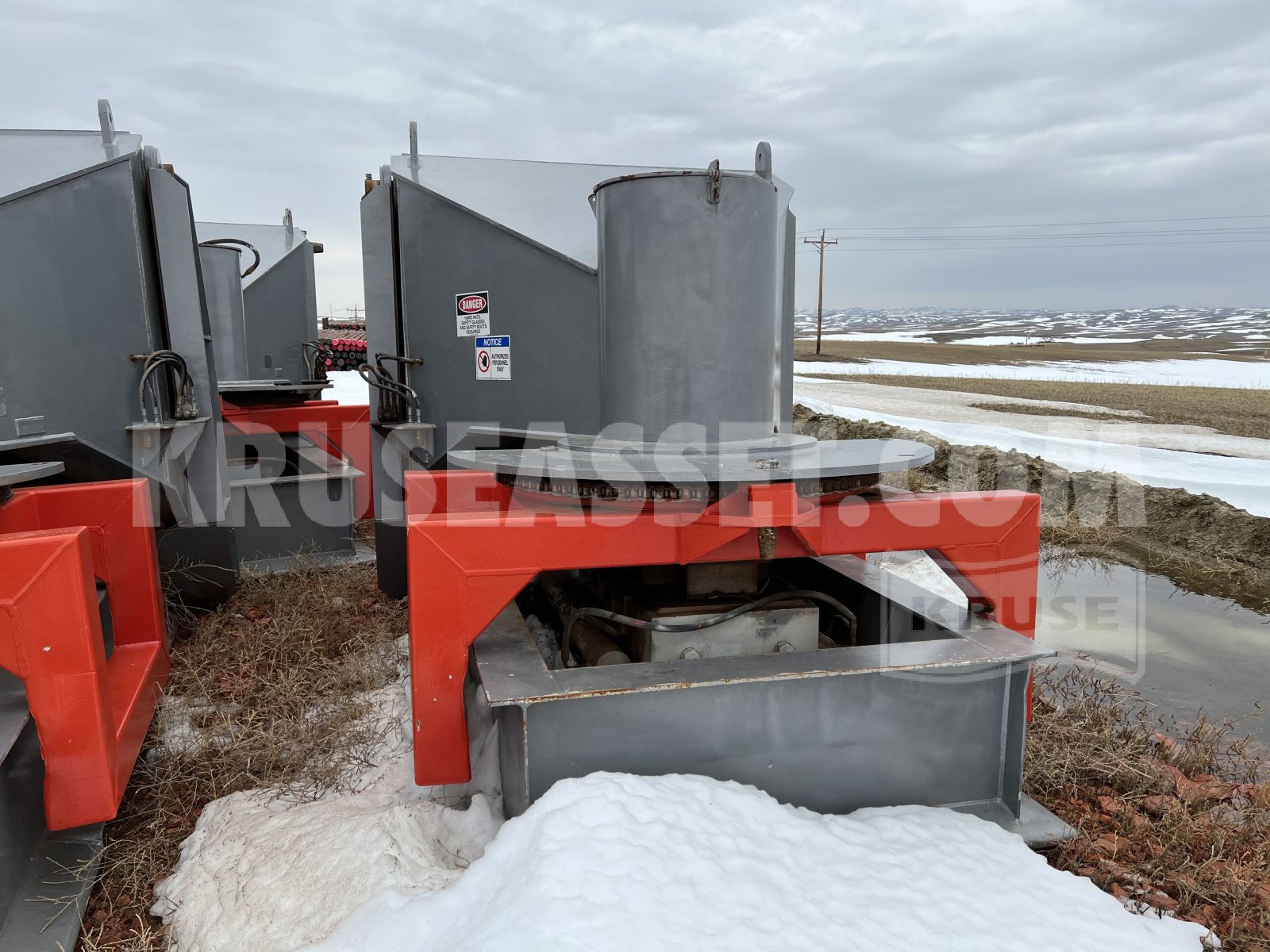

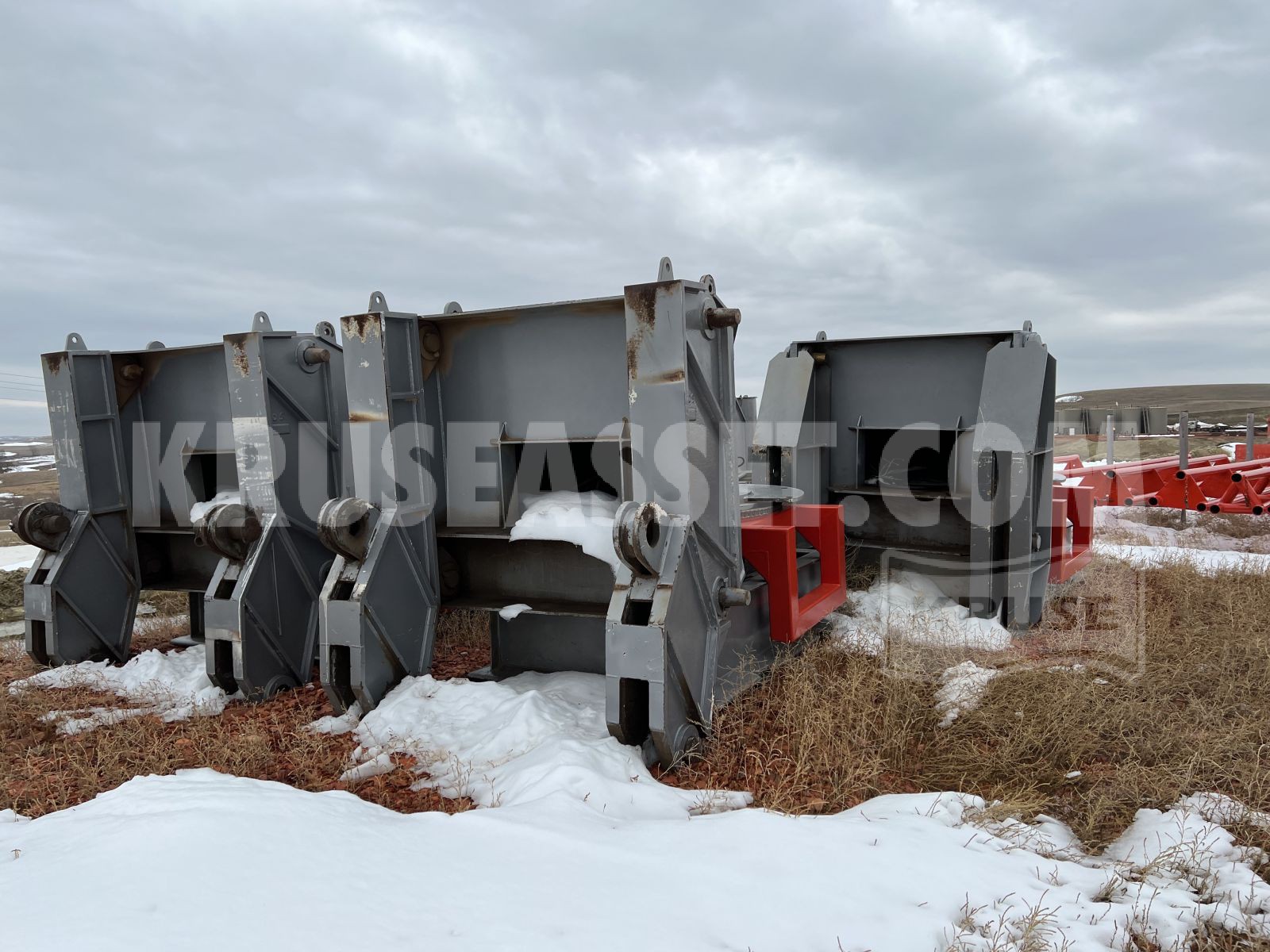

Lee C Moore Rig Rover Walking system Mdl 544670 500,000 Capacity Grasshopper will walk 160feet.

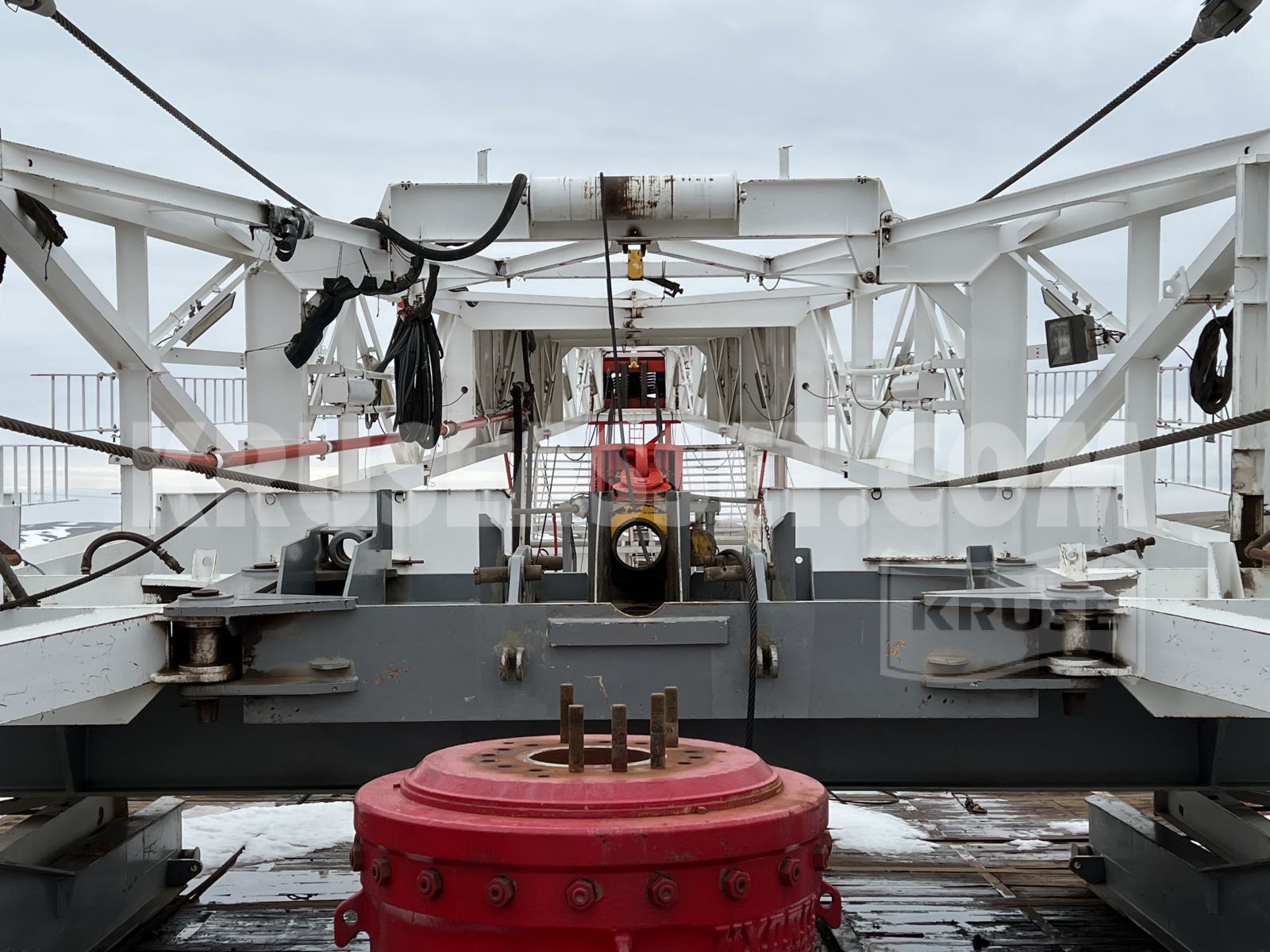

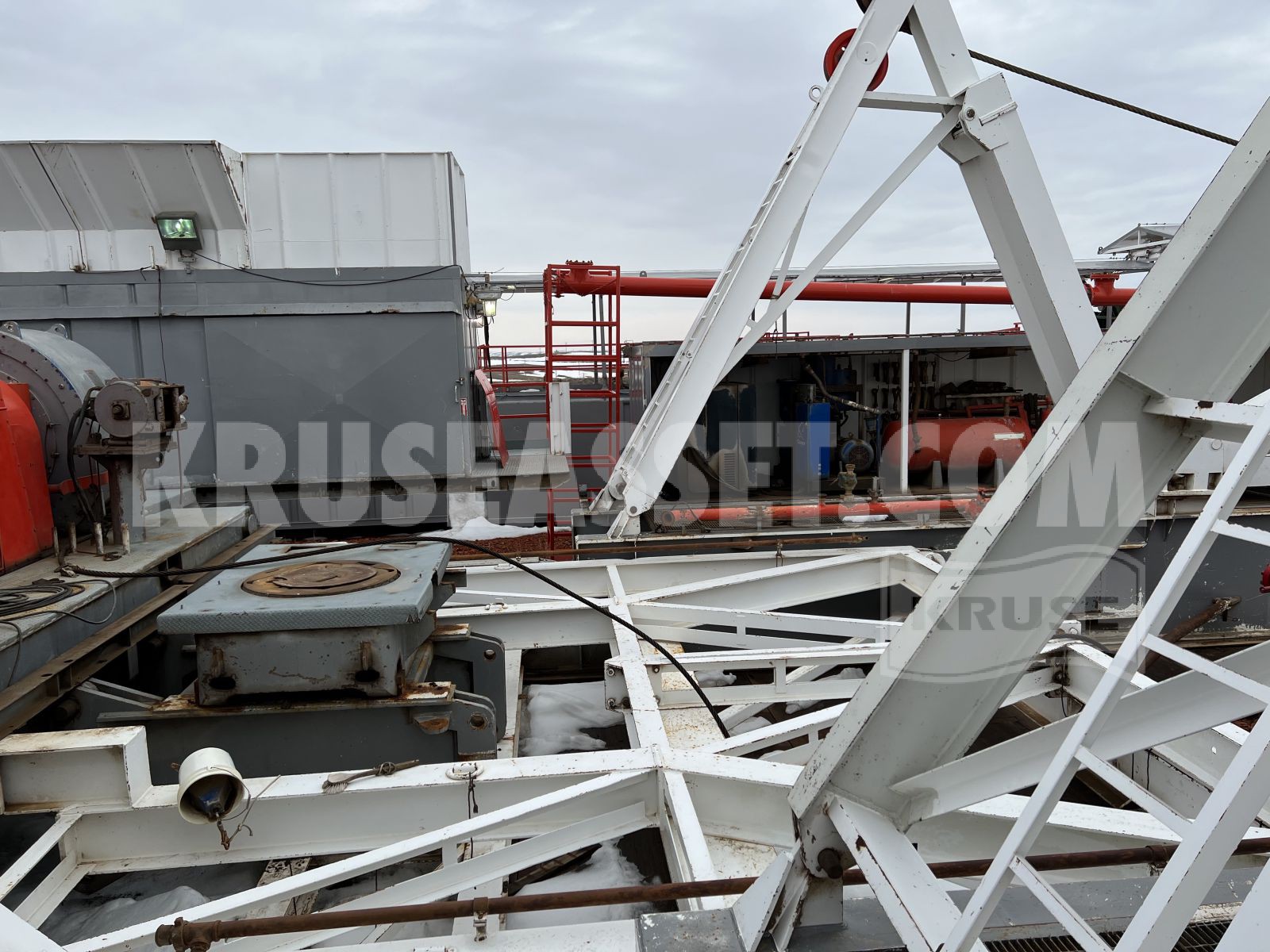

ROTARY:                    Rotary Table-Oilwell 8275 27" x 53" w Master Bushing

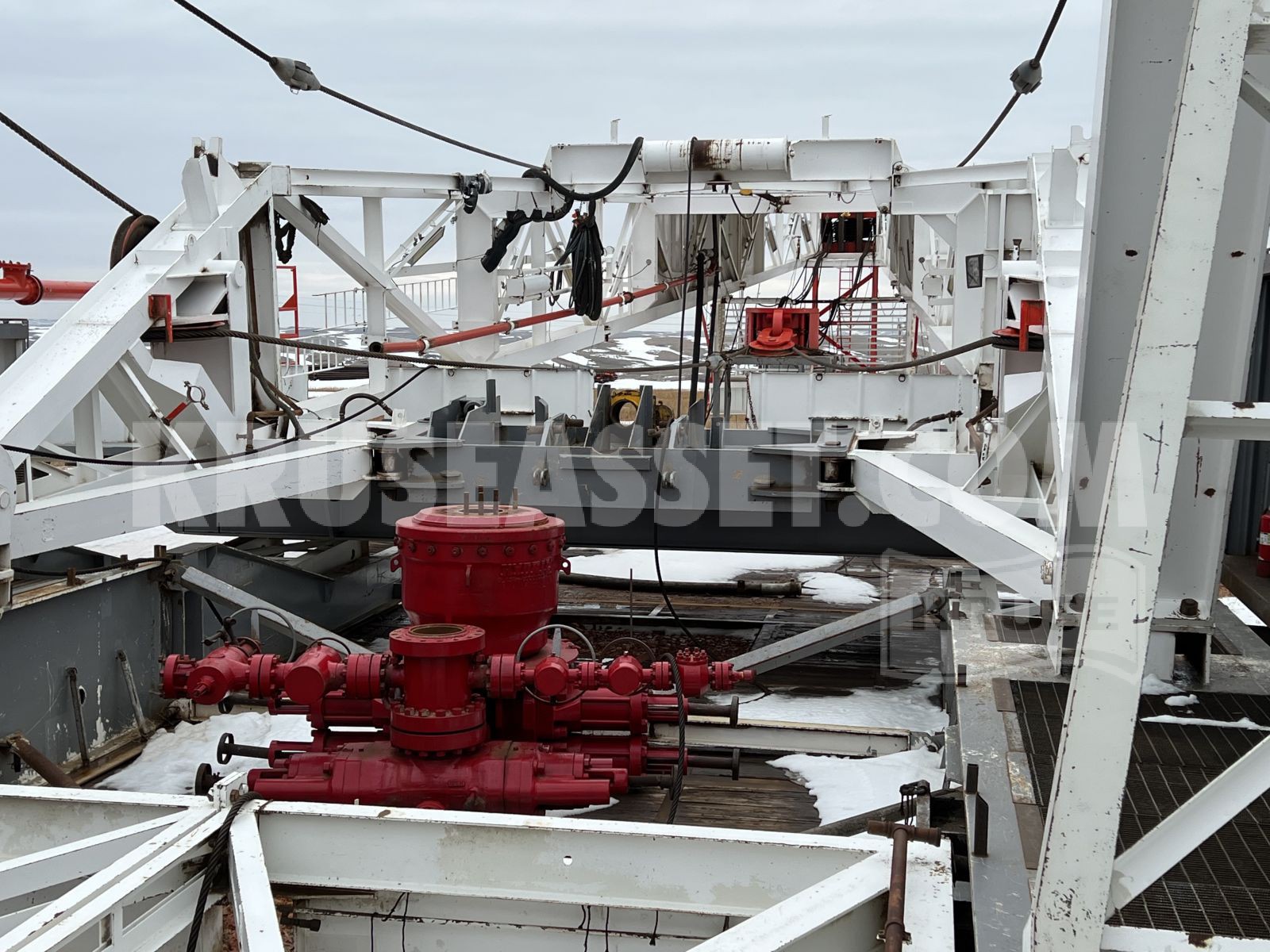

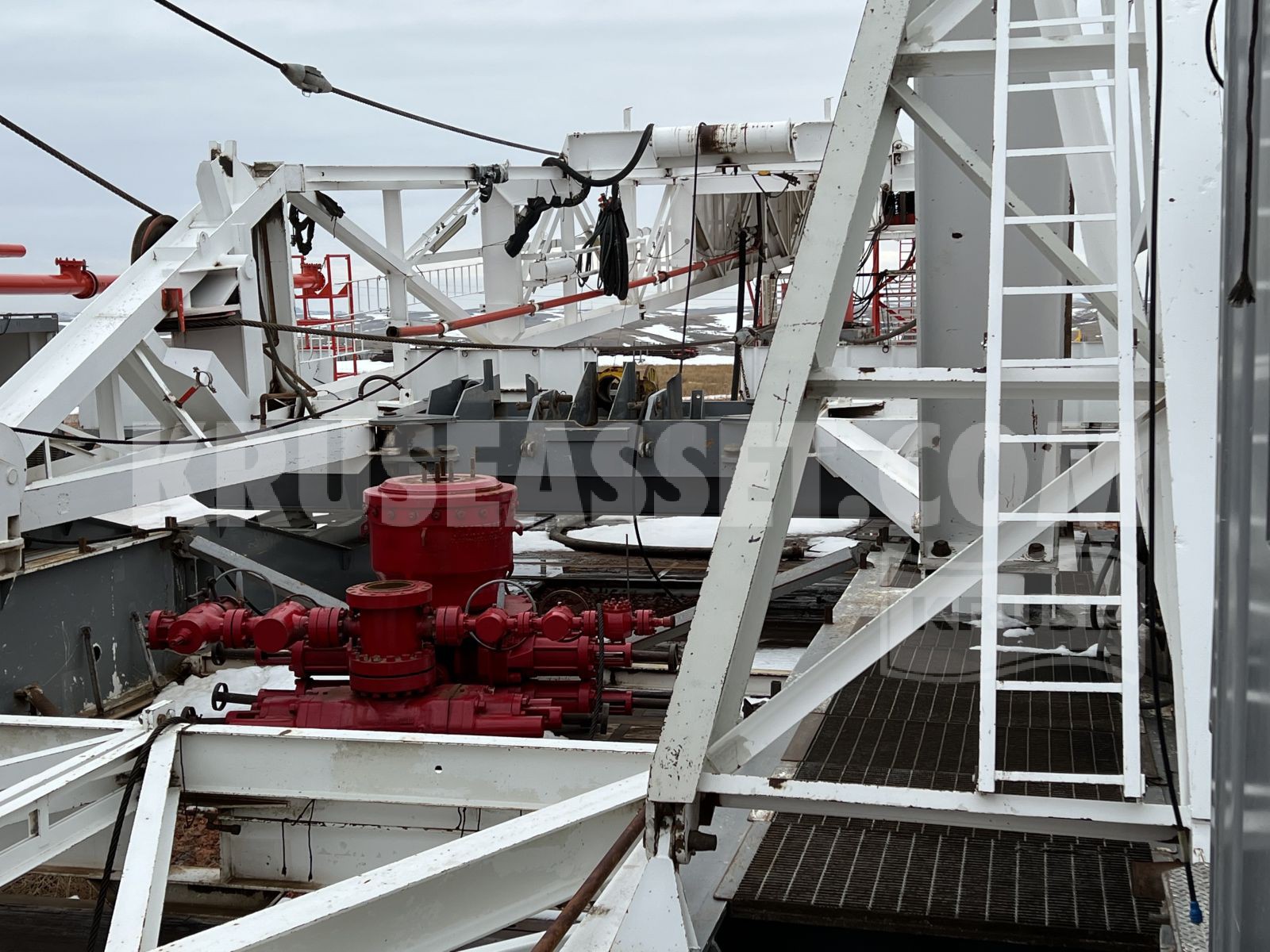

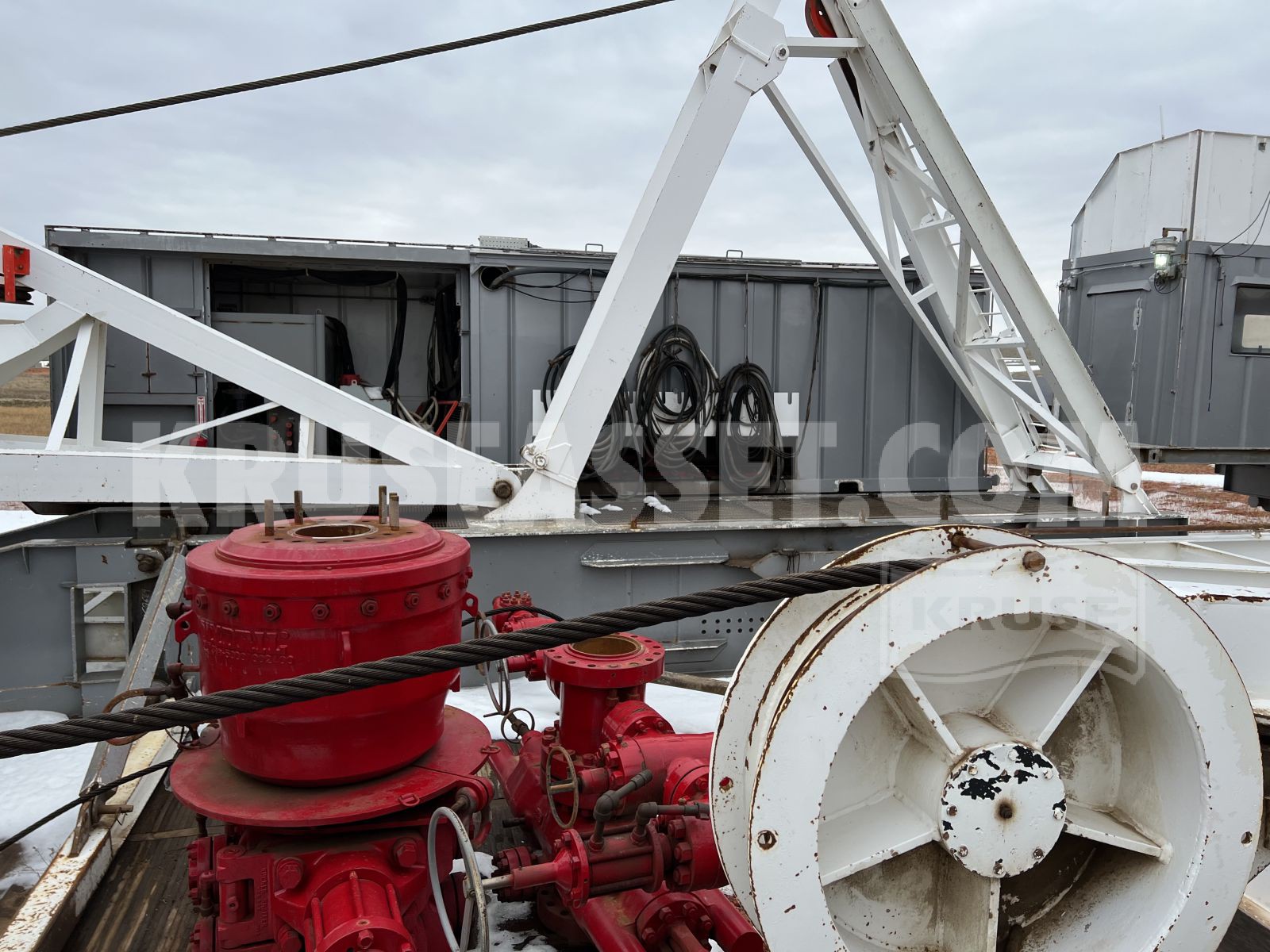

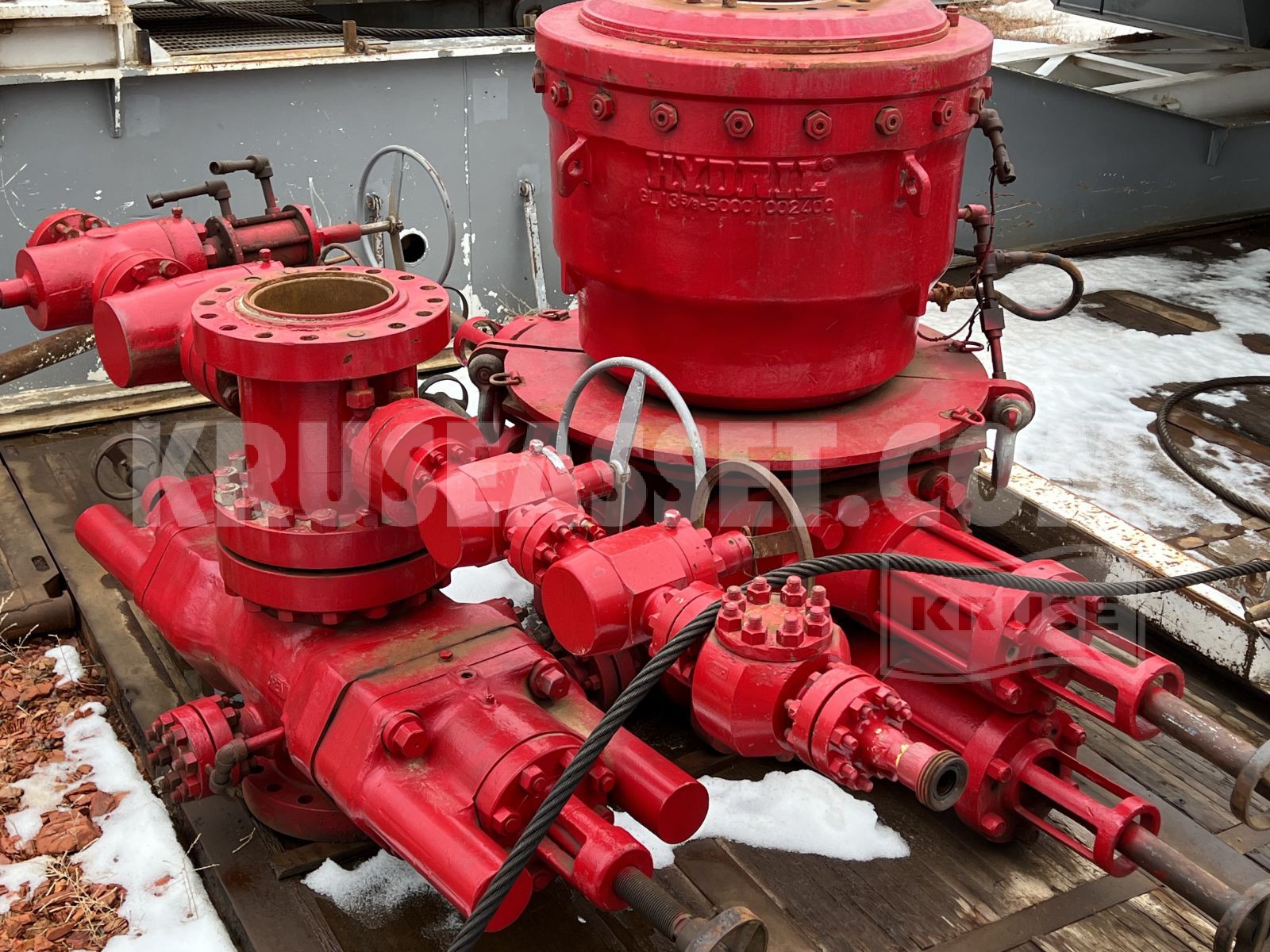

BOP EQUIPMENT:      One (1) 13 5/8" Cameron Type U Single Ram Preventor 5000 # One (1) 13 5/8" Schaffer Double Ram Preventor 5000 #

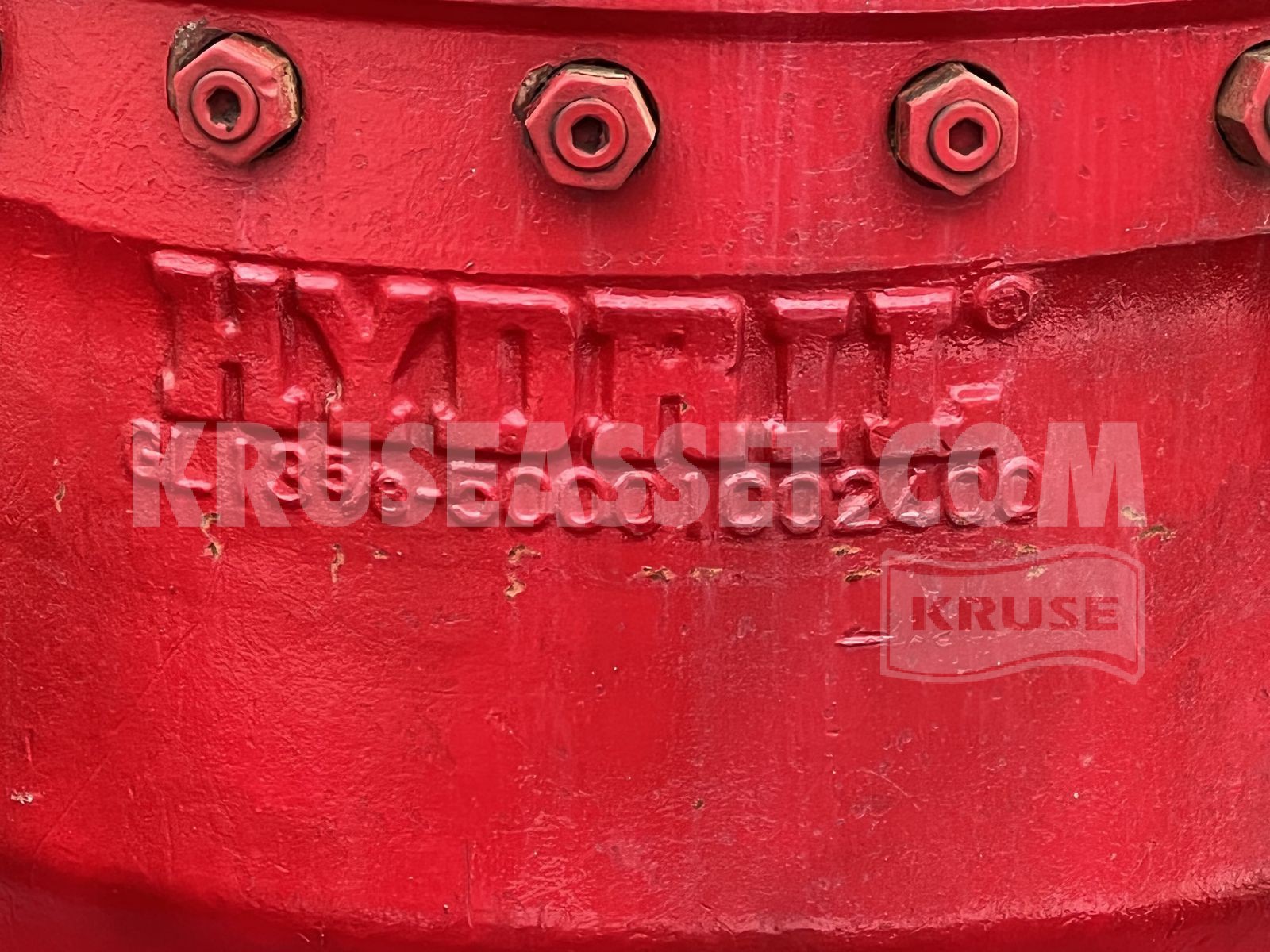

One (1) GL Hydril Annular 5000#

One (1) 5000# Mud Cross

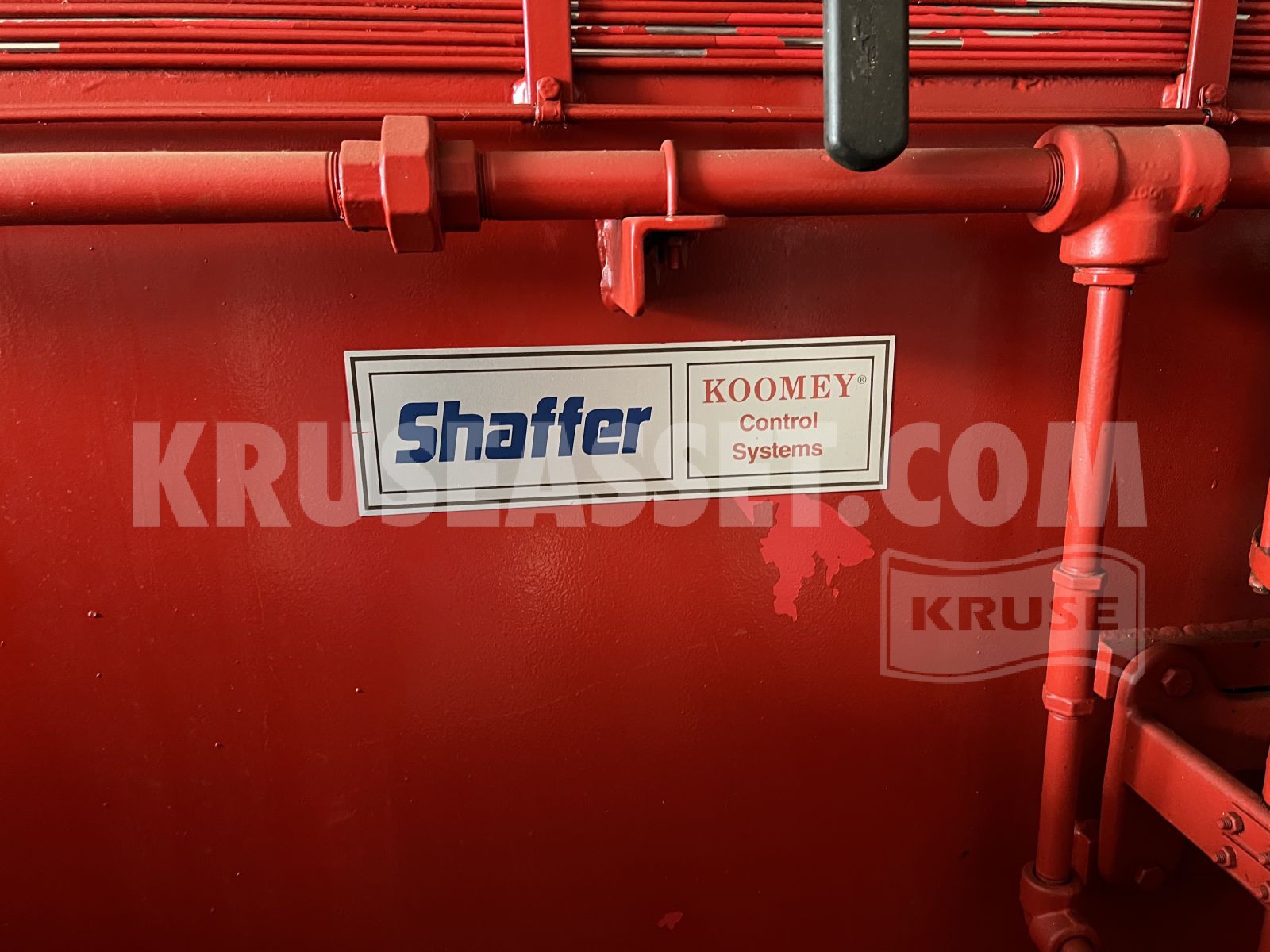

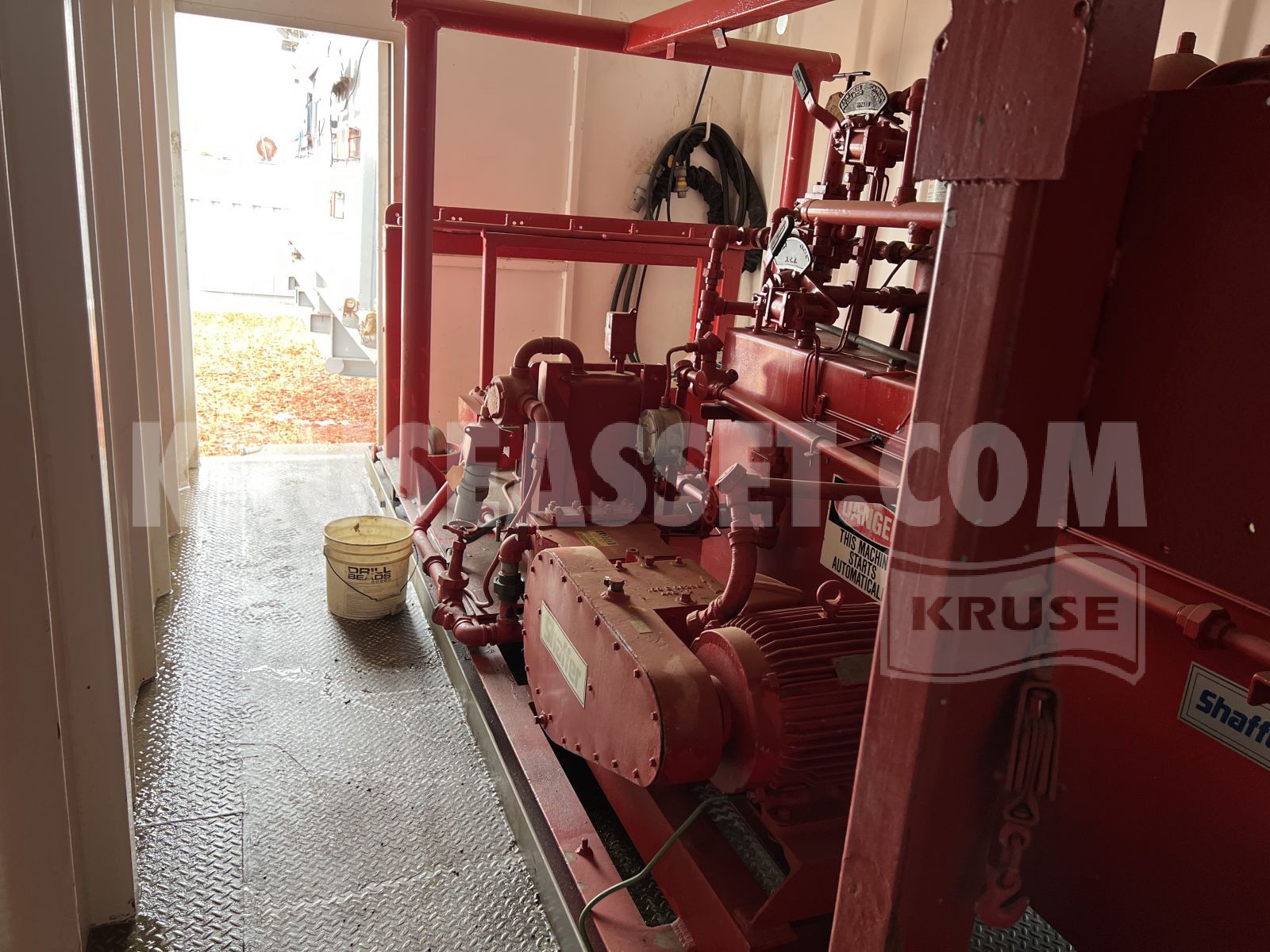

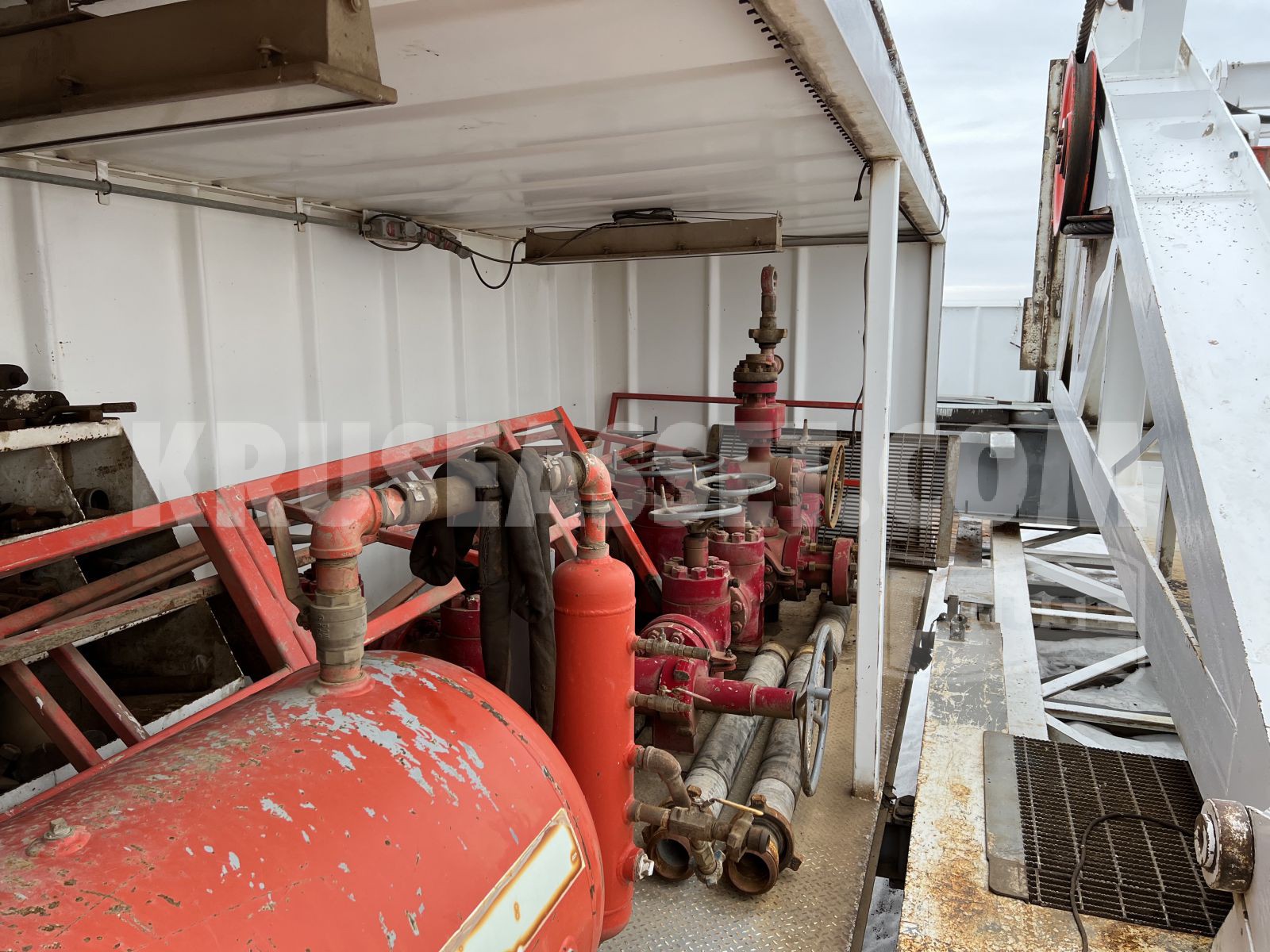

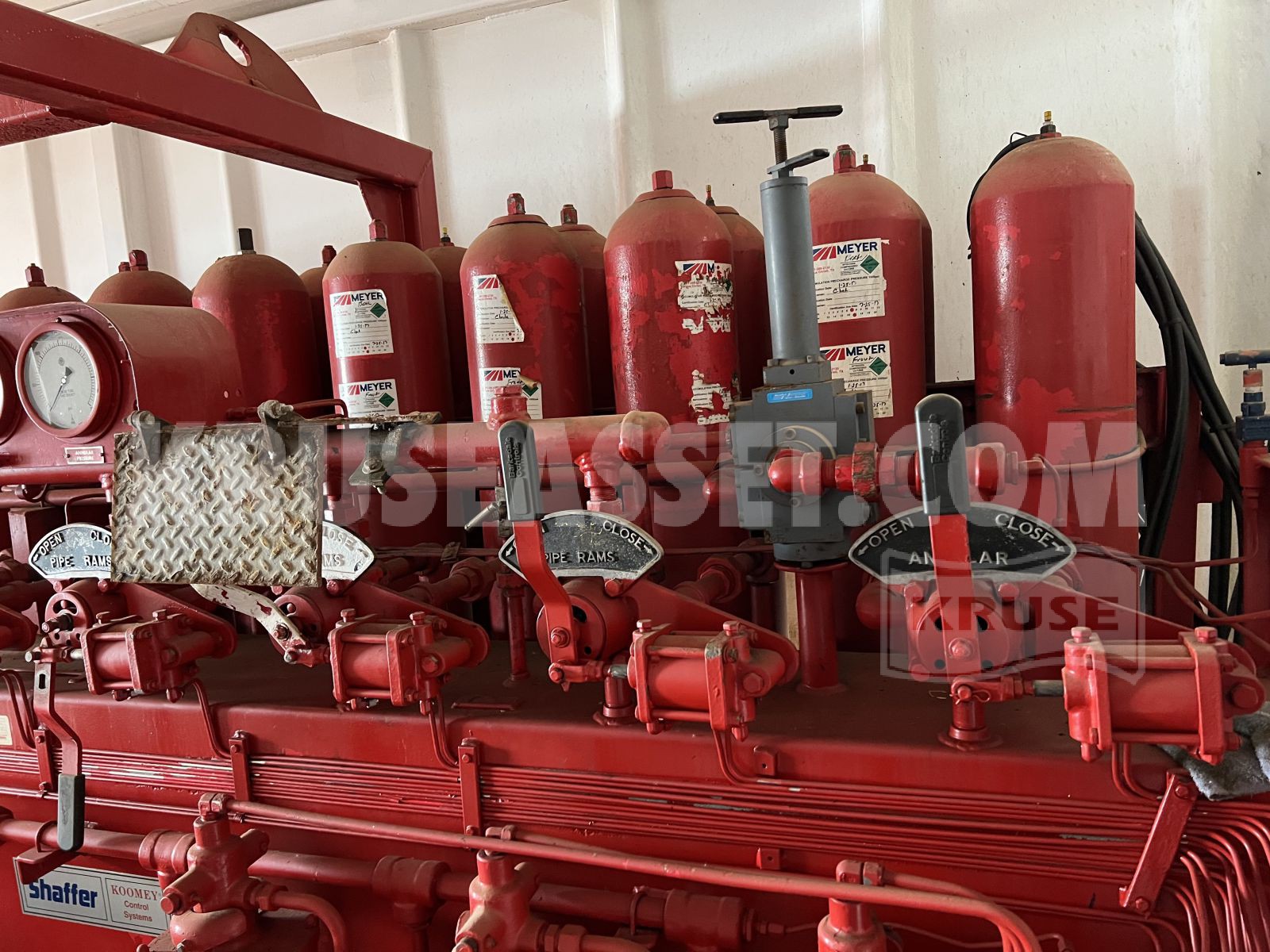

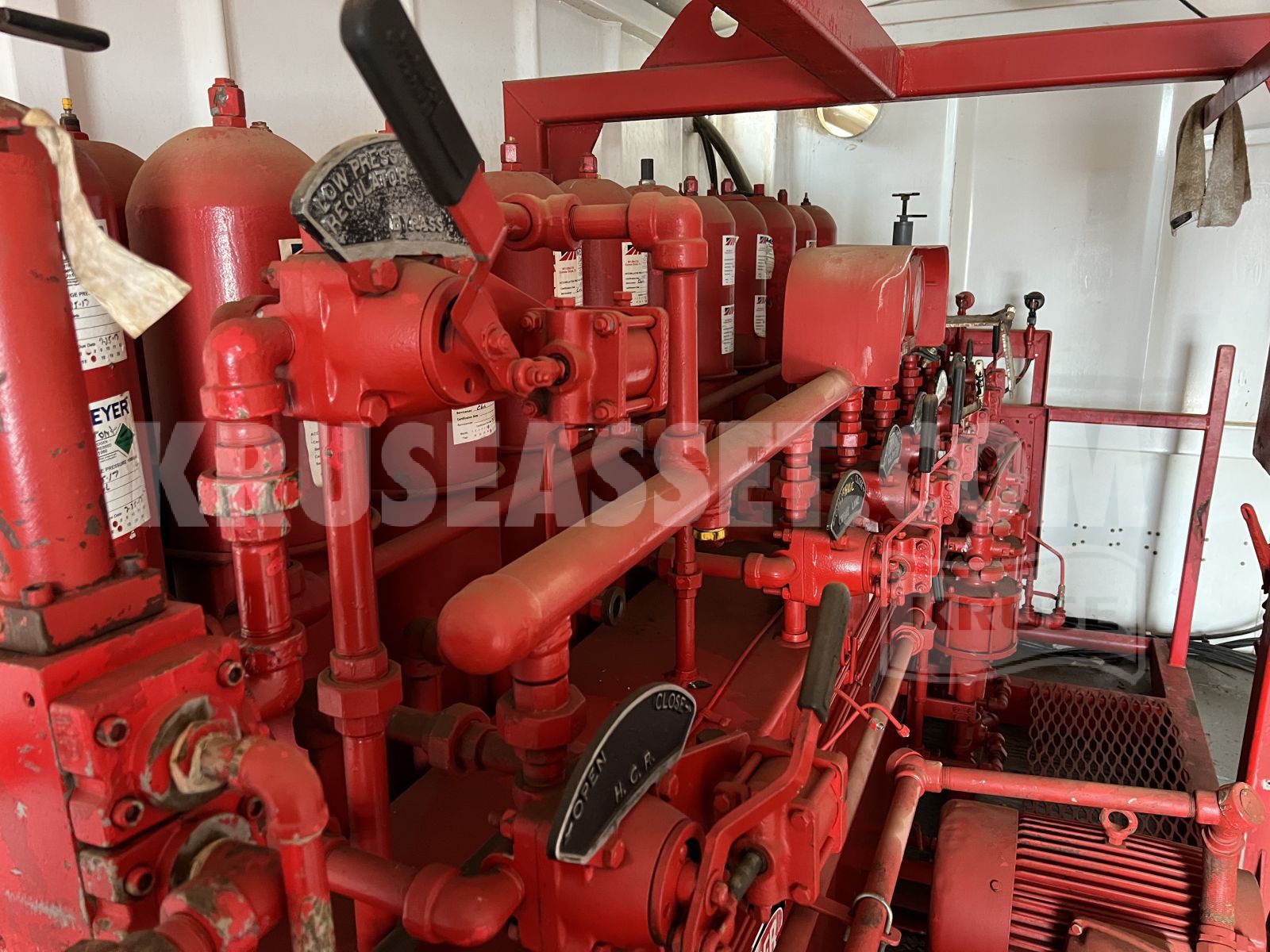

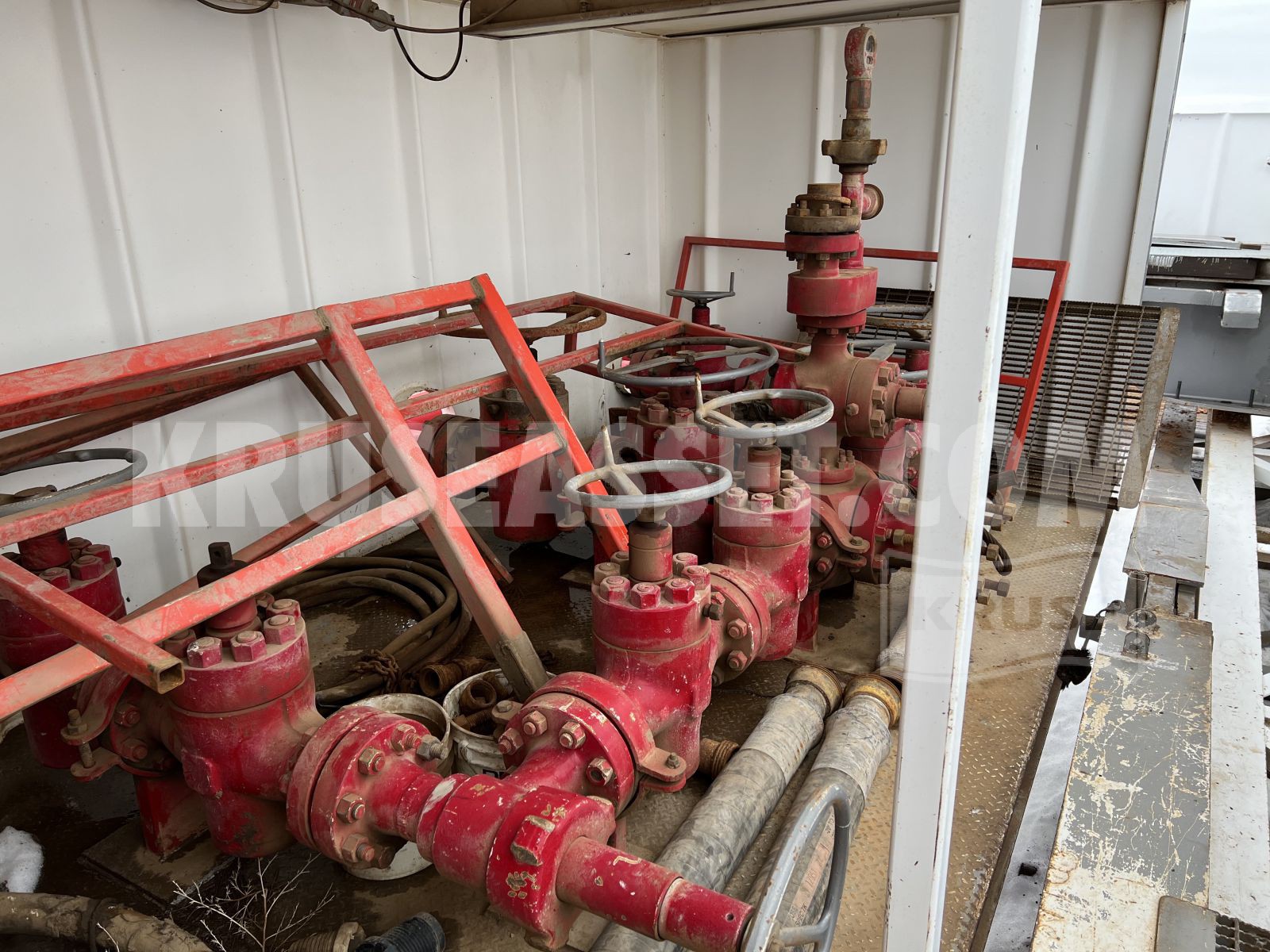

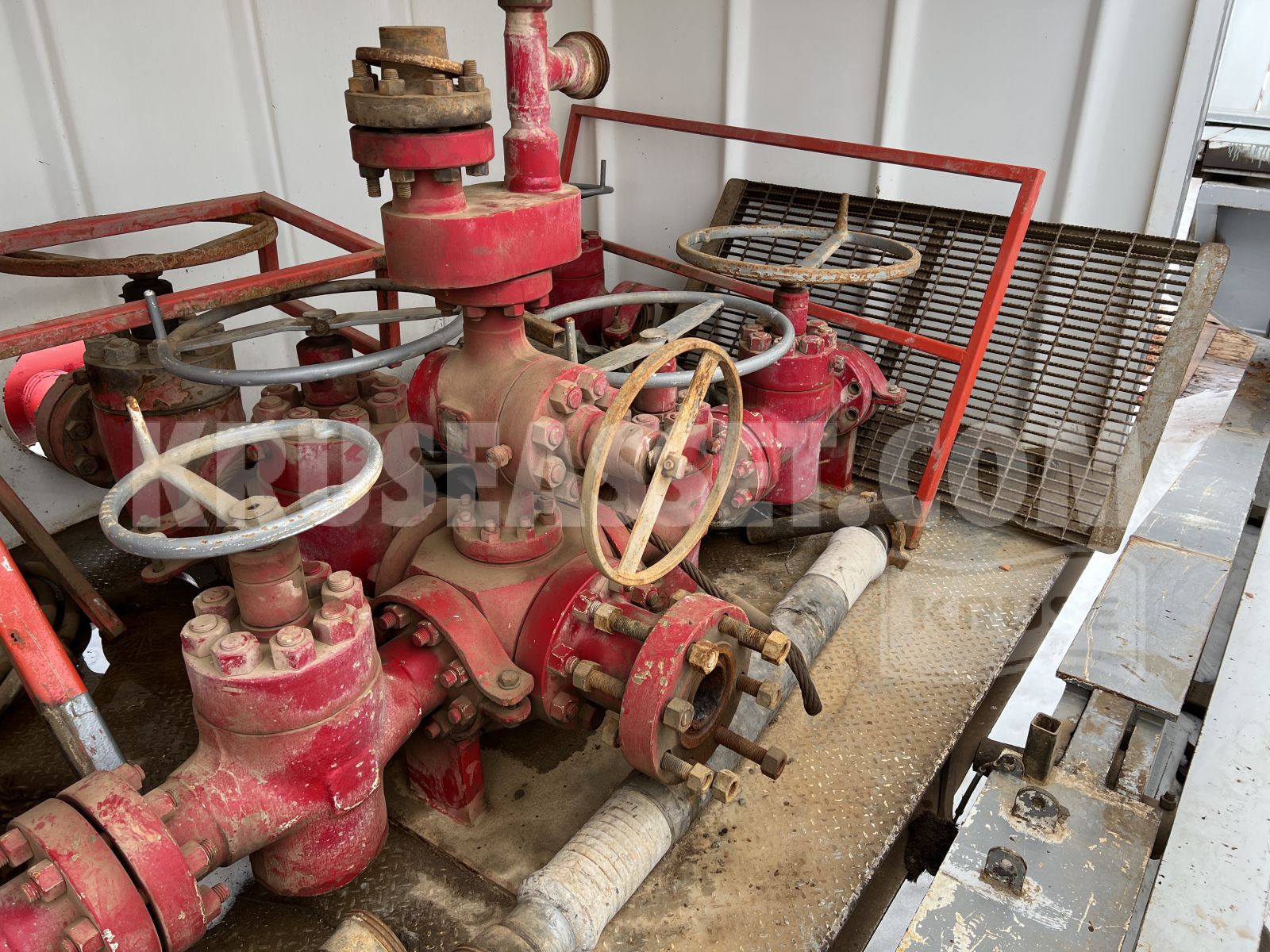

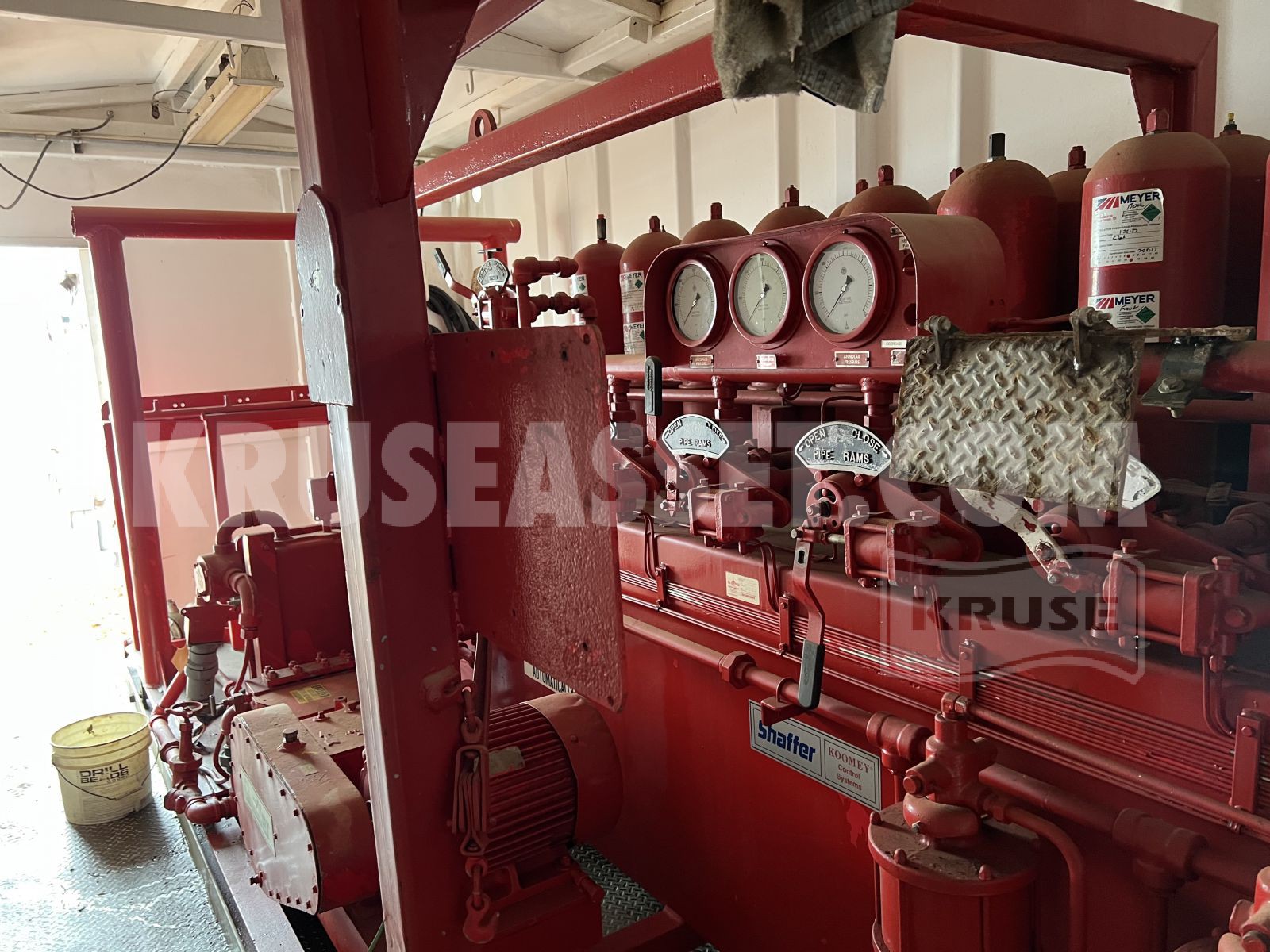

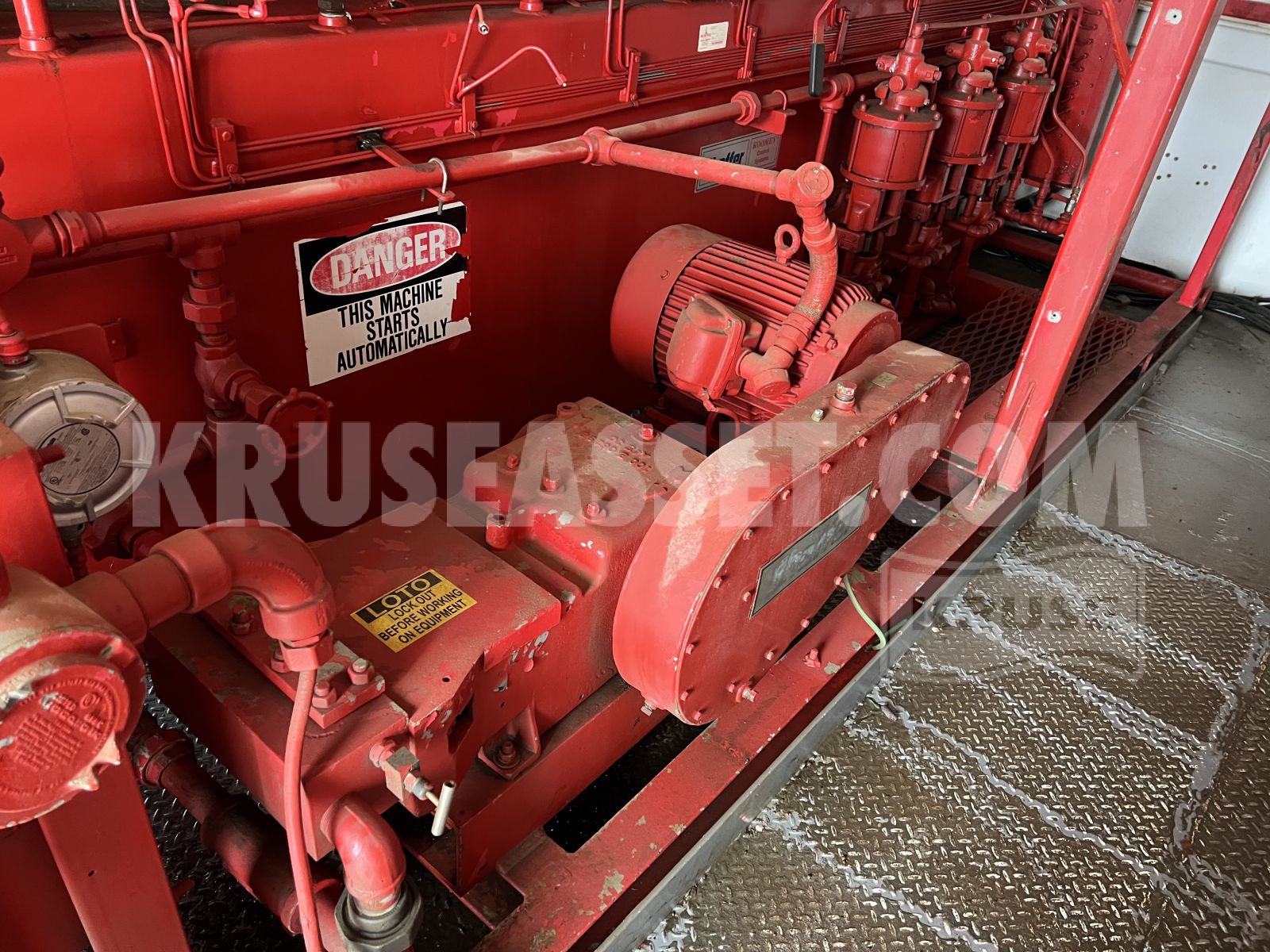

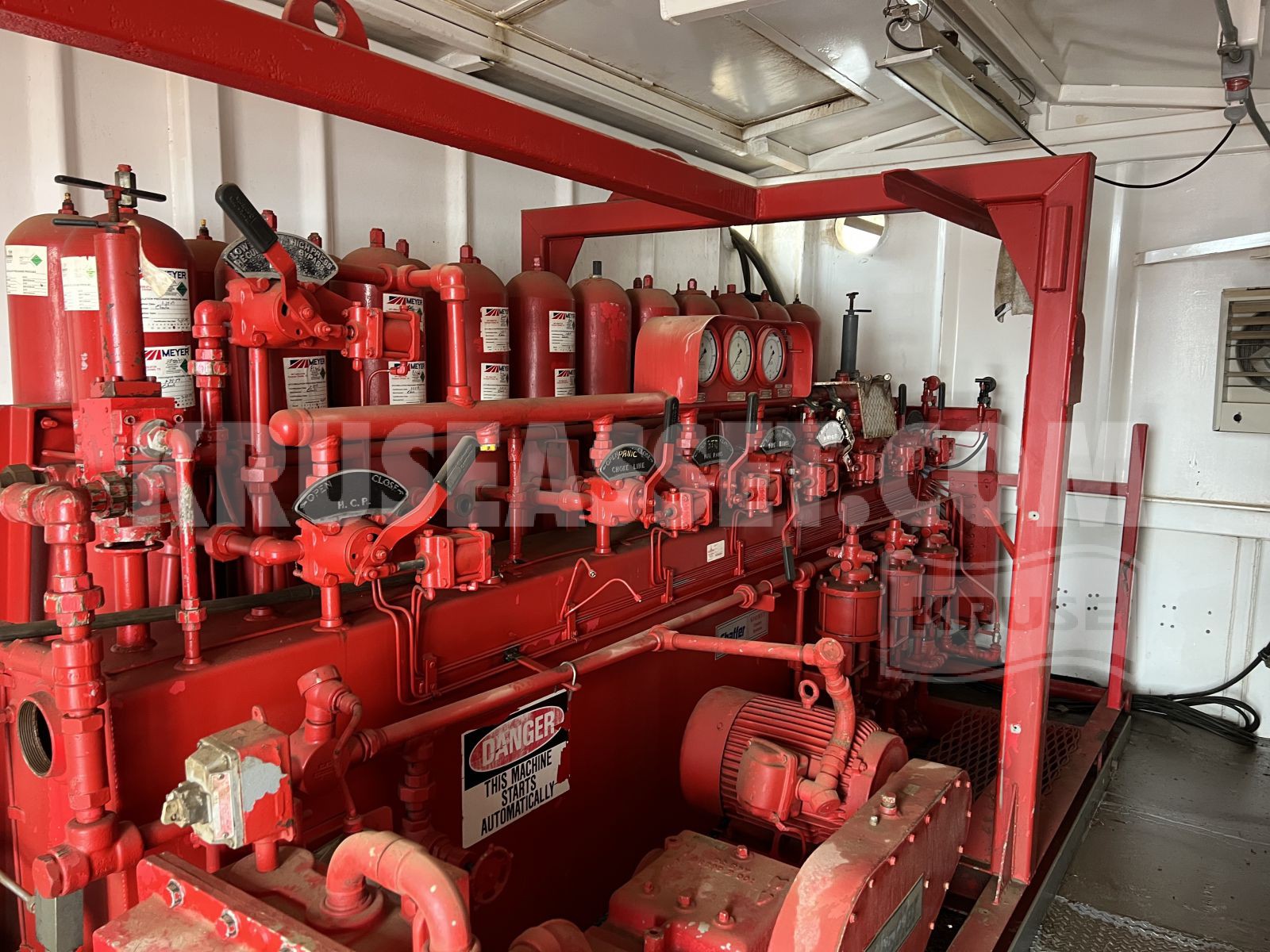

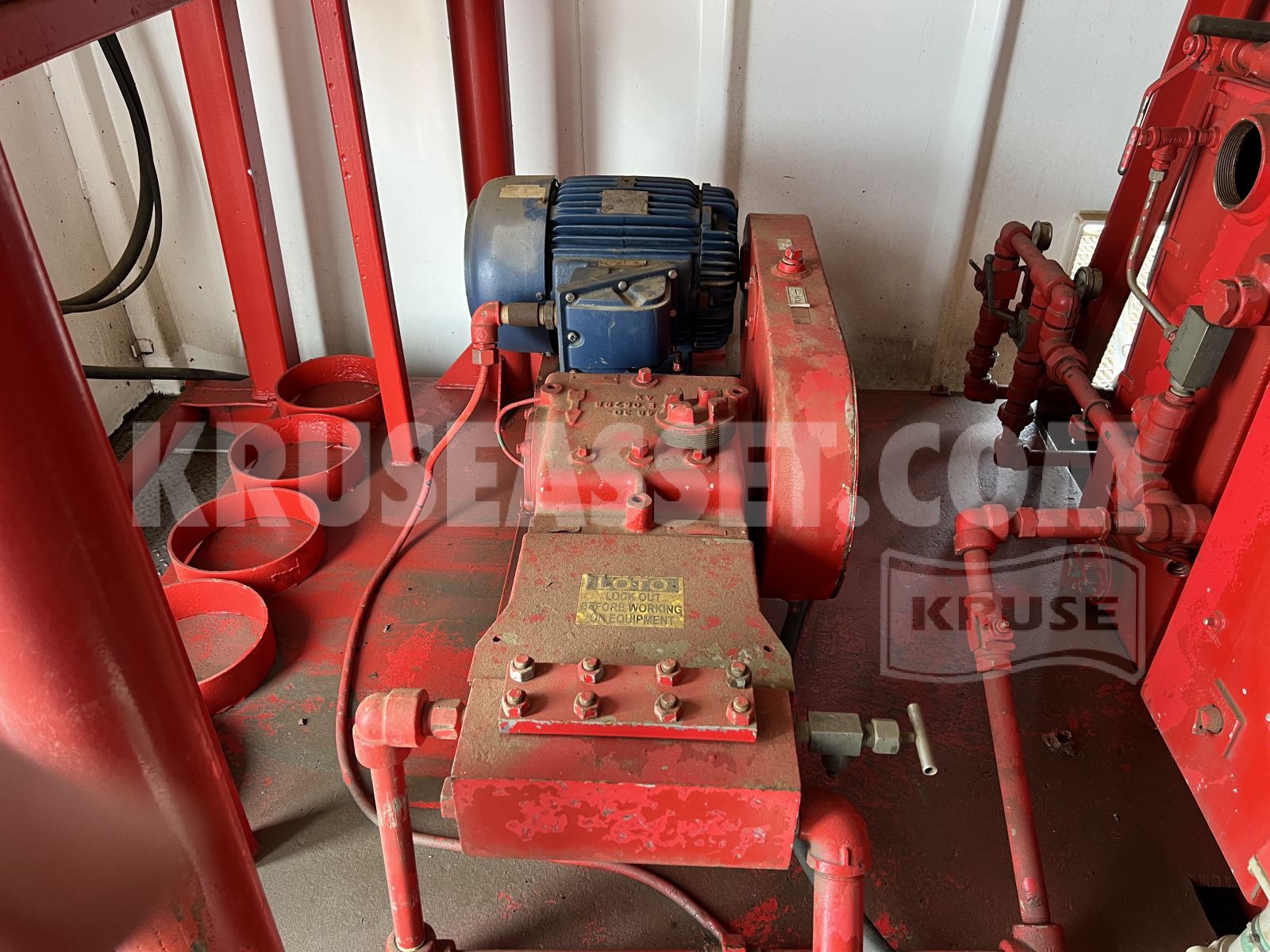

Accumulator - Koomey type 80 - 7-Station. Choke Manifold 4 1/16"X 10k

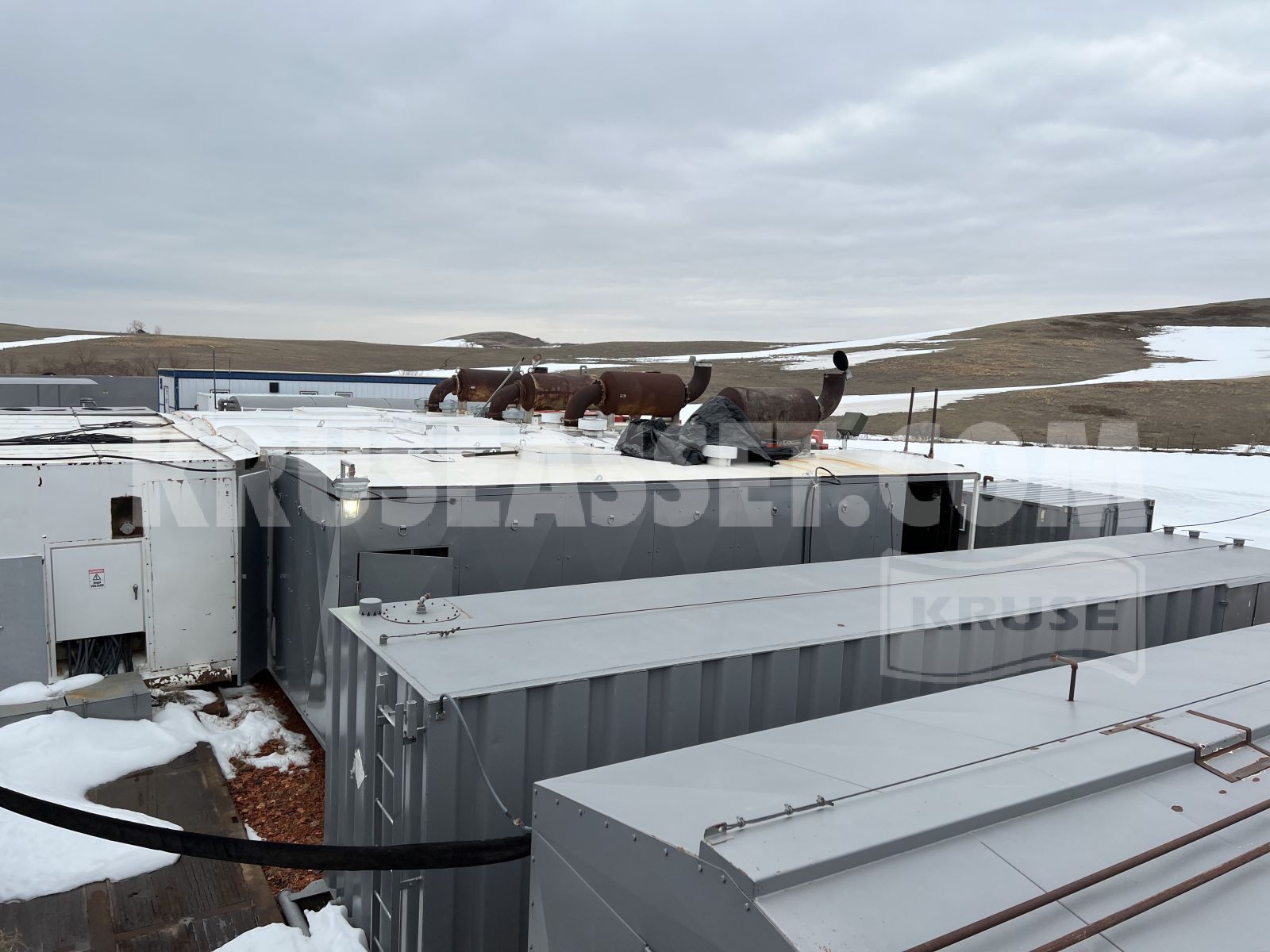

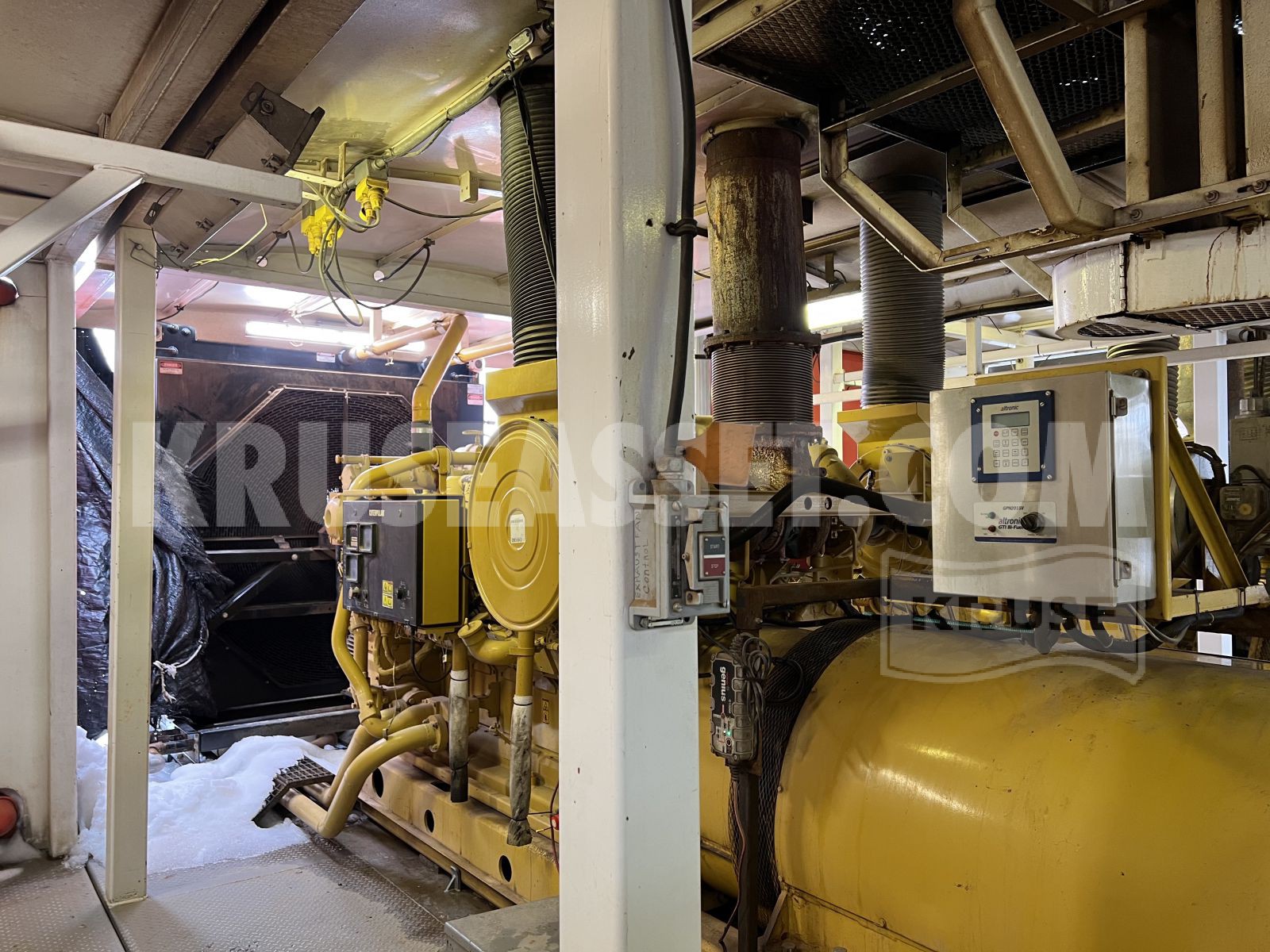

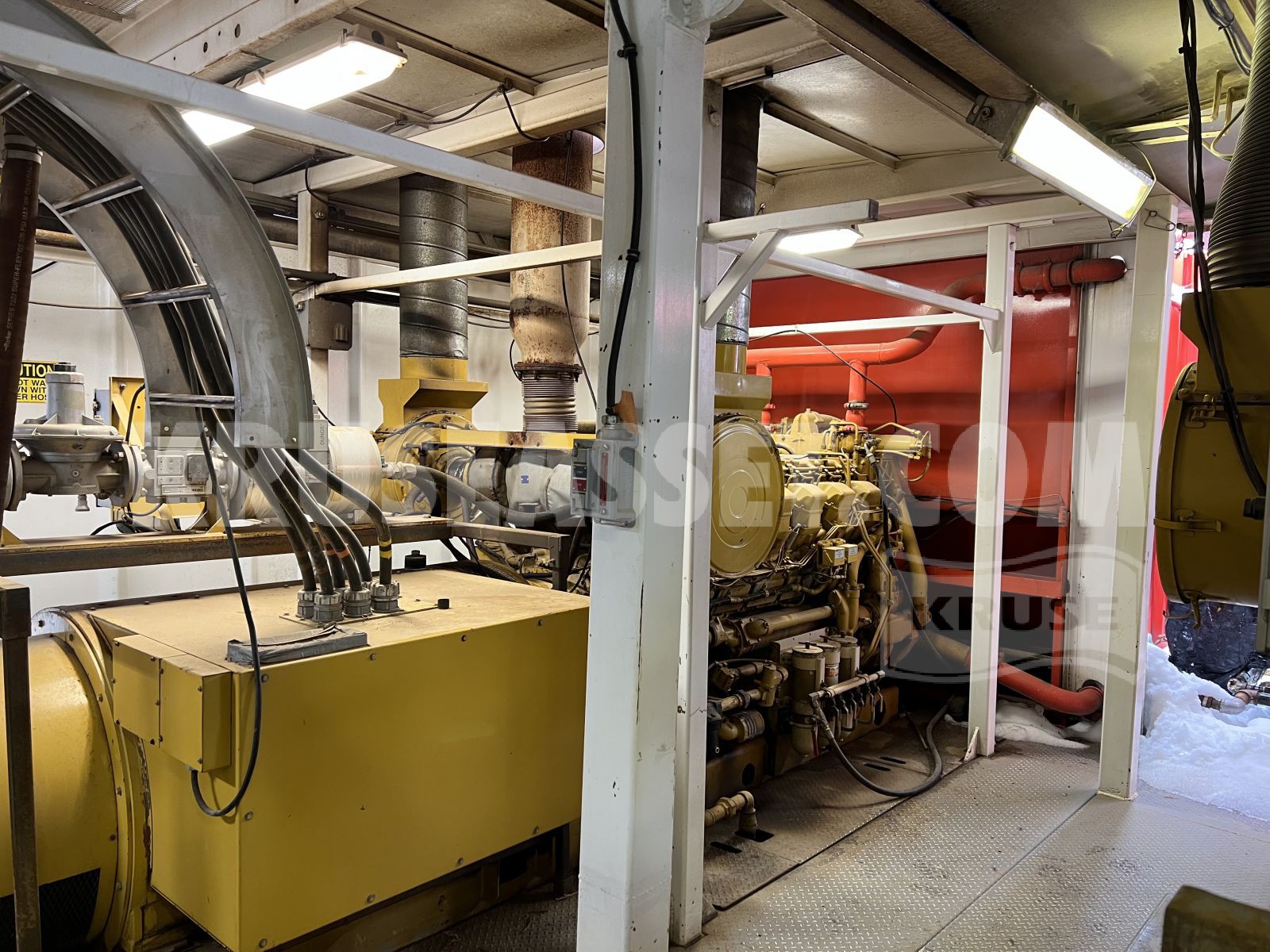

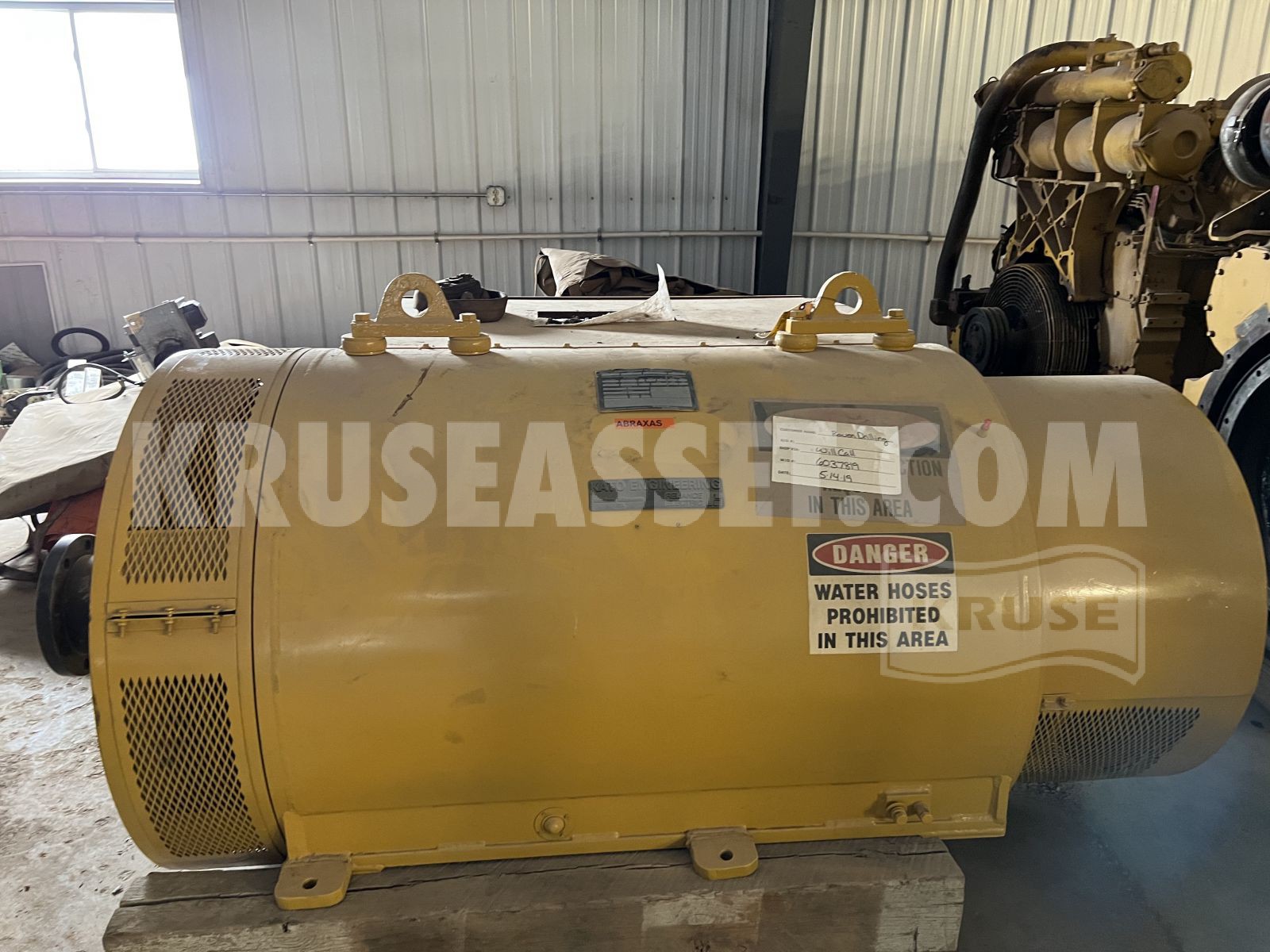

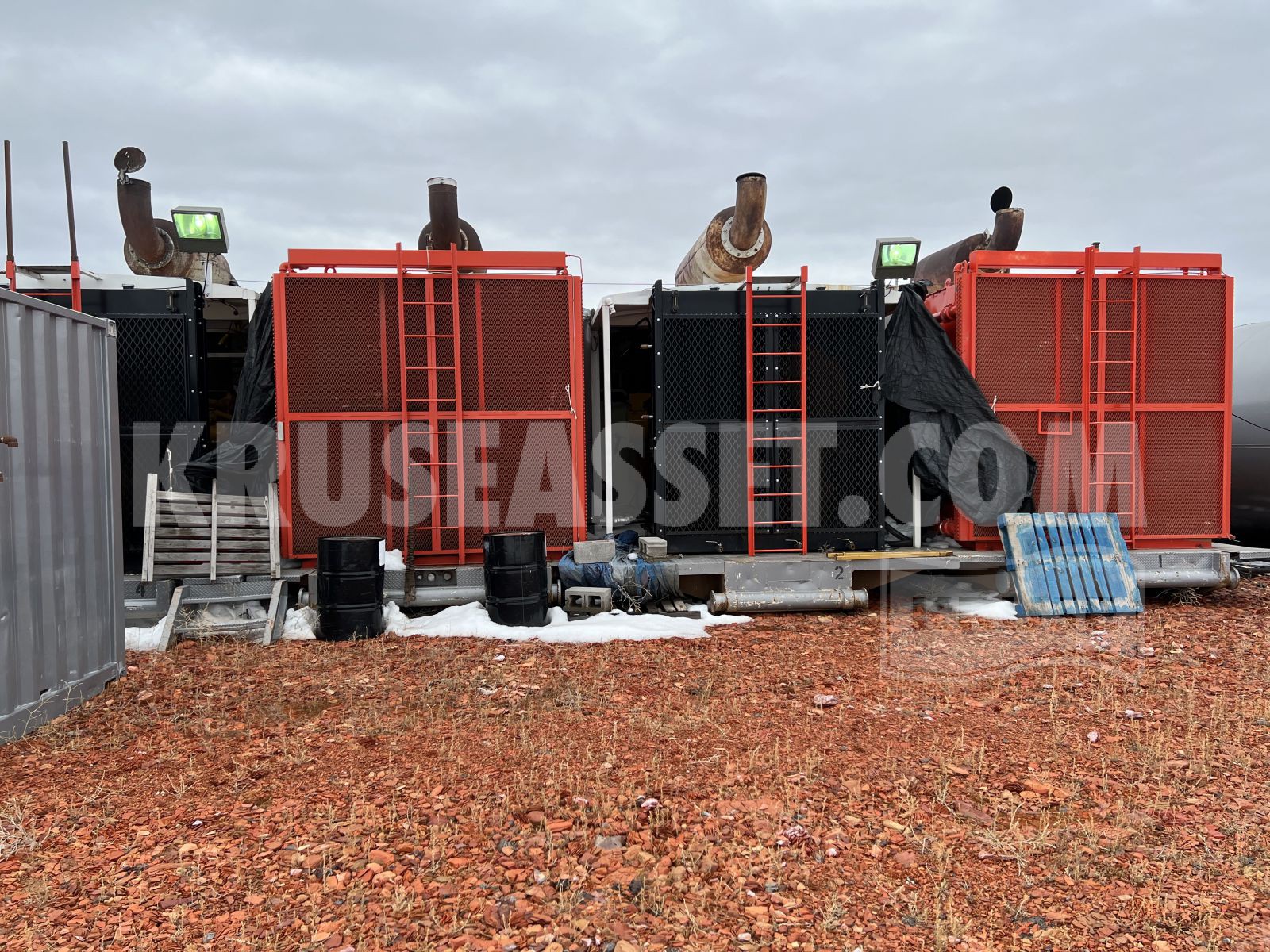

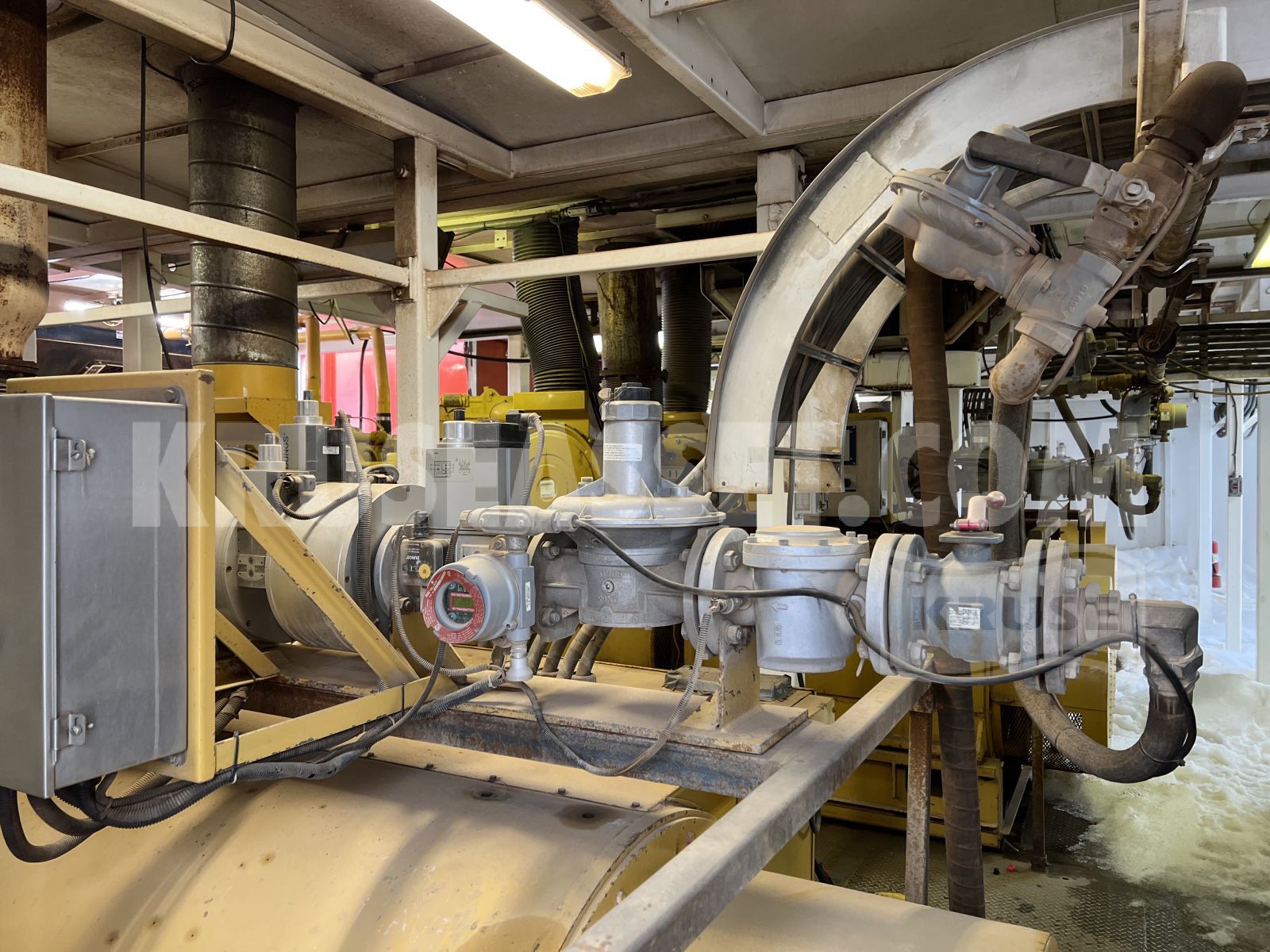

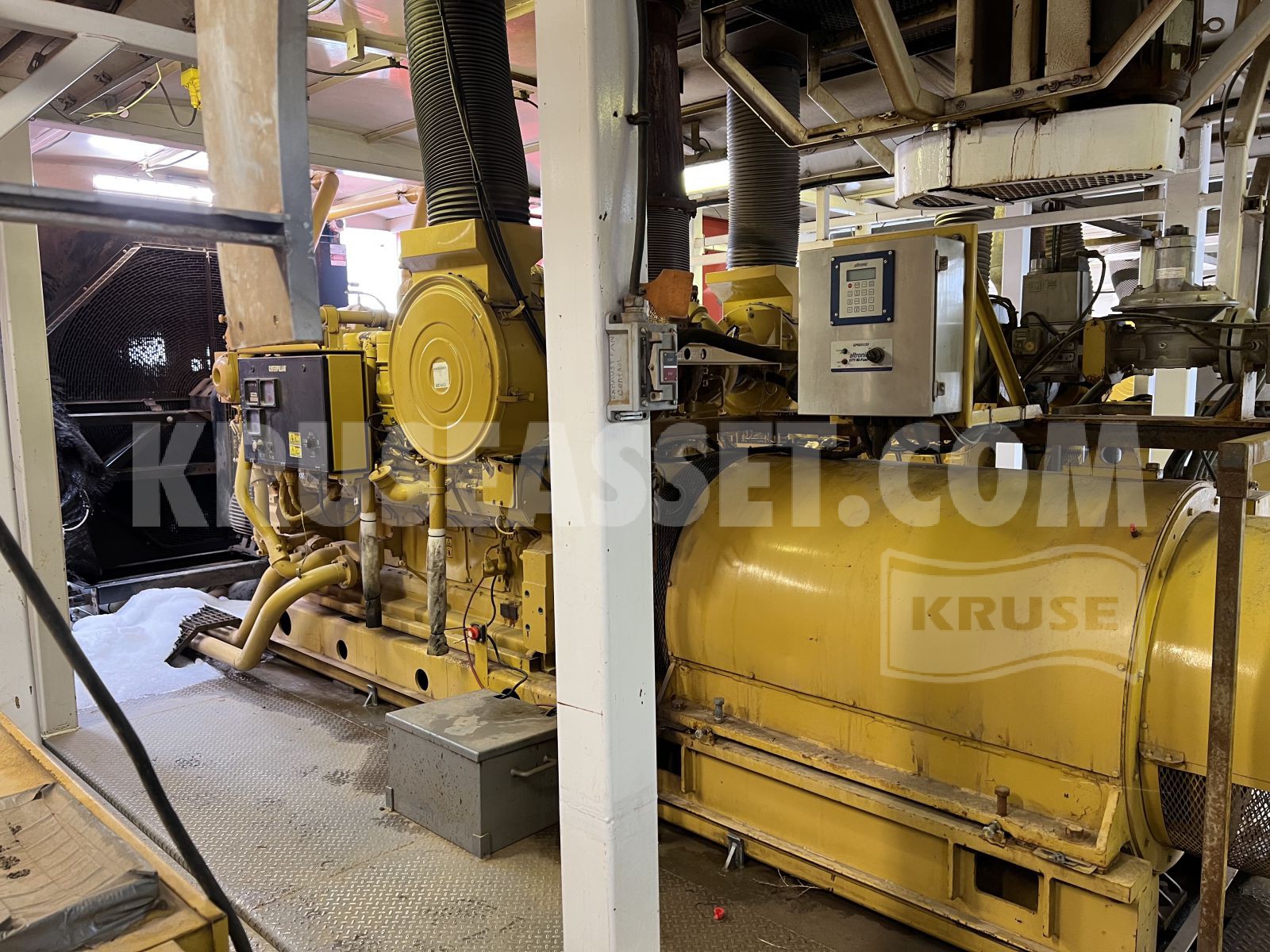

ENGINES:                 Four (4) Caterpillar 3512 diesel engines with Cat 1050 KW generators.

2 3512C used 1 year

2 3512A models

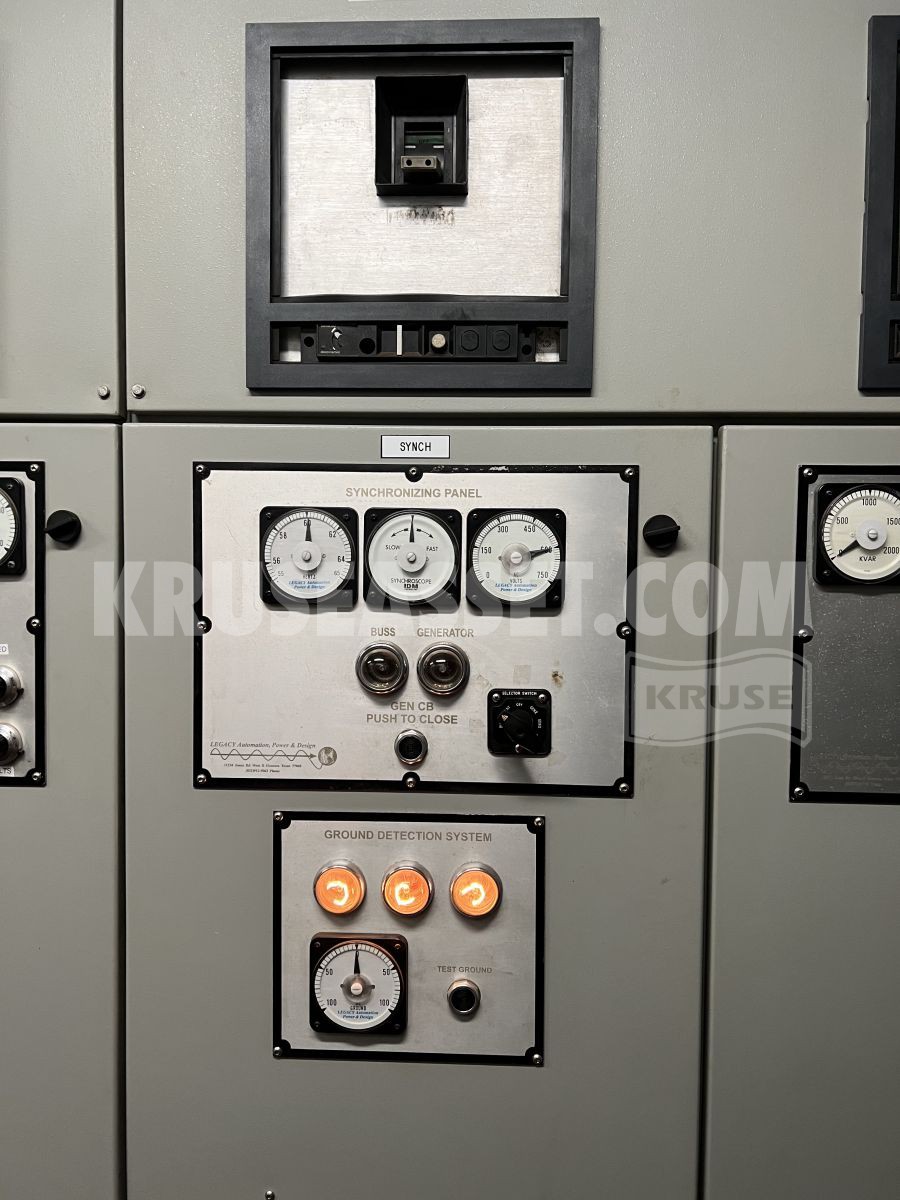

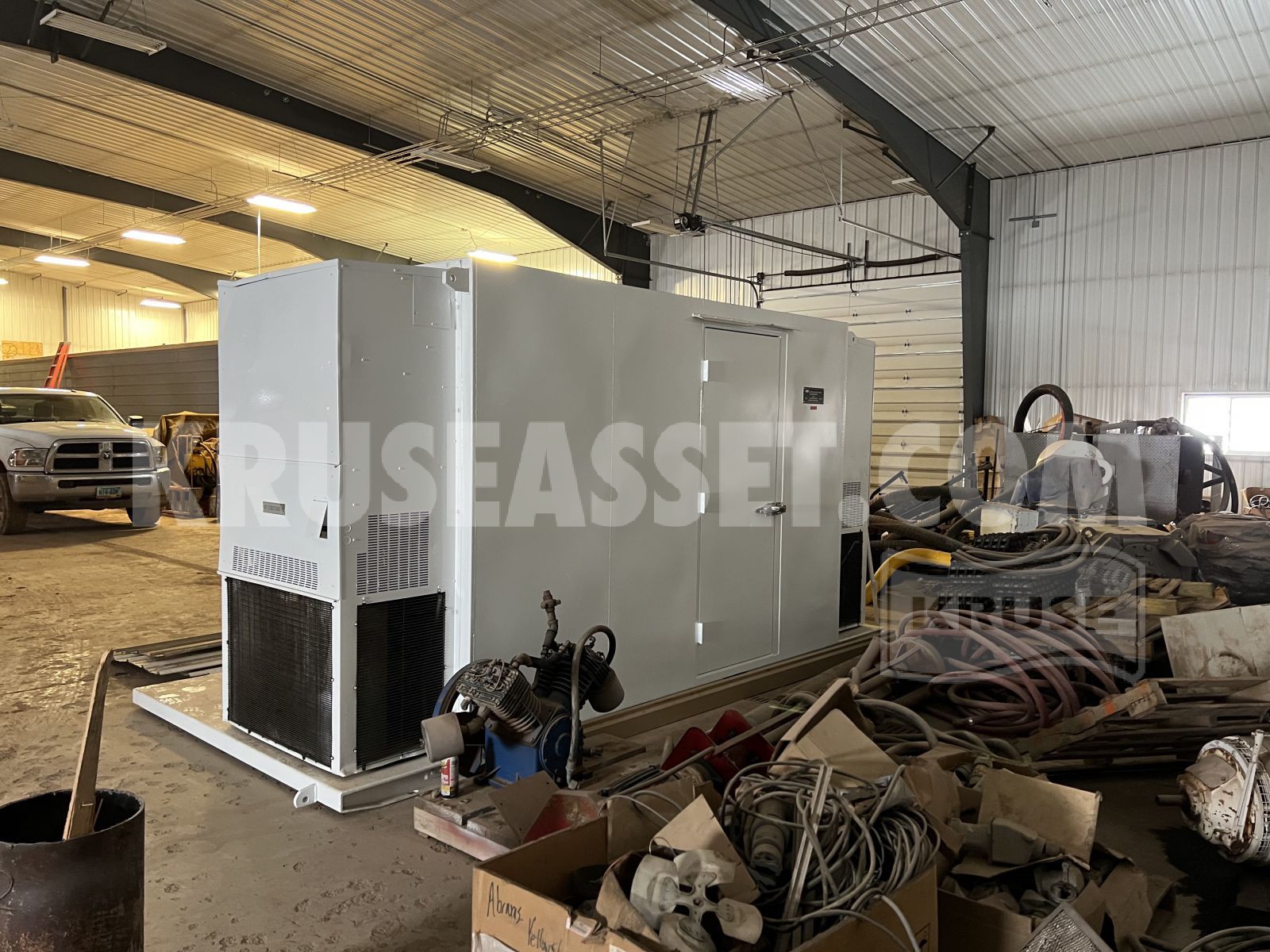

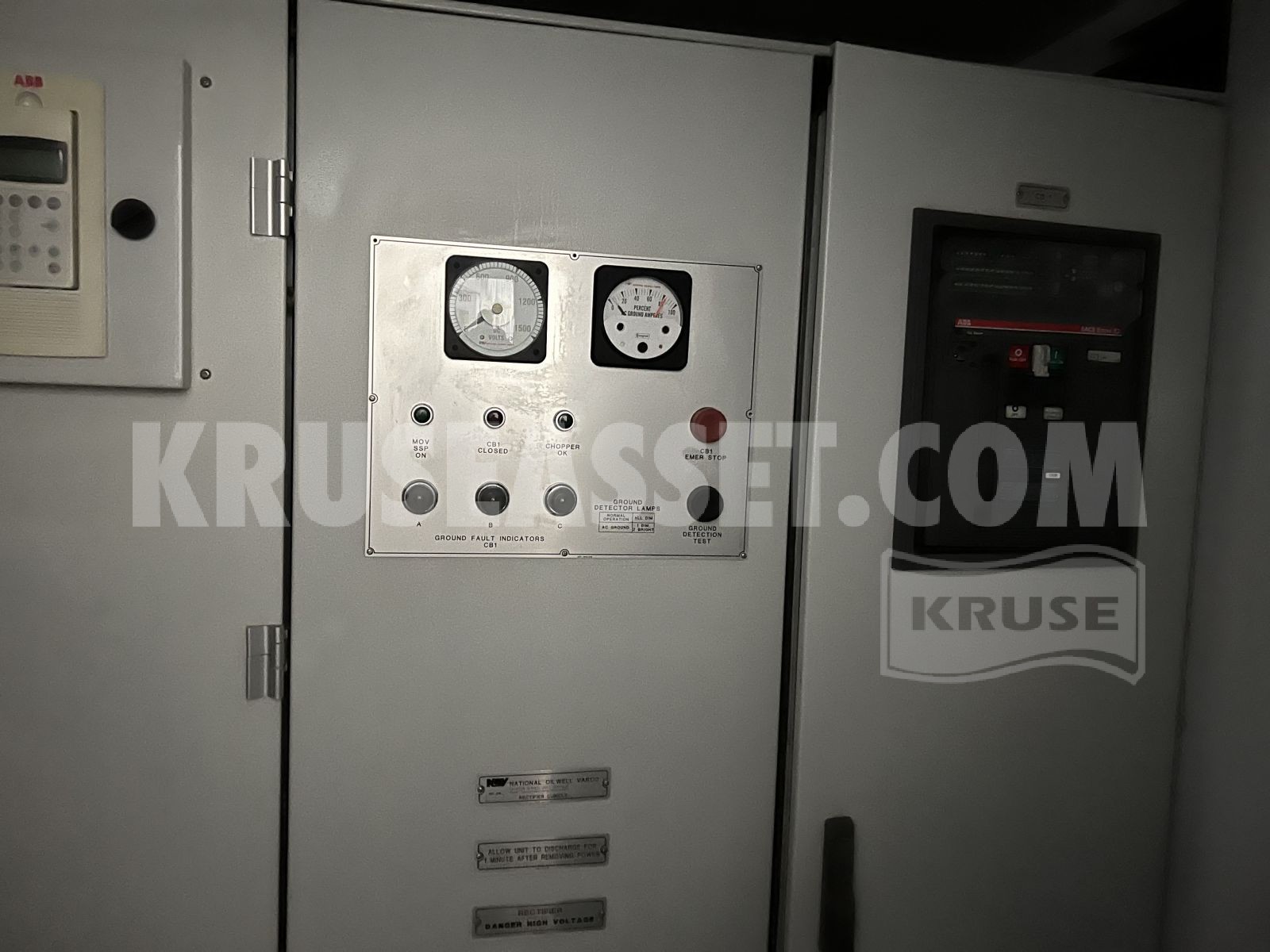

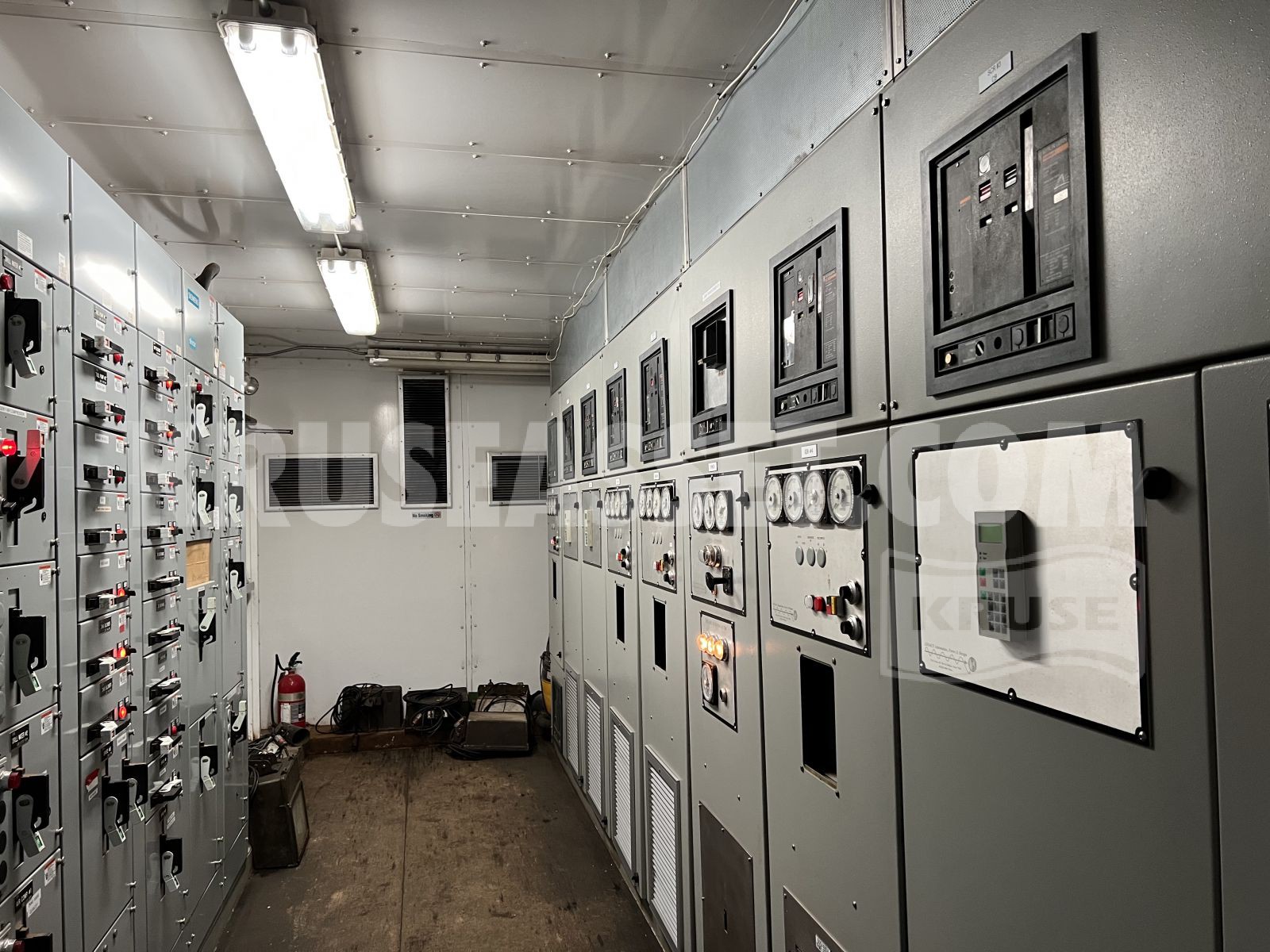

SCR:                          Legacy Siemens 4X4 control house. 600v DC and 480v AC power. 2-500t AC units and stepdown transformers

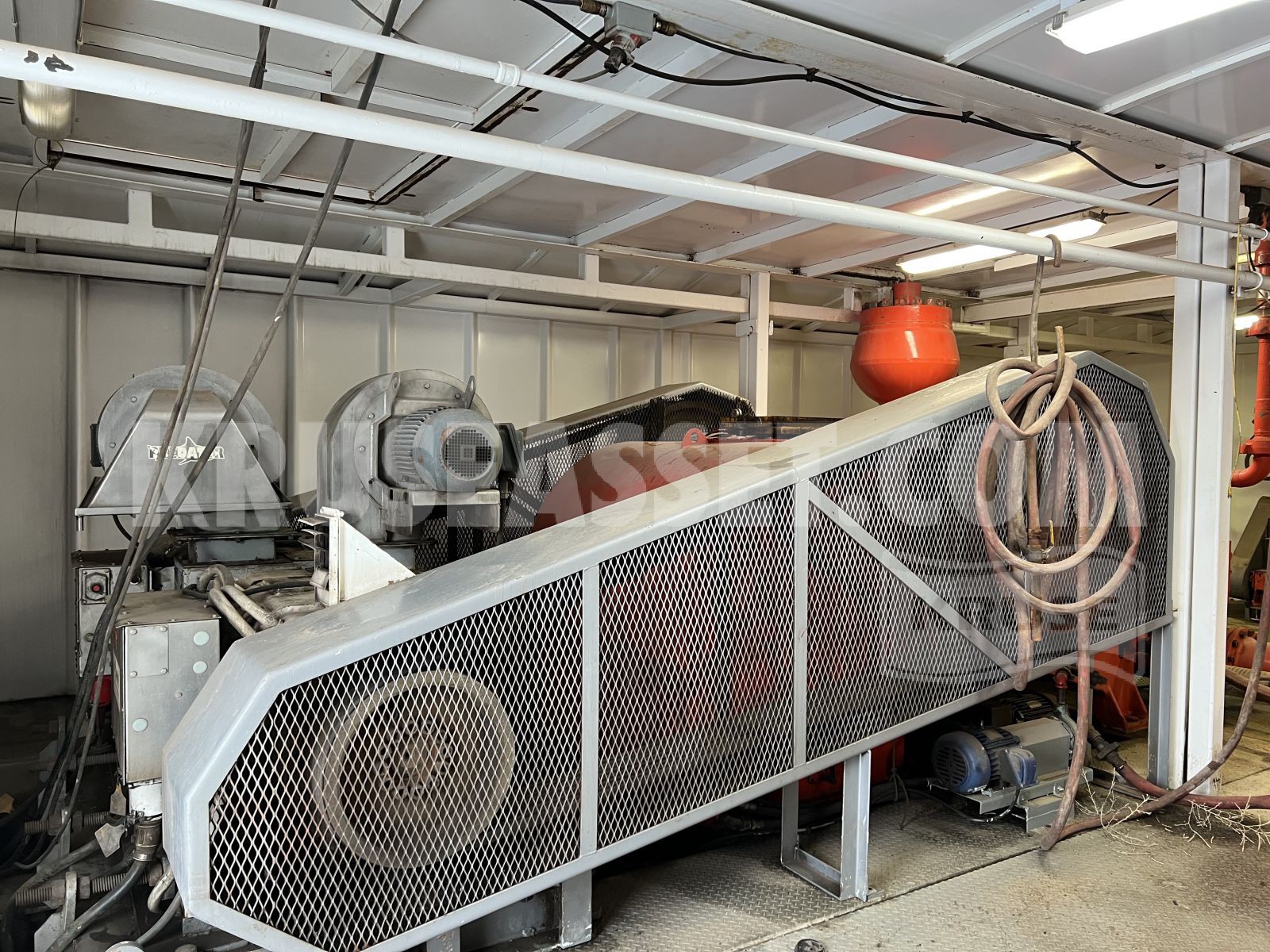

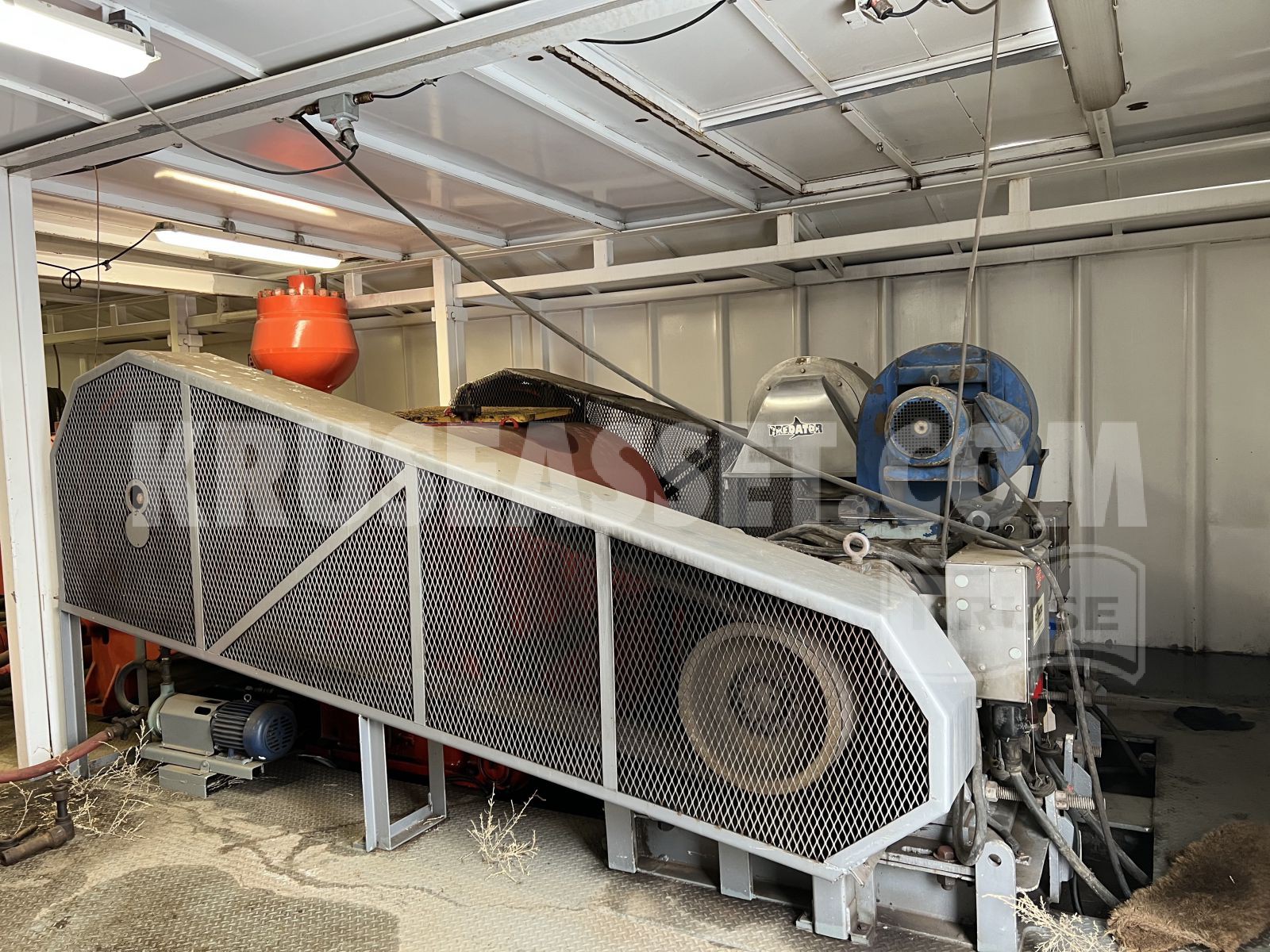

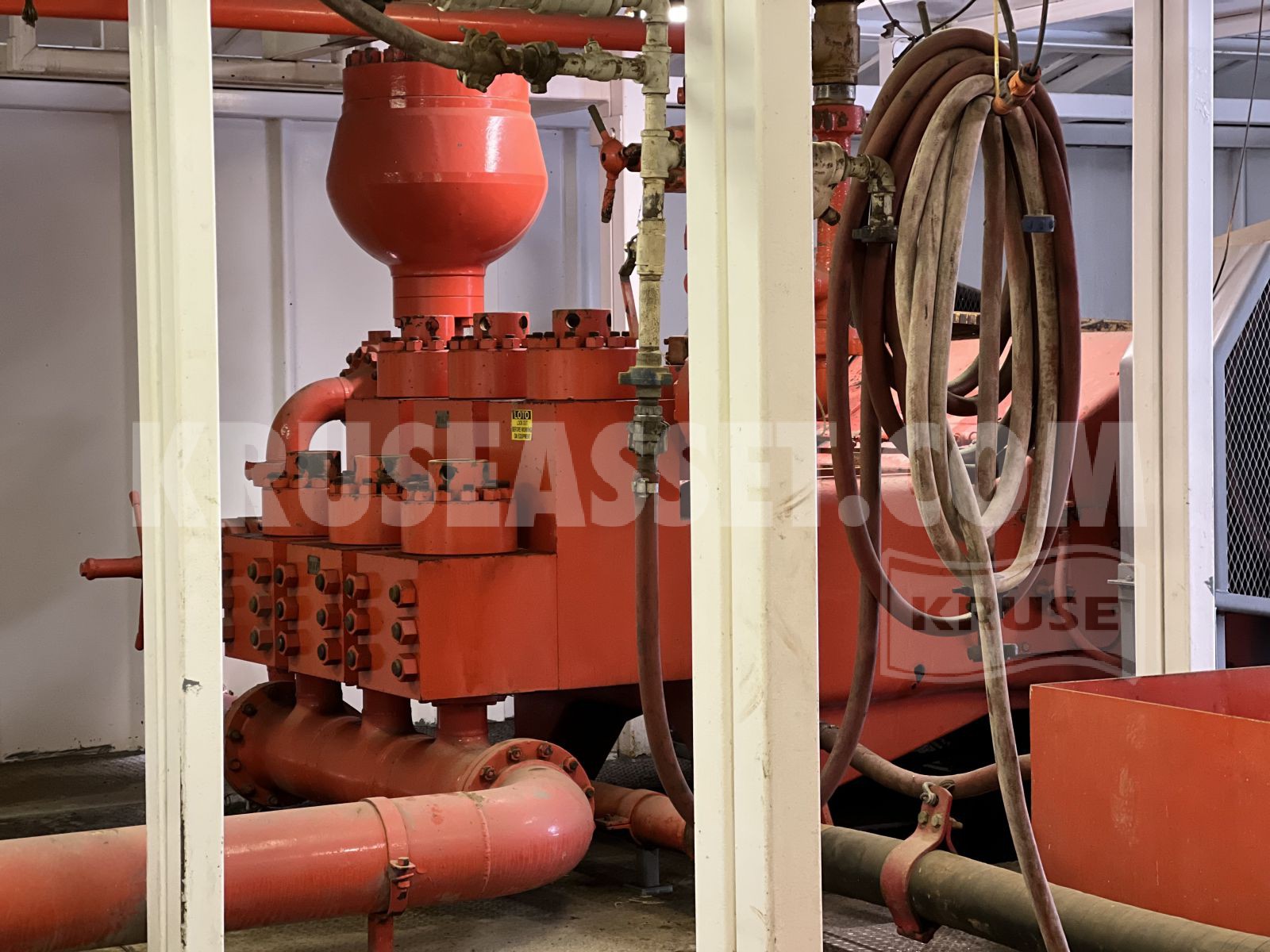

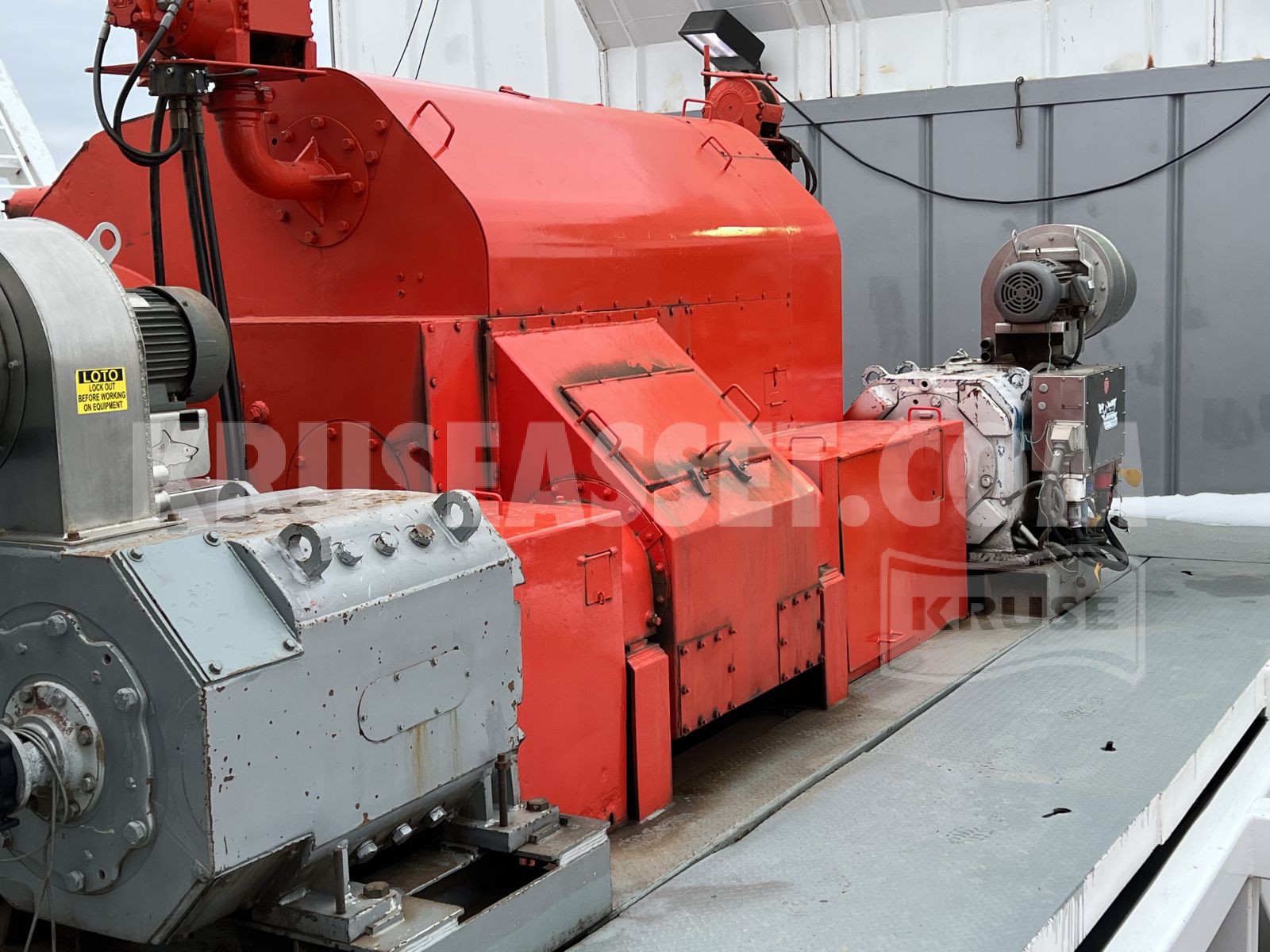

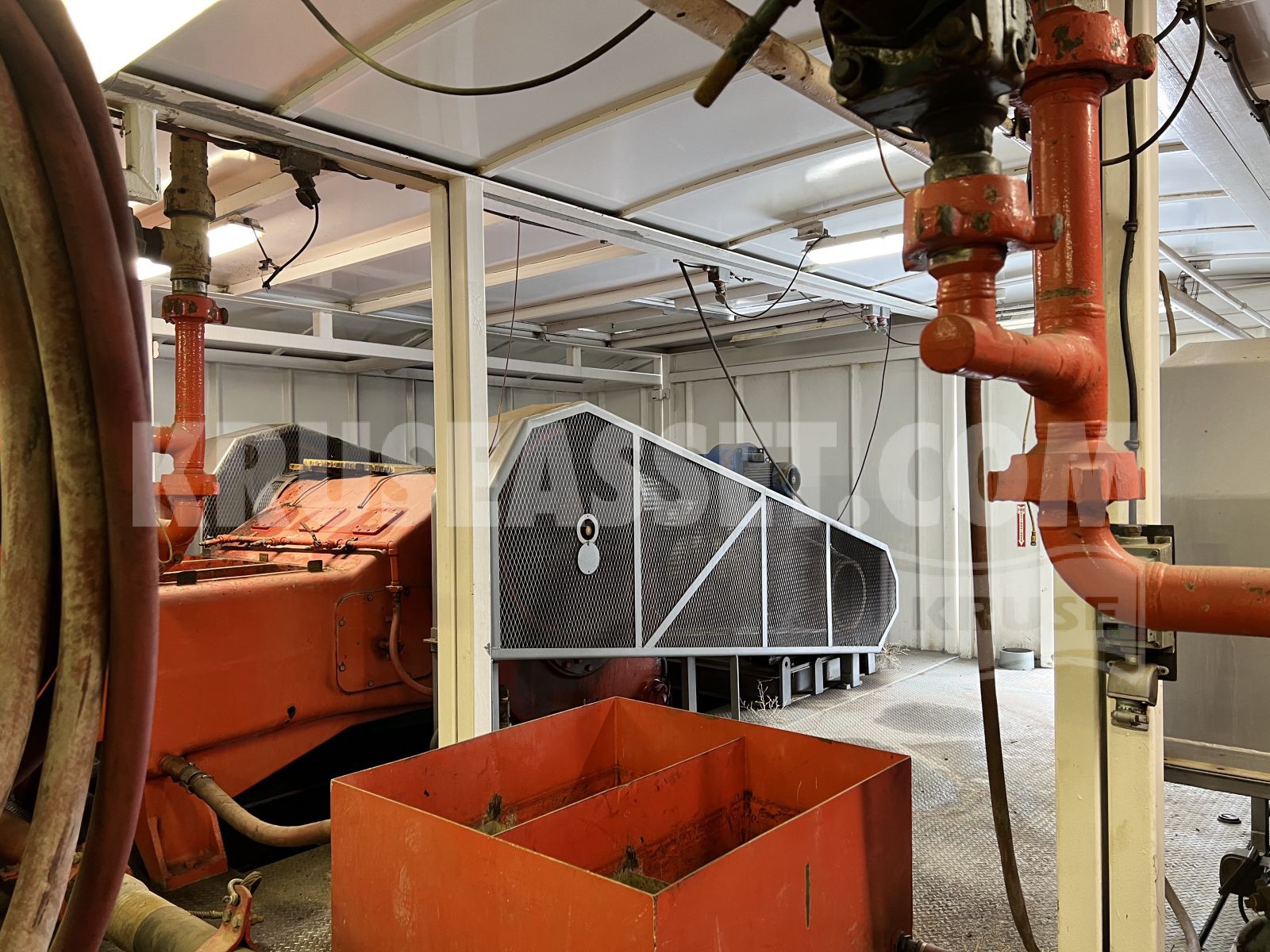

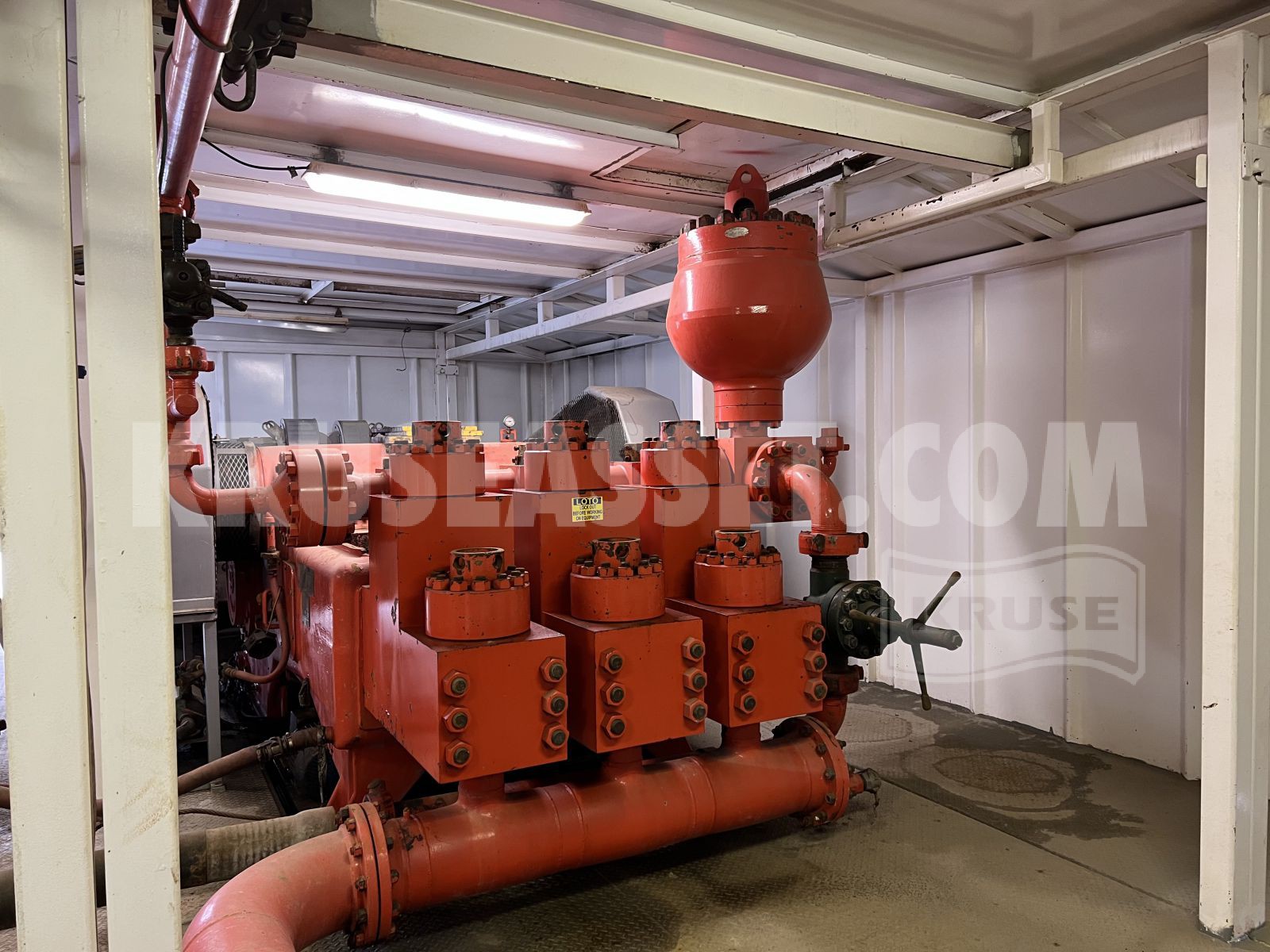

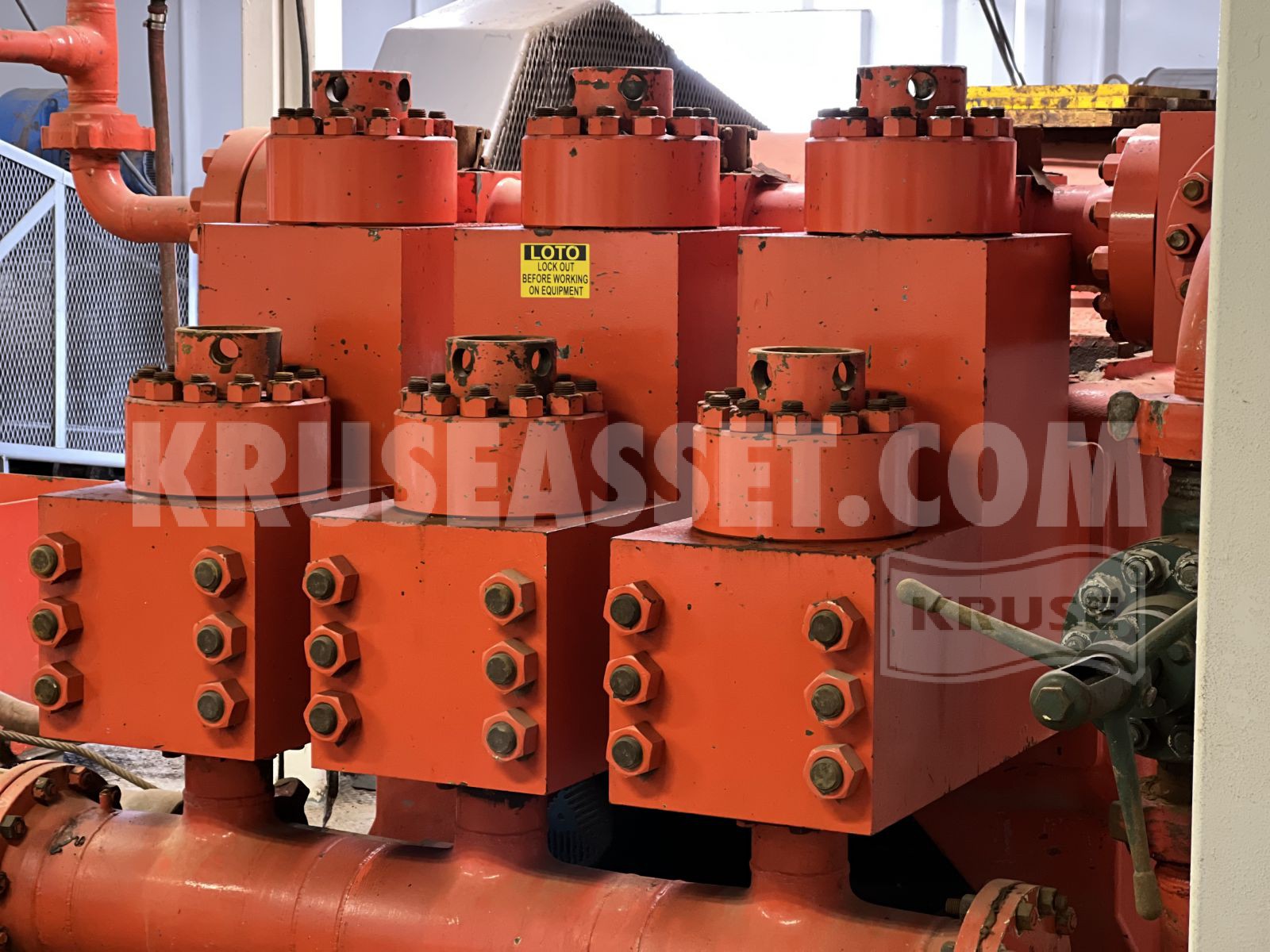

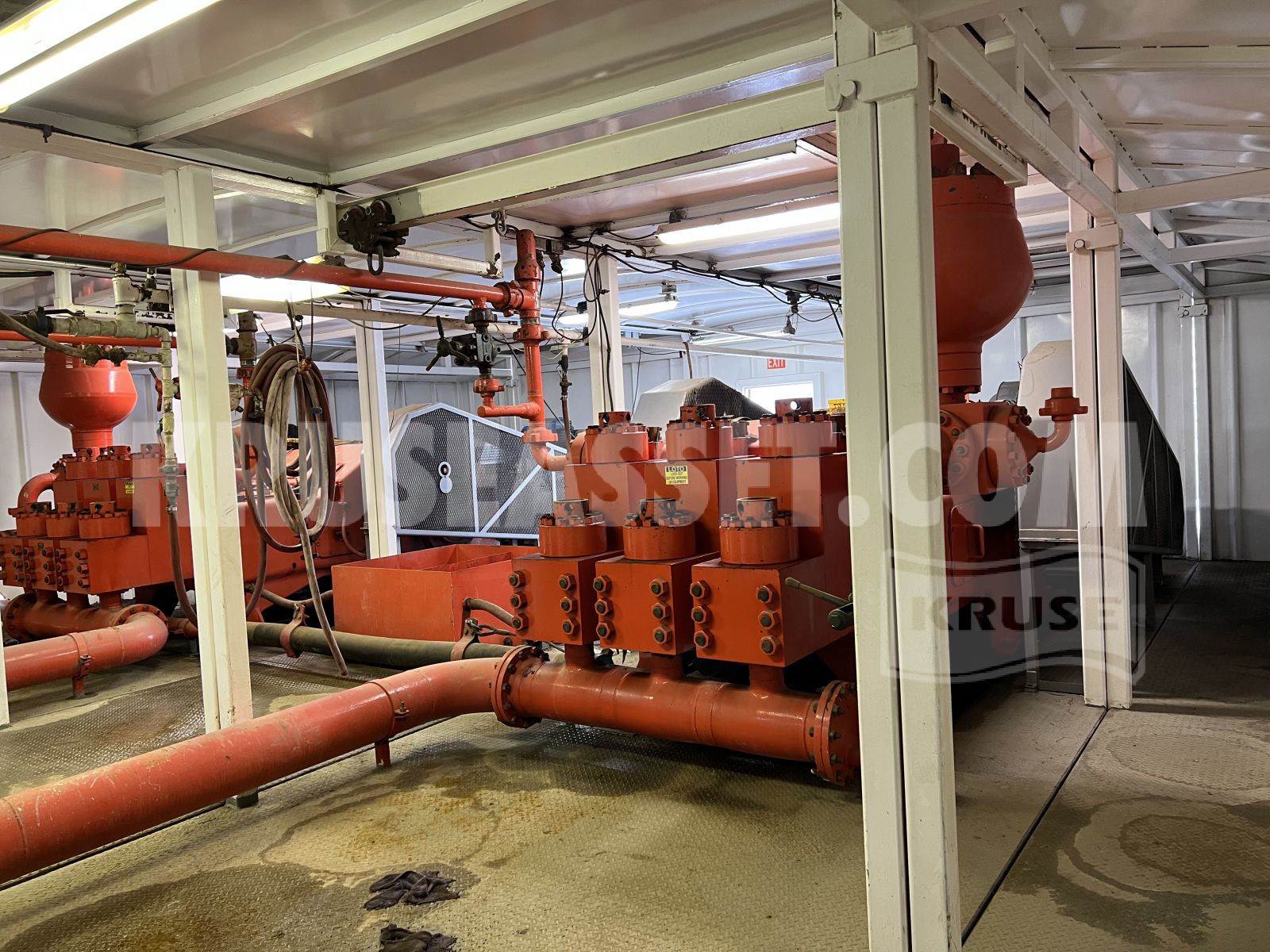

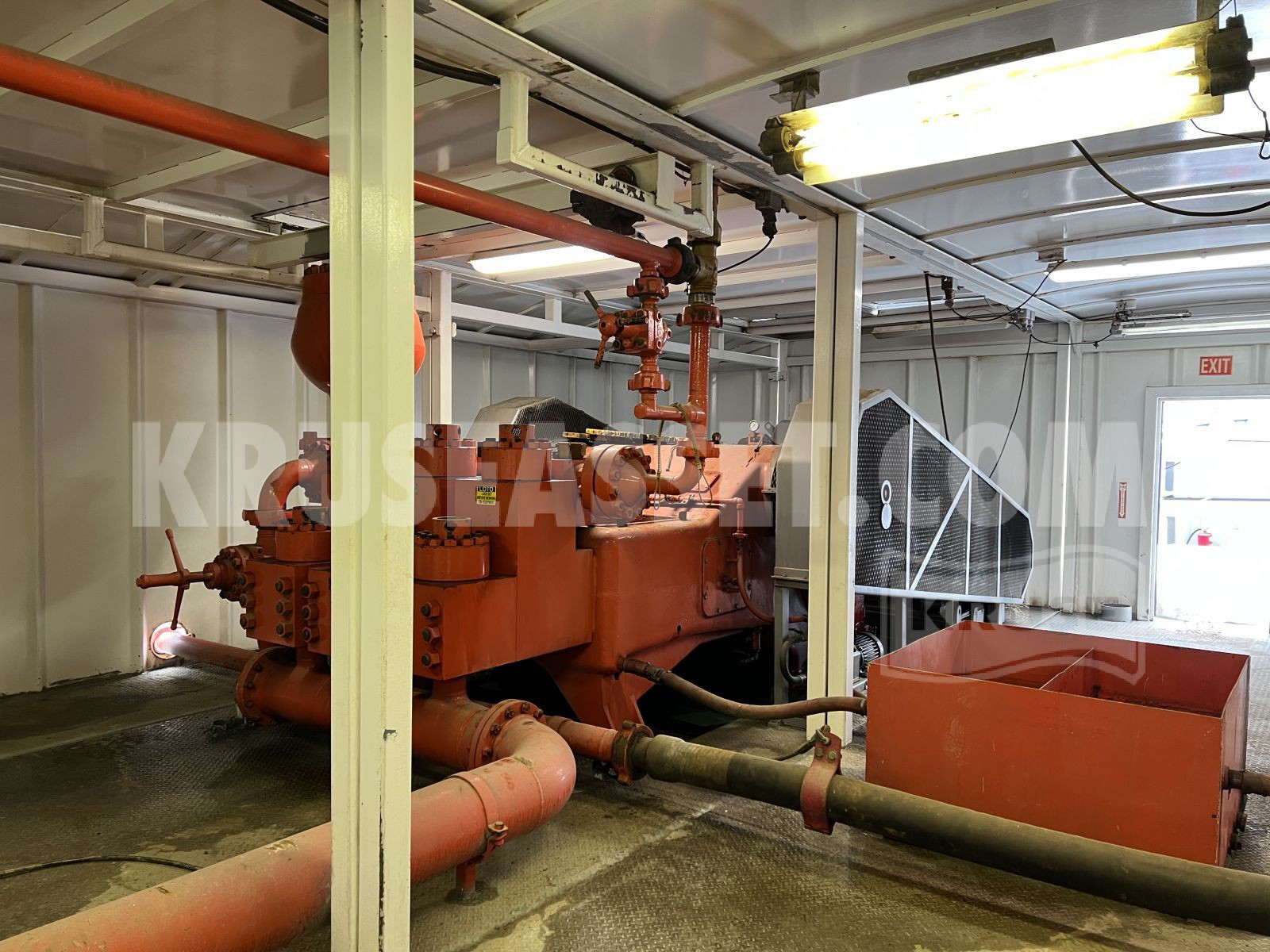

MUD PUMPS:             Two (2) Gardner Denver PZ-11's (1600 hp each) With 7500 PSI Southwest fluid ends, powered by (4) AMD 800 hp DC Traction Motors. 5x6 Charge Pumps, Belts, Belt Guard.

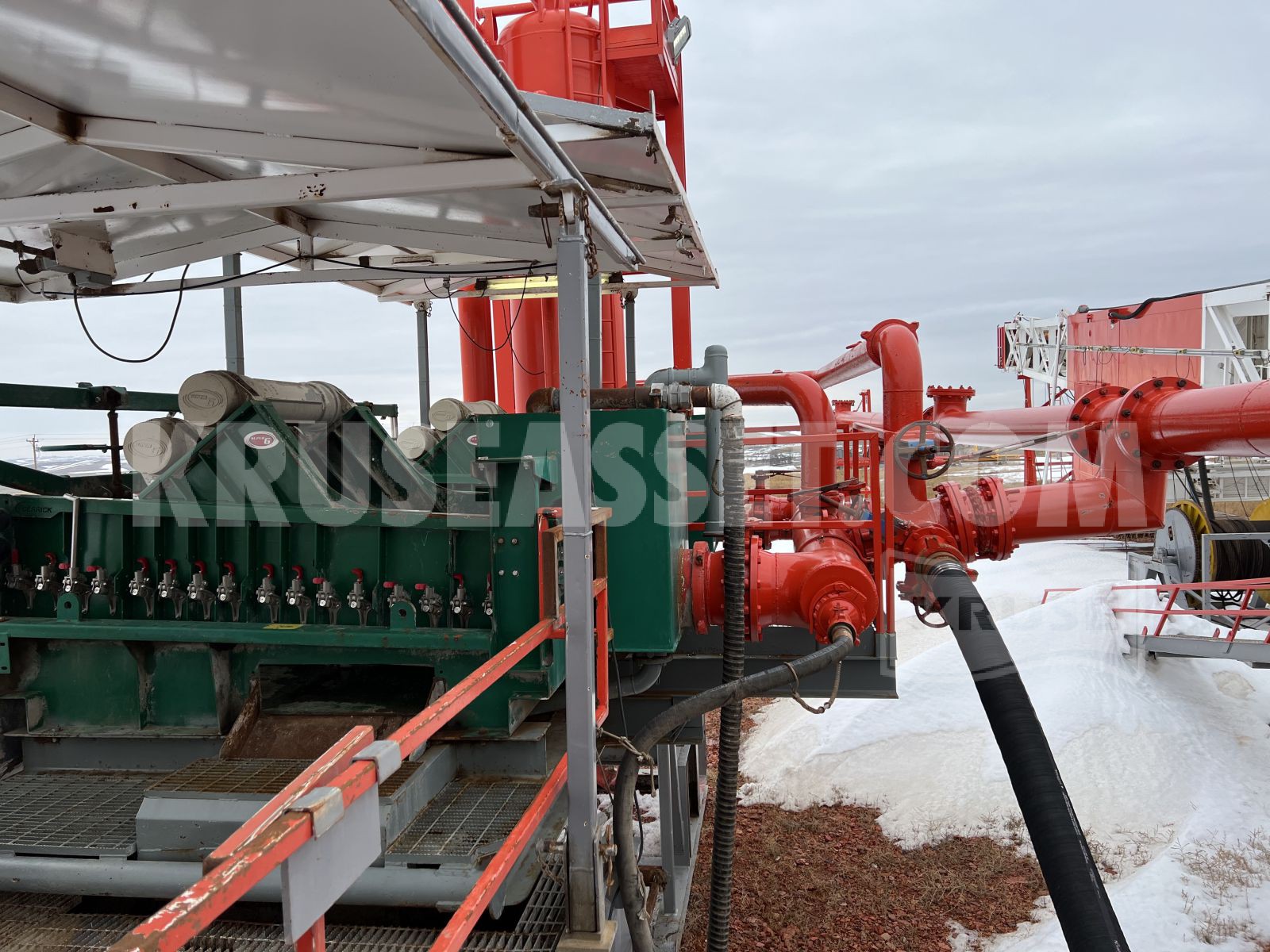

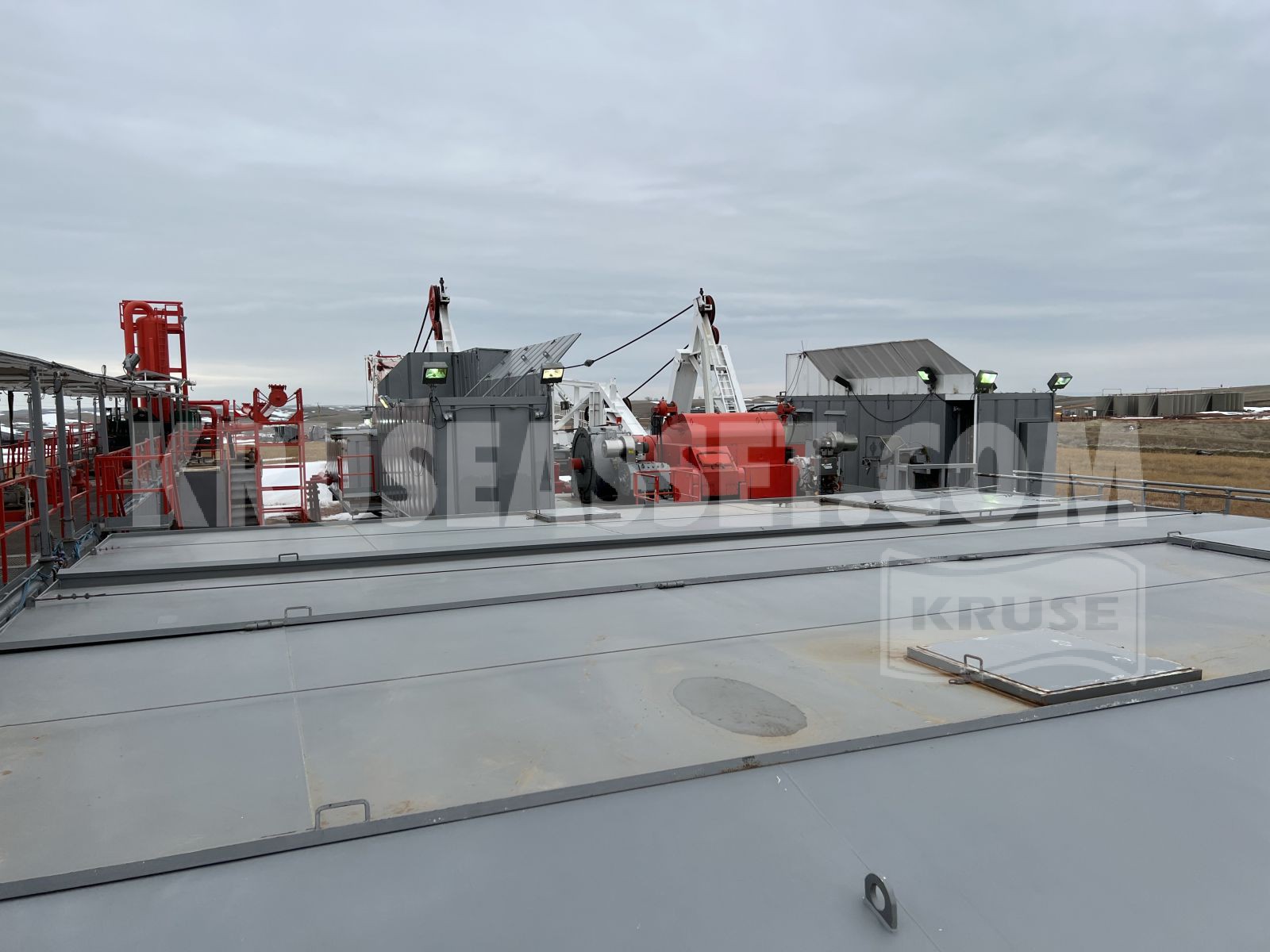

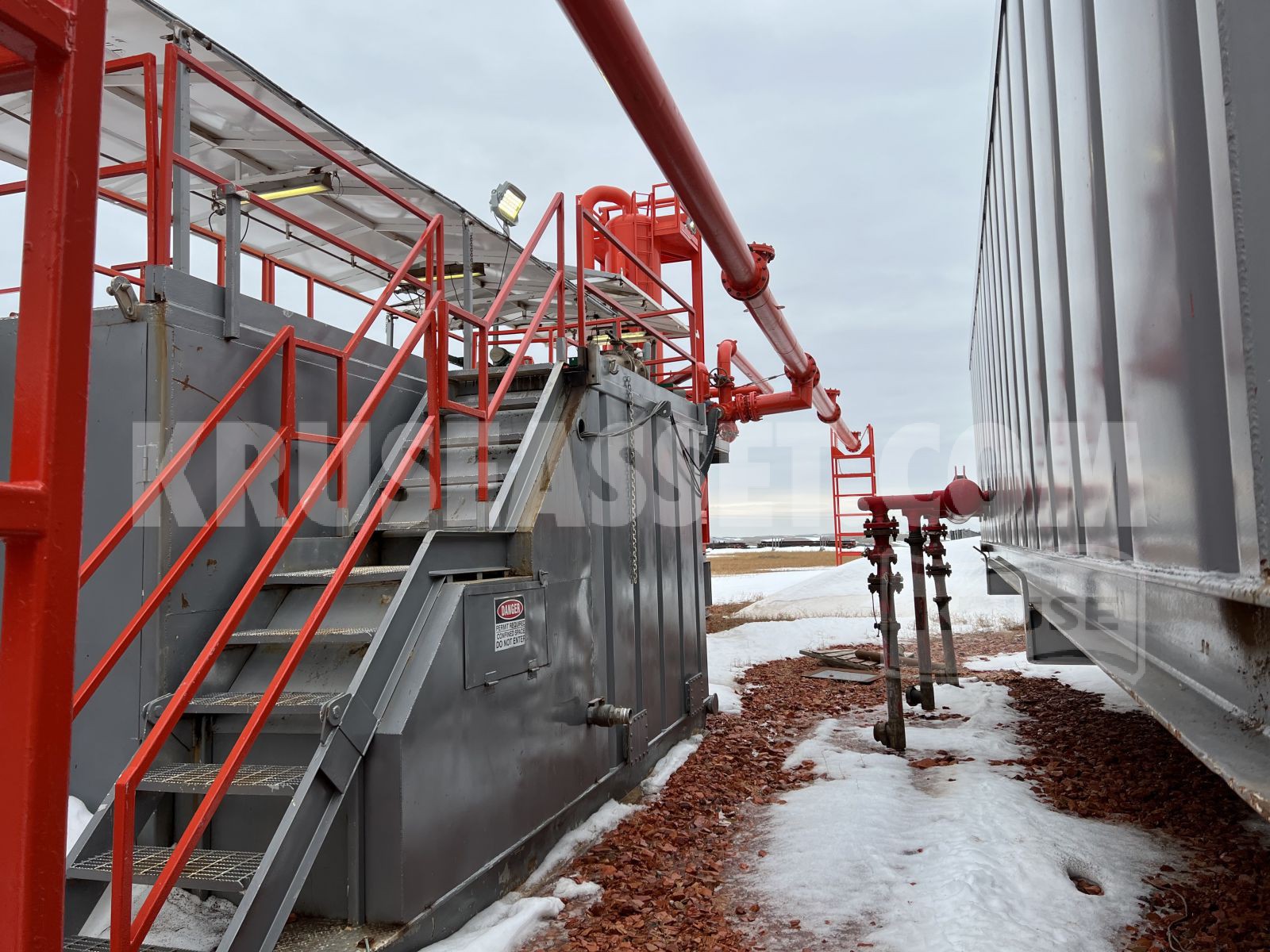

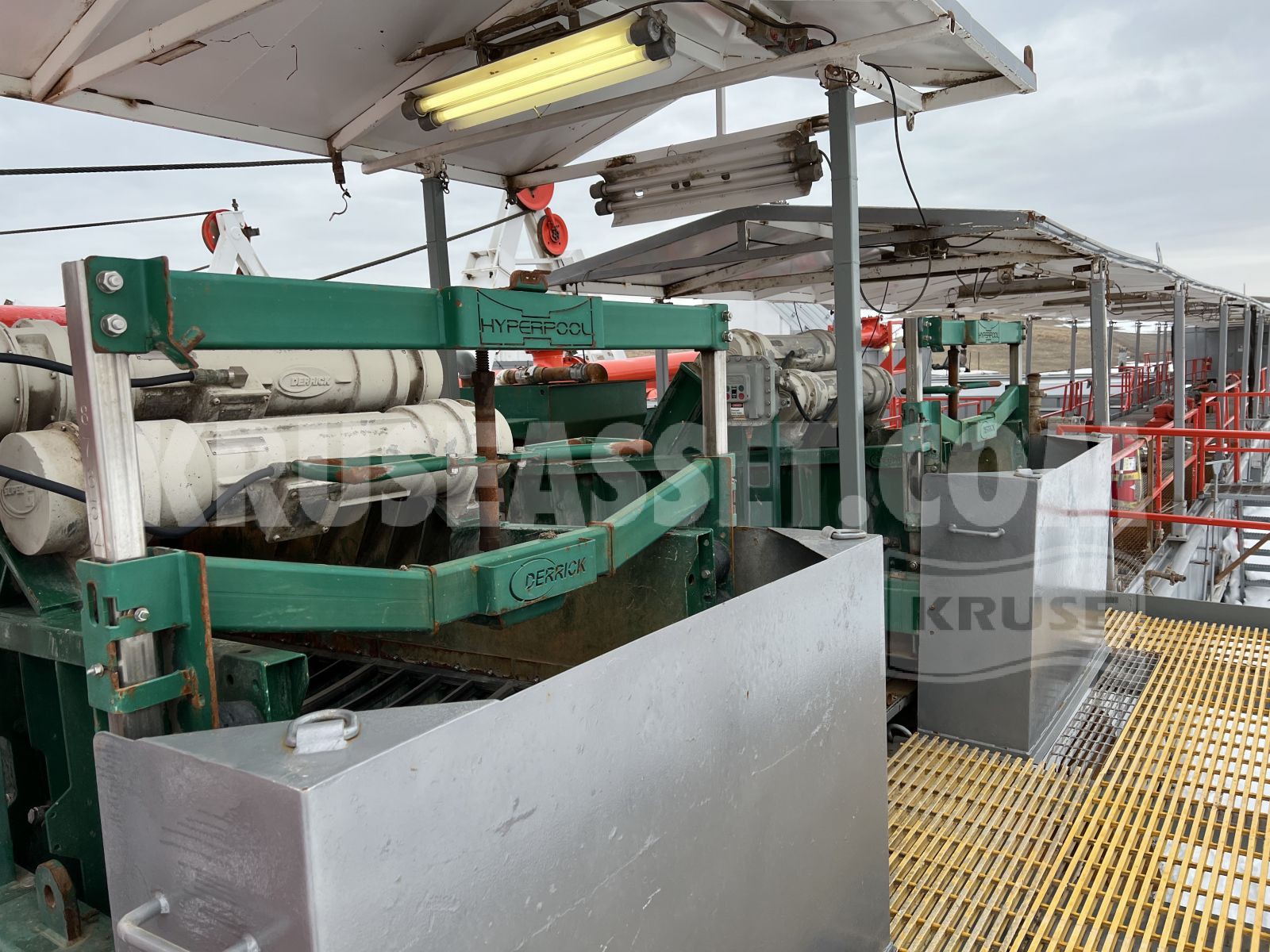

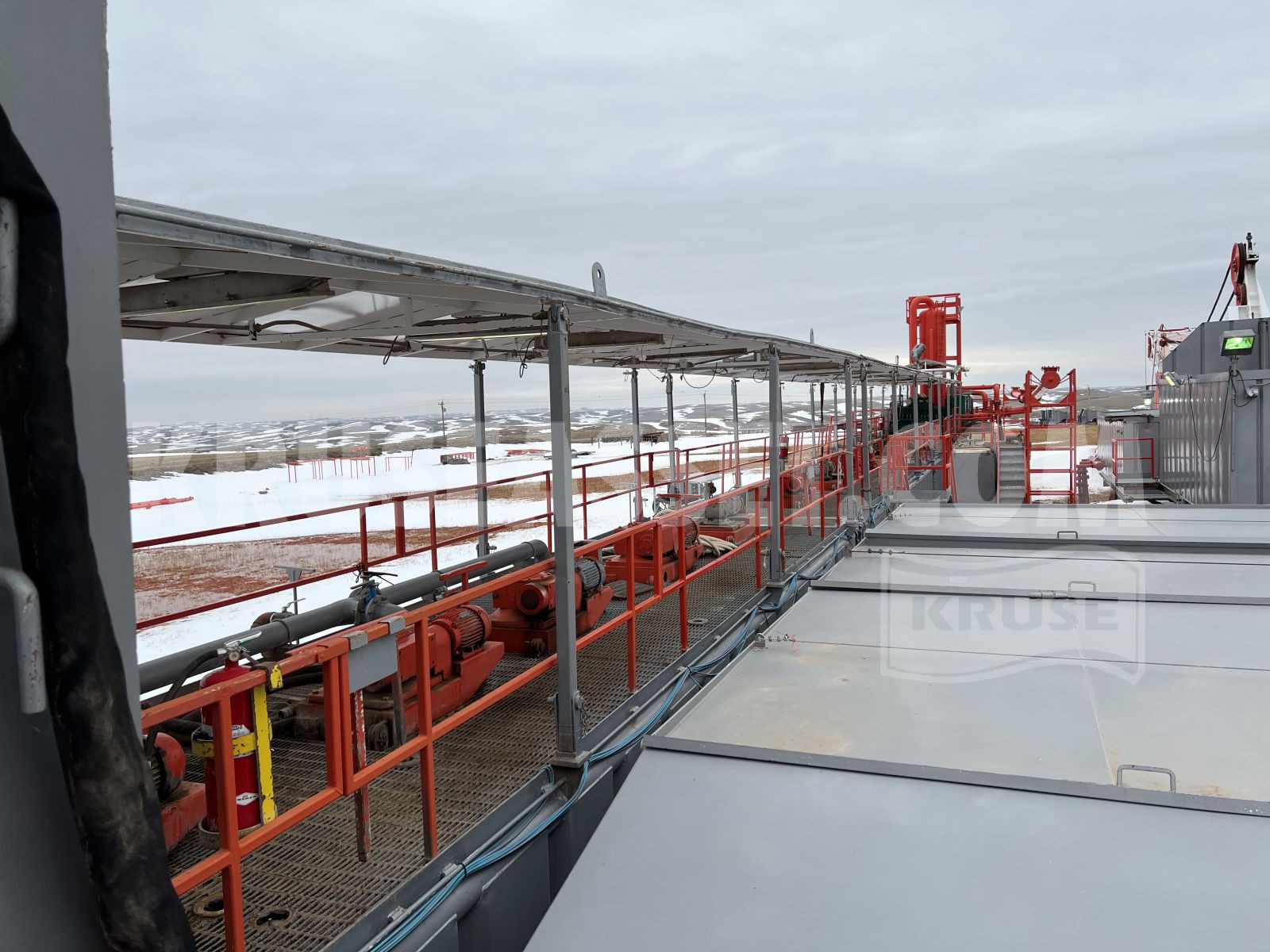

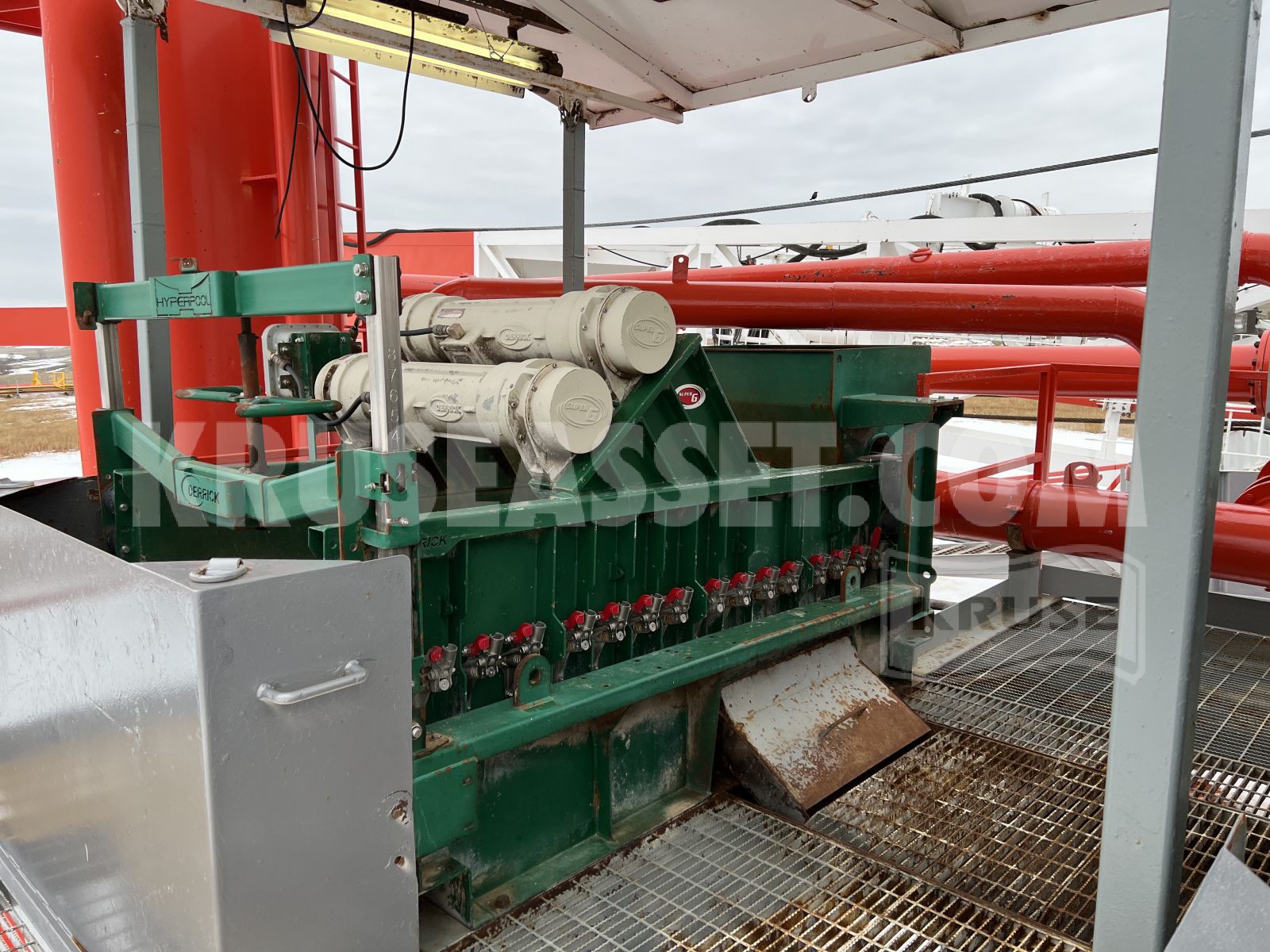

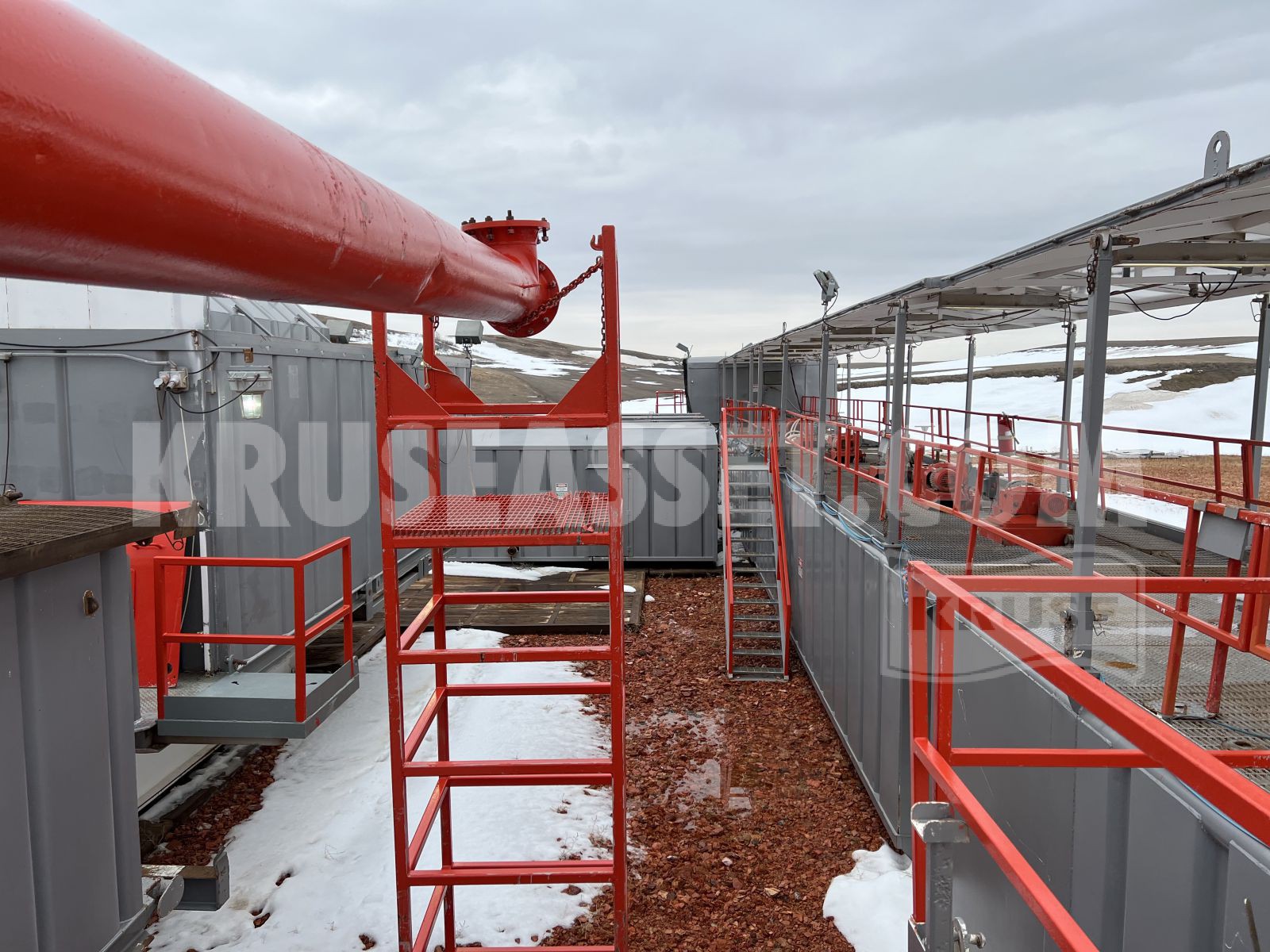

MUD SYSTEM:           Three Tank Mud System. 10' W x 40' L x 8' H. 1500 Bbl Capacity Two Derrick ShaleShakers

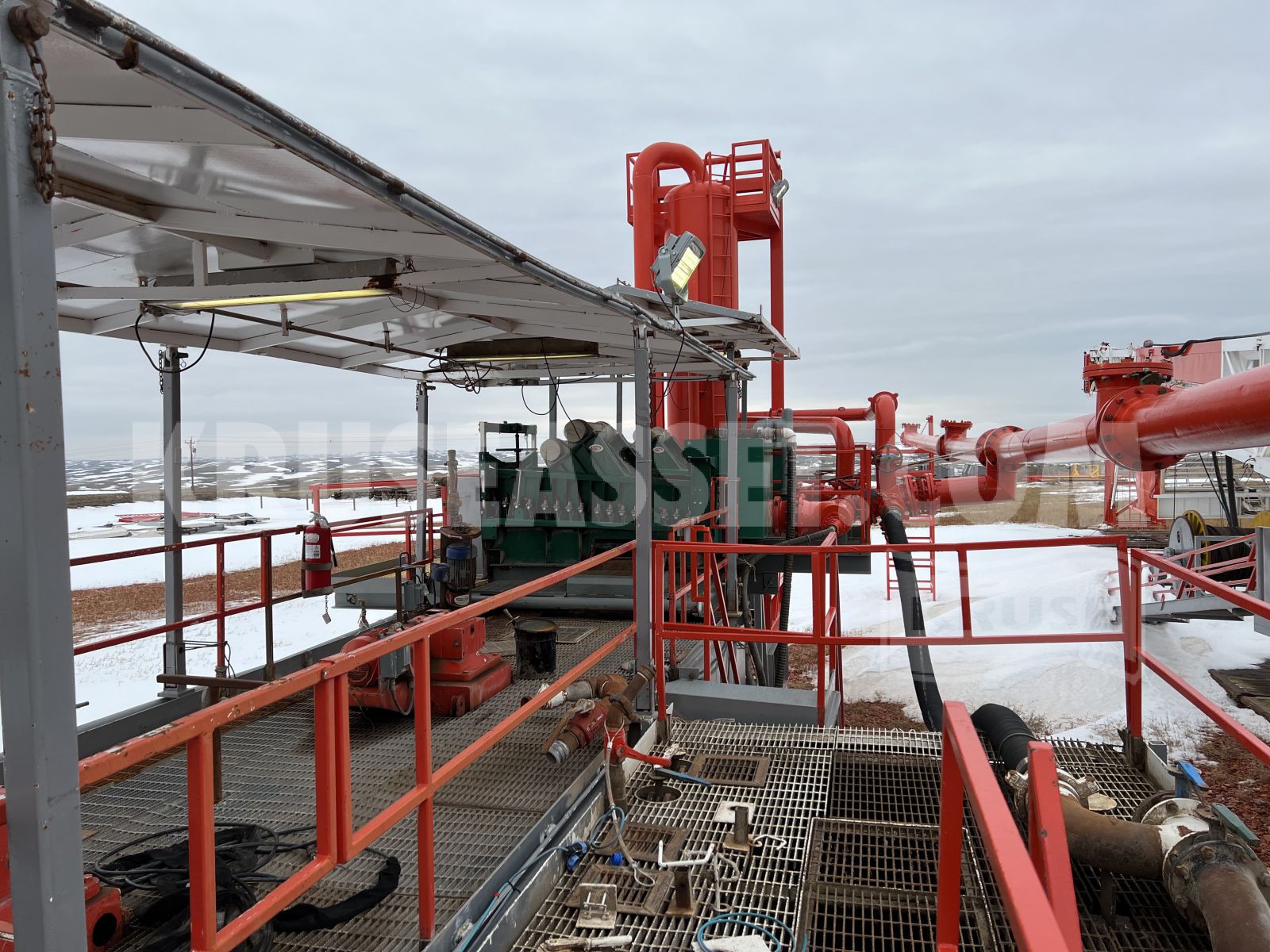

Mud Mixers - Harrisburg Mud Gas Separator

Brandt Mud Mixers - 8 - 10 hp Brandt Agitators

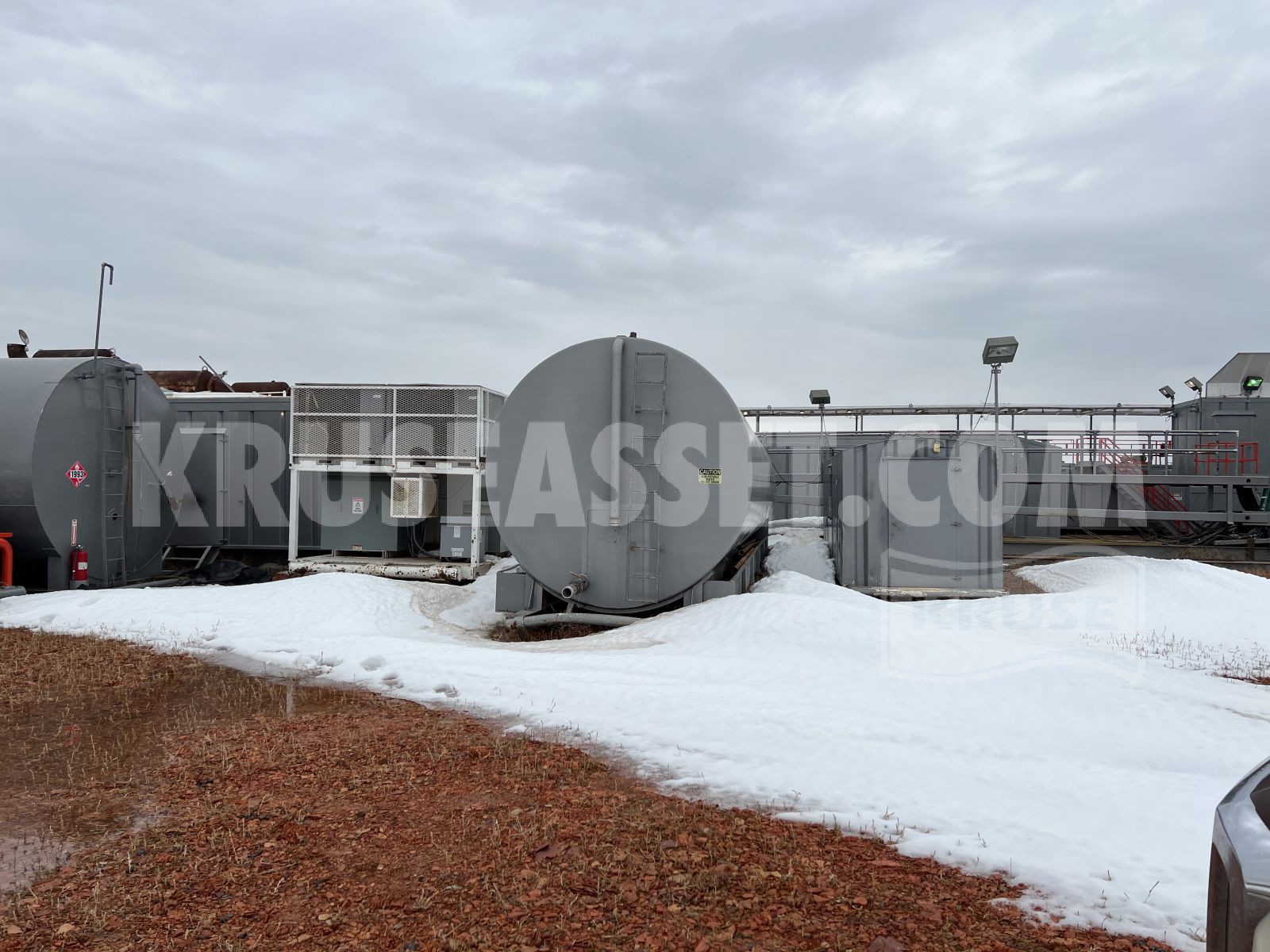

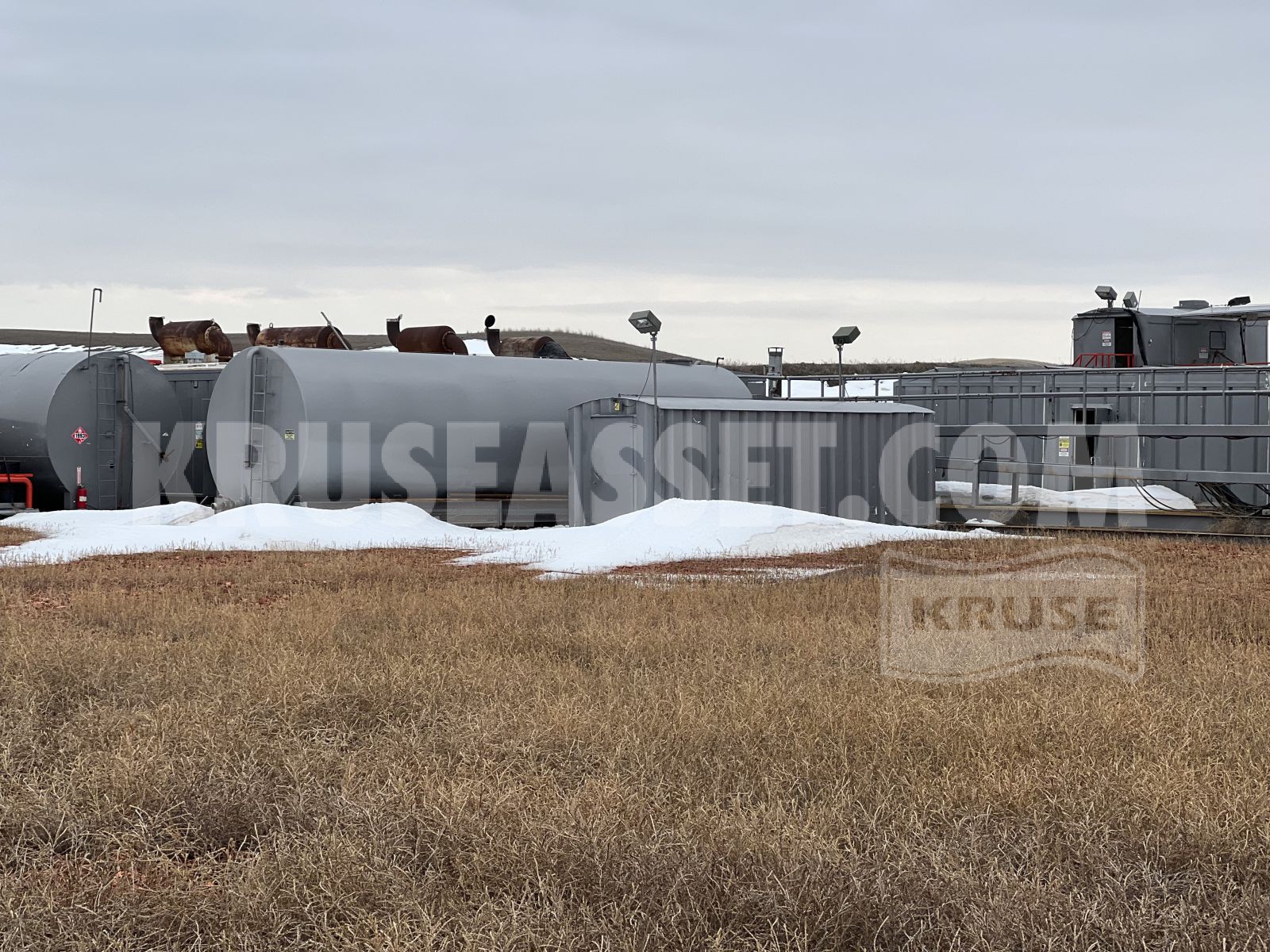

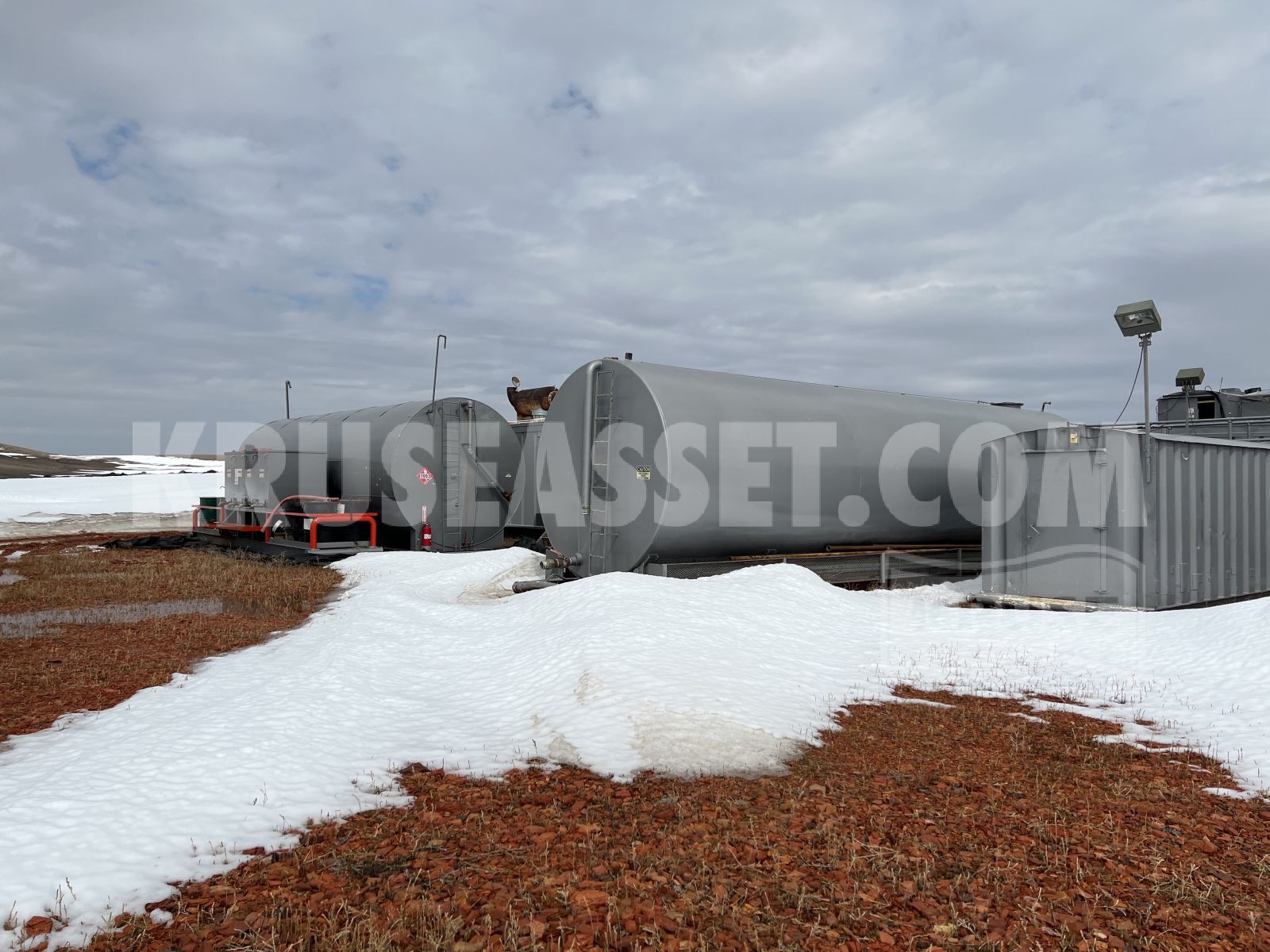

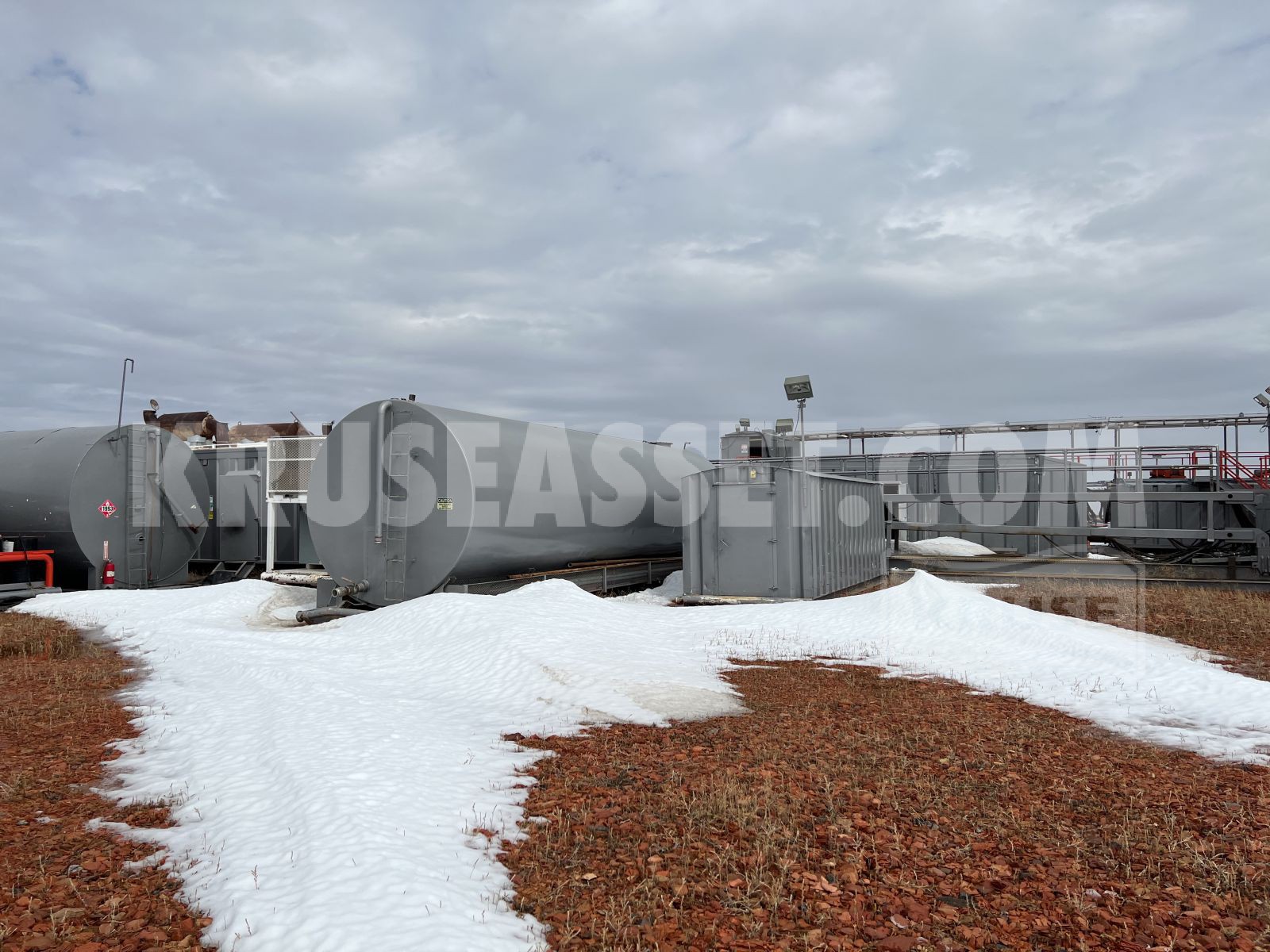

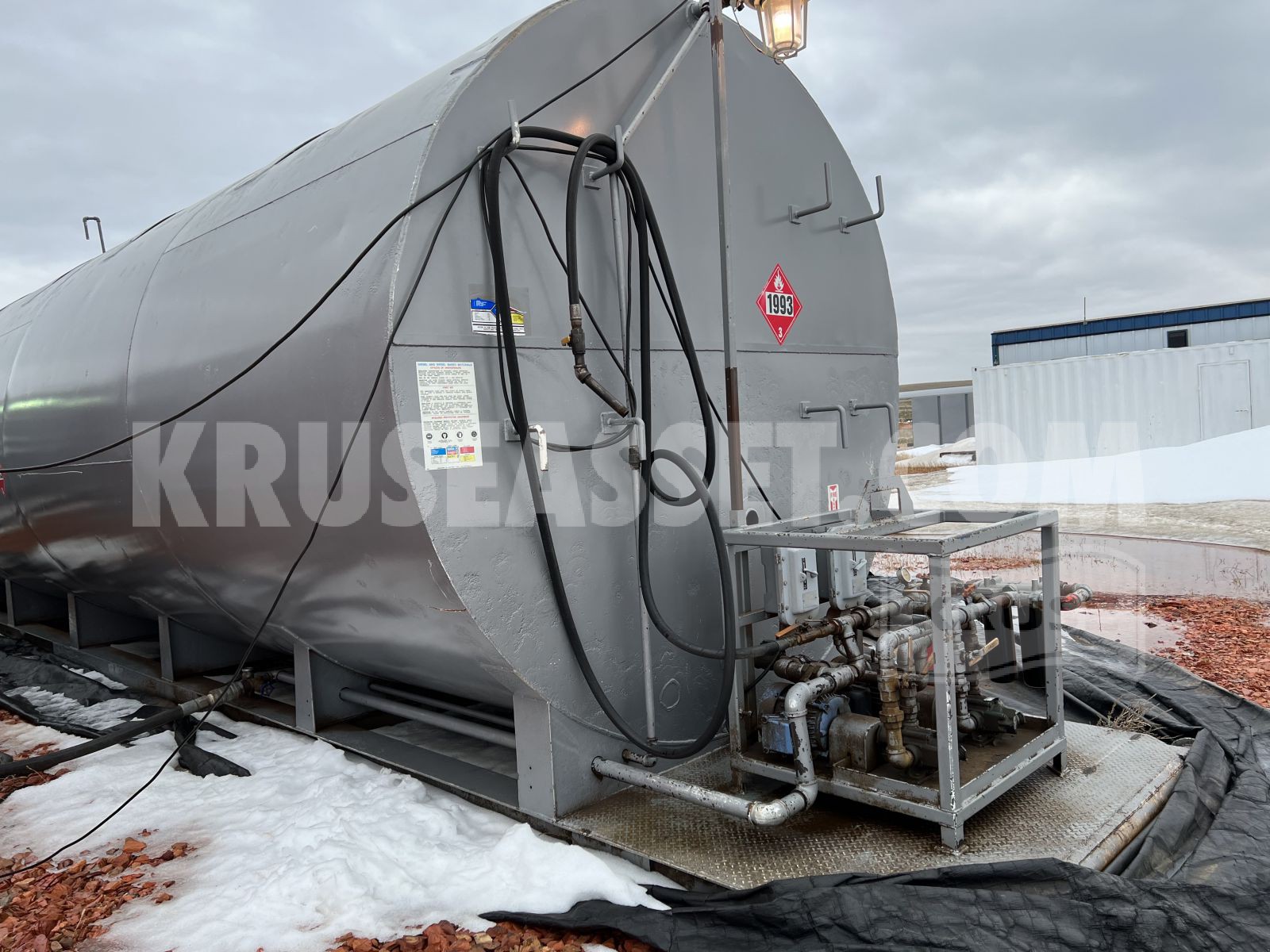

WATER TANK:           2-Water Tanks 500 BBLS Skidded - Double Life Pump with Electric Motor.

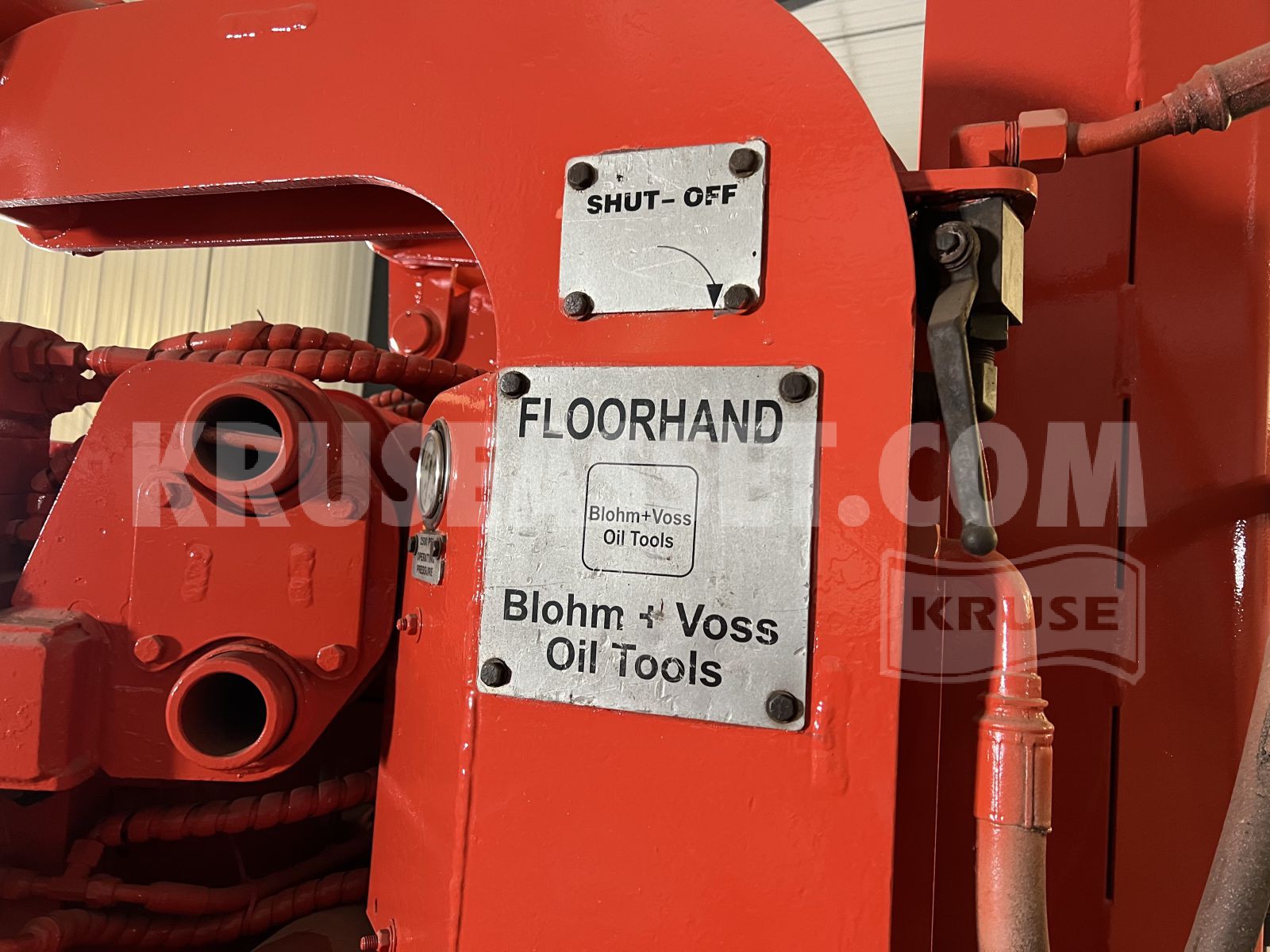

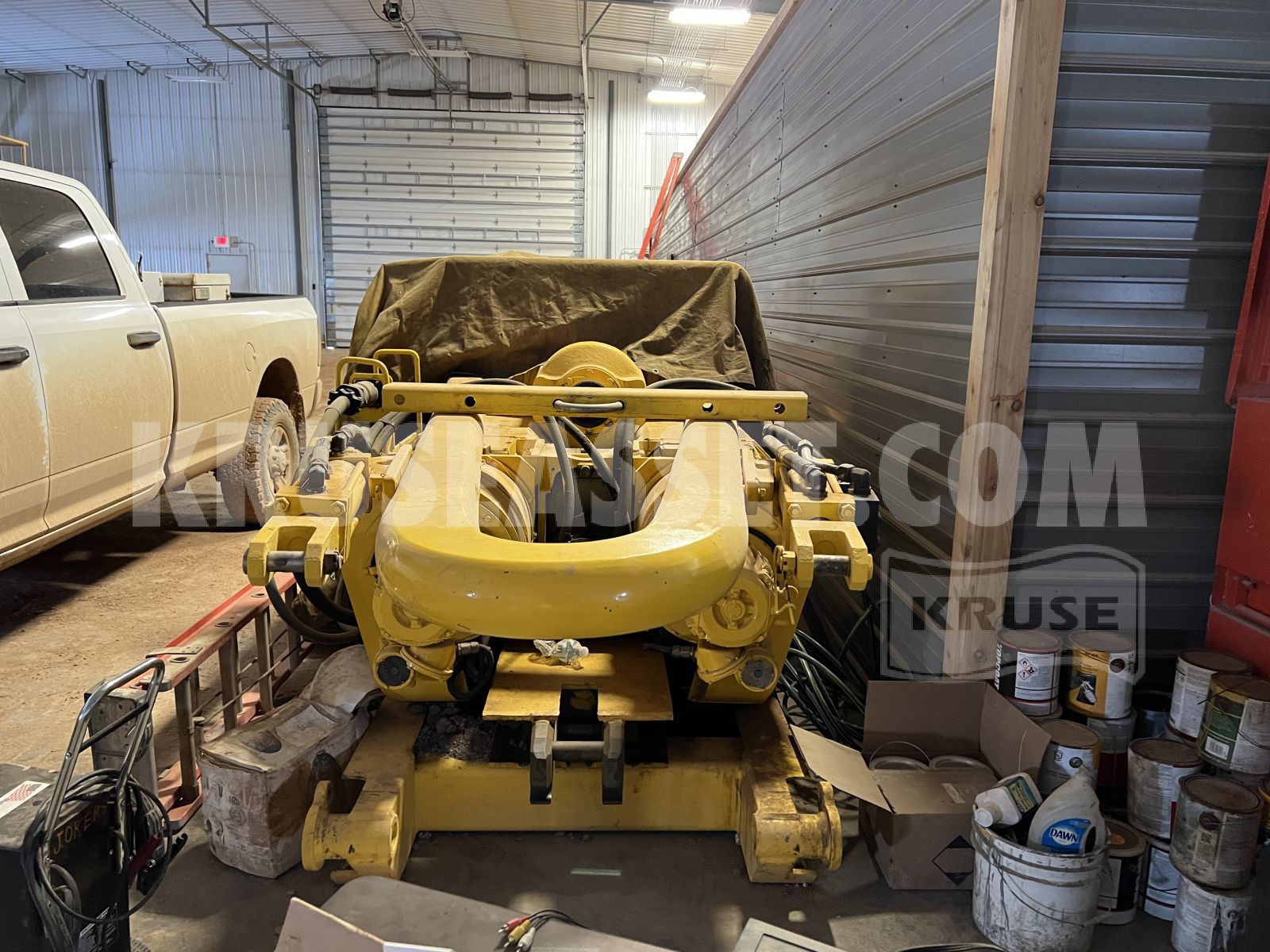

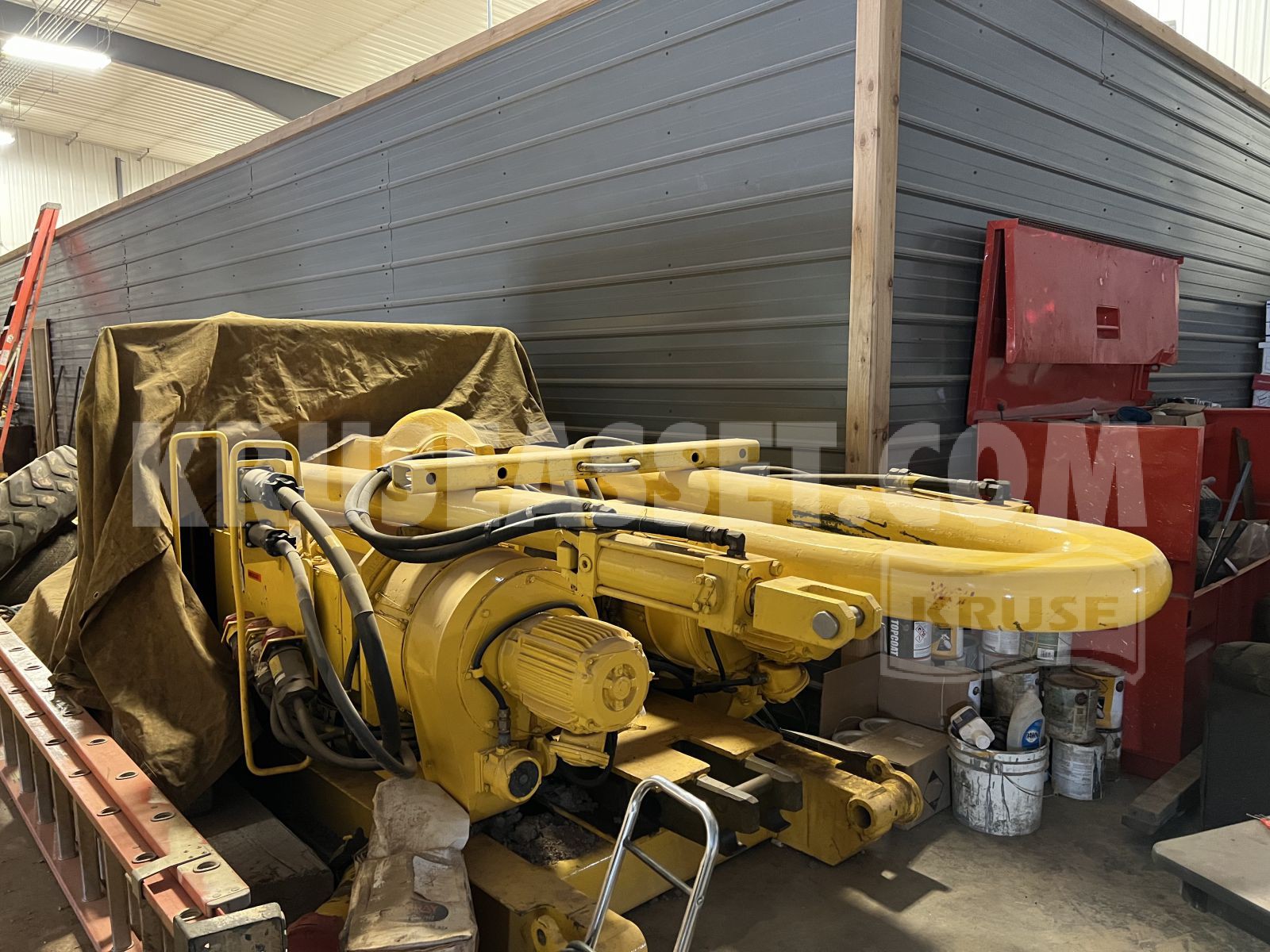

HANDLING TOOLS:  500 Ton Handling tools for Contractor's Drill Pipe and Drill Collars, Blohm & Voss Hydraulic Floorhand, and rotating mouse hole.

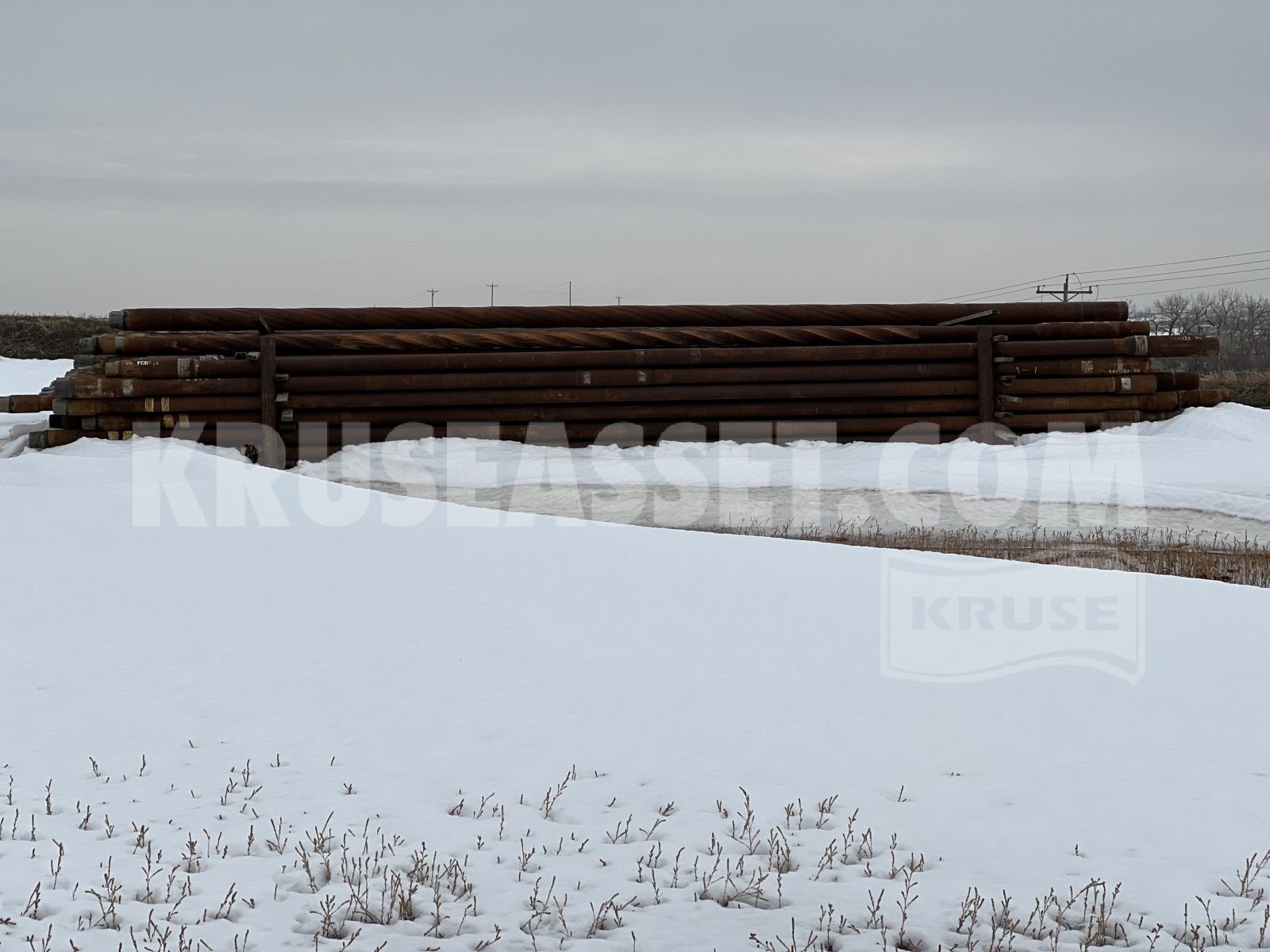

DRILL STRING:          Drill Pipe - 10,717 feet 340 jts - 5" OD, 19.50 4 ½ IF Grade S-135 Drill Collars - 6-Jts. - 8" OD6 5/8 REG

Drill Collars - 6-Jts. - 9" OD 75/8 REG HWDP 50jts-5"-with 4 ½ IF thread Assorted XO subs and lift subs



AUXILIARY EQUIP:   Mathey .092 Wireline Measuring Unit. 2- Ingersoll Rand, K5UL Air hoist for handling tubulars.

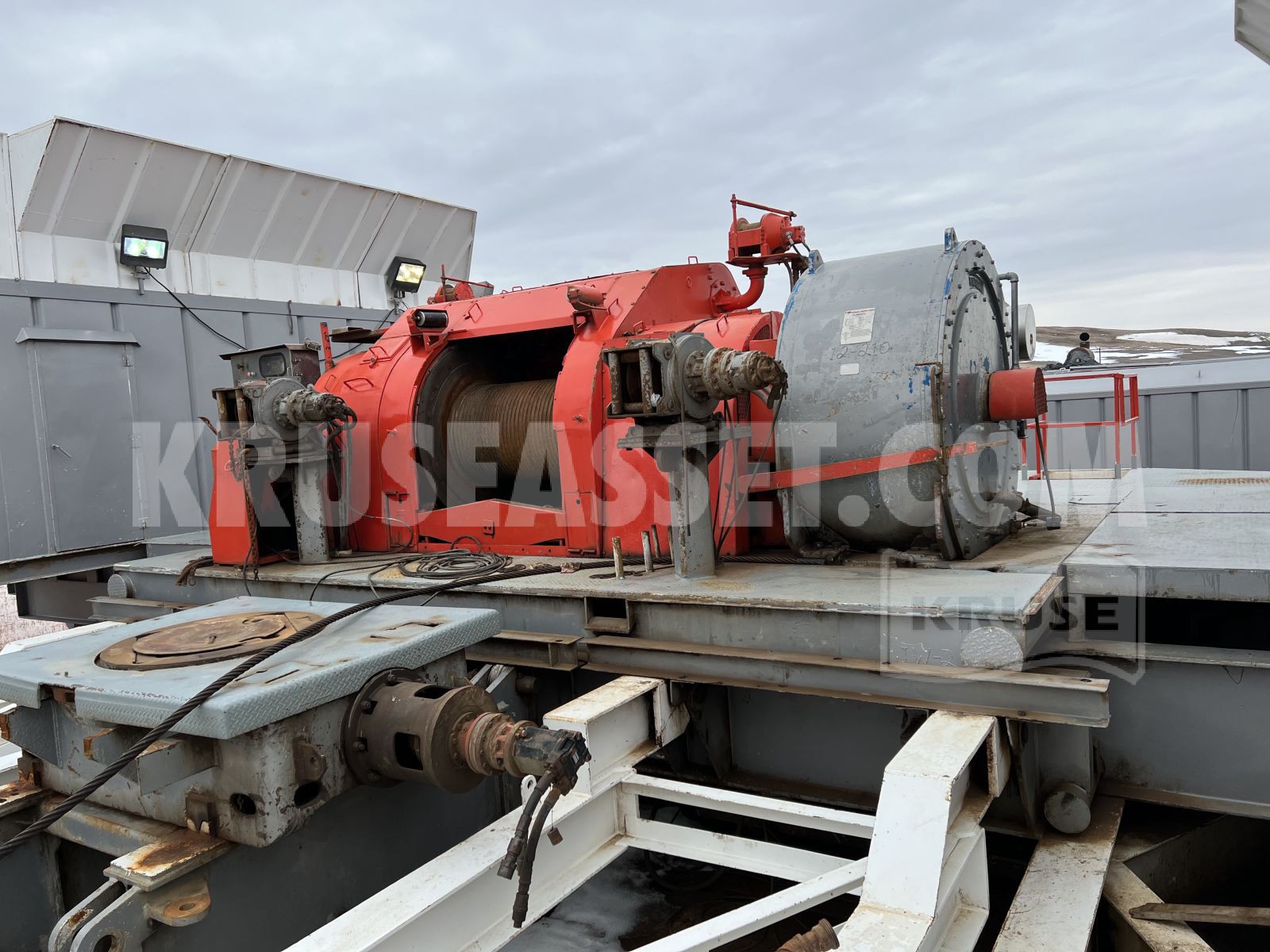

2 Hyd boom pole winches

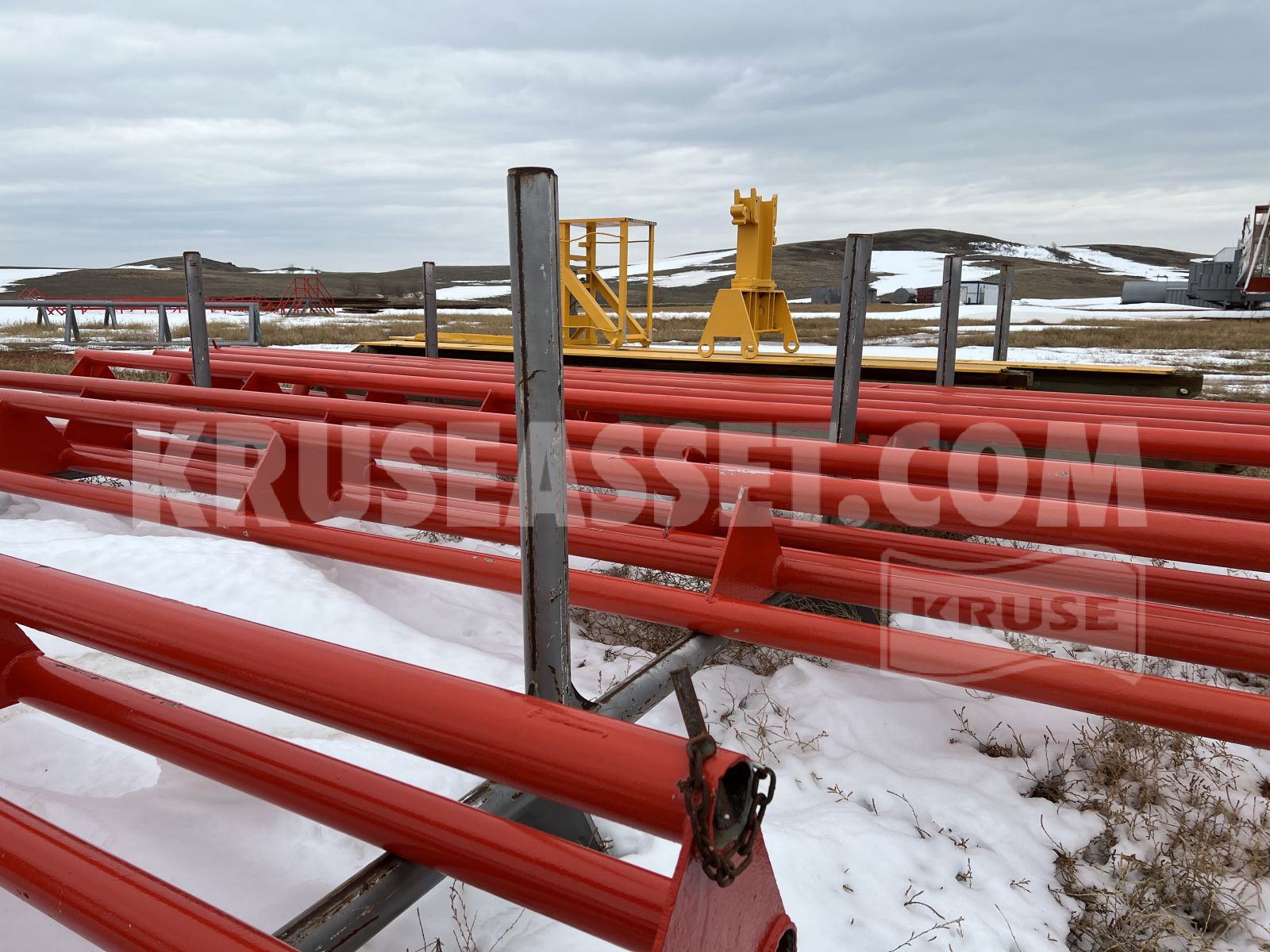

Pipe Racks Three (3 sets) 18" Tall V-Door Ramp withStairs

Shaker Manifold - 12" pipe with outlets

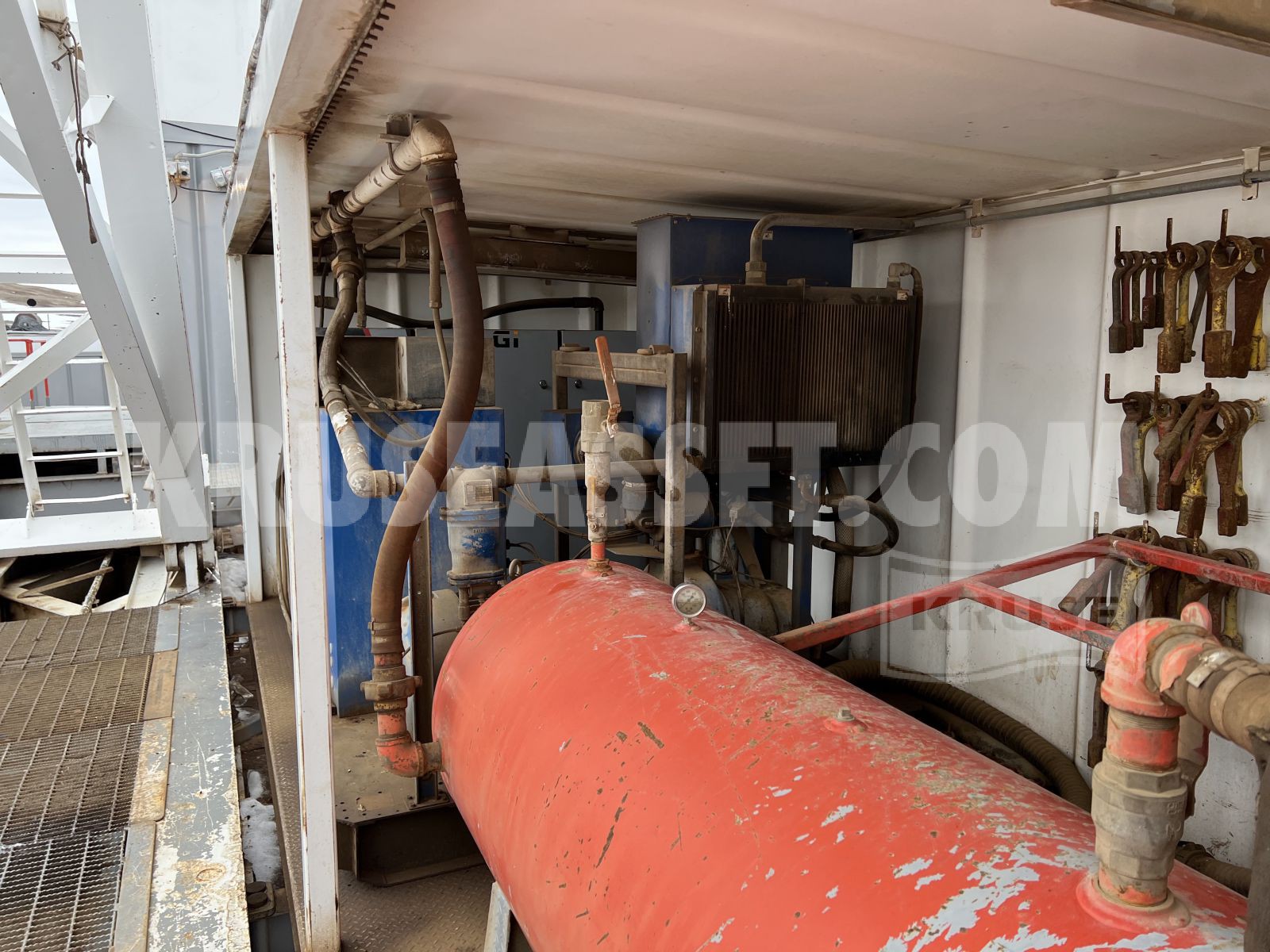

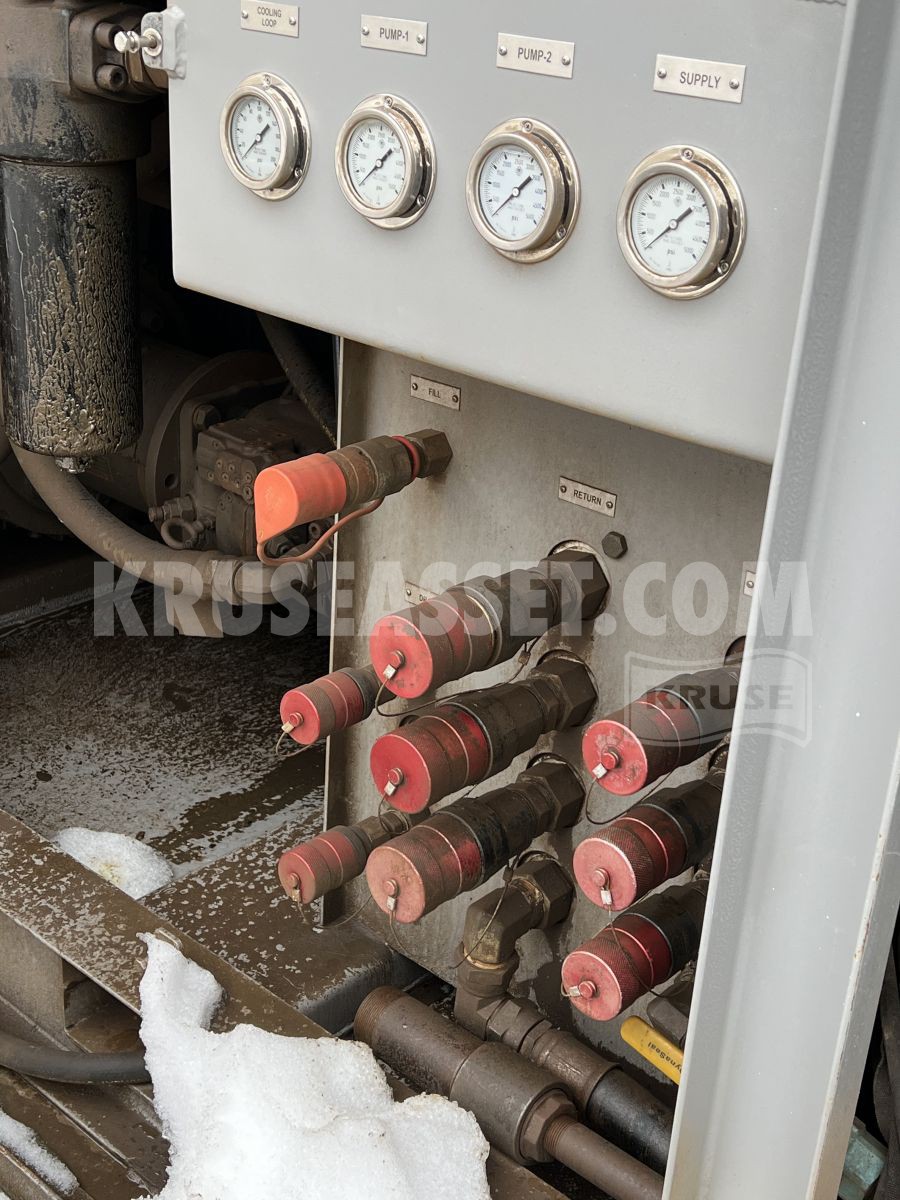

Hydraulic Power Unit- 2-100 hp max min 75 - hoses and hydraulic lines Cat walk two piece 18" H x50' L

Martin Decker weight indicator Elevator Links, 500 ton

Drill Pipe Elevators Drill Pipe Slips

Drill Collar Elevators

Manual Tongs Type DB with 3 ½" - 10 ¾" jaws

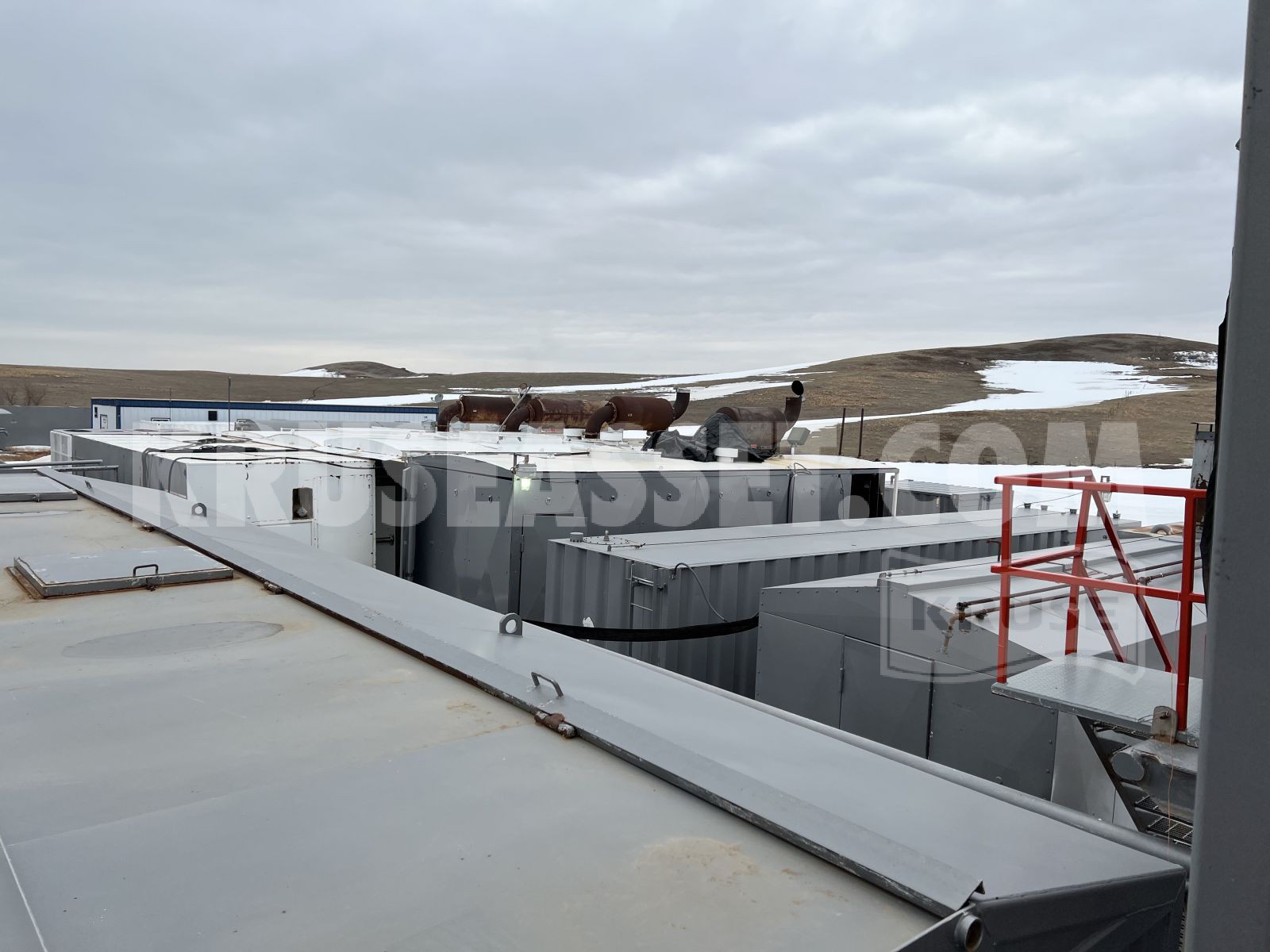

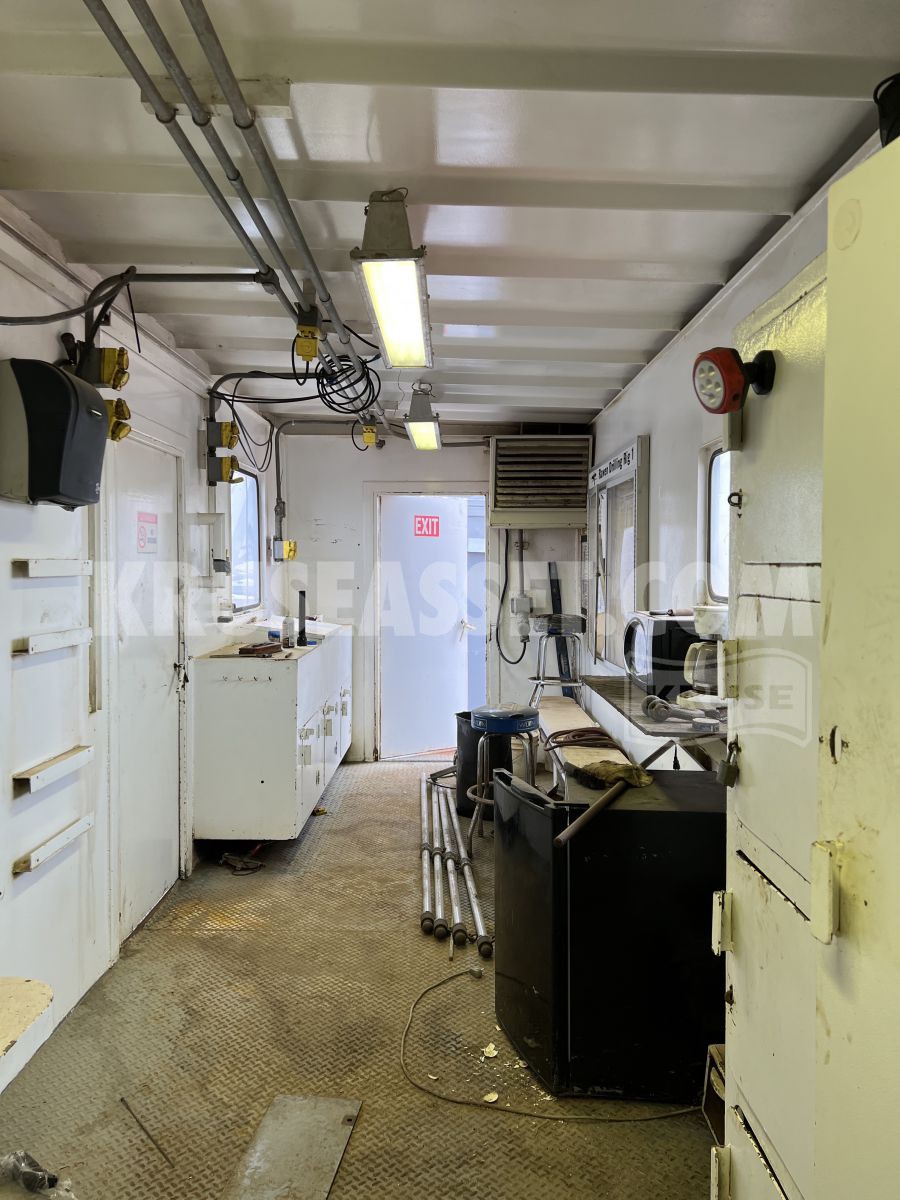

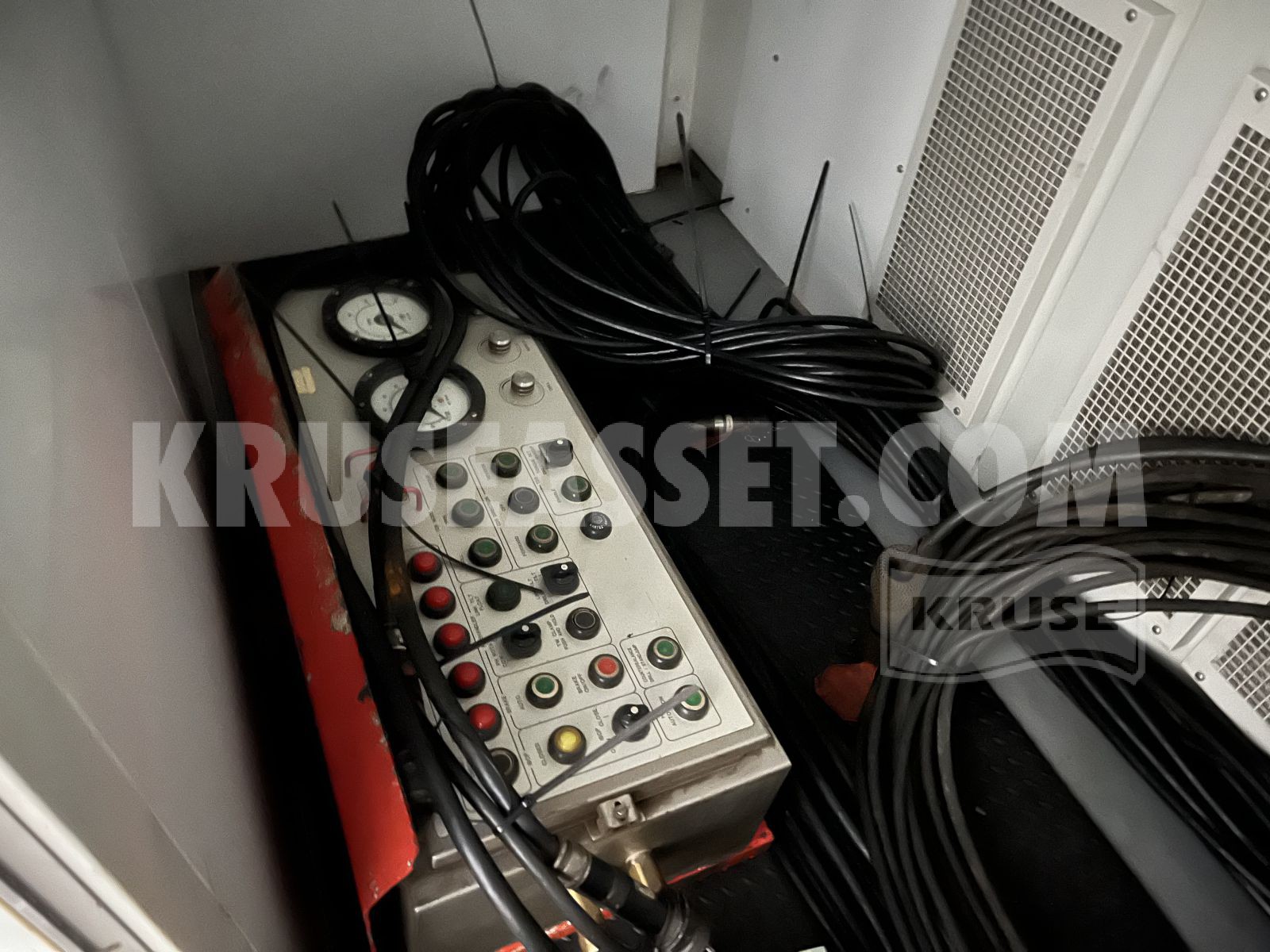

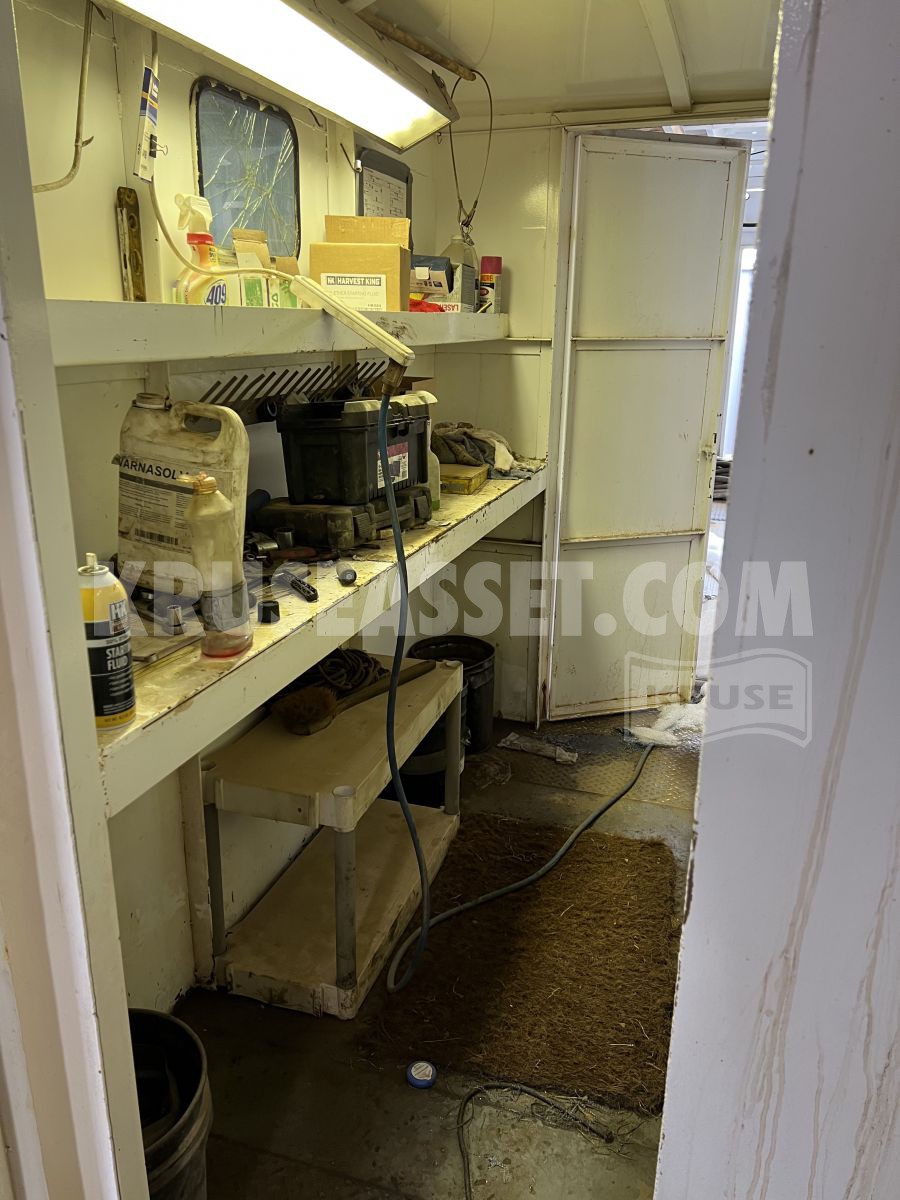

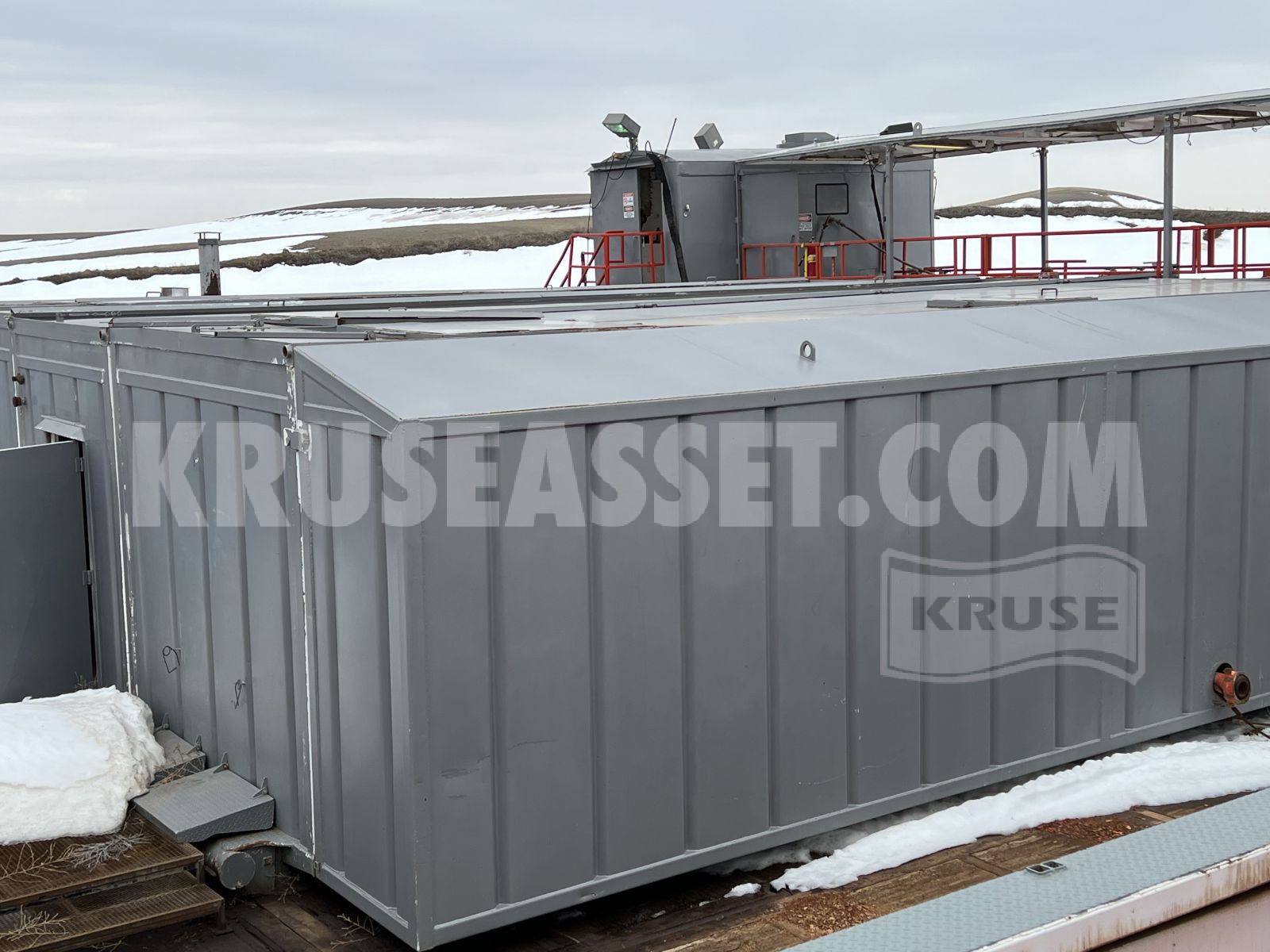

HOUSES:                    Top Dog House -Knowledge Box. Tool Benches w/ Koomey type 80, Remote Control

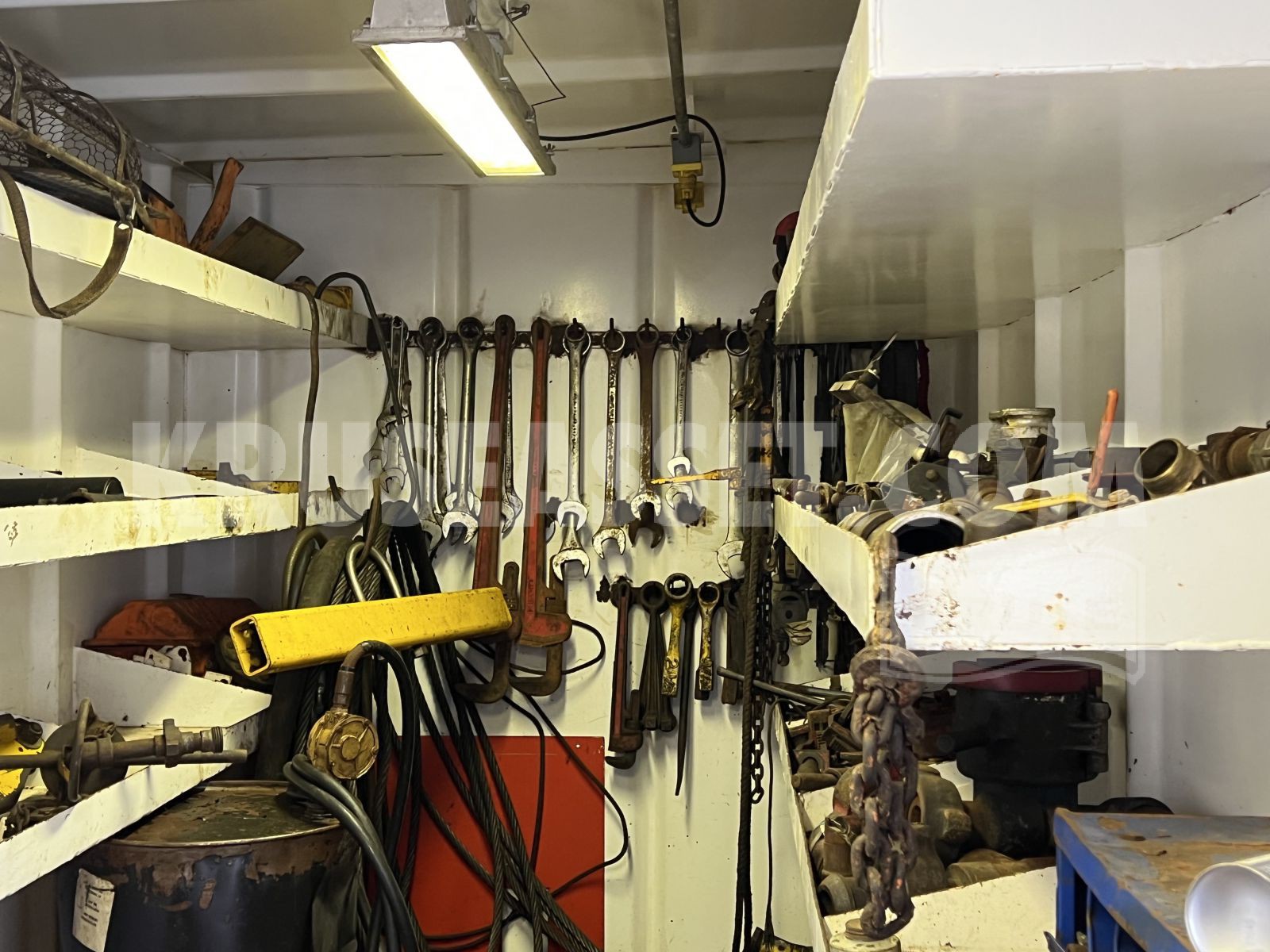

Bottom Change House w/ 16 Lockers/ Parts House lea. - Tool House/Paintlocker

lea. - Parts Storage House







UPDATED 5/2/22









Listing No. 386
